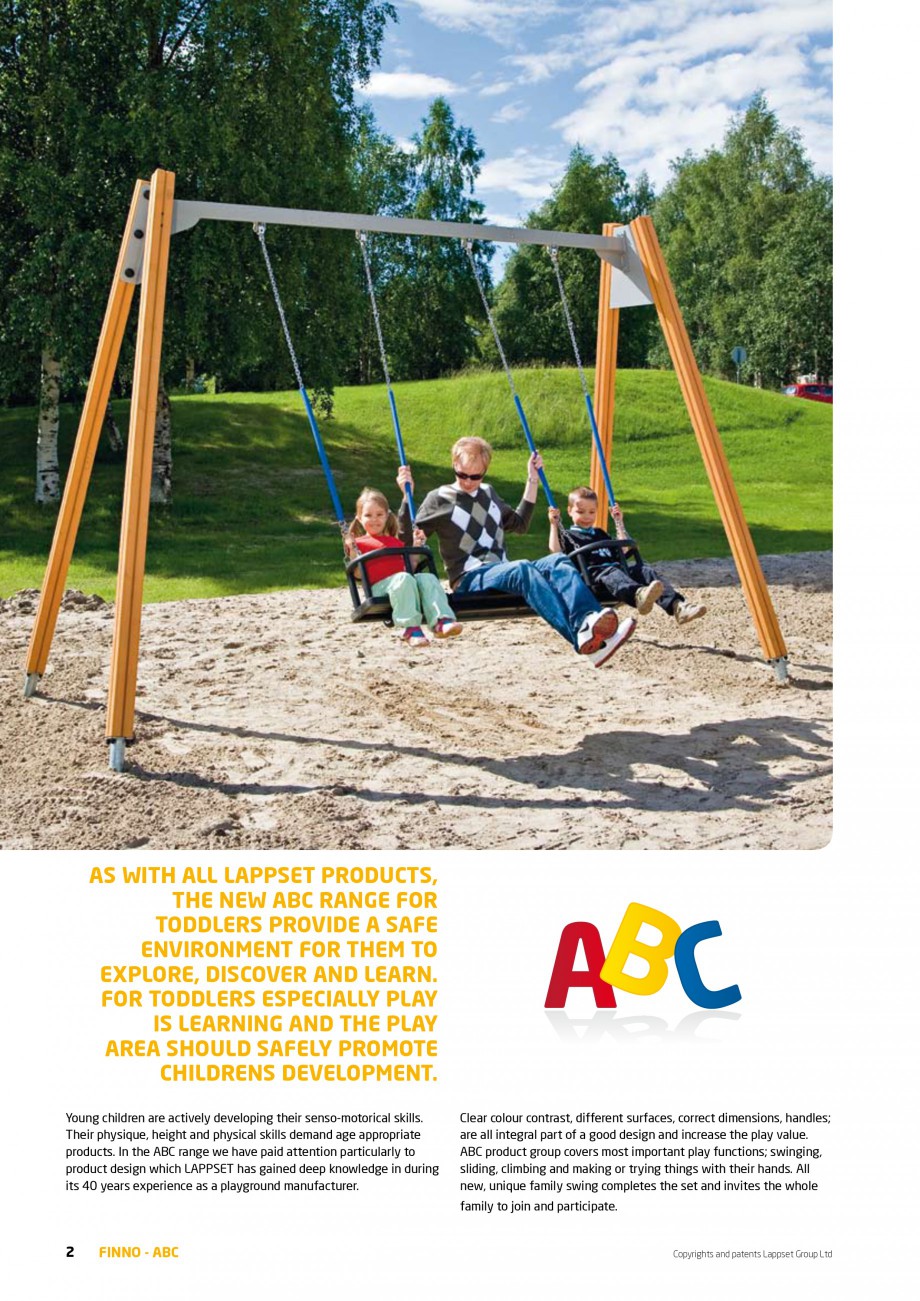

FINNO - ABC Copyrights and patents Lappset Group Ltd FINNO - ABC AS WITH ALL LAPPSET PRODUCTS, THE NEW ABC RANGE FOR TODDLERS PROVIDE A SAFE ENVIRONMENT FOR THEM TO EXPLORE, DISCOVER AND LEARN. FOR TODDLERS ESPECIALLY PLAY IS LEARNING AND THE PLAY AREA SHOULD SAFELY PROMOTE CHILDRENS DEVELOPMENT. Young children are actively developing their senso-motorical skills. Their physique, height and physical skills demand age appropriate products. In the ABC range we have paid attention particularly to product design which LAPPSET has gained deep knowledge in during its 40 years experience as a playground manufacturer. Clear colour contrast, different surfaces, correct dimensions, handles; are all integral part of a good design and increase the play value. ABC product group covers most important play functions; swinging, sliding, climbing and making or trying things with their hands. All new, unique family swing completes the set and invites the whole family to join and participate.

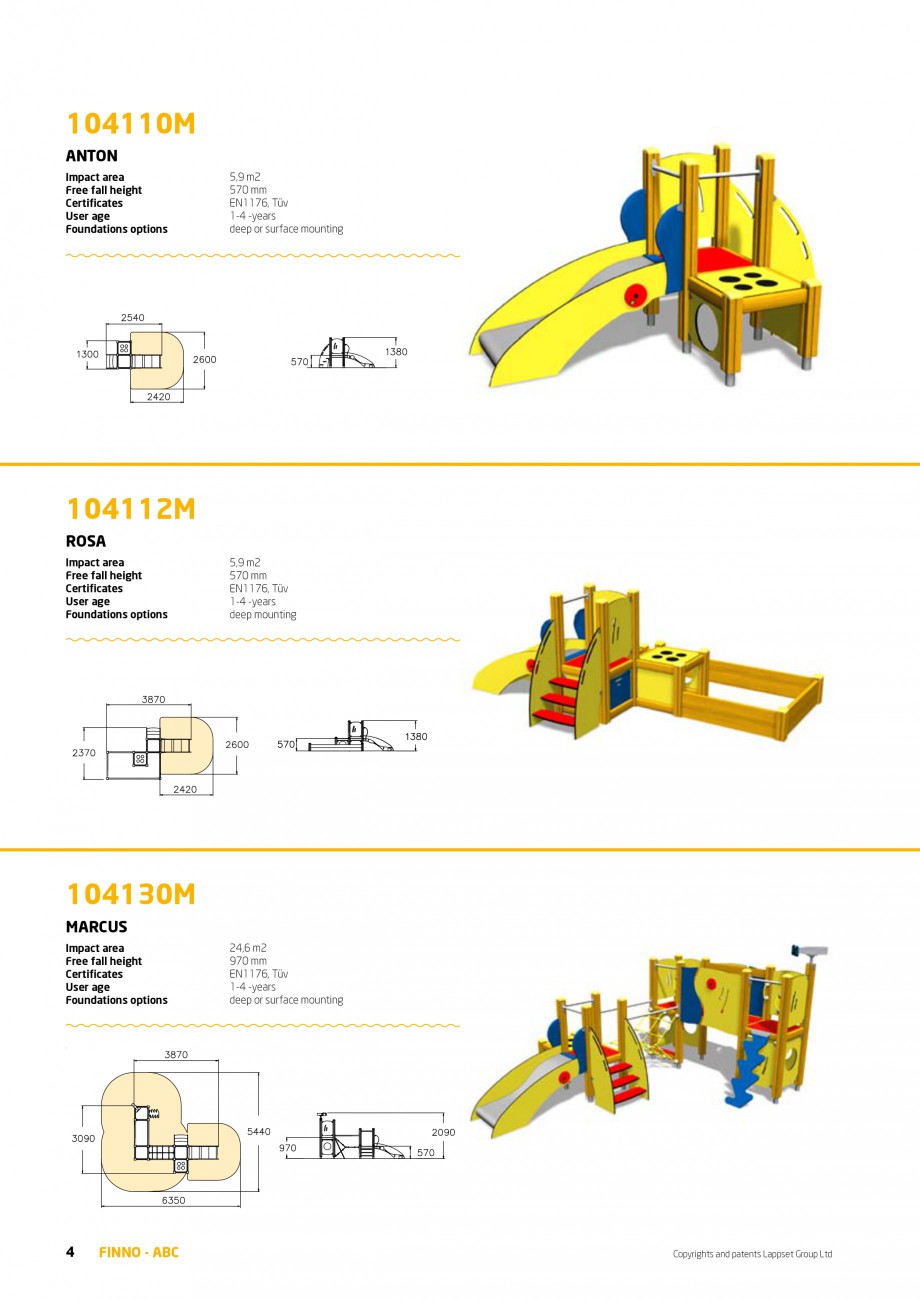

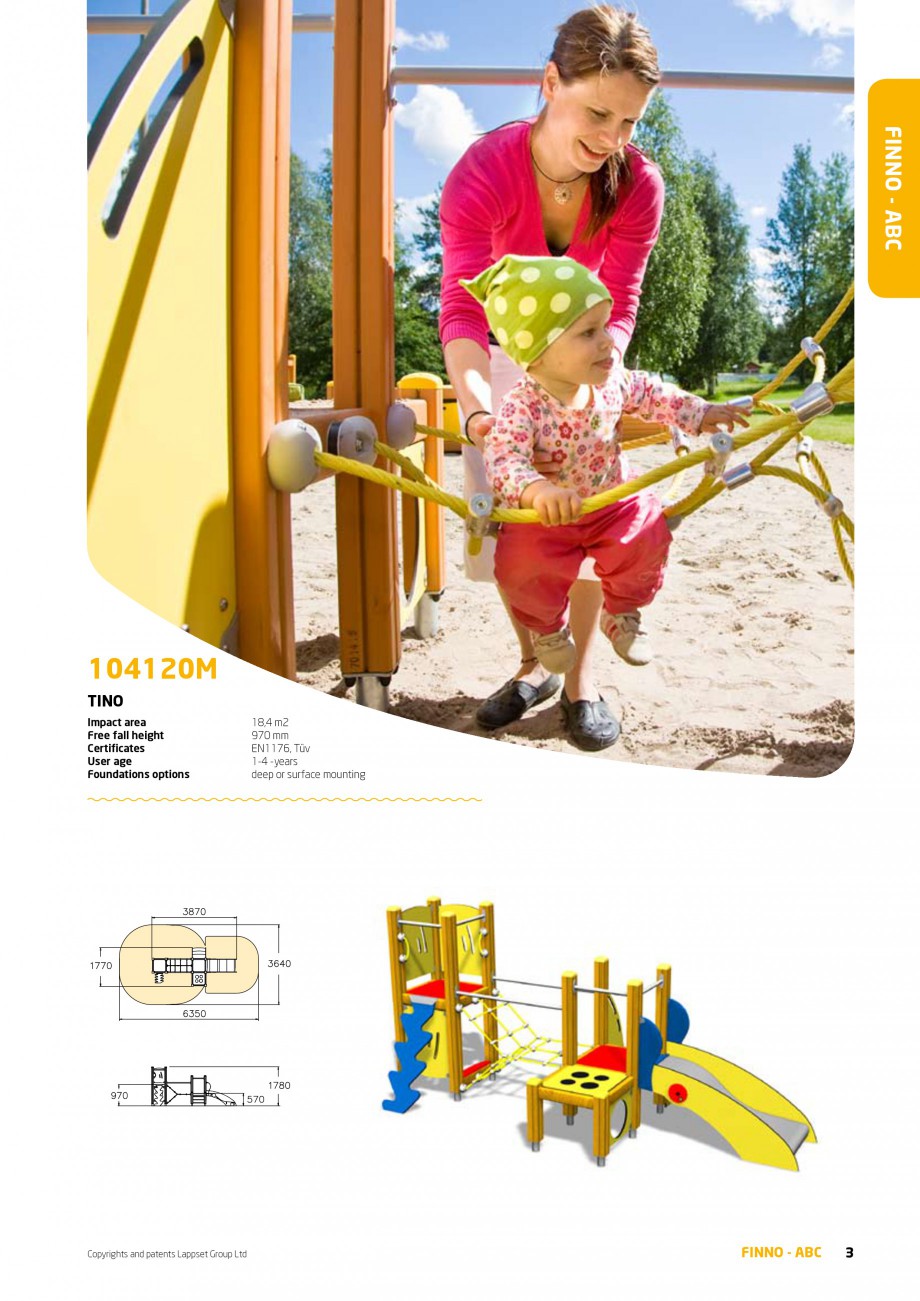

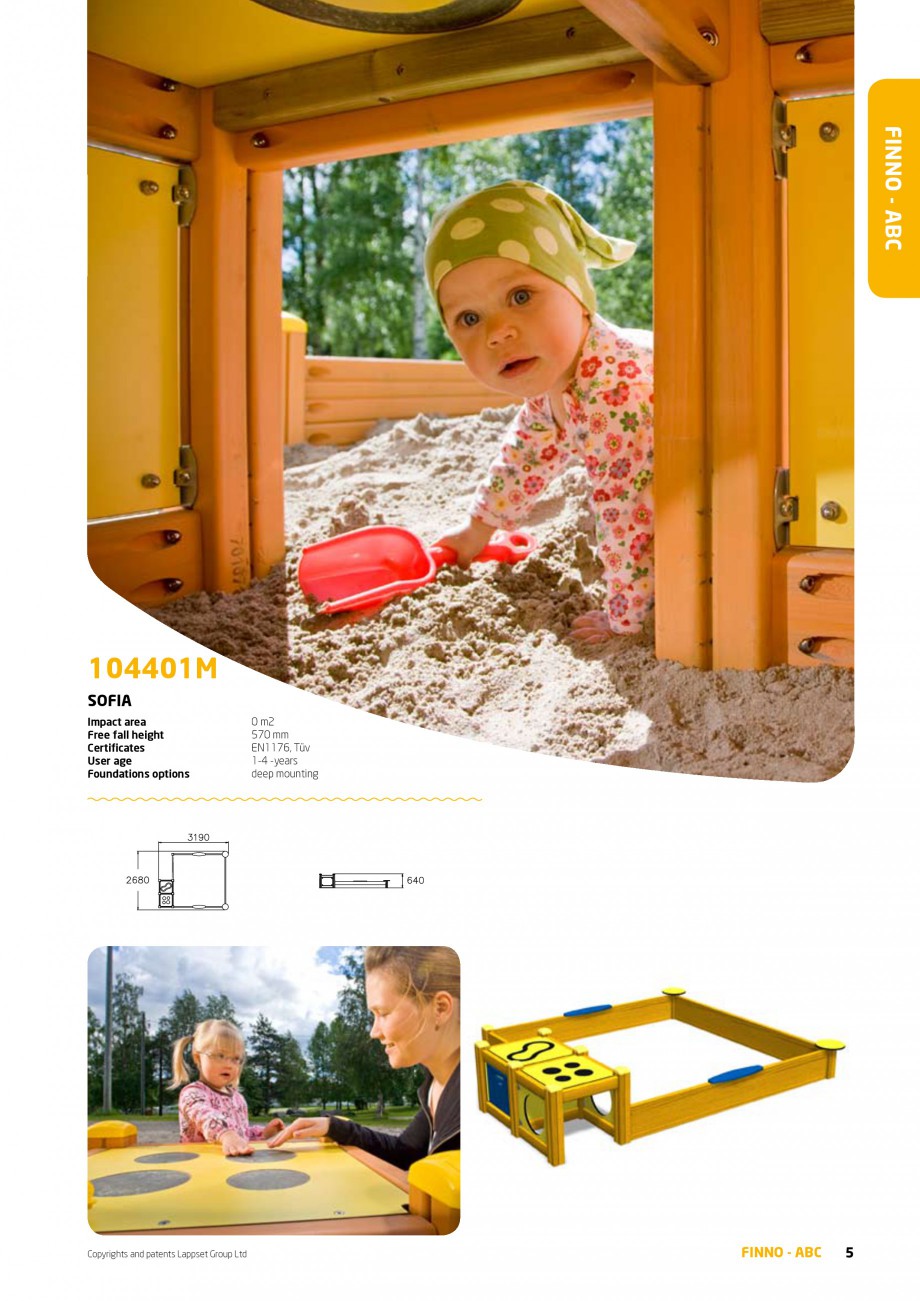

FINNO - ABC Copyrights and patents Lappset Group Ltd FINNO - ABC 104120M TINO Impact area Free fall height Certificates User age Foundations options Copyrights and patents Lappset Group Ltd 18,4 m2 970 mm EN1176, Tüv 1-4 -years deep or surface mounting FINNO - ABC 104110M ANTON Impact area Free fall height Certificates User age Foundations options 5,9 m2 570 mm EN1176, Tüv 1-4 -years deep or surface mounting 104112M ROSA Impact area Free fall height Certificates User age Foundations options 5,9 m2 570 mm EN1176, Tüv 1-4 -years deep mounting 104130M MARCUS Impact area Free fall height Certificates User age Foundations options FINNO - ABC 24,6 m2 970 mm EN1176, Tüv 1-4 -years deep or surface mounting Copyrights and patents Lappset Group Ltd FINNO - ABC 104401M SOFIA Impact area Free fall height Certificates User age Foundations options Copyrights and patents Lappset Group Ltd 0 m2 570 mm EN1176, Tüv 1-4 -years deep mounting FINNO - ABC 104402M

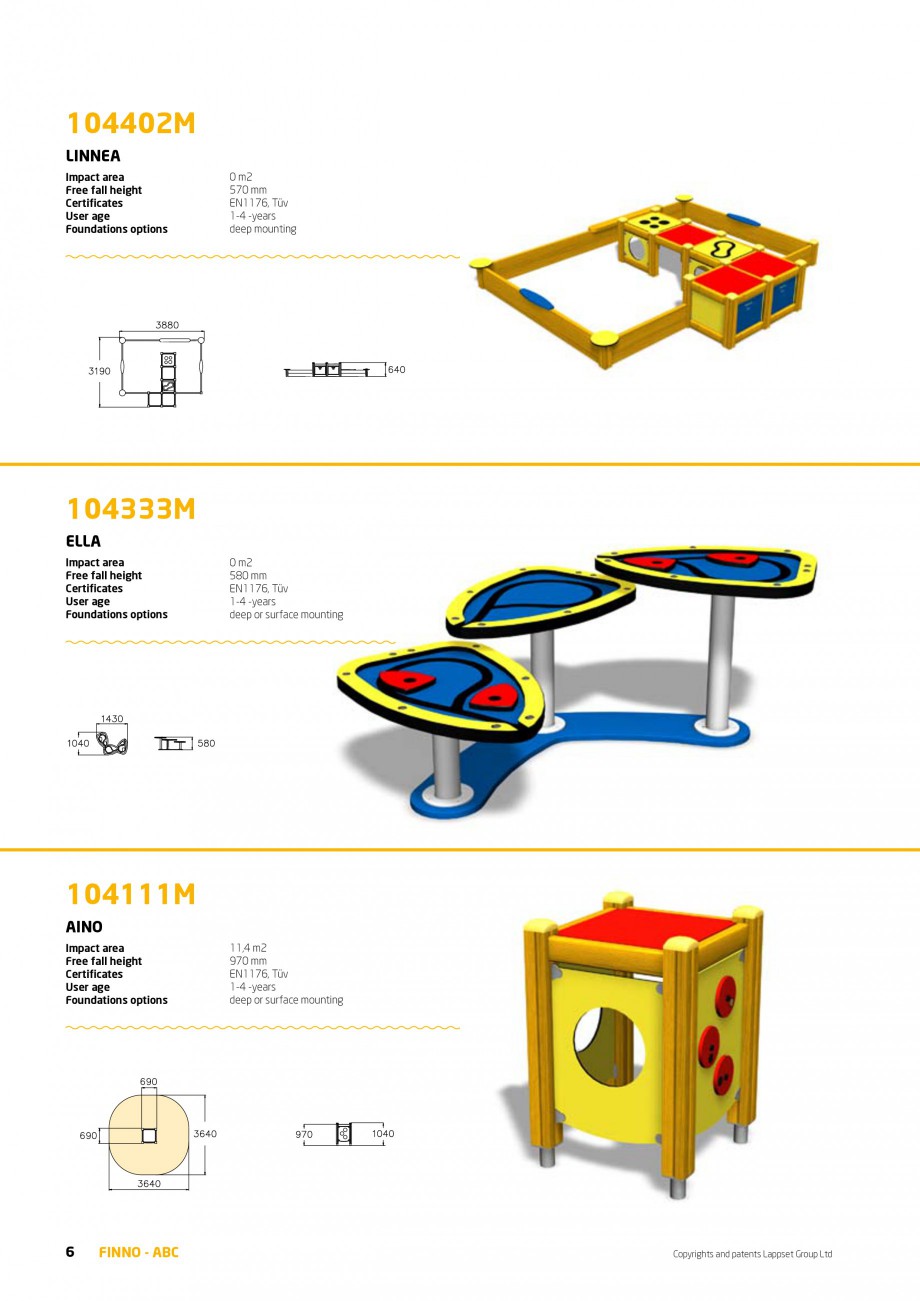

LINNEA Impact area Free fall height Certificates User age Foundations options 0 m2 570 mm EN1176, Tüv 1-4 -years deep mounting 104333M ELLA Impact area Free fall height Certificates User age Foundations options 0 m2 580 mm EN1176, Tüv 1-4 -years deep or surface mounting 104111M AINO Impact area Free fall height Certificates User age Foundations options FINNO - ABC 11,4 m2 970 mm EN1176, Tüv 1-4 -years deep or surface mounting Copyrights and patents Lappset Group Ltd FINNO - ABC 000104 HUGO & INES Certificates User age EN1176, Tüv 1-4 -years J31934M J51511M NICO PICO Impact area Free fall height Certificates User age Foundations options 0 m2 0 mm EN1176, Tüv 1-4 -years deep mounting Impact area Free fall height Certificates User age Foundations options 8,5 m2 0 mm EN1176, Tüv 1-4 -years deep mounting GENERAL MATERIAL SPECIFICATIONS Wood Protection We use water-borne paints to improve surface properties and to protect the wood against the sun’s ultraviolet
irradiation and aureobasidium. Some painted surfaces are further protected with a layer of varnish. Old, impregnated timber can be taken to a collection point operated by a construction materials provider or a waste disposal authority. Larger quantities of timber must be delivered directly to a waste disposal site from where they will be recycled. Plywood, High Pressure Laminate (HPL) Depending on the circumstances, we use 6,5 –24 mm plywood or high pressure laminate. Steel Feet The posts and pillars usually have metal feet. Bolts are glued onto wooden pillars to allow a flange to be attached for mounting the feet. The vertical tensile breaking strength of the joint between the post and the steel foot is 60,000 N. The post’s transverse strength is 2,200 Nm (220 kgm). Metal Components Metal components are made of stainless steel, aluminium or hot-dip galvanised steel. Metal surfaces can be sand-blasted or treated with zinc epoxy paint and powdered paint or electrodeposited zinc coa
ting and powdered paint. The aluminium parts are chrome-plated and painted or anodised. The metal parts have excellent weather-resistance properties and a finished look. Plastic Components The basic components are made of polyethylene, polyamide, polypropylene, polycarbonate or TPE. Plastic parts with significant loading are made of fibre reinforced plastic. The plastic materials are recyclable. Copyrights and patents Lappset Group Ltd Ropes The ropes in the nets are made of polyester, polypropylene or polyamide reinforced with steel fibres, and have diameters of 16 or 18 mm. Rope ladders are made with ropes of 16 mm in diameter, which are protected against UV irradiation. The materials and the braiding on the surface of the ropes have been chosen on the basis of their good resistance to wear and UV irradiation. The comprehensive service provided by Lappset Group Oy includes expert assistance where necessary in designing, servicing and maintaining playgrounds. We place particular emph
asis on the importance of regular servicing and maintenance to ensure safety in playgrounds. We meet the expectations of our customers with respect to product specifications, installation and servicing instructions and the availability of spare parts. We also make recommendations to the customer concerning the use and servicing of playgrounds. All equipment will have to be designed on the principle that any child — of any age — who can climb into the equipment without outside help must be able to cope with the challenges and potential dangers that the equipment presents. The equipment may have components that are easily accessible and components that are more difficult to conquer. Different safety requirements apply to these components in relation to preventing children from falling off the equipment, for example. We develop our products constantly paying attention to international standards concerning both safety and quality. Therefore we reserve the right to modify our products a

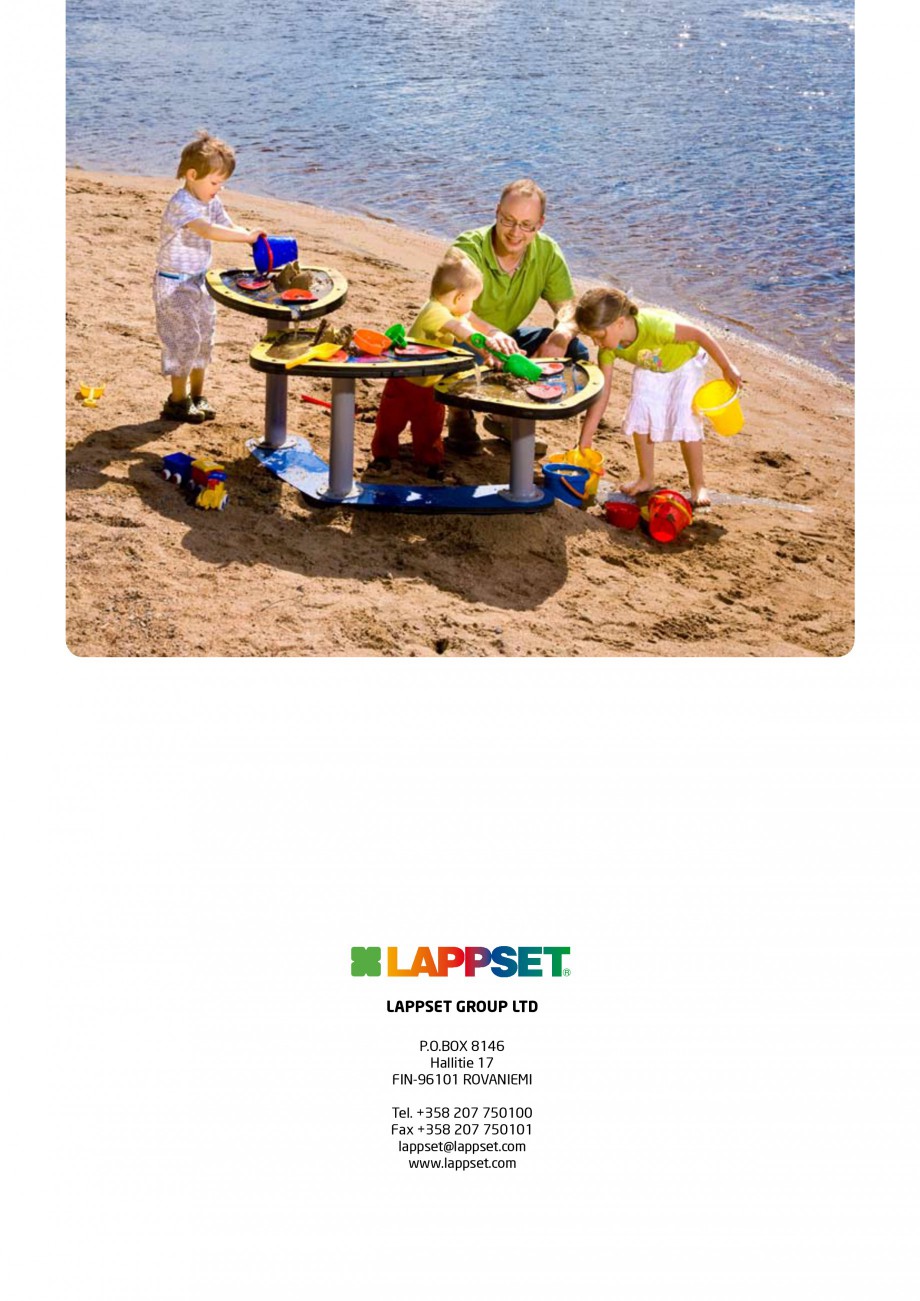

nd prices. Lappset holds valid patent and design protection for its equipment. All rights reserved. FINNO - ABC LAPPSET GROUP LTD P.O.BOX 8146 Hallitie 17 FIN-96101 ROVANIEMI Tel. +358 207 750100 Fax +358 207 750101 lappset@lappset.com www.lappset.com FINNO - ABC Copyrights and patents Lappset Group Ltd
