Cortine antifum KADRA FSV

Limba: Engleza

67 afisari

Tip documentatie: Fisa tehnica

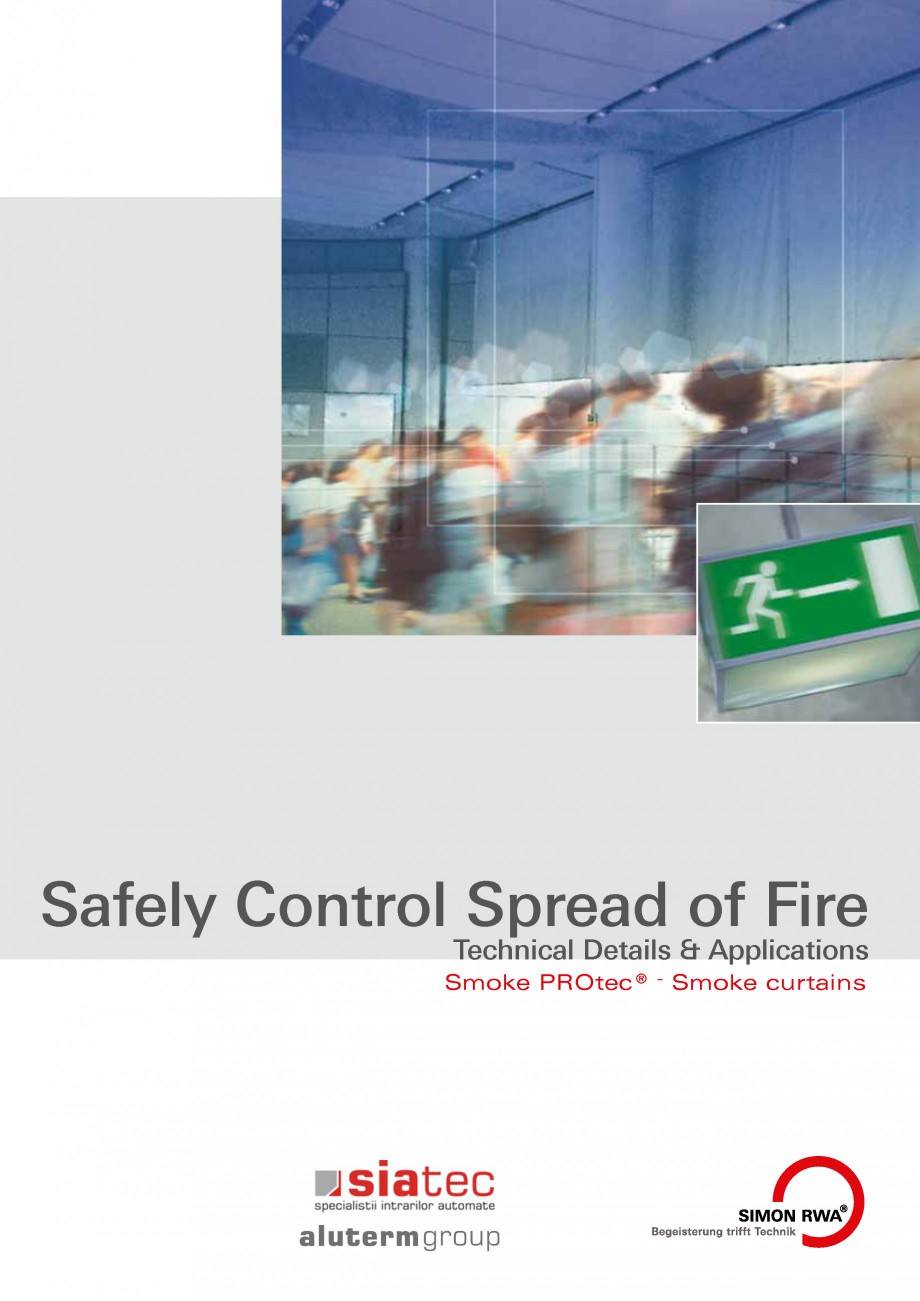

Pagina 1 - Cortine antifum KADRA FSV Fisa tehnica Engleza Safely Control Spread of Fire
Technical...

Safely Control Spread of Fire Technical Details & Applications ® Smoke PROtec Smoke curtains Farben: Vollton: Rot HKS 13 CMYK: 0c / 100 m / 100 y / 0 k Schwarz 50 % Schwarz (Slogan) ® Smoke Curtain Smoke PROtec Table of Contents: * Introduction * Application Range * Technical Details * Approval and Tests * Reference examples (smoke curtain / space enclosing) Introduction Smoke curtains are an important part in modern fire protection concepts to prevent the spread of smoke in buildings and to secure escape and rescue routes. The use of these mobile systems sets standards for the creative freedom of buildings. Automatic smoke curtains are applied especially in buildings with a high-volume of people, such as shopping malls, car parks or public facilities: * Shopping centres * Hospitals * Airports * Subway Train Stations * Industry halls * Schools * Hotels From EN 12101-1: Smoke barriers control the movement of fire effluent within a construction works in the ev

Pagina 1-Cortine antifum KADRA FSV Fisa tehnica Engleza Safely Control Spread of Fire
Technical Details &...

Pagina 2 - Cortine antifum KADRA FSV Fisa tehnica Engleza ent of fire. Smoke barriers, when used...

ent of fire. Smoke barriers, when used within a smoke and heat control system, become a critical element of that system. If smoke barriers are not in their fire operational position, the system will not perform as designed. However, even in the event that other elements of the SHEVS do not function, smoke barriers in the fire operational position will provide essential smoke containment and channelling. 2 ® Smoke Curtain Smoke PROtec Application range: Parts from EN 12101-1: The function of smoke barriers is to control the movement of fire effluent within construction works by forming a barrier. The functions of active or manually deployed smoke barriers are identical to those of static smoke barriers, but they also have the ability to be retracted and concealed when not in use. Typical functions of smoke barriers are: * to create a smoke reservoir by containing and limiting the travel of the smoke; * to channel smoke in a pre-determined direction; * to prevent or retard smo
