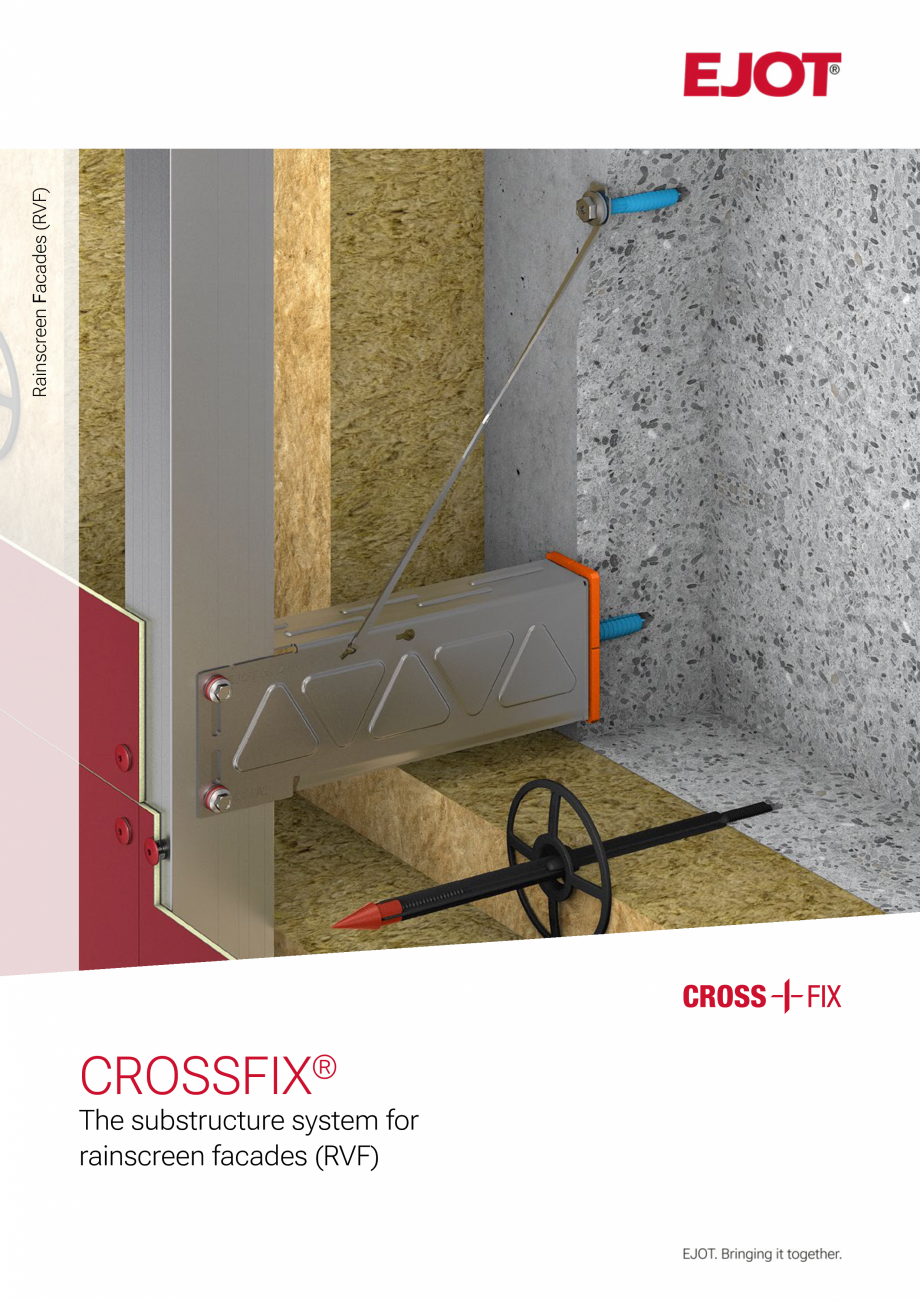

Rainscreen Facades (RVF) CROSSFIX® The substructure system for rainscreen facades (RVF) CROSSFIX ® substructure system The rainscreen facade Manifold, energy efficient and durable The rainscreen facade (RVF) is undisputedly the most diverse of the facades. It scores with its long-lasting service, offers great design freedom and is extremely popular with architects. Contrary to other facade types no requirements are placed on the RVF regarding the building statics, be-cause it is only hung in front of the actual loadbearing wall. And exactly this decoupling of statics, thermal and weather protection is what enables architects and builders to have a very high design freedom and versatility. 2 Manifold construction possibilities The construction possibilities for exterior wall cladding are almost limitless. In addition to a wide range of possible raw materials for wall cladding, it is the colours in particular that give the building its character and individuality, visible from a

Pagina 1-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza Rainscreen...

Pagina 2 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza far.
...

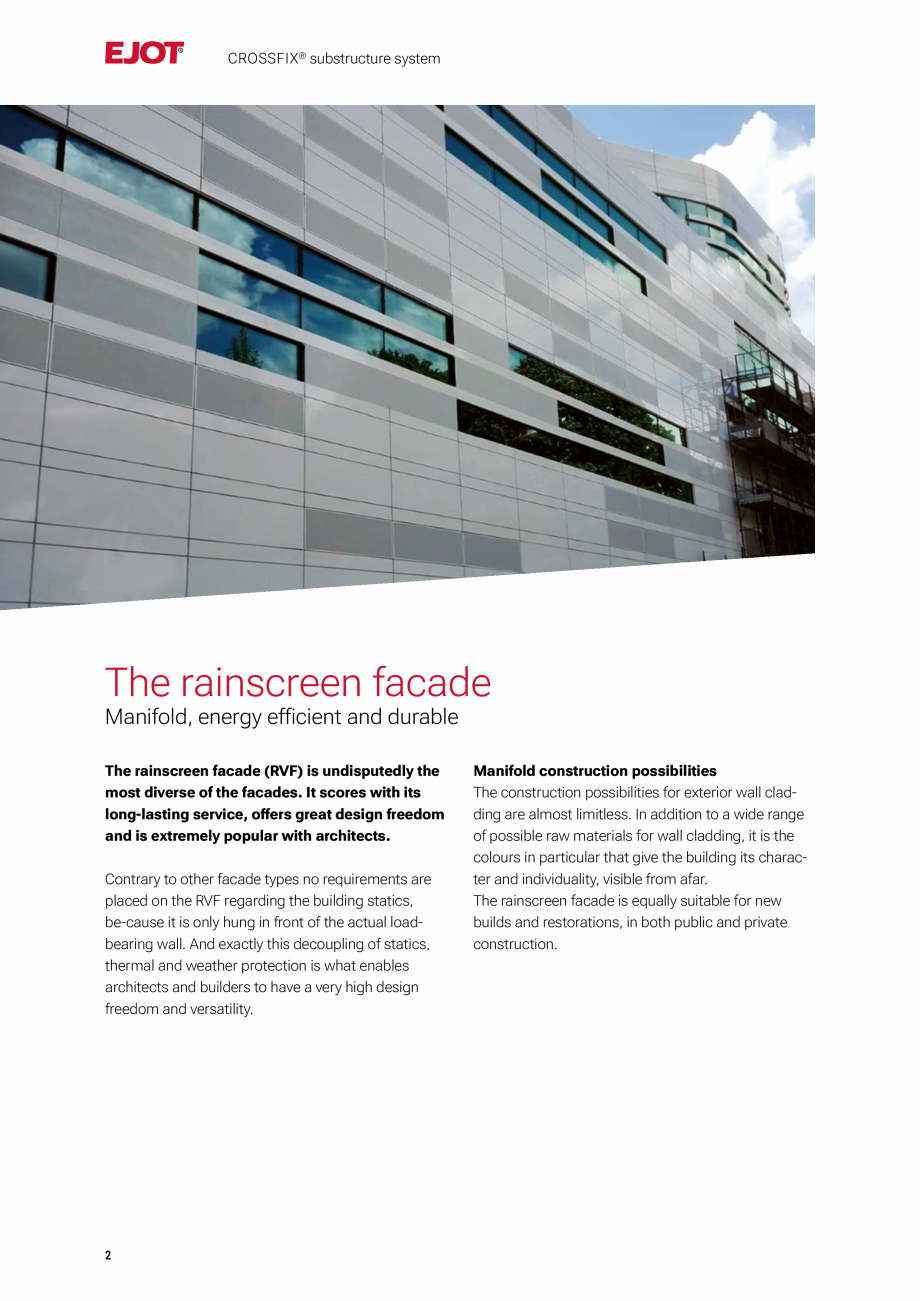

far. The rainscreen facade is equally suitable for new builds and restorations, in both public and private construction. CROSSFIX ® substructure system Of lasting value In addition to the design freedom, the RVF also scores in the areas of sustainability and economic efficiency. Because to plan and build a building is one thing. The other thing is the preservation of an intact function throughout the lifecycle and the proper handling of the used-up resources at the end of life. The individual components of the facade have a very long-lasting service and can be dismantled and returned to the material cycle at the end of their useful life. The use of nearly any insulation thickness and modern substructures enables U-values for the highest energy requirements. Special fastening technology Every facade must be securely fastened to the loadbearing outer wall. In this case the substructure is the static link. The different fastening elements at this point are literally playing a key role

Pagina 2-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza far.
The...

Pagina 3 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ,...

, even though they seem to be insignificant. Because they ensure that all system components, such as insulation, substructure and facade cladding, are joined in a lasting and secure way. 3 CROSSFIX ® substructure system Convincing all along the line CROSSFIX® – the variable substructure system CROSSFIX® is the first stainless steel substructure system that can be used for horizontal and vertical support profiles. CROSSFIX® increases flexibility, facilitates assembly, saves precious time and reduces your storage costs. The CROSSFIX® console is made of stainless steel and thus significantly reduces the thermal bridge surcharge in the system. With the CROSSFIX® modular system, EJOT delivers everything from a single supplier. In proven quality. www.ejot.com/crossfix ETA-21/0756 ETA-24/0547 Fastening system for facade cladding Fastening screw for wall bracket, metal parts and sheet metal (with intermediate layers) 4 EPD-EJO-20190101CBD1-EN Institute for Steel Constructi

Pagina 3-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza , even though...

Pagina 4 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza on
...

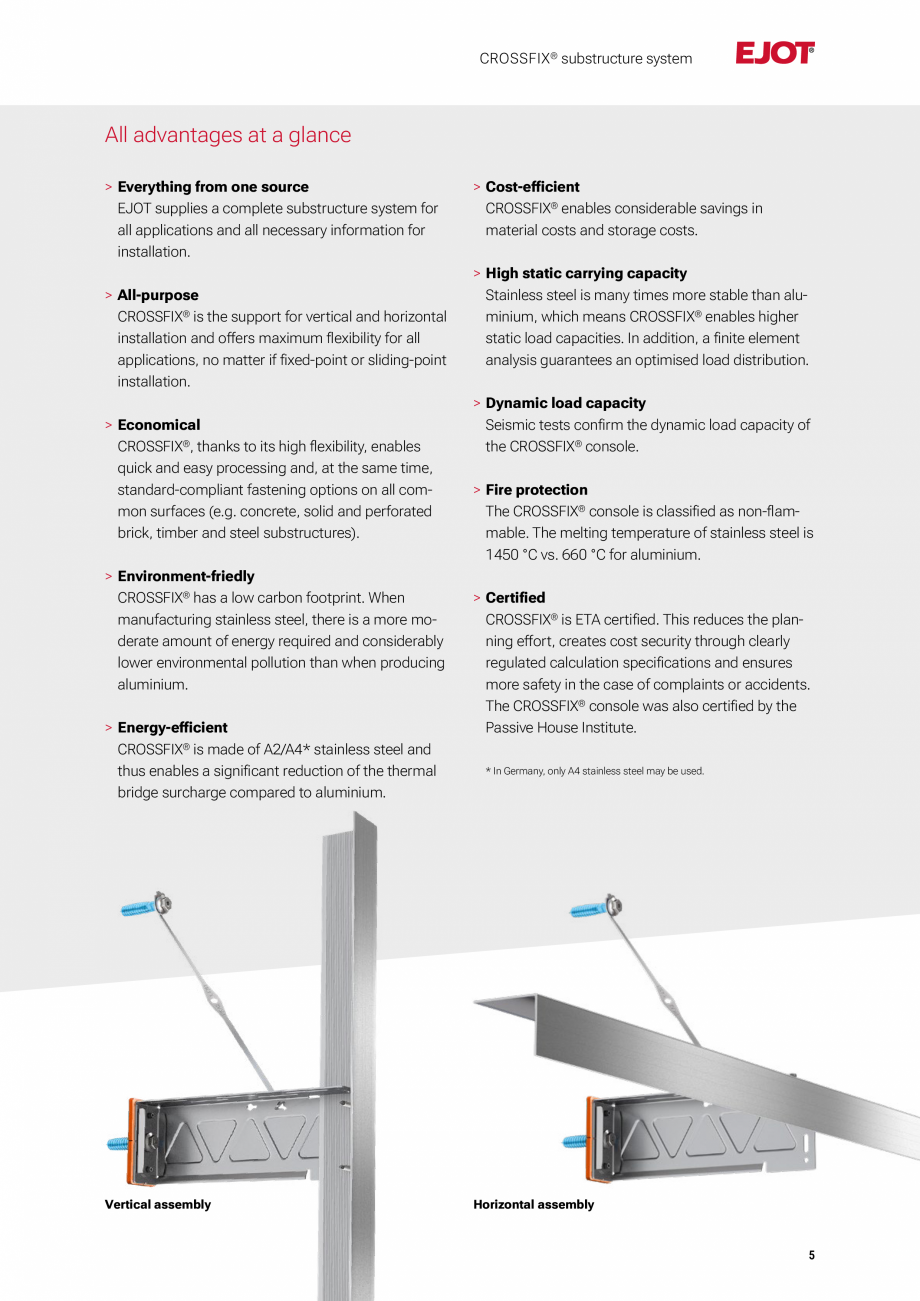

on CROSSFIX ® substructure system All advantages at a glance > Everything from one source EJOT supplies a complete substructure system for all applications and all necessary information for installation. > All-purpose CROSSFIX® is the support for vertical and horizontal installation and offers maximum flexibility for all applications, no matter if fixed-point or sliding-point installation. > Economical CROSSFIX®, thanks to its high flexibility, enables quick and easy processing and, at the same time, standard-compliant fastening options on all common surfaces (e.g. concrete, solid and perforated brick, timber and steel substructures). > Environment-friedly CROSSFIX® has a low carbon footprint. When manufacturing stainless steel, there is a more moderate amount of energy required and considerably lower environmental pollution than when producing aluminium. > Energy-efficient CROSSFIX® is made of A2/A4* stainless steel and thus enables a significant reduction of the thermal bridg

Pagina 4-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza on

CROSSFIX ®...

Pagina 5 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza e...

e surcharge compared to aluminium. Vertical assembly > Cost-efficient CROSSFIX® enables considerable savings in material costs and storage costs. > High static carrying capacity Stainless steel is many times more stable than aluminium, which means CROSSFIX® enables higher static load capacities. In addition, a finite element analysis guarantees an optimised load distribution. > Dynamic load capacity Seismic tests confirm the dynamic load capacity of the CROSSFIX® console. > Fire protection The CROSSFIX® console is classified as non-flammable. The melting temperature of stainless steel is 1450 °C vs. 660 °C for aluminium. > Certified CROSSFIX® is ETA certified. This reduces the planning effort, creates cost security through clearly regulated calculation specifications and ensures more safety in the case of complaints or accidents. The CROSSFIX® console was also certified by the Passive House Institute. * In Germany, only A4 stainless steel may be used. Horizontal assembly 5

Pagina 5-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza e surcharge...

Pagina 6 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ...

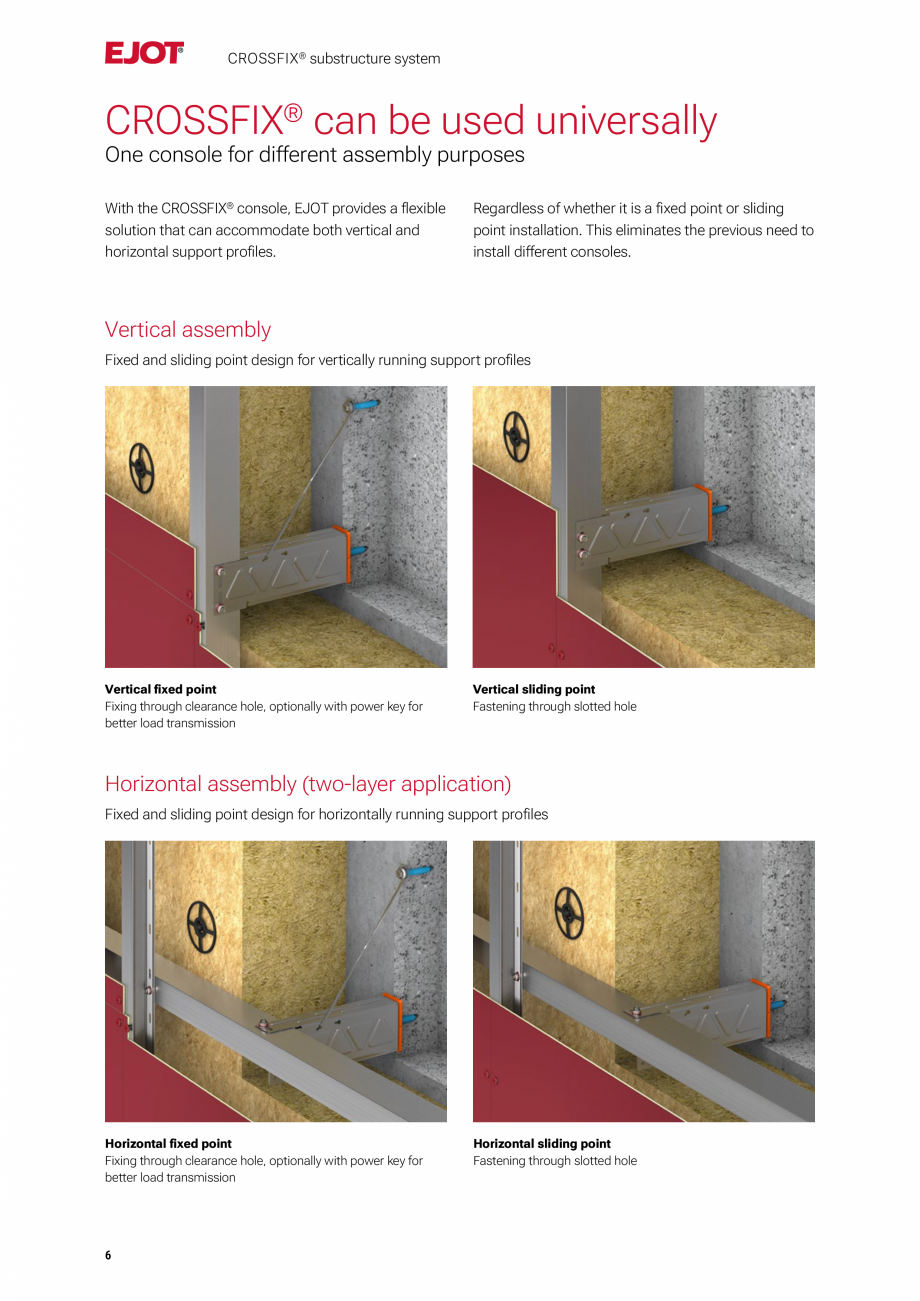

CROSSFIX ® substructure system CROSSFIX® can be used universally One console for different assembly purposes With the CROSSFIX® console, EJOT provides a flexible solution that can accommodate both vertical and horizontal support profiles. Regardless of whether it is a fixed point or sliding point installation. This eliminates the previous need to install different consoles. Vertical assembly Fixed and sliding point design for vertically running support profiles Vertical fixed point Fixing through clearance hole, optionally with power key for better load transmission Vertical sliding point Fastening through slotted hole Horizontal assembly (two-layer application) Fixed and sliding point design for horizontally running support profiles Horizontal fixed point Fixing through clearance hole, optionally with power key for better load transmission 6 Horizontal sliding point Fastening through slotted hole CROSSFIX ® substructure system CROSSFIX® increases energy efficiency I

Pagina 6-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza
CROSSFIX ®...

Pagina 7 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza...

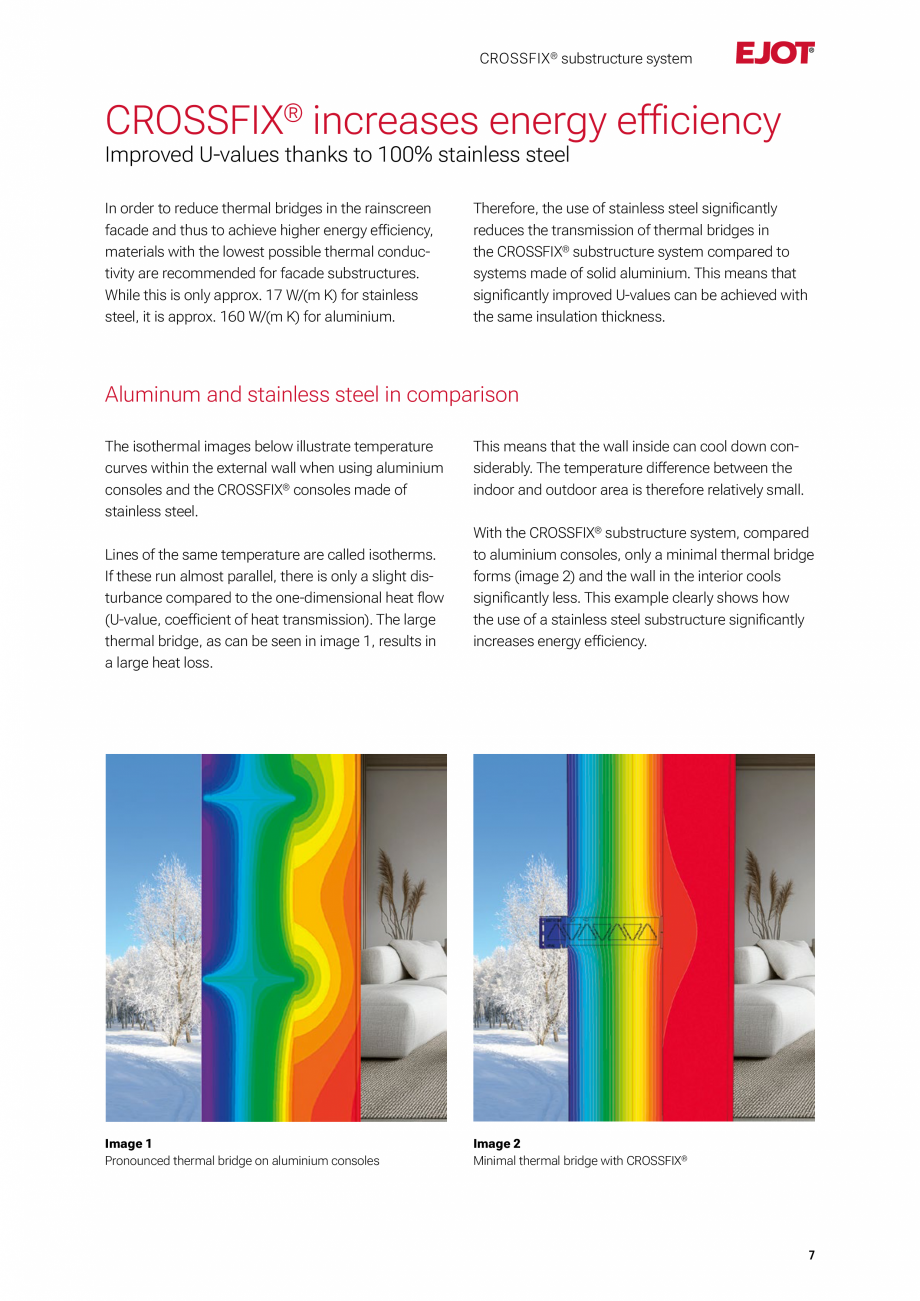

mproved U-values thanks to 100% stainless steel In order to reduce thermal bridges in the rainscreen facade and thus to achieve higher energy efficiency, materials with the lowest possible thermal conductivity are recommended for facade substructures. While this is only approx. 17 W/(m K) for stainless steel, it is approx. 160 W/(m K) for aluminium. Therefore, the use of stainless steel significantly reduces the transmission of thermal bridges in the CROSSFIX® substructure system compared to systems made of solid aluminium. This means that significantly improved U-values can be achieved with the same insulation thickness. Aluminum and stainless steel in comparison The isothermal images below illustrate temperature curves within the external wall when using aluminium consoles and the CROSSFIX® consoles made of stainless steel. Lines of the same temperature are called isotherms. If these run almost parallel, there is only a slight disturbance compared to the one-dimensional heat flow

Pagina 7-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza mproved U-values...

Pagina 8 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ...

(U-value, coefficient of heat transmission). The large thermal bridge, as can be seen in image 1, results in a large heat loss. Image 1 Pronounced thermal bridge on aluminium consoles This means that the wall inside can cool down considerably. The temperature difference between the indoor and outdoor area is therefore relatively small. With the CROSSFIX® substructure system, compared to aluminium consoles, only a minimal thermal bridge forms (image 2) and the wall in the interior cools significantly less. This example clearly shows how the use of a stainless steel substructure significantly increases energy efficiency. Image 2 Minimal thermal bridge with CROSSFIX® 7 CROSSFIX ® substructure system CROSSFIX® is a complete system The individual components and the corresponding EJOT® accessories 8a 4 9 2 3 1 6a 5 1 Console Stainless steel A2/A4*. Reach 40400 mm in 20 mm steps, larger reach possible. Pressure plate and thermal stop captive pre-assembled * In Germany,

Pagina 8-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza
(U-value,...

Pagina 9 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza only ...

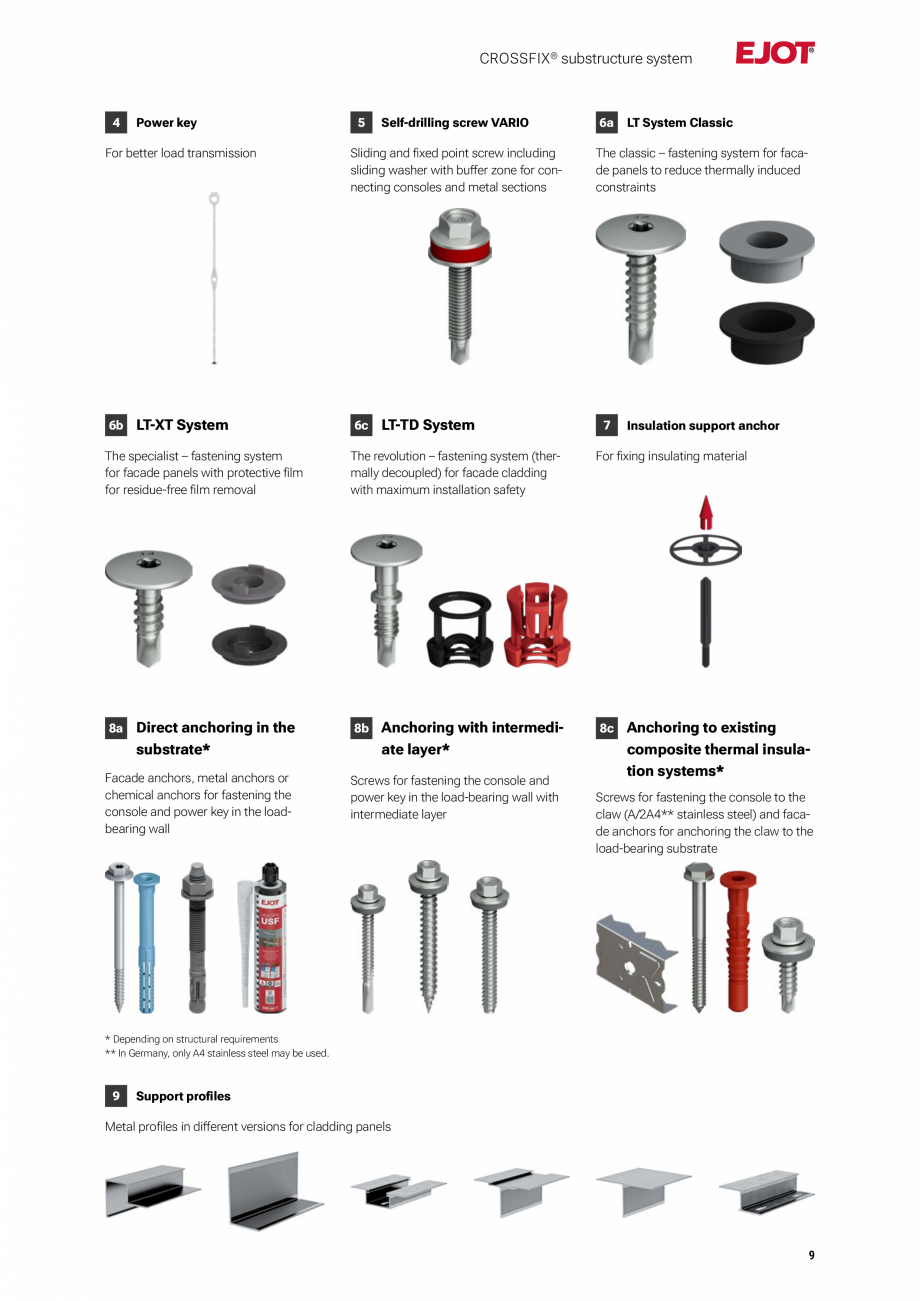

only A4 stainless steel may be used. 8 7 2 Stress plate For a higher load impact or load bearing capacity (pre-assembled) 3 Thermal stop For even better U-values (pre-assembled) CROSSFIX ® substructure system 4 Power key For better load transmission 6b LT-XT System The specialist – fastening system for facade panels with protective film for residue-free film removal 8a Direct anchoring in the substrate* Facade anchors, metal anchors or chemical anchors for fastening the console and power key in the loadbearing wall 5 Self-drilling screw VARIO Sliding and fixed point screw including sliding washer with buffer zone for connecting consoles and metal sections 6c LT-TD System The revolution – fastening system (thermally decoupled) for facade cladding with maximum installation safety 8b Anchoring with intermedi- ate layer* Screws for fastening the console and power key in the load-bearing wall with intermediate layer 6a LT System Classic The clas

Pagina 9-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza only A4...

Pagina 10 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza sic ...

sic – fastening system for facade panels to reduce thermally induced constraints 7 Insulation support anchor For fixing insulating material 8c Anchoring to existing composite thermal insulation systems* Screws for fastening the console to the claw (A/2A4** stainless steel) and facade anchors for anchoring the claw to the load-bearing substrate * Depending on structural requirements ** In Germany, only A4 stainless steel may be used. 9 Support profiles Metal profiles in different versions for cladding panels 9 CROSSFIX ® substructure system CROSSFIX® system structure System depth 5 Wall bracket CROSSFIX® console 2nd profile position min/mean/max (optional) Overhang + material thickness Overhang + material thickness 80 100 120 140 120 160 180 200 5 (adjustable range +/- 20) 240 260 300 320 340 360 380 400 Adjustable range section +/- 20 mm b a EJOT SDF-KB b a Ø10V 24 27 2/20/40 220 280 10 1st profile position 27 Front edge of the last posi

Pagina 11 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza tion...

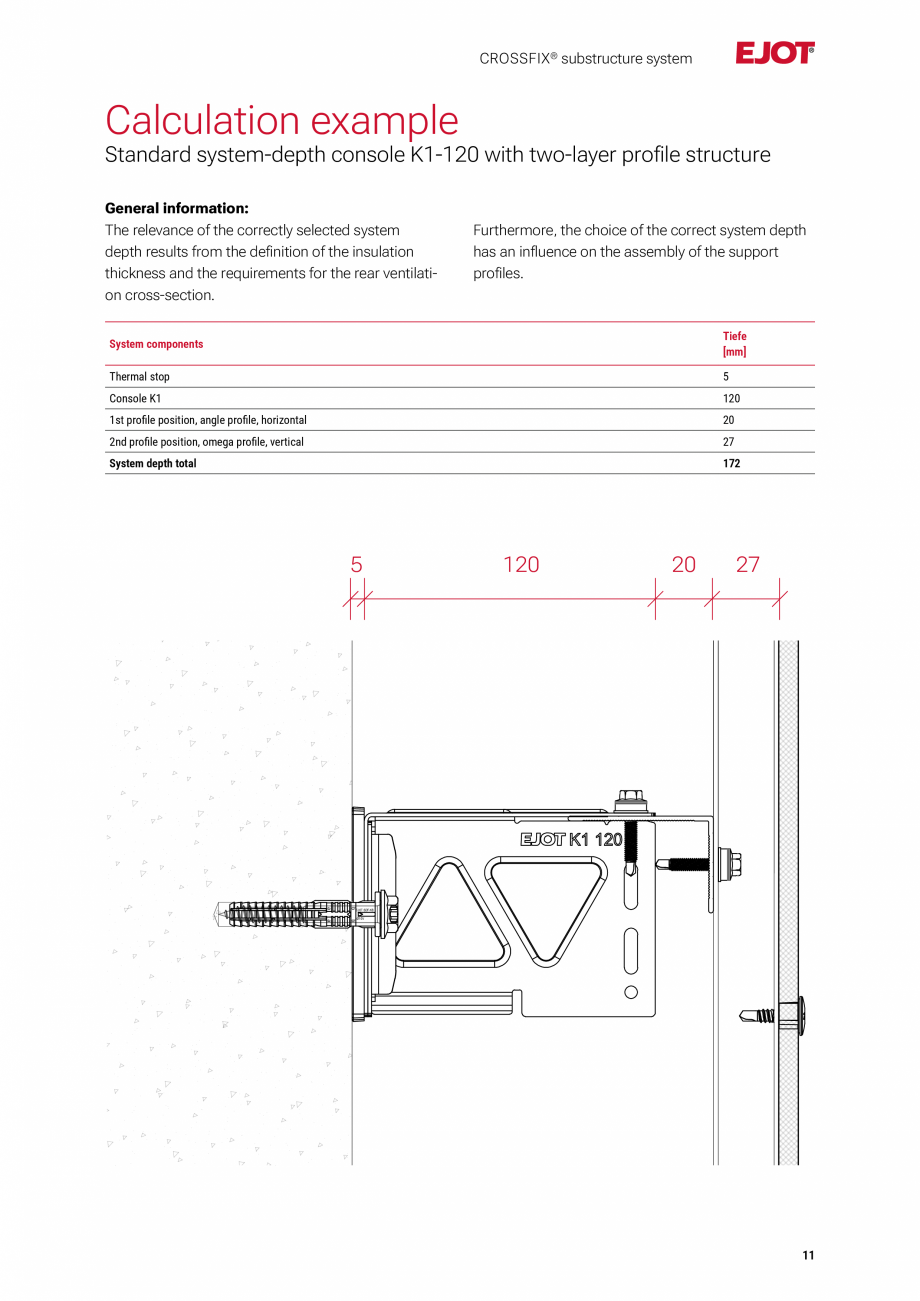

tion of support profile (without hanging or special profile or similar) Front edge of the static load-bearing substrate Thermal stop System depth (average value, all data in mm) CROSSFIX ® substructure system Calculation example Standard system-depth console K1-120 with two-layer profile structure General information: The relevance of the correctly selected system depth results from the definition of the insulation thickness and the requirements for the rear ventilation cross-section. Furthermore, the choice of the correct system depth has an influence on the assembly of the support profiles. System components Tiefe [mm] Thermal stop 5 Console K1 120 1st profile position, angle profile, horizontal 20 2nd profile position, omega profile, vertical 27 System depth total 172 5 120 20 27 b a EJOT SDF-KB b a Ø10V 11 CROSSFIX ® substructure system Our service – your advantage Your satisfaction is our top priority With the EJOT CROSSFIX® system we offer

Pagina 11-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza tion of support ...

Pagina 12 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza
you...

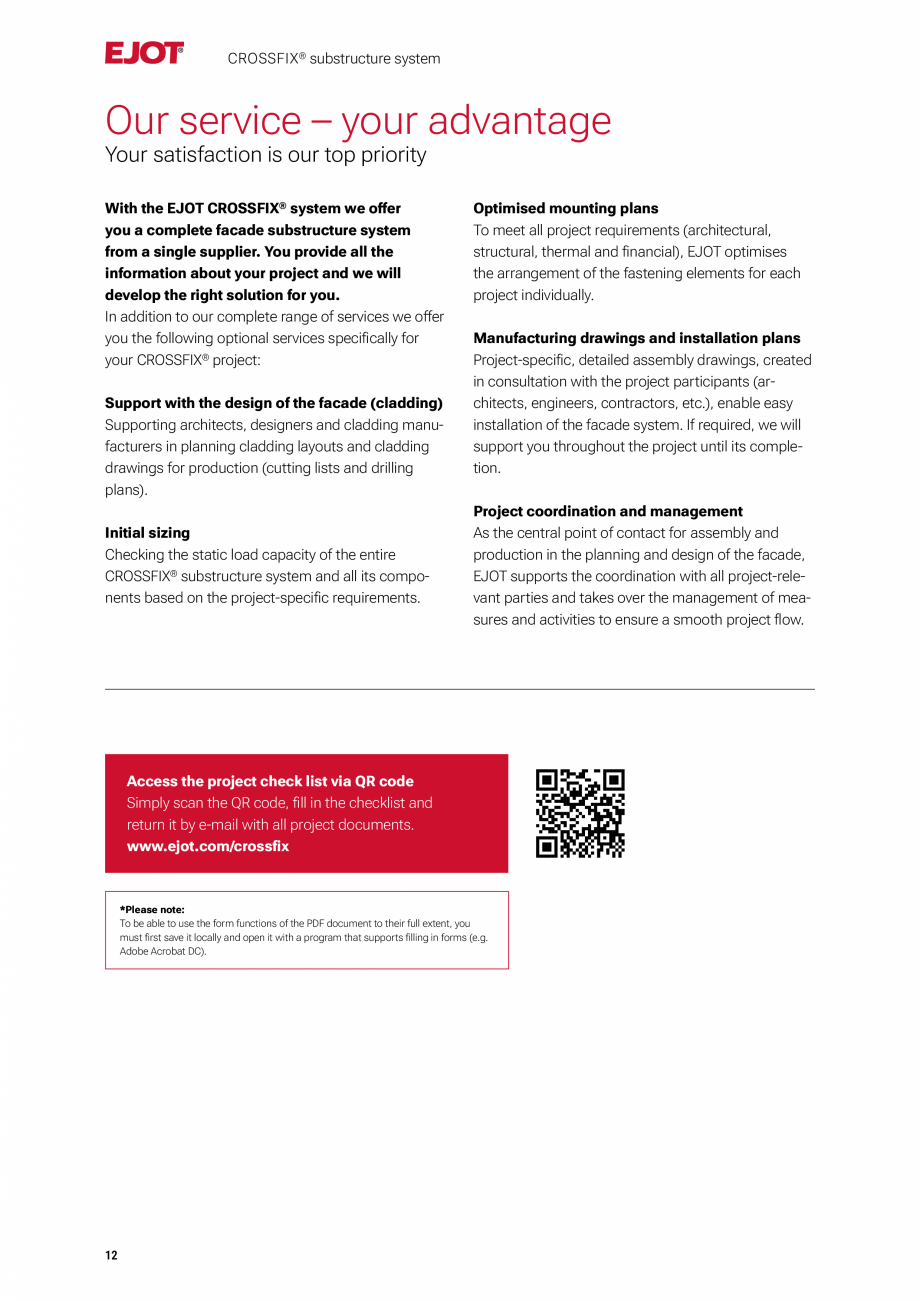

you a complete facade substructure system from a single supplier. You provide all the information about your project and we will develop the right solution for you. In addition to our complete range of services we offer you the following optional services specifically for your CROSSFIX® project: Support with the design of the facade (cladding) Supporting architects, designers and cladding manufacturers in planning cladding layouts and cladding drawings for production (cutting lists and drilling plans). Initial sizing Checking the static load capacity of the entire CROSSFIX® substructure system and all its components based on the project-specific requirements. Optimised mounting plans To meet all project requirements (architectural, structural, thermal and financial), EJOT optimises the arrangement of the fastening elements for each project individually. Manufacturing drawings and installation plans Project-specific, detailed assembly drawings, created in consultation with the proje

Pagina 12-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza
you a complete ...

Pagina 13 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ct...

ct participants (architects, engineers, contractors, etc.), enable easy installation of the facade system. If required, we will support you throughout the project until its completion. Project coordination and management As the central point of contact for assembly and production in the planning and design of the facade, EJOT supports the coordination with all project-relevant parties and takes over the management of measures and activities to ensure a smooth project flow. Access the project check list via QR code Simply scan the QR code, fill in the checklist and return it by e-mail with all project documents. www.ejot.com/crossfix *Please note: To be able to use the form functions of the PDF document to their full extent, you must first save it locally and open it with a program that supports filling in forms (e.g. Adobe Acrobat DC). 12 ® CROSSFIX EJOT. substructure Bringing it together. system We are committed EJOT® is a member of various trade associations and organisation

Pagina 13-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ct participants ...

Pagina 14 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza s
...

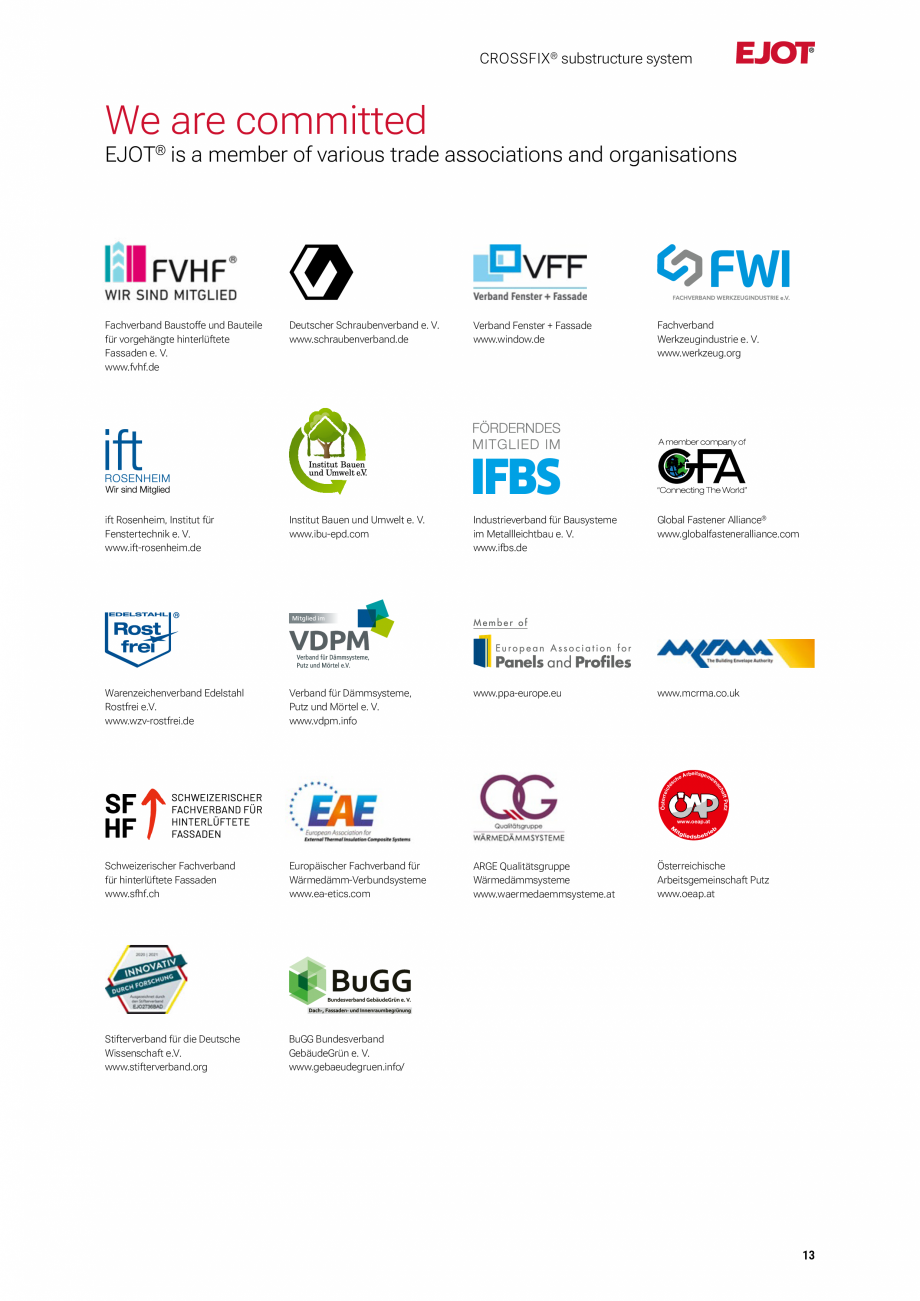

s Fachverband Baustoffe und Bauteile für vorgehängte hinterlüftete Fassaden e. V. www.fvhf.de Deutscher Schraubenverband e. V. www.schraubenverband.de Verband Fenster + Fassade www.window.de Fachverband Werkzeugindustrie e. V. www.werkzeug.org ift Rosenheim, Institut für Fenstertechnik e. V. www.ift-rosenheim.de Institut Bauen und Umwelt e. V. www.ibu-epd.com Industrieverband für Bausysteme im Metallleichtbau e. V. www.ifbs.de Global Fastener Alliance® www.globalfasteneralliance.com Warenzeichenverband Edelstahl Rostfrei e.V. www.wzv-rostfrei.de Verband für Dämmsysteme, Putz und Mörtel e. V. www.vdpm.info www.ppa-europe.eu www.mcrma.co.uk Österre ich i ft Putz ha sc Arbeitsgem ein he sc www.oeap.at Schweizerischer Fachverband für hinterlüftete Fassaden www.sfhf.ch Europäischer Fachverband für Wärmedämm-Verbundsysteme www.ea-etics.com Stifterverband für die Deutsche Wissenschaft e.V. www.stifterverband.org BuGG Bundesverband GebäudeGrün e. V. www.g

Pagina 14-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza s

Fachverband...

Pagina 15 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza...

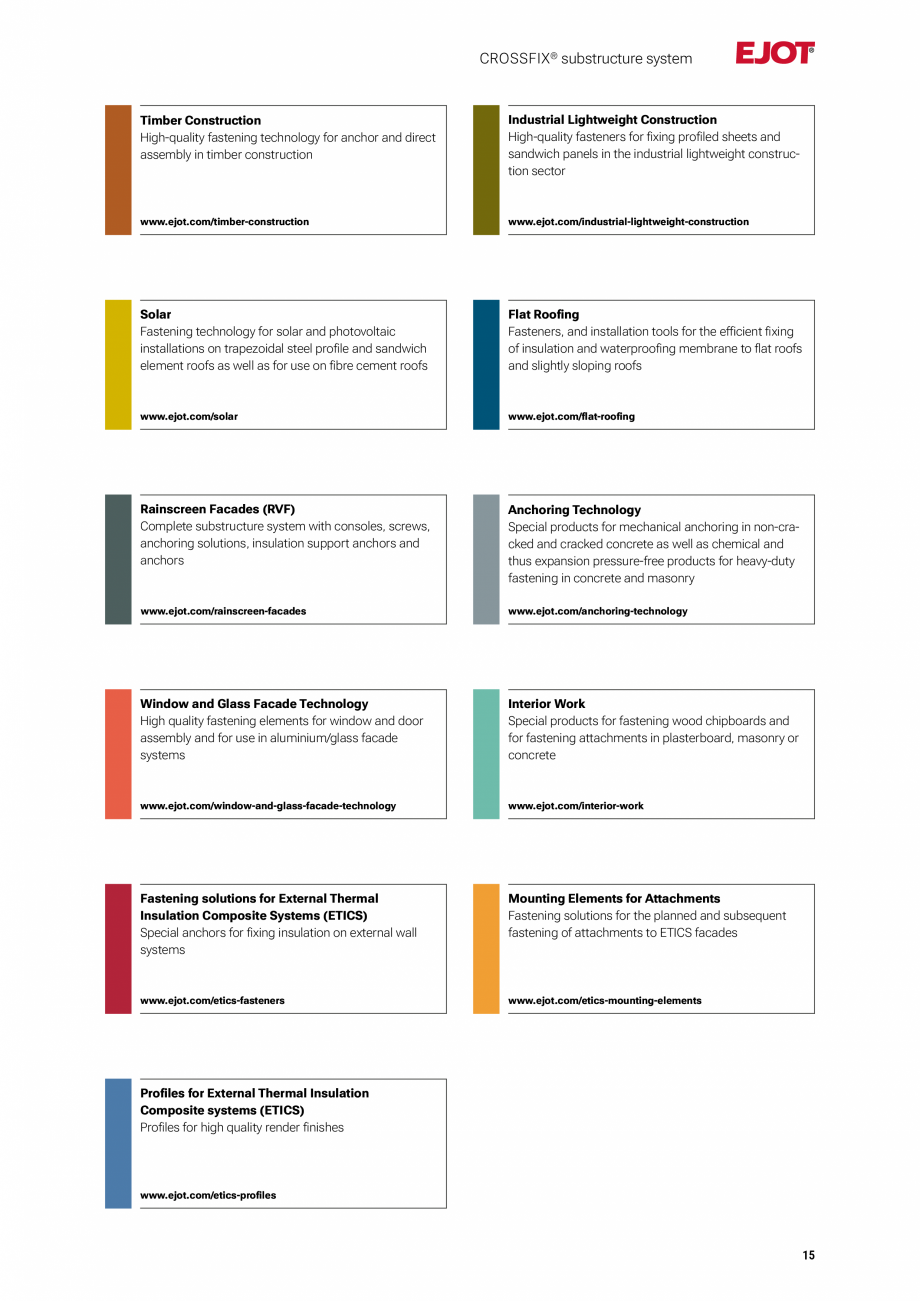

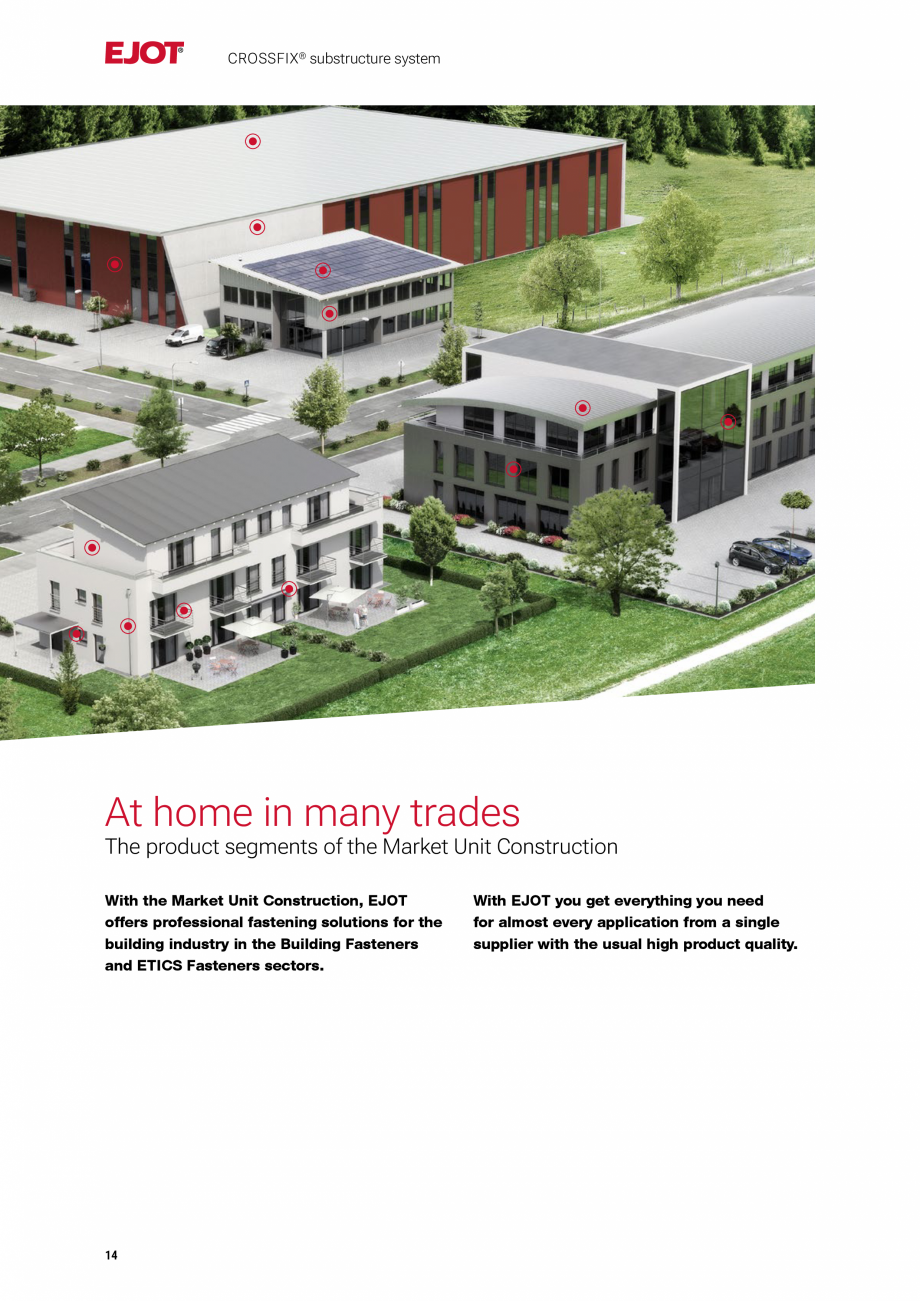

ebaeudegruen.info/ ARGE Qualitätsgruppe Wärmedämmsysteme www.waermedaemmsysteme.at Österreichische Arbeitsgemeinschaft Putz www.oeap.at 13 CROSSFIX ® substructure system EJOT. Bringing it together. At home in many trades The product segments of the Market Unit Construction With the Market Unit Construction, EJOT offers professional fastening solutions for the building industry in the Building Fasteners and ETICS Fasteners sectors. 14 With EJOT you get everything you need for almost every application from a single supplier with the usual high product quality. ® CROSSFIX EJOT. substructure Bringing it together. system Timber Construction High-quality fastening technology for anchor and direct assembly in timber construction Industrial Lightweight Construction High-quality fasteners for fixing profiled sheets and sandwich panels in the industrial lightweight construction sector www.ejot.com/timber-construction www.ejot.com/industrial-lightweight-construction Solar F

Pagina 15-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ebaeudegruen...

Pagina 16 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza...

astening technology for solar and photovoltaic installations on trapezoidal steel profile and sandwich element roofs as well as for use on fibre cement roofs Flat Roofing Fasteners, and installation tools for the efficient fixing of insulation and waterproofing membrane to flat roofs and slightly sloping roofs www.ejot.com/solar www.ejot.com/ﬂat-roofing Rainscreen Facades (RVF) Complete substructure system with consoles, screws, anchoring solutions, insulation support anchors and anchors Anchoring Technology Special products for mechanical anchoring in non-cracked and cracked concrete as well as chemical and thus expansion pressure-free products for heavy-duty fastening in concrete and masonry www.ejot.com/rainscreen-facades www.ejot.com/anchoring-technology Window and Glass Facade Technology High quality fastening elements for window and door assembly and for use in aluminium/glass facade systems Interior Work Special products for fastening wood chipboards and for fastening

Pagina 16-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza astening...

Pagina 17 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ...

attachments in plasterboard, masonry or concrete www.ejot.com/window-and-glass-facade-technology www.ejot.com/interior-work Fastening solutions for External Thermal Insulation Composite Systems (ETICS) Special anchors for fixing insulation on external wall systems Mounting Elements for Attachments Fastening solutions for the planned and subsequent fastening of attachments to ETICS facades www.ejot.com/etics-fasteners www.ejot.com/etics-mounting-elements Profiles for External Thermal Insulation Composite systems (ETICS) Profiles for high quality render finishes www.ejot.com/etics-profiles 15 CROSSFIX ® substructure system EJOT. Bringing it together. Fastening solutions for the building industry The EJOT Construction Division supplies to selected segments of the building industry. This includes professional applications on building facades as well as installation solutions for technical facilities inside the building. Striving for high product quality is not an end in itse

Pagina 17-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza attachments in ...

Pagina 18 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza lf...

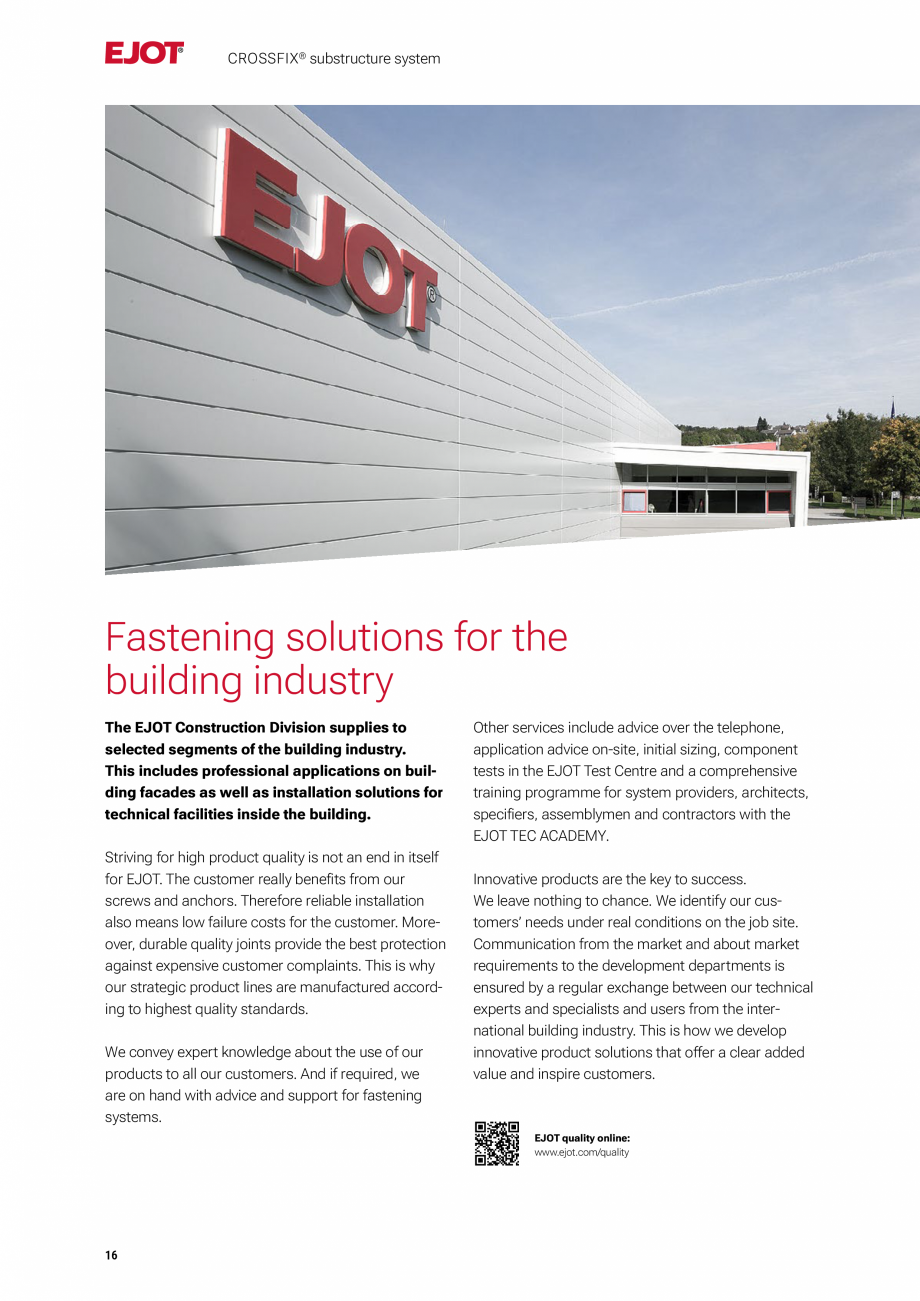

lf for EJOT. The customer really benefits from our screws and anchors. Therefore reliable installation also means low failure costs for the customer. Moreover, durable quality joints provide the best protection against expensive customer complaints. This is why our strategic product lines are manufactured according to highest quality standards. We convey expert knowledge about the use of our products to all our customers. And if required, we are on hand with advice and support for fastening systems. Other services include advice over the telephone, application advice on-site, initial sizing, component tests in the EJOT Test Centre and a comprehensive training programme for system providers, architects, specifiers, assemblymen and contractors with the EJOT TEC ACADEMY. Innovative products are the key to success. We leave nothing to chance. We identify our customers’ needs under real conditions on the job site. Communication from the market and about market requirements to the develop

Pagina 18-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza lf
for EJOT. The...

Pagina 19 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ment...

ment departments is ensured by a regular exchange between our technical experts and specialists and users from the international building industry. This is how we develop innovative product solutions that offer a clear added value and inspire customers. EJOT quality online: www.ejot.com/quality 16 ® CROSSFIX EJOT. substructure Bringing it together. system The International EJOT® Group The origin is in Germany, the future in the world Locations wordwide www.ejot.com/subsidiary_selector Find your contact for all EJOT sales and production companies as well as our partner and sales offices worldwide. We are looking forward to hearing from you. 53 Mio. Screws 33,000 Products In our manufacturing plants around the world, we produce up to 52 million items for construction and industry every day. Screws, anchors, through bolts or complex part groups – the EJOT portfolio is made up of around 36,000 products. 2,400 1922 Patents Unsere Ingenieure entwickeln stetig neue Produktl

Pagina 19-Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza ment departments...

Pagina 20 - Consola de inox pentru fatade ventilate EJOT Crossfix® Catalog, brosura Engleza...

ösungen, die durch mehr als 2.400 Patente geschützt sind. 4,400 Employees More than 4,500 employees work for our worldwide customers every day. founded The history of EJOT dates back to the early 20th century. ENGINEERED IN GERMANY The majority of the EJOT portfolio is produced in Germany and developed by our own R&D department. 17 Notes 18 Notes 19 612-en-global-2025.11.17 EJOT SE & Co. KG Market Unit Construction In der Stockwiese 35 57334 Bad Laasphe ∙ Germany T +49 2752 9080 F +49 2752 908731 construction@ejot.com www.ejot.com/construction
