Produse încluse în această documentație: TROAX Clasic, TROAX Safe, TROAX Medium, TROAX Box
Property
protection.
Mesh panels for secure storage solutions.
PROTECTING PEOPLE, PROPERTY, AND PROCESSES
troax.com

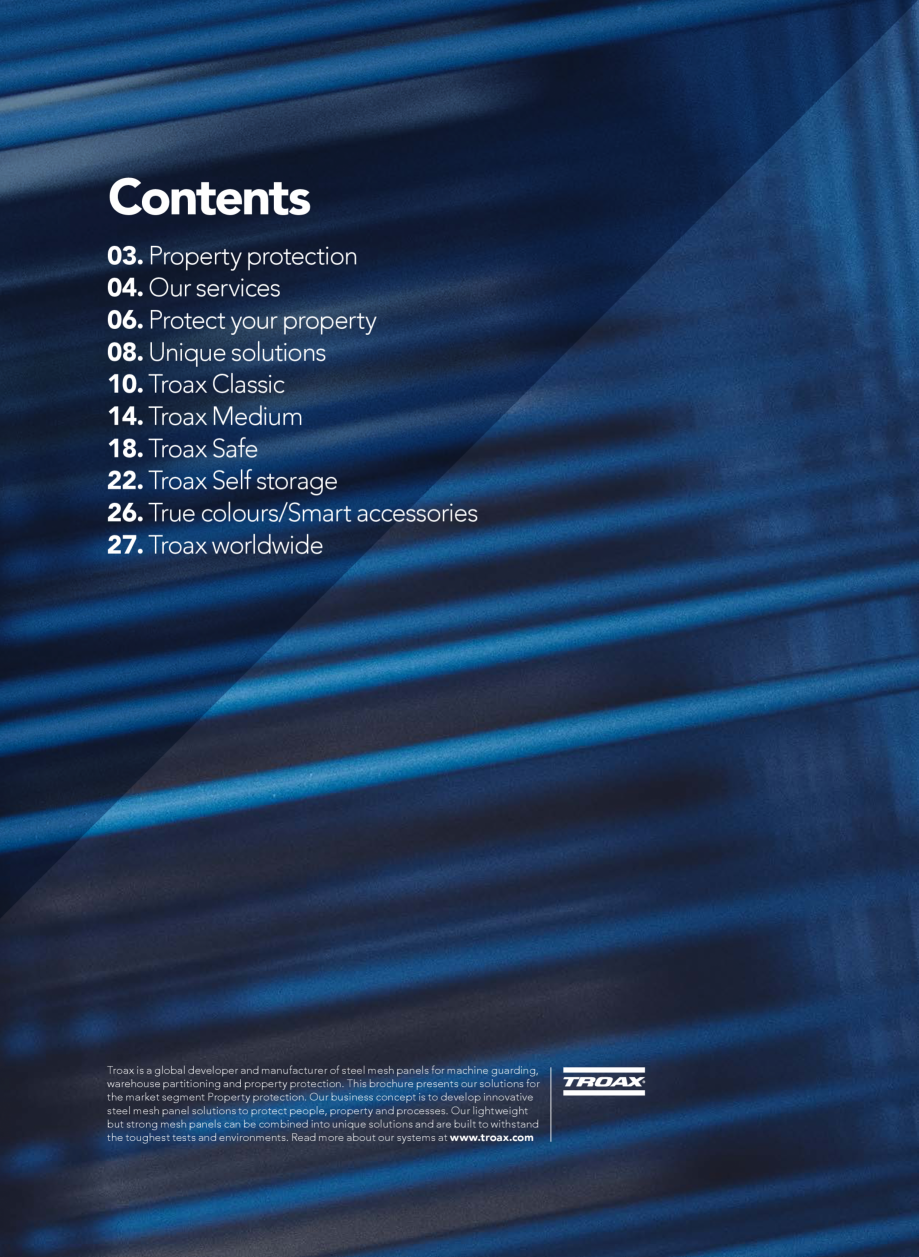

Contents
03. Property protection
04. Our services
06. Protect your property
08. Unique solutions
10. Troax Classic
14. Troax Medium
18. Troax Safe
22. Troax Self storage
26. True colours / Smart accessories
27. Troax worldwide
Troax is a global developer and manufacturer of steel mesh panels for machine guarding,
warehouse partitioning and property protection. This brochure presents our solutions for
the market segment Property protection. Our business concept is to develop innovative
steel mesh panel solutions to protect people, property and processes. Our lightweight
but strong mesh panels can be combined into unique solutions and are built to withstand
the toughest tests and environments. Read more about our systems at www.troax.com

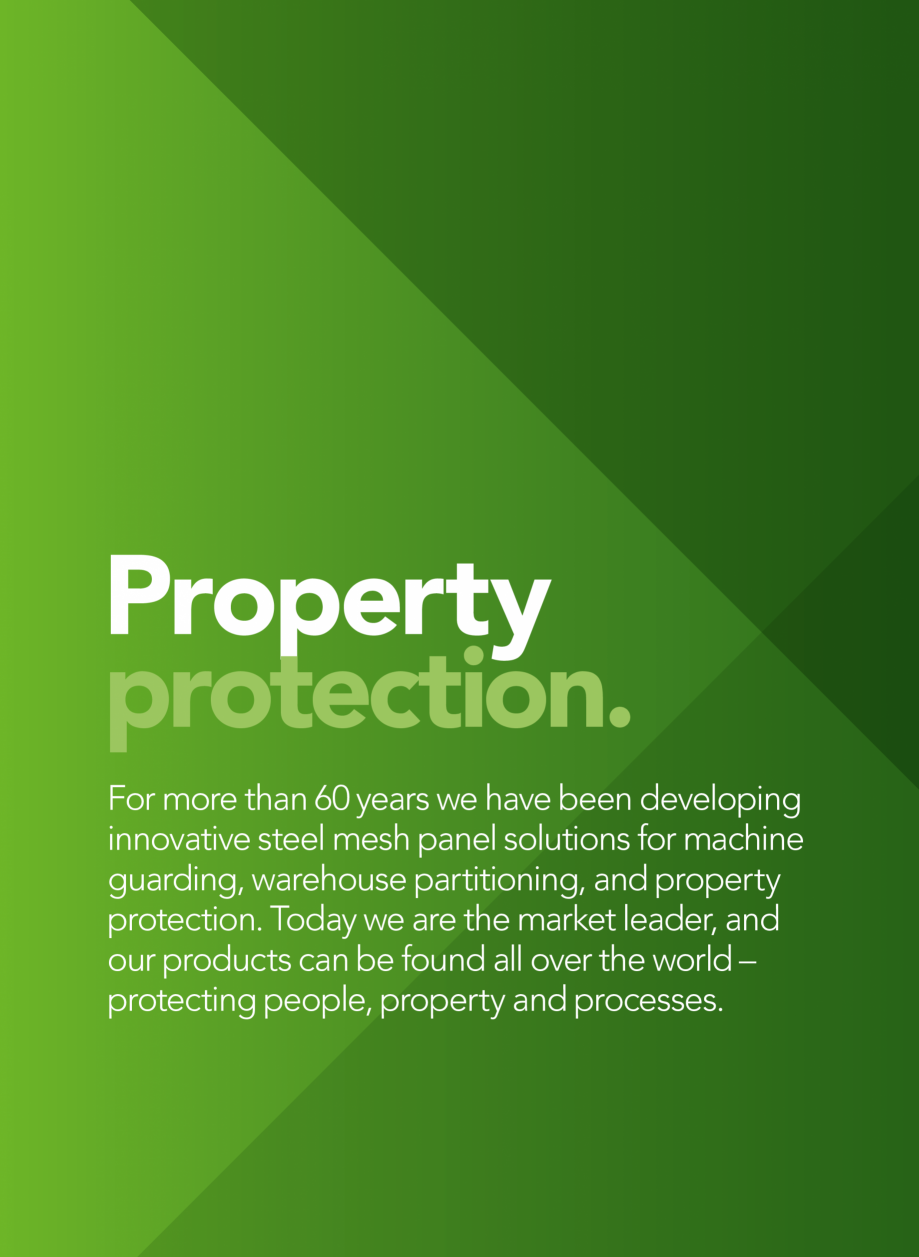

Property
protection.
For more than 60 years we have been developing
innovative steel mesh panel solutions for machine
guard
ing, warehouse partitioning, and property
protection. Today we are the market leader, and
our products can be found all over the world –
protecting people, property and processes.

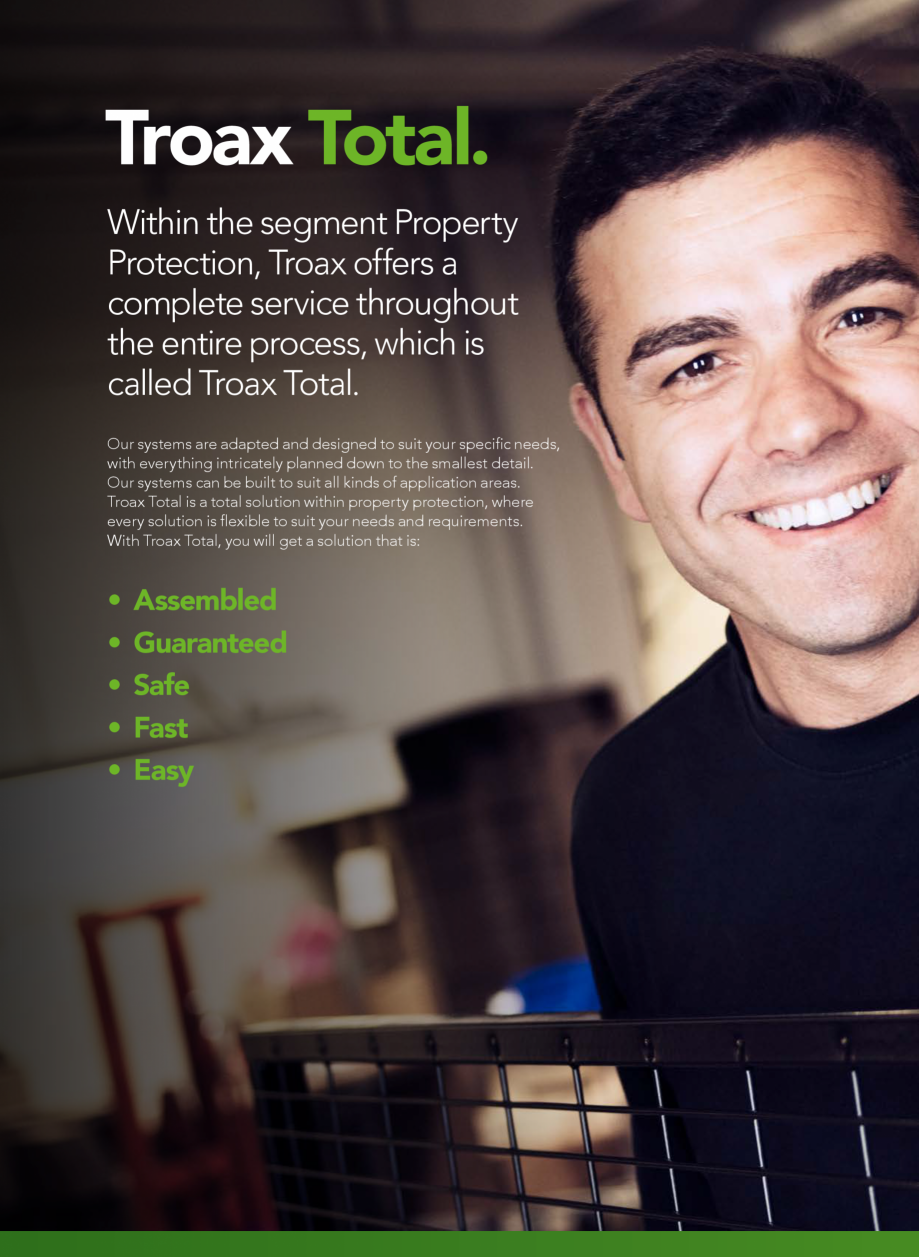

Troax Total.
Within the segment Property
Protection, Troax offers a
complete service throughout
the entire process, which is
called Troax Total.
Our systems are adapted and designed to suit your specific needs,
with everything intricately planned down to the smallest detail.
Our systems can be built to suit all kinds of application areas.
Troax Total is a total solution within property protection, where
every solution is flexible to suit your needs and requirements.
With Troax Total, you will get a solution that is:
• Assembled
• Guaranteed
• Safe
• Fast
• Easy

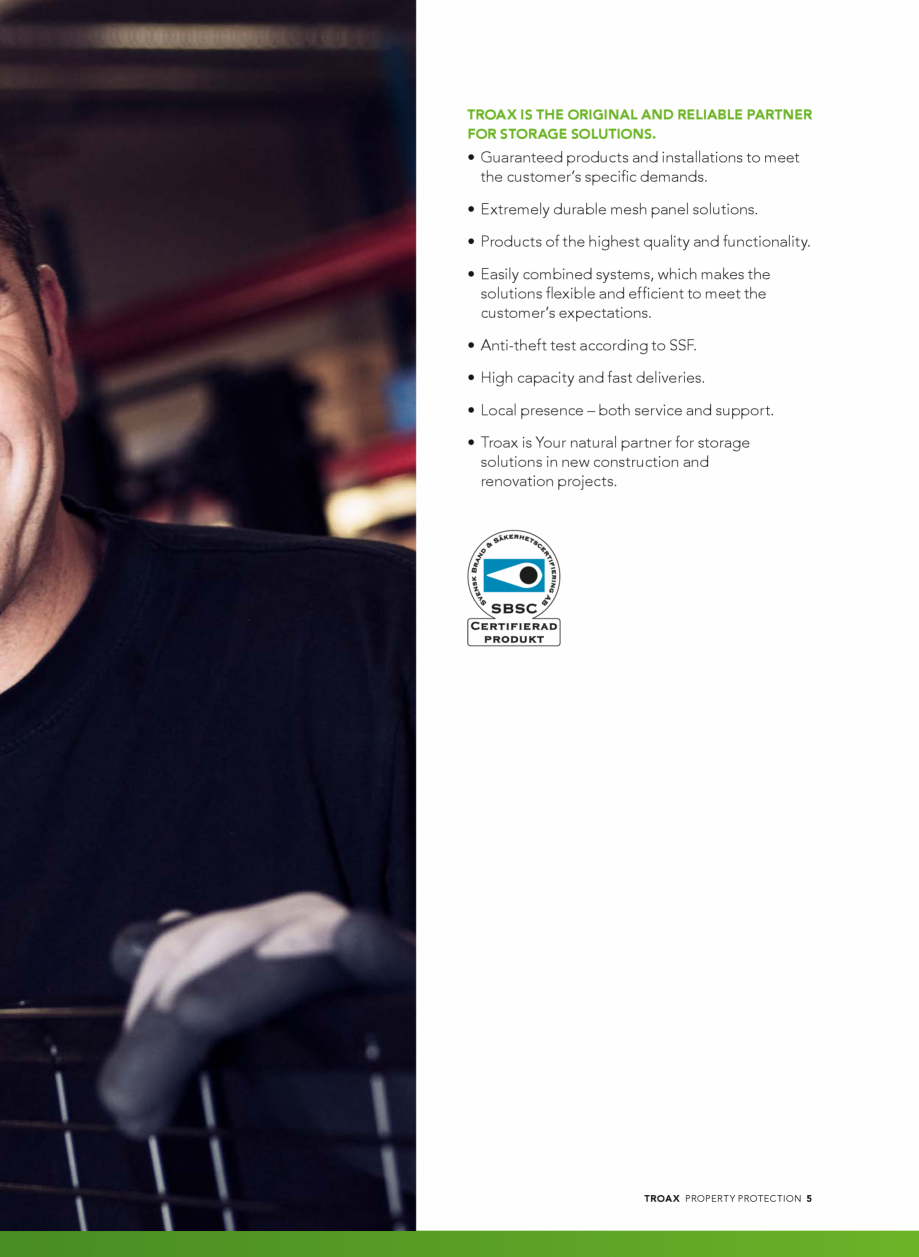

TROAX IS THE ORIGINAL AND RELIABLE PARTNER
FOR STORAGE SOLUTIONS.
• Guaranteed products and installations to meet
the customer’s specific demands.
• Extremely durable mesh panel solutions.
• Products of the highest quality a
nd functionality.
• Easily combined systems, which makes the
solutions flexible and efficient to meet the
customer’s expectations.
• Anti-theft test according to SSF.
• High capacity and fast deliveries.
• Local presence – both service and support.
• Troax is Your natural partner for s torage
solutions in new construction and
renovation projects.
TROAX PROPERT Y PROTECTION 5

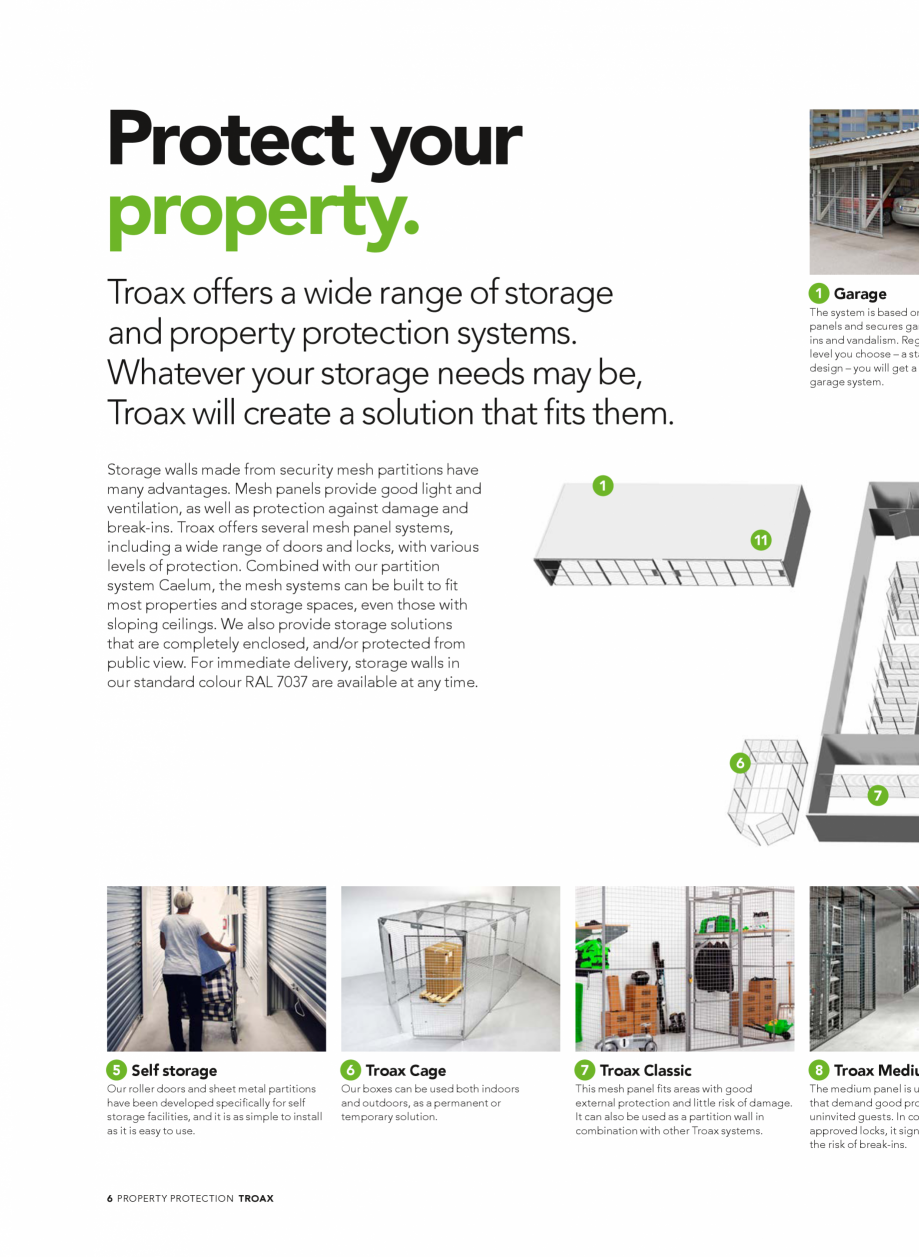

Protect your
property.
Troax offers a wide range of storage
and property protection systems.
Whatever your storage needs may be,
Troax will create a solution that fits them.
Storage walls made from security mesh partitions have
many advantages. Mesh panels provide good light and
ventilation, as well as protection against damage and
break-ins. Troax offers several mesh panel systems,
including a wide range of doors and locks, with various
levels of protection. Combined with our partition
system Caelum, the mesh systems can be built to fit
most properties and storage spaces, even those with
slo
ping ceilings. We also provide storage solutions
that are c ompletely enclosed, and/or protected from
public view. For immediate delivery, storage walls in
our standard colour RAL 7037 are available at any time.
1 Garage
The system is based on
panels and secures gar
ins and vandalism. Reg
level you choose – a sta
design – you will get a s
garage system.
1
11
6
7
5 Self storage
Our roller doors and sheet metal partitions
have been developed specifically for self
storage facilities, and it is as simple to install
as it is easy to use.
6 PROPERT Y PROTECTION TROAX
6 Troax Cage
Our boxes can be used both indoors
and outdoors, as a permanent or
temporary solution.
7 Troax Classic
This mesh panel fits areas with good
external protection and little risk of damage.
It can also be used as a partition wall in
combination with other Troax systems.
8 Troax Mediu
The medium panel is u
that demand good pro
uninvited guests. In co
approved locks, it sign
the ris
k of break-ins.
n modular mesh
rages against breakgardless of the security
andard or customised
secure and flexible
um

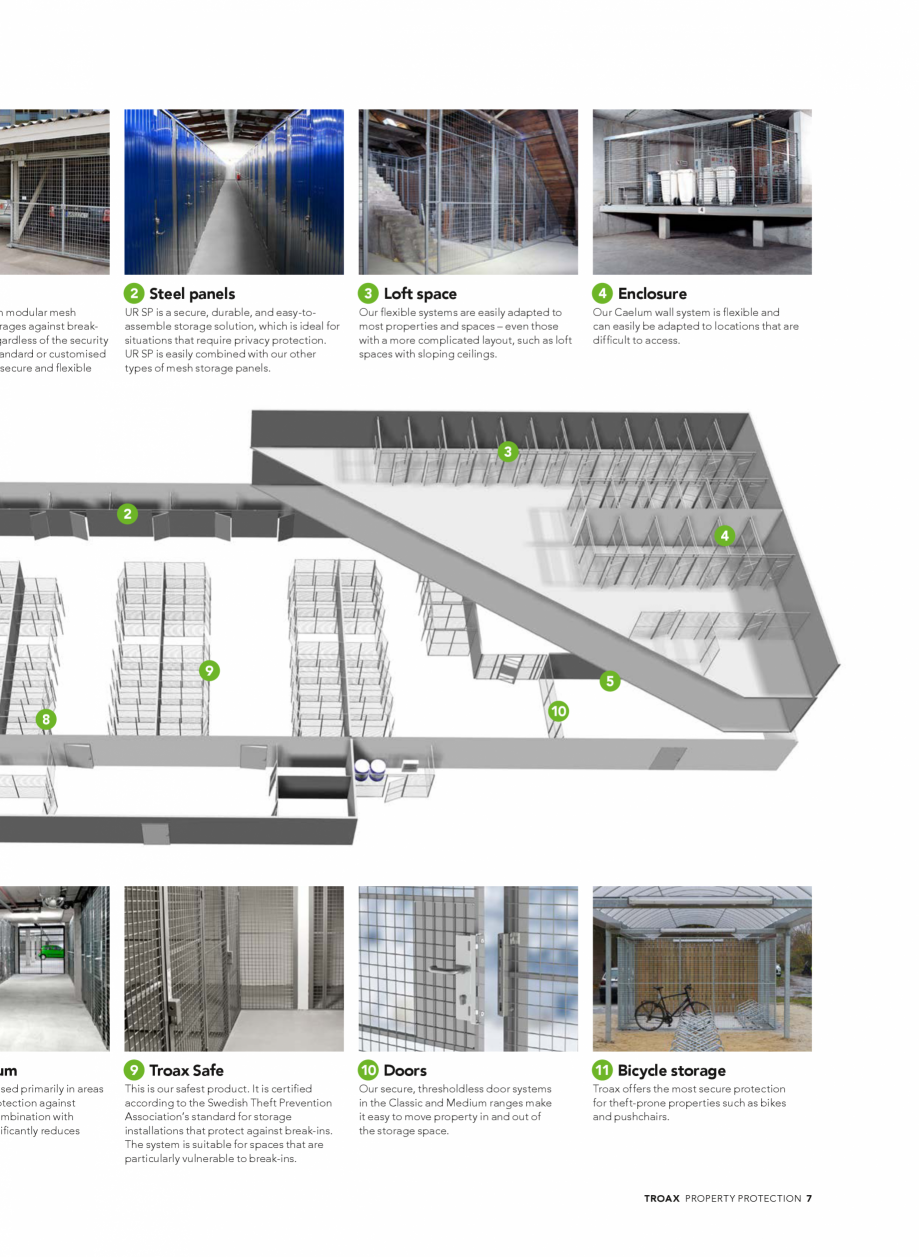

2 Steel panels
UR SP is a secure, durable, and easy-to-
assemble storage solution, which is ideal for
situations that require privacy protection.
UR SP is easily combined with our other
types of mesh storage panels.
3 Loft space
Our flexible systems are easily adapted to
most properties and spaces – even those
with a more complicated layout, such as loft
spaces with sloping ceilings.
4 Enclosure
Our Caelum wall system is flexible and
can easily be adapted to locations that are
difficult to access.
3
2
4
9
5
10
8
used primarily in areas
otection against
ombination with
nificantly reduces
9 Troax Safe
This is our safest product. It is certified
according to the Swedish Theft Prevention
Association’s standard for storage
installations that protect against break-ins.
The system is suitable for spaces that are
particularly vulnerable to brea
k-ins.
10 Doors
Our secure, thresholdless door systems
in the Classic and Medium ranges make
it easy to move property in and out of
the storage space.
11 Bicycle storage
Troax offers the most secure protection
for theft-prone properties such as bikes
and pushchairs.
TROAX PROPERT Y PROTECTION 7

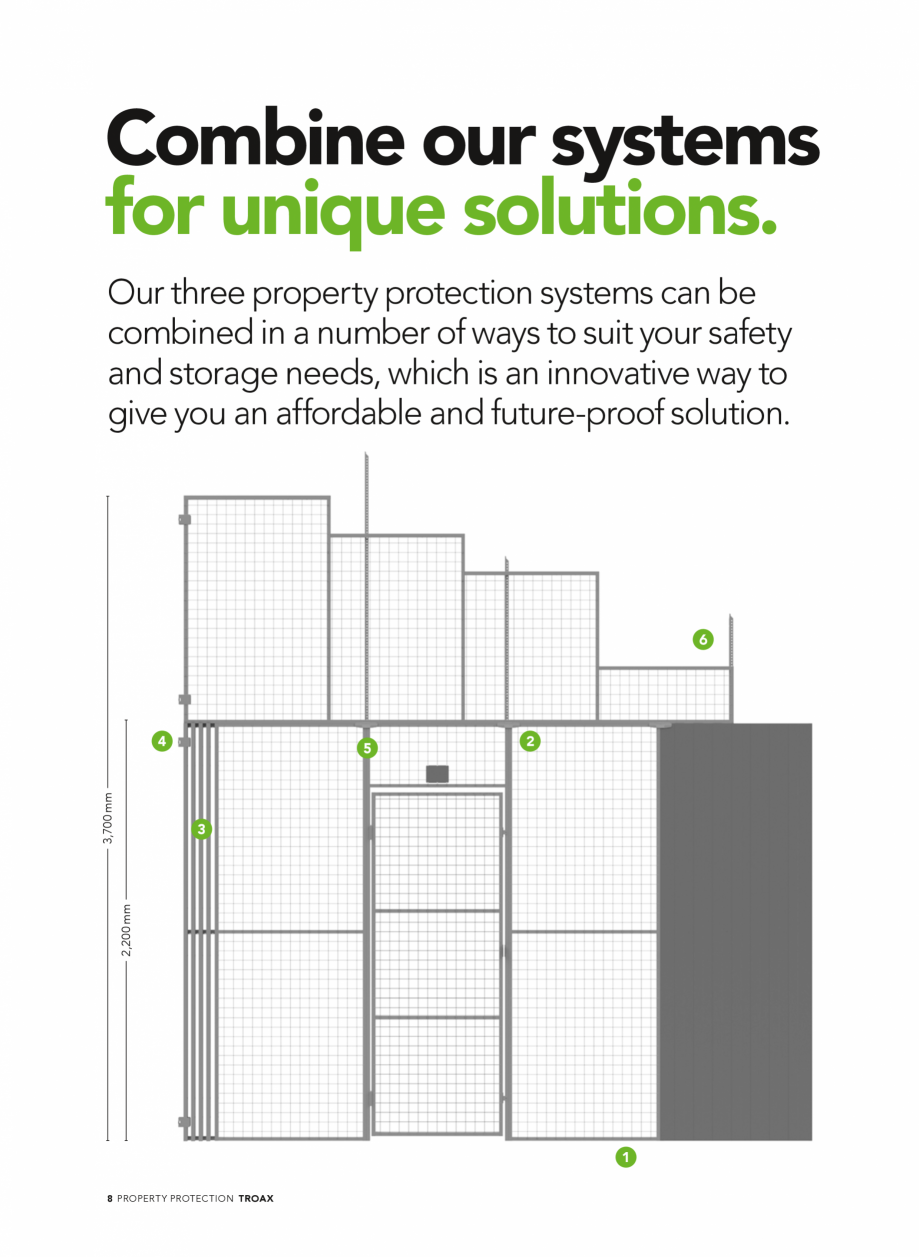

Combine our systems
for unique solutions.
Our three property protection systems can be
combined in a number of ways to suit your safety
and storage needs, which is an innovative way to
give you an affordable and future-proof solution.
6
3,700 mm
4
5
2
2,200 mm
3
1
8 PROPERT Y PROTECTION TROAX
1 Floor support
2 Snapper
3 Filler kit
4 Wall fixing
5 Screws and fittings
6 U-profile
The simple and unique floor support makes
it easy to adapt the system to various
conditions, such as an uneven floor.
With our wall fixings, panels can be adjusted
and secured to adjoining structures for
a perfect fit.
Snappers are used to fix panels together
in order to make t
he partition walls safe
and strong, which in turn makes the ceiling
mounting extremely strong and durable.
Our systems are based on self-tapping
screws in combination with a variety of
different fittings to provide extremely strong
and flexible fixings.
Door (H×W) mm:
Door type
2,200×750
Classic, medium
2,200×900
Classic, medium, Safe, UR SP
Panel (H×W) mm:
Panel type
2,200×200
Classic, medium, Safe, UR SP
2,200×300
Classic, medium, Safe, UR SP
2,200×500
Classic, medium
2,200×700
Classic, medium, Safe, UR SP
2,200×800
Classic, medium, Safe, UR SP
2,200×1,000
Classic, medium, Safe, UR SP
2,200×1,200
Classic, medium, Safe, UR SP
2,200×1,500
Classic, medium, Safe
The filler kit is used in combination with the
filler pipe, which is secured into the smart
profile, to fill gaps in the wall system.
Our U-profiles are used to conceal sharp
edges where adaptions have been made.
Maximize Storage.
Easy Installation.
Maintenance-Free.
TROAX PROPERT Y PROTEC
TION 9

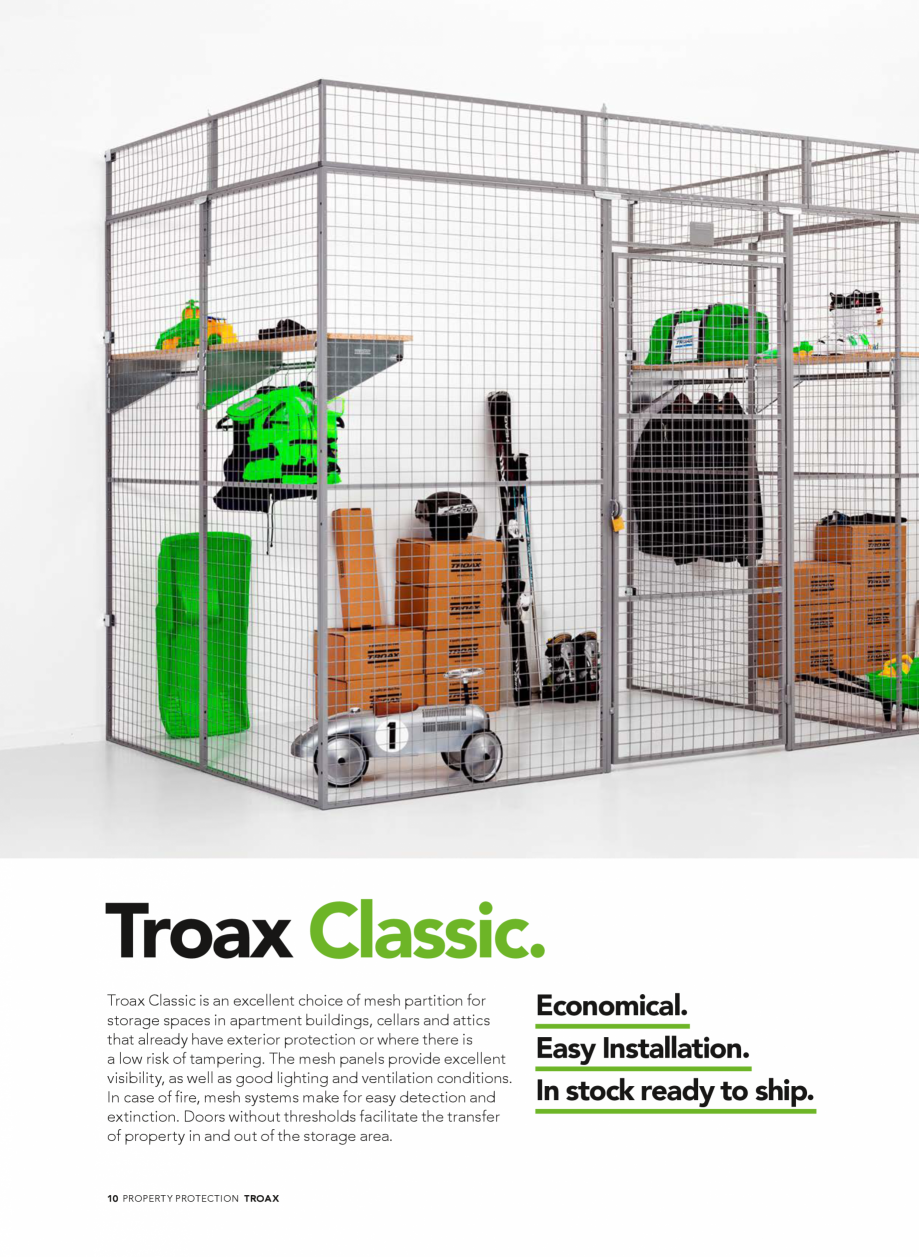

Troax Classic.
Troax Classic is an excellent choice of mesh partition for
storage spaces in apartment buildings, cellars and attics
that already have exterior protection or where there is
a low risk of tampering. The mesh panels provide excellent
visibility, as well as good lighting and ventilation conditions.
In case of fire, mesh systems make for easy detection and
extinction. Doors without thresholds facilitate the transfer
of property in and out of the storage area.
10 PROPERT Y PROTECTION TROAX
Economical.
Easy Installation.
In stock ready to ship.

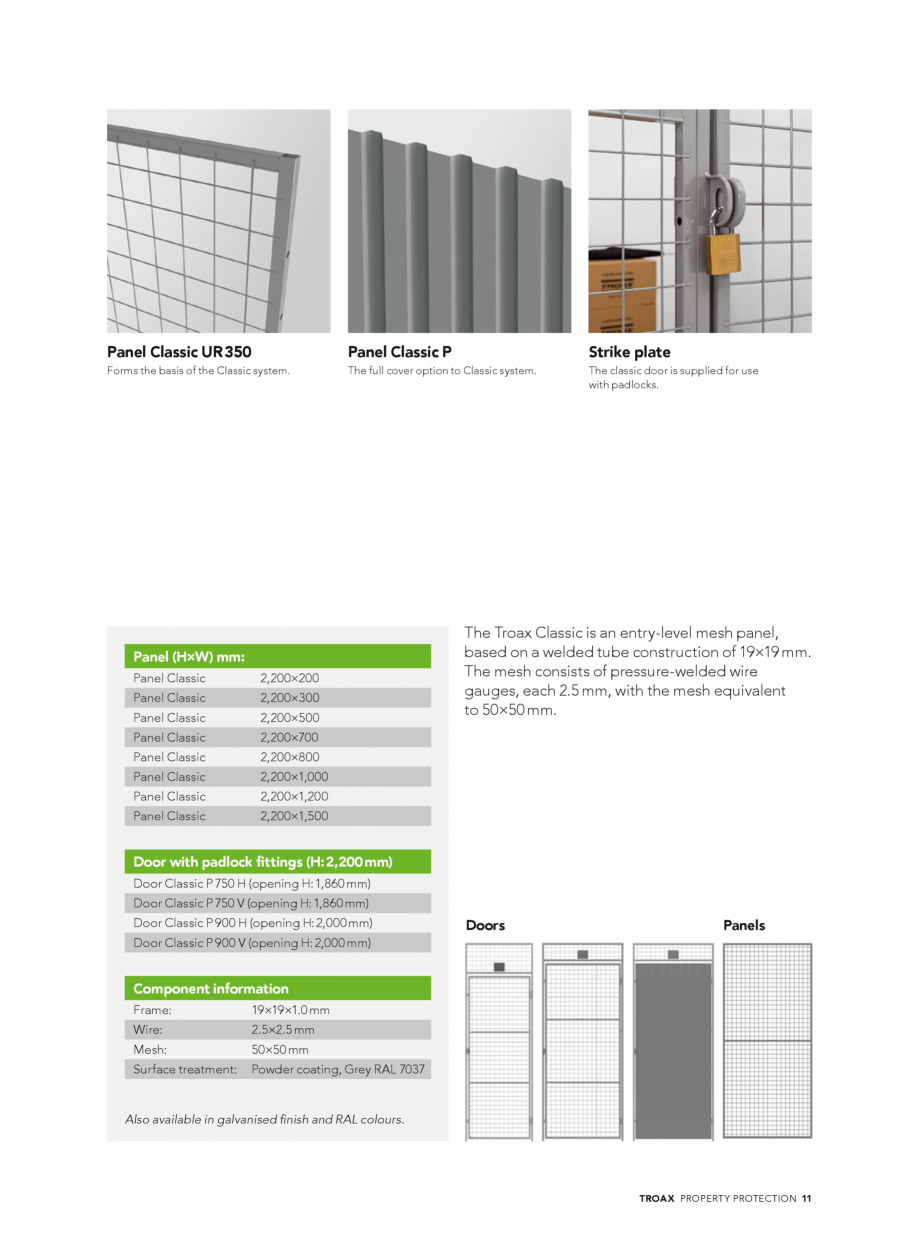

Panel Classic UR 350
Forms the basis of the Classic system.
Panel Classic P
The full cover option to Classic system.
Panel (H×W) mm:
Panel Classic
2,200×200
Panel Classic
2,200×300
Panel Classic
2,200×500
Panel Classic
2,200×700
Panel Classic
2,200×800
Panel Classic
2,200×1,000
Panel Classic
2,200×1,200
Panel Classic
2,200×1,500
Strike plate
The classic door is supplied for use
with padlocks.
The Troax Classic is an entry-level mesh panel,
based on a welded tube construction of 19×19 mm.
The mesh consists of pressure-welded wire
gauges, each 2.5 mm, with the mesh equivalent
to 50×50 mm.
Door with padlock fittings (H: 2,200 mm)
Door Classic P 750 H (opening H: 1,860 mm)
Door Classic P 750 V (opening H: 1,860 mm)
Door Classic P 900 H (opening H: 2,000 mm)
Door Classic P 900 V (opening H: 2,000 mm)
Doors
Panels
Component information
Frame:
19×19×1.0 mm
Wire:
2.5×2.5 mm
Mesh:
50×50 mm
Surface treatment:
Powder coating, Grey RAL 7037
Also available in galvanised finish and RAL colours.
TROAX PROPERT Y PROTECTION 11

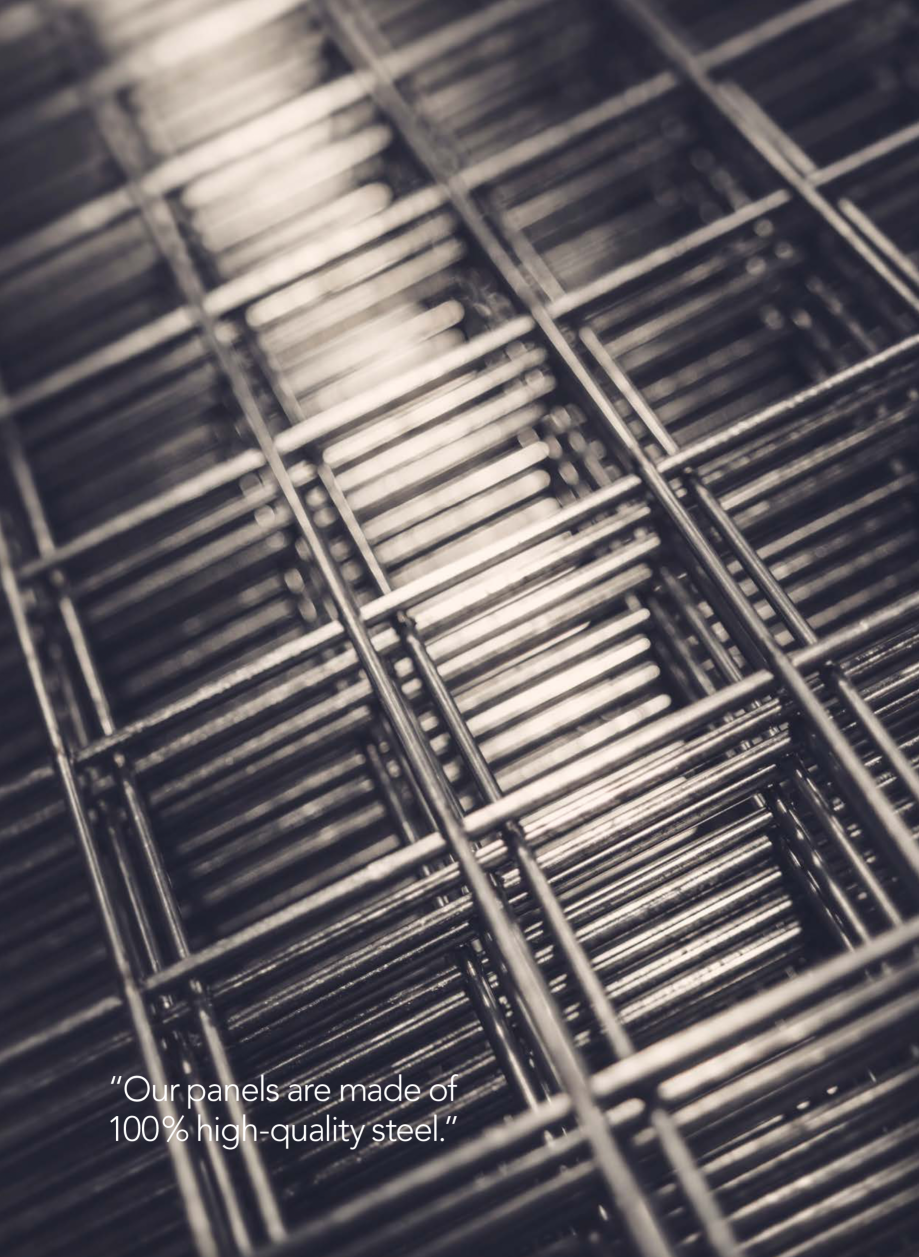

“Our panels are made of
100 % high-quality steel.”

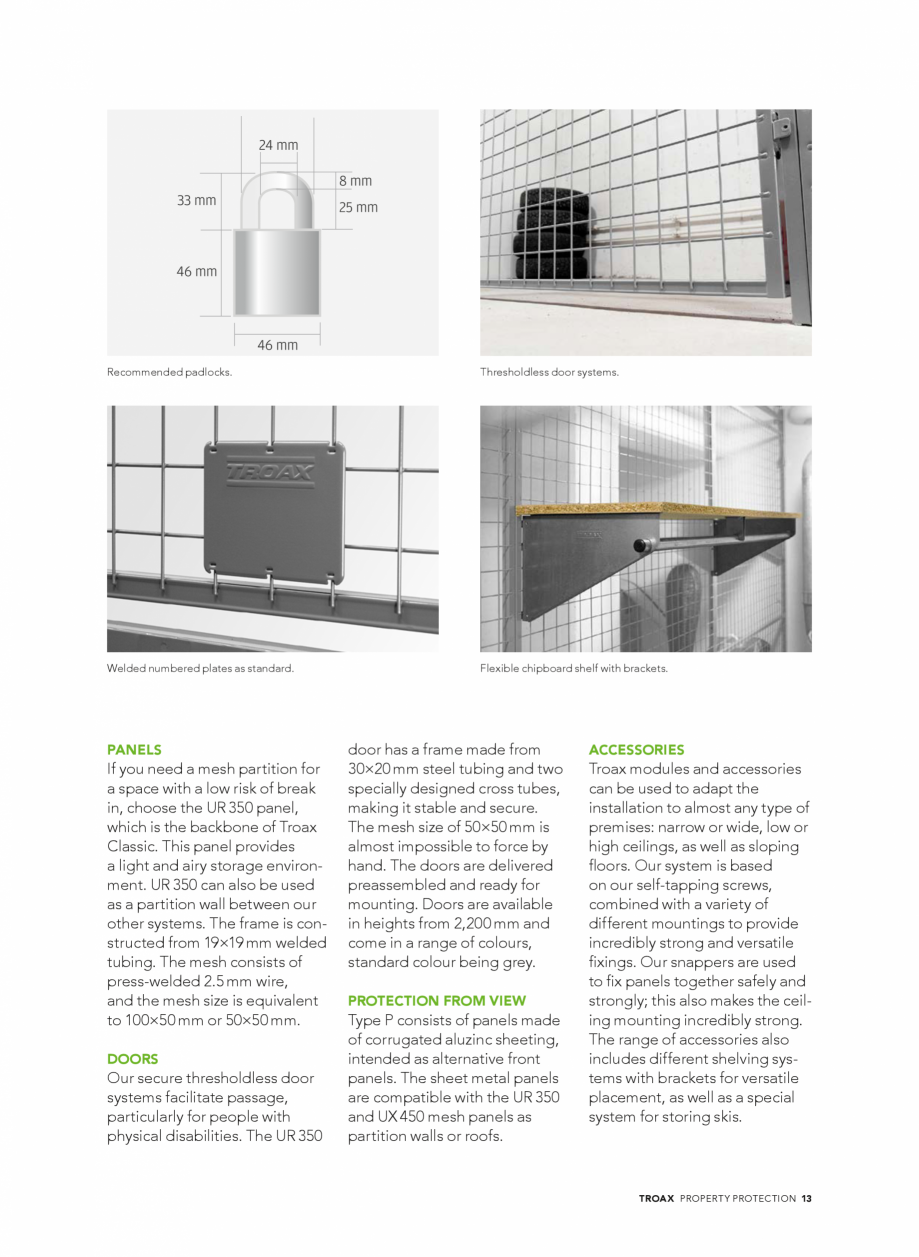

Recommended padlocks.
Thresholdless door systems.
Welded numbered plates as standard.
Flexible chipboard shelf with brackets.
PANELS
If you need a mesh partition for
a space with a low risk of break
in, choose the UR 350 panel,
which is the
backbone of Troax
Classic. This panel provides
a light and airy storage environment. UR 350 can also be used
as a partition wall between our
other systems. The frame is constructed from 19×19 mm welded
tubing. The mesh consists of
press-welded 2.5 mm wire,
and the mesh size is equivalent
to 100×50 mm or 50×50 mm.
DOORS
Our secure thresholdless door
systems facilitate passage,
particularly for people with
physical disabilities. The UR 350
door has a frame made from
30×20 mm steel tubing and two
specially designed cross tubes,
making it stable and secure.
The mesh size of 50×50 mm is
almost impossible to force by
hand. The doors are delivered
preassembled and ready for
mounting. Doors are available
in heights from 2,200 mm and
come in a range of colours,
standard colour being grey.
PROTECTION FROM VIEW
Type P consists of panels made
of corrugated aluzinc sheeting,
intended as alternative front
panels. The sheet metal panels
are compatible with the UR 350
and U
X 450 mesh panels as
partition walls or roofs.
ACCESSORIES
Troax modules and accessories
can be used to adapt the
installation to almost any type of
premises: narrow or wide, low or
high ceilings, as well as sloping
floors. Our system is based
on our self-tapping screws,
combined with a variety of
different mountings to provide
incredibly strong and versatile
fixings. Our snappers are used
to fix panels together safely and
strongly; this also makes the ceiling mounting incredibly strong.
The range of accessories also
includes different shelving systems with brackets for versatile
placement, as well as a special
system for storing skis.
TROAX PROPERT Y PROTECTION 13

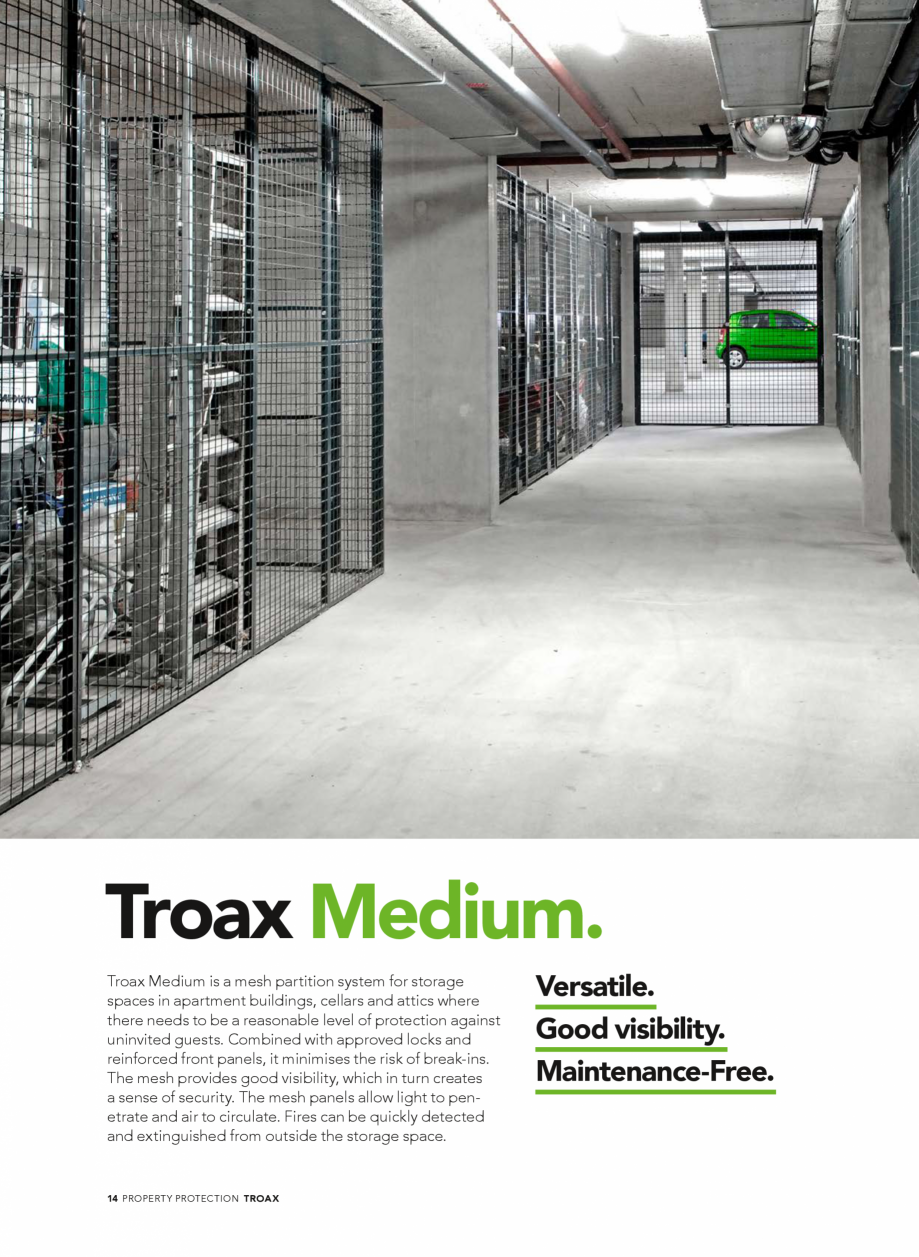

Troax Medium.
Troax Medium is a mesh partition system for storage
spaces in apartment buildings, cellars and attics where
there needs to be a reasonable level of protection against
uninvited guests. Combined with approved locks and
reinforced front panels, it minimises the risk of break-ins.
The mesh provides good v
isibility, which in turn creates
a sense of security. The mesh panels allow light to penetrate and air to circulate. Fires can be quickly detected
and extinguished from outside the storage space.
14 PROPERT Y PROTECTION TROAX
Versatile.
Good visibility.
Maintenance-Free.

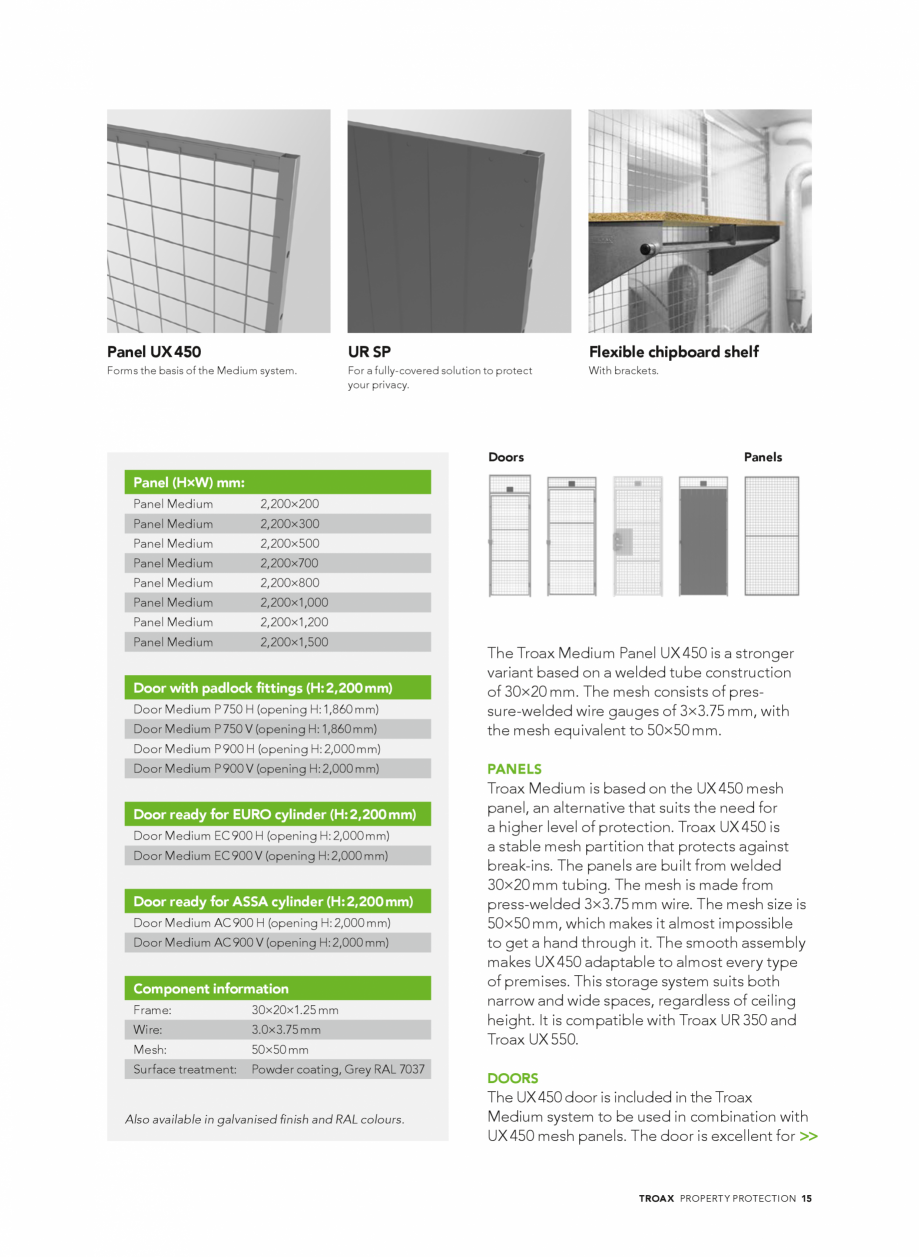

Panel UX 450
Forms the basis of the Medium system.
UR SP
For a fully-covered solution to protect
your privacy.
Doors
Flexible chipboard shelf
With brackets.
Panels
Panel (H×W) mm:
Panel Medium
2,200×200
Panel Medium
2,200×300
Panel Medium
2,200×500
Panel Medium
2,200×700
Panel Medium
2,200×800
Panel Medium
2,200×1,000
Panel Medium
2,200×1,200
Panel Medium
2,200×1,500
Door with padlock fittings (H: 2,200 mm)
Door Medium P 750 H (opening H: 1,860 mm)
Door Medium P 750 V (opening H: 1,860 mm)
The Troax Medium Panel UX 450 is a stronger
variant based on a welded tube construction
of 30×20 mm. The mesh consists of pressure-welded wire gauges of 3×3.75 mm, with
t
he mesh equivalent to 50×50 mm.
Door Medium P 900 H (opening H: 2,000 mm)
Door Medium P 900 V (opening H: 2,000 mm)
Door ready for EURO cylinder (H: 2,200 mm)
Door Medium EC 900 H (opening H: 2,000 mm)
Door Medium EC 900 V (opening H: 2,000 mm)
Door ready for ASSA cylinder (H: 2,200 mm)
Door Medium AC 900 H (opening H: 2,000 mm)
Door Medium AC 900 V (opening H: 2,000 mm)
Component information
Frame:
30×20×1.25 mm
Wire:
3.0×3.75 mm
Mesh:
50×50 mm
Surface treatment:
Powder coating, Grey RAL 7037
Also available in galvanised finish and RAL colours.
PANELS
Troax Medium is based on the UX 450 mesh
panel, an alternative that suits the need for
a higher level of protection. Troax UX 450 is
a stable mesh partition that protects against
break-ins. The panels are built from welded
30×20 mm tubing. The mesh is made from
press-welded 3×3.75 mm wire. The mesh size is
50×50 mm, which makes it almost impossible
to get
a hand through it. The smooth assembly
makes UX 450 adaptable to almost every type
of premises. This storage system suits both
narrow and wide spaces, regardless of ceiling
height. It is compatible with Troax UR 350 and
Troax UX 550.
DOORS
The UX 450 door is included in the Troax
Medium system to be used in combination with
UX 450 mesh panels. The door is excellent for >>
TROAX PROPERT Y PROTECTION 15

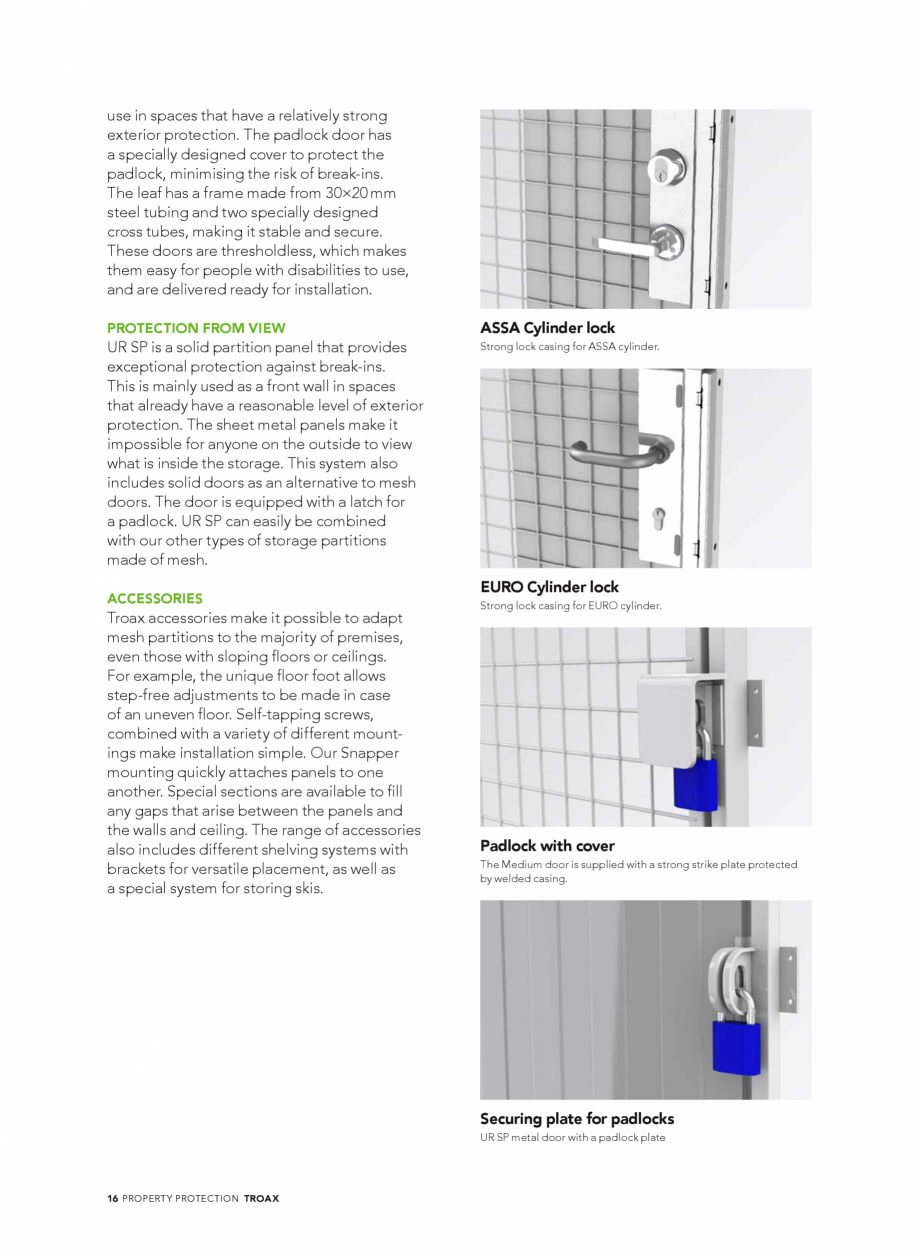

use in spaces that have a relatively strong
exterior protection. The padlock door has
a specially designed cover to protect the
padlock, minimising the risk of break-ins.
The leaf has a frame made from 30×20 mm
steel tubing and two specially designed
cross tubes, making it stable and secure.
These doors are thresholdless, which makes
them easy for people with disabilities to use,
and are delivered ready for installation.
PROTECTION FROM VIEW
UR SP is a solid partition panel that provides
exceptional protection against break-ins.
This is mainly used as a front
wall in spaces
that already have a reasonable level of exterior
protection. The sheet metal panels make it
impossible for anyone on the outside to view
what is inside the storage. This system also
includes solid doors as an alternative to mesh
doors. The door is equipped with a latch for
a padlock. UR SP can easily be combined
with our other types of storage partitions
made of mesh.
ACCESSORIES
Troax accessories make it possible to adapt
mesh partitions to the majority of premises,
even those with sloping floors or ceilings.
For example, the unique floor foot allows
step-free adjustments to be made in case
of an uneven floor. Self-tapping screws,
combined with a variety of different mountings make installation simple. Our Snapper
mounting quickly attaches panels to one
another. Special sections are available to fill
any gaps that arise between the panels and
the walls and ceiling. The range of accessories
also includes different shelving systems with
brackets for versatile placement,
as well as
a special system for storing skis.
ASSA Cylinder lock
Strong lock casing for ASSA cylinder.
EURO Cylinder lock
Strong lock casing for EURO cylinder.
Padlock with cover
The Medium door is supplied with a strong strike plate protected
by welded casing.
Securing plate for padlocks
UR SP metal door with a padlock plate
16 PROPERT Y PROTECTION TROAX
“Steel mesh panels form
the basis of all our systems.”

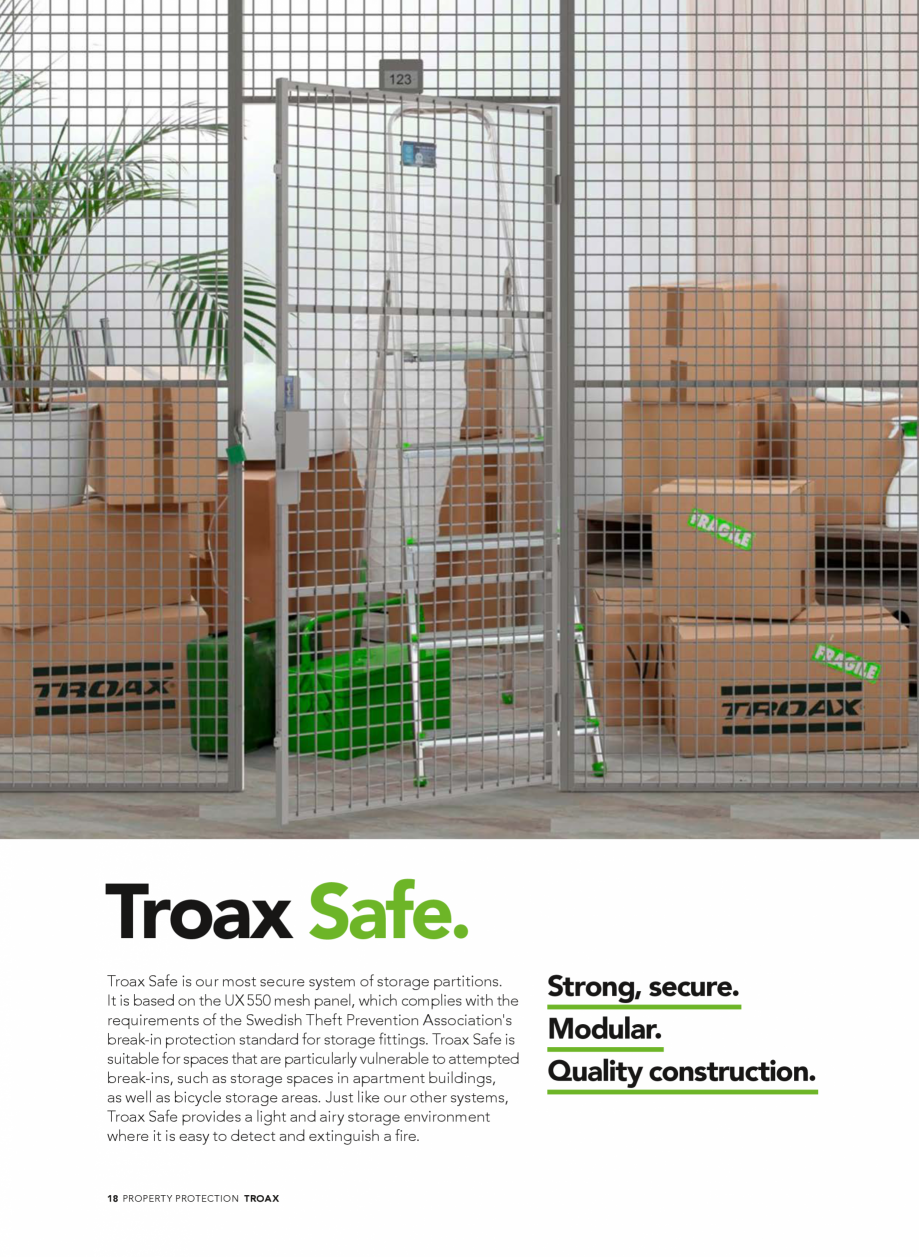

Troax Safe.
Troax Safe is our most secure system of storage partitions.
It is based on the UX 550 mesh panel, which complies with the
requirements of the Swedish Theft Prevention Association's
break-in protection standard for storage fittings. Troax Safe is
suitable for spaces that are particularly vulnerable to attempted
break-ins, such as storage spaces in apartment buildings,
as well as bicycle storage areas. Just like our other systems,
Troax Safe provides a light and airy storage environment
where it is easy to detect and extinguish a fire.
18 PROPER
T Y PROTECTION TROAX
Strong, secure.
Modular.
Quality construction.

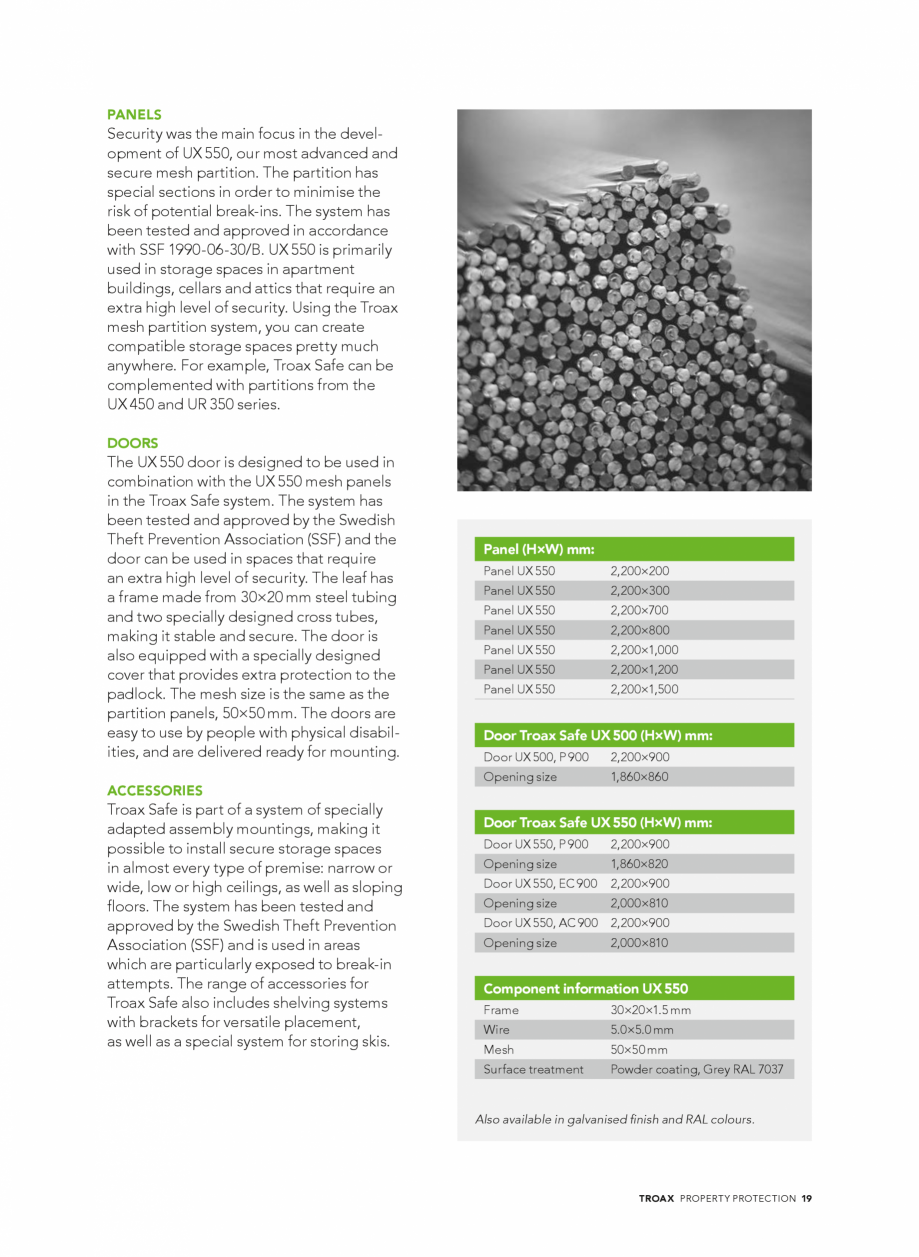

PANELS
Security was the main focus in the development of UX 550, our most advanced and
secure mesh partition. The partition has
special sections in order to minimise the
risk of potential break-ins. The system has
been tested and approved in accordance
with SSF 1990-06-30/B. UX 550 is primarily
used in storage spaces in apartment
buildings, cellars and attics that require an
extra high level of security. Using the Troax
mesh partition system, you can create
compatible storage spaces pretty much
anywhere. For example, Troax Safe can be
complemented with partitions from the
UX 450 and UR 350 series.
DOORS
The UX 550 door is designed to be used in
combination with the UX 550 mesh panels
in the Troax Safe system. The system has
been tested and approved by the Swedish
Theft Prevention Association (SSF) and the
door can be used in spaces that require
an extra high level of security. The leaf has
a frame mad
e from 30×20 mm steel tubing
and two specially designed cross tubes,
making it stable and secure. The door is
also equipped with a specially designed
cover that provides extra protection to the
padlock. The mesh size is the same as the
partition panels, 50×50 mm. The doors are
easy to use by people with physical disabilities, and are delivered ready for mounting.
ACCESSORIES
Troax Safe is part of a system of specially
adapted assembly mountings, making it
possible to install secure storage spaces
in almost every type of premise: narrow or
wide, low or high ceilings, as well as sloping
floors. The system has been tested and
approved by the Swedish Theft Prevention
Association (SSF) and is used in areas
which are particularly exposed to break-in
attempts. The range of accessories for
Troax Safe also includes shelving systems
with brackets for versatile placement,
as well as a special system for storing skis.
Panel (H×W) mm:
Panel UX 550
2,200×200
Panel UX 550
2,200×300
Panel UX 550
2,200×700
Panel UX 550
2,200×800
Panel UX 550
2,200×1,000
Panel UX 550
2,200×1,200
Panel UX 550
2,200×1,500
Door Troax Safe UX 500 (H×W) mm:
Door UX 500, P 900
2,200×900
Opening size
1,860×860
Door Troax Safe UX 550 (H×W) mm:
Door UX 550, P 900
2,200×900
Opening size
1,860×820
Door UX 550, EC 900
2,200×900
Opening size
2,000×810
Door UX 550, AC 900
2,200×900
Opening size
2,000×810
Component information UX 550
Frame
30×20×1.5 mm
Wire
5.0×5.0 mm
Mesh
50×50 mm
Surface treatment
Powder coating, Grey RAL 7037
Also available in galvanised finish and RAL colours.
TROAX PROPERT Y PROTECTION 19
“Our products are
developed with your
safety in focus.”
TROAX SAFE UX 550
Our well-renowned Troax Safe UX 550 is the market’s strongest alternative, offering a system
that includes smart accessories for the most theft-prone environments. The uniquely designed
sections for panel joints
provide the system with superior strength. The door is available with
a padlock or a cylinder lock.
Profile system
To secure the installation,
there are several strong
profile options.
Secure installation
Using the profile system,
all joints are secured to
prevent break-ins.
Certification
The system is certified by the
Swedish Theft Prevention
Association (SSF).
TROAX SAFE UX 500
Our new certified system is based on a new door model designated Troax Safe UX 500. The front
wall is comprised of our strongest panel, UX 550. The installation method and panel joints are more
like those used for our Troax Medium, utilising our unique floor support that enables a threshold-
less door opening and a more cost-effective installation. The door is available with a padlock.
Floor support
The unique floor support
design enables height
adjustment for uneven floors.
Panel
The systems are based on UX 550,
but can be combined with UX 450, UR 350.
Padlock with cover
Screws
and fittings
Our screws and fittings enable
rapid and secure installation.
Door Troax Safe UX 500 and UX 550 use the
same sturdy casing to protect the padlock.
Certification
The system is certified by the
Swedish Theft Prevention
Association (SSF).
Troax Safe UX 500
Our latest SBSC-certified product, a more cost-
effective solution for demanding environments.
TROAX PROPERT Y PROTECTION 21
Troax Self storage.
Troax is the complete self storage system supplier,
with flexible solutions for any self storage concept.
Our roller doors and sheet metal partitions have been
developed specifically for self storage facilities, and it
is as simple to install as it is easy to use. Also, it requires
minimal maintenance.
22 PROPERT Y PROTECTION TROAX
Attractive.
Versatile.
Maintenance-Free.

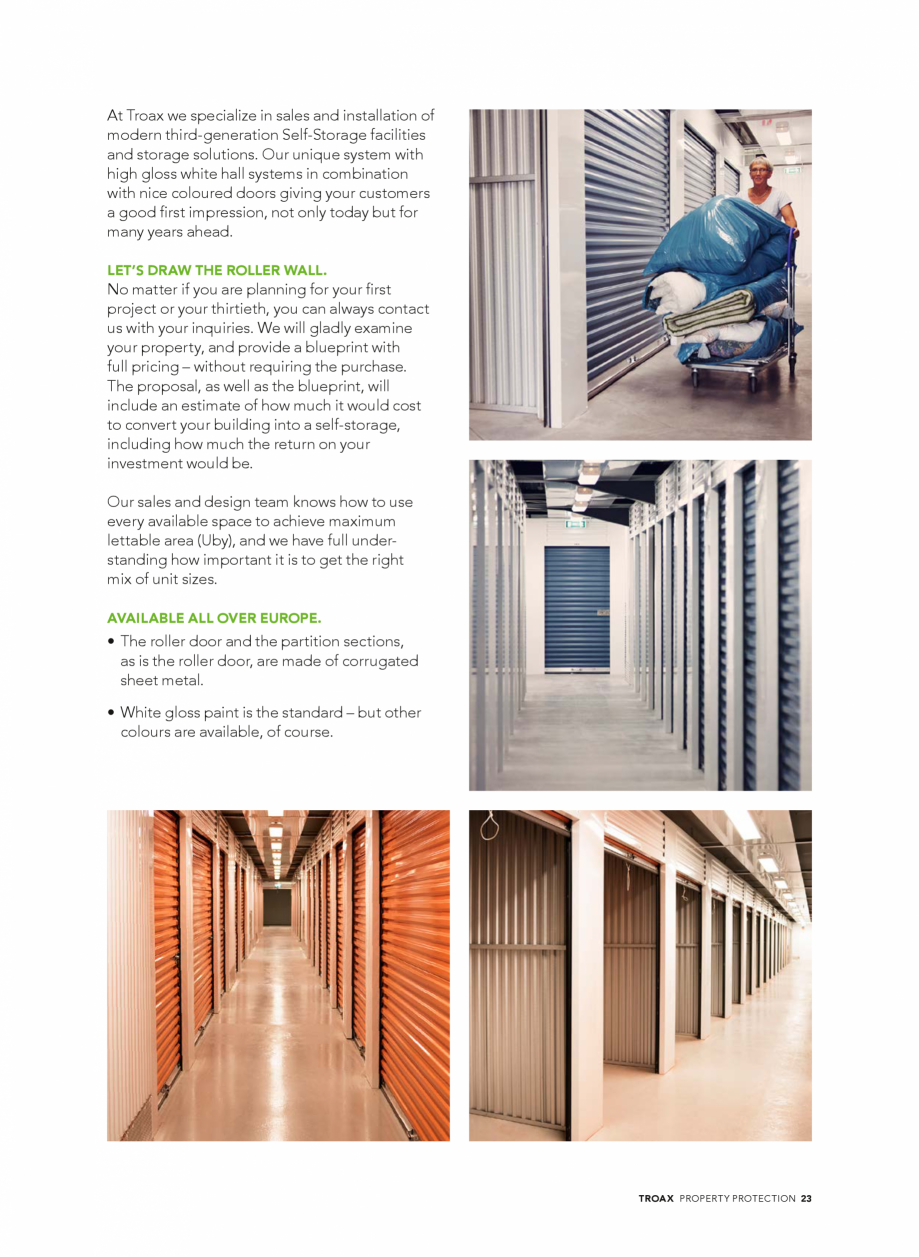

At Troax we specialize in sales and installation of
modern third-generation Self-Storage facilities
and storage solutions. Our unique system with
high gloss white hall systems in combination
with nice coloured doors giving your customers
a good first impression, not only today but for
many years ahead.
LET’S DRAW THE ROLLER WALL.
No matter if you are planning for your first
project or your thirtieth, you can always contact
us with your inquiries. We will gladly examine
your property, and provide a blueprint with
full pricing – without requiring the purchase.
The p
roposal, as well as the blueprint, will
include an estimate of how much it would cost
to convert your building into a self-storage,
including how much the return on your
investment would be.
Our sales and design team knows how to use
every available space to achieve maximum
lettable area (Uby), and we have full understanding how important it is to get the right
mix of unit sizes.
AVAILABLE ALL OVER EUROPE.
• The roller door and the partition sections,
as is the roller door, are made of corrugated
sheet metal.
• White gloss paint is the standard – but other
colours are available, of course.
TROAX PROPERT Y PROTECTION 23

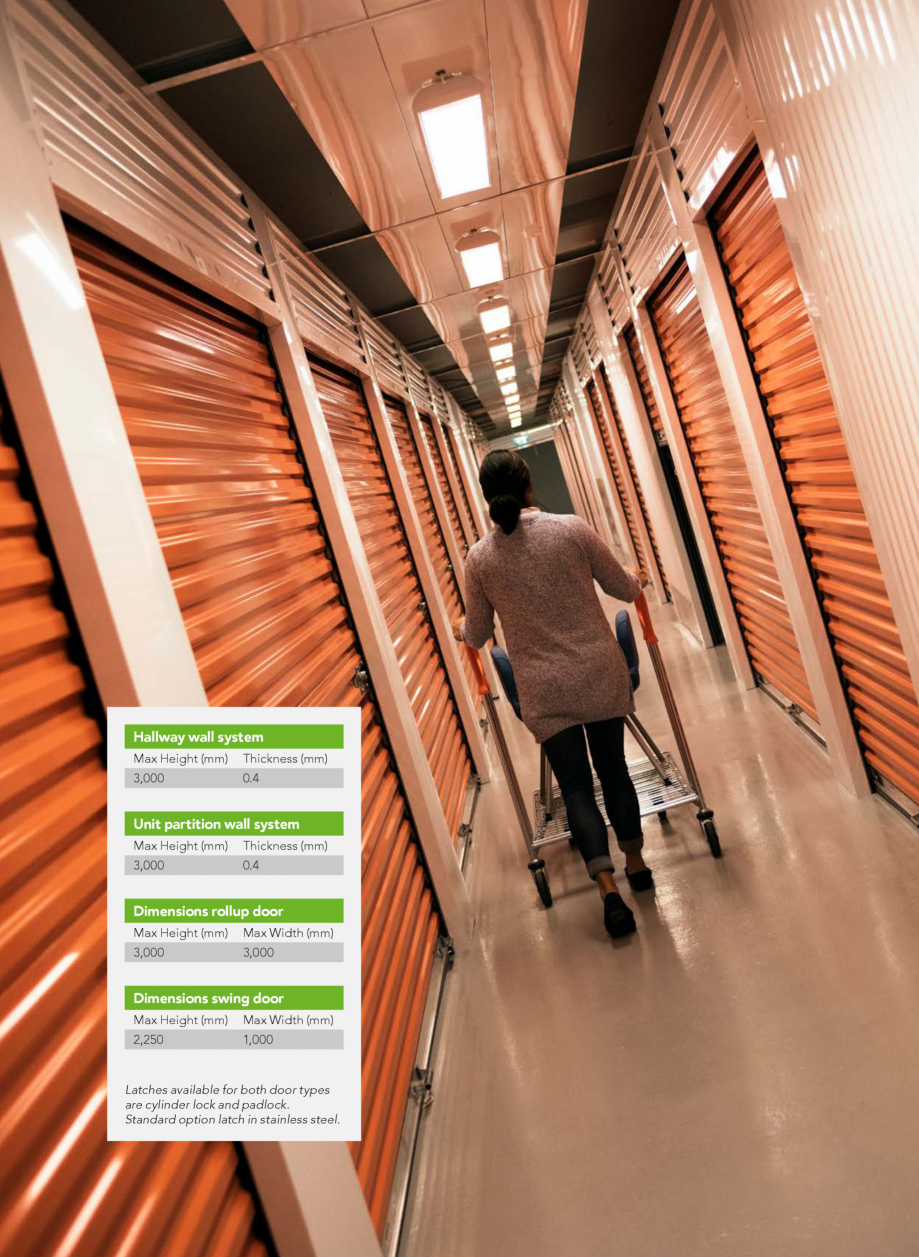

Hallway wall system
Max Height (mm)
Thickness (mm)
3,000
0.4
Unit partition wall system
Max Height (mm)
Thickness (mm)
3,000
0.4
Dimensions rollup door
Max Height (mm)
Max Width (mm)
3,000
3,000
Dimensions swing door
Max Height (mm)
Max Width (mm)
2,250
1,000
Latches available for both door types
are cylinder lock and padlock.
Standard option latch in stainless steel.

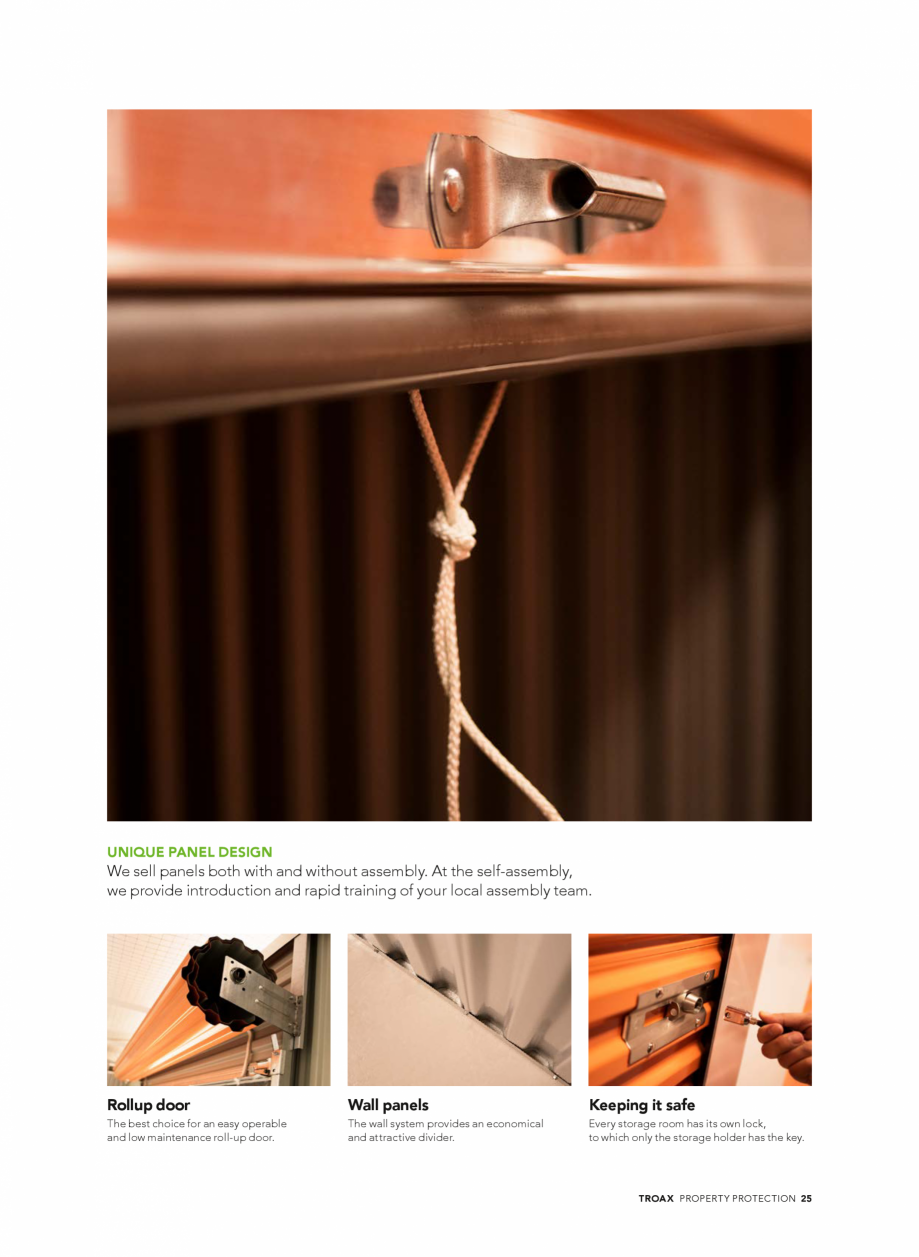

UNIQUE PANEL DESIGN
We sell panels both with and without assembly. At the self-assembly,
we provide introduction and rapid training of your local assembly team.
Rollup door
The best choice for an easy operable
and low maintenance roll-up door.
Wall panels
The wall system provides an economical
and attractive divider.
Keeping it safe
Every storage room has its own lock,
to which only the storage holder has the key.
TROAX PROPERT Y PROTECTION 25

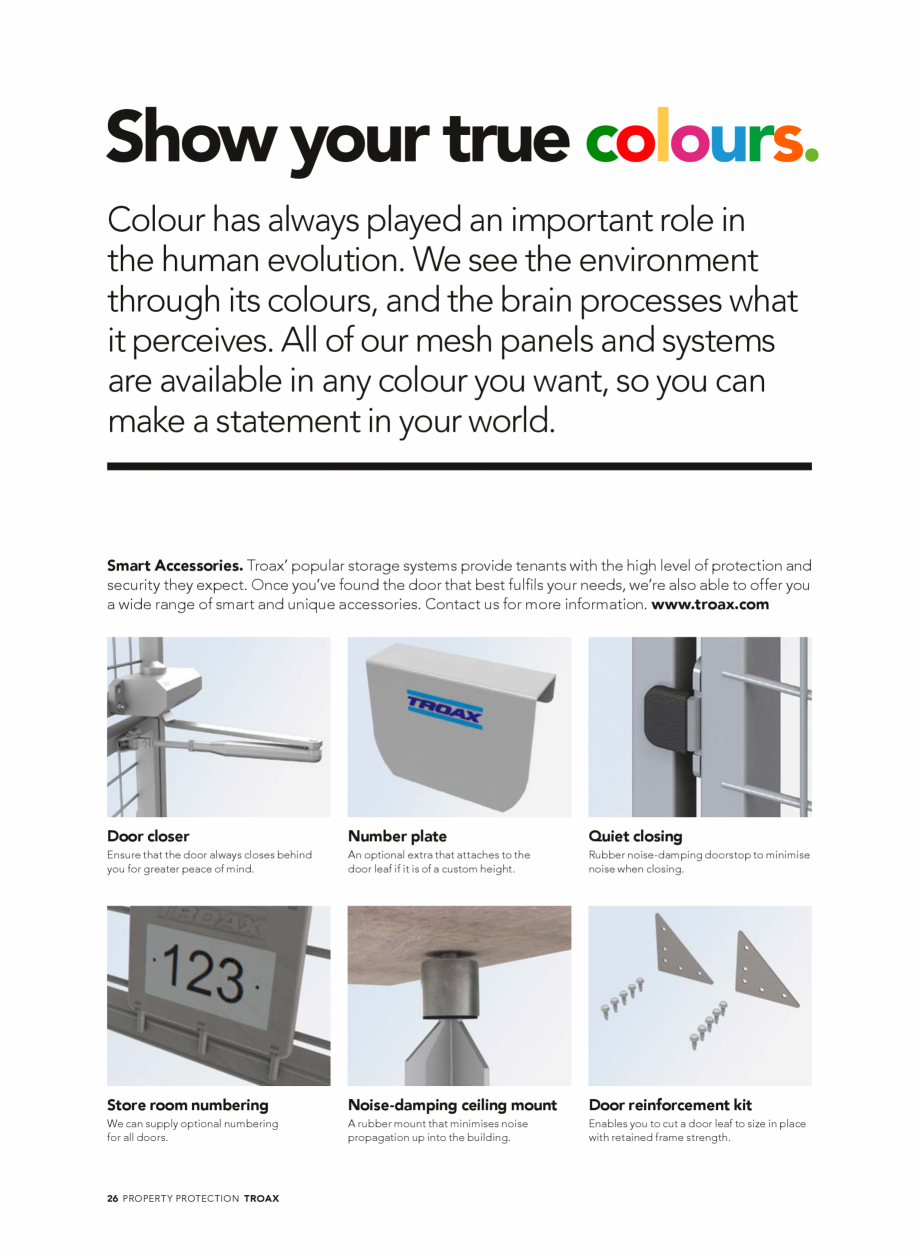

Show your true colours.
Colour has always played an important role in
the human evolution. We see the environment
t
hrough its colours, and the brain processes what
it perceives. All of our mesh panels and systems
are available in any colour you want, so you can
make a statement in your world.
Smart Accessories. Troax’ popular storage systems provide tenants with the high level of protection and
security they expect. Once you’ve found the door that best fulfils your needs, we’re also able to offer you
a wide range of smart and unique accessories. Contact us for more information. www.troax.com
Door closer
Number plate
Quiet closing
Store room numbering
Noise-damping ceiling mount
Door reinforcement kit
Ensure that the door always closes behind
you for greater peace of mind.
We can supply optional numbering
for all doors.
26 PROPERT Y PROTECTION TROAX
An optional extra that attaches to the
door leaf if it is of a custom height.
A rubber mount that minimises noise
propagation up into the building.
Rubber noise-damping doorstop to minimise
noise when closing.
Enables you to cut a d
oor leaf to size in place
with retained frame strength.

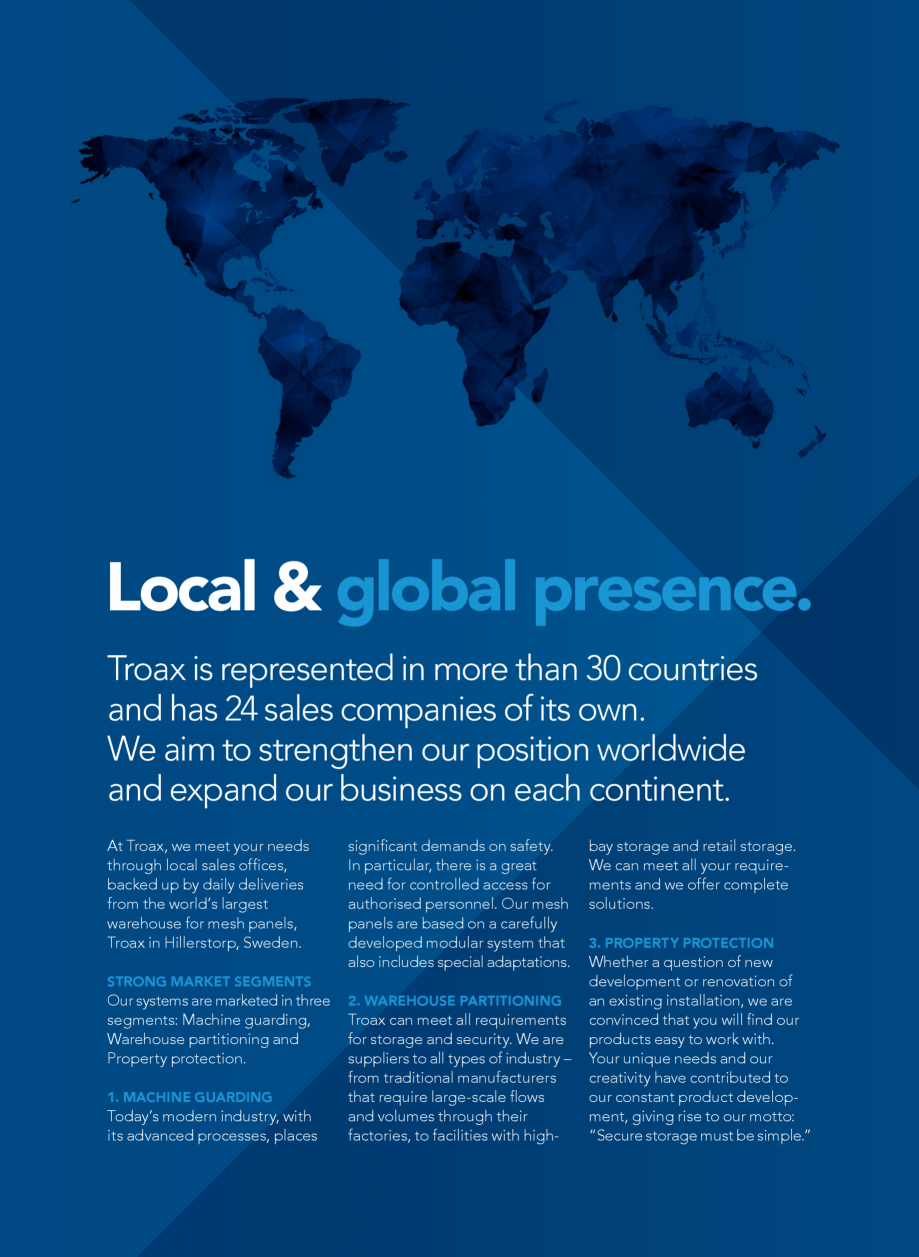

Local & global presence.
Troax is represented in more than 30 countries
and has 24 sales companies of its own.
We aim to strengthen our position worldwide
and expand our business on each continent.
At Troax, we meet your needs
through local sales offices,
backed up by daily d
eliveries
from the world’s largest
warehouse for mesh panels,
Troax in Hillerstorp, Sweden.
STRONG MARKET SEGMENTS
Our systems are marketed in three
segments: Machine guarding,
Warehouse partitioning and
Property protection.
1. MACHINE GUARDING
Today’s modern industry, with
its advanced processes, places
significant demands on safety.
In particular, there is a great
need for controlled access for
authorised personnel. Our mesh
panels are based on a carefully
developed modular system that
also includes special adaptations.
2. WAREHOUSE PARTITIONING
Troax can meet all requirements
for storage and security. We are
suppliers to all types of i
ndustry –
from traditional manufacturers
that require large-scale flows
and volumes through their
factories, to facilities with high-
bay storage and retail storage.
We can meet all your requirements and we offer complete
solutions.
3. PROPERTY PROTECTION
Whether a question of new
development or renovation of
an existing installation, we are
convinced that you will find our
products easy to work with.
Your unique needs and our
creativity have contributed to
our constant product development, giving rise to our motto:
“Secure storage must be simple.”
201712-1735-EN
Making your world safe.
There are dangers for people, property, and processes in the world.
But there is no need to worry. Because we always strive to make it safe.
We are there, at your workplace, at your friends‘ and families‘ workplaces, at your home,
and at your friends‘ and families‘ homes. You may not always see us or think about us,
but we are always there, protecting and making your world safe, w
herever you are.
Read more at troax.com
Troax AB P.O. Box 89, SE‑335 04 Hillerstorp, Sweden. troax.com | info@troax.com | + 46 (0)370‑828 00
