PRODUCTION

PRODUCT...

YEARS PRODUCTION PRODUCT CATALOGUE SEALING SOLUTIONS 2 \ CONTENTS MODERN SEALING TECHNOLOGY – ESSENTIAL ON THE CONSTRUCTION SITE The technical requirements for energy-efficient and long-term building seals are increasing all the time. Our innovative product solutions have a positive effect on the energy balance of buildings, at the same time promoting a healthy internal climate. Factors such as airtightness, permanent movement, weather resistance, emissions free, thermal and acoustic insulation as well as humidity and fire protection are important properties of a standard conforming building seal. The constant quality of our sealing systems is monitored regularly by independent institutes according to the very latest standards and regulations. CONTENT PRE-COMPRESSED JOINT SEALING TAPES WINDOW AND FACADE SEALING FILMS ISO-BLOCO 600 „PREMIUM EDITION“ 4 ISO-CONNECT VARIO SD 52 ISO-BLOCO 600 „COLOUR EDITION“ 4 ISO-CONNECT VARIO SD „PADS“ 54 ISO-BLOCO 300

Pagina 1-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza YEARS

PRODUCTION

PRODUCT CATALOGUE
...

Pagina 2 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza „PREMIUM EDITION“ 8
...

„PREMIUM EDITION“ 8 ISO-CONNECT VARIOFLEX SD+ 56 ISO-BLOCO AIR 10 ISO-CONNECT VARIO XD 58 ISO-BLOCO HF 12 ISO-CONNECT INSIDE EPDM 60 ISO-BLOCO XTHERM 14 ISO-CONNECT OUTSIDE EPDM 62 ISO-MEMBRA SX 16 ISO-CONNECT EPDM SEALING COLLAR 64 ISO-CONNECT EPDM SEALING CORNER 64 MULTI-FUNCTIONAL SEALING TAPES ISO-CONNECT EPDM SEALING TRAY 66 ISO-BLOCO HYBRATEC 18 ISO-CONNECT HB-BAND 68 ISO-BLOCO MULTITEC 20 ISO-CONNECT INSIDE „BLUE LINE“ 70 ISO-BLOCO MULTITEC „TIMBER EDITION“ 22 ISO-CONNECT OUTSIDE „BLUE LINE“ 72 ISO-BLOCO ONE 24 ISO-CONNECT INSIDE CL 74 ISO-BLOCO ONE CONTROL 26 ISO-CONNECT OUTSIDE CL 76 ISO-BLOCO RENO 28 ISO-CONNECT INSIDE CX 78 ISO-BLOCO MULTI-FUNCTIONAL TAPE 30 ISO-CONNECT OUTSIDE CX 80 ISO-CONNECT INSIDE FD 82 IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WINFRAMER „TYPE 1“ 32 ISO-CONNECT OUTSIDE FD 84 ISO-TOP WINFRAMER „TYPE 1“ E30 38 PROFILE FILLERS ISO-TOP WINFRA

Pagina 3 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MER „TYPE 2“ 40
...

MER „TYPE 2“ 40 ISO-PROFIL FILLER STRIPS 86 ISO-TOP WINFRAMER „TYPE 3“ 44 ISO-PROFIL FILLER PIECES 88 ISO-TOP CONSTRUCTION SHEETS WF3 48 ISO-TOP WF FIXINGS 50 PADDING- AND DECOUPLING TAPES ISO-ZELL THERMAL TAPE 90 ISO-ZELL PE-TAPE AND FIX-TAPE 92 CONTENTS \ 3 PUR FOAMS AND ACCESSORIES FIRE PROTECTION PRODUCTS ISO-TOP ELASTIFLEX 94 ISO-FLAME KOMBI F 120 126 ISO-TOP THERMFOAM „BLUE LINE“ 96 ISO-FLAME BRICK S 90 128 ISO-TOP CLEANEX 98 ISO-FLAME PLUG S 90 SEALANTS MASONRY FILLERS ISO-TOP ACRYLSEAL F 100 ISO-BLOCO FILLER 132 130 ISO-TOP FACADE SEAL 102 ISO-TOP SILICONE N / NT 104 CORDS ISO-ZELL PE-CORD 134 ADHESIVES AND PRIMER ISO-ZELL PUR-CORD 134 ISO-TOP FLEX-ADHESIVE HP 106 ISO-TOP FLEX-ADHESIVE XP, SP & PA 108 MOULDED PROFILES ISO-TOP FLEX-ADHESIVE WF 110 ISO-TOP BASE 136 ISO-TOP BLUE PRIMER 112 ISO-TOP BASE HS 138 ISO-TOP KSKSEAL PRIMER 114 ISO-TOP WINDOW SILL FORMS 142 ISO-TOP SPRAY PRIMER 116 ACOUS

Pagina 3-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MER „TYPE 2“ 40

ISO-PROFIL...

Pagina 4 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza TIC INSULATING STRIPS...

TIC INSULATING STRIPS BUTYL- AND BITUMEN TAPES ISO-ACOUSTIC INSULATING STRIPS 144 ISO-BUTYL SELF-ADHESIVE TAPE 118 ISO-BUTYL FLEECE TAPE 118 SEALANTS, FOAM AND ADHESIVE APPLICATORS, INSTALLATION TOOLS ISO-CONNECT KSKSEAL 120 ISO-TOP GUN EASY, ISO-TOP GUN & ISO-TOP PRESSFIX 146 ISO-TOP EASYPRESS & ISO-TOP EASYPRESS PRO 147 ISO-TOOL CLIP & ISO-TOOL CUT 147 ISO-BUTYL ALU TAPE 118 AIR TIGHT ADHESIVE TAPES ISO-TOP POWER-TAPE 122 ISO-TOP FLEX-TAPE 124 4 \ PRE-COMPRESSED JOINT SEALING TAPES ISO-BLOCO 600 ISOM metal building sealing PRODUCT DESCRIPTION PRODUCT ADVANTAGES ISO-BLOCO 600 is a PUR sealing tape impregnated with polymer dispersion. It is specially designed for reliable joint sealing in buildings and façades up to 100 metres high. As a quality-tested BG 1, BG 2 and BG R joint sealing tape, ISO-BLOCO 600 fulfils the stringent requirements of DIN 18542, 2020 edition. In addition to a driving rain tightness of over 600 Pa (equivalent to wind force 11), ISO-

Pagina 4-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza TIC INSULATING STRIPS
BUTYL- AND...

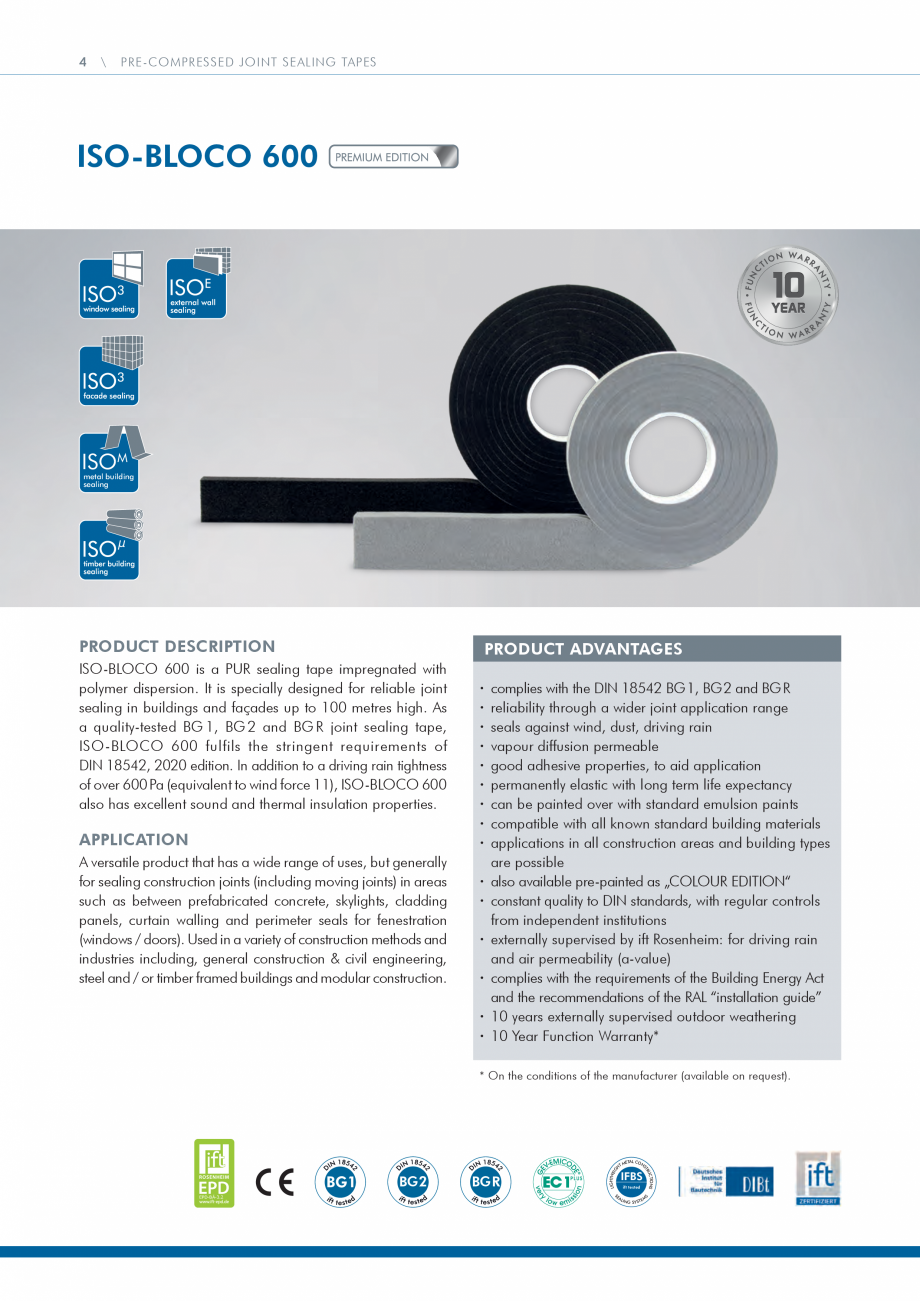

Pagina 5 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza BLOCO 600
also has...

BLOCO 600 also has excellent sound and thermal insulation properties. APPLICATION A versatile product that has a wide range of uses, but generally for sealing construction joints (including moving joints) in areas such as between prefabricated concrete, skylights, cladding panels, curtain walling and perimeter seals for fenestration (windows / doors). Used in a variety of construction methods and industries including, general construction & civil engineering, steel and / or timber framed buildings and modular construction. · · · · · · · · · · · · · · · complies with the DIN 18542 BG 1, BG 2 and BG R reliability through a wider joint application range seals against wind, dust, driving rain vapour diffusion permeable good adhesive properties, to aid application permanently elastic with long term life expectancy can be painted over with standard emulsion paints compatible with all known standard building materials applications in all construction areas and building types

Pagina 5-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza BLOCO 600
also has excellent sound...

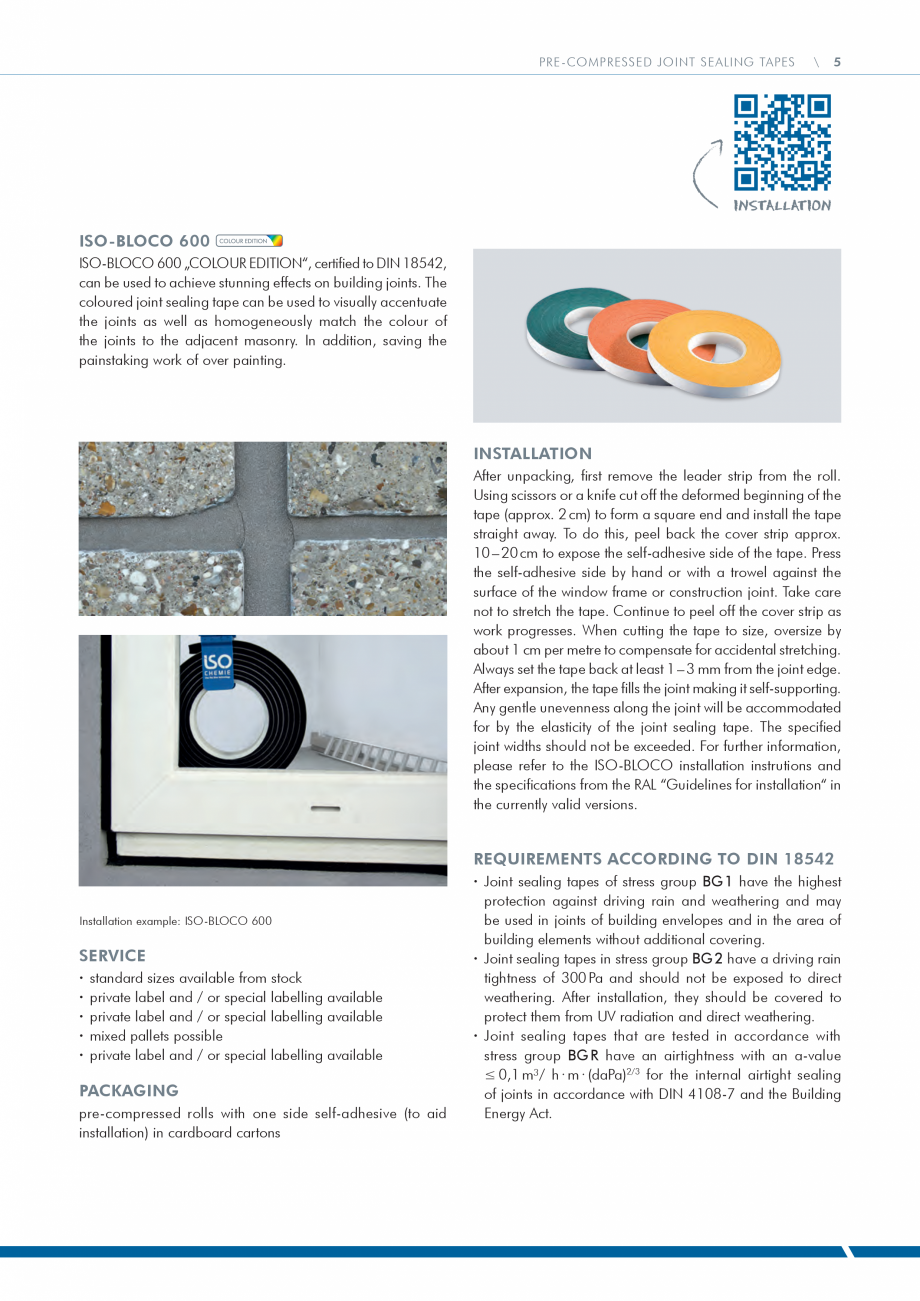

Pagina 6 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
are possible
also...

are possible also available pre-painted as „COLOUR EDITION“ constant quality to DIN standards, with regular controls from independent institutions externally supervised by ift Rosenheim: for driving rain and air permeability (a-value) complies with the requirements of the Building Energy Act and the recommendations of the RAL “installation guide” 10 years externally supervised outdoor weathering 10 Year Function Warranty* L META CONS HT IFBS ift tested LI N S EA S BG R TIONS UC TR BG 2 LIGHTWEIG * On the conditions of the manufacturer (available on request). G S YSTE M PRE-COMPRESSED JOINT SEALING TAPES \ 5 INSTALLATION ISO-BLOCO 600 ISO-BLOCO 600 „COLOUR EDITION“, certified to DIN 18542, can be used to achieve stunning effects on building joints. The coloured joint sealing tape can be used to visually accentuate the joints as well as homogeneously match the colour of the joints to the adjacent masonry. In addition, saving the painstaking work

Pagina 6-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
are possible
also available...

Pagina 7 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza of over painting.
...

of over painting. INSTALLATION After unpacking, first remove the leader strip from the roll. Using scissors or a knife cut off the deformed beginning of the tape (approx. 2 cm) to form a square end and install the tape straight away. To do this, peel back the cover strip approx. 10 – 20 cm to expose the self-adhesive side of the tape. Press the self-adhesive side by hand or with a trowel against the surface of the window frame or construction joint. Take care not to stretch the tape. Continue to peel off the cover strip as work progresses. When cutting the tape to size, oversize by about 1 cm per metre to compensate for accidental stretching. Always set the tape back at least 1 – 3 mm from the joint edge. After expansion, the tape fills the joint making it self-supporting. Any gentle unevenness along the joint will be accommodated for by the elasticity of the joint sealing tape. The specified joint widths should not be exceeded. For further information, please refer to the ISO-BL

Pagina 7-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza of over painting.

INSTALLATION...

Pagina 8 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza OCO installation...

OCO installation instrutions and the specifications from the RAL “Guidelines for installation“ in the currently valid versions. REQUIREMENTS ACCORDING TO DIN 18542 Installation example: ISO-BLOCO 600 SERVICE · · · · · standard sizes available from stock private label and / or special labelling available private label and / or special labelling available mixed pallets possible private label and / or special labelling available PACKAGING pre-compressed rolls with one side self-adhesive (to aid installation) in cardboard cartons · Joint sealing tapes of stress group BG 1 have the highest protection against driving rain and weathering and may be used in joints of building envelopes and in the area of building elements without additional covering. · Joint sealing tapes in stress group BG 2 have a driving rain tightness of 300 Pa and should not be exposed to direct weathering. After installation, they should be covered to protect them from UV radiation and direct weathering.

Pagina 8-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza OCO installation instrutions and
the ...

Pagina 9 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
· Joint sealing tapes...

· Joint sealing tapes that are tested in accordance with stress group BG R have an airtightness with an a-value ≤ 0,1 m³/ h · m · (daPa)2/3 for the internal airtight sealing of joints in accordance with DIN 4108-7 and the Building Energy Act. 6 \ PRE-COMPRESSED JOINT SEALING TAPES ISO-BLOCO 600 Tape width / area of application Recommended joint width** BG 1 BG 2 Roll (metres) Rolls / Carton Carton (metres) 37 740,0 30 600,0 20 400,0 BG R 8 / 1 – 2 mm 10 / 1 – 2 mm 15 / 1 – 2 mm 1 – 2 mm 1 – 4 mm checked 20,0 20 / 1 – 2 mm 15 300,0 10 / 1 – 4 mm 30 390,0 20 260,0 15 195,0 15 / 1 – 4 mm 20 / 1 – 4 mm 1 – 4 mm 1 – 5 mm checked 13,0 30 / 1 – 4 mm 10 130,0 12 / 2 – 6 mm 25 360,0 20 240,0 15 180,0 10 120,0 15 / 2 – 6 mm 20 / 2 – 6 mm 2 – 6 mm 2 – 8 mm checked 12,0 30 / 2 – 6 mm 15 / 4 – 9 mm 20 160,0 20 / 4 – 9 mm 15 120,0 30 / 4 – 9 mm 4 – 9 mm 4 – 11 mm checked 8,0 10 80,

Pagina 9-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
· Joint sealing tapes that are...

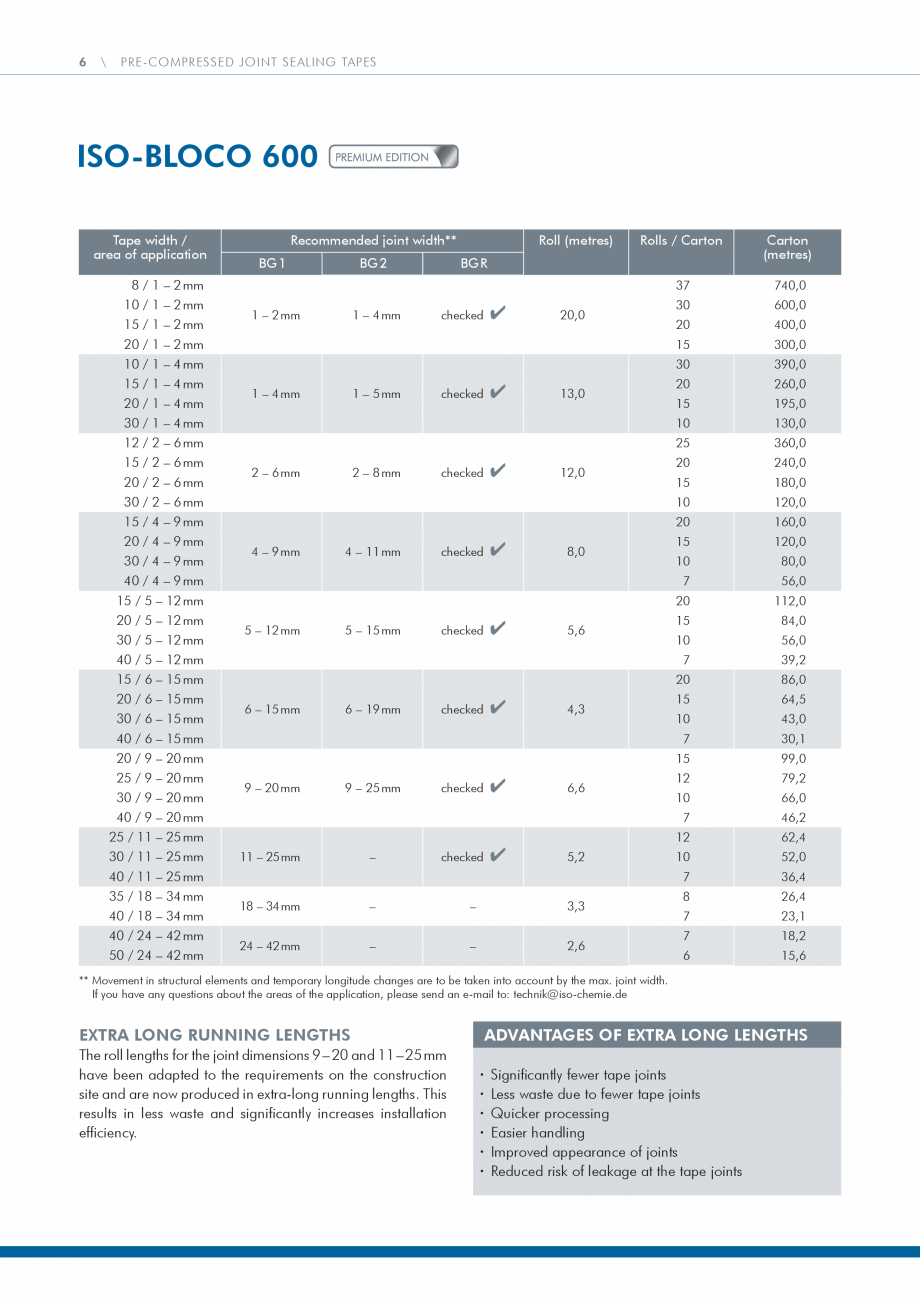

Pagina 10 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 0

40 / 4 – 9 mm

7

56...

0 40 / 4 – 9 mm 7 56,0 15 / 5 – 12 mm 20 112,0 15 84,0 20 / 5 – 12 mm 30 / 5 – 12 mm 5 – 12 mm 5 – 15 mm checked 5,6 40 / 5 – 12 mm 10 56,0 7 39,2 15 / 6 – 15 mm 20 86,0 20 / 6 – 15 mm 15 64,5 30 / 6 – 15 mm 6 – 15 mm 6 – 19 mm checked 4,3 40 / 6 – 15 mm 10 43,0 7 30,1 20 / 9 – 20 mm 15 99,0 25 / 9 – 20 mm 12 79,2 30 / 9 – 20 mm 9 – 20 mm 9 – 25 mm checked 6,6 40 / 9 – 20 mm 25 / 11 – 25 mm 10 66,0 7 46,2 12 62,4 10 52,0 40 / 11 – 25 mm 7 36,4 35 / 18 – 34 mm 8 26,4 7 23,1 30 / 11 – 25 mm 40 / 18 – 34 mm 40 / 24 – 42 mm 50 / 24 – 42 mm 11 – 25 mm – checked 5,2 18 – 34 mm – – 3,3 24 – 42 mm – – 2,6 7 18,2 6 15,6 ** Movement in structural elements and temporary longitude changes are to be taken into account by the max. joint width. If you have any questions about the areas of the application, please send an e-mail to: technik@iso-chemie.de

Pagina 10-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 0

40 / 4 – 9 mm

7

56,0

15 / 5...

Pagina 11 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
EXTRA LONG RUNNING...

EXTRA LONG RUNNING LENGTHS The roll lengths for the joint dimensions 9 – 20 and 11 – 25 mm have been adapted to the requirements on the construction site and are now produced in extra-long running lengths. This results in less waste and significantly increases installation efficiency. ADVANTAGES OF EXTRA LONG LENGTHS · · · · · · Significantly fewer tape joints Less waste due to fewer tape joints Quicker processing Easier handling Improved appearance of joints Reduced risk of leakage at the tape joints PRE-COMPRESSED JOINT SEALING TAPES Technical data Standard \ Classification according to DIN 18542 BG 1 BG 2 Material description BG R impregnated PUR flexible foam Basis fire resistant polymeric dispersion Colour DIN EN 12114 grey, black a < 1.0 m3 / [h · m · (daPa)2/3] – grey, black a < 1.0 m3 / [h · m · (daPa)2/3] – DIN EN 1027 ≥ 600 Pa DIN EN 1027 ≥ 600 Pa ≥ 300 Pa for BG 2 joint width – DIN 18542 -30 °C to +90 °C -20 °C to +60 �

Pagina 11-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
EXTRA LONG RUNNING LENGTHS
The roll ...

Pagina 12 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza �C

UV light and weather ...

�C UV light and weather stability DIN 18542 requirements fulfilled – requirements fulfilled Compatibility with adjacent building materials Dimension tolerance DIN 18542 requirements fulfilled requirements fulfilled requirements fulfilled DIN 7715 T5 P3 requirements fulfilled requirements fulfilled requirements fulfilled Building material class DIN 4102-1 B2 Fire behaviour DIN EN 13501-1 B1 (fire resistant) – B1 (fire resistant) – Airtightness External application ift externally supervised Airtightness Internal application ift externally supervised Impermeable to driving rain, single joint, ift externally supervised Impermeable to driving rain, joint intersection Temperature stability range DIN EN 12114 Thermal conductivity DIN EN 12667 λ = 0,043 W / m · K E (flammable) λ = 0,043 W / m · K Water vapour diffusion resistance μ DIN EN ISO 12572 ≤ 100 ≤ 100 Long term stability CE mark since 2007 DIN EN ISO 12572 ≥ 600 Pa -30 °C to +90 °C

Pagina 12-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza �C

UV light and weather stability
...

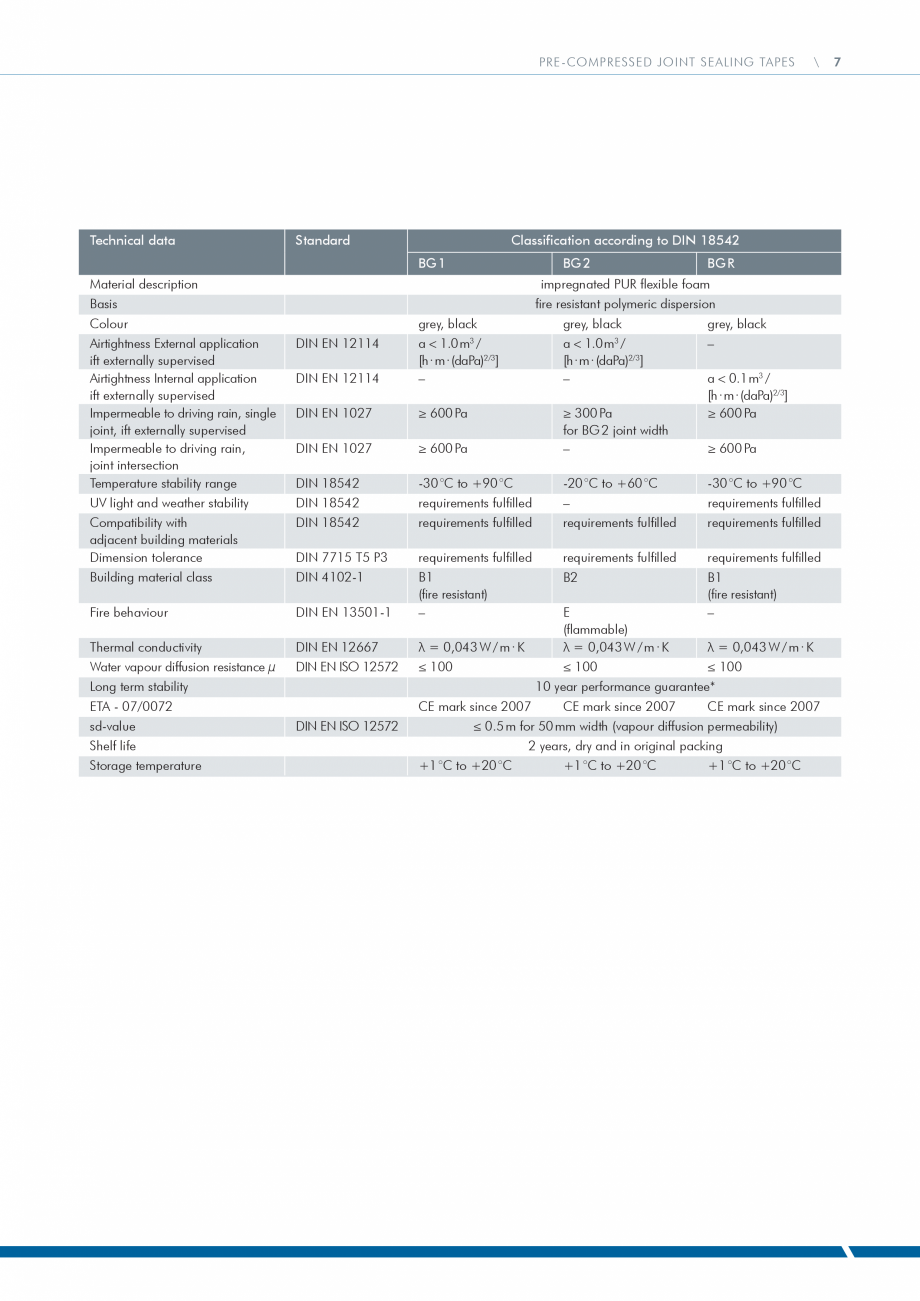

Pagina 13 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza λ = 0,043 W / m · K
≤...

λ = 0,043 W / m · K ≤ 100 CE mark since 2007 CE mark since 2007 ≤ 0.5 m for 50 mm width (vapour diffusion permeability) Shelf life Storage temperature a < 0.1 m3 / [h · m · (daPa)2/3] ≥ 600 Pa 10 year performance guarantee* ETA - 07/0072 sd-value grey, black – 2 years, dry and in original packing +1 °C to +20 °C +1 °C to +20 °C +1 °C to +20 °C 7 8 \ PRE-COMPRESSED JOINT SEALING TAPES ISO-BLOCO 300 APPLICATION ISO-BLOCO 300 is suitable for sealing joints and connections in building constructions and facades. It is particularly suitable for applications involving windows, metal, masonry, wood and drywall constructions. ISO-BLOCO 300 can also be used as a thermal barrier tape. · complies with DIN 18542 BG 2 and UK Building Regulations · seals against driving rain, wind and dust · permanently elastic with life long movement capacity · vapour diffusion permeable – breathable · thermal and acoustic insulating properties · self-adhesive to aid inst

Pagina 13-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza λ = 0,043 W / m · K
≤ 100

CE...

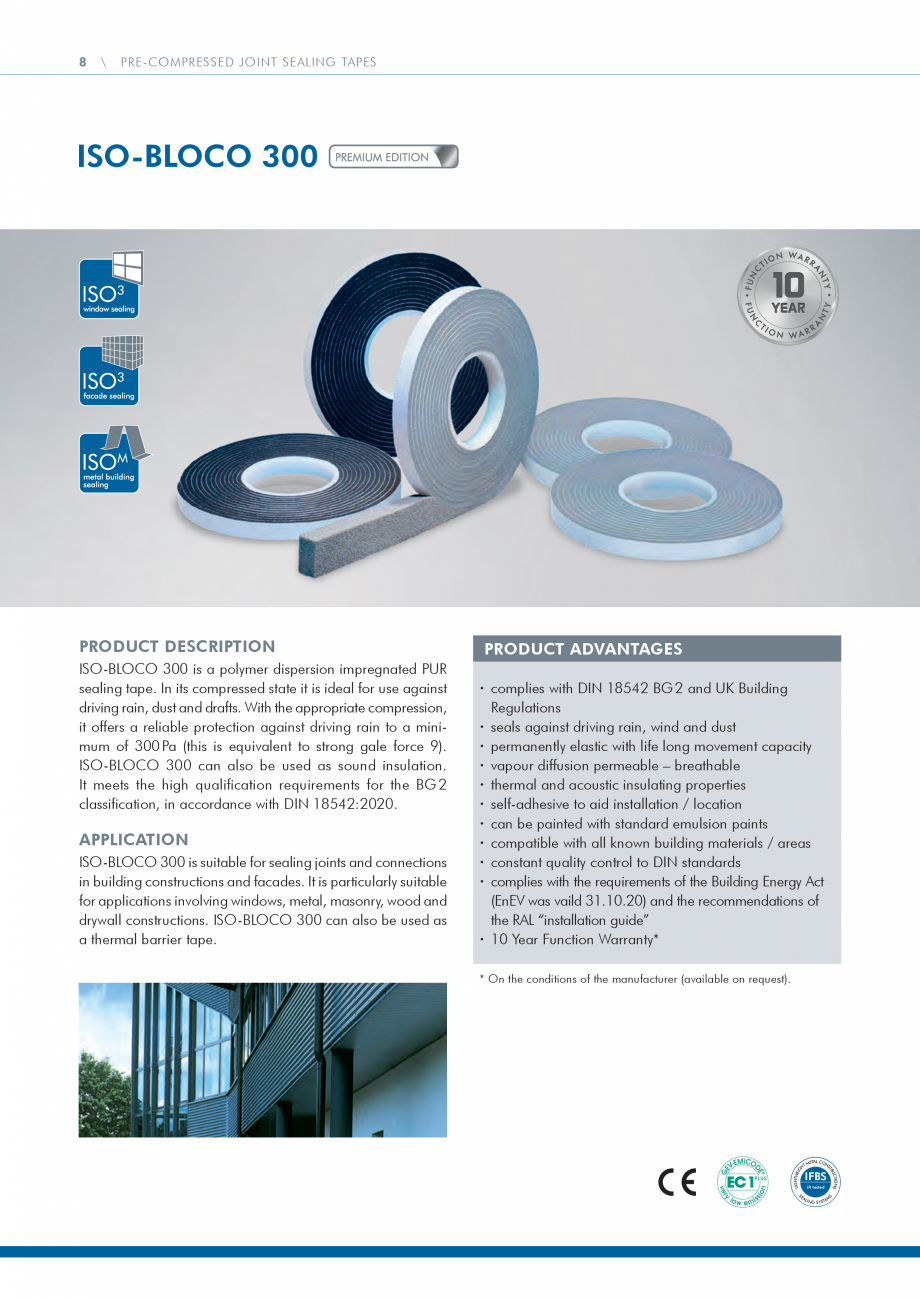

Pagina 14 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza allation / location
·...

allation / location · can be painted with standard emulsion paints · compatible with all known building materials / areas · constant quality control to DIN standards · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). S EA IFBS ift tested LI N TIONS UC TR L META CONS HT S ISO-BLOCO 300 is a polymer dispersion impregnated PUR sealing tape. In its compressed state it is ideal for use against driving rain, dust and drafts. With the appropriate compression, it offers a reliable protection against driving rain to a minimum of 300 Pa (this is equivalent to strong gale force 9). ISO-BLOCO 300 can also be used as sound insulation. It meets the high qualification requirements for the BG 2 classification, in accordance with DIN 18542:2020. PRODUCT ADVANTAGES LIGHTWEIG PRODUCT DESCRIPTION G S YST

Pagina 14-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza allation / location
· can be painted...

Pagina 15 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza E

M

PRE-COMPRESSED...

E M PRE-COMPRESSED JOINT SEALING TAPES \ 9 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam Impregnant fire resistant polymeric dispersion Colour grey, black Classification, according to DIN 18542 BG 2 Air permeability coefficient Impermeable to driving rain, single joint DIN EN 12114 DIN EN 1027 a < 1.0 m3 / [h · m · (daPa)n] ≥ 300 Pa Temperature stability range DIN 18542 -30 °C to +90 °C UV light and weather stability DIN 18542 requirements fulfilled Compatibility with adjacent building materials DIN 18542 requirements fulfilled Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Building material class DIN 4102 B1 (fire resistant) Thermal conductivity DIN EN 12667 λ = 0.052 W / m · K Water vapour diffusion resistance μ DIN EN ISO 12572 ≤ 100 ETA - 07/0073 CE mark since 2007 sd-value DIN EN ISO 12572 ≤ 0.5 m for 50 mm width (vapour diffusion permeability) Shelf life

Pagina 15-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza E

M

PRE-COMPRESSED JOINT SEALING...

Pagina 16 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza

1 year, dry and in...

1 year, dry and in original packing Storage temperature +1 °C to +20 °C Tape width / area of application Recommended joint width* 8 / 1 – 2 mm 10 / 1 – 2 mm 740.0 1 – 2 mm 15 / 1 – 2 mm 600.0 400.0 10 / 1 – 4 mm 15 / 1 – 4 mm Carton (metres) 390.0 1 – 4 mm 20 / 1 – 4 mm 260.0 195.0 10 / 2 – 6 mm 15 / 2 – 6 mm 20 / 2 – 6 mm 2 – 6 mm 360.0 240.0 180.0 10 / 4 – 9 mm 15 / 4 – 9 mm 20 / 4 – 9 mm 4 – 9 mm 240.0 160.0 120.0 5 – 12 mm 140.0 112.0 84.0 12 / 5 – 12 mm 15 / 5 – 12 mm 20 / 5 – 12 mm 15 / 6 – 15 mm 20 / 6 – 15 mm 86.0 6 – 15 mm 64.5 30 / 6 – 15 mm 43.0 20 / 9 – 20 mm 49.5 25 / 9 – 20 mm 9 – 20 mm 30 / 9 – 20 mm SERVICE · · · · standard sizes available from stock private label and / or special labelling available non-standard widths available on request competent experienced technical support available in the field and by phone 33.0 25 / 11 – 25 mm 30 / 11 – 25 mm 39.6 Installati

Pagina 16-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza

1 year, dry and in original packing...

Pagina 17 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on example: ISO3-WINDOW...

on example: ISO3-WINDOW SEALING SYSTEM 31.2 11 – 25 mm 40 / 11 – 25 mm 26.0 18.2 Alternative dimensions available on request. *M ovement in the structure and temporary longitude changes are to be taken into account when determining the max. joint width. PACKAGING pre-compressed rolls with one side self-adhesive (to aid installation) in cardboard cartons 10 \ PRE-COMPRESSED JOINT SEALING TAPES ISO-BLOCO AIR PRODUCT DESCRIPTION ISO-BLOCO AIR is an absolutely air tight, pre-compressed and self-expanding joint sealing tape. With its proven hybrid technology, ISO-BLOCO AIR meets the requirements of the Building Energy Act (GEG) for 100 % air tight building envelopes and joints. The thermal reduction function in the construction joint is enhanced due to the effective sandwich design. The most important key indicators for ISO-BLOCO AIR are the a-value of ≈ 0.00 m3 / [h · m · (daPa)2/3], the impermeability to driving rain of more than 750 Pa and fulfilment of the requireme

Pagina 17-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on example: ISO3-WINDOW SEALING...

Pagina 18 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza nts of BG 1 and BG R in a...

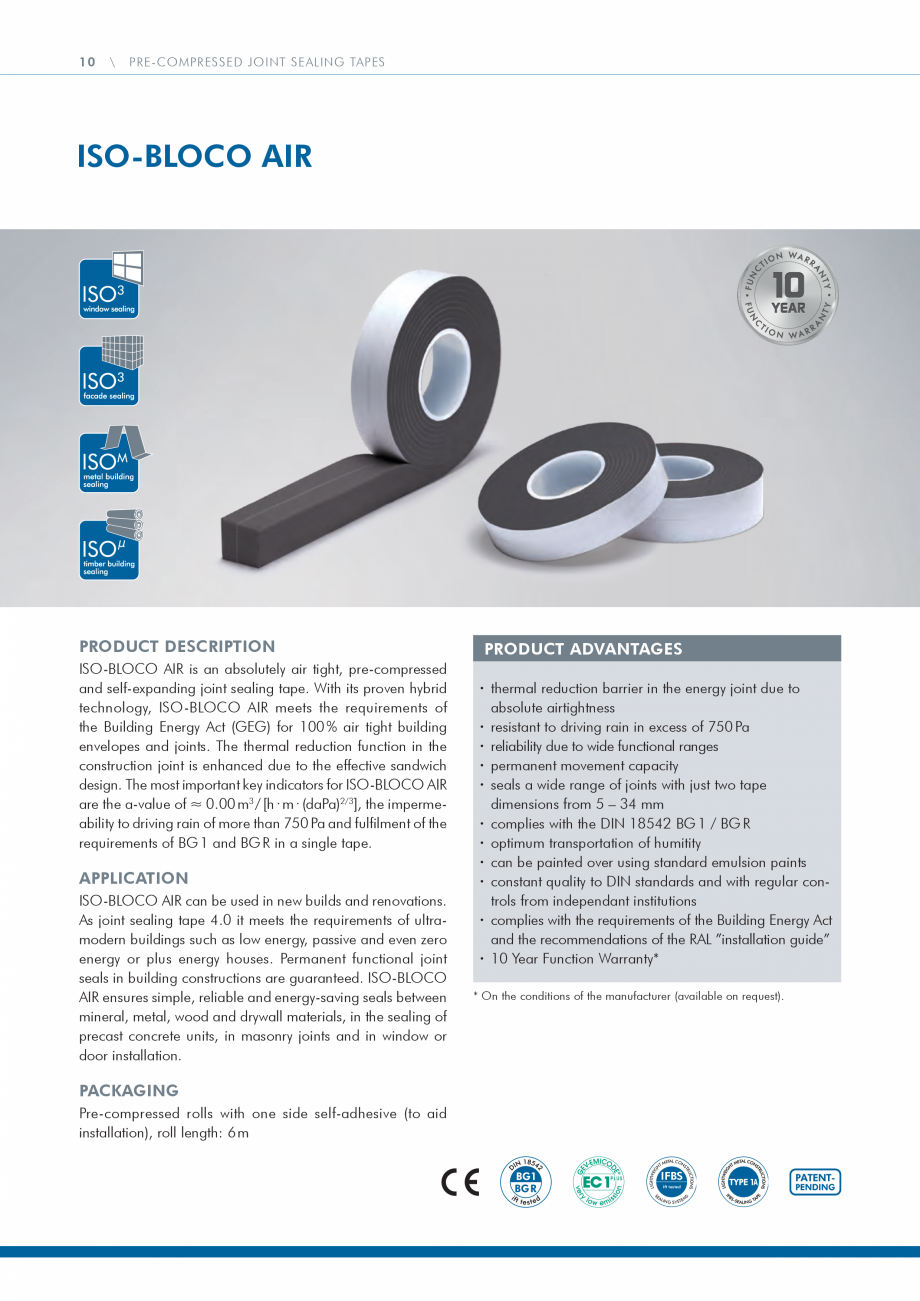

nts of BG 1 and BG R in a single tape. APPLICATION ISO-BLOCO AIR can be used in new builds and renovations. As joint sealing tape 4.0 it meets the requirements of ultramodern buildings such as low energy, passive and even zero energy or plus energy houses. Permanent functional joint seals in building constructions are guaranteed. ISO-BLOCO AIR ensures simple, reliable and energy-saving seals between mineral, metal, wood and drywall materials, in the sealing of precast concrete units, in masonry joints and in window or door installation. PRODUCT ADVANTAGES · thermal reduction barrier in the energy joint due to absolute airtightness · resistant to driving rain in excess of 750 Pa · reliability due to wide functional ranges · permanent movement capacity · seals a wide range of joints with just two tape dimensions from 5 – 34 mm · complies with the DIN 18542 BG 1 / BG R · optimum transportation of humitity · can be painted over using standard emulsion paints · constant quality

Pagina 18-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza nts of BG 1 and BG R in a single tape...

Pagina 19 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza to DIN standards and...

to DIN standards and with regular controls from independant institutions · complies with the requirements of the Building Energy Act and the recommendations of the RAL ”installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). PACKAGING L META CONS HT IFBS ift tested LI N S S EA TIONS UC TR LIGHTWEIG Pre-compressed rolls with one side self-adhesive (to aid installation), roll length: 6 m G S YSTE M PRE-COMPRESSED JOINT SEALING TAPES Technical data Standard \ Classification Material description impregnated PUR flexible foam with hybrid technology Base material flame resistant polymer dispersion Colour anthracite Classification according to DIN 18542 BG 1 and BG R Airtightness (External application BG 1) Airtightness (Internal application BG R) DIN EN 12114 DIN EN 12114 a ≈ 0.0 m3 / [h · m · (daPa)2/3] a ≈ 0.0 m3 / [h · m · (daPa)2/3] Impermeable to driving rain, single joint DIN EN 1027

Pagina 19-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza to DIN standards and with regular...

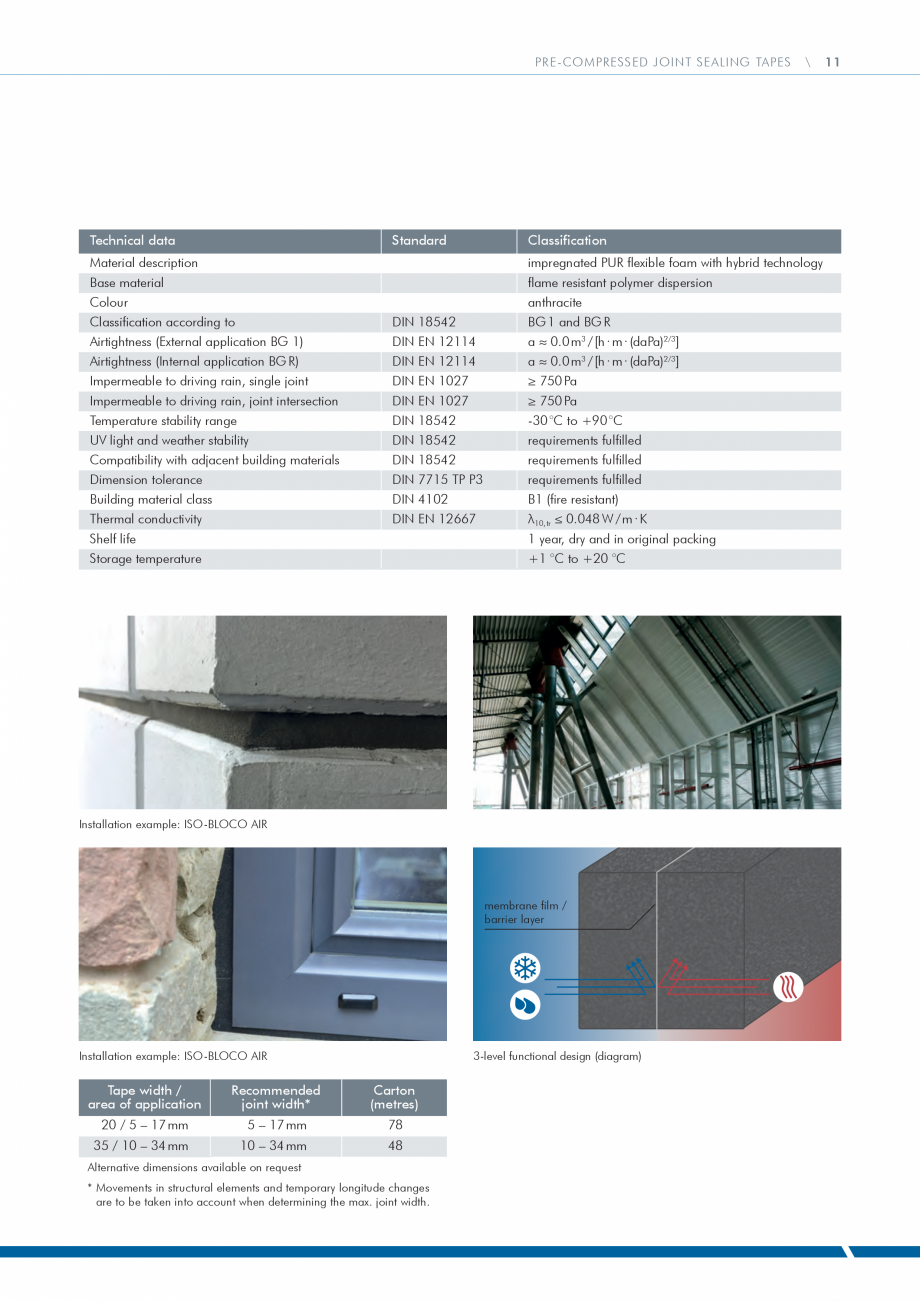

Pagina 20 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza

≥ 750 Pa

Impermeable...

≥ 750 Pa Impermeable to driving rain, joint intersection DIN EN 1027 ≥ 750 Pa Temperature stability range DIN 18542 -30 °C to +90 °C UV light and weather stability DIN 18542 requirements fulfilled Compatibility with adjacent building materials DIN 18542 requirements fulfilled Dimension tolerance DIN 7715 TP P3 requirements fulfilled Building material class DIN 4102 Thermal conductivity Shelf life DIN EN 12667 B1 (fire resistant) λ10, tr ≤ 0.048 W / m · K 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Installation example: ISO-BLOCO AIR membrane film / barrier layer Installation example: ISO-BLOCO AIR 3-level functional design (diagram) Tape width / area of application Recommended joint width* Carton (metres) 20 / 5 – 17 mm 5 – 17 mm 78 35 / 10 – 34 mm 10 – 34 mm 48 Alternative dimensions available on request *M ovements in structural elements and temporary longitude changes are to be taken into account

Pagina 20-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza

≥ 750 Pa

Impermeable to driving ...

Pagina 21 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza when determining the max...

when determining the max. joint width. 11 12 \ PRE-COMPRESSED JOINT SEALING TAPES ISO-BLOCO HF PRODUCT DESCRIPTION ISO-BLOCO HF is an impregnated sealing tape, which under compression, is suitable for thermal and acoustic insulation as well as sealing against drafts and dust. APPLICATION ISO-BLOCO HF can be used between window couplings or in the perimeter joints between assorted building elements. It is also outstanding as thermal insulation in construction joints, as an excellent substitude to conventional can foams. However above all it is characterised for its thermal and acoustic insulating properties. SERVICE · · · · standard sizes available from stock private label and / or special labelling available non-standard widths available on request competent experienced technical support available in the field and by phone PRODUCT ADVANTAGES · particularly ideal as a sealing and insulation layer in conjunction with the ISO3-WINDOW SEALING SYSTEM · permanently elastic,

Pagina 21-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza when determining the max. joint...

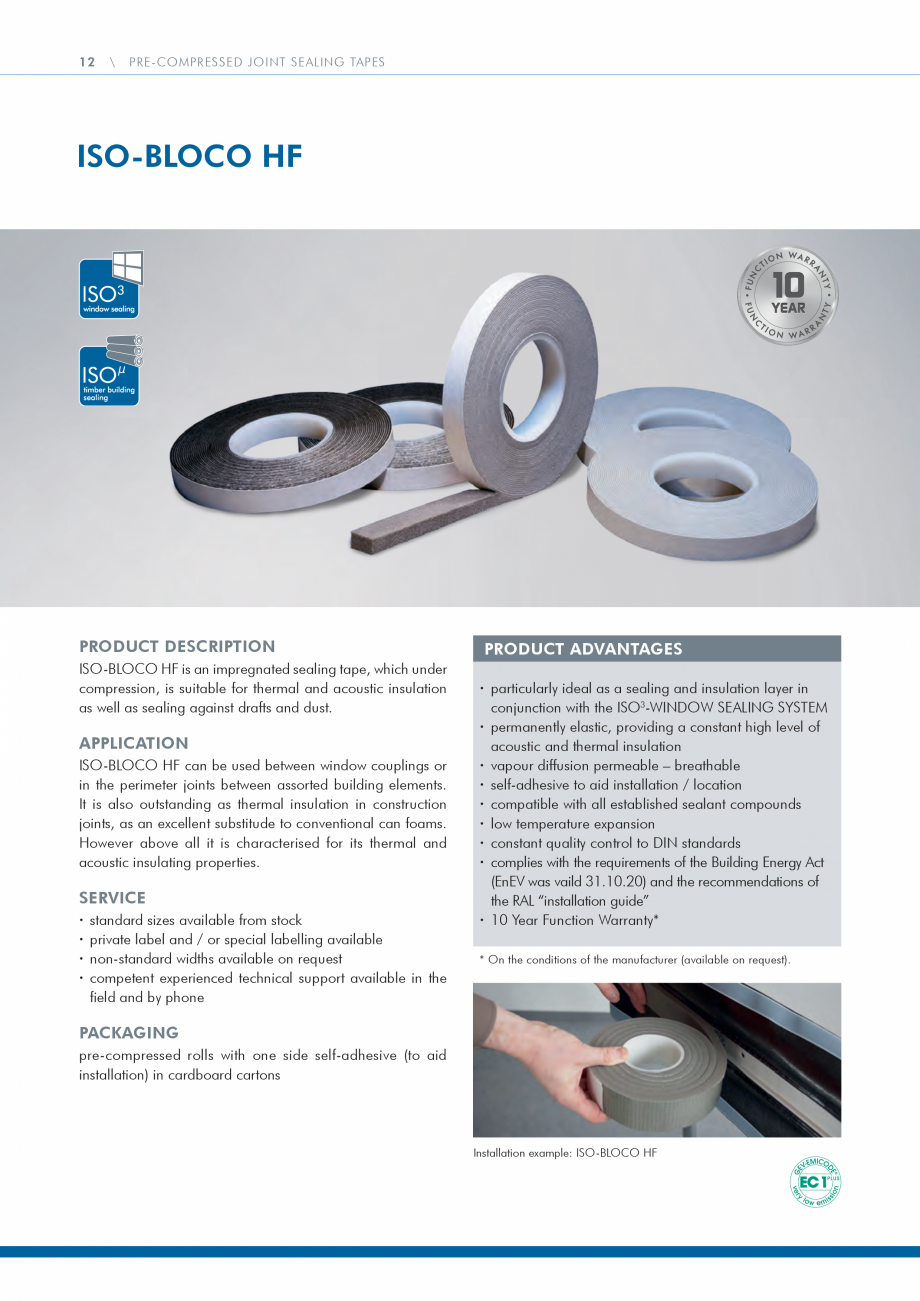

Pagina 22 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza providing a constant...

providing a constant high level of acoustic and thermal insulation · vapour diffusion permeable – breathable · self-adhesive to aid installation / location · compatible with all established sealant compounds · low temperature expansion · constant quality control to DIN standards · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). PACKAGING pre-compressed rolls with one side self-adhesive (to aid installation) in cardboard cartons Installation example: ISO-BLOCO HF PRE-COMPRESSED JOINT SEALING TAPES \ 13 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam Impregnant acrylic with flame retarding additives Colour grey, black Temperature stability range internal -40 °C to +90 °C Compatibility with adjacent building materials

Pagina 22-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza providing a constant high level of...

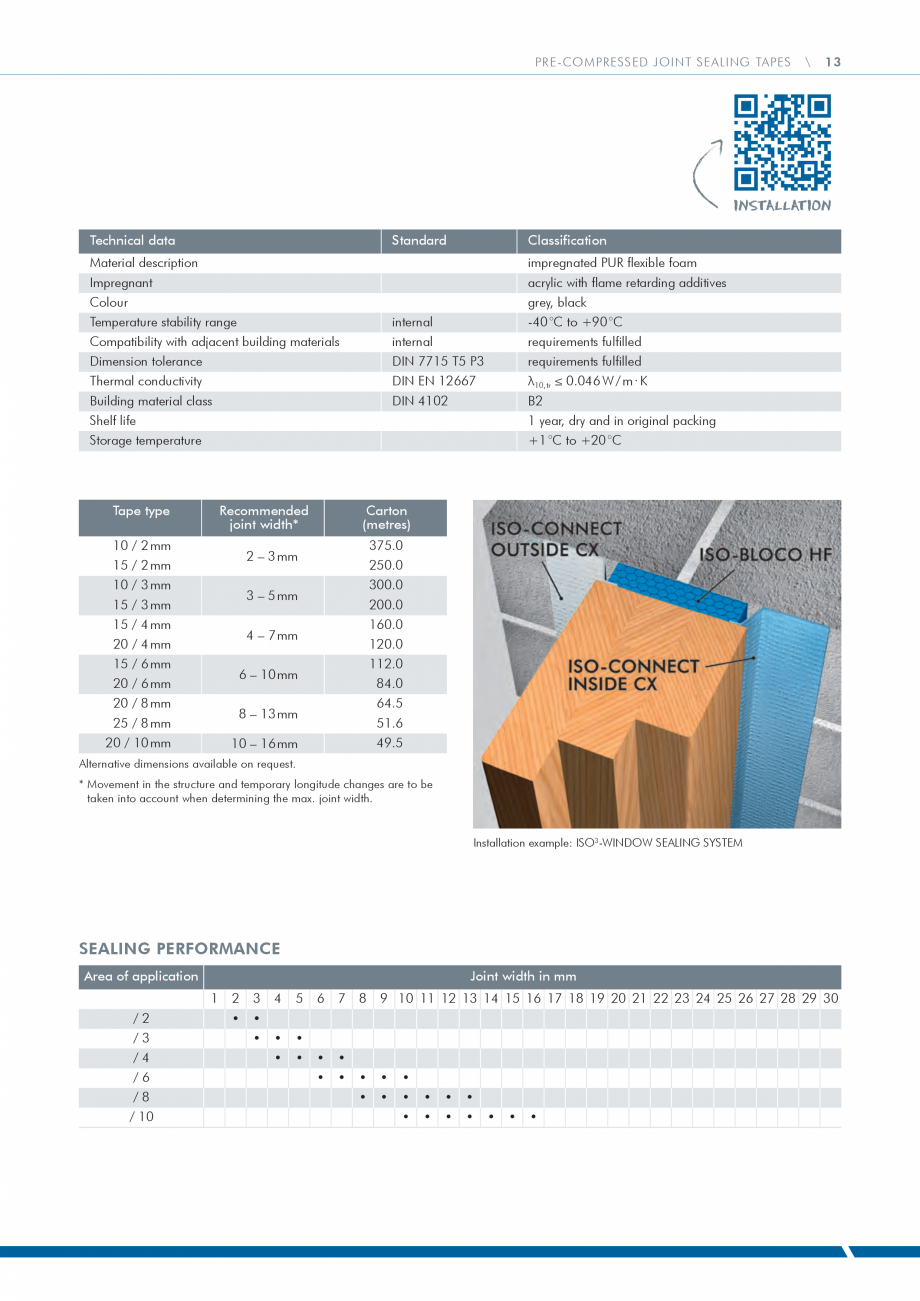

Pagina 23 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
internal

requirements...

internal requirements fulfilled Dimension tolerance DIN 7715 T5 P3 Thermal conductivity Building material class DIN EN 12667 DIN 4102 requirements fulfilled λ10, tr ≤ 0.046 W / m · K B2 Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Tape type Recommended joint width* 10 / 2 mm Carton (metres) 375.0 2 – 3 mm 15 / 2 mm 10 / 3 mm 250.0 300.0 3 – 5 mm 15 / 3 mm 15 / 4 mm 200.0 160.0 4 – 7 mm 20 / 4 mm 15 / 6 mm 120.0 112.0 6 – 10 mm 20 / 6 mm 20 / 8 mm 84.0 64.5 8 – 13 mm 25 / 8 mm 20 / 10 mm 51.6 49.5 10 – 16 mm Alternative dimensions available on request. * Movement in the structure and temporary longitude changes are to be taken into account when determining the max. joint width. Installation example: ISO3-WINDOW SEALING SYSTEM SEALING PERFORMANCE Area of application Joint width in mm 1 /2 /3 /4 /6 /8 / 10 2 3 • • • 4 5 • • • • 6 7 • • • • 8 9 10 11 12 13 14

Pagina 23-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
internal

requirements fulfilled
...

Pagina 24 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 15 16 17 18 19 20 21 22 ...

15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 • • • • • • • • • • • • • • • • 14 \ PRE-COMPRESSED JOINT SEALING TAPES ISO-BLOCO XTHERM PRODUCT DESCRIPTION ISO-BLOCO XTHERM is a omni-functional sealing tape with microtherm technology. It was specially developed for thermal insulation that is indirectly exposed to weathering. It is especially suitable for fitting components with larger frame installation depths and commonly available front doors and lift-and-slide doors. It offers excellent thermal insulation properties (Microtherm effect) over the entire installation depth. As it adapts very well to the installation joint, ISO-BLOCO XTHERM also provides excellent sound-proofing. ISO-BLOCO XTHERM has the properties of a seal that is permeable to vapour diffusion, ensuring that the joint dries out fully. APPLICATION · window fitting: ISO-BLOCO XTHERM is easy to fit and saves time during installation in the functional level of wind

Pagina 24-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 15 16 17 18 19 20 21 22 23 24 25 26 ...

Pagina 25 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ow and

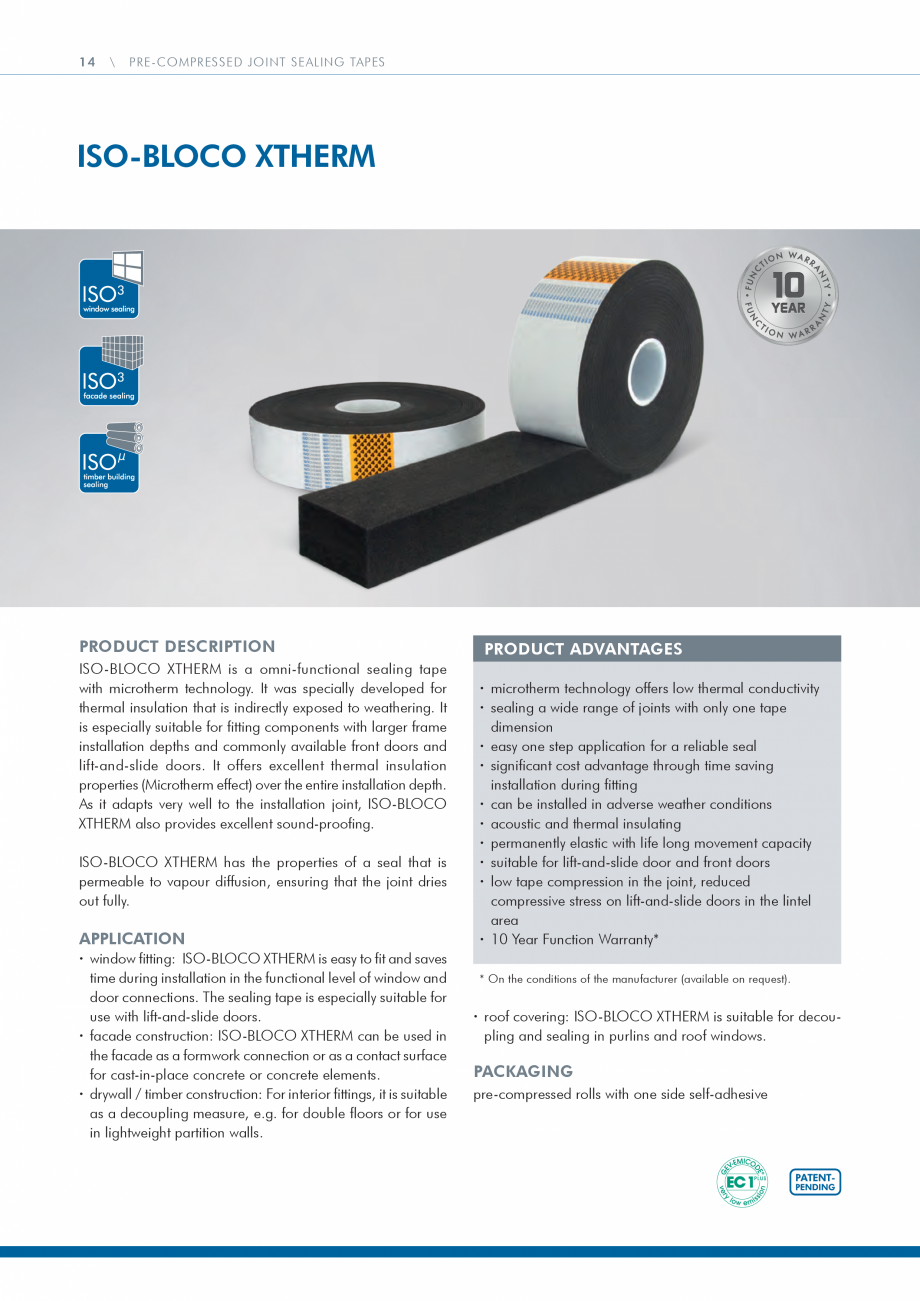

door connections. ...

ow and door connections. The sealing tape is especially suitable for use with lift-and-slide doors. · facade construction: ISO-BLOCO XTHERM can be used in the facade as a formwork connection or as a contact surface for cast-in-place concrete or concrete elements. · drywall / timber construction: For interior fittings, it is suitable as a decoupling measure, e.g. for double floors or for use in lightweight partition walls. PRODUCT ADVANTAGES · microtherm technology offers low thermal conductivity · sealing a wide range of joints with only one tape dimension · easy one step application for a reliable seal · significant cost advantage through time saving installation during fitting · can be installed in adverse weather conditions · acoustic and thermal insulating · permanently elastic with life long movement capacity · suitable for lift-and-slide door and front doors · low tape compression in the joint, reduced compressive stress on lift-and-slide doors in the lintel

Pagina 25-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ow and
door connections. The sealing ...

Pagina 26 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
area
· 10 Year Function...

area · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). · roof covering: ISO-BLOCO XTHERM is suitable for decoupling and sealing in purlins and roof windows. PACKAGING pre-compressed rolls with one side self-adhesive PRE-COMPRESSED JOINT SEALING TAPES \ 15 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam Base material fire-resistant polymeric dispersion Colour black Joint permeability coefficient Impermeable to driving rain DIN EN 12114 DIN EN 1027 a < 1.0 m3 / [h · m · (daPa)n]* ≥ 300 Pa* Temperature stability range DIN 18542 -30 °C to +80 °C UV light and weather stability DIN 18542 requirements fulfilled* Compatibility with adjacent building materials DIN 18542 requirements fulfilled Dimension tolerance DIN 7715 TP P3 requirements fulfilled Building material class DIN EN 13501 class E Water vapour diffusion resistance μ DIN EN ISO 12572 Thermal

Pagina 26-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
area
· 10 Year Function Warranty*
*...

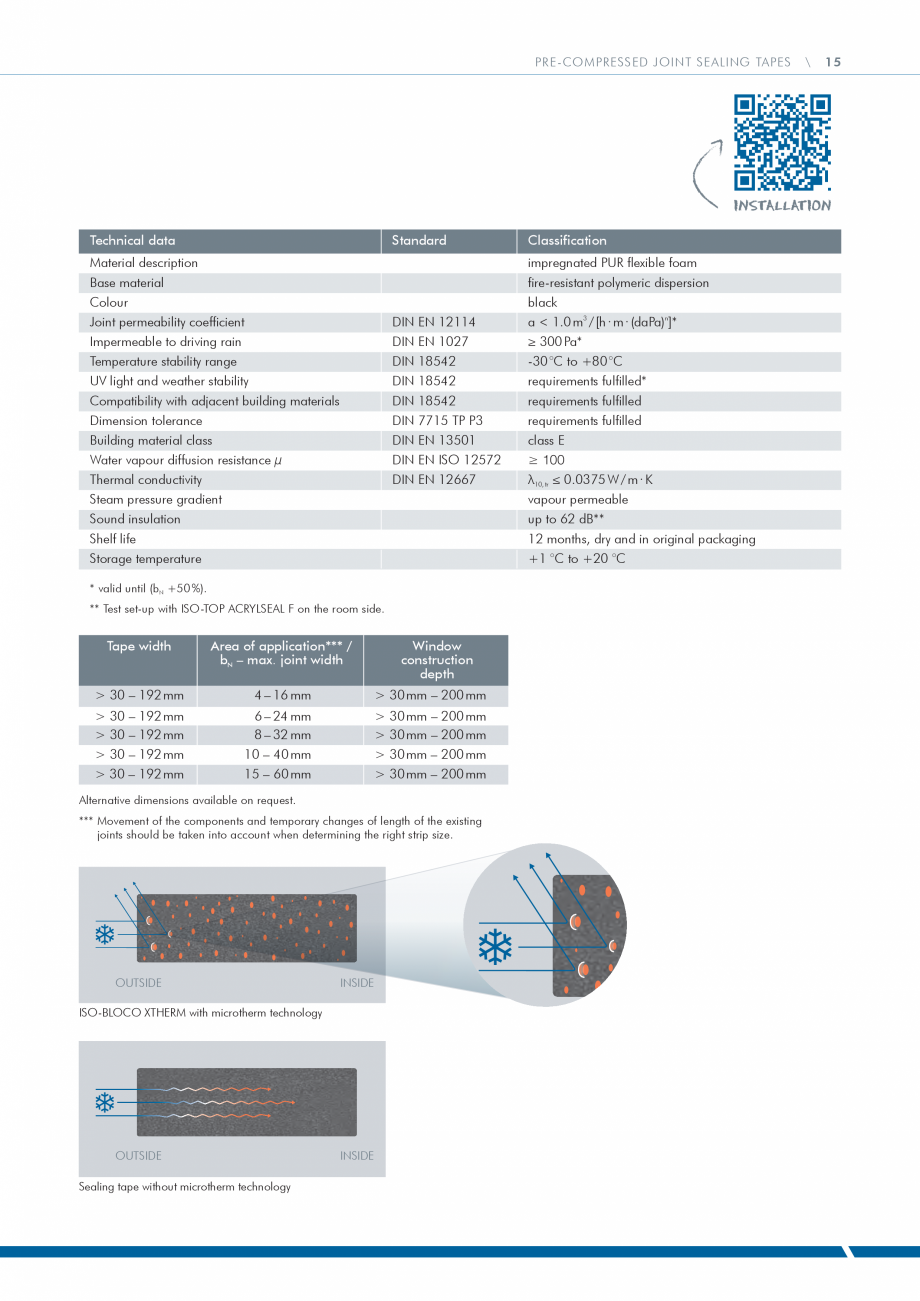

Pagina 27 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza conductivity
Steam...

conductivity Steam pressure gradient DIN EN 12667 ≥ 100 λ10, tr ≤ 0.0375 W / m · K vapour permeable Sound insulation up to 62 dB** Shelf life 12 months, dry and in original packaging Storage temperature +1 °C to +20 °C * valid until (bN +50 %). ** Test set-up with ISO-TOP ACRYLSEAL F on the room side. Window construction depth Tape width Area of application*** / bN – max. joint width > 30 – 192 mm 4 – 16 mm > 30 mm – 200 mm > 30 – 192 mm > 30 – 192 mm 6 – 24 mm 8 – 32 mm > 30 mm – 200 mm > 30 mm – 200 mm > 30 – 192 mm 10 – 40 mm > 30 mm – 200 mm > 30 – 192 mm 15 – 60 mm > 30 mm – 200 mm Alternative dimensions available on request. *** Movement of the components and temporary changes of length of the existing joints should be taken into account when determining the right strip size. OUTSIDE INSIDE ISO-BLOCO XTHERM with microtherm technology OUTSIDE Sealing tape without microtherm technology INSIDE 16 \ PRE-COMPR

Pagina 27-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza conductivity
Steam pressure gradient...

Pagina 28 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ESSED JOINT SEALING TAPES...

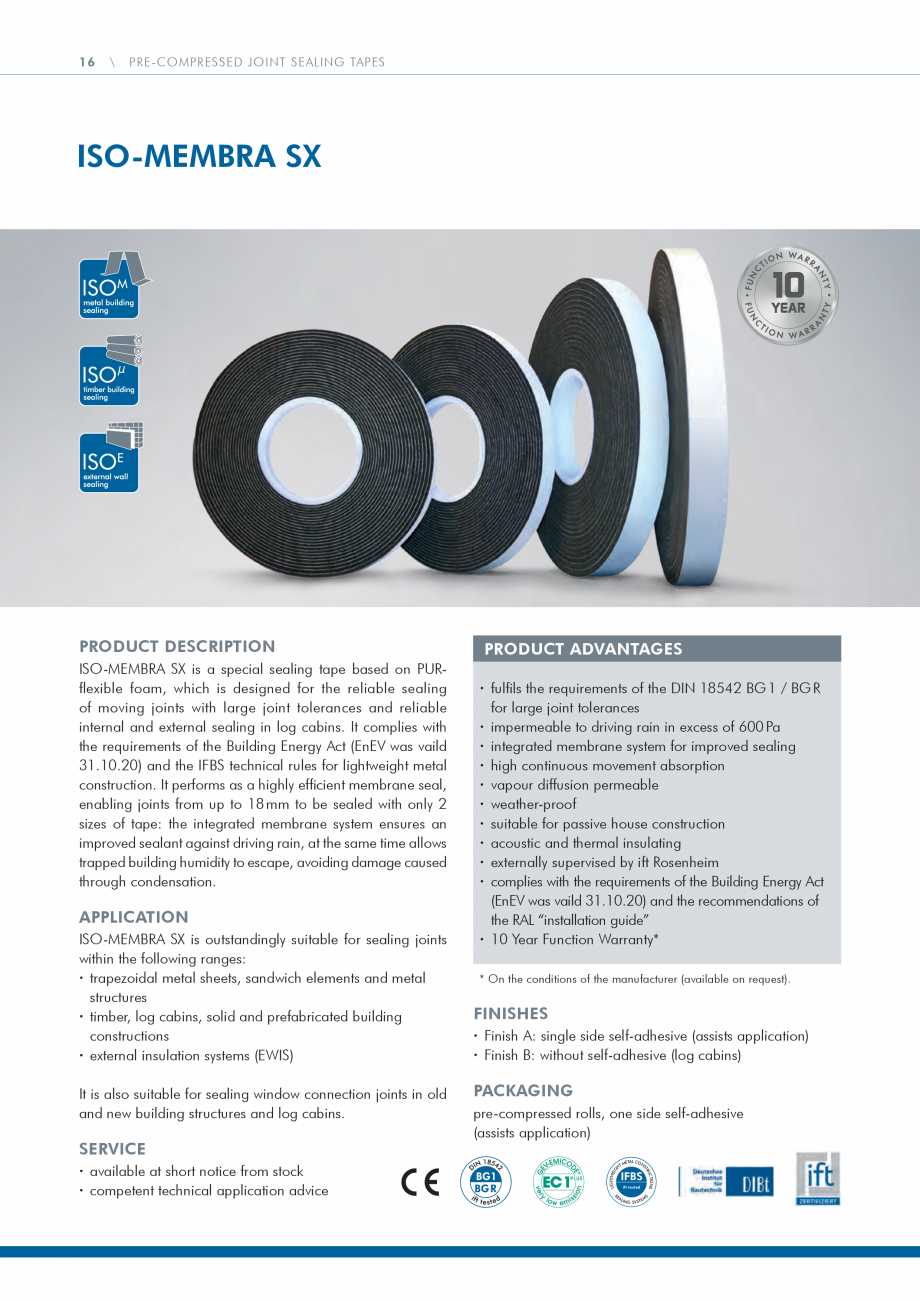

ESSED JOINT SEALING TAPES ISO-MEMBRA SX APPLICATION ISO-MEMBRA SX is outstandingly suitable for sealing joints within the following ranges: · trapezoidal metal sheets, sandwich elements and metal structures · timber, log cabins, solid and prefabricated building constructions · external insulation systems (EWIS) It is also suitable for sealing window connection joints in old and new building structures and log cabins. SERVICE * On the conditions of the manufacturer (available on request). FINISHES · Finish A: single side self-adhesive (assists application) · Finish B: without self-adhesive (log cabins) PACKAGING pre-compressed rolls, one side self-adhesive (assists application) EA IFBS ift tested LI N TIONS UC TR L META CONS HT S · available at short notice from stock · competent technical application advice · fulfils the requirements of the DIN 18542 BG 1 / BG R for large joint tolerances · impermeable to driving rain in excess of 600 Pa · integrated membrane sy

Pagina 28-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ESSED JOINT SEALING TAPES

ISO-MEMBRA...

Pagina 29 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza stem for improved sealing...

stem for improved sealing · high continuous movement absorption · vapour diffusion permeable · weather-proof · suitable for passive house construction · acoustic and thermal insulating · externally supervised by ift Rosenheim · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* S ISO-MEMBRA SX is a special sealing tape based on PURflexible foam, which is designed for the reliable sealing of moving joints with large joint tolerances and reliable internal and external sealing in log cabins. It complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the IFBS technical rules for lightweight metal construction. It performs as a highly efficient membrane seal, enabling joints from up to 18 mm to be sealed with only 2 sizes of tape: the integrated membrane system ensures an improved sealant against driving rain, at the same time al

Pagina 29-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza stem for improved sealing
· high...

Pagina 30 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza lows
trapped building...

lows trapped building humidity to escape, avoiding damage caused through condensation. PRODUCT ADVANTAGES LIGHTWEIG PRODUCT DESCRIPTION G S YSTE M PRE-COMPRESSED JOINT SEALING TAPES \ 17 INSTALLATION Technical data Standard Classification Colour anthracite Classification according to DIN 18542 BG 1 and BG R Building material class DIN 4102 Air permeability coefficient Impermeable to driving rain on joints DIN EN 12114 DIN EN 1027 B1 (flame resistant) a < 0.1 m3 / [h · m · (daPa)n] Impermeable to driving rain on joint crossings DIN EN 1027 ≥ 600 Pa ≥ 600 Pa λ = 0.041 W / m · K Thermal conductivity ≤ 100 Water vapour diffusion resistance μ DIN 12572 Temperature change stability range DIN 18542 -30 °C to +90 °C Temperature stability range DIN EN 12667 -40 °C to +100 °C UV light and weather stability DIN 18542 requirements fulfilled Compatibility with adjacent building materials DIN 18542 requirements fulfilled Dimension toleran

Pagina 30-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza lows
trapped building humidity to...

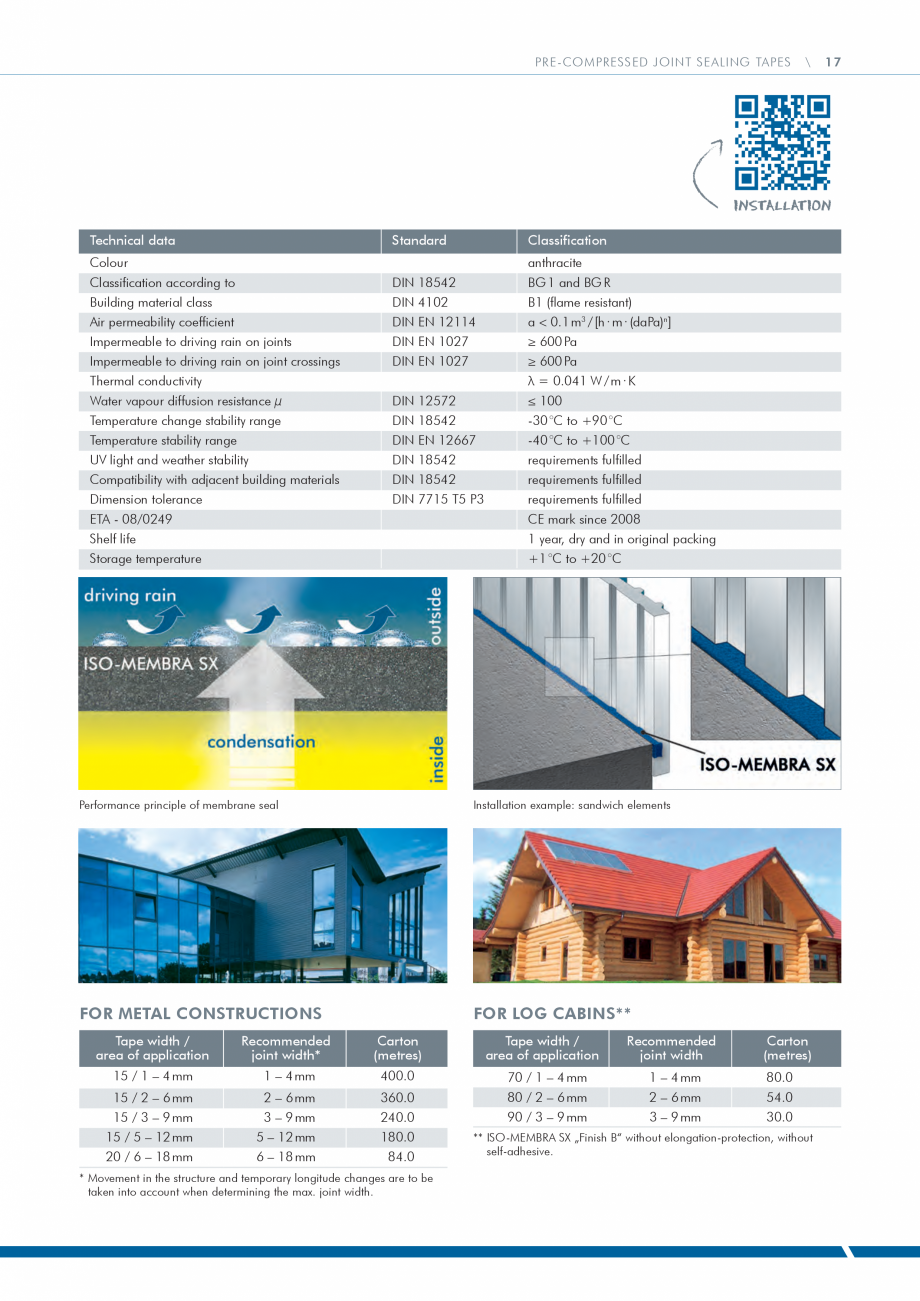

Pagina 31 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ce

DIN 7715 T5 P3
...

ce DIN 7715 T5 P3 requirements fulfilled ETA - 08/0249 CE mark since 2008 Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Performance principle of membrane seal Installation example: sandwich elements FOR METAL CONSTRUCTIONS FOR LOG CABINS** Tape width / area of application Recommended joint width* Carton (metres) 15 / 1 – 4 mm 1 – 4 mm 400.0 70 / 1 – 4 mm 1 – 4 mm 80.0 15 / 2 – 6 mm 2 – 6 mm 360.0 80 / 2 – 6 mm 2 – 6 mm 54.0 15 / 3 – 9 mm 3 – 9 mm 240.0 90 / 3 – 9 mm 3 – 9 mm 30.0 15 / 5 – 12 mm 5 – 12 mm 180.0 20 / 6 – 18 mm 6 – 18 mm 84.0 * Movement in the structure and temporary longitude changes are to be taken into account when determining the max. joint width. Tape width / area of application Recommended joint width Carton (metres) ** ISO-MEMBRA SX „Finish B“ without elongation-protection, without self-adhesive. 18 \ MULTI-FUNCTIONAL SEALING TAPES ISO-BLOCO

Pagina 31-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ce

DIN 7715 T5 P3

requirements...

Pagina 32 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza HYBRATEC

ISOM

metal...

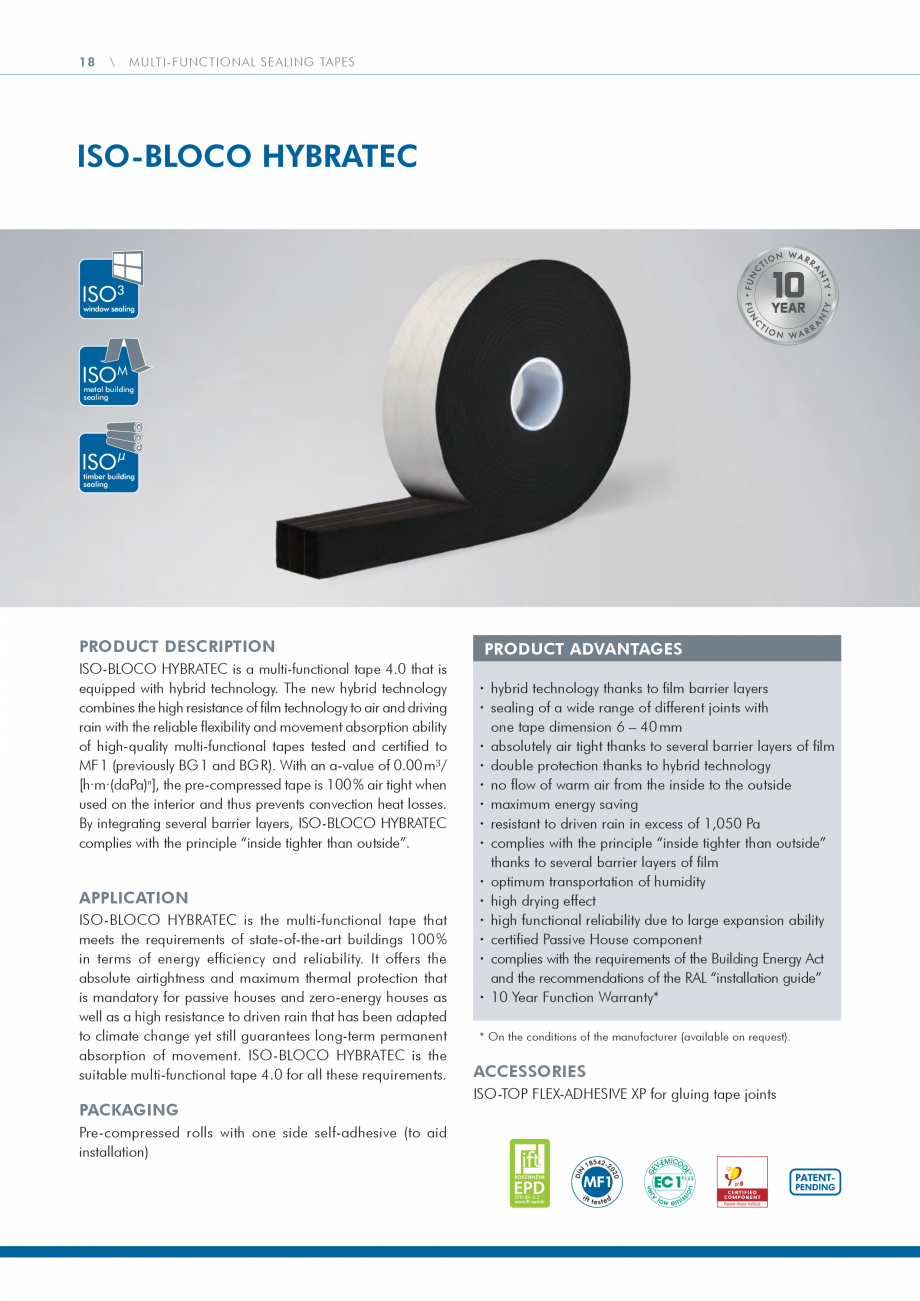

HYBRATEC ISOM metal building sealing PRODUCT DESCRIPTION ISO-BLOCO HYBRATEC is a multi-functional tape 4.0 that is equipped with hybrid technology. The new hybrid technology combines the high resistance of film technology to air and driving rain with the reliable flexibility and movement absorption ability of high-quality multi-functional tapes tested and certified to MF 1 (previously BG 1 and BG R). With an a-value of 0.00 m³/ [h·m·(daPa)n], the pre-compressed tape is 100 % air tight when used on the interior and thus prevents convection heat losses. By integrating several barrier layers, ISO-BLOCO HYBRATEC complies with the principle “inside tighter than outside”. APPLICATION ISO-BLOCO HYBRATEC is the multi-functional tape that meets the requirements of state-of-the-art buildings 100 % in terms of energy efficiency and reliability. It offers the absolute airtightness and maximum thermal protection that is mandatory for passive houses and zero-energy houses as well as a hi

Pagina 32-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza HYBRATEC

ISOM

metal building...

Pagina 33 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza gh resistance to driven...

gh resistance to driven rain that has been adapted to climate change yet still guarantees long-term permanent absorption of movement. ISO-BLOCO HYBRATEC is the suitable multi-functional tape 4.0 for all these requirements. PACKAGING PRODUCT ADVANTAGES · hybrid technology thanks to film barrier layers · sealing of a wide range of different joints with one tape dimension 6 – 40 mm · absolutely air tight thanks to several barrier layers of film · double protection thanks to hybrid technology · no flow of warm air from the inside to the outside · maximum energy saving · resistant to driven rain in excess of 1,050 Pa · complies with the principle “inside tighter than outside” thanks to several barrier layers of film · optimum transportation of humidity · high drying effect · high functional reliability due to large expansion ability · certified Passive House component · complies with the requirements of the Building Energy Act and the recommendations of the RAL “insta

Pagina 33-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza gh resistance to driven rain that has...

Pagina 34 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza llation guide”
· 10...

llation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). ACCESSORIES ISO-TOP FLEX-ADHESIVE XP for gluing tape joints Pre-compressed rolls with one side self-adhesive (to aid installation) MULTI-FUNCTIONAL SEALING TAPES \ 19 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam with hybrid technology Colour black Impermeable to driving rain DIN EN 1027 ≥ 1,050 Pa Temperature stability range DIN 18542 -30 °C to +80 °C Classification according to DIN 18542-2020 Air permeability coefficient Compatible with adjacent building materials DIN EN 12114 DIN 18542 MF 1 (BG 1 / BG R) a = 0.00 m3 / [h · m · (daPa)n] Dimension tolerance DIN 7715 TP P3 requirements fulfilled Building material class DIN 4102 Thermal conductivity U-value: window construction depth 60 mm / 70 mm / 80 mm Sound reduction DIN EN 12667 DIN 4108-3 B1 (fire resistant) λ10, tr �

Pagina 34-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza llation guide”
· 10 Year Function ...

Pagina 35 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza �� 0.048 W / m · K
...

�� 0.048 W / m · K Humidity management DIN 4108-3 DIN EN ISO 10077-2 requirements fulfilled U = 0.8 W / (m2 · K) / 0.7 W / (m2 · K) / 0.6 W / (m2 · K) up to 60 dB drying consistency thanks to hybrid technology Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Tape width Recommended joint width* S M XL 30 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 40 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 55 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 65 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 70 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 75 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 80 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 85 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 95 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm 105 mm 3 – 14 mm 4 – 20 mm 6 – 40 mm * Movement in structural elements and temporary longitude changes are to be taken into account by the max. joint width. Installation example: ISO-BLOCO HYBRATEC 20 \ MULTI-FUNCTI

Pagina 35-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza �� 0.048 W / m · K

Humidity...

Pagina 36 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ONAL SEALING TAPES
...

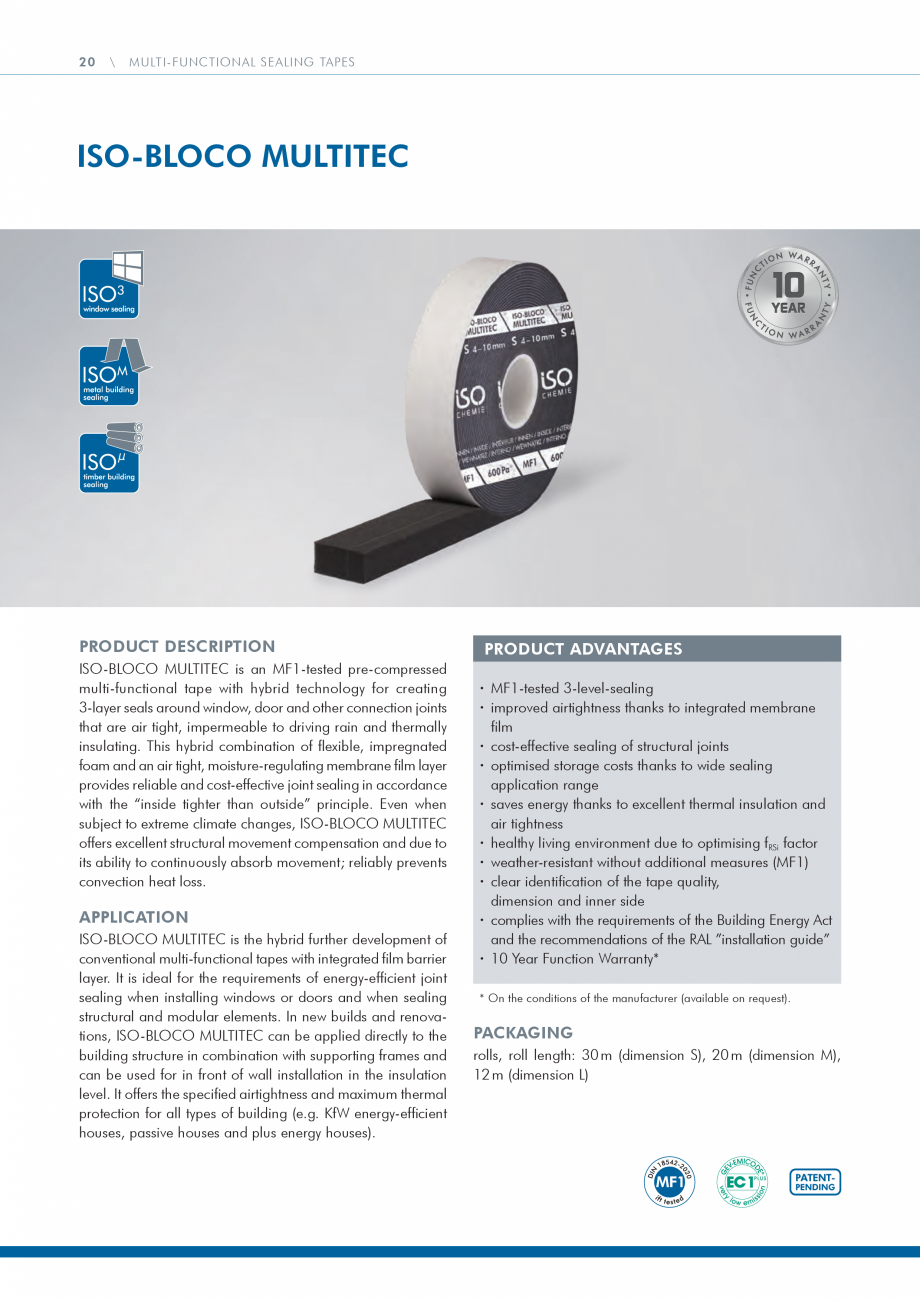

ONAL SEALING TAPES ISO-BLOCO MULTITEC PRODUCT DESCRIPTION ISO-BLOCO MULTITEC is an MF1-tested pre-compressed multi-functional tape with hybrid technology for creating 3-layer seals around window, door and other connection joints that are air tight, impermeable to driving rain and thermally insulating. This hybrid combination of flexible, impregnated foam and an air tight, moisture-regulating membrane film layer provides reliable and cost-effective joint sealing in accordance with the “inside tighter than outside” principle. Even when subject to extreme climate changes, ISO-BLOCO MULTITEC offers excellent structural movement compensation and due to its ability to continuously absorb movement; reliably prevents convection heat loss. APPLICATION ISO-BLOCO MULTITEC is the hybrid further development of conventional multi-functional tapes with integrated film barrier layer. It is ideal for the requirements of energy-efficient joint sealing when installing windows or doors and when sea

Pagina 36-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ONAL SEALING TAPES

ISO-BLOCO...

Pagina 37 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ling
structural and...

ling structural and modular elements. In new builds and renovations, ISO-BLOCO MULTITEC can be applied directly to the building structure in combination with supporting frames and can be used for in front of wall installation in the insulation level. It offers the specified airtightness and maximum thermal protection for all types of building (e.g. KfW energy-efficient houses, passive houses and plus energy houses). PRODUCT ADVANTAGES · MF1-tested 3-level-sealing · improved airtightness thanks to integrated membrane film · cost-effective sealing of structural joints · optimised storage costs thanks to wide sealing application range · saves energy thanks to excellent thermal insulation and air tightness · healthy living environment due to optimising fRSi factor · weather-resistant without additional measures (MF1) · clear identification of the tape quality, dimension and inner side · complies with the requirements of the Building Energy Act and the recommendations of the RAL �

Pagina 37-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ling
structural and modular elements....

Pagina 38 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ��installation guide”...

��installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). PACKAGING rolls, roll length: 30 m (dimension S), 20 m (dimension M), 12 m (dimension L) MULTI-FUNCTIONAL SEALING TAPES \ 21 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam with hybrid technology Colour anthracite Impermeable to driving rain, single joint DIN EN 1027 ≥ 600 Pa Temperature stability range DIN 18542 -30 °C to +80 °C Classification according to DIN 18542-2020 MF 1 Air permeability coefficient Protection of the functional level DIN EN 12114 DIN 18542 a = 0.05 m3 / [h · m · (daPa)n] fulfilled Compatibility with adjacent building materials DIN 18542 requirements fulfilled Dimension tolerance DIN 7715 TP P3 requirements fulfilled Building material class DIN 4102 Thermal conductivity U-value for tape width 65 mm / 70 mm / 75 mm DIN EN 12667 DIN 4108-3 B1 (fire resista

Pagina 38-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ��installation guide”
· 10 Year...

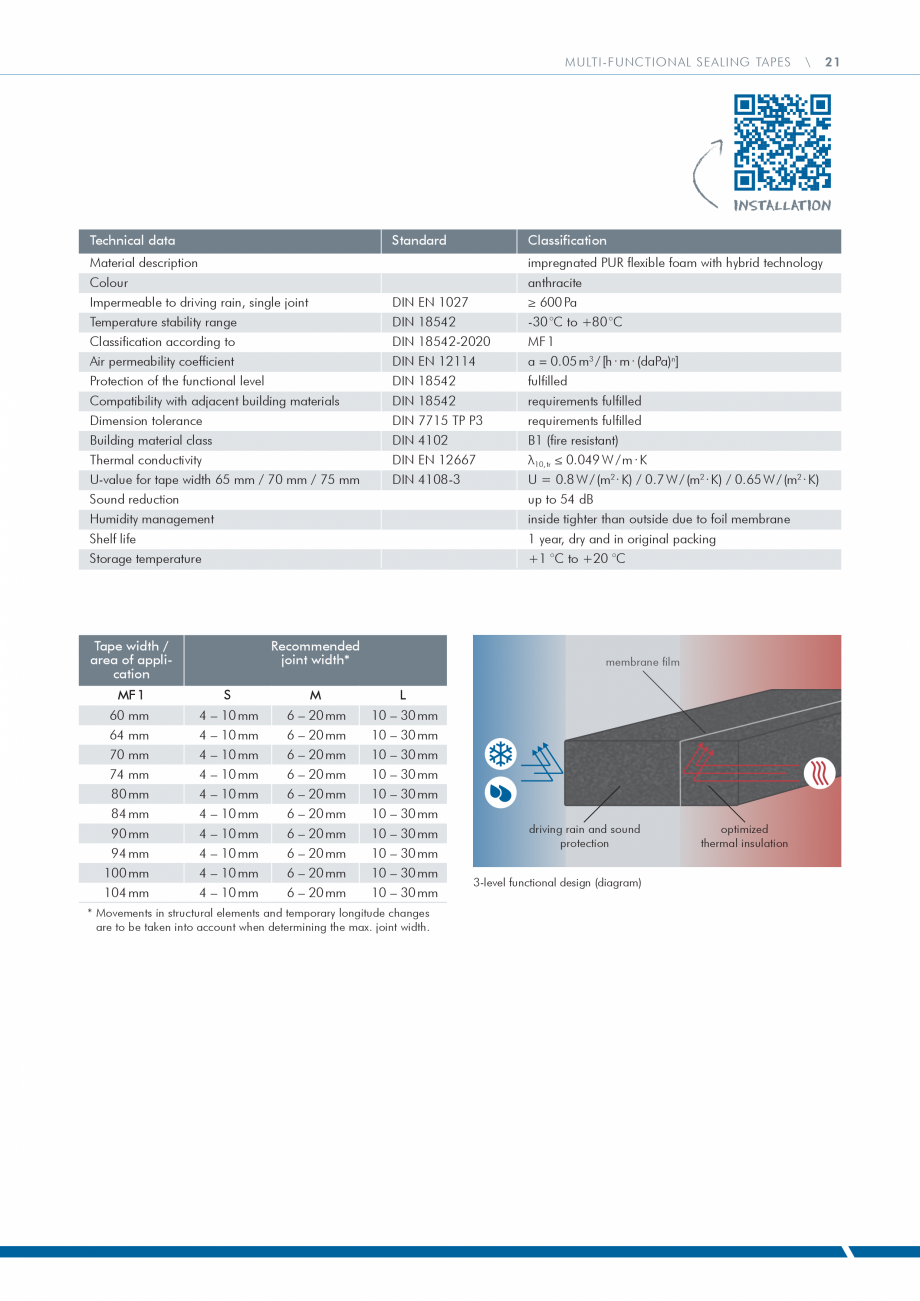

Pagina 39 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza nt)
λ10, tr ≤ 0.049 W ...

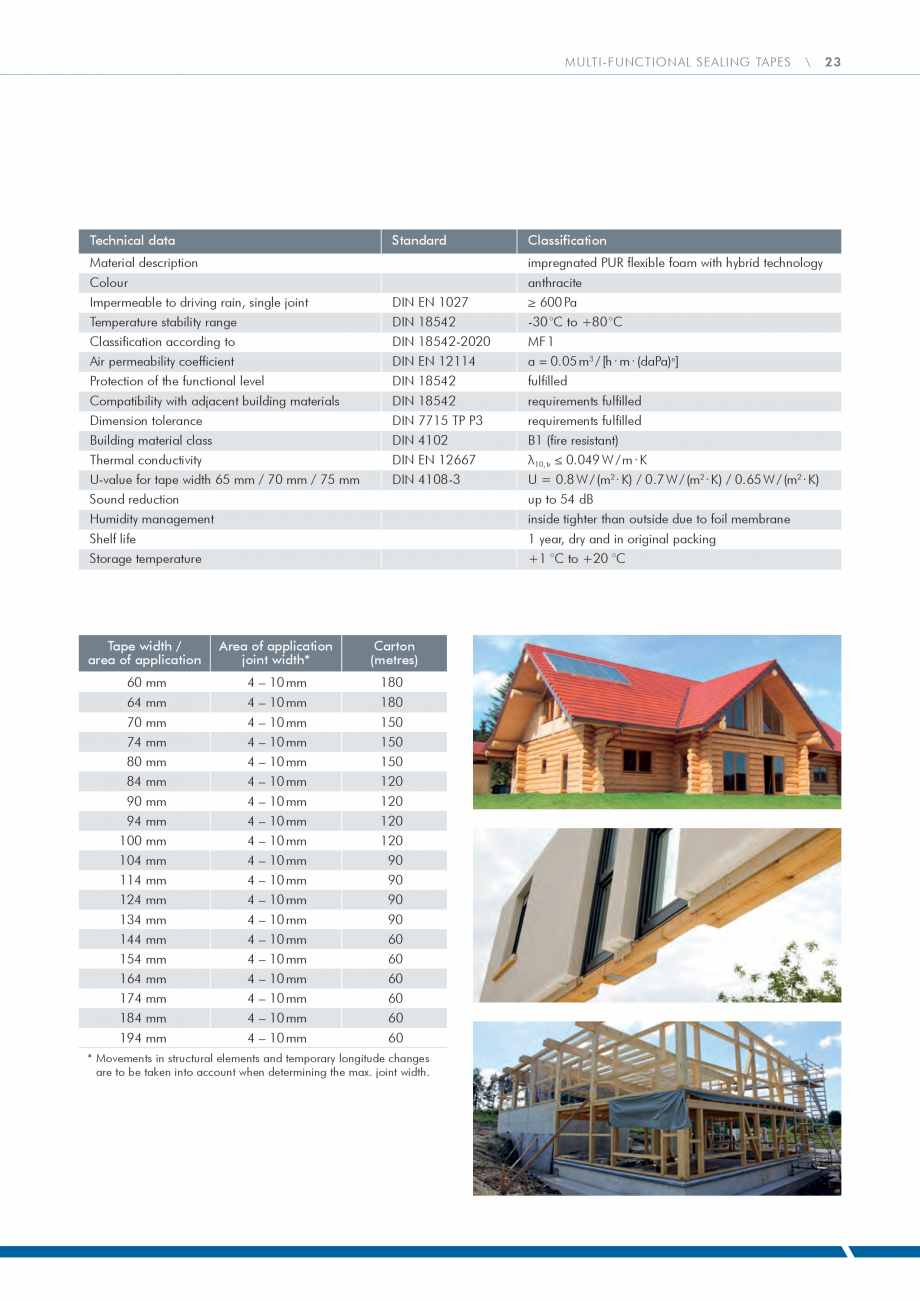

nt) λ10, tr ≤ 0.049 W / m · K U = 0.8 W / (m2 · K) / 0.7 W / (m2 · K) / 0.65 W / (m2 · K) Sound reduction up to 54 dB Humidity management inside tighter than outside due to foil membrane Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Tape width / area of application Recommended joint width* membrane film MF 1 S M L 60 mm 64 mm 70 mm 4 – 10 mm 4 – 10 mm 4 – 10 mm 6 – 20 mm 6 – 20 mm 6 – 20 mm 10 – 30 mm 10 – 30 mm 10 – 30 mm 74 mm 4 – 10 mm 6 – 20 mm 10 – 30 mm 80 mm 4 – 10 mm 6 – 20 mm 10 – 30 mm 84 mm 4 – 10 mm 6 – 20 mm 10 – 30 mm 90 mm 4 – 10 mm 6 – 20 mm 10 – 30 mm 94 mm 4 – 10 mm 6 – 20 mm 10 – 30 mm 100 mm 4 – 10 mm 6 – 20 mm 10 – 30 mm 104 mm 4 – 10 mm 6 – 20 mm 10 – 30 mm * Movements in structural elements and temporary longitude changes are to be taken into account when determining the max. joint width. driving rain and soun

Pagina 39-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza nt)
λ10, tr ≤ 0.049 W / m · K
U =...

Pagina 40 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza d
protection
3-level...

d protection 3-level functional design (diagram) optimized thermal insulation 22 \ MULTI-FUNCTIONAL SEALING TAPES ISO-BLOCO MULTITEC PRODUCT DESCRIPTION ISO-BLOCO MULTITEC „TIMBER EDITION“ is a pre-compressed multi-functional tape with hybrid technology for creating 3-layer seals around window, door and other connection joints that are air tight, impermeable to driving rain and thermally insulating. It was specially developed for prefabricated timber and log construction. This hybrid combination of flexible, impregnated foam and an air tight, moisture-regulating foil membrane layer allows reliable and cost-effective joint sealing with an inner barrier membrane to minimise the water penetration depth. Specifically tailored to the narrow joints in prefabricated timber construction, the timber construction aspect of ISO-BLOCO MULTITEC „TIMBER EDITION“ allows sufficient space for installation, with special emphasis on cost-effectiveness. APPLICATION ISO-BLOCO MULTITEC „TI

Pagina 40-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza d
protection
3-level functional...

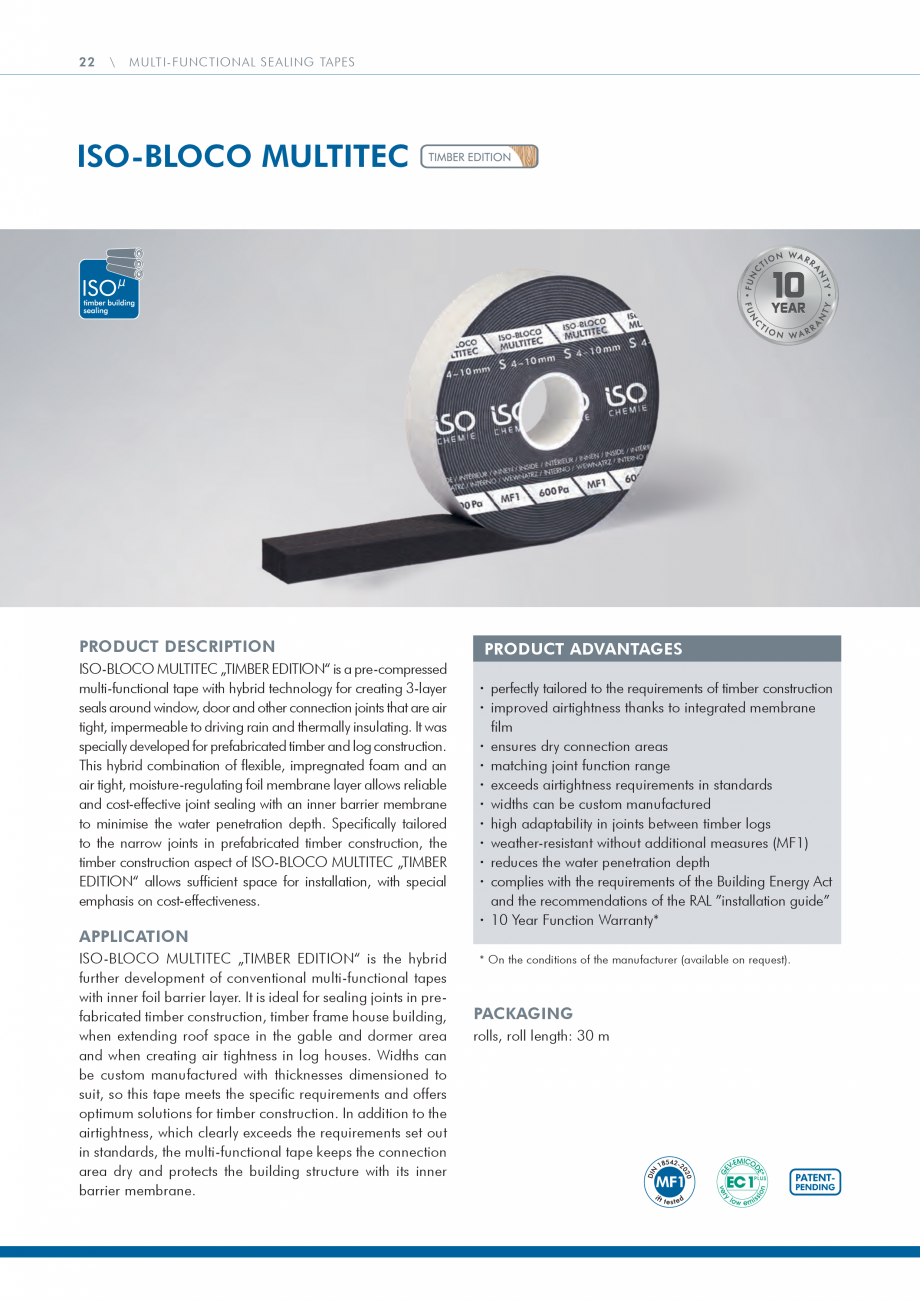

Pagina 41 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MBER EDITION“ is the...

MBER EDITION“ is the hybrid further development of conventional multi-functional tapes with inner foil barrier layer. It is ideal for sealing joints in prefabricated timber construction, timber frame house building, when extending roof space in the gable and dormer area and when creating air tightness in log houses. Widths can be custom manufactured with thicknesses dimensioned to suit, so this tape meets the specific requirements and offers optimum solutions for timber construction. In addition to the airtightness, which clearly exceeds the requirements set out in standards, the multi-functional tape keeps the connection area dry and protects the building structure with its inner barrier membrane. PRODUCT ADVANTAGES · perfectly tailored to the requirements of timber construction · improved airtightness thanks to integrated membrane film · ensures dry connection areas · matching joint function range · exceeds airtightness requirements in standards · widths can be custom manufa

Pagina 41-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MBER EDITION“ is the hybrid
further...

Pagina 42 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ctured
· high...

ctured · high adaptability in joints between timber logs · weather-resistant without additional measures (MF1) · reduces the water penetration depth · complies with the requirements of the Building Energy Act and the recommendations of the RAL ”installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). PACKAGING rolls, roll length: 30 m MULTI-FUNCTIONAL SEALING TAPES Technical data Standard Material description \ Classification impregnated PUR flexible foam with hybrid technology Colour anthracite Impermeable to driving rain, single joint DIN EN 1027 ≥ 600 Pa Temperature stability range DIN 18542 -30 °C to +80 °C Classification according to DIN 18542-2020 MF 1 Air permeability coefficient Protection of the functional level DIN EN 12114 DIN 18542 a = 0.05 m3 / [h · m · (daPa)n] fulfilled Compatibility with adjacent building materials DIN 18542 requirements fulfilled Dimension tolerance DIN 7

Pagina 42-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ctured
· high adaptability in joints...

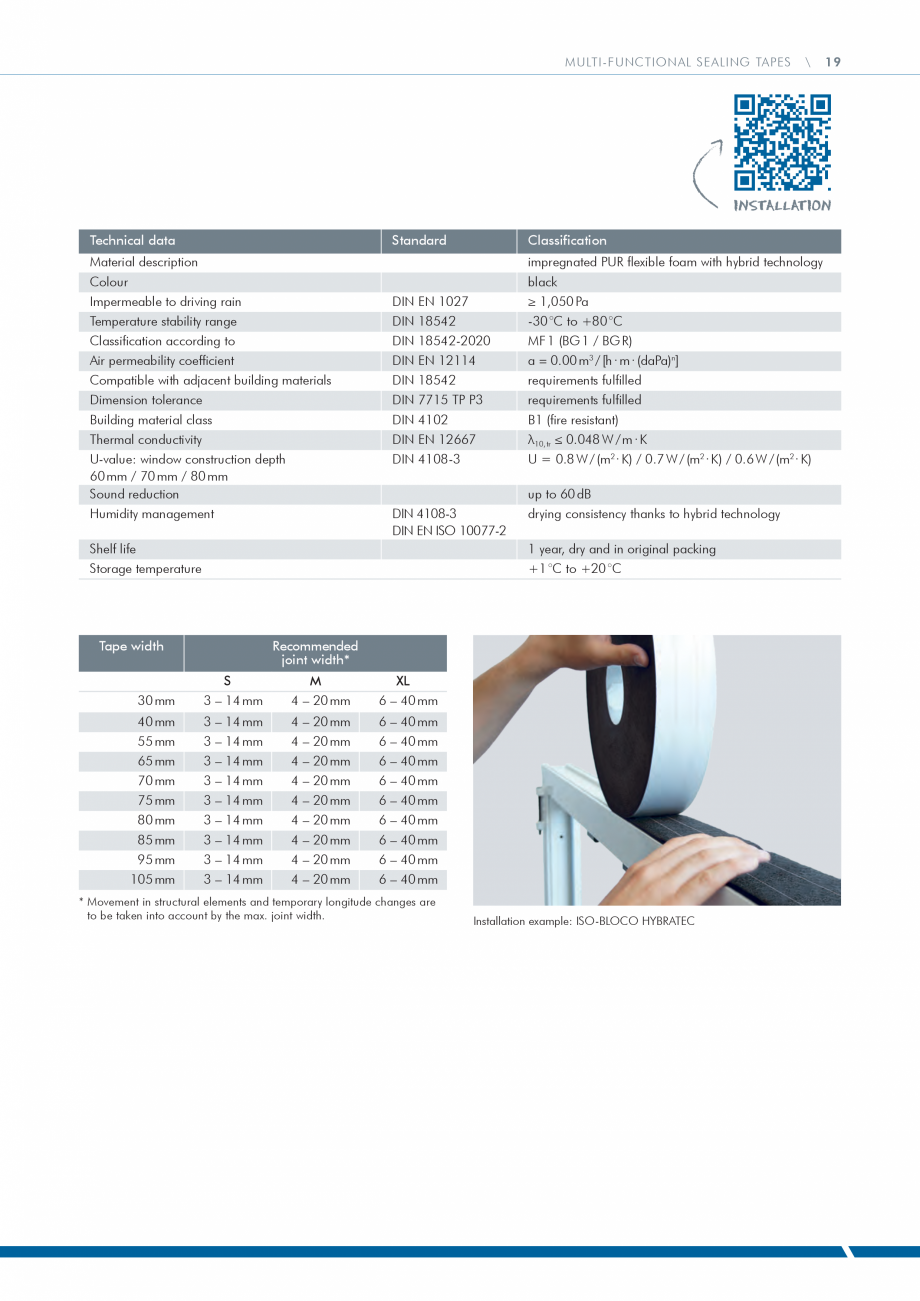

Pagina 43 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 715 TP P3

requirements...

715 TP P3 requirements fulfilled Building material class DIN 4102 Thermal conductivity U-value for tape width 65 mm / 70 mm / 75 mm DIN EN 12667 DIN 4108-3 B1 (fire resistant) λ10, tr ≤ 0.049 W / m · K U = 0.8 W / (m2 · K) / 0.7 W / (m2 · K) / 0.65 W / (m2 · K) Sound reduction up to 54 dB Humidity management inside tighter than outside due to foil membrane Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Tape width / area of application Area of application joint width* Carton (metres) 60 mm 4 – 10 mm 180 64 mm 4 – 10 mm 180 70 mm 4 – 10 mm 150 74 mm 4 – 10 mm 150 80 mm 4 – 10 mm 150 84 mm 4 – 10 mm 120 90 mm 4 – 10 mm 120 94 mm 4 – 10 mm 120 100 mm 4 – 10 mm 120 104 mm 4 – 10 mm 90 114 mm 4 – 10 mm 90 124 mm 4 – 10 mm 90 134 mm 4 – 10 mm 90 144 mm 4 – 10 mm 60 154 mm 4 – 10 mm 60 164 mm 4 – 10 mm 60 174 mm 4 – 10 mm 60 184 mm 4 – 10 mm 60

Pagina 43-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 715 TP P3

requirements fulfilled
...

Pagina 44 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza

194 mm

4 – 10 mm

60...

194 mm 4 – 10 mm 60 * Movements in structural elements and temporary longitude changes are to be taken into account when determining the max. joint width. 23 24 \ MULTI-FUNCTIONAL SEALING TAPES ISO-BLOCO ONE PRODUCT DESCRIPTION PRODUCT ADVANTAGES ISO-BLOCO ONE is a special multi-functional all-in-one joint sealing tape with outstanding properties. Having an a-value of 0.00 m3 / [h · m · (daPa)2/3] the pre-compressed tape is 100 % air tight at the internal seal area, contributing in minimising heat loss by convection. It also possesses an optimal vapour diffusion gradient from the inside outwards (40 : 1) enhancing the external transmission of moisture, enabling the joints to dry out quicker. · 3-level-sealant with just one product · resistant to driven rain in excess of 750 Pa optimal outwards vapour diffusion · reduces convection heat loss · high functional reliability due to large expansion ability · sealing a wide range of joint sizes with a minimum of tape

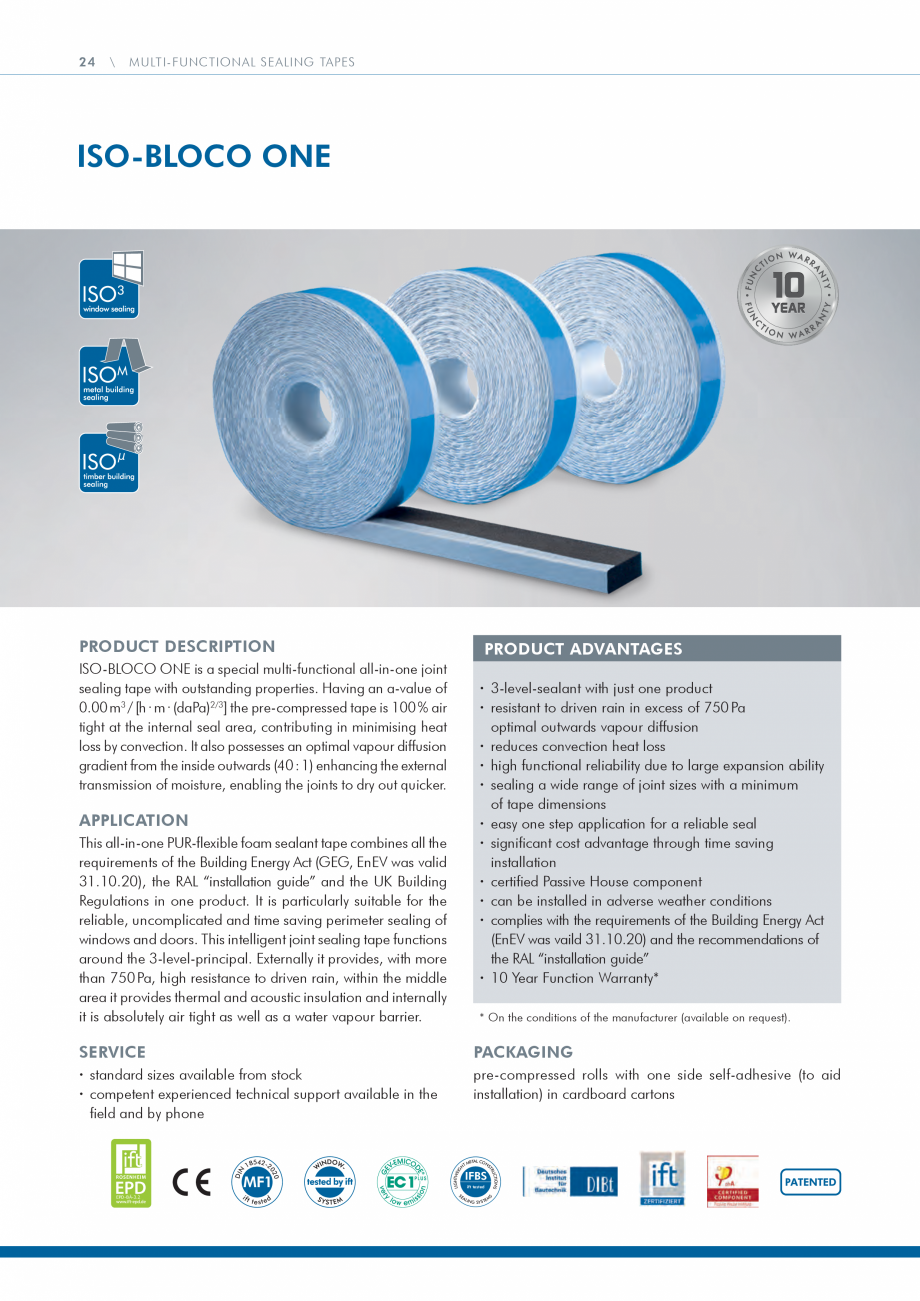

Pagina 45 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza dimensions
· easy one...

dimensions · easy one step application for a reliable seal · significant cost advantage through time saving installation · certified Passive House component · can be installed in adverse weather conditions · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* APPLICATION This all-in-one PUR-flexible foam sealant tape combines all the requirements of the Building Energy Act (GEG, EnEV was valid 31.10.20), the RAL “installation guide” and the UK Building Regulations in one product. It is particularly suitable for the reliable, uncomplicated and time saving perimeter sealing of windows and doors. This intelligent joint sealing tape functions around the 3-level-principal. Externally it provides, with more than 750 Pa, high resistance to driven rain, within the middle area it provides thermal and acoustic insulation and internally it is absolutely air tight as

Pagina 45-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza dimensions
· easy one step...

Pagina 46 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza well as a water vapour...

well as a water vapour barrier. * On the conditions of the manufacturer (available on request). pre-compressed rolls with one side self-adhesive (to aid installation) in cardboard cartons S tested EA IFBS ift tested LI N S MF1 ift L META CONS HT TIONS UC TR 0 02 42 185 -2 LIGHTWEIG PACKAGING · standard sizes available from stock · competent experienced technical support available in the field and by phone DIN SERVICE G S YSTE M MULTI-FUNCTIONAL SEALING TAPES \ 25 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam with special film Colour black Impermeable to driving rain DIN EN 1027 ≥ 750 Pa Impermeable to driving rain, joint intersection DIN EN 1027 MF 1 Temperature stability range DIN 18542 -30 °C to +80 °C Classification according to DIN 18542-2020 MF 1 (BG 1 / BG R) Airtightness UV light and weather stability DIN EN 12114 DIN EN ISO 4892-2 a = 0.00 m3 / [h · m · (da

Pagina 46-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza well as a water vapour barrier.

* On...

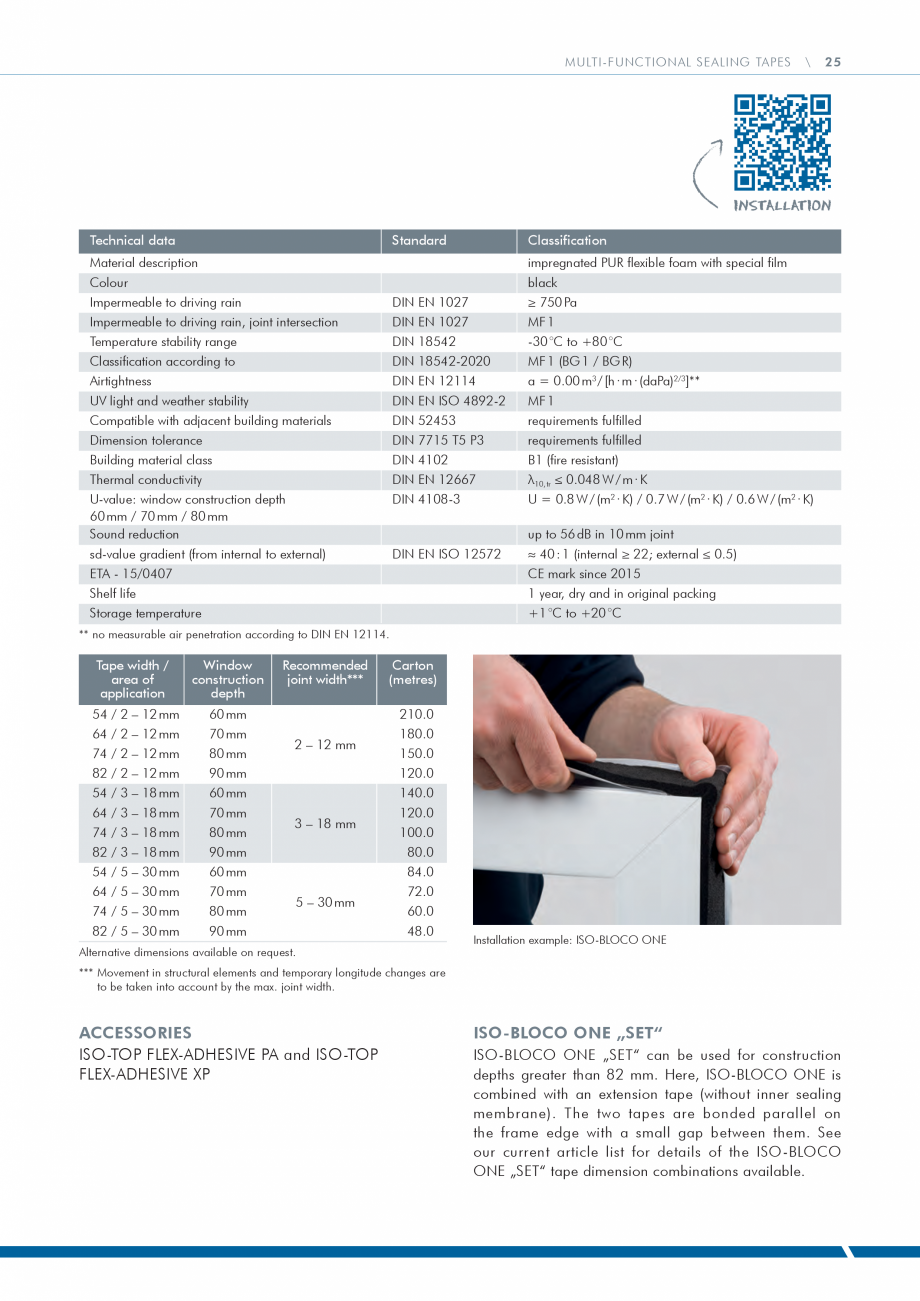

Pagina 47 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza Pa)2/3]**
MF 1
...

Pa)2/3]** MF 1 Compatible with adjacent building materials DIN 52453 requirements fulfilled Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Building material class DIN 4102 Thermal conductivity U-value: window construction depth 60 mm / 70 mm / 80 mm Sound reduction DIN EN 12667 DIN 4108-3 B1 (fire resistant) λ10, tr ≤ 0.048 W / m · K sd-value gradient (from internal to external) DIN EN ISO 12572 U = 0.8 W / (m2 · K) / 0.7 W / (m2 · K) / 0.6 W / (m2 · K) up to 56 dB in 10 mm joint ≈ 40 : 1 (internal ≥ 22; external ≤ 0.5) ETA - 15/0407 CE mark since 2015 Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C ** no measurable air penetration according to DIN EN 12114. Tape width / area of application Window construction depth Recommended joint width*** Carton (metres) 54 / 2 – 12 mm 60 mm 64 / 2 – 12 mm 70 mm 74 / 2 – 12 mm 80 mm 82 / 2 – 12 mm 90 mm 120.0 140.0 210.0 2 – 12 mm 180.0 150.0

Pagina 47-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza Pa)2/3]**
MF 1

Compatible with...

Pagina 48 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
54 / 3 – 18 mm

60 mm
...

54 / 3 – 18 mm 60 mm 64 / 3 – 18 mm 70 mm 74 / 3 – 18 mm 80 mm 82 / 3 – 18 mm 90 mm 80.0 54 / 5 – 30 mm 60 mm 84.0 64 / 5 – 30 mm 70 mm 74 / 5 – 30 mm 80 mm 82 / 5 – 30 mm 90 mm 3 – 18 mm 5 – 30 mm 120.0 100.0 72.0 60.0 48.0 Alternative dimensions available on request. Installation example: ISO-BLOCO ONE *** M ovement in structural elements and temporary longitude changes are to be taken into account by the max. joint width. ACCESSORIES ISO-TOP FLEX-ADHESIVE PA and ISO-TOP FLEX-ADHESIVE XP ISO-BLOCO ONE „SET“ ISO-BLOCO ONE „SET“ can be used for construction depths greater than 82 mm. Here, ISO-BLOCO ONE is combined with an extension tape (without inner sealing membrane). The two tapes are bonded parallel on the frame edge with a small gap between them. See our current article list for details of the ISO-BLOCO ONE „SET“ tape dimension combinations available. 26 \ MULTI-FUNCTIONAL SEALING TAPES ISO-BLOCO ONE CONTROL PRODU

Pagina 48-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
54 / 3 – 18 mm

60 mm

64 / 3 – ...

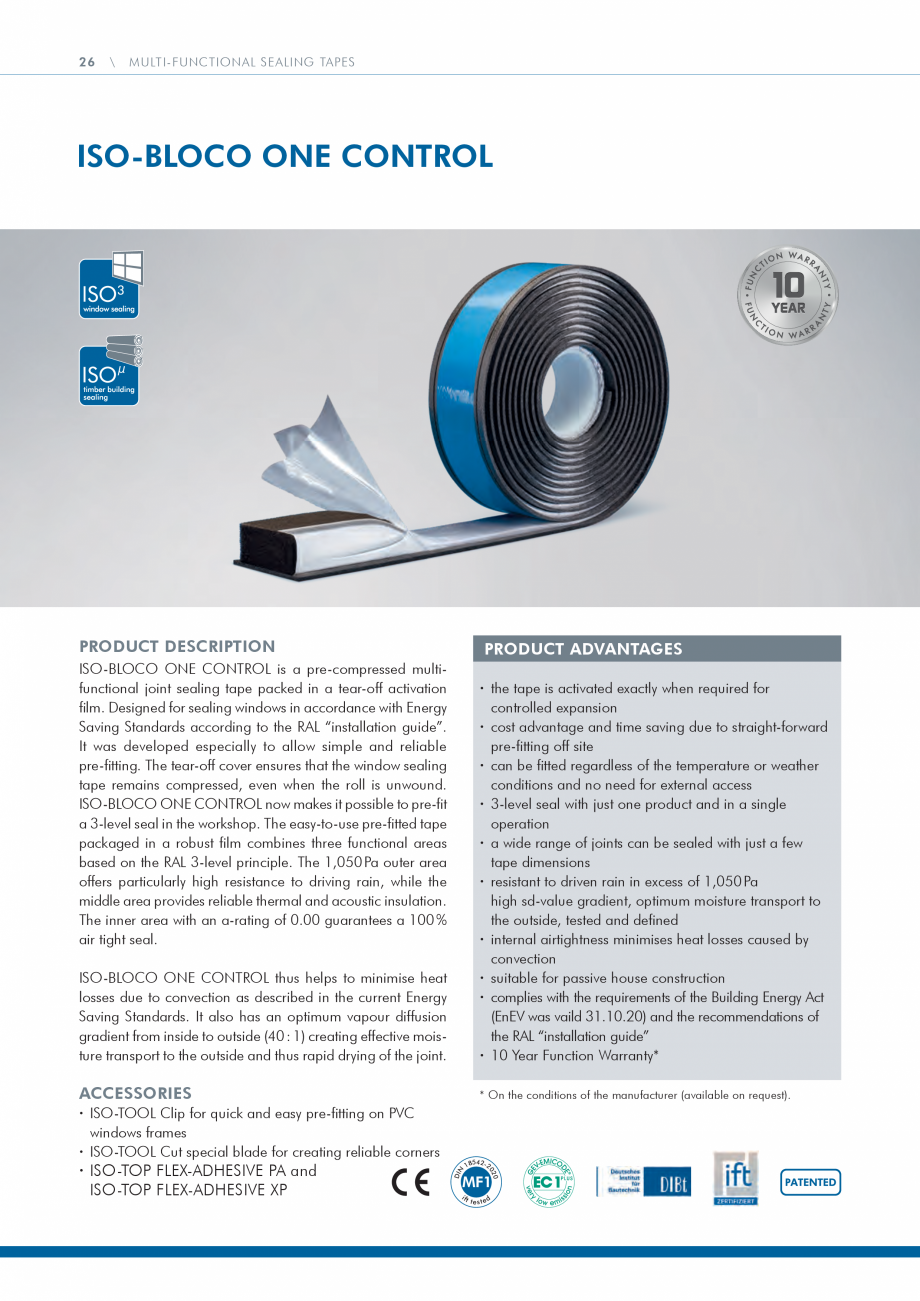

Pagina 49 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza CT DESCRIPTION

PRODUCT...

CT DESCRIPTION PRODUCT ADVANTAGES ISO-BLOCO ONE CONTROL is a pre-compressed multifunctional joint sealing tape packed in a tear-off activation film. Designed for sealing windows in accordance with Energy Saving Standards according to the RAL “installation guide”. It was developed especially to allow simple and reliable pre-fitting. The tear-off cover ensures that the window sealing tape remains compressed, even when the roll is unwound. ISO-BLOCO ONE CONTROL now makes it possible to pre-fit a 3-level seal in the workshop. The easy-to-use pre-fitted tape packaged in a robust film combines three functional areas based on the RAL 3-level principle. The 1,050 Pa outer area offers particularly high resistance to driving rain, while the middle area provides reliable thermal and acoustic insulation. The inner area with an a-rating of 0.00 guarantees a 100 % air tight seal. ISO-BLOCO ONE CONTROL thus helps to minimise heat losses due to convection as described in the current Energy Savin

Pagina 49-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza CT DESCRIPTION

PRODUCT ADVANTAGES
...

Pagina 50 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza g Standards. It also has ...

g Standards. It also has an optimum vapour diffusion gradient from inside to outside (40 : 1) creating effective moisture transport to the outside and thus rapid drying of the joint. · the tape is activated exactly when required for controlled expansion · cost advantage and time saving due to straight-forward pre-fitting off site · can be fitted regardless of the temperature or weather conditions and no need for external access · 3-level seal with just one product and in a single operation · a wide range of joints can be sealed with just a few tape dimensions · resistant to driven rain in excess of 1,050 Pa high sd-value gradient, optimum moisture transport to the outside, tested and defined · internal airtightness minimises heat losses caused by convection · suitable for passive house construction · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* ACC

Pagina 50-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza g Standards. It also has an optimum...

Pagina 51 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ESSORIES

* On the...

ESSORIES * On the conditions of the manufacturer (available on request). 42 185 -2 0 02 · ISO-TOP FLEX-ADHESIVE PA and ISO-TOP FLEX-ADHESIVE XP DIN · ISO-TOOL Clip for quick and easy pre-fitting on PVC windows frames · ISO-TOOL Cut special blade for creating reliable corners MF1 ift tested MULTI-FUNCTIONAL SEALING TAPES \ 27 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam with special film and tear-off activation film black Colour Impermeable to driving rain DIN EN 1027 ≥ 1,050 Pa Impermeable to driving rain on joint intersections DIN EN 1027 ≥ 600 Pa Temperature stability range DIN 18542 -30 °C to +80 °C Classification according to DIN 18542-2020 MF 1 (BG 1 / BG R) Air permeability coefficient Compatible with adjacent building materials DIN EN 12114 DIN 18542 a = 0.00 m3 / [h · m · (daPa)n] requirements fulfilled Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Building mate

Pagina 51-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ESSORIES

* On the conditions of the ...

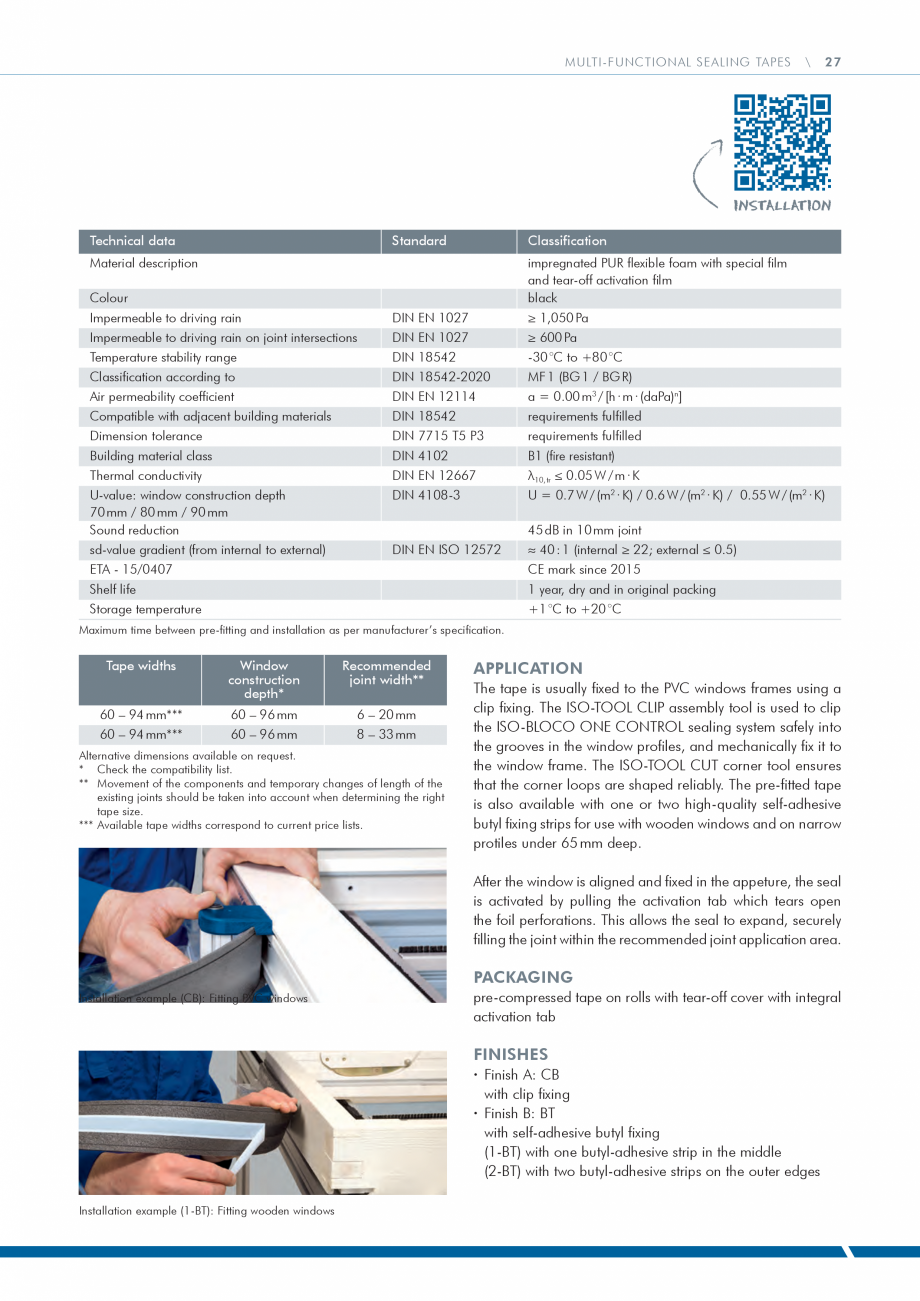

Pagina 52 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rial class
Thermal...

rial class Thermal conductivity DIN 4102 DIN EN 12667 B1 (fire resistant) U-value: window construction depth 70 mm / 80 mm / 90 mm Sound reduction DIN 4108-3 U = 0.7 W / (m2 · K) / 0.6 W / (m2 · K) / 0.55 W / (m2 · K) sd-value gradient (from internal to external) DIN EN ISO 12572 λ10, tr ≤ 0.05 W / m · K 45 dB in 10 mm joint ≈ 40 : 1 (internal ≥ 22; external ≤ 0.5) ETA - 15/0407 CE mark since 2015 Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Maximum time between pre-fitting and installation as per manufacturer’s specification. Tape widths Window construction depth* Recommended joint width** 60 – 94 mm*** 60 – 96 mm 6 – 20 mm 60 – 94 mm*** 60 – 96 mm 8 – 33 mm Alternative dimensions available on request. * Check the compatibility list. ** Movement of the components and temporary changes of length of the existing joints should be taken into account when determining the right tape size. *** Avail

Pagina 52-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rial class
Thermal conductivity

DIN ...

Pagina 53 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza able tape widths...

able tape widths correspond to current price lists. APPLICATION The tape is usually fixed to the PVC windows frames using a clip fixing. The ISO-TOOL CLIP assembly tool is used to clip the ISO-BLOCO ONE CONTROL sealing system safely into the grooves in the window profiles, and mechanically fix it to the window frame. The ISO-TOOL CUT corner tool ensures that the corner loops are shaped reliably. The pre-fitted tape is also available with one or two high-quality self-adhesive butyl fixing strips for use with wooden windows and on narrow protiles under 65 mm deep. After the window is aligned and fixed in the appeture, the seal is activated by pulling the activation tab which tears open the foil perforations. This allows the seal to expand, securely filling the joint within the recommended joint application area. PACKAGING Installation example (CB): Fitting PVC windows pre-compressed tape on rolls with tear-off cover with integral activation tab FINISHES · Finish A: CB with clip fixi

Pagina 53-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza able tape widths correspond to...

Pagina 54 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ng
· Finish B: BT
with...

ng · Finish B: BT with self-adhesive butyl fixing (1-BT) with one butyl-adhesive strip in the middle (2-BT) with two butyl-adhesive strips on the outer edges Installation example (1-BT): Fitting wooden windows 28 \ MULTI-FUNCTIONAL SEALING TAPES ISO-BLOCO RENO PRODUCT DESCRIPTION PRODUCT ADVANTAGES ISO-BLOCO RENO is a multi-functional sealing and insulating system specially developed for energy-related window renovation. It is made up of two connected sealing components. The core layer is made of high-quality polymeric material and provides a smooth surface for the seal. The excellent material component properties guarantee a tight fit in the U-recess which remains after the removal of the old window frame. At the same time as sealing the cavity in the masonry, it forms the basis for the upper sealing layer. The sealing layer is made of impregnated, pre-compressed PUR soft foam with an integrated air tight membrane. The multifuntional material has three distinct areas which co

Pagina 54-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ng
· Finish B: BT
with self-adhesive...

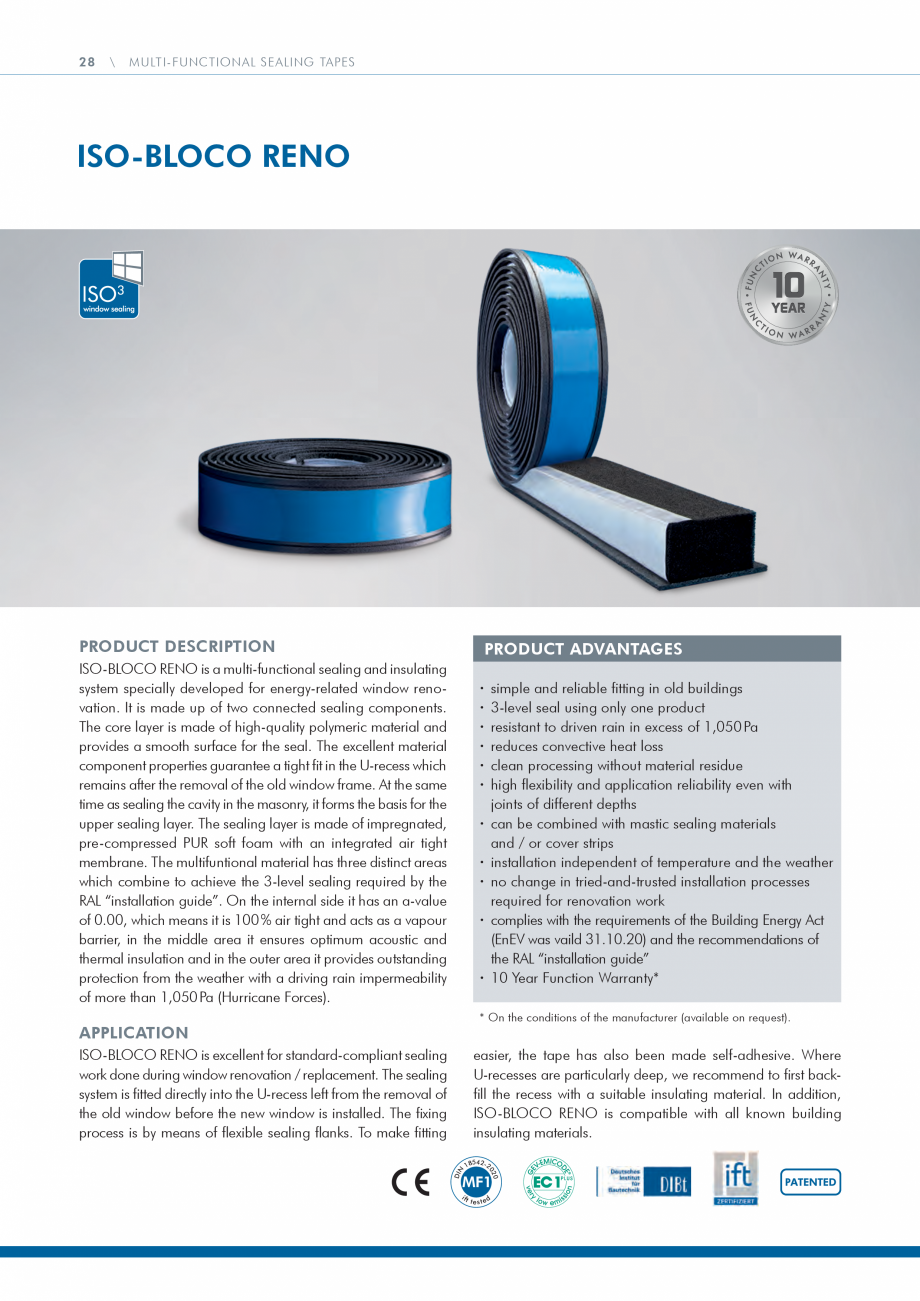

Pagina 55 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza mbine to achieve the...

mbine to achieve the 3-level sealing required by the RAL “installation guide”. On the internal side it has an a-value of 0.00, which means it is 100 % air tight and acts as a vapour barrier, in the middle area it ensures optimum acoustic and thermal insulation and in the outer area it provides outstanding protection from the weather with a driving rain impermeability of more than 1,050 Pa (Hurricane Forces). · · · · · · simple and reliable fitting in old buildings 3-level seal using only one product resistant to driven rain in excess of 1,050 Pa reduces convective heat loss clean processing without material residue high flexibility and application reliability even with joints of different depths can be combined with mastic sealing materials and / or cover strips installation independent of temperature and the weather no change in tried-and-trusted installation processes required for renovation work complies with the requirements of the Building Energy Act (EnEV was vaild 31

Pagina 55-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza mbine to achieve the 3-level sealing ...

Pagina 56 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza .10.20) and the...

.10.20) and the recommendations of the RAL “installation guide” 10 Year Function Warranty* · · · · · * On the conditions of the manufacturer (available on request). APPLICATION easier, the tape has also been made self-adhesive. Where U-recesses are particularly deep, we recommend to first backfill the recess with a suitable insulating material. In addition, ISO-BLOCO RENO is compatible with all known building insulating materials. 42 185 -2 0 02 DIN ISO-BLOCO RENO is excellent for standard-compliant sealing work done during window renovation / replacement. The sealing system is fitted directly into the U-recess left from the removal of the old window before the new window is installed. The fixing process is by means of flexible sealing flanks. To make fitting MF1 ift tested MULTI-FUNCTIONAL SEALING TAPES \ 29 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam with special film Colour black Impermeable t

Pagina 56-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza .10.20) and the recommendations of...

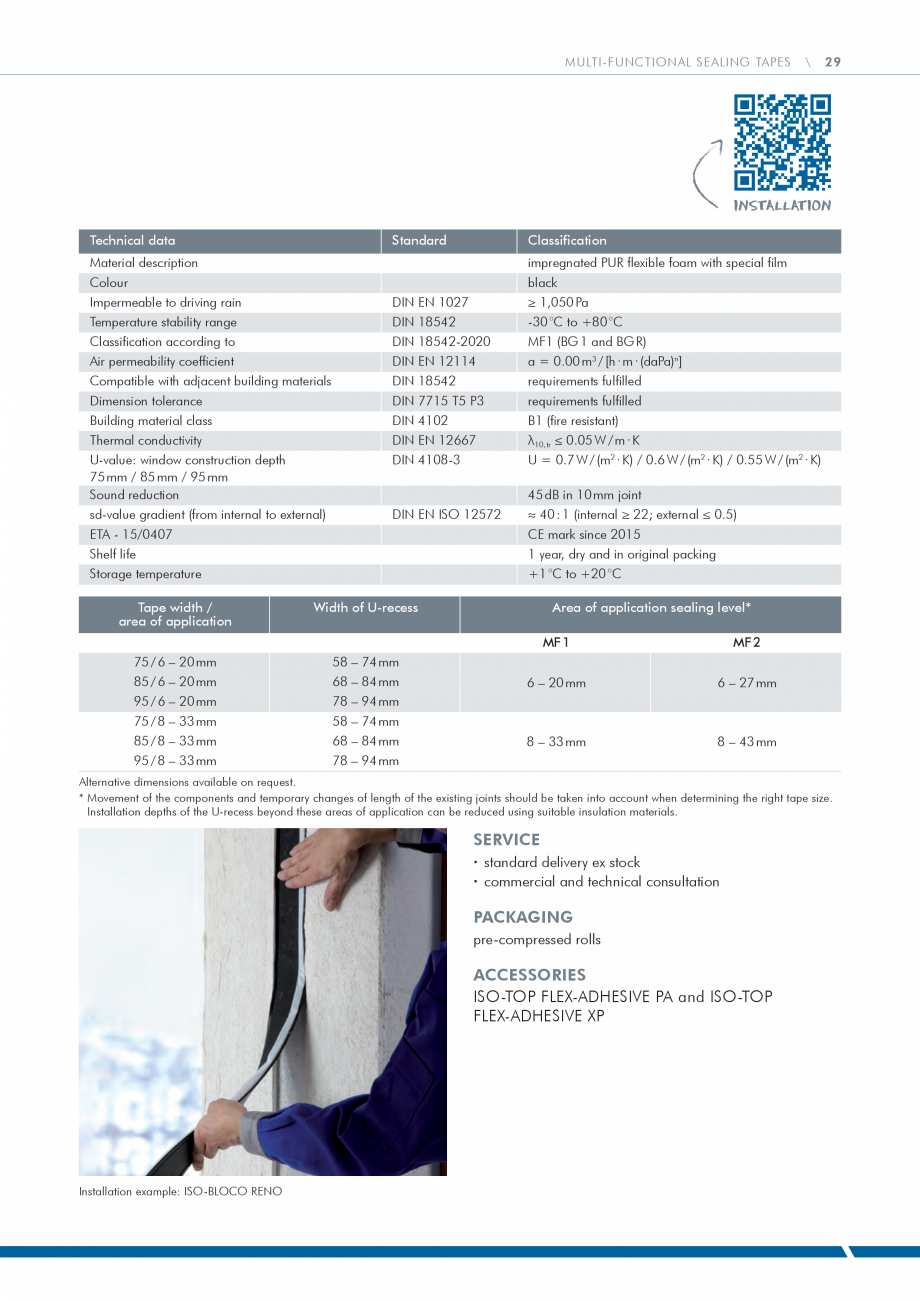

Pagina 57 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza o driving rain

DIN EN...

o driving rain DIN EN 1027 ≥ 1,050 Pa Temperature stability range DIN 18542 -30 °C to +80 °C Classification according to DIN 18542-2020 Air permeability coefficient Compatible with adjacent building materials DIN EN 12114 DIN 18542 MF1 (BG 1 and BG R) a = 0.00 m3 / [h · m · (daPa)n] Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Building material class DIN 4102 Thermal conductivity U-value: window construction depth 75 mm / 85 mm / 95 mm Sound reduction DIN EN 12667 DIN 4108-3 B1 (fire resistant) λ10, tr ≤ 0.05 W / m · K sd-value gradient (from internal to external) DIN EN ISO 12572 requirements fulfilled U = 0.7 W / (m2 · K) / 0.6 W / (m2 · K) / 0.55 W / (m2 · K) 45 dB in 10 mm joint ≈ 40 : 1 (internal ≥ 22; external ≤ 0.5) ETA - 15/0407 CE mark since 2015 Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Tape width / area of application Width of U-recess 75 / 6 – 20 mm 85 / 6 – 20 mm

Pagina 57-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza o driving rain

DIN EN 1027

≥ 1...

Pagina 58 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 58 – 74 mm
68 – 84 mm...

58 – 74 mm 68 – 84 mm 95 / 6 – 20 mm 78 – 94 mm 75 / 8 – 33 mm 85 / 8 – 33 mm 58 – 74 mm 68 – 84 mm 95 / 8 – 33 mm 78 – 94 mm Area of application sealing level* MF 1 MF 2 6 – 20 mm 6 – 27 mm 8 – 33 mm 8 – 43 mm Alternative dimensions available on request. *M ovement of the components and temporary changes of length of the existing joints should be taken into account when determining the right tape size. Installation depths of the U-recess beyond these areas of application can be reduced using suitable insulation materials. SERVICE · standard delivery ex stock · commercial and technical consultation PACKAGING pre-compressed rolls ACCESSORIES ISO-TOP FLEX-ADHESIVE PA and ISO-TOP FLEX-ADHESIVE XP Installation example: ISO-BLOCO RENO 30 \ MULTI-FUNCTIONAL SEALING TAPES ISO-BLOCO MULTI-FUNCTIONAL TAPE PRODUCT DESCRIPTION The ISO-BLOCO MULTI-FUNCTIONAL TAPE is a special joint sealing strip with outstanding functionality that can be used

Pagina 58-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 58 – 74 mm
68 – 84 mm

95 / 6 –...

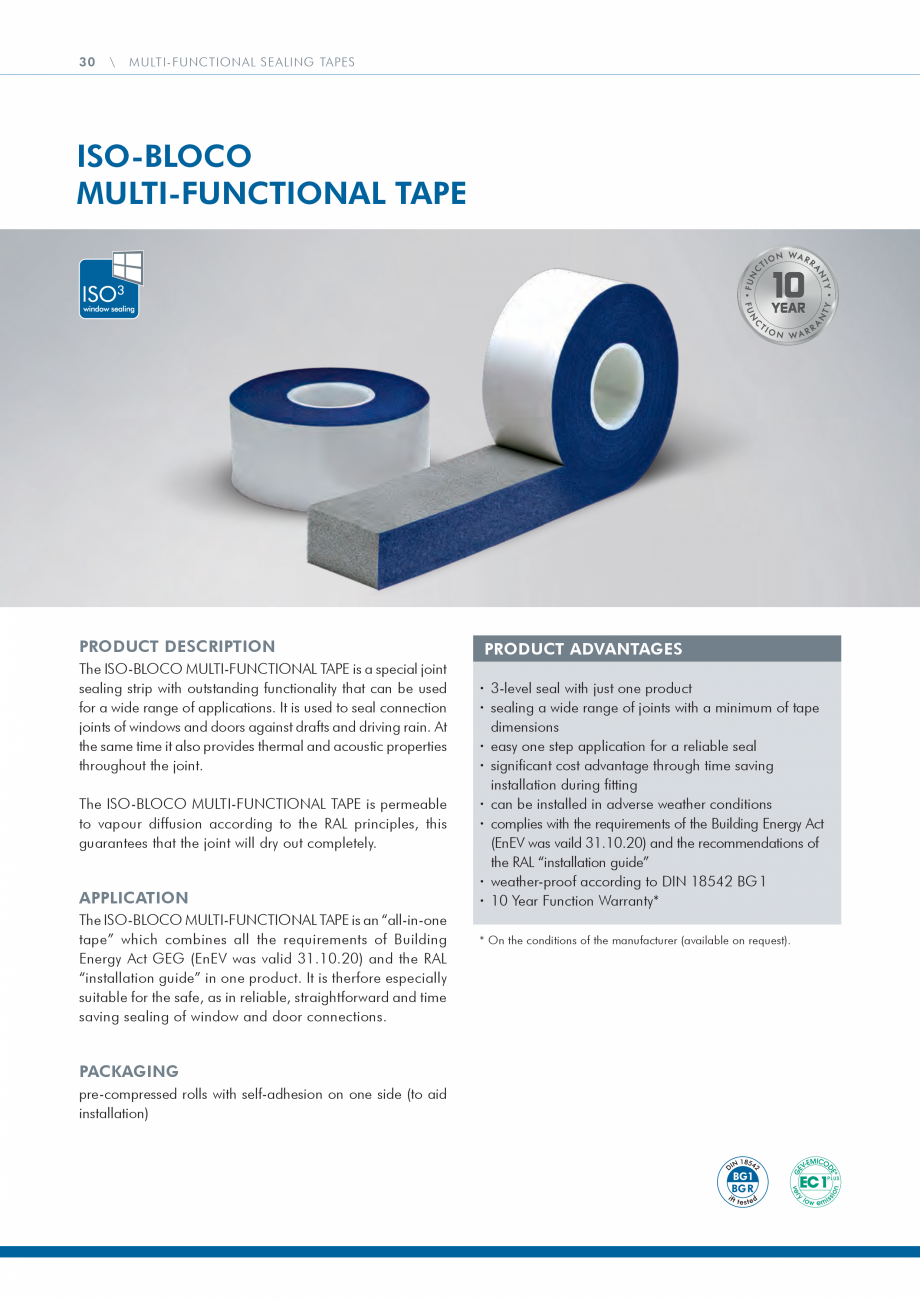

Pagina 59 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza for a wide range of...

for a wide range of applications. It is used to seal connection joints of windows and doors against drafts and driving rain. At the same time it also provides thermal and acoustic properties throughout the joint. The ISO-BLOCO MULTI-FUNCTIONAL TAPE is permeable to vapour diffusion according to the RAL principles, this guarantees that the joint will dry out completely. APPLICATION The ISO-BLOCO MULTI-FUNCTIONAL TAPE is an “all-in-one tape” which combines all the requirements of Building Energy Act GEG (EnEV was valid 31.10.20) and the RAL “installation guide” in one product. It is therfore especially suitable for the safe, as in reliable, straightforward and time saving sealing of window and door connections. PACKAGING pre-compressed rolls with self-adhesion on one side (to aid installation) PRODUCT ADVANTAGES · 3-level seal with just one product · sealing a wide range of joints with a minimum of tape dimensions · easy one step application for a reliable seal · significan

Pagina 59-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza for a wide range of applications. It ...

Pagina 60 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza t cost advantage through ...

t cost advantage through time saving installation during fitting · can be installed in adverse weather conditions · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · weather-proof according to DIN 18542 BG 1 · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). MULTI-FUNCTIONAL SEALING TAPES \ 31 INSTALLATION Technical data Standard Classification Material description impregnated PUR flexible foam Base fire-resistant polymeric dispersion Colour grey, inside: coloured a < 0.1 m3 / [h · m · (daPa)2/3] Airtightness Impermeable to driving rain DIN EN 12114 DIN EN 1027 Temperature stability range DIN 18542 Classification according to DIN 18542 BG 1 and BG R UV light and weather stability DIN 18542 requirements fulfilled Compatibility with adjacent building materials DIN 18542 requirements fulfilled Dimension tolerance DIN 77

Pagina 60-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza t cost advantage through time saving
...

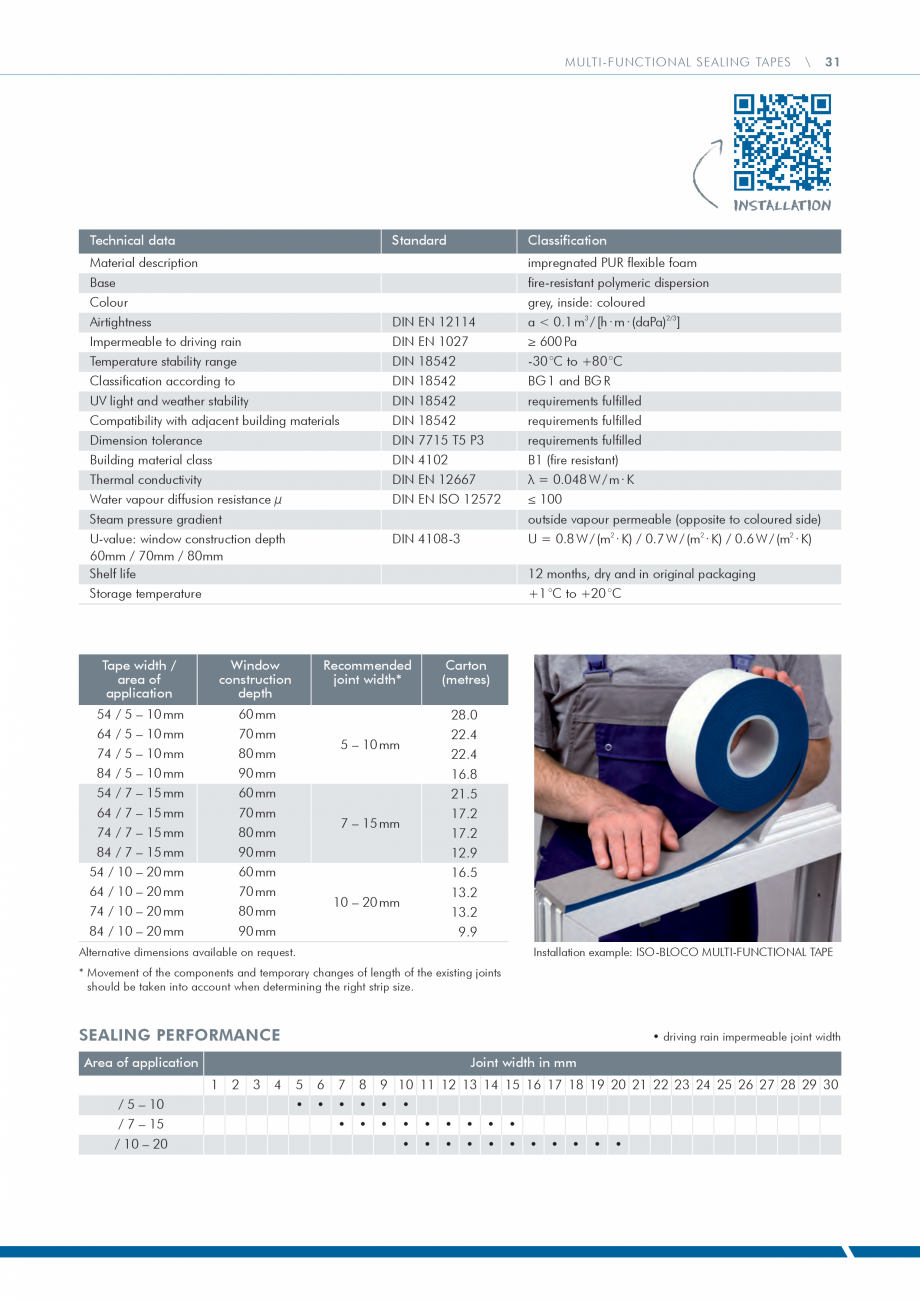

Pagina 61 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 15 T5 P3

requirements...

15 T5 P3 requirements fulfilled Building material class DIN 4102 B1 (fire resistant) Thermal conductivity DIN EN 12667 λ = 0.048 W / m · K Water vapour diffusion resistance μ DIN EN ISO 12572 ≤ 100 DIN 4108-3 outside vapour permeable (opposite to coloured side) U = 0.8 W / (m2 · K) / 0.7 W / (m2 · K) / 0.6 W / (m2 · K) ≥ 600 Pa -30 °C to +80 °C Steam pressure gradient U-value: window construction depth 60mm / 70mm / 80mm Shelf life 12 months, dry and in original packaging Storage temperature +1 °C to +20 °C Carton (metres) Tape width / area of application Window construction depth Recommended joint width* 54 / 5 – 10 mm 60 mm 64 / 5 – 10 mm 70 mm 74 / 5 – 10 mm 80 mm 84 / 5 – 10 mm 90 mm 16.8 54 / 7 – 15 mm 60 mm 21.5 64 / 7 – 15 mm 70 mm 74 / 7 – 15 mm 80 mm 84 / 7 – 15 mm 90 mm 12.9 54 / 10 – 20 mm 60 mm 16.5 64 / 10 – 20 mm 70 mm 74 / 10 – 20 mm 80 mm 84 / 10 – 20 mm 90 mm 28.0 22.4 5 – 10 mm

Pagina 61-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 15 T5 P3

requirements fulfilled
...

Pagina 62 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
22.4

17.2

7 – 15 mm
...

22.4 17.2 7 – 15 mm 17.2 13.2 10 – 20 mm 13.2 9.9 Installation example: ISO-BLOCO MULTI-FUNCTIONAL TAPE Alternative dimensions available on request. *M ovement of the components and temporary changes of length of the existing joints should be taken into account when determining the right strip size. SEALING PERFORMANCE • driving rain impermeable joint width Area of application Joint width in mm 1 / 5 – 10 / 7 – 15 / 10 – 20 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 • • • • • • • • • • • • • • • • • • • • • • • • • • 32 \ IN FRONT OF WALL INSTALLATION SYSTEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ PRODUCT DESCRIPTION IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ makes it possible to position and fit windows within the insulation plane. The ISO-TOP WINFRAMER „TYPE 1“ comprises a t

Pagina 62-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
22.4

17.2

7 – 15 mm

17.2

13.2
...

Pagina 63 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza hermally insulating and...

hermally insulating and load-bearing system angle made of PURATHERM which is equipped with a high thermally insulating core. The thermally insulating core is connected to the system angle by means of a hinged mechanism. The advantage of this is that the insulating core can simply be moved out of the way while mechanically securing with screws. System boards are also available for applications where the window is only partially overhanging. In addition, the system brackets can be combined with the system boards to achieve greater overhangs. The system brackets and system boards are prefabricated in many different formats and can be cut to length on site using a mitre saw. Attachment to the masonry is by means of ISO-TOP FLEX-ADHESIVE WF and additional attachment using screws (see ISO-TOP WF FIXINGS). APPLICATION The system brackets and boards are suitable for bearing the loads of windows and doors and provide an optimum base for sealing window connection joints. The window and door ele

Pagina 63-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza hermally insulating and
load-bearing ...

Pagina 64 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ments are attached...

ments are attached directly and mechanically to the supporting frame system. This is possible with both classic screw fixings trough the window frame, or with extended metal lug fixings. The in front of wall installation system is then covered by either an External Wall PRODUCT ADVANTAGES · extensive individual tests by testing institutes** · RC2 and RC3 tested for the installation of burglar resistant windows and doors · integrated thermal insulation core (system brackets) · reduction of structure-related thermal bridges · simple installation thanks to the convenient insertion system · complies with the requirements of the Building Energy Act and the recommendations of the RAL “installation guide” · certified Passive House component · fire rated according to EN 1366-4 · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). ** In front of wall installation systems are currently not subject to any regulation by the DIBt. Approvals suc

Pagina 64-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ments are attached directly and...

Pagina 65 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza h as aBG or abZ must...

h as aBG or abZ must therefore be covered by individual tests. Details on approval as in front of wall installation system for building projects must be obtained individually from the responsible planning office. Insulation system, or rain screen facade of whatever type is designed. The integrated thermal core of the system together with the solid installation frame guarantee an optimum Ψ-value (Psi). cool, temperate climate ph B C E RT I F I E D COMPONENT Passive House Institute IN FRONT OF WALL INSTALLATION SYSTEMS \ 33 INSTALLATION SYSTEM COMPONENTS ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 1“ 80 / 80, 90 / 80 The system bracket 80 / 80 resp. 90 / 80 is available for typical in front of wall installations. The ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ 80 / 80 resp. 90 / 80 are suitable whenever windows are fitted in the direct transition area between the wall and the External Wall Installation system. With its 80 mm or 90 mm width dimension it has been adap

Pagina 65-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza h as aBG or abZ must therefore
be...

Pagina 66 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ted

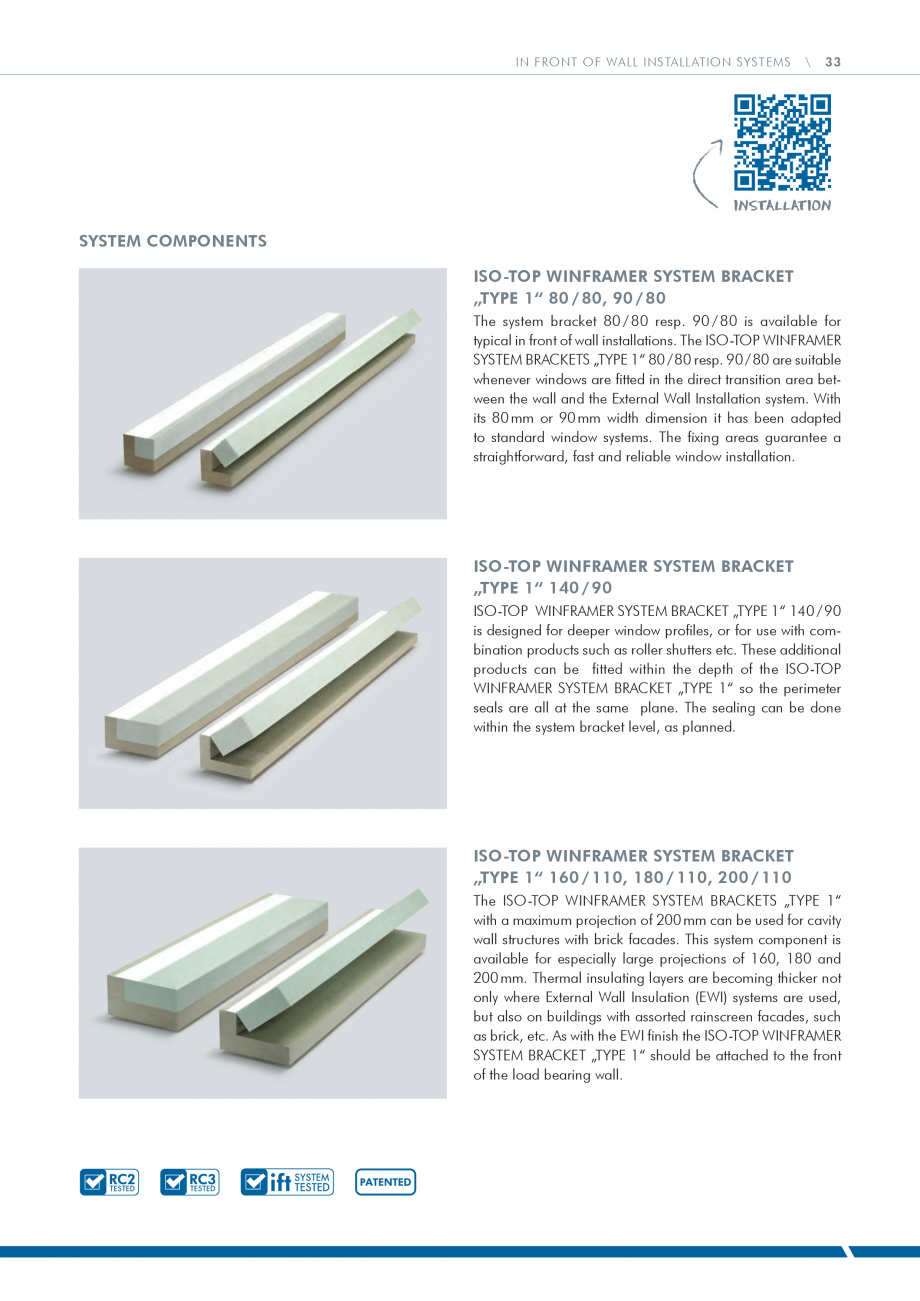

to standard window...

ted to standard window systems. The fixing areas guarantee a straightforward, fast and reliable window installation. ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 1“ 140 / 90 ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 1“ 140 / 90 is designed for deeper window profiles, or for use with combination products such as roller shutters etc. These additional products can be fitted within the depth of the ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 1“ so the perimeter seals are all at the same plane. The sealing can be done within the system bracket level, as planned. ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 1“ 160 / 110, 180 / 110, 200 / 110 The ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ with a maximum projection of 200 mm can be used for cavity wall structures with brick facades. This system component is available for especially large projections of 160, 180 and 200 mm. Thermal insulating layers are becoming thicker not only where External Wall Insulation (EWI) systems are used, but also

Pagina 66-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ted
to standard window systems. The...

Pagina 67 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on buildings with...

on buildings with assorted rainscreen facades, such as brick, etc. As with the EWI finish the ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 1“ should be attached to the front of the load bearing wall. 34 \ IN FRONT OF WALL INSTALLATION SYSTEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ SYSTEM COMPONENTS ISO-TOP WINFRAMER SYSTEM BOARDS The system boards in the IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ offer a range of different application options. ISO-TOP WINFRAMER SYSTEM BOARDS are also available for applications where the window is only partially overhanging with some External Wall Insulation systems. In addition, the system brackets can be combined with the system boards to achieve greater overhang. SYSTEM ADHESIVE ISO-TOP FLEX-ADHESIVE WF ISO-TOP FLEX-ADHESIVE WF is a high-quality, neutral cure, single-component, permanently flexible adhesive on a hybrid-polymer basis. It was developed especially for gluing the IN FRONT OF WALL

Pagina 67-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on buildings with assorted rainscreen...

Pagina 68 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza INSTALLATION SYSTEMs...

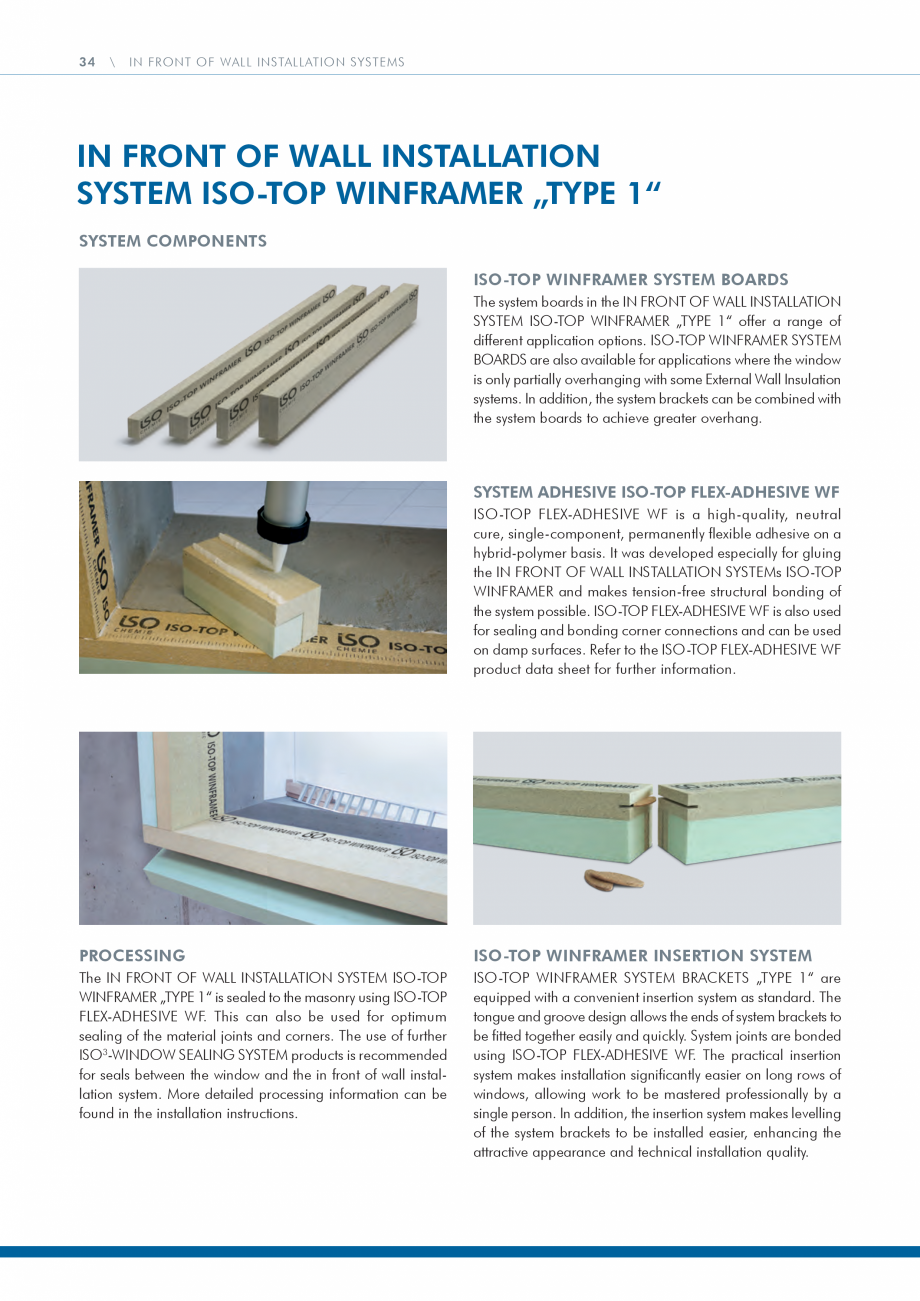

INSTALLATION SYSTEMs ISO-TOP WINFRAMER and makes tension-free structural bonding of the system possible. ISO-TOP FLEX-ADHESIVE WF is also used for sealing and bonding corner connections and can be used on damp surfaces. Refer to the ISO-TOP FLEX-ADHESIVE WF product data sheet for further information. PROCESSING ISO-TOP WINFRAMER INSERTION SYSTEM The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ is sealed to the masonry using ISO-TOP FLEX-ADHESIVE WF. This can also be used for optimum sealing of the material joints and corners. The use of further ISO3-WINDOW SEALING SYSTEM products is recommended for seals between the window and the in front of wall installation system. More detailed processing information can be found in the installation instructions. ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ are equipped with a convenient insertion system as standard. The tongue and groove design allows the ends of system brackets to be fitted together easily and quickly

Pagina 68-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza INSTALLATION SYSTEMs ISO-TOP...

Pagina 69 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza . System joints are...

. System joints are bonded using ISO-TOP FLEX-ADHESIVE WF. The practical insertion system makes installation significantly easier on long rows of windows, allowing work to be mastered professionally by a single person. In addition, the insertion system makes levelling of the system brackets to be installed easier, enhancing the attractive appearance and technical installation quality. IN FRONT OF WALL INSTALLATION SYSTEMS \ 35 IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ PREFAB PRODUCT DESCRIPTION ISO-TOP WINFRAMER „TYPE 1“ PREFAB is the project-related version of the „TYPE 1“ in front of wall installation system prefabricated at the factory to optimise time and costs. The main advantages are its configurable delivery lengths and projection dimensions as well as the option of prefabricating complete supporting frames. In addition, the „TYPE 1“ PREFAB has all the technical advantages of the tried-and-trusted „TYPE 1“. The system brackets of th

Pagina 69-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza . System joints are bonded
using...

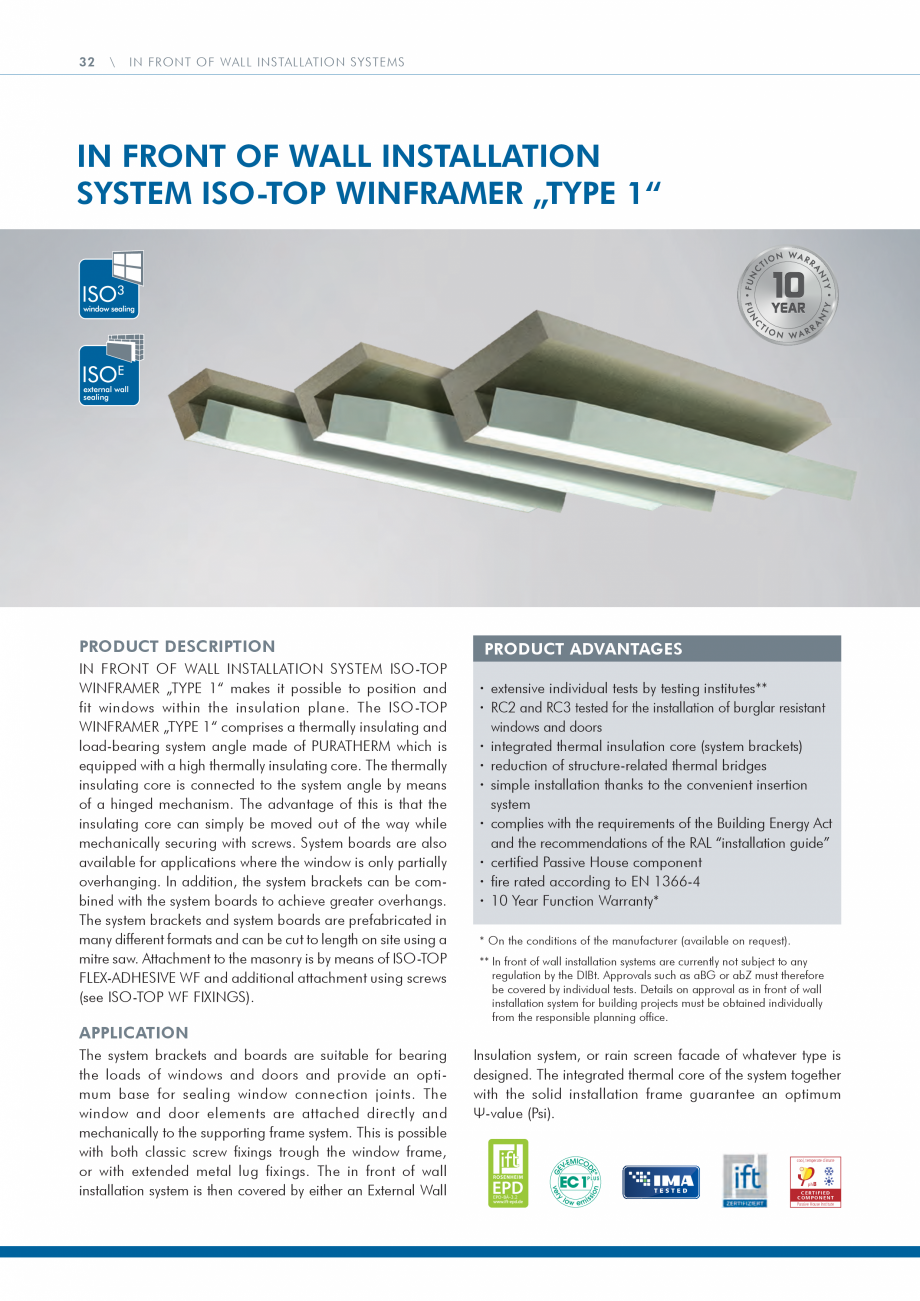

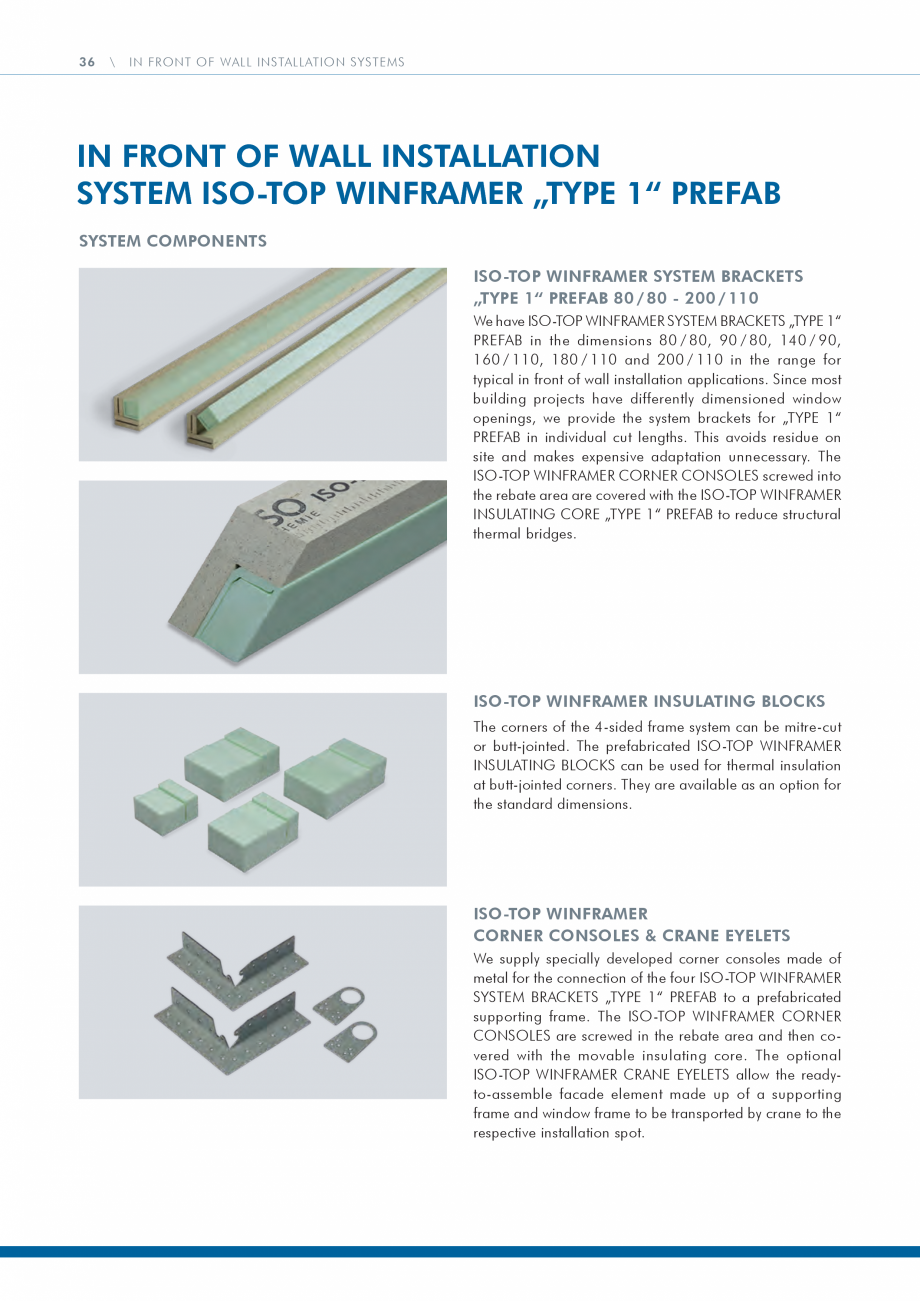

Pagina 70 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e IN FRONT OF WALL...

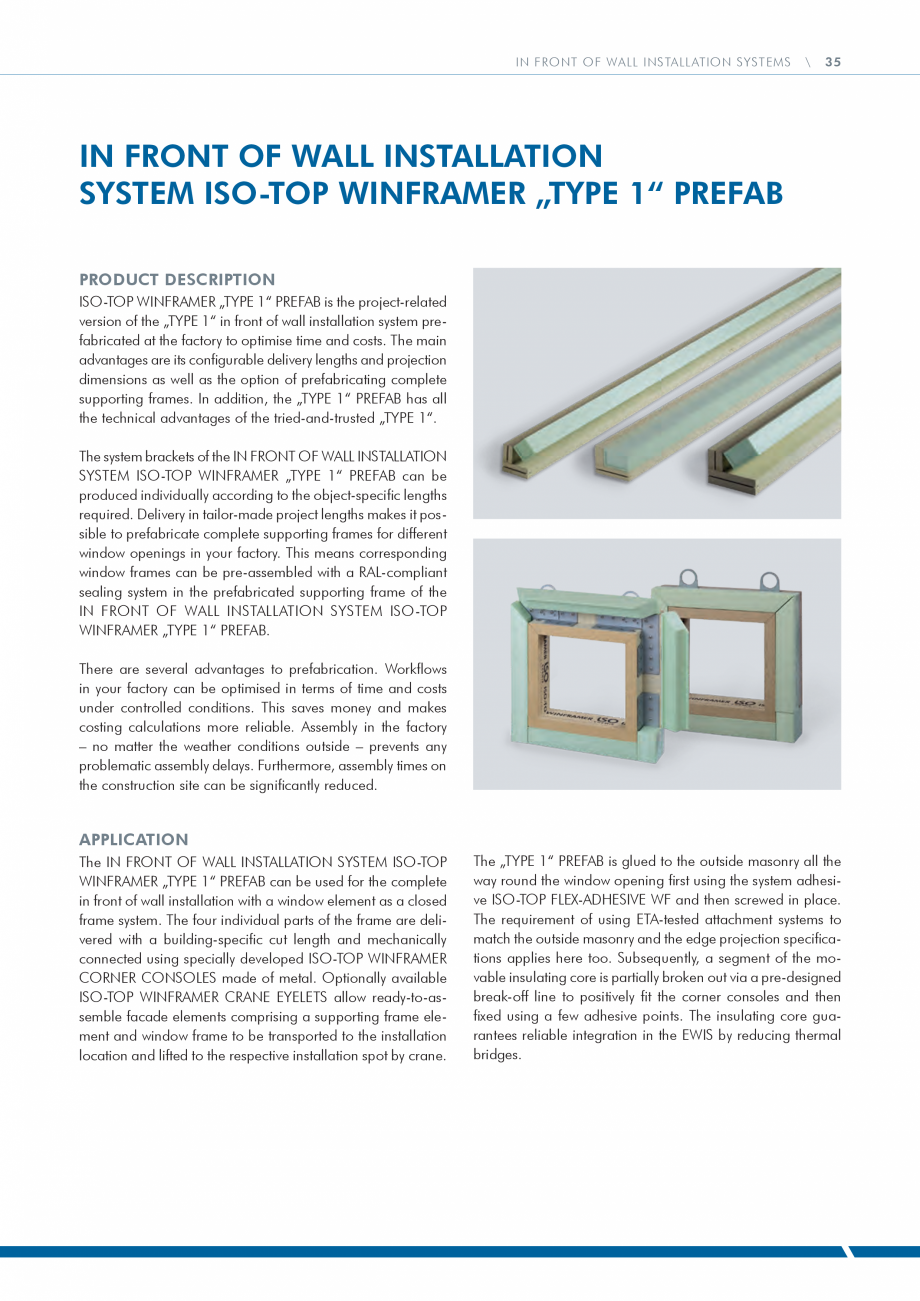

e IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ PREFAB can be produced individually according to the object-specific lengths required. Delivery in tailor-made project lengths makes it possible to prefabricate complete supporting frames for different window openings in your factory. This means corresponding window frames can be pre-assembled with a RAL-compliant sealing system in the prefabricated supporting frame of the IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ PREFAB. There are several advantages to prefabrication. Workflows in your factory can be optimised in terms of time and costs under controlled conditions. This saves money and makes costing calculations more reliable. Assembly in the factory – no matter the weather conditions outside – prevents any problematic assembly delays. Furthermore, assembly times on the construction site can be significantly reduced. APPLICATION The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAME

Pagina 70-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e IN FRONT OF WALL INSTALLATION...

Pagina 71 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza R „TYPE 1“ PREFAB can...

R „TYPE 1“ PREFAB can be used for the complete in front of wall installation with a window element as a closed frame system. The four individual parts of the frame are delivered with a building-specific cut length and mechanically connected using specially developed ISO-TOP WINFRAMER CORNER CONSOLES made of metal. Optionally available ISO-TOP WINFRAMER CRANE EYELETS allow ready-to-assemble facade elements comprising a supporting frame element and window frame to be transported to the installation location and lifted to the respective installation spot by crane. The „TYPE 1“ PREFAB is glued to the outside masonry all the way round the window opening first using the system adhesive ISO-TOP FLEX-ADHESIVE WF and then screwed in place. The requirement of using ETA-tested attachment systems to match the outside masonry and the edge projection specifications applies here too. Subsequently, a segment of the movable insulating core is partially broken out via a pre-designed break-off l

Pagina 71-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza R „TYPE 1“ PREFAB can be used for...

Pagina 72 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ine to positively fit the...

ine to positively fit the corner consoles and then fixed using a few adhesive points. The insulating core guarantees reliable integration in the EWIS by reducing thermal bridges. 36 \ IN FRONT OF WALL INSTALLATION SYSTEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ PREFAB SYSTEM COMPONENTS ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB 80 / 80 - 200 / 110 We have ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB in the dimensions 80 / 80, 90 / 80, 140 / 90, 160 / 110, 180 / 110 and 200 / 110 in the range for typical in front of wall installation applications. Since most building projects have differently dimensioned window openings, we provide the system brackets for „TYPE 1“ PREFAB in individual cut lengths. This avoids residue on site and makes expensive adaptation unnecessary. The ISO-TOP WINFRAMER CORNER CONSOLES screwed into the rebate area are covered with the ISO-TOP WINFRAMER INSULATING CORE „TYPE 1“ PREFAB to reduce structural th

Pagina 72-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ine to positively fit the corner...

Pagina 73 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ermal bridges.

ISO-TOP...

ermal bridges. ISO-TOP WINFRAMER INSULATING BLOCKS The corners of the 4-sided frame system can be mitre-cut or butt-jointed. The prefabricated ISO-TOP WINFRAMER INSULATING BLOCKS can be used for thermal insulation at butt-jointed corners. They are available as an option for the standard dimensions. ISO-TOP WINFRAMER CORNER CONSOLES & CRANE EYELETS We supply specially developed corner consoles made of metal for the connection of the four ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB to a prefabricated supporting frame. The ISO-TOP WINFRAMER CORNER CONSOLES are screwed in the rebate area and then covered with the movable insulating core. The optional ISO-TOP WINFRAMER CRANE EYELETS allow the readyto-assemble facade element made up of a supporting frame and window frame to be transported by crane to the respective installation spot. IN FRONT OF WALL INSTALLATION SYSTEMS Technical data: Standard \ 37 Classification ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“, „TYPE 1

Pagina 73-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ermal bridges.

ISO-TOP WINFRAMER...

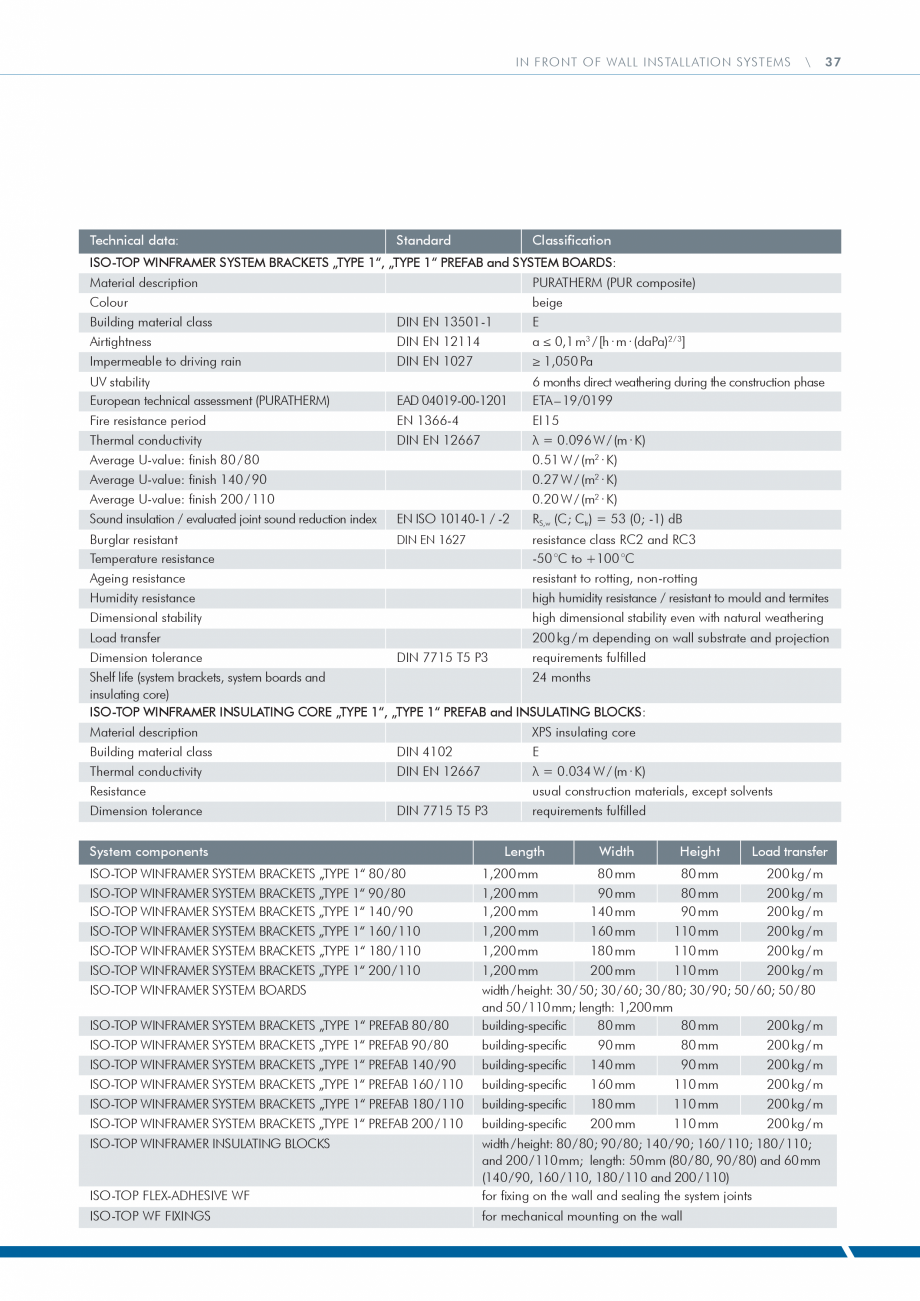

Pagina 74 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza “ PREFAB and SYSTEM...

“ PREFAB and SYSTEM BOARDS: Material description PURATHERM (PUR composite) Colour beige Building material class DIN EN 13501-1 E Airtightness Impermeable to driving rain DIN EN 12114 DIN EN 1027 a ≤ 0,1 m3 / [h · m · (daPa)2 / 3] ≥ 1,050 Pa UV stability European technical assessment (PURATHERM) EAD 04019-00-1201 6 months direct weathering during the construction phase ETA – 19/0199 Fire resistance period EN 1366-4 EI 15 Thermal conductivity DIN EN 12667 λ = 0.096 W / (m · K) Average U-value: finish 140 / 90 0.51 W / (m2 · K) 0.27 W / (m2 · K) Average U-value: finish 200 / 110 0.20 W / (m2 · K) Average U-value: finish 80 / 80 Sound insulation / evaluated joint sound reduction index EN ISO 10140-1 / -2 RS,w (C; Ctr) = 53 (0; -1) dB Burglar resistant Temperature resistance DIN EN 1627 resistance class RC2 and RC3 -50 °C to +100 °C Ageing resistance resistant to rotting, non-rotting Humidity resistance high humidity resistance / resistant t

Pagina 74-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza “ PREFAB and SYSTEM BOARDS:...

Pagina 75 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza o mould and termites
...

o mould and termites Dimensional stability high dimensional stability even with natural weathering Load transfer 200 kg / m depending on wall substrate and projection Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Shelf life (system brackets, system boards and 24 months insulating core) ISO-TOP WINFRAMER INSULATING CORE „TYPE 1“, „TYPE 1“ PREFAB and INSULATING BLOCKS: Material description XPS insulating core Building material class DIN 4102 Thermal conductivity DIN EN 12667 E λ = 0.034 W / (m · K) Resistance Dimension tolerance usual construction materials, except solvents DIN 7715 T5 P3 System components requirements fulfilled Length Width Height Load transfer ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ 80 / 80 1,200 mm 80 mm 80 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ 90 / 80 ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ 140 / 90 1,200 mm 1,200 mm 90 mm 140 mm 80 mm 90 mm 200 kg / m 200 kg / m ISO-TOP WINFRA

Pagina 75-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza o mould and termites

Dimensional...

Pagina 76 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MER SYSTEM BRACKETS...

MER SYSTEM BRACKETS „TYPE 1“ 160 / 110 1,200 mm 160 mm 110 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ 180 / 110 1,200 mm 180 mm 110 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ 200 / 110 1,200 mm 200 mm 110 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BOARDS ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB 80 / 80 width / height: 30 / 50; 30 / 60; 30 / 80; 30 / 90; 50 / 60; 50 / 80 and 50 / 110 mm; length: 1,200 mm building-specific 80 mm 80 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB 90 / 80 building-specific 90 mm 80 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB 140 / 90 building-specific 140 mm 90 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB 160 / 110 ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PREFAB 180 / 110 building-specific building-specific 160 mm 180 mm 110 mm 110 mm 200 kg / m 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ PR

Pagina 76-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MER SYSTEM BRACKETS „TYPE 1“ 160 ...

Pagina 77 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza EFAB 200 / 110
...

EFAB 200 / 110 building-specific 200 mm 110 mm 200 kg / m ISO-TOP WINFRAMER INSULATING BLOCKS ISO-TOP FLEX-ADHESIVE WF width / height: 80 / 80; 90 / 80; 140 / 90; 160 / 110; 180 / 110; and 200 / 110 mm; length: 50 mm (80 / 80, 90 / 80) and 60 mm (140 / 90, 160 / 110, 180 / 110 and 200 / 110) for fixing on the wall and sealing the system joints ISO-TOP WF FIXINGS for mechanical mounting on the wall 38 \ IN FRONT OF WALL INSTALLATION SYSTEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ E30 PRODUCT DESCRIPTION The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“ E30 makes it possible to position and fit windows within the insulation plane. It comprises a thermally insulating and load-bearing system angle made of PURATHERM E30. The intumescent effect of the new PURATHERM E30 material makes the ISO-TOP WINFRAMER „TYPE 1“ E30 especially suitable for use in fire protection façades. ISO-TOP WINFRAMER SYSTEM BOARDS E30 are also avail

Pagina 77-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza EFAB 200 / 110

building-specific
...

Pagina 78 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza able for applications...

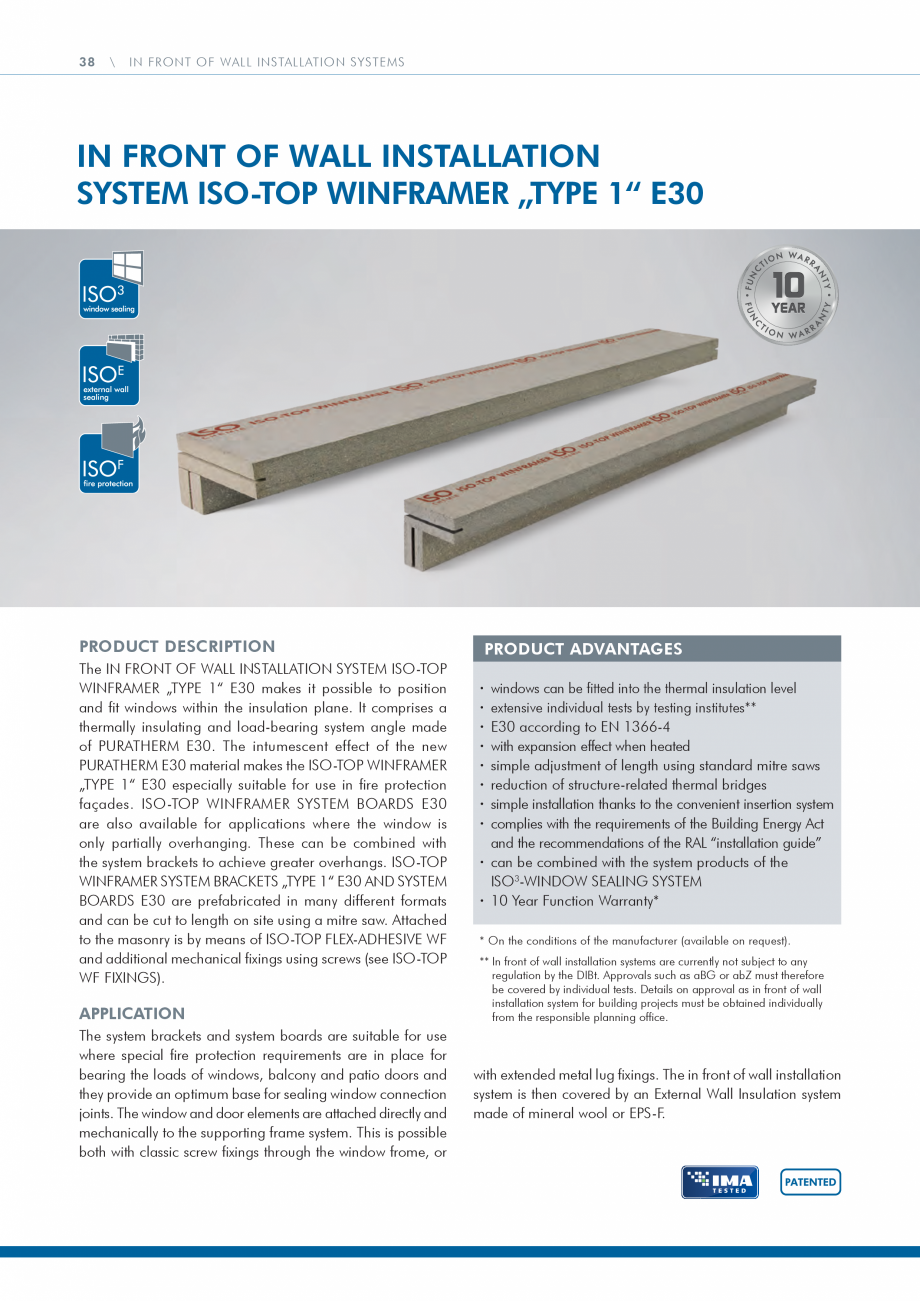

able for applications where the window is only partially overhanging. These can be combined with the system brackets to achieve greater overhangs. ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 AND SYSTEM BOARDS E30 are prefabricated in many different formats and can be cut to length on site using a mitre saw. Attached to the masonry is by means of ISO-TOP FLEX-ADHESIVE WF and additional mechanical fixings using screws (see ISO-TOP WF FIXINGS). APPLICATION The system brackets and system boards are suitable for use where special fire protection requirements are in place for bearing the loads of windows, balcony and patio doors and they provide an optimum base for sealing window connection joints. The window and door elements are attached directly and mechanically to the supporting frame system. This is possible both with classic screw fixings through the window frome, or PRODUCT ADVANTAGES · · · · · · · · windows can be fitted into the thermal insulation level extensive i

Pagina 78-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza able for applications where the...

Pagina 79 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ndividual tests by...

ndividual tests by testing institutes** E30 according to EN 1366-4 with expansion effect when heated simple adjustment of length using standard mitre saws reduction of structure-related thermal bridges simple installation thanks to the convenient insertion system complies with the requirements of the Building Energy Act and the recommendations of the RAL “installation guide” · can be combined with the system products of the ISO3-WINDOW SEALING SYSTEM · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). ** In front of wall installation systems are currently not subject to any regulation by the DIBt. Approvals such as aBG or abZ must therefore be covered by individual tests. Details on approval as in front of wall installation system for building projects must be obtained individually from the responsible planning office. with extended metal lug fixings. The in front of wall installation system is then covered by an External Wall Insulatio

Pagina 79-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ndividual tests by testing...

Pagina 80 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza n system
made of mineral ...

n system made of mineral wool or EPS-F. IN FRONT OF WALL INSTALLATION SYSTEMS Technical data Standard \ 39 Classification ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 and SYSTEM BOARDS E30: Material description PURATHERM E30 (intumescent PUR composite) Colour Building material class beige DIN EN 13501-1 UV stability European technical assessment (PURATHERM E30) E / C-s3, d0 (fire resistant) 6 months direct weathering during the construction phase EAD 04019-00-1201 ETA – 19/0199 Fire resistance period DIN EN 13501-2 EI 15 and E 30 Thermal conductivity DIN EN 12667 Sound insulation / evaluated joint sound reduction index Temperature resistance EN ISO 10140-1 / 10140-2 λ = 0.096 W / (m · K) RS,w (C; Ctr) = 53 (0; -1) dB -50 °C to +100 °C Ageing resistance resistant to rotting, non-rotting Humidity resistance high humidity resistance / resistant to mould and termites Dimensional stability high dimensional stability even with natural weathering Load

Pagina 80-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza n system
made of mineral wool or...

Pagina 81 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza transfer

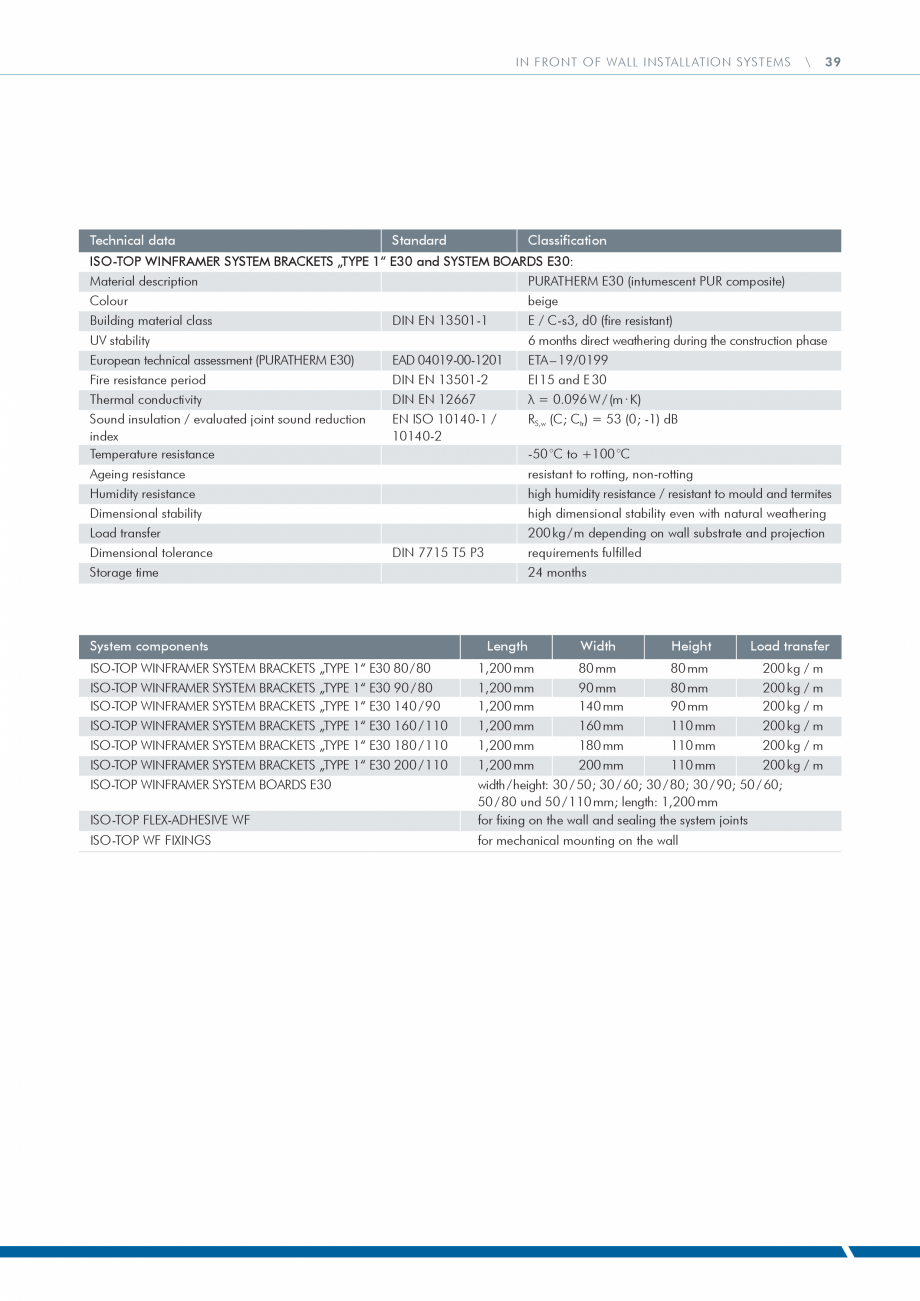

200 kg / m...

transfer 200 kg / m depending on wall substrate and projection Dimensional tolerance DIN 7715 T5 P3 requirements fulfilled Storage time System components 24 months Length Width Height Load transfer ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 80 / 80 1,200 mm 80 mm 80 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 90 / 80 ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 140 / 90 1,200 mm 1,200 mm 90 mm 140 mm 80 mm 90 mm 200 kg / m 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 160 / 110 1,200 mm 160 mm 110 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 180 / 110 1,200 mm 180 mm 110 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 1“ E30 200 / 110 1,200 mm 200 mm 110 mm 200 kg / m ISO-TOP WINFRAMER SYSTEM BOARDS E30 ISO-TOP FLEX-ADHESIVE WF width / height: 30 / 50; 30 / 60; 30 / 80; 30 / 90; 50 / 60; 50 / 80 und 50 / 110 mm; length: 1,200 mm for fixing on the wall and sealing the

Pagina 81-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza transfer

200 kg / m depending on...

Pagina 82 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza system joints

ISO-TOP WF...

system joints ISO-TOP WF FIXINGS for mechanical mounting on the wall 40 \ IN FRONT OF WALL INSTALLATION SYSTEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ PRODUCT DESCRIPTION The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ has been specially developed for the installation of construction elements in the insulation level in front of the load-bearing wall of buildings. The new „TYPE 2“ supplements the tried-and-trusted and comprehensively tested system components of our ISO-TOP WINFRAMER „TYPE 1“ by further application options. „TYPE 2“ has been especially developed for the installation of small to medium-sized windows. The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ is made up of the system components attachment console, spacer plate, insulating profile and system bracket, as well as the system adhesive ISO-TOP FLEXADHESIVE WF (see table of system components). In comparison with the current IN F

Pagina 82-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza system joints

ISO-TOP WF FIXINGS
...

Pagina 83 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza RONT OF WALL INSTALLATION...

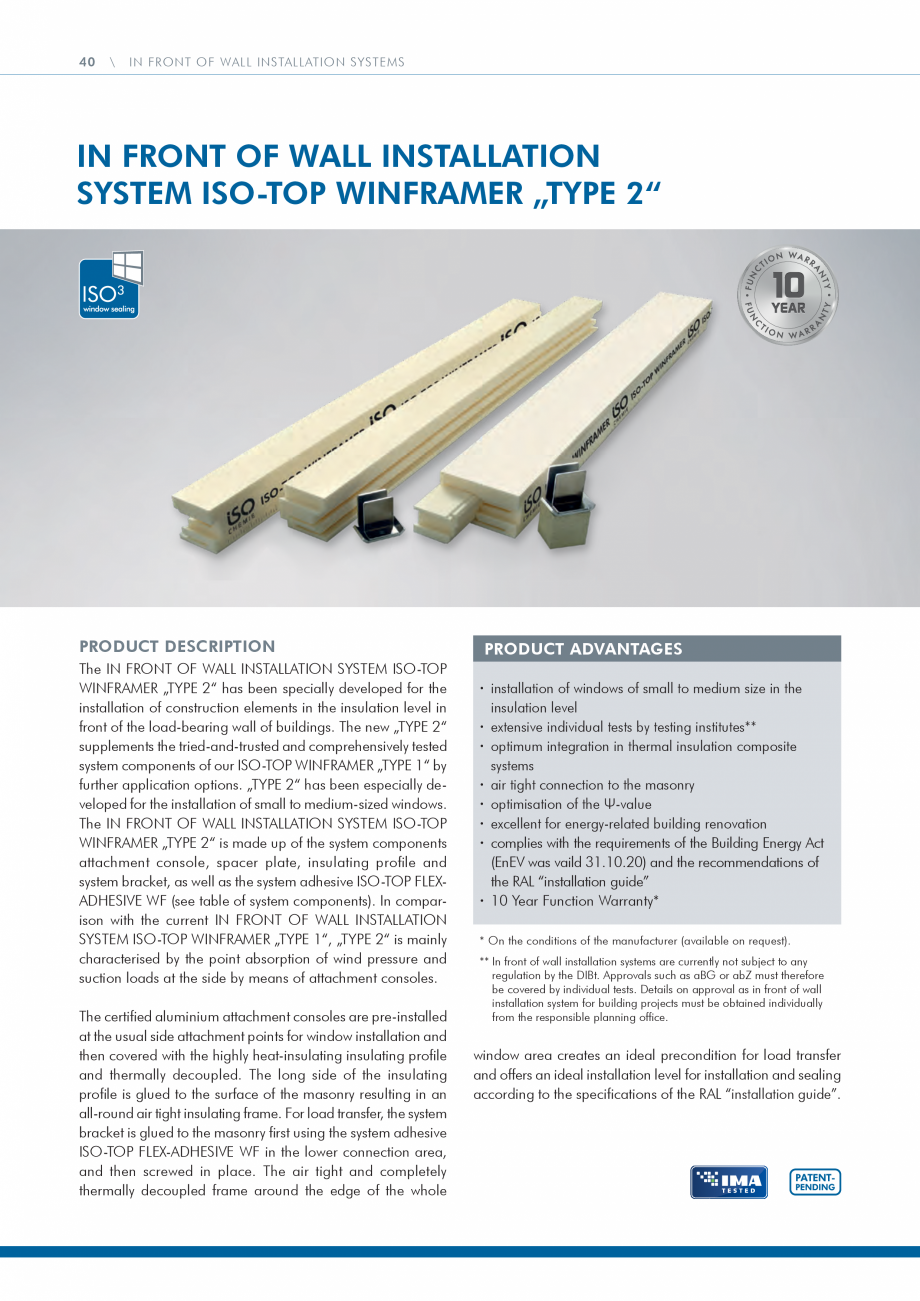

RONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 1“, „TYPE 2“ is mainly characterised by the point absorption of wind pressure and suction loads at the side by means of attachment consoles. The certified aluminium attachment consoles are pre-installed at the usual side attachment points for window installation and then covered with the highly heat-insulating insulating profile and thermally decoupled. The long side of the insulating profile is glued to the surface of the masonry resulting in an all-round air tight insulating frame. For load transfer, the system bracket is glued to the masonry first using the system adhesive ISO-TOP FLEX-ADHESIVE WF in the lower connection area, and then screwed in place. The air tight and completely thermally decoupled frame around the edge of the whole PRODUCT ADVANTAGES · installation of windows of small to medium size in the insulation level · extensive individual tests by testing institutes** · optimum integration in thermal ins

Pagina 83-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza RONT OF WALL INSTALLATION
SYSTEM...

Pagina 84 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ulation composite
systems...

ulation composite systems · air tight connection to the masonry · optimisation of the Ψ-value · excellent for energy-related building renovation · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). ** In front of wall installation systems are currently not subject to any regulation by the DIBt. Approvals such as aBG or abZ must therefore be covered by individual tests. Details on approval as in front of wall installation system for building projects must be obtained individually from the responsible planning office. window area creates an ideal precondition for load transfer and offers an ideal installation level for installation and sealing according to the specifications of the RAL “installation guide”. IN FRONT OF WALL INSTALLATION SYSTEMS \ 41 INSTALLATION SYSTEM COMPONENTS ISO-TO

Pagina 84-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ulation composite
systems
· air...

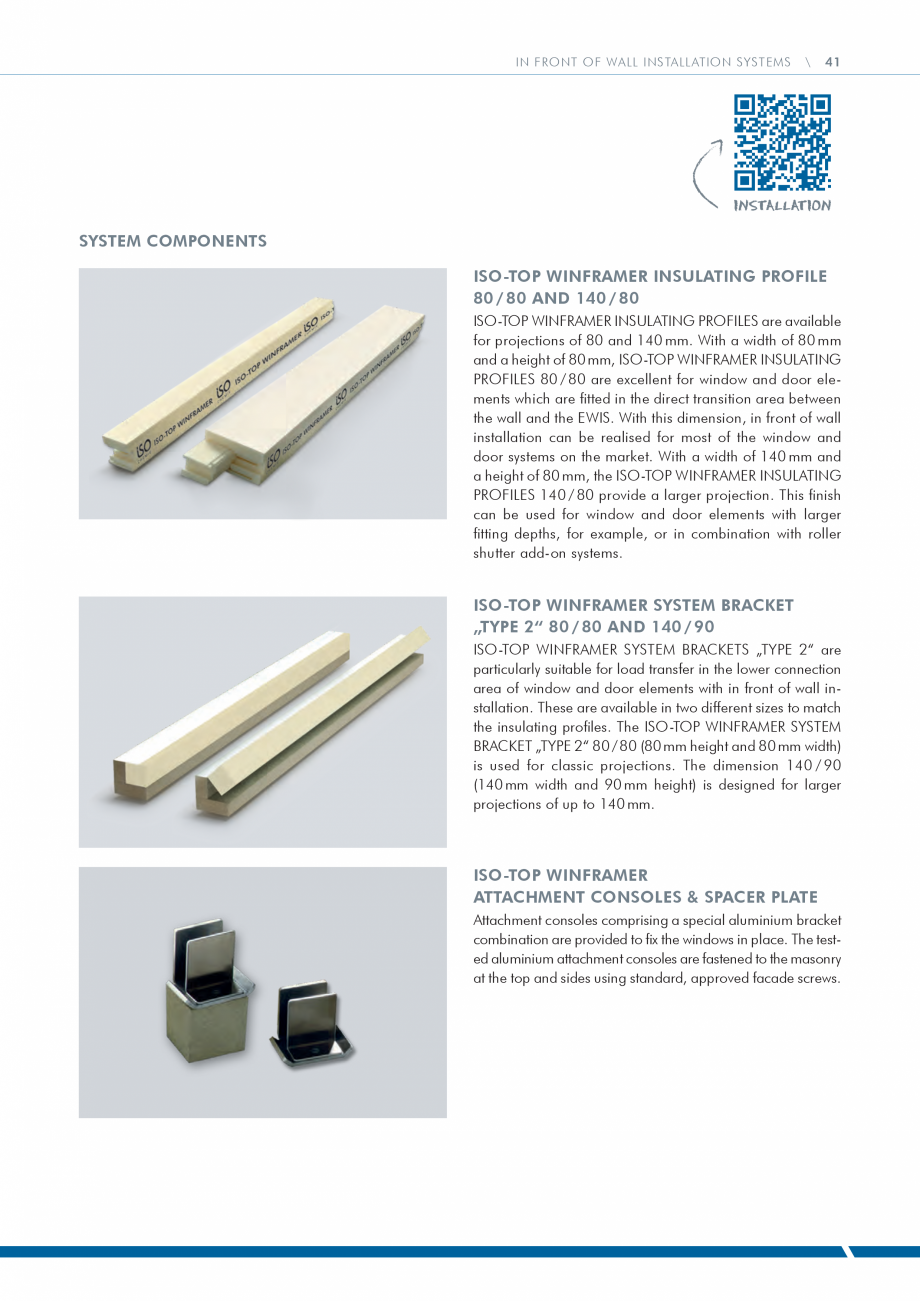

Pagina 85 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza P WINFRAMER INSULATING...

P WINFRAMER INSULATING PROFILE 80 / 80 AND 140 / 80 ISO-TOP WINFRAMER INSULATING PROFILES are available for projections of 80 and 140 mm. With a width of 80 mm and a height of 80 mm, ISO-TOP WINFRAMER INSULATING PROFILES 80 / 80 are excellent for window and door elements which are fitted in the direct transition area between the wall and the EWIS. With this dimension, in front of wall installation can be realised for most of the window and door systems on the market. With a width of 140 mm and a height of 80 mm, the ISO-TOP WINFRAMER INSULATING PROFILES 140 / 80 provide a larger projection. This finish can be used for window and door elements with larger fitting depths, for example, or in combination with roller shutter add-on systems. ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 2“ 80 / 80 AND 140 / 90 ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 2“ are particularly suitable for load transfer in the lower connection area of window and door elements with in front of wall installation. Th

Pagina 86 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ese are available in two ...

ese are available in two different sizes to match the insulating profiles. The ISO-TOP WINFRAMER SYSTEM BRACKET „TYPE 2“ 80 / 80 (80 mm height and 80 mm width) is used for classic projections. The dimension 140 / 90 (140 mm width and 90 mm height) is designed for larger projections of up to 140 mm. ISO-TOP WINFRAMER ATTACHMENT CONSOLES & SPACER PLATE Attachment consoles comprising a special aluminium bracket combination are provided to fix the windows in place. The tested aluminium attachment consoles are fastened to the masonry at the top and sides using standard, approved facade screws. 42 \ IN FRONT OF WALL INSTALLATION SYSTEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ SYSTEM COMPONENTS SYSTEM ADHESIVE ISO-TOP FLEX-ADHESIVE WF ISO-TOP FLEX-ADHESIVE WF is a high-quality, neutral cure, single-component, permanently flexible adhesive on a hybrid-polymer basis. It was developed especially for gluing the IN FRONT OF WALL INSTALLATION SYSTEMs ISO-TOP WI

Pagina 86-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ese are available in two different...

Pagina 87 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza NFRAMER and makes...

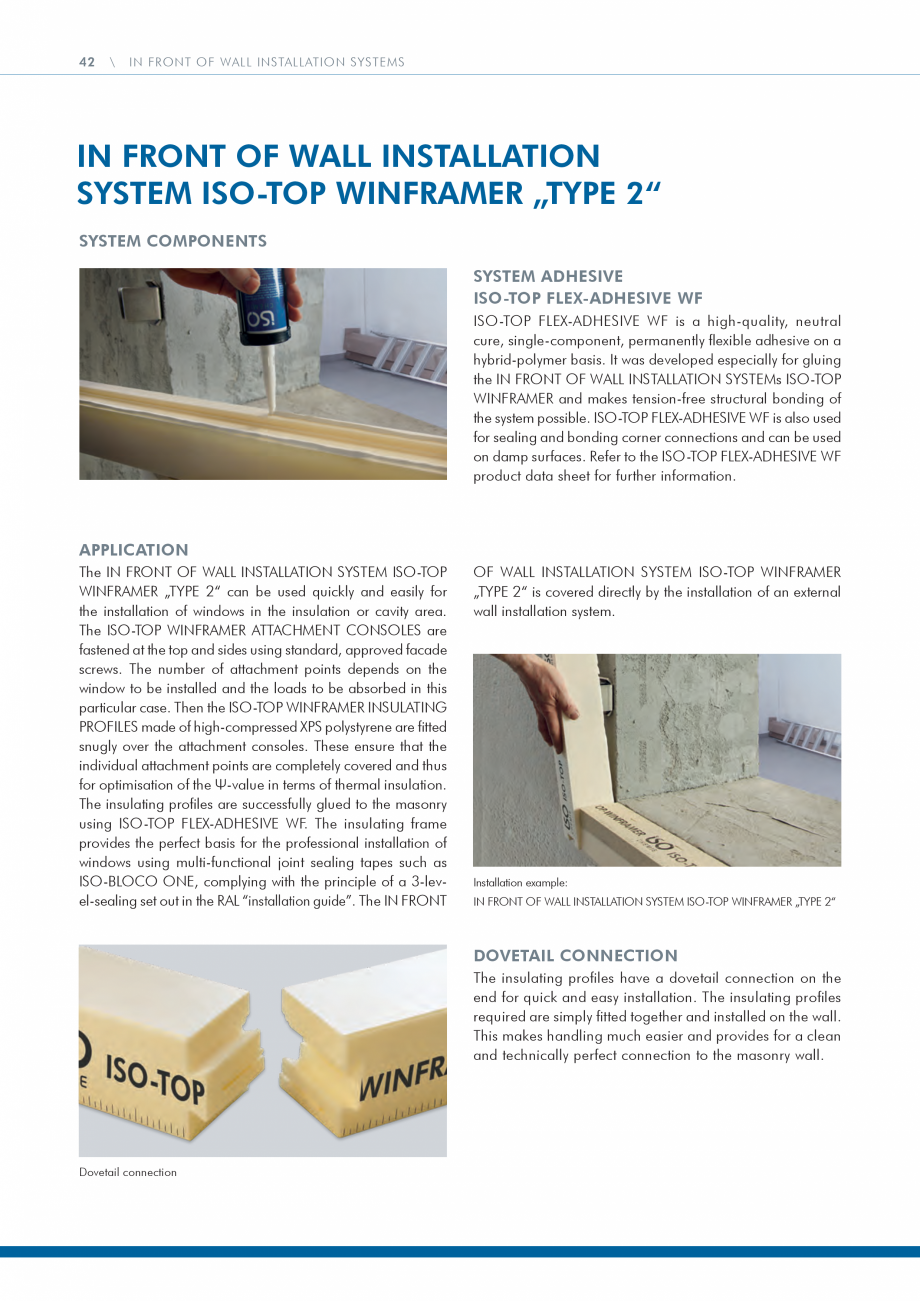

NFRAMER and makes tension-free structural bonding of the system possible. ISO-TOP FLEX-ADHESIVE WF is also used for sealing and bonding corner connections and can be used on damp surfaces. Refer to the ISO-TOP FLEX-ADHESIVE WF product data sheet for further information. APPLICATION The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ can be used quickly and easily for the installation of windows in the insulation or cavity area. The ISO-TOP WINFRAMER ATTACHMENT CONSOLES are fastened at the top and sides using standard, approved facade screws. The number of attachment points depends on the window to be installed and the loads to be absorbed in this particular case. Then the ISO-TOP WINFRAMER INSULATING PROFILES made of high-compressed XPS polystyrene are fitted snugly over the attachment consoles. These ensure that the individual attachment points are completely covered and thus for optimisation of the Ψ-value in terms of thermal insulation. The insulating profiles

Pagina 87-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza NFRAMER and makes tension-free...

Pagina 88 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza are successfully glued to...

are successfully glued to the masonry using ISO-TOP FLEX-ADHESIVE WF. The insulating frame provides the perfect basis for the professional installation of windows using multi-functional joint sealing tapes such as ISO-BLOCO ONE, complying with the principle of a 3-level-sealing set out in the RAL “installation guide”. The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ is covered directly by the installation of an external wall installation system. Installation example: IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ DOVETAIL CONNECTION The insulating profiles have a dovetail connection on the end for quick and easy installation. The insulating profiles required are simply fitted together and installed on the wall. This makes handling much easier and provides for a clean and technically perfect connection to the masonry wall. Dovetail connection IN FRONT OF WALL INSTALLATION SYSTEMS Technical data Standard \ 43 Classification ISO-

Pagina 88-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza are successfully glued to the masonry...

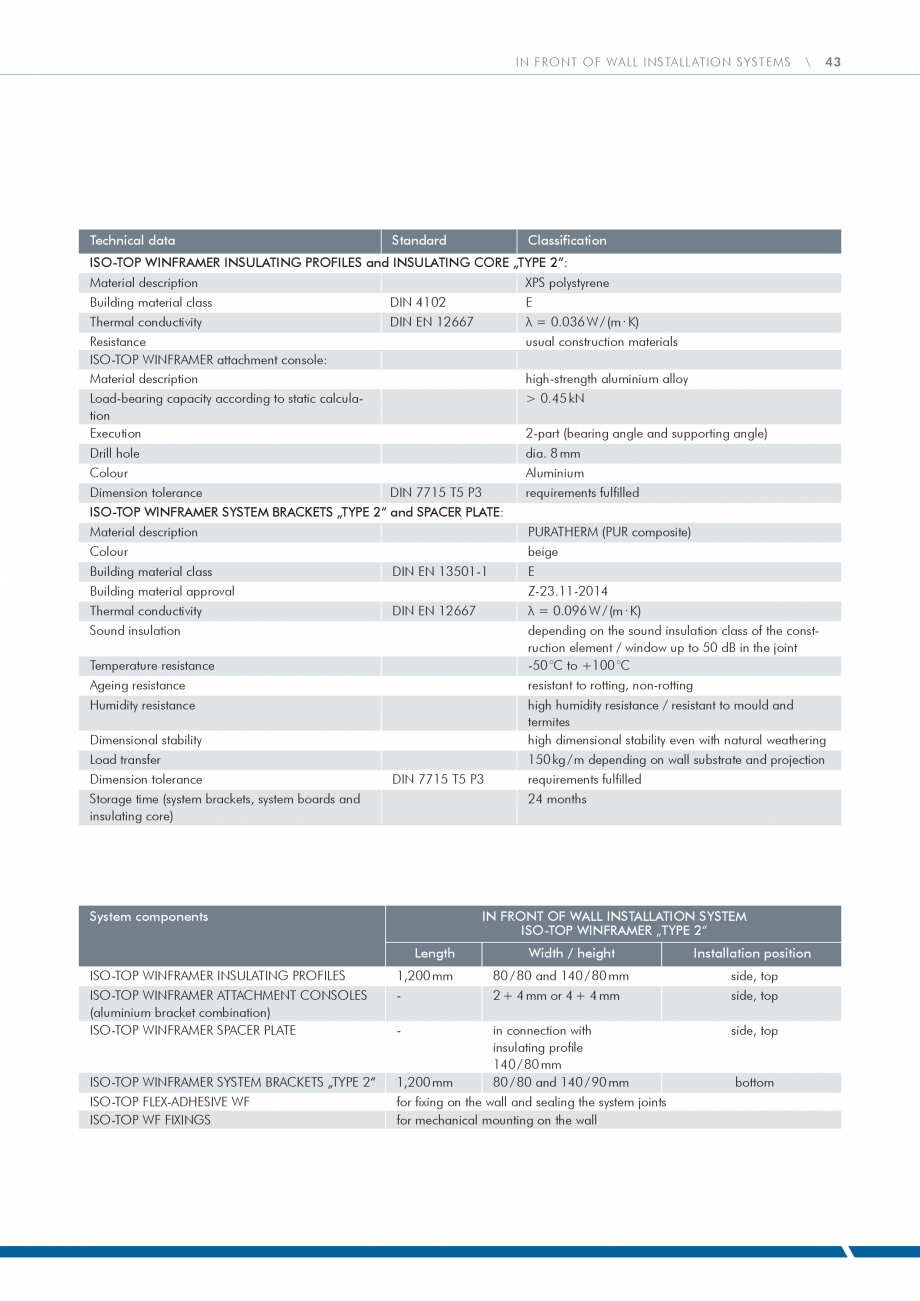

Pagina 89 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza TOP WINFRAMER INSULATING ...

TOP WINFRAMER INSULATING PROFILES and INSULATING CORE „TYPE 2“: Material description XPS polystyrene Building material class DIN 4102 Thermal conductivity DIN EN 12667 E λ = 0.036 W / (m · K) Resistance ISO-TOP WINFRAMER attachment console: Material description usual construction materials Load-bearing capacity according to static calculation Execution > 0.45 kN 2-part (bearing angle and supporting angle) Drill hole dia. 8 mm high-strength aluminium alloy Colour Dimension tolerance Aluminium DIN 7715 T5 P3 requirements fulfilled ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 2“ and SPACER PLATE: Material description PURATHERM (PUR composite) Colour beige Building material class DIN EN 13501-1 Building material approval Thermal conductivity E Z-23.11-2014 λ = 0.096 W / (m · K) DIN EN 12667 Sound insulation Temperature resistance depending on the sound insulation class of the construction element / window up to 50 dB in the joint -50 °C to +100 °C Agein

Pagina 89-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza TOP WINFRAMER INSULATING PROFILES and...

Pagina 90 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza g resistance

resistant...

g resistance resistant to rotting, non-rotting Humidity resistance high humidity resistance / resistant to mould and termites high dimensional stability even with natural weathering Dimensional stability Load transfer Dimension tolerance 150 kg / m depending on wall substrate and projection DIN 7715 T5 P3 Storage time (system brackets, system boards and insulating core) requirements fulfilled 24 months System components IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 2“ Length Width / height Installation position ISO-TOP WINFRAMER INSULATING PROFILES 1,200 mm 80 / 80 and 140 / 80 mm side, top ISO-TOP WINFRAMER ATTACHMENT CONSOLES (aluminium bracket combination) ISO-TOP WINFRAMER SPACER PLATE - 2 + 4 mm or 4 + 4 mm side, top - in connection with insulating profile 140 / 80 mm 80 / 80 and 140 / 90 mm side, top ISO-TOP WINFRAMER SYSTEM BRACKETS „TYPE 2“ 1,200 mm ISO-TOP FLEX-ADHESIVE WF ISO-TOP WF FIXINGS for fixing on the wall and sealing th

Pagina 90-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza g resistance

resistant to rotting,...

Pagina 91 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e system joints
for...

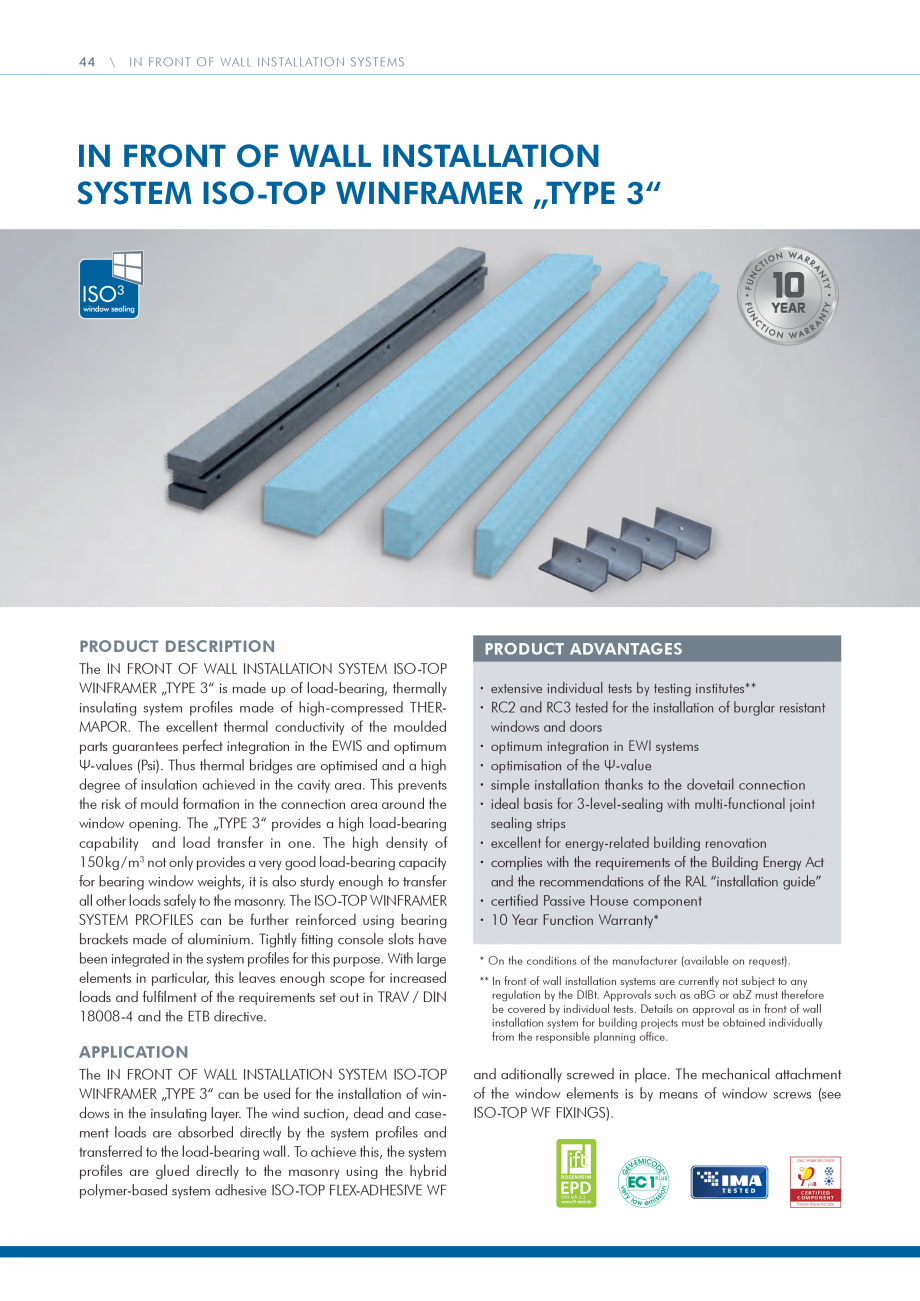

e system joints for mechanical mounting on the wall bottom 44 \ IN FRONT OF WALL INSTALLATION SYSTEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 3“ PRODUCT DESCRIPTION The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 3“ is made up of load-bearing, thermally insulating system profiles made of high-compressed THERMAPOR. The excellent thermal conductivity of the moulded parts guarantees perfect integration in the EWIS and optimum Ψ-values (Psi). Thus thermal bridges are optimised and a high degree of insulation achieved in the cavity area. This prevents the risk of mould formation in the connection area around the window opening. The „TYPE 3“ provides a high load-bearing capability and load transfer in one. The high density of 150 kg / m3 not only provides a very good load-bearing capacity for bearing window weights, it is also sturdy enough to transfer all other loads safely to the masonry. The ISO-TOP WINFRAMER SYSTEM PROFILES can be

Pagina 91-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e system joints
for mechanical...

Pagina 92 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza further reinforced using...

further reinforced using bearing brackets made of aluminium. Tightly fitting console slots have been integrated in the system profiles for this purpose. With large elements in particular, this leaves enough scope for increased loads and fulfilment of the requirements set out in TRAV / DIN 18008-4 and the ETB directive. APPLICATION The IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 3“ can be used for the installation of windows in the insulating layer. The wind suction, dead and casement loads are absorbed directly by the system profiles and transferred to the load-bearing wall. To achieve this, the system profiles are glued directly to the masonry using the hybrid polymer-based system adhesive ISO-TOP FLEX-ADHESIVE WF PRODUCT ADVANTAGES · extensive individual tests by testing institutes** · RC2 and RC3 tested for the installation of burglar resistant windows and doors · optimum integration in EWI systems · optimisation of the Ψ-value · simple installation tha

Pagina 92-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza further reinforced using bearing...

Pagina 93 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza nks to the dovetail...

nks to the dovetail connection · ideal basis for 3-level-sealing with multi-functional joint sealing strips · excellent for energy-related building renovation · complies with the requirements of the Building Energy Act and the recommendations of the RAL “installation guide” · certified Passive House component · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). ** In front of wall installation systems are currently not subject to any regulation by the DIBt. Approvals such as aBG or abZ must therefore be covered by individual tests. Details on approval as in front of wall installation system for building projects must be obtained individually from the responsible planning office. and aditionally screwed in place. The mechanical attachment of the window elements is by means of window screws (see ISO-TOP WF FIXINGS). cool, temperate climate ph B C E RT I F I E D COMPONENT Passive House Institute IN FRONT OF WALL INSTALLATIO

Pagina 93-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza nks to the dovetail connection
·...

$Pagina 94 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza N SYSTEMS \ 45 ...$ N SYSTEMS \ 45 INSTALLATION SYSTEM COMPONENTS ISO-TOP WINFRAMER SYSTEM PROFILES For mounting the window systems in front of the load-bearing wall for a perfect integration into the ETICS or with 2-skin construction, ISO-TOP WINFRAMER SYSTEM PROFILES are available in various dimensions in our product range. With a very high material density of 150 kg / m³ and outstanding properties in terms of load-bearing and thermal properties, the system profiles are ideal for pre-wall installation in singlefamily and multi-family homes and other building projects. The SYSTEM PROFILES 70 / 80 and 80 / 80 are suitable for the installation of windows, for positioning directly in front of the load-bearing wall. In addition to these dimensions, the system profiles are also available with a projection of 100, 120, 140, 160, 180 and 200 mm, each with an overall height of 80 mm. Special dimensions are available on request. With these dimensions, all standard building applications can be fulfilled. For

$Pagina 94-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza N SYSTEMS \ 45 INSTALLATION ...$

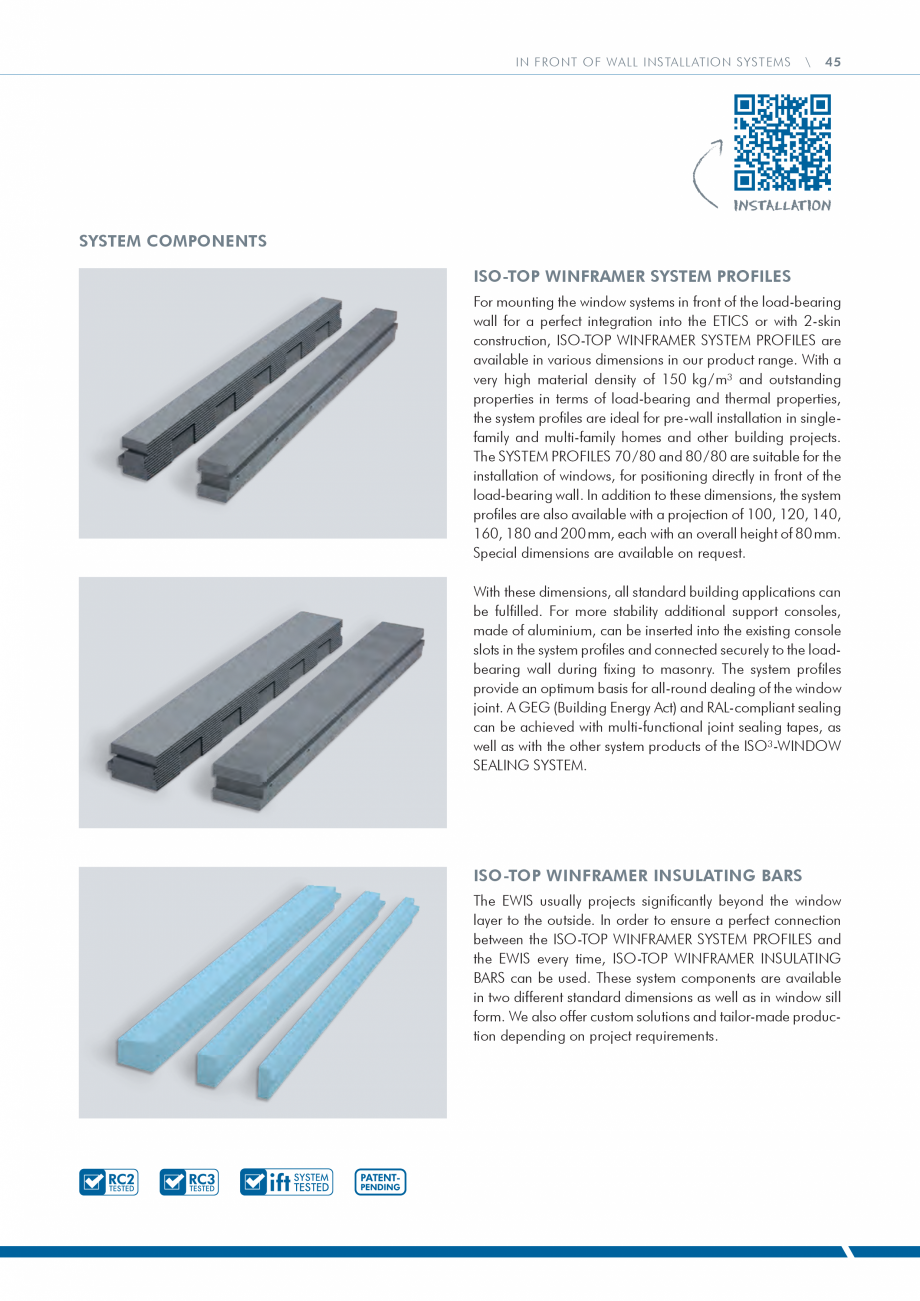

Pagina 95 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza more stability additional...

more stability additional support consoles, made of aluminium, can be inserted into the existing console slots in the system profiles and connected securely to the loadbearing wall during fixing to masonry. The system profiles provide an optimum basis for all-round dealing of the window joint. A GEG (Building Energy Act) and RAL-compliant sealing can be achieved with multi-functional joint sealing tapes, as well as with the other system products of the ISO³-WINDOW SEALING SYSTEM. ISO-TOP WINFRAMER INSULATING BARS The EWIS usually projects significantly beyond the window layer to the outside. In order to ensure a perfect connection between the ISO-TOP WINFRAMER SYSTEM PROFILES and the EWIS every time, ISO-TOP WINFRAMER INSULATING BARS can be used. These system components are available in two different standard dimensions as well as in window sill form. We also offer custom solutions and tailor-made production depending on project requirements. 46 \ IN FRONT OF WALL INSTALLATION SY

Pagina 95-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza more stability additional support...

Pagina 96 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza STEMS

IN FRONT OF WALL...

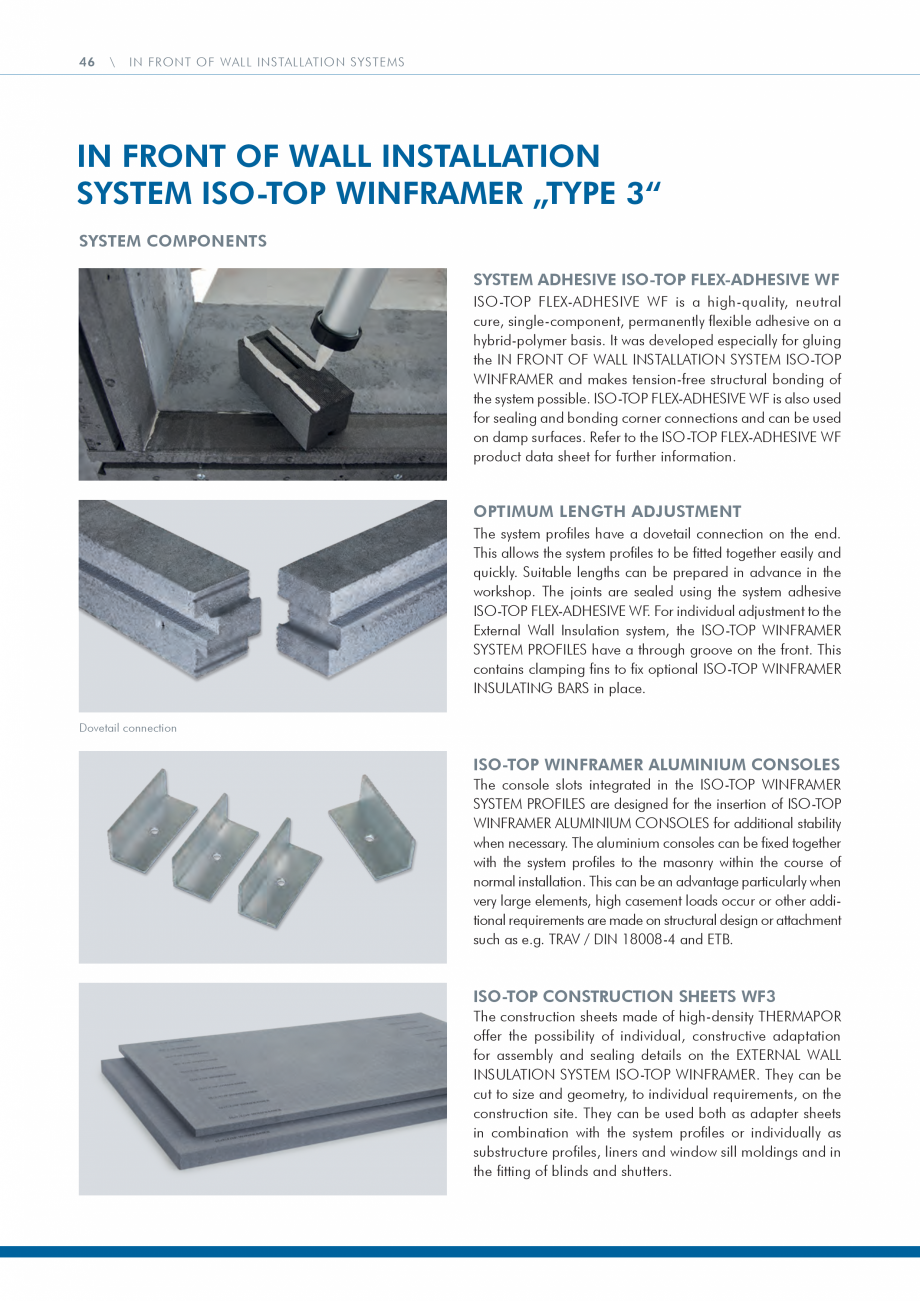

STEMS IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER „TYPE 3“ SYSTEM COMPONENTS SYSTEM ADHESIVE ISO-TOP FLEX-ADHESIVE WF ISO-TOP FLEX-ADHESIVE WF is a high-quality, neutral cure, single-component, permanently flexible adhesive on a hybrid-polymer basis. It was developed especially for gluing the IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER and makes tension-free structural bonding of the system possible. ISO-TOP FLEX-ADHESIVE WF is also used for sealing and bonding corner connections and can be used on damp surfaces. Refer to the ISO-TOP FLEX-ADHESIVE WF product data sheet for further information. OPTIMUM LENGTH ADJUSTMENT The system profiles have a dovetail connection on the end. This allows the system profiles to be fitted together easily and quickly. Suitable lengths can be prepared in advance in the workshop. The joints are sealed using the system adhesive ISO-TOP FLEX-ADHESIVE WF. For individual adjustment to the External Wall Insulation system, the ISO-TOP

Pagina 96-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza STEMS

IN FRONT OF WALL INSTALLATION
...

Pagina 97 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza WINFRAMER
SYSTEM...

WINFRAMER SYSTEM PROFILES have a through groove on the front. This contains clamping fins to fix optional ISO-TOP WINFRAMER INSULATING BARS in place. Dovetail connection ISO-TOP WINFRAMER ALUMINIUM CONSOLES The console slots integrated in the ISO-TOP WINFRAMER SYSTEM PROFILES are designed for the insertion of ISO-TOP WINFRAMER ALUMINIUM CONSOLES for additional stability when necessary. The aluminium consoles can be fixed together with the system profiles to the masonry within the course of normal installation. This can be an advantage particularly when very large elements, high casement loads occur or other additional requirements are made on structural design or attachment such as e.g. TRAV / DIN 18008-4 and ETB. ISO-TOP CONSTRUCTION SHEETS WF3 The construction sheets made of high-density THERMAPOR offer the possibility of individual, constructive adaptation for assembly and sealing details on the EXTERNAL WALL INSULATION SYSTEM ISO-TOP WINFRAMER. They can be cut to size and geomet

Pagina 97-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza WINFRAMER
SYSTEM PROFILES have a...

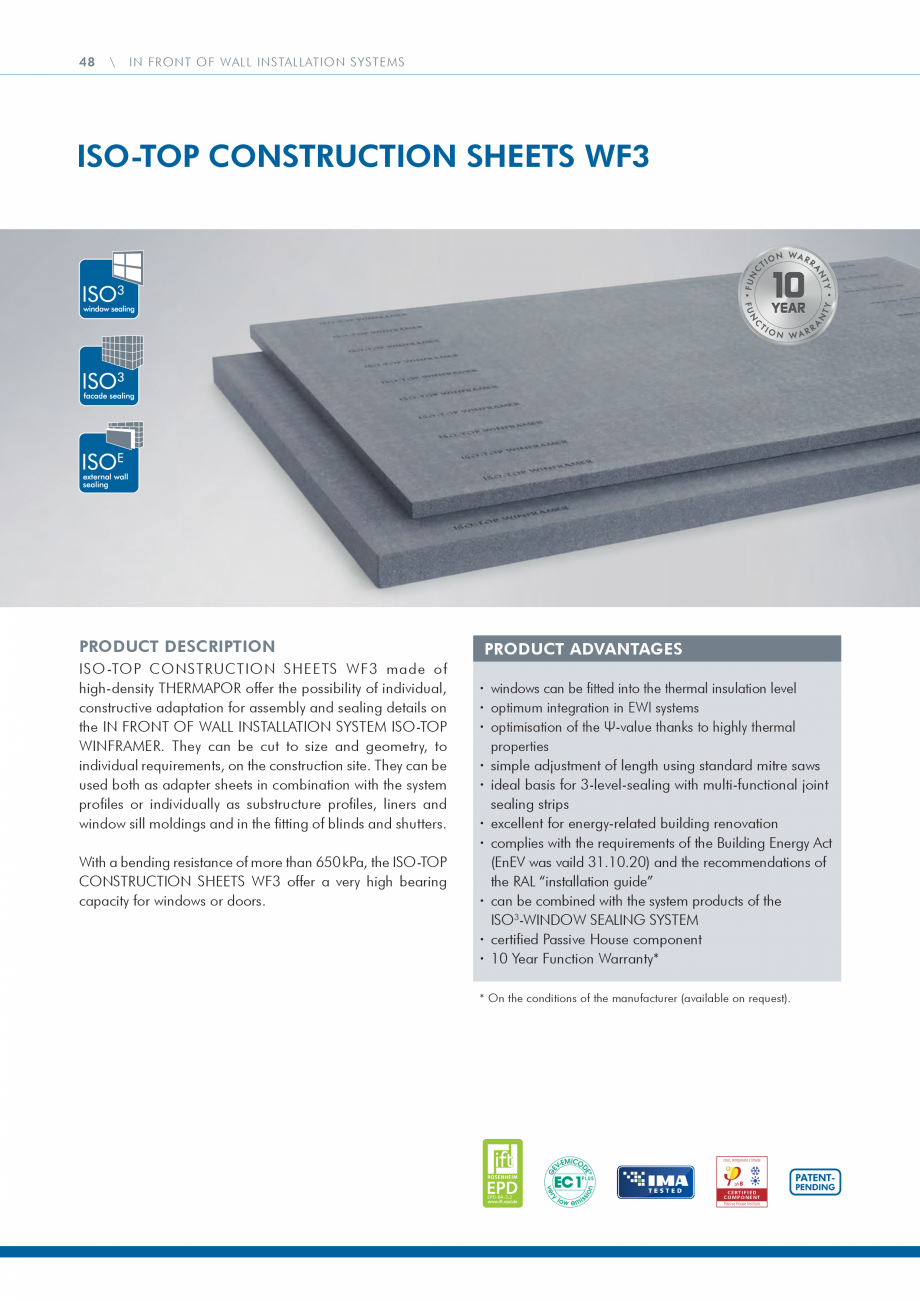

Pagina 98 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ry, to individual...

ry, to individual requirements, on the construction site. They can be used both as adapter sheets in combination with the system profiles or individually as substructure profiles, liners and window sill moldings and in the fitting of blinds and shutters. IN FRONT OF WALL INSTALLATION SYSTEMS Technical data Standard \ 47 Classification ISO-TOP WINFRAMER SYSTEM PROFILES & CONSTRUCTION SHEETS: Material description THERMAPOR (EPS-F / flame-retardant) Colour silver grey National test certificate for a construction product Building material class Fire behaviour DIN 4102-1 DIN EN 13501-1 Building material class DIN 4102-1 Airtightness Impermeable to driving rain DIN EN 12114 DIN EN 1027 P-23-001616-PR02-ift B2 (normal flammability) E B1 (test report on mineral substrates) a ≤ 0,1 m3 / [h · m · (daPa)2 / 3] ≥ 1,200 Pa 150 kg / m³ ± 10 % Bulk density Flame retardant HBCD-free flame retardant UV light stability 6 months direct weathering during the construction phas

Pagina 98-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ry, to individual requirements, on...

Pagina 99 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e

Compatibility with...

e Compatibility with adjacent building materials internal requirements fulfilled Compatibility with salt water, hydrochloric acid (10 %) and caustic soda (10 %) Air permeability coefficient Thermal conductivity resistant DIN EN 12114 DIN EN 12667 a = 0.00 m3 / [h · m · (daPa)n] λ = 0.040 W / (m · K) Sound insulation / evaluated joint sound reduction index EN ISO 10140-1 / -2 RS,w (C; Ctr) = 46 (0; -1) dB Burglar resistant DIN EN 1627 resistance class RC2 and RC3 Form stability under thermal load Temperature resistance - 40 °C to + 85 °C ISO 75-1 Ageing resistance long-term +85 °C resistant to decay, non-rotting 1,194 N / mm2 / 1,793 N / mm2 Compressive strength at 2 % / 10 % Bending resistance DIN EN 826 DIN EN 12089 ≥ 650 kPa Shearing stress DIN EN ISO 14130 X = 0.217 N / mm2 Creep characteristics at 20 % and 60 % Em = 0.68 0/00 up to 5.2 0/00 Water absorption (28 days storage) DIN 12087 ≤ 1.5 Vol. % Water vapour diffusion resistance µ DIN EN I

Pagina 99-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e

Compatibility with adjacent...

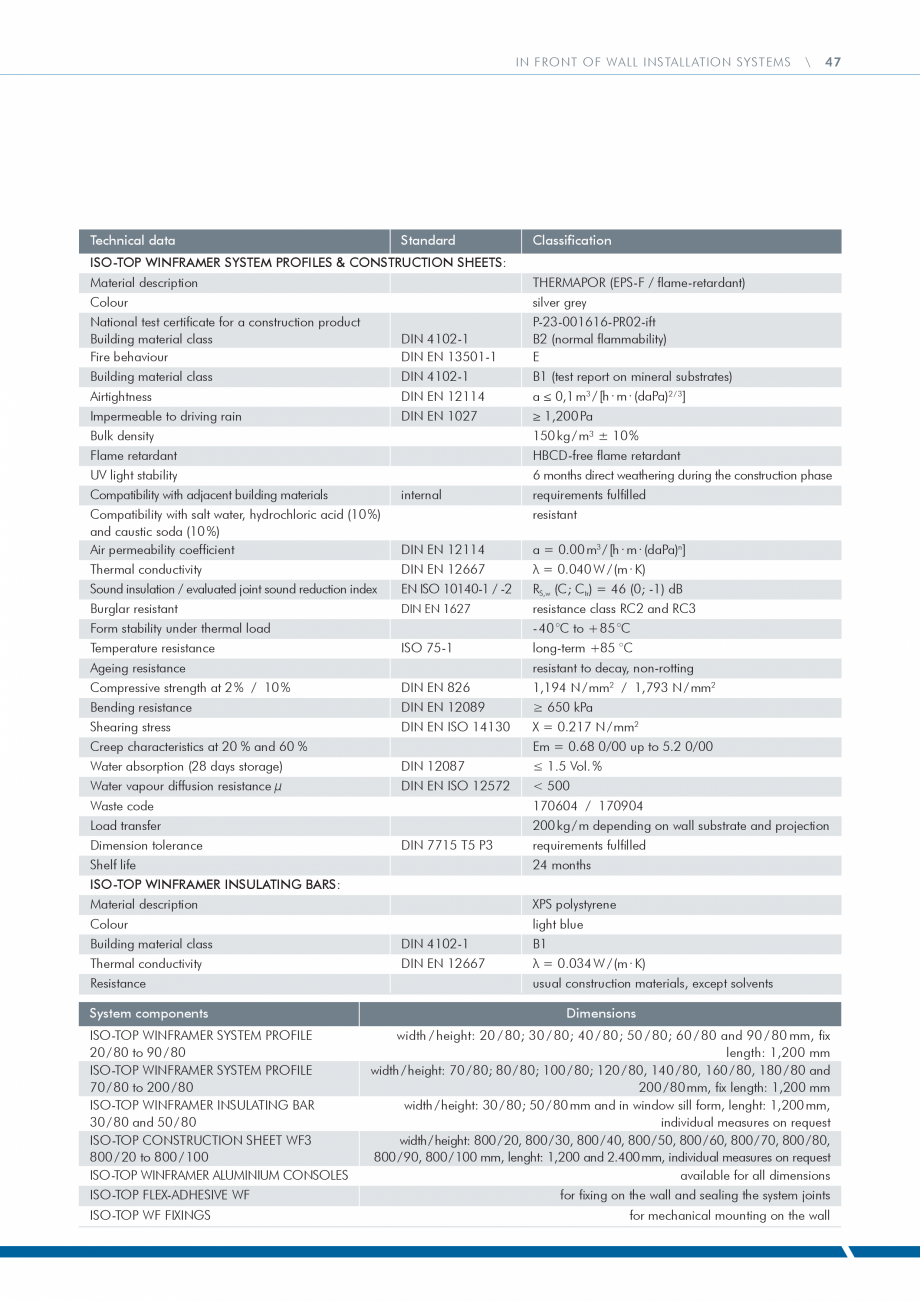

Pagina 100 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza SO 12572

< 500

Waste...

SO 12572 < 500 Waste code 170604 / 170904 200 kg / m depending on wall substrate and projection Load transfer Dimension tolerance DIN 7715 T5 P3 Shelf life requirements fulfilled 24 months ISO-TOP WINFRAMER INSULATING BARS: Material description XPS polystyrene Colour light blue Building material class DIN 4102-1 B1 Thermal conductivity DIN EN 12667 λ = 0.034 W / (m · K) Resistance System components ISO-TOP WINFRAMER SYSTEM PROFILE 20 / 80 to 90 / 80 ISO-TOP WINFRAMER SYSTEM PROFILE 70 / 80 to 200 / 80 ISO-TOP WINFRAMER INSULATING BAR 30 / 80 and 50 / 80 ISO-TOP CONSTRUCTION SHEET WF3 800 / 20 to 800 / 100 ISO-TOP WINFRAMER ALUMINIUM CONSOLES ISO-TOP FLEX-ADHESIVE WF ISO-TOP WF FIXINGS usual construction materials, except solvents Dimensions width / height: 20 / 80; 30 / 80; 40 / 80; 50 / 80; 60 / 80 and 90 / 80 mm, fix length: 1,200 mm width / height: 70 / 80; 80 / 80; 100 / 80; 120 / 80, 140 / 80, 160 / 80, 180 / 80 and 200 / 80 mm, fix length: 1,200 mm width / he

Pagina 100-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza SO 12572

< 500

Waste code

170604 /...

Pagina 101 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ight: 30 / 80; 50 / 80...

ight: 30 / 80; 50 / 80 mm and in window sill form, lenght: 1,200 mm, individual measures on request width / height: 800 / 20, 800 / 30, 800 / 40, 800 / 50, 800 / 60, 800 / 70, 800 / 80, 800 / 90, 800 / 100 mm, lenght: 1,200 and 2.400 mm, individual measures on request available for all dimensions for fixing on the wall and sealing the system joints for mechanical mounting on the wall 48 \ IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP CONSTRUCTION SHEETS WF3 PRODUCT DESCRIPTION ISO -TOP CONSTRUCTION SHEETS WF3 made of high-density THERMAPOR offer the possibility of individual, constructive adaptation for assembly and sealing details on the IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER. They can be cut to size and geometry, to individual requirements, on the construction site. They can be used both as adapter sheets in combination with the system profiles or individually as substructure profiles, liners and window sill moldings and in the fitting of blinds and shutters. Wi

Pagina 101-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ight: 30 / 80; 50 / 80 mm and in...

Pagina 102 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza th a bending resistance ...

th a bending resistance of more than 650 kPa, the ISO-TOP CONSTRUCTION SHEETS WF3 offer a very high bearing capacity for windows or doors. PRODUCT ADVANTAGES · windows can be fitted into the thermal insulation level · optimum integration in EWI systems · optimisation of the Ψ-value thanks to highly thermal properties · simple adjustment of length using standard mitre saws · ideal basis for 3-level-sealing with multi-functional joint sealing strips · excellent for energy-related building renovation · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · can be combined with the system products of the ISO3-WINDOW SEALING SYSTEM · certified Passive House component · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). cool, temperate climate ph B C E RT I F I E D COMPONENT Passive House Institute IN FRONT OF WALL INSTALLATION SYSTEMS

Pagina 102-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza th a bending resistance of more than ...

Pagina 103 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
Technical data
...

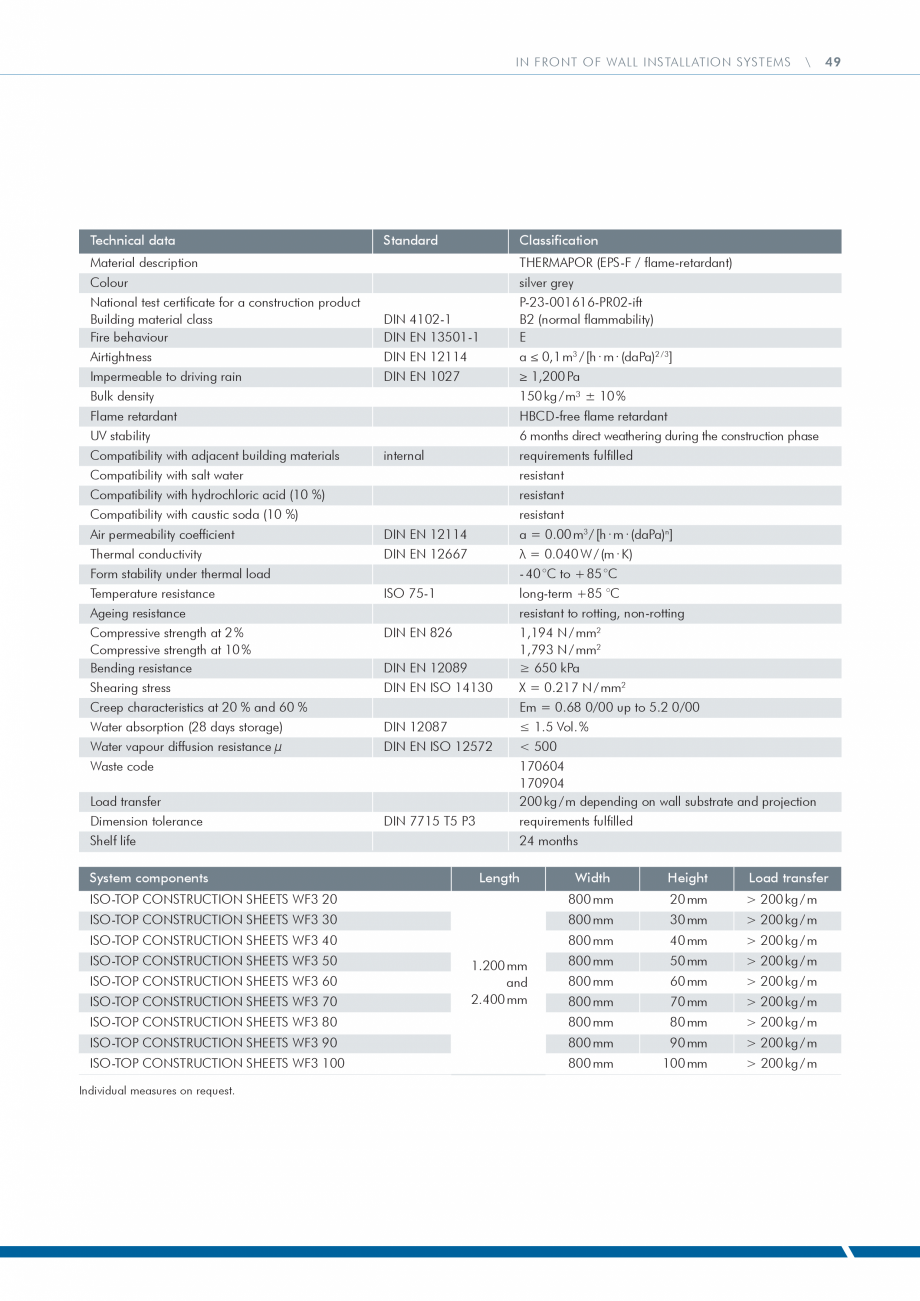

Technical data Standard THERMAPOR (EPS-F / flame-retardant) Colour silver grey National test certificate for a construction product Building material class Fire behaviour DIN 4102-1 DIN EN 13501-1 P-23-001616-PR02-ift B2 (normal flammability) E Airtightness DIN EN 12114 a ≤ 0,1 m3 / [h · m · (daPa)2 / 3] Impermeable to driving rain DIN EN 1027 ≥ 1,200 Pa Bulk density 150 kg / m³ ± 10 % Flame retardant HBCD-free flame retardant UV stability 6 months direct weathering during the construction phase internal requirements fulfilled Compatibility with salt water resistant Compatibility with hydrochloric acid (10 %) resistant Compatibility with caustic soda (10 %) resistant Air permeability coefficient Thermal conductivity DIN EN 12114 DIN EN 12667 a = 0.00 m3 / [h · m · (daPa)n] λ = 0.040 W / (m · K) ISO 75-1 long-term +85 °C Form stability under thermal load Temperature resistance - 40 °C to + 85 °C Ageing resistance resistant to rotting, n

Pagina 103-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza
Technical data

Standard

THERMAPOR ...

Pagina 104 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on-rotting

Compressive ...

on-rotting Compressive strength at 2 % Compressive strength at 10 % Bending resistance DIN EN 826 DIN EN 12089 1,194 N / mm2 1,793 N / mm2 ≥ 650 kPa Shearing stress DIN EN ISO 14130 X = 0.217 N / mm2 Creep characteristics at 20 % and 60 % Em = 0.68 0/00 up to 5.2 0/00 Water absorption (28 days storage) DIN 12087 ≤ 1.5 Vol. % Water vapour diffusion resistance µ DIN EN ISO 12572 < 500 Waste code 170604 170904 200 kg / m depending on wall substrate and projection Load transfer Dimension tolerance Shelf life System components DIN 7715 T5 P3 requirements fulfilled 24 months Length Width Height Load transfer ISO-TOP CONSTRUCTION SHEETS WF3 20 800 mm 20 mm > 200 kg / m ISO-TOP CONSTRUCTION SHEETS WF3 30 800 mm 30 mm > 200 kg / m ISO-TOP CONSTRUCTION SHEETS WF3 40 800 mm 40 mm > 200 kg / m 800 mm 50 mm > 200 kg / m 800 mm 60 mm > 200 kg / m 800 mm 70 mm > 200 kg / m ISO-TOP CONSTRUCTION SHEETS WF3 80 800 mm 80 mm > 200 kg / m ISO-TOP CONSTRU

Pagina 104-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on-rotting

Compressive strength at 2...

Pagina 105 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza CTION SHEETS WF3 90

800...

CTION SHEETS WF3 90 800 mm 90 mm > 200 kg / m ISO-TOP CONSTRUCTION SHEETS WF3 100 800 mm 100 mm > 200 kg / m ISO-TOP CONSTRUCTION SHEETS WF3 50 ISO-TOP CONSTRUCTION SHEETS WF3 60 ISO-TOP CONSTRUCTION SHEETS WF3 70 Individual measures on request. 49 Classification Material description Compatibility with adjacent building materials \ 1.200 mm and 2.400 mm 50 \ IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WF FIXINGS PRODUCT DESCRIPTION PRODUCT ADVANTAGES High-quality screws and brackets are used for additional mechanical fixing of IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WINFRAMER. Window and door frames need to be mechanically fixed to the supporting frame system for in front of wall installation. The supporting frame system in turn also has to be screwed to the wall. The screws are specifically matched to the in front of wall installation system to guarantee quick and simple fitting. · designed and approved for fixing in IN FRONT OF WALL INSTALLATION SYSTE

Pagina 105-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza CTION SHEETS WF3 90

800 mm

90 mm

>...

Pagina 106 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MS ISO-TOP WINFRAMER
· ...

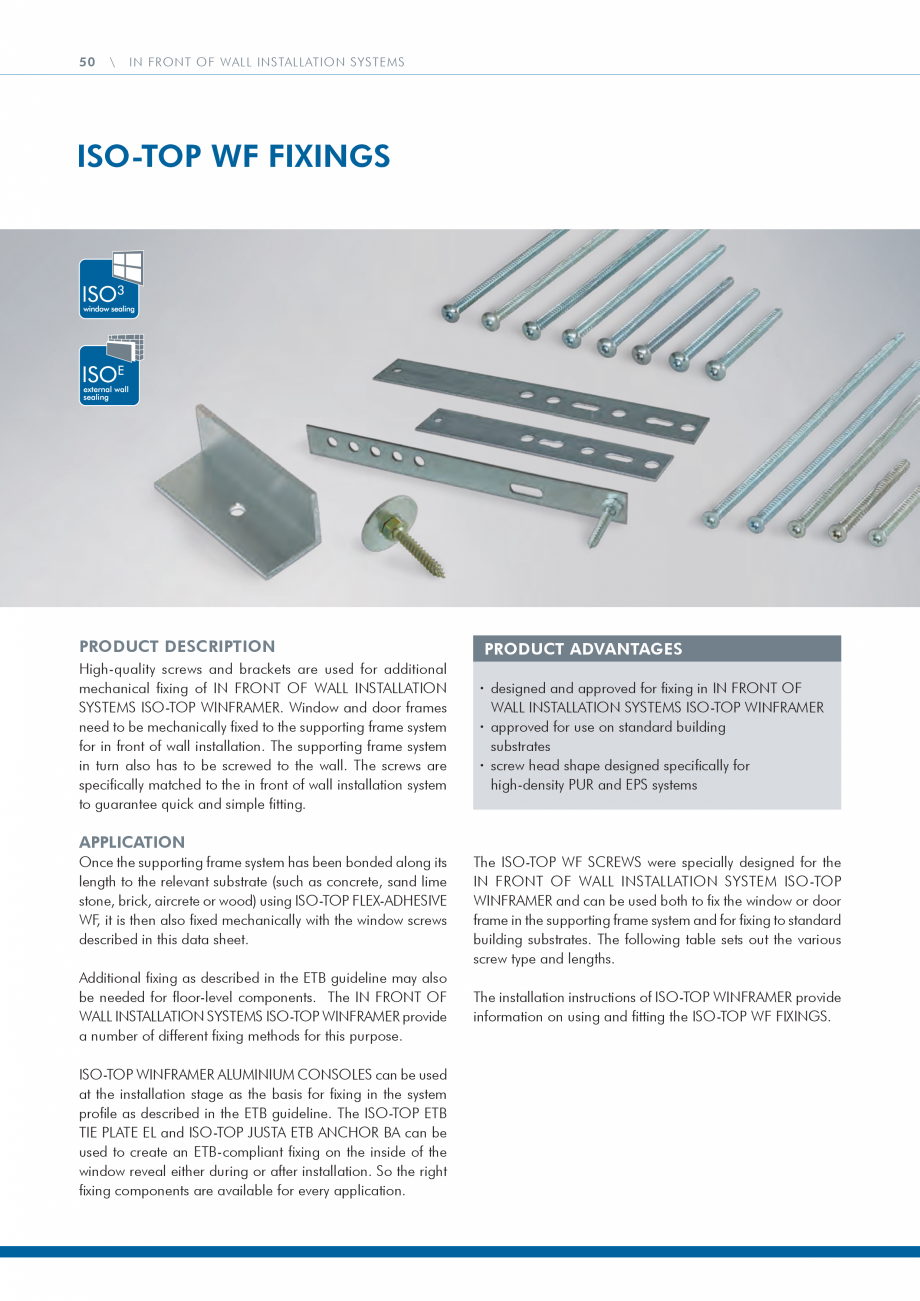

MS ISO-TOP WINFRAMER · approved for use on standard building substrates · screw head shape designed specifically for high-density PUR and EPS systems APPLICATION Once the supporting frame system has been bonded along its length to the relevant substrate (such as concrete, sand lime stone, brick, aircrete or wood) using ISO-TOP FLEX-ADHESIVE WF, it is then also fixed mechanically with the window screws described in this data sheet. Additional fixing as described in the ETB guideline may also be needed for floor-level components. The IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WINFRAMER provide a number of different fixing methods for this purpose. ISO-TOP WINFRAMER ALUMINIUM CONSOLES can be used at the installation stage as the basis for fixing in the system profile as described in the ETB guideline. The ISO-TOP ETB TIE PLATE EL and ISO-TOP JUSTA ETB ANCHOR BA can be used to create an ETB-compliant fixing on the inside of the window reveal either during or after installation. So th

Pagina 106-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza MS ISO-TOP WINFRAMER
· approved for ...

Pagina 107 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e right
fixing...

e right fixing components are available for every application. The ISO-TOP WF SCREWS were specially designed for the IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER and can be used both to fix the window or door frame in the supporting frame system and for fixing to standard building substrates. The following table sets out the various screw type and lengths. The installation instructions of ISO-TOP WINFRAMER provide information on using and fitting the ISO-TOP WF FIXINGS. IN FRONT OF WALL INSTALLATION SYSTEMS Component Description Size Special features ISO-TOP WINFRAMER ALUMINIUM CONSOLES For inserting into the console slots of the „TYPE 3“ and in the fold area of the „TYPE 1“ For simple fitting or retrofitting of fixings as per the ETB guideline For simple levelling and alingning of components as per the ETB guideline For load transfer and lateral fixing of components adjustment tool for JUSTA ETB ANCHOR BA and JUSTA TT BEARER PLATE 98 x 50 mm; Thickness: 4 m

Pagina 107-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e right
fixing components are...

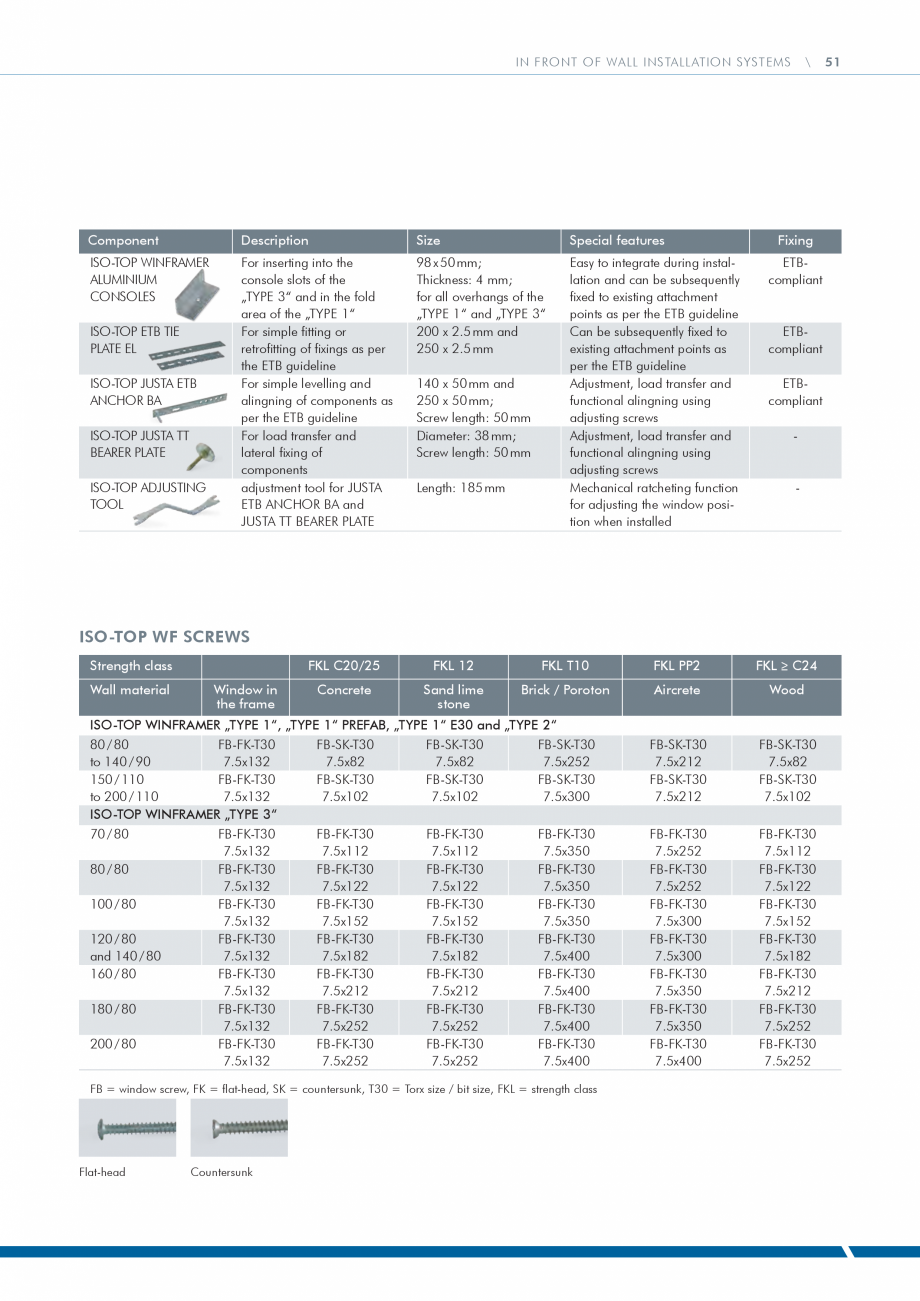

Pagina 108 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza m;
for all overhangs of ...

m; for all overhangs of the „TYPE 1“ and „TYPE 3“ 200 x 2.5 mm and 250 x 2.5 mm Easy to integrate during installation and can be subsequently fixed to existing attachment points as per the ETB guideline Can be subsequently fixed to existing attachment points as per the ETB guideline Adjustment, load transfer and functional alingning using adjusting screws Adjustment, load transfer and functional alingning using adjusting screws Mechanical ratcheting function for adjusting the window position when installed ISO-TOP ETB TIE PLATE EL ISO-TOP JUSTA ETB ANCHOR BA ISO-TOP JUSTA TT BEARER PLATE ISO-TOP ADJUSTING TOOL 140 x 50 mm and 250 x 50 mm; Screw length: 50 mm Diameter: 38 mm; Screw length: 50 mm Length: 185 mm \ Fixing ETBcompliant ETBcompliant ETBcompliant - - ISO-TOP WF SCREWS Strength class Wall material Window in the frame FKL C20/25 FKL 12 FKL T10 FKL PP2 FKL ≥ C24 Concrete Sand lime stone Brick / Poroton Aircrete Wood ISO-TOP WINFRAMER „TYPE 1“, �

Pagina 108-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza m;
for all overhangs of the
„TYPE...

Pagina 109 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ��TYPE 1“ PREFAB,...

��TYPE 1“ PREFAB, „TYPE 1“ E30 and „TYPE 2“ 80 / 80 FB-FK-T30 to 140 / 90 7.5x132 150 / 110 FB-FK-T30 to 200 / 110 7.5x132 ISO-TOP WINFRAMER „TYPE 3“ FB-SK-T30 7.5x82 FB-SK-T30 7.5x102 FB-SK-T30 7.5x82 FB-SK-T30 7.5x102 FB-SK-T30 7.5x252 FB-SK-T30 7.5x300 FB-SK-T30 7.5x212 FB-SK-T30 7.5x212 FB-SK-T30 7.5x82 FB-SK-T30 7.5x102 70 / 80 FB-FK-T30 7.5x112 FB-FK-T30 7.5x122 FB-FK-T30 7.5x152 FB-FK-T30 7.5x182 FB-FK-T30 7.5x212 FB-FK-T30 7.5x252 FB-FK-T30 7.5x252 FB-FK-T30 7.5x112 FB-FK-T30 7.5x122 FB-FK-T30 7.5x152 FB-FK-T30 7.5x182 FB-FK-T30 7.5x212 FB-FK-T30 7.5x252 FB-FK-T30 7.5x252 FB-FK-T30 7.5x350 FB-FK-T30 7.5x350 FB-FK-T30 7.5x350 FB-FK-T30 7.5x400 FB-FK-T30 7.5x400 FB-FK-T30 7.5x400 FB-FK-T30 7.5x400 FB-FK-T30 7.5x252 FB-FK-T30 7.5x252 FB-FK-T30 7.5x300 FB-FK-T30 7.5x300 FB-FK-T30 7.5x350 FB-FK-T30 7.5x350 FB-FK-T30 7.5x400 FB-FK-T30 7.5x112 FB-FK-T30 7.5x122 FB-FK-T30 7.5x152 FB-FK-T30 7.5x182 FB-FK-T30 7.5x212 FB-FK-T30 7.5x252 FB-FK-T30 7.5x252 80 / 80 1

Pagina 109-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ��TYPE 1“ PREFAB, „TYPE 1“ E30 ...

Pagina 110 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 00 / 80
120 / 80
and 140...

00 / 80 120 / 80 and 140 / 80 160 / 80 180 / 80 200 / 80 FB-FK-T30 7.5x132 FB-FK-T30 7.5x132 FB-FK-T30 7.5x132 FB-FK-T30 7.5x132 FB-FK-T30 7.5x132 FB-FK-T30 7.5x132 FB-FK-T30 7.5x132 FB = window screw, FK = flat-head, SK = countersunk, T30 = Torx size / bit size, FKL = strength class Flat-head Countersunk 51 52 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT VARIO SD PRODUCT DESCRIPTION ISO-CONNECT VARIO SD is a humidity regulating special foil for sealing joints, which can also be used as an air tight seal internal, in accordance with the Building Energy Act GEG (EnEV was valid 31.10.20) on windows, doors and panels. Due to its special capabilities the sd-value of this universal foil adapts to the seasonal temperature gradient changes which occur within the joints from inside outwards and from outside inwards. It is a weather independent external and internal humidity transporter. The joints remain dry all year round and condensation damage can be avoided effectively, as well

Pagina 110-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 00 / 80
120 / 80
and 140 / 80
160 /...

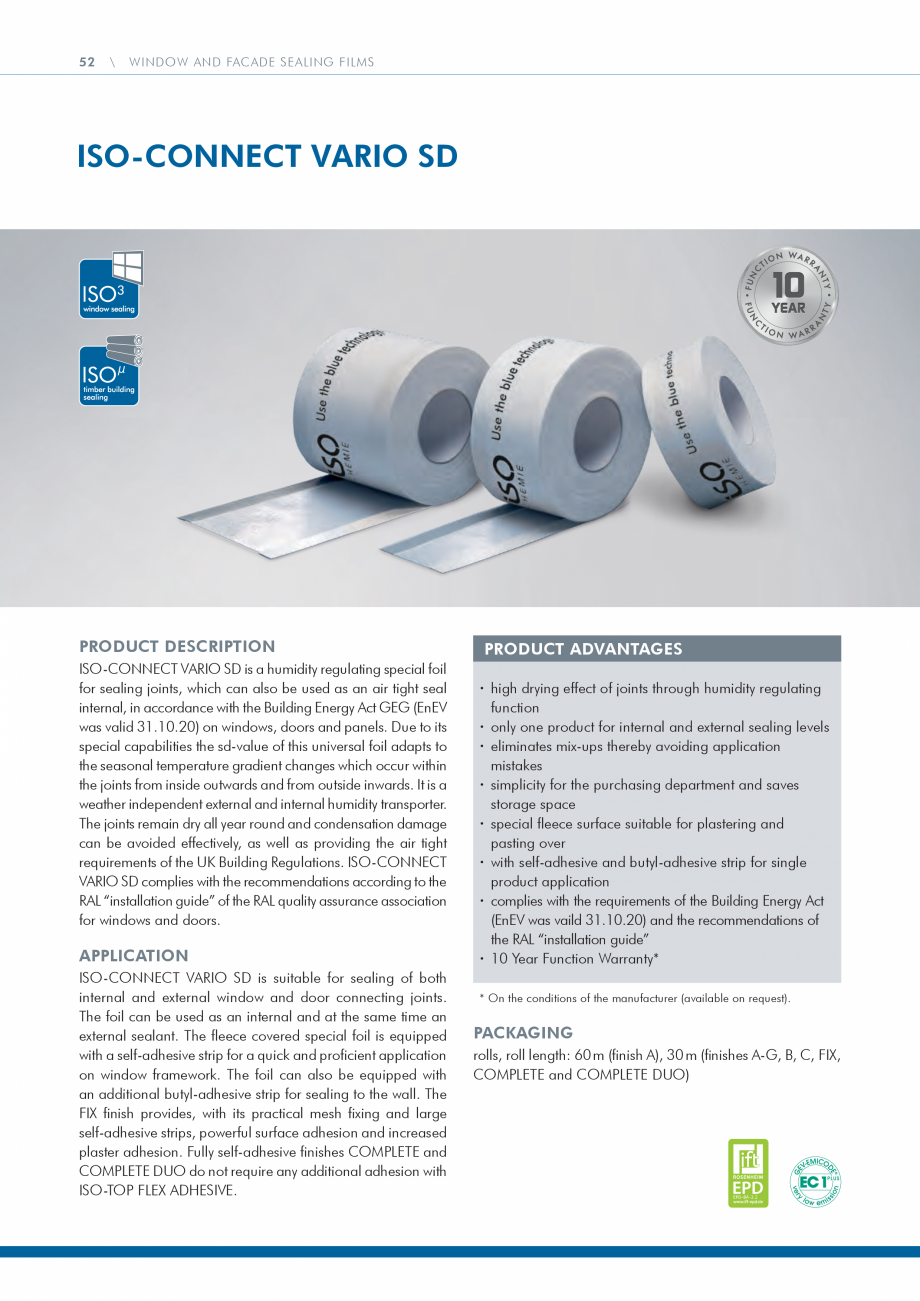

Pagina 111 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza as providing the air...

as providing the air tight requirements of the UK Building Regulations. ISO-CONNECT VARIO SD complies with the recommendations according to the RAL “installation guide” of the RAL quality assurance association for windows and doors. APPLICATION ISO-CONNECT VARIO SD is suitable for sealing of both internal and external window and door connecting joints. The foil can be used as an internal and at the same time an external sealant. The fleece covered special foil is equipped with a self-adhesive strip for a quick and proficient application on window framework. The foil can also be equipped with an additional butyl-adhesive strip for sealing to the wall. The FIX finish provides, with its practical mesh fixing and large self-adhesive strips, powerful surface adhesion and increased plaster adhesion. Fully self-adhesive finishes COMPLETE and COMPLETE DUO do not require any additional adhesion with ISO-TOP FLEX ADHESIVE. PRODUCT ADVANTAGES · high drying effect of joints through humidit

Pagina 111-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza as providing the air tight...

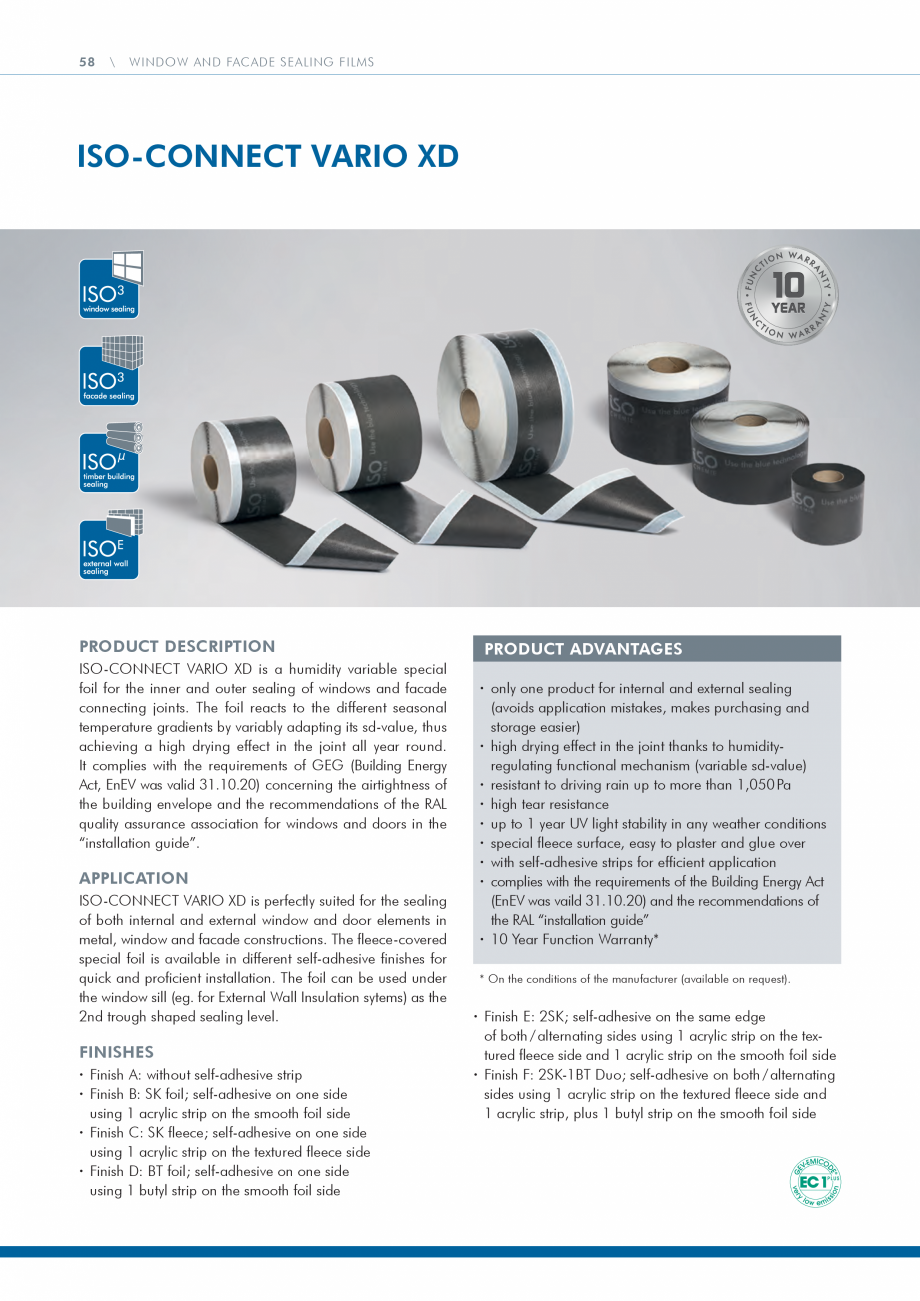

Pagina 112 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza y regulating
function
·...

y regulating function · only one product for internal and external sealing levels · eliminates mix-ups thereby avoiding application mistakes · simplicity for the purchasing department and saves storage space · special fleece surface suitable for plastering and pasting over · with self-adhesive and butyl-adhesive strip for single product application · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). PACKAGING rolls, roll length: 60 m (finish A), 30 m (finishes A-G, B, C, FIX, COMPLETE and COMPLETE DUO) WINDOW AND FACADE SEALING FILMS \ 53 INSTALLATION Technical data Standard Classification Material description synthetic fleece Colour white Building material class DIN EN 13501 E Impermeable to driving rain DIN EN 1027 Air permeability coefficient UV stability DIN EN

Pagina 112-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza y regulating
function
· only one...

Pagina 113 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 12114

≥ 1,050 Pa...

12114 ≥ 1,050 Pa airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] Compatibility with adjacent building materials internal requirements fulfilled sd-value (vapour diffusion permeability) DIN EN ISO 12572 Temperature stability range internal sd-value depending on average humidity between 0.03 m (vapour permeable) and 15 m (vapour barrier)* approx. -40 °C to approx. +80 °C Dimension tolerance DIN 7715 T5 P3 requirements fulfilled approx. 6 months Shelf life finishes A, A-G, B, C: approx. +5 °C to approx. +45 °C finishes FIX, COMPLETE & COMPLETE DUO: approx. -10 °C to approx. +45 °C** 1 year, dry and in original packing Storage temperature +1 °C to +20 °C Handling temperature * It is only possible to determine the variable sd-value with a dynamic calculation program (e. g. as indicated in the literature [10] in DIN 41083:2001-07). For the calculation according to the static method a fixed sd-value of 2.5 m can be used. ** Finishes FIX, COMPLTETE and COMPLETE DUO tes

Pagina 113-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 12114

≥ 1,050 Pa
airtight a ≤ 0....

Pagina 114 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ted on frost-free...

ted on frost-free surfaces (concrete blocks, cast concrete and bricks). Own tests should be done generally. FINISHES FINISH A FINISH FIX SK single side self-adhesive with 1 self-adhesive strip on the fleece side 2SK-GT double-sided self-adhesive, 2 self-adhesive strips (window mounting) on the fleece side and 1 special adhesive strip (wall mounting) on the smooth foil side + 10 mm mesh FINISH A-G FINISH COMPLETE SK-GT single side self-adhesive with 1 self-adhesive strip on the fleece side + 100 mm mesh full surface adhesive finish with a 2-way or 3-way split liner FINISH B FINISH COMPLETE DUO SK-BT Mono single side selfadhesive with 1 self-adhesive strip and 1 butyl-adhesive strip on the smooth foil side full surface adhesive finish with a 2-way or 3-way split liner and 1 self-adhesive strip (window mounting) FINISH C DIMENSIONS SK-BT Duo alternating self-adhesive with 1 self-adhesive strip on the fleece side and 1 butyl-adhesive strip on the smooth foil side width fini

Pagina 114-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ted on frost-free surfaces (concrete ...

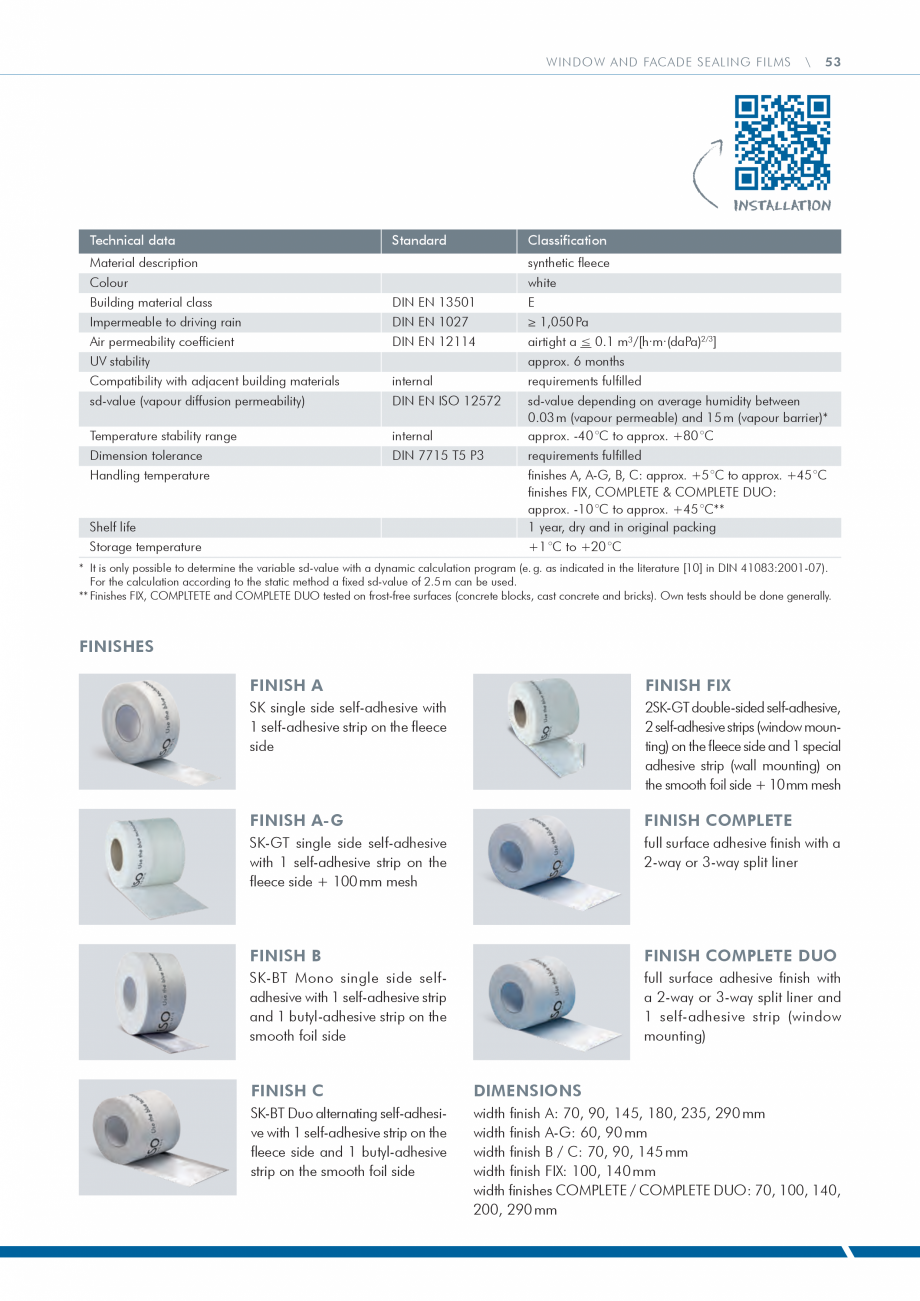

Pagina 115 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza sh A: 70, 90, 145, 180, ...

sh A: 70, 90, 145, 180, 235, 290 mm width finish A-G: 60, 90 mm width finish B / C: 70, 90, 145 mm width finish FIX: 100, 140 mm width finishes COMPLETE / COMPLETE DUO: 70, 100, 140, 200, 290 mm 54 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT VARIO SD „PADS” PRODUCT DESCRIPTION ISO-CONNECT VARIO SD „PADS” are ready-to-use adhesive pads for spot-masking components and leaks. A perforated tear-off line allows them to be quickly and easily detached from the roll by hand. They are made from an air tight and fleece-coated special foil and are self-adhesive over the entire surface. With its special functionality, the sd-value of the special foil adapts to the seasonal temperature gradients which occur from the inside outwards or the outside inwards. As a result, moisture can be transported to the outside or to the room regardless of the weather conditions, effectively preventing condensation damage. APPLICATION ISO-CONNECT VARIO SD „PADS” are suitable for both indoor and

Pagina 115-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza sh A: 70, 90, 145, 180, 235, 290 mm...

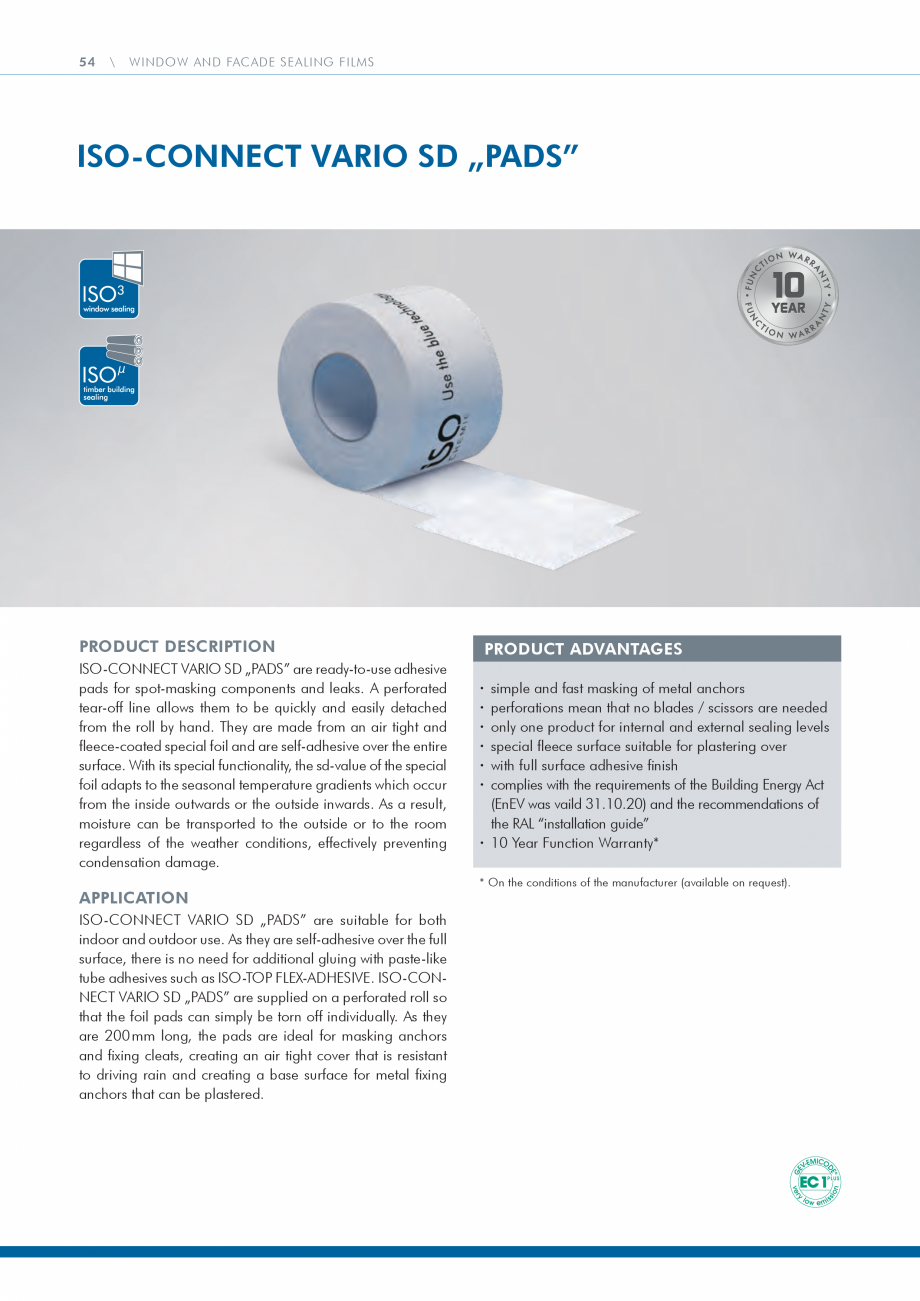

Pagina 116 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza outdoor use. As they are...

outdoor use. As they are self-adhesive over the full surface, there is no need for additional gluing with paste-like tube adhesives such as ISO-TOP FLEX-ADHESIVE. ISO-CONNECT VARIO SD „PADS” are supplied on a perforated roll so that the foil pads can simply be torn off individually. As they are 200 mm long, the pads are ideal for masking anchors and fixing cleats, creating an air tight cover that is resistant to driving rain and creating a base surface for metal fixing anchors that can be plastered. PRODUCT ADVANTAGES · · · · · · simple and fast masking of metal anchors perforations mean that no blades / scissors are needed only one product for internal and external sealing levels special fleece surface suitable for plastering over with full surface adhesive finish complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacture

Pagina 117 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza r (available on request)...

r (available on request). WINDOW AND FACADE SEALING FILMS Technical data Standard \ 55 Classification Material description synthetic fleece Colour white Building material class DIN EN 13501 Impermeable to driving rain DIN EN 1027 E ≥ 1.050 Pa Air permeability coefficient UV stability DIN EN 12114 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] approx. 6 months Compatibility with adjacent building materials internal requirements fulfilled sd-value (vapour diffusion permeability) DIN EN ISO 12572 Temperature stability range internal sd-value depending on average humidity between 0.03 m (vapour permeable) and 15 m (vapour barrier)* approx. -40 °C to approx. +80 °C Dimension tolerance DIN 7715 part 5 P3 requirements fulfilled Handling temperature approx. -10 °C to approx. +45 °C** Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C * It is only possible to determine the variable sd-value with a dynamic calculation progr

Pagina 117-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza r (available on request).

WINDOW...

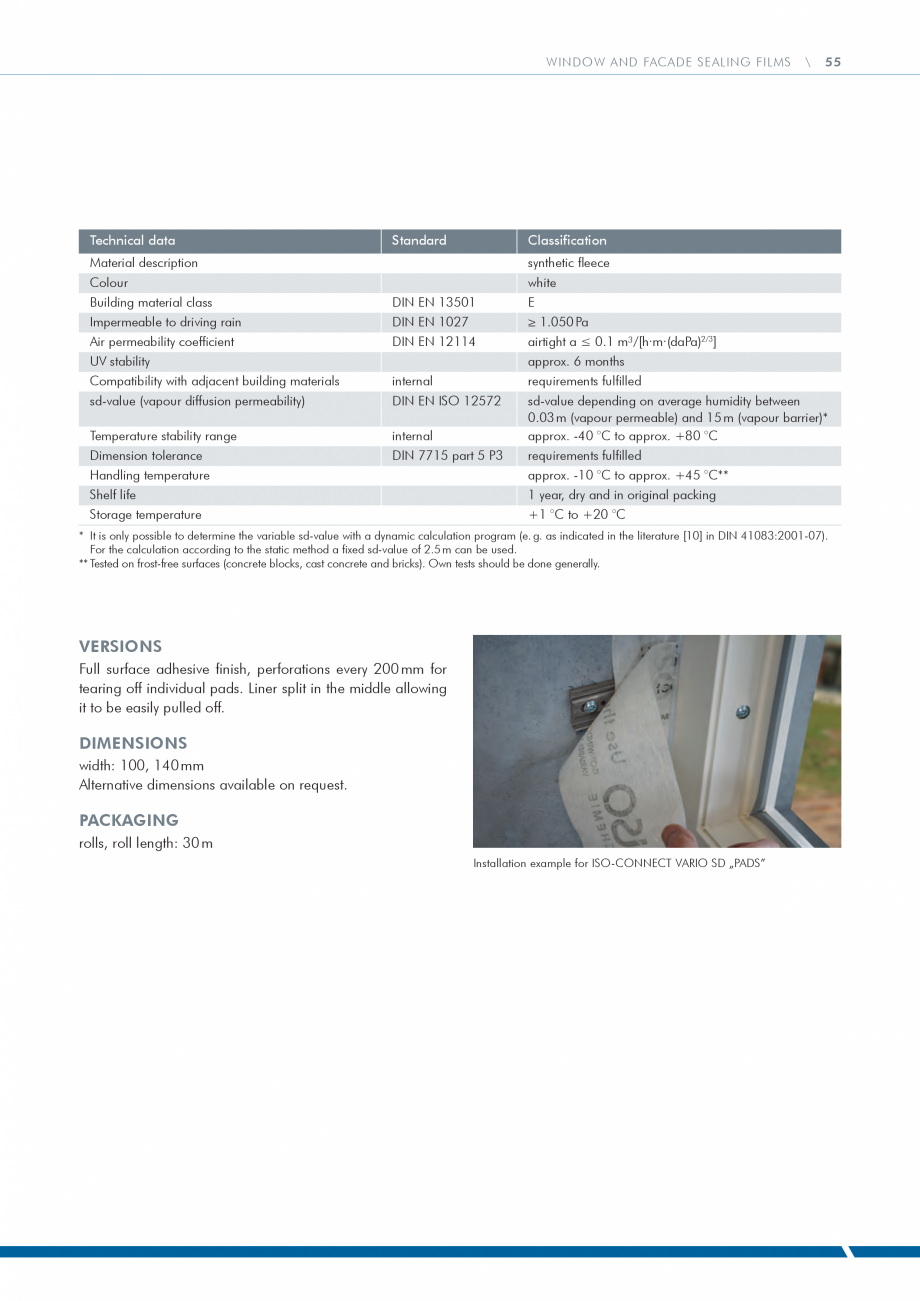

Pagina 118 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza am (e. g. as indicated...

am (e. g. as indicated in the literature [10] in DIN 41083:2001-07). For the calculation according to the static method a fixed sd-value of 2.5 m can be used. ** Tested on frost-free surfaces (concrete blocks, cast concrete and bricks). Own tests should be done generally. VERSIONS Full surface adhesive finish, perforations every 200 mm for tearing off individual pads. Liner split in the middle allowing it to be easily pulled off. DIMENSIONS width: 100, 140 mm Alternative dimensions available on request. PACKAGING rolls, roll length: 30 m Installation example for ISO-CONNECT VARIO SD „PADS” 56 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT VARIOFLEX SD+ PRODUCT DESCRIPTION ISO-CONNECT VARIOFLEX SD+ is a highly flexible and stretchy special foil that can be used for connection joints for- windows, doors and panels to create a seal that is airtight and windproof. ISO-CONNECT VARIOFLEX SD+ is made from a pliable soft polymer fleece and is self-adhesive over the entire surface.

Pagina 118-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza am (e. g. as indicated in the...

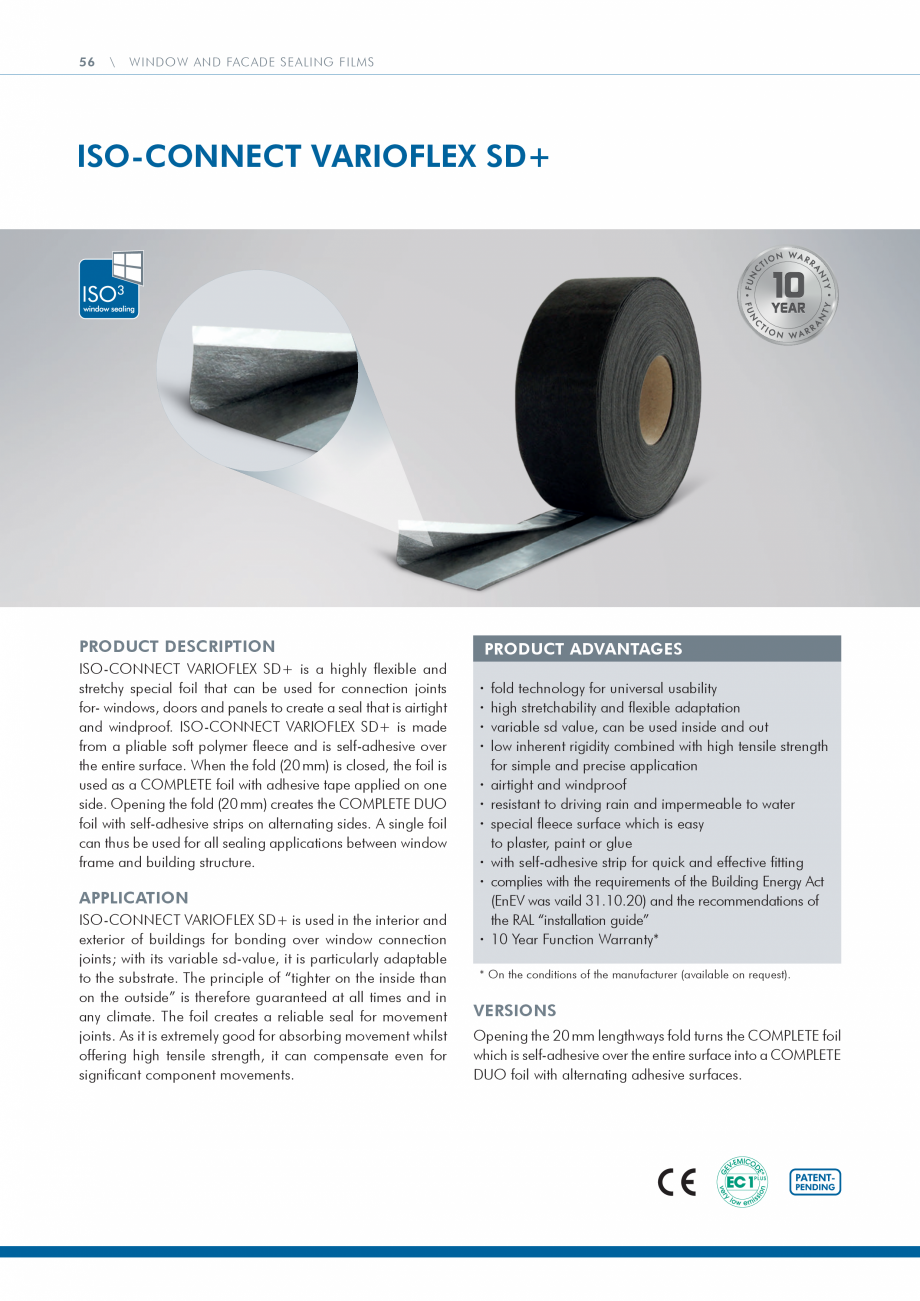

Pagina 119 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza When the fold (20 mm) is...

When the fold (20 mm) is closed, the foil is used as a COMPLETE foil with adhesive tape applied on one side. Opening the fold (20 mm) creates the COMPLETE DUO foil with self-adhesive strips on alternating sides. A single foil can thus be used for all sealing applications between window frame and building structure. APPLICATION ISO-CONNECT VARIOFLEX SD+ is used in the interior and exterior of buildings for bonding over window connection joints; with its variable sd-value, it is particularly adaptable to the substrate. The principle of “tighter on the inside than on the outside” is therefore guaranteed at all times and in any climate. The foil creates a reliable seal for movement joints. As it is extremely good for absorbing movement whilst offering high tensile strength, it can compensate even for significant component movements. PRODUCT ADVANTAGES · · · · · · · · · · fold technology for universal usability high stretchability and flexible adaptation variable sd value,

Pagina 119-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza When the fold (20 mm) is closed, the ...

Pagina 120 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza can be used inside and ...

can be used inside and out low inherent rigidity combined with high tensile strength for simple and precise application airtight and windproof resistant to driving rain and impermeable to water special fleece surface which is easy to plaster, paint or glue with self-adhesive strip for quick and effective fitting complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). VERSIONS Opening the 20 mm lengthways fold turns the COMPLETE foil which is self-adhesive over the entire surface into a COMPLETE DUO foil with alternating adhesive surfaces. WINDOW AND FACADE SEALING FILMS Technical data: Foil Standard \ 57 Classification Material description polymer fleece that is permeable to vapour diffusion Colour black Resistance of joints to driving rain DIN EN 1027 ≥ 1,050 Pa Joint permeability coeffic

Pagina 120-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza can be used inside and out
low...

Pagina 121 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ient
UV stability

DIN...

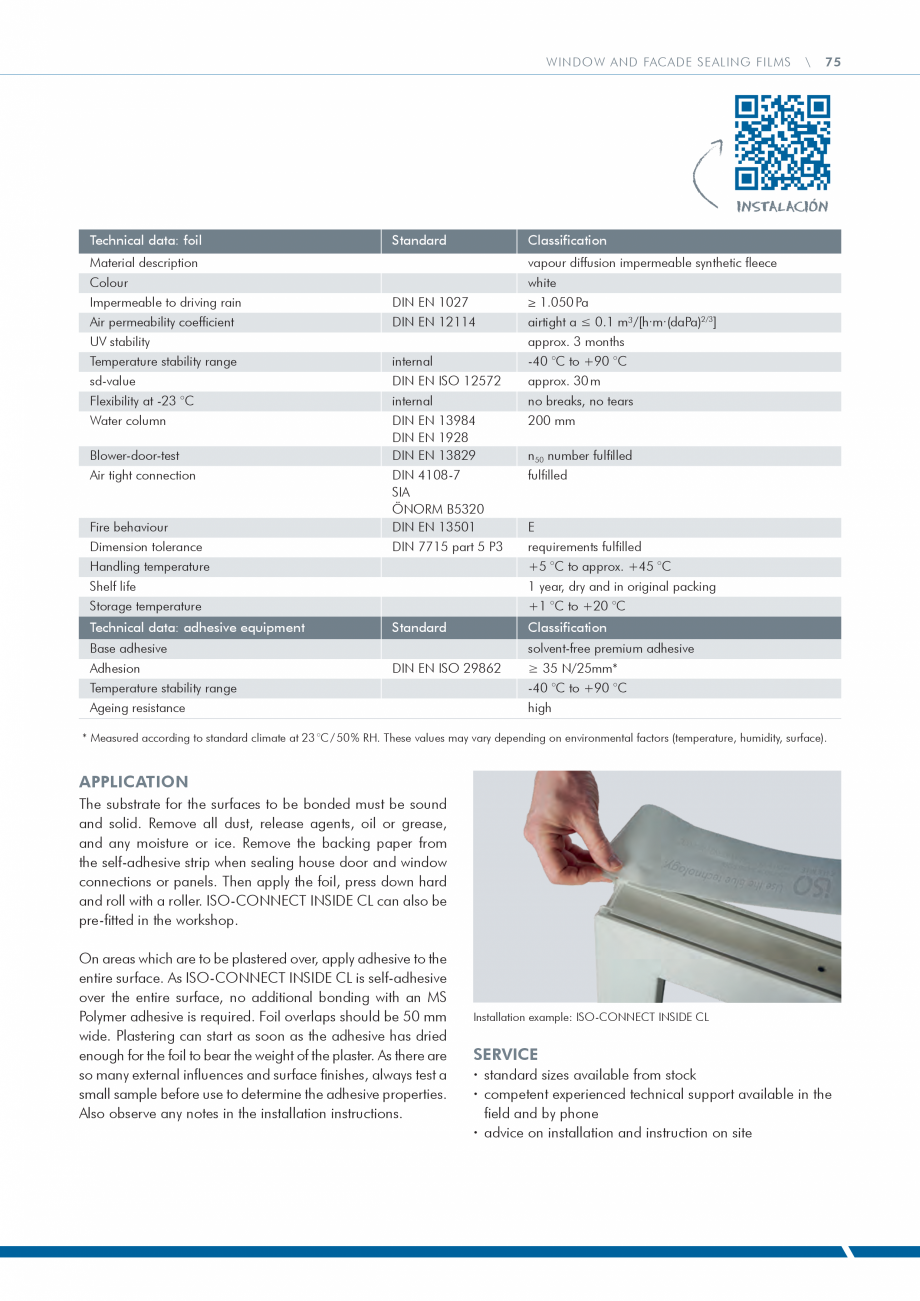

ient UV stability DIN EN 12114 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] approx. 8 months Temperature resistance internal -40 °C to +90 °C sd value DIN EN ISO 12572 0.4 to 25 m depending on the moisture levels Pliability at -23 °C internal no breakage, no cracking Fire behaviour DIN EN 13501 E Dimensional tolerance DIN 7715 T5 P3 requirements fulfilled Storage time 1 year, in original packaging and stored dry Storage temperature +1 °C to +20 °C DIMENSIONS PROCESSING Folded foil in working widths: · 75 mm (folded 55+20 mm) · 100 mm (folded 80+20 mm) · 150 mm (folded 130+20 mm) · 200 mm (folded 180+20 mm) all with a 20 mm fold-out foil part. Other dimensions available upon request. The substrate for the surfaces to be bonded must be sound and solid. Remove all dust, release agents, oil or grease, and any moisture or ice. Remove the backing paper from the self-adhesive strip when sealing house door and window connections or panels.Then apply the foil to th

Pagina 121-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ient
UV stability

DIN EN 12114
...

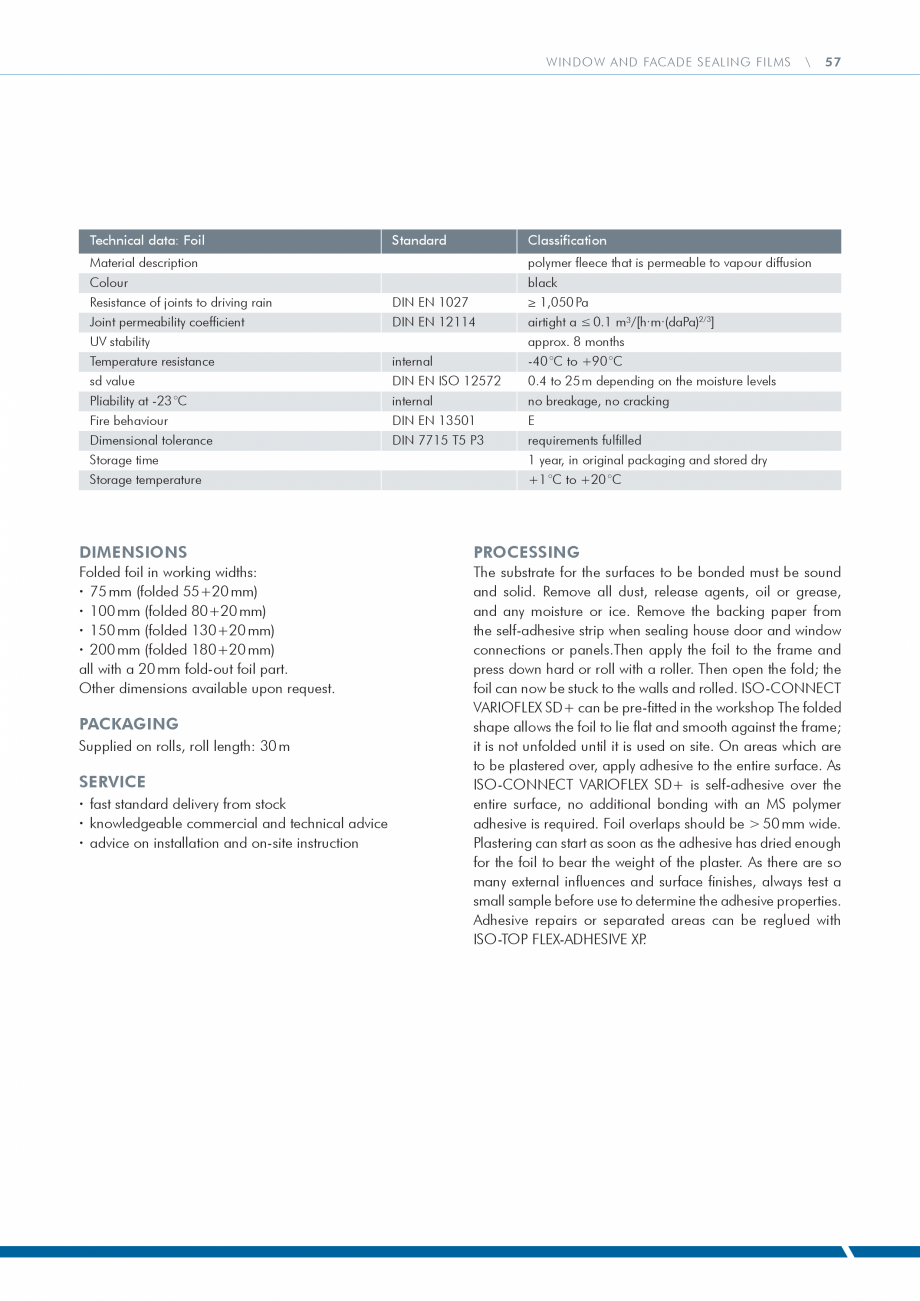

Pagina 122 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e frame and
press down...

e frame and press down hard or roll with a roller. Then open the fold; the foil can now be stuck to the walls and rolled. ISO-CONNECT VARIOFLEX SD+ can be pre-fitted in the workshop The folded shape allows the foil to lie flat and smooth against the frame; it is not unfolded until it is used on site. On areas which are to be plastered over, apply adhesive to the entire surface. As ISO-CONNECT VARIOFLEX SD+ is self-adhesive over the entire surface, no additional bonding with an MS polymer adhesive is required. Foil overlaps should be > 50 mm wide. Plastering can start as soon as the adhesive has dried enough for the foil to bear the weight of the plaster. As there are so many external influences and surface finishes, always test a small sample before use to determine the adhesive properties. Adhesive repairs or separated areas can be reglued with ISO-TOP FLEX-ADHESIVE XP. PACKAGING Supplied on rolls, roll length: 30 m SERVICE · fast standard delivery from stock · knowledgeable comme

Pagina 122-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e frame and
press down hard or roll...

Pagina 123 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rcial and technical...

rcial and technical advice · advice on installation and on-site instruction 58 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT VARIO XD PRODUCT DESCRIPTION ISO-CONNECT VARIO XD is a humidity variable special foil for the inner and outer sealing of windows and facade connecting joints. The foil reacts to the different seasonal temperature gradients by variably adapting its sd-value, thus achieving a high drying effect in the joint all year round. It complies with the requirements of GEG (Building Energy Act, EnEV was valid 31.10.20) concerning the airtightness of the building envelope and the recommendations of the RAL quality assurance association for windows and doors in the “installation guide”. APPLICATION ISO-CONNECT VARIO XD is perfectly suited for the sealing of both internal and external window and door elements in metal, window and facade constructions. The fleece-covered special foil is available in different self-adhesive finishes for quick and proficient installati

Pagina 123-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rcial and technical advice
· advice ...

Pagina 124 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on. The foil can be used...

on. The foil can be used under the window sill (eg. for External Wall Insulation sytems) as the 2nd trough shaped sealing level. FINISHES · Finish A: without self-adhesive strip · Finish B: SK foil; self-adhesive on one side using 1 acrylic strip on the smooth foil side · Finish C: SK fleece; self-adhesive on one side using 1 acrylic strip on the textured fleece side · Finish D: BT foil; self-adhesive on one side using 1 butyl strip on the smooth foil side PRODUCT ADVANTAGES · only one product for internal and external sealing (avoids application mistakes, makes purchasing and storage easier) · high drying effect in the joint thanks to humidityregulating functional mechanism (variable sd-value) · resistant to driving rain up to more than 1,050 Pa · high tear resistance · up to 1 year UV light stability in any weather conditions · special fleece surface, easy to plaster and glue over · with self-adhesive strips for efficient application · complies with the requirements of

Pagina 124-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza on. The foil can be used under
the...

Pagina 125 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza the Building Energy Act
...

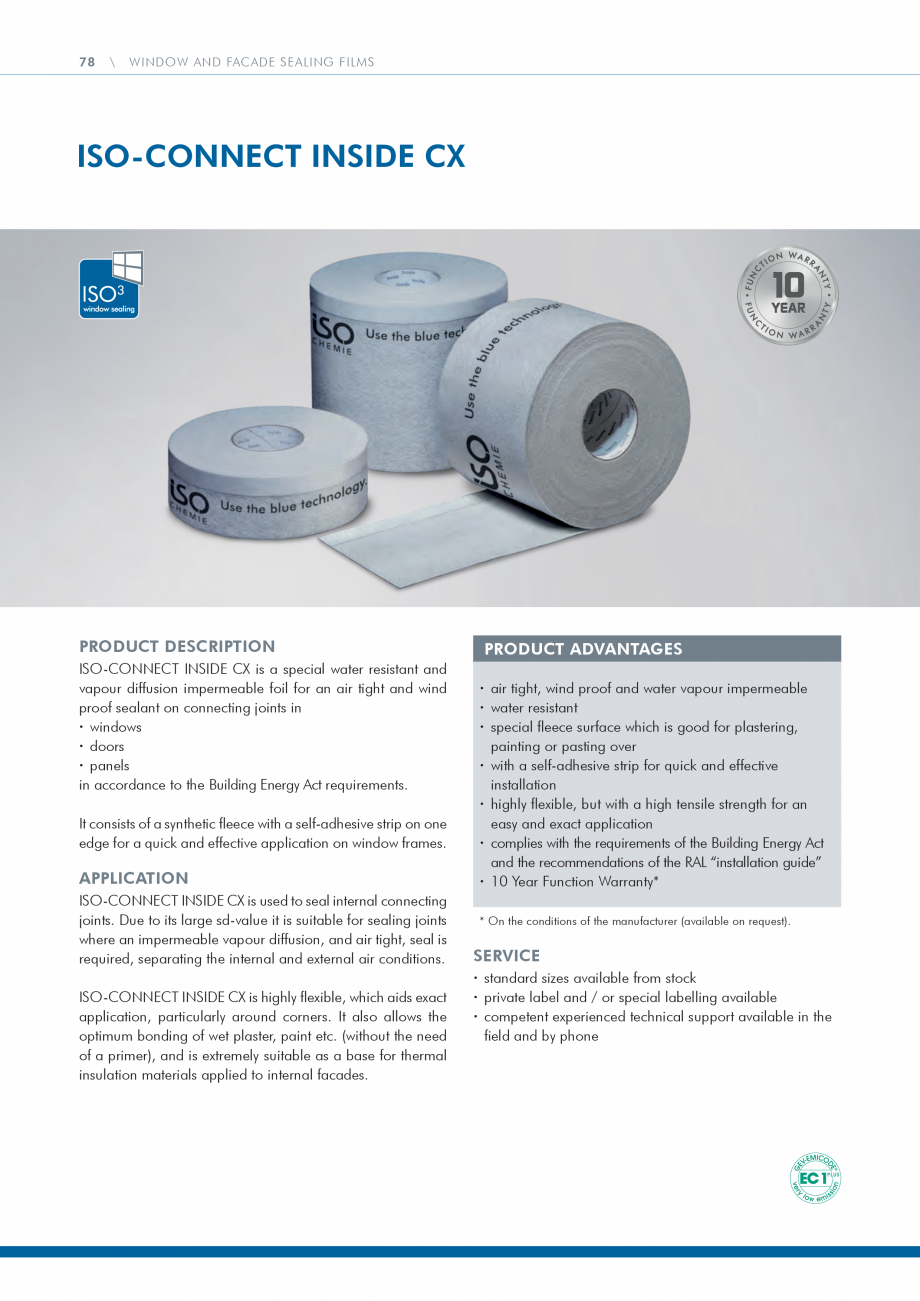

the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). · Finish E: 2SK; self-adhesive on the same edge of both / alternating sides using 1 acrylic strip on the textured fleece side and 1 acrylic strip on the smooth foil side · Finish F: 2SK-1BT Duo; self-adhesive on both / alternating sides using 1 acrylic strip on the textured fleece side and 1 acrylic strip, plus 1 butyl strip on the smooth foil side WINDOW AND FACADE SEALING FILMS \ 59 INSTALLATION Technical data Standard Classification Material description polymer fleece foil Colour black Building material class DIN EN 13501-1 Impermeable to driving rain DIN EN 1027 ≥ 1,050 Pa sd-value (vapour diffusion permeability) DIN EN ISO 12572 Air permeability coefficient UV stability (fleece side) DIN EN 12114 depending on the average air humidity, sd-value between app

Pagina 125-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza the Building Energy Act
(EnEV was...

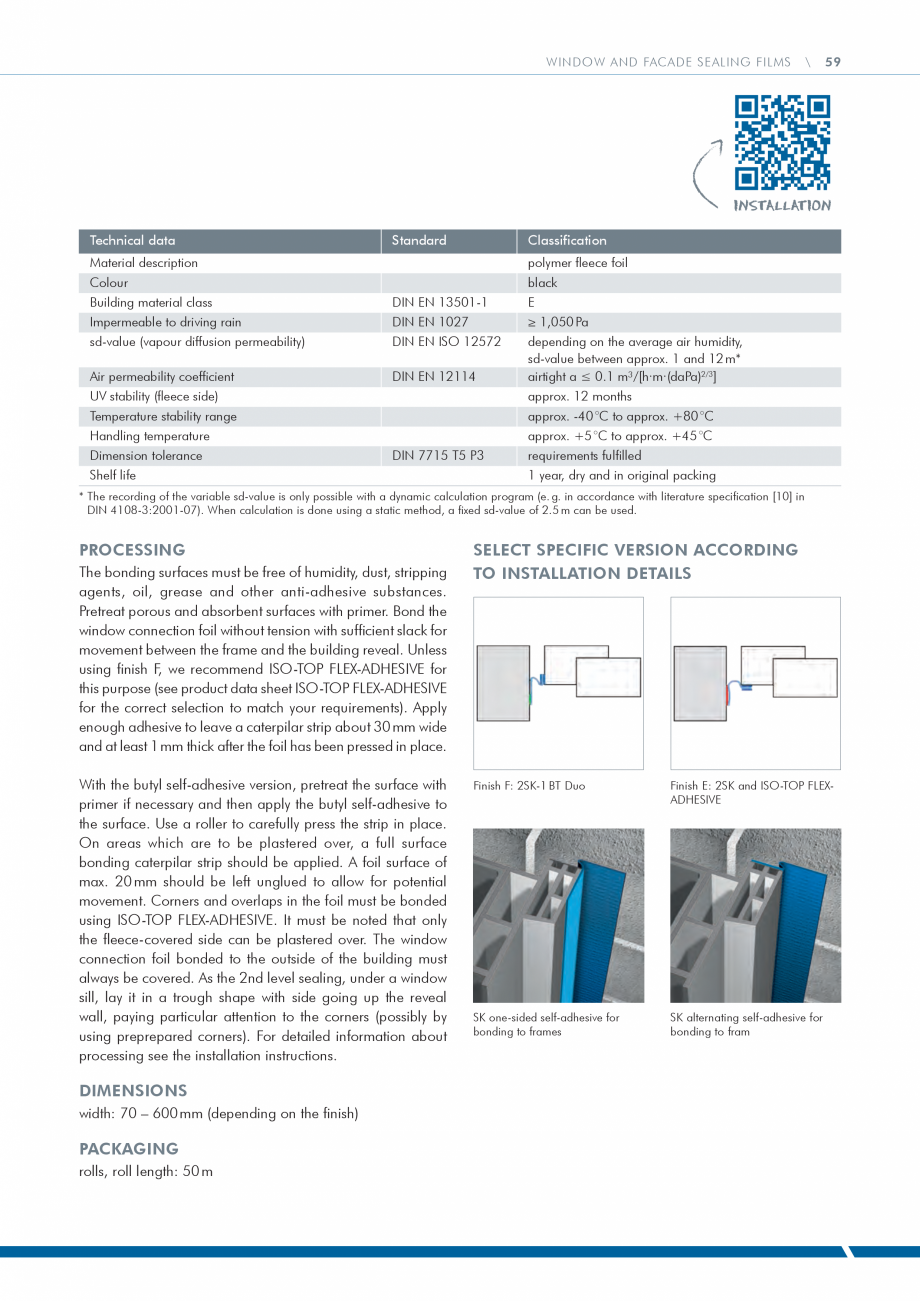

Pagina 126 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rox. 1 and 12 m*...

rox. 1 and 12 m* airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] approx. 12 months Temperature stability range approx. -40 °C to approx. +80 °C approx. +5 °C to approx. +45 °C Handling temperature Dimension tolerance E DIN 7715 T5 P3 Shelf life requirements fulfilled 1 year, dry and in original packing * The recording of the variable sd-value is only possible with a dynamic calculation program (e. g. in accordance with literature specification [10] in DIN 4108-3:2001-07). When calculation is done using a static method, a fixed sd-value of 2.5 m can be used. PROCESSING The bonding surfaces must be free of humidity, dust, stripping agents, oil, grease and other anti-adhesive substances. Pretreat porous and absorbent surfaces with primer. Bond the window connection foil without tension with sufficient slack for movement between the frame and the building reveal. Unless using finish F, we recommend ISO-TOP FLEX-ADHESIVE for this purpose (see product data sheet ISO-TOP FLEX-ADHESIVE

Pagina 126-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rox. 1 and 12 m*
airtight a ≤ 0.1...

Pagina 127 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza for the correct...

for the correct selection to match your requirements). Apply enough adhesive to leave a caterpilar strip about 30 mm wide and at least 1 mm thick after the foil has been pressed in place. With the butyl self-adhesive version, pretreat the surface with primer if necessary and then apply the butyl self-adhesive to the surface. Use a roller to carefully press the strip in place. On areas which are to be plastered over, a full surface bonding caterpilar strip should be applied. A foil surface of max. 20 mm should be left unglued to allow for potential movement. Corners and overlaps in the foil must be bonded using ISO-TOP FLEX-ADHESIVE. It must be noted that only the fleece-covered side can be plastered over. The window connection foil bonded to the outside of the building must always be covered. As the 2nd level sealing, under a window sill, lay it in a trough shape with side going up the reveal wall, paying particular attention to the corners (possibly by using preprepared corners). For

Pagina 127-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza for the correct selection to match...

Pagina 128 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza detailed information...

detailed information about processing see the installation instructions. DIMENSIONS width: 70 – 600 mm (depending on the finish) PACKAGING rolls, roll length: 50 m SELECT SPECIFIC VERSION ACCORDING TO INSTALLATION DETAILS Finish F: 2SK-1 BT Duo Finish E: 2SK and ISO-TOP FLEXADHESIVE SK one-sided self-adhesive for bonding to frames SK alternating self-adhesive for bonding to fram 60 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT INSIDE EPDM PRODUCT DESCRIPTION ISO-CONNECT INSIDE EPDM is a butyl caoutchouc band and serves as an internal sealing on window, door and facade connections. ISO-CONNECT INSIDE EPDM is vapour diffusion imperm eable and guarantees a secure and reliable internal seal on building facade and structural connections. Joint movement is constantly compensated for through the materials high elasticity. APPLICATION ISO-CONNECT INSIDE EPDM is designed for a precision seal on the building’s window, door and facade connections. ISO-CONNECT INSIDE EPDM is a ve

Pagina 128-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza detailed information about
processing...

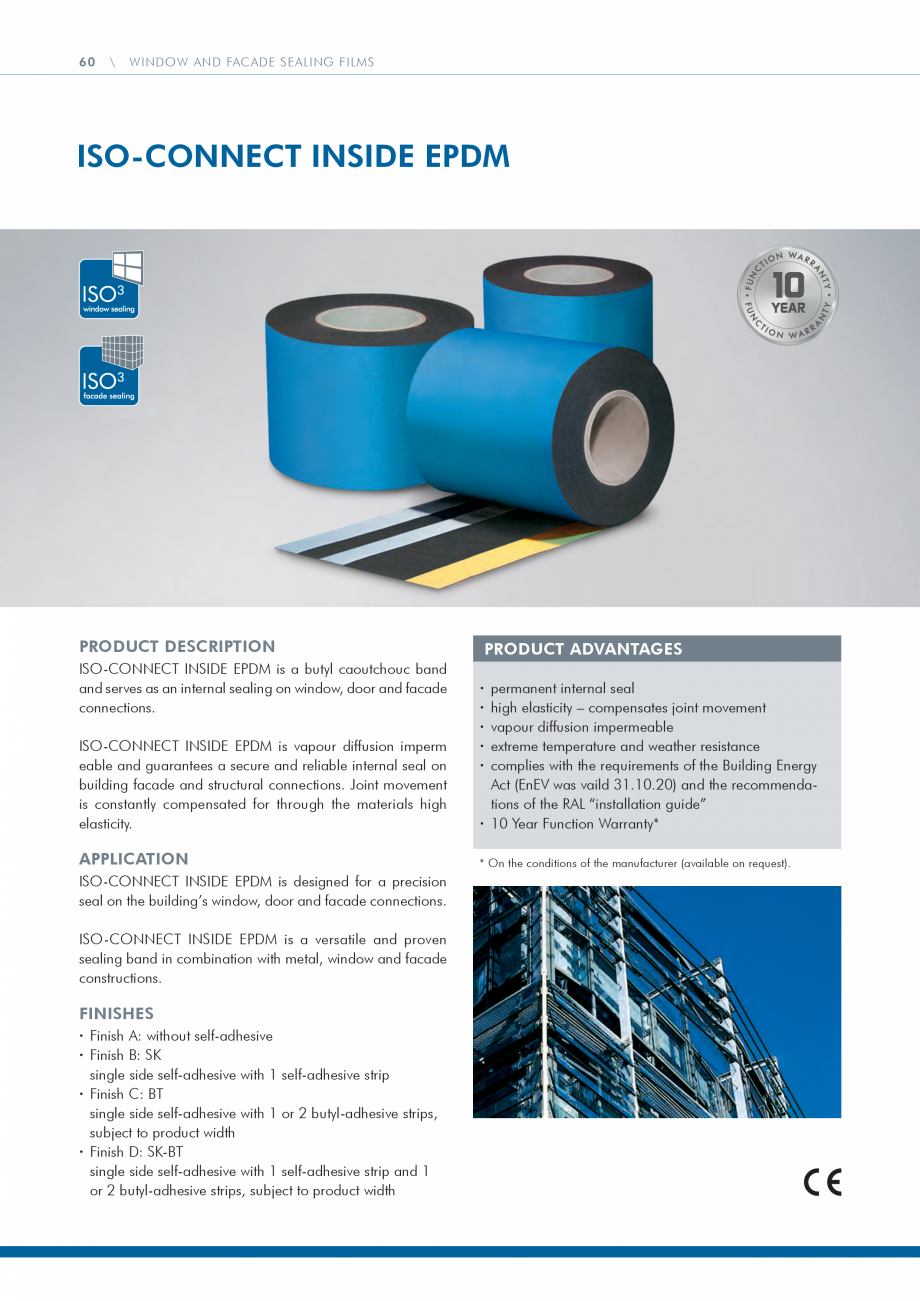

Pagina 129 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rsatile and proven...

rsatile and proven sealing band in combination with metal, window and facade constructions. FINISHES · Finish A: without self-adhesive · Finish B: SK single side self-adhesive with 1 self-adhesive strip · Finish C: BT single side self-adhesive with 1 or 2 butyl-adhesive strips, subject to product width · Finish D: SK-BT single side self-adhesive with 1 self-adhesive strip and 1 or 2 butyl-adhesive strips, subject to product width PRODUCT ADVANTAGES · · · · · permanent internal seal high elasticity – compensates joint movement vapour diffusion impermeable extreme temperature and weather resistance complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). WINDOW AND FACADE SEALING FILMS \ 61 INSTALLATION Technical data Standard Classification Material description synthetic caoutchouc on b

Pagina 129-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza rsatile and proven
sealing band in...

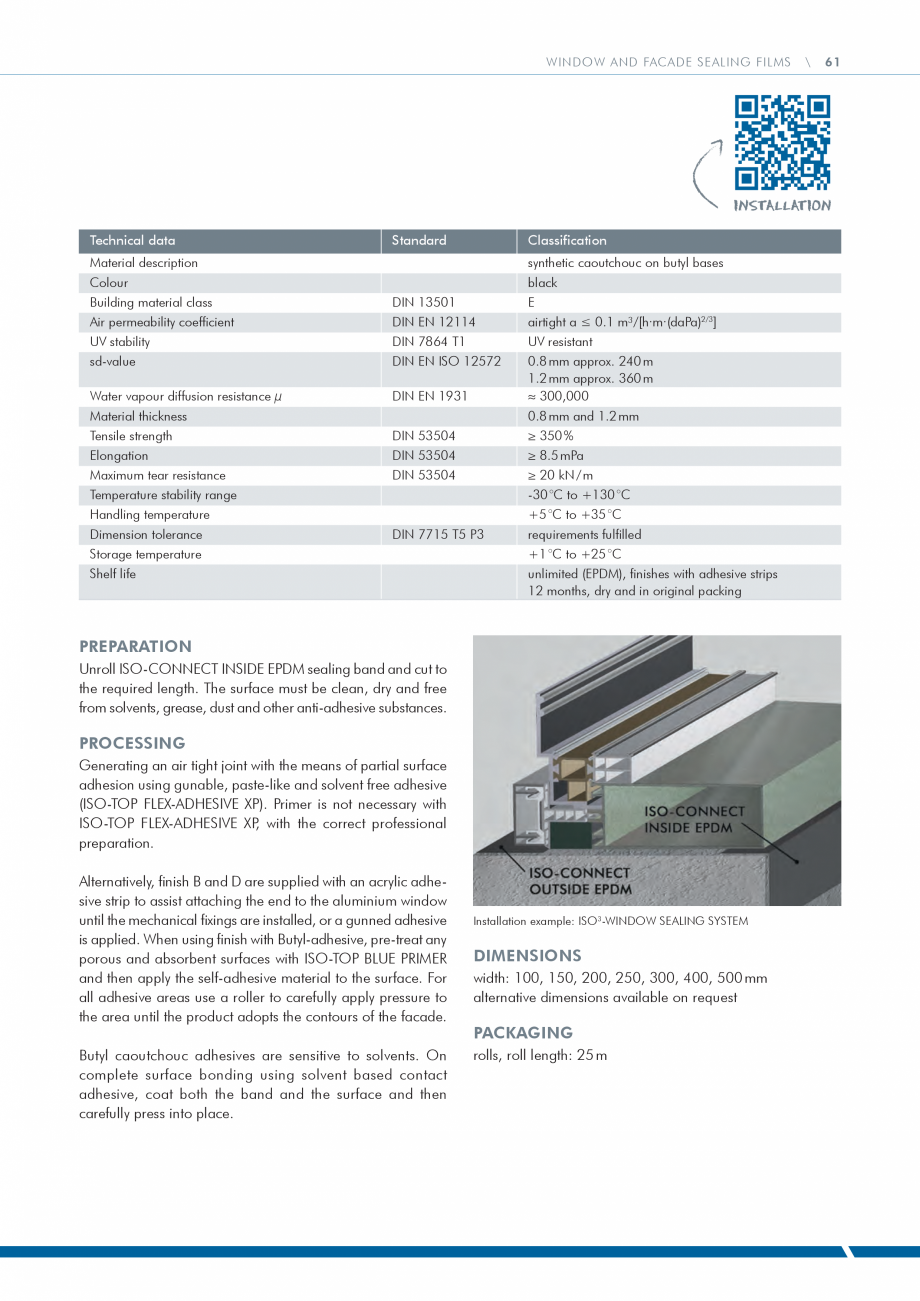

Pagina 130 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza utyl bases

Colour
...

utyl bases Colour black Building material class DIN 13501 E Air permeability coefficient UV stability DIN EN 12114 DIN 7864 T1 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] UV resistant sd-value DIN EN ISO 12572 Water vapour diffusion resistance μ DIN EN 1931 0.8 mm approx. 240 m 1.2 mm approx. 360 m ≈ 300,000 Material thickness 0.8 mm and 1.2 mm Tensile strength DIN 53504 ≥ 350 % Elongation DIN 53504 ≥ 8.5 mPa Maximum tear resistance DIN 53504 ≥ 20 kN / m Temperature stability range -30 °C to +130 °C Handling temperature +5 °C to +35 °C Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Storage temperature +1 °C to +25 °C Shelf life unlimited (EPDM), finishes with adhesive strips 12 months, dry and in original packing PREPARATION Unroll ISO-CONNECT INSIDE EPDM sealing band and cut to the required length. The surface must be clean, dry and free from solvents, grease, dust and other anti-adhesive substances. PROCESSING Generating an

Pagina 130-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza utyl bases

Colour

black

Building...

Pagina 131 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza air tight joint with the...

air tight joint with the means of partial surface adhesion using gunable, paste-like and solvent free adhesive (ISO-TOP FLEX-ADHESIVE XP). Primer is not necessary with ISO-TOP FLEX-ADHESIVE XP, with the correct professional preparation. Alternatively, finish B and D are supplied with an acrylic adhesive strip to assist attaching the end to the aluminium window until the mechanical fixings are installed, or a gunned adhesive is applied. When using finish with Butyl-adhesive, pre-treat any porous and absorbent surfaces with ISO-TOP BLUE PRIMER and then apply the self-adhesive material to the surface. For all adhesive areas use a roller to carefully apply pressure to the area until the product adopts the contours of the facade. Butyl caoutchouc adhesives are sensitive to solvents. On complete surface bonding using solvent based contact adhesive, coat both the band and the surface and then carefully press into place. Installation example: ISO3-WINDOW SEALING SYSTEM DIMENSIONS width: 100,

Pagina 131-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza air tight joint with the means of...

Pagina 132 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 150, 200, 250, 300, 400...

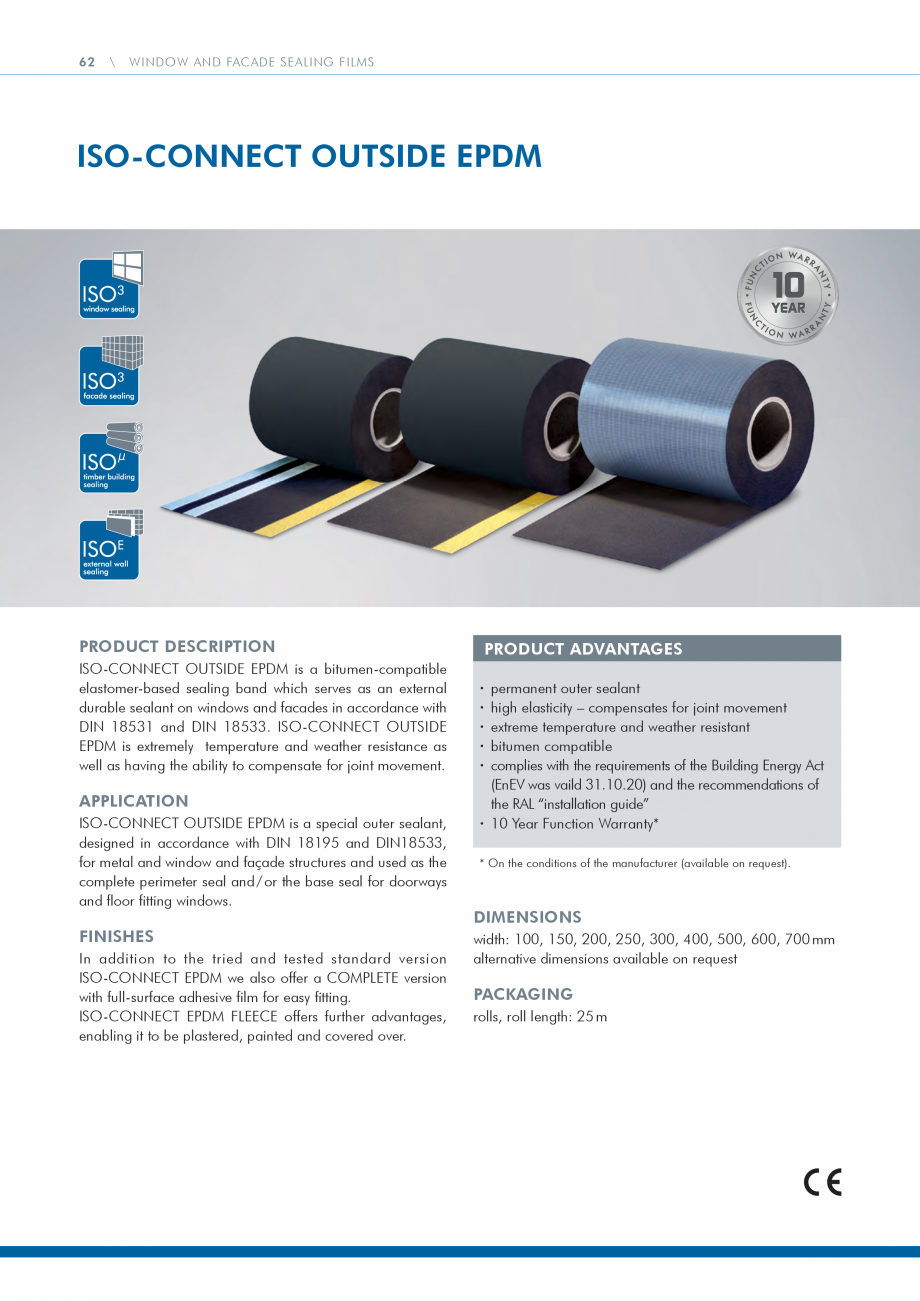

150, 200, 250, 300, 400, 500 mm alternative dimensions available on request PACKAGING rolls, roll length: 25 m 62 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT OUTSIDE EPDM PRODUCT DESCRIPTION PRODUCT ADVANTAGES ISO-CONNECT OUTSIDE EPDM is a bitumen-compatible elastomer-based sealing band which serves as an external durable sealant on windows and facades in accordance with DIN 18531 and DIN 18533. ISO-CONNECT OUTSIDE EPDM is extremely temperature and weather resistance as well as having the ability to compensate for joint movement. · · · · · APPLICATION ISO-CONNECT OUTSIDE EPDM is a special outer sealant, designed in accordance with DIN 18195 and DIN18533, for metal and window and façade structures and used as the complete perimeter seal and / or the base seal for doorways and floor fitting windows. FINISHES In addition to the tried and tested standard version ISO-CONNECT EPDM we also offer a COMPLETE version with full-surface adhesive film for easy fitting. ISO-CONN

Pagina 132-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza 150, 200, 250, 300, 400, 500 mm...

Pagina 133 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ECT EPDM FLEECE offers...

ECT EPDM FLEECE offers further advantages, enabling it to be plastered, painted and covered over. permanent outer sealant high elasticity – compensates for joint movement extreme temperature and weather resistant bitumen compatible complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” · 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). DIMENSIONS width: 100, 150, 200, 250, 300, 400, 500, 600, 700 mm alternative dimensions available on request PACKAGING rolls, roll length: 25 m WINDOW AND FACADE SEALING FILMS \ 63 INSTALLATION Technical data Standard Classification Material description synthetic caoutchouc on EPDM basis Colour black Building material class DIN EN 13501 Impermeable to driving rain DIN EN 1027 E ≥ 1,050 Pa Air permeability coefficient Bitumen compatible DIN EN 12114 DIN 7864 T1 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3

Pagina 133-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ECT EPDM FLEECE offers further...

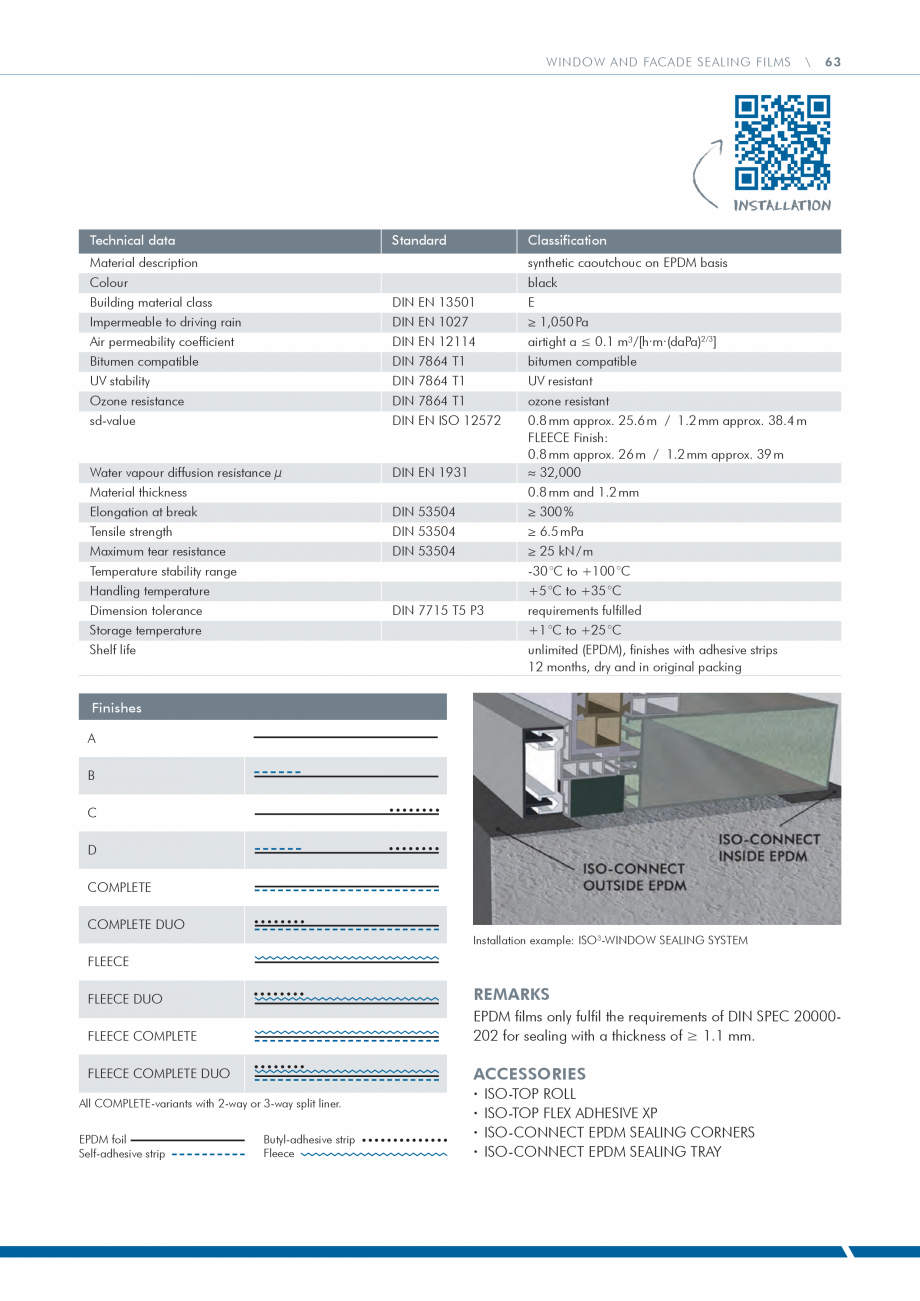

Pagina 134 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ]
bitumen compatible

UV...

] bitumen compatible UV stability DIN 7864 T1 UV resistant Ozone resistance DIN 7864 T1 ozone resistant sd-value DIN EN ISO 12572 Water vapour diffusion resistance μ DIN EN 1931 0.8 mm approx. 25.6 m / 1.2 mm approx. 38.4 m FLEECE Finish: 0.8 mm approx. 26 m / 1.2 mm approx. 39 m ≈ 32,000 Material thickness 0.8 mm and 1.2 mm Elongation at break DIN 53504 ≥ 300 % Tensile strength DIN 53504 ≥ 6.5 mPa Maximum tear resistance DIN 53504 ≥ 25 kN / m Temperature stability range -30 °C to +100 °C Handling temperature +5 °C to +35 °C Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Storage temperature +1 °C to +25 °C Shelf life unlimited (EPDM), finishes with adhesive strips 12 months, dry and in original packing Finishes A B C D COMPLETE COMPLETE DUO Installation example: ISO3-WINDOW SEALING SYSTEM FLEECE FLEECE DUO REMARKS FLEECE COMPLETE EPDM films only fulfil the requirements of DIN SPEC 20000202 for sealing with a thickness of �

Pagina 134-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ]
bitumen compatible

UV stability
...

Pagina 135 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza �� 1.1 mm.

FLEECE...

�� 1.1 mm. FLEECE COMPLETE DUO ACCESSORIES All COMPLETE-variants with 2-way or 3-way split liner. EPDM foil Self-adhesive strip Butyl-adhesive strip Fleece · · · · ISO-TOP ROLL ISO-TOP FLEX ADHESIVE XP ISO-CONNECT EPDM SEALING CORNERS ISO-CONNECT EPDM SEALING TRAY 64 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT EPDM SEALING COLLAR AND SEALING CORNER PRODUCT DESCRIPTION ISO-CONNECT EPDM SEALING COLLAR is a elastomer sealing system. It is used for external sealing of window and door elements that are installed in the facade with metal angles in front of the load-bearing wall. This makes the system particularly suitable for in front of wall sealing in external applications. It conforms to DIN requirements. The vulcanised corner connections create a long-lasting seal and are very fast to install. APPLICATION ISO-CONNECT EPDM SEALING COLLAR is designed for structurally correct external sealing of door and window connections and can be used for all types of windows. It is i

Pagina 135-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza �� 1.1 mm.

FLEECE COMPLETE DUO
...

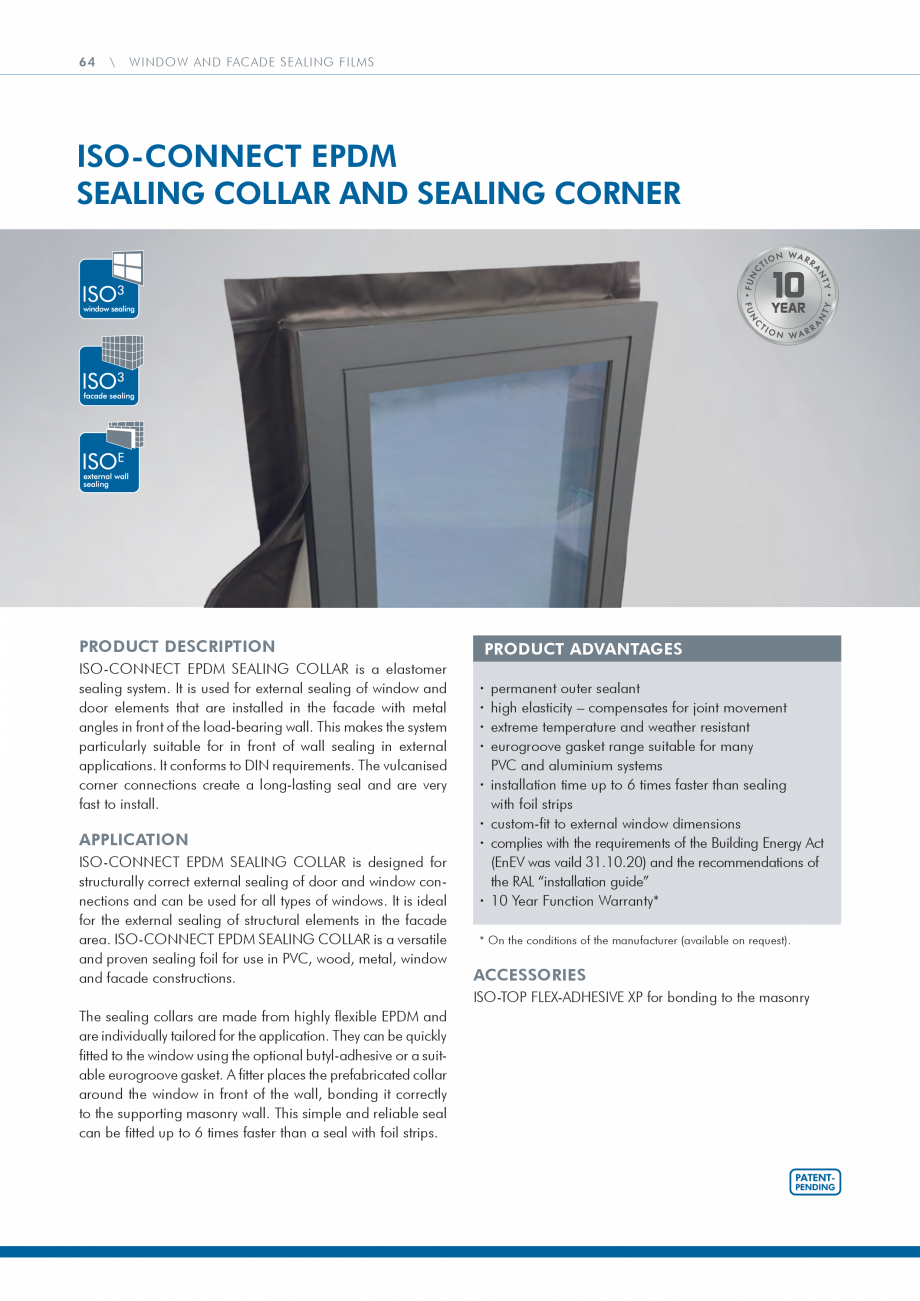

Pagina 136 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza deal
for the external...

deal for the external sealing of structural elements in the facade area. ISO-CONNECT EPDM SEALING COLLAR is a versatile and proven sealing foil for use in PVC, wood, metal, window and facade constructions. PRODUCT ADVANTAGES · · · · · · · · permanent outer sealant high elasticity – compensates for joint movement extreme temperature and weather resistant eurogroove gasket range suitable for many PVC and aluminium systems installation time up to 6 times faster than sealing with foil strips custom-fit to external window dimensions complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). ACCESSORIES ISO-TOP FLEX-ADHESIVE XP for bonding to the masonry The sealing collars are made from highly flexible EPDM and are individually tailored for the application. They can be quickly fitted to the window usin

Pagina 136-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza deal
for the external sealing of...

Pagina 137 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza g the optional...

g the optional butyl-adhesive or a suitable eurogroove gasket. A fitter places the prefabricated collar around the window in front of the wall, bonding it correctly to the supporting masonry wall. This simple and reliable seal can be fitted up to 6 times faster than a seal with foil strips. WINDOW AND FACADE SEALING FILMS \ 65 INSTALLATION Technical data Standard Classification Material description synthetic caoutchouc on EPDM basis Colour black Building material class DIN EN 13501-1 E Air permeability coefficient Bitumen compatible DIN EN 12114 DIN 7864 T1 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] bitumen compatible UV stability DIN 7864 T1 UV resistant Ozone resistance DIN 7864 T1 ozone resistant Water vapour diffusion resistance μ DIN EN 1931 60,000 +/- 18,000 Material thickness 0.8 mm and 1.2 mm Elongation at break DIN EN 12311-1 ≥ 450 % Tensile strength Maximum tear resistance DIN EN 12311-1 DIN EN 12310-1 ≥ 350 N / 50 mm ≥ 90 N Temperature

Pagina 137-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza g the optional butyl-adhesive or a...

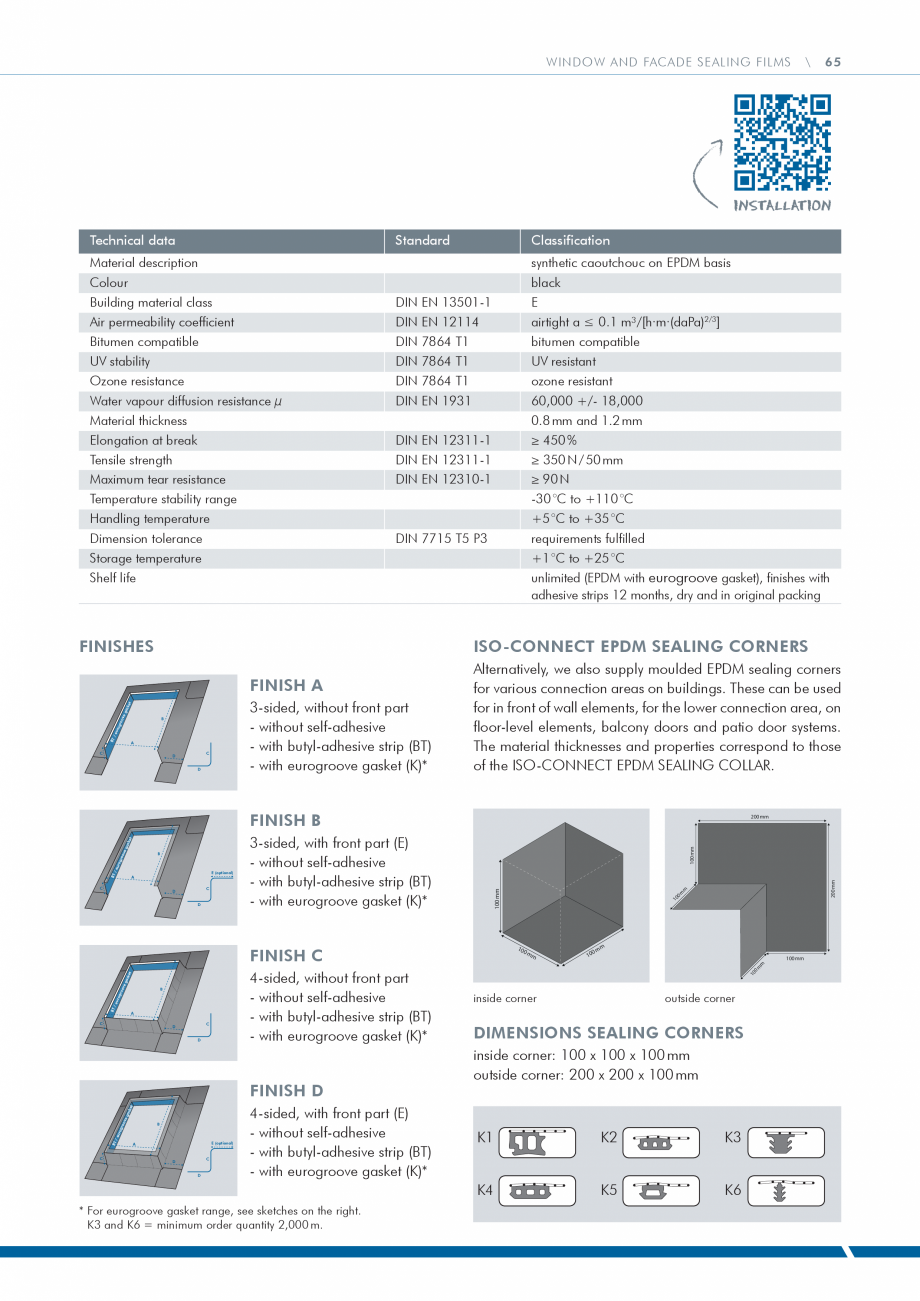

Pagina 138 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza stability range

-30...

stability range -30 °C to +110 °C Handling temperature +5 °C to +35 °C Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Storage temperature +1 °C to +25 °C Shelf life unlimited (EPDM with eurogroove gasket), finishes with adhesive strips 12 months, dry and in original packing FINISHES ISO-CONNECT EPDM SEALING CORNERS FINISH A ove ga ske t 3-sided, without front part - without self-adhesive - with butyl-adhesive strip (BT) - with eurogroove gasket (K)* BT /e uro gro B A C C D D Alternatively, we also supply moulded EPDM sealing corners for various connection areas on buildings. These can be used for in front of wall elements, for the lower connection area, on floor-level elements, balcony doors and patio door systems. The material thicknesses and properties correspond to those of the ISO-CONNECT EPDM SEALING COLLAR. D gro ove ga uro /e BT A C C D D ove ga ske t FINISH D BT /e uro gro B C E (optional) A C D D 4-sided, with f

Pagina 138-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza stability range

-30 °C to +110 °C...

Pagina 139 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ront part (E)
- without ...

ront part (E) - without self-adhesive - with butyl-adhesive strip (BT) - with eurogroove gasket (K)* * For eurogroove gasket range, see sketches on the right. K3 and K6 = minimum order quantity 2,000 m. m 0m 10 100 mm 0m m mm 10 ske t 4-sided, without front part - without self-adhesive - with butyl-adhesive strip (BT) - with eurogroove gasket (K)* 200 mm 100 mm 100 FINISH C B m C D 0m E (optional) A C 3-sided, with front part (E) - without self-adhesive - with butyl-adhesive strip (BT) - with eurogroove gasket (K)* 10 BT /e B 200 mm 100 mm uro gro ove ga ske t FINISH B inside corner outside corner DIMENSIONS SEALING CORNERS inside corner: 100 x 100 x 100 mm outside corner: 200 x 200 x 100 mm K1 K2 K3 K4 K5 K6 66 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT EPDM SEALING TRAY PRODUCT DESCRIPTION ISO-CONNECT EPDM SEALING TRAY is a sealing system made from highly flexible EPDM. It can be used both as the second sealing level beneath window s

Pagina 139-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ront part (E)
- without self-adhesive...

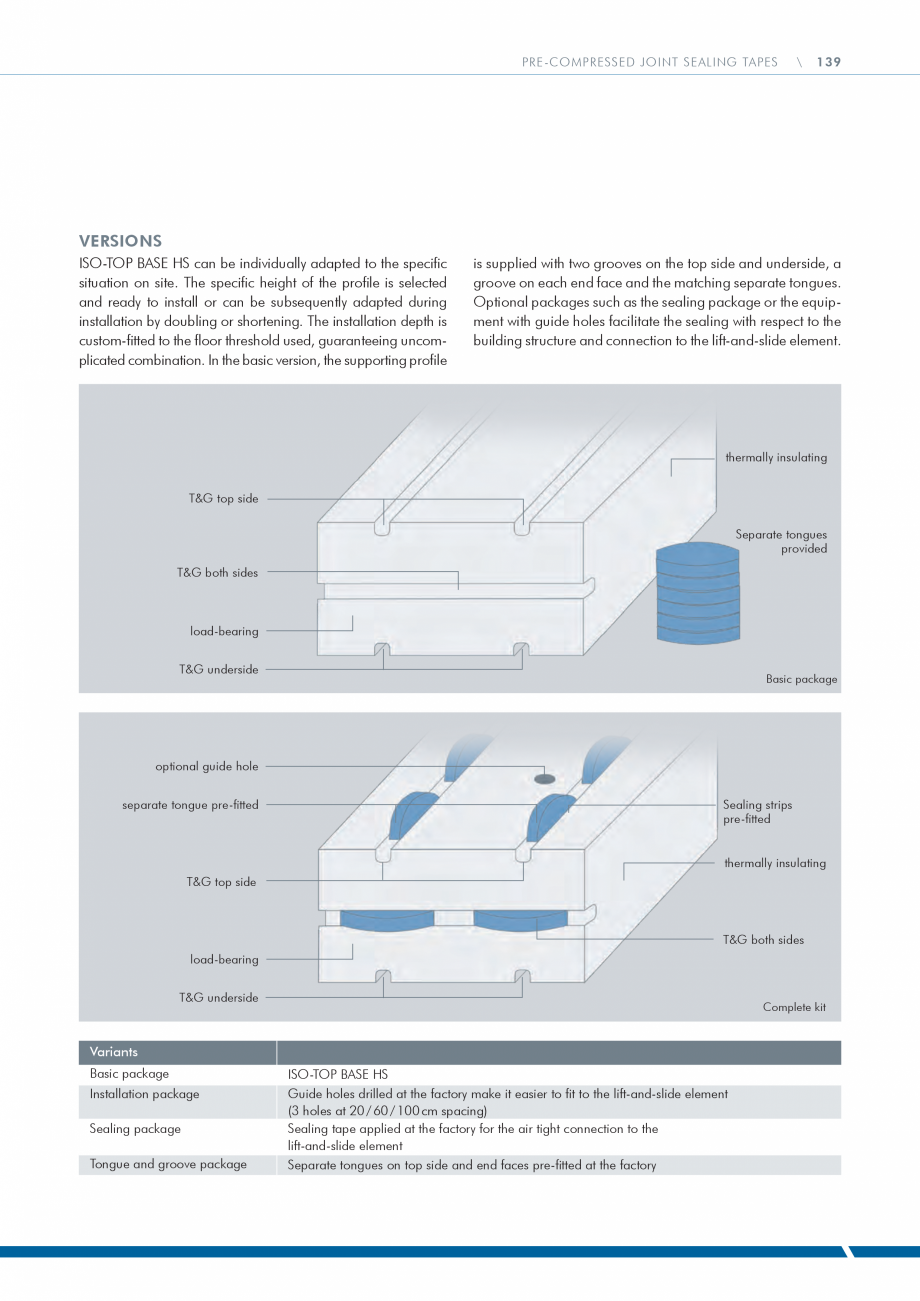

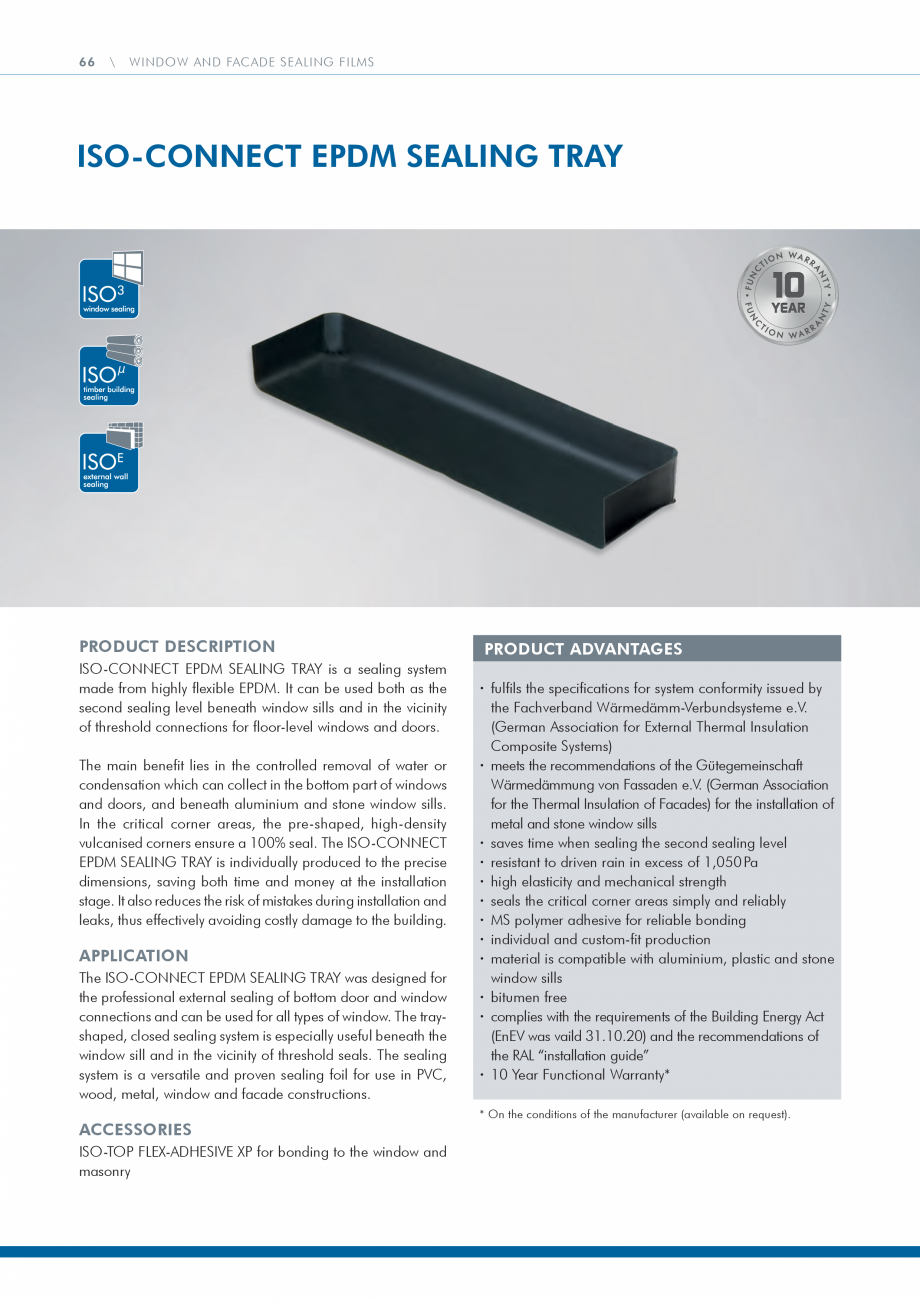

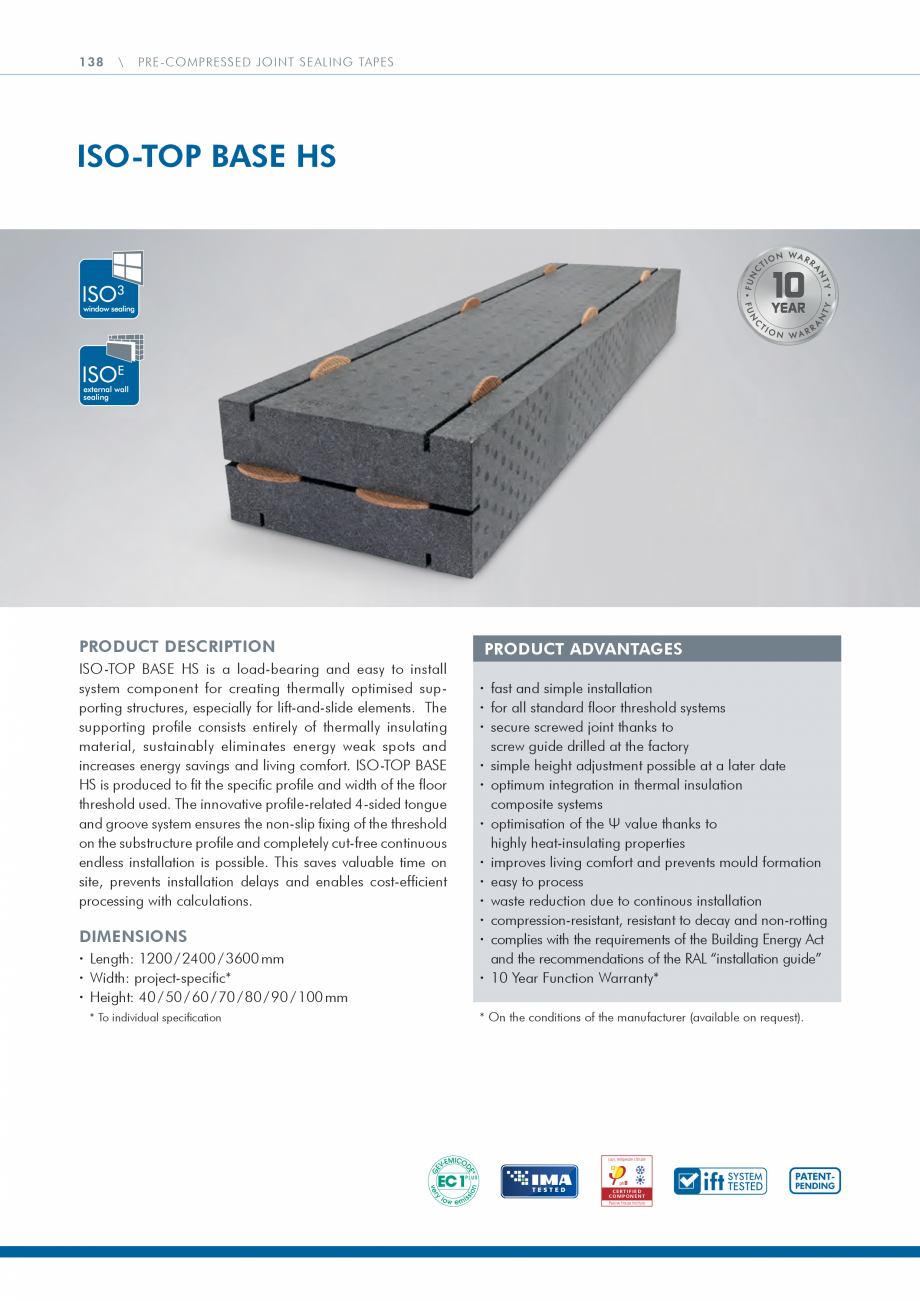

Pagina 140 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ills and in the vicinity...

ills and in the vicinity of threshold connections for floor-level windows and doors. The main benefit lies in the controlled removal of water or condensation which can collect in the bottom part of windows and doors, and beneath aluminium and stone window sills. In the critical corner areas, the pre-shaped, high-density vulcanised corners ensure a 100% seal. The ISO-CONNECT EPDM SEALING TRAY is individually produced to the precise dimensions, saving both time and money at the installation stage. It also reduces the risk of mistakes during installation and leaks, thus effectively avoiding costly damage to the building. APPLICATION The ISO-CONNECT EPDM SEALING TRAY was designed for the professional external sealing of bottom door and window connections and can be used for all types of window. The trayshaped, closed sealing system is especially useful beneath the window sill and in the vicinity of threshold seals. The sealing system is a versatile and proven sealing foil for use in PVC,

Pagina 140-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ills and in the vicinity
of threshold...

Pagina 141 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza wood, metal, window and ...

wood, metal, window and facade constructions. ACCESSORIES ISO-TOP FLEX-ADHESIVE XP for bonding to the window and masonry PRODUCT ADVANTAGES · fulfils the specifications for system conformity issued by the Fachverband Wärmedämm-Verbundsysteme e.V. (German Association for External Thermal Insulation Composite Systems) · meets the recommendations of the Gütegemeinschaft Wärmedämmung von Fassaden e.V. (German Association for the Thermal Insulation of Facades) for the installation of metal and stone window sills · saves time when sealing the second sealing level · resistant to driven rain in excess of 1,050 Pa · high elasticity and mechanical strength · seals the critical corner areas simply and reliably · MS polymer adhesive for reliable bonding · individual and custom-fit production · material is compatible with aluminium, plastic and stone window sills · bitumen free · complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommenda

Pagina 141-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza wood, metal, window and facade...

Pagina 142 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza tions of
the RAL...

tions of the RAL “installation guide” · 10 Year Functional Warranty* * On the conditions of the manufacturer (available on request). WINDOW AND FACADE SEALING FILMS Technical data Standard 67 Classification Material description synthetic caoutchouc on EPDM basis Colour black Building material class DIN EN 13501-1 E Air permeability coefficient Impermeable to driving rain DIN EN 12114 DIN EN 1027 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] ≥ 1050 Pa Bitumen compatible DIN 7864 part 1 bitumen compatible UV stability DIN 7864 part 1 UV resistant Ozone resistance DIN 7864 part 1 ozone resistant Water vapour diffusion resistance μ DIN EN 1931 60,000 +/- 18,000 Material thickness 0.8 mm and 1.2 mm ≥ 450 % Elongation at break DIN EN 12311-1 Tensile strength DIN EN 12311-1 ≥ 350 N / 50 mm Maximum tear resistance DIN EN 12310-1 ≥ 90 N Temperature stability range -30 °C to +110 °C Handling temperature +5 °C to +35 °C Dimension tolerance

Pagina 142-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza tions of
the RAL “installation...

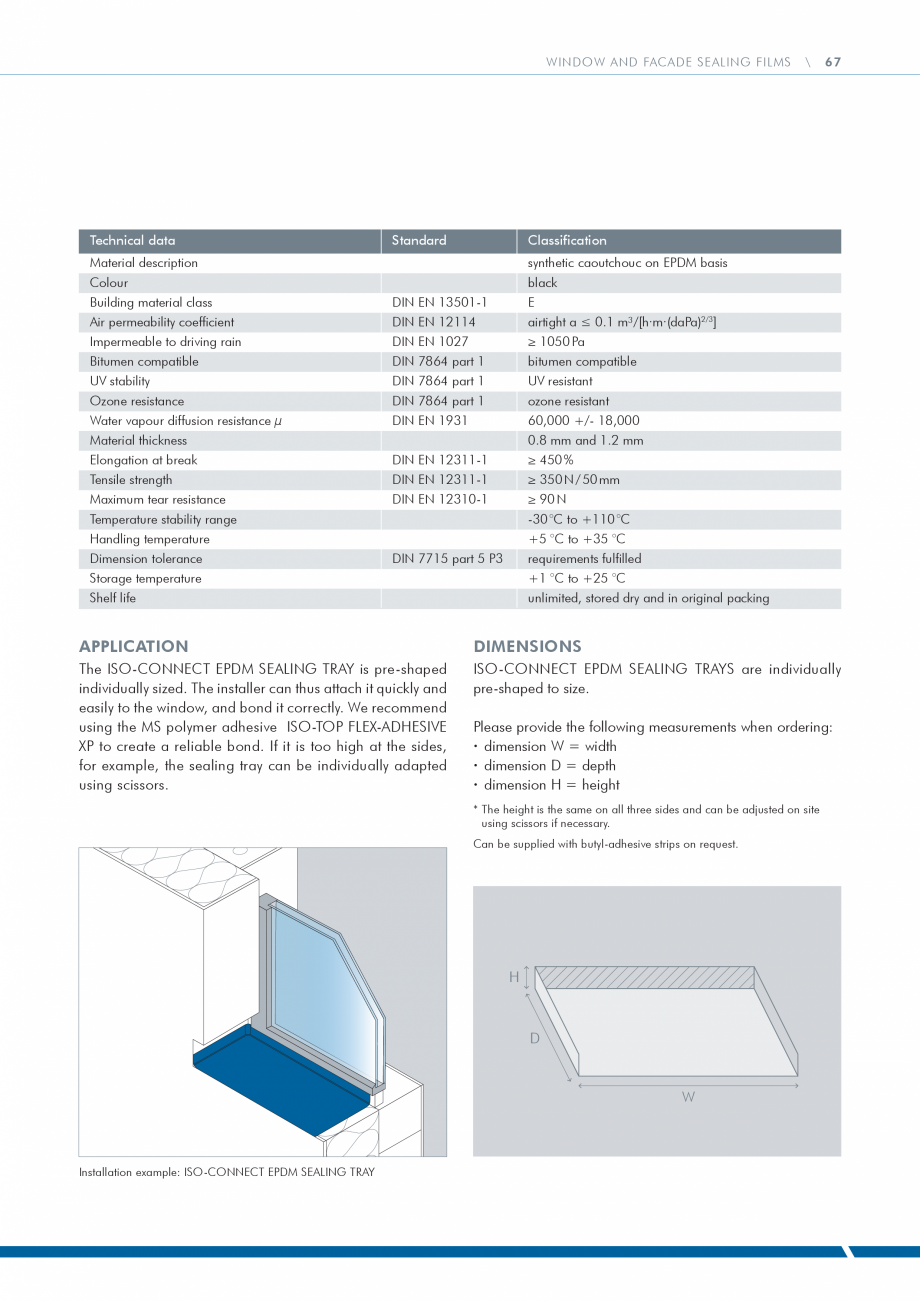

$Pagina 143 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza \ DIN 7715 part 5 P3 ...$ \ DIN 7715 part 5 P3 requirements fulfilled Storage temperature +1 °C to +25 °C Shelf life unlimited, stored dry and in original packing APPLICATION DIMENSIONS The ISO-CONNECT EPDM SEALING TRAY is pre-shaped individually sized. The installer can thus attach it quickly and easily to the window, and bond it correctly. We recommend using the MS polymer adhesive ISO-TOP FLEX-ADHESIVE XP to create a reliable bond. If it is too high at the sides, for example, the sealing tray can be individually adapted using scissors. ISO-CONNECT EPDM SEALING TRAYS are individually pre-shaped to size. Please provide the following measurements when ordering: · dimension W = width · dimension D = depth · dimension H = height * The height is the same on all three sides and can be adjusted on site using scissors if necessary. Can be supplied with butyl-adhesive strips on request. H D W Installation example: ISO-CONNECT EPDM SEALING TRAY 68 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT H

$Pagina 143-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza \ DIN 7715 part 5 P3 requirements...$

Pagina 144 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza B-BAND

PRODUCT...

B-BAND PRODUCT DESCRIPTION ISO-CONNECT HB-BAND is a highly pressure-resistant sealing strip that is primarily used in timber-framed buildings between the wall sole plate and foundation wall / floor slab as a capillary barrier. It is ideal for sealing against rising damp. It can be supplied ready prepared with: · two impregnated foam strips for absorbing tolerances and compensating for irregular masonry surfaces · two butyl self-adhesive strips for permanent fixing PRODUCT ADVANTAGES · · · · · · · · · permanent seal highly pressure-resistant excellent resistance to tearing weather resistant and UV stable impermeable to water vapour bitumen-compatible extremely temperature-resistant aids airtightness and thermal insulation flexible, even at low temperatures APPLICATION ISO-CONNECT HB-BAND is a specially-designed horizontal seal for timber-framed buildings. It prevents moisture migration from the supporting structure to the wall sole plate. With the addition of the impregna

Pagina 144-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza B-BAND

PRODUCT DESCRIPTION...

Pagina 145 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ted foam strips, it also...

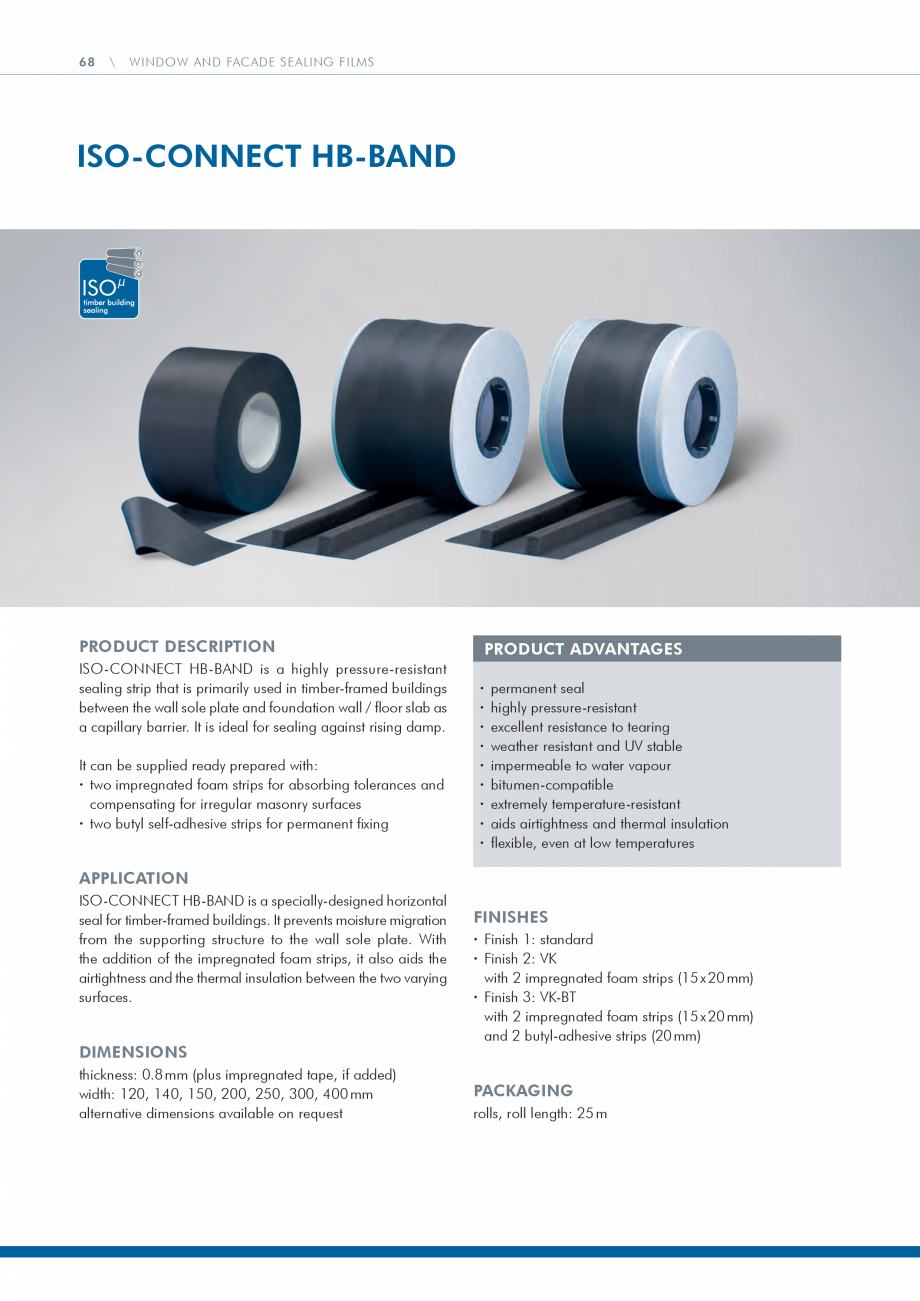

ted foam strips, it also aids the airtightness and the thermal insulation between the two varying surfaces. DIMENSIONS thickness: 0.8 mm (plus impregnated tape, if added) width: 120, 140, 150, 200, 250, 300, 400 mm alternative dimensions available on request FINISHES · Finish 1: standard · Finish 2: VK with 2 impregnated foam strips (15 x 20 mm) · Finish 3: VK-BT with 2 impregnated foam strips (15 x 20 mm) and 2 butyl-adhesive strips (20 mm) PACKAGING rolls, roll length: 25 m WINDOW AND FACADE SEALING FILMS Technical data Standard 69 Classification Material description synthetic caoutchouc on EPDM basis Colour black Building material class DIN 13501 T1 E Air permeability coefficient UV stability and ozone resistance DIN EN 12114 DIN 7864 T1 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] requirements fulfilled Water vapour diffusion resistance μ DIN EN 1931 32,000 Maximum tear resistance DIN 53504 ≥ 25 kN / m Tensile strength DIN 53504 ≥ 6.5 mPa Elongation

Pagina 145-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ted foam strips, it also aids the...

Pagina 146 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza at break

DIN 53504
...

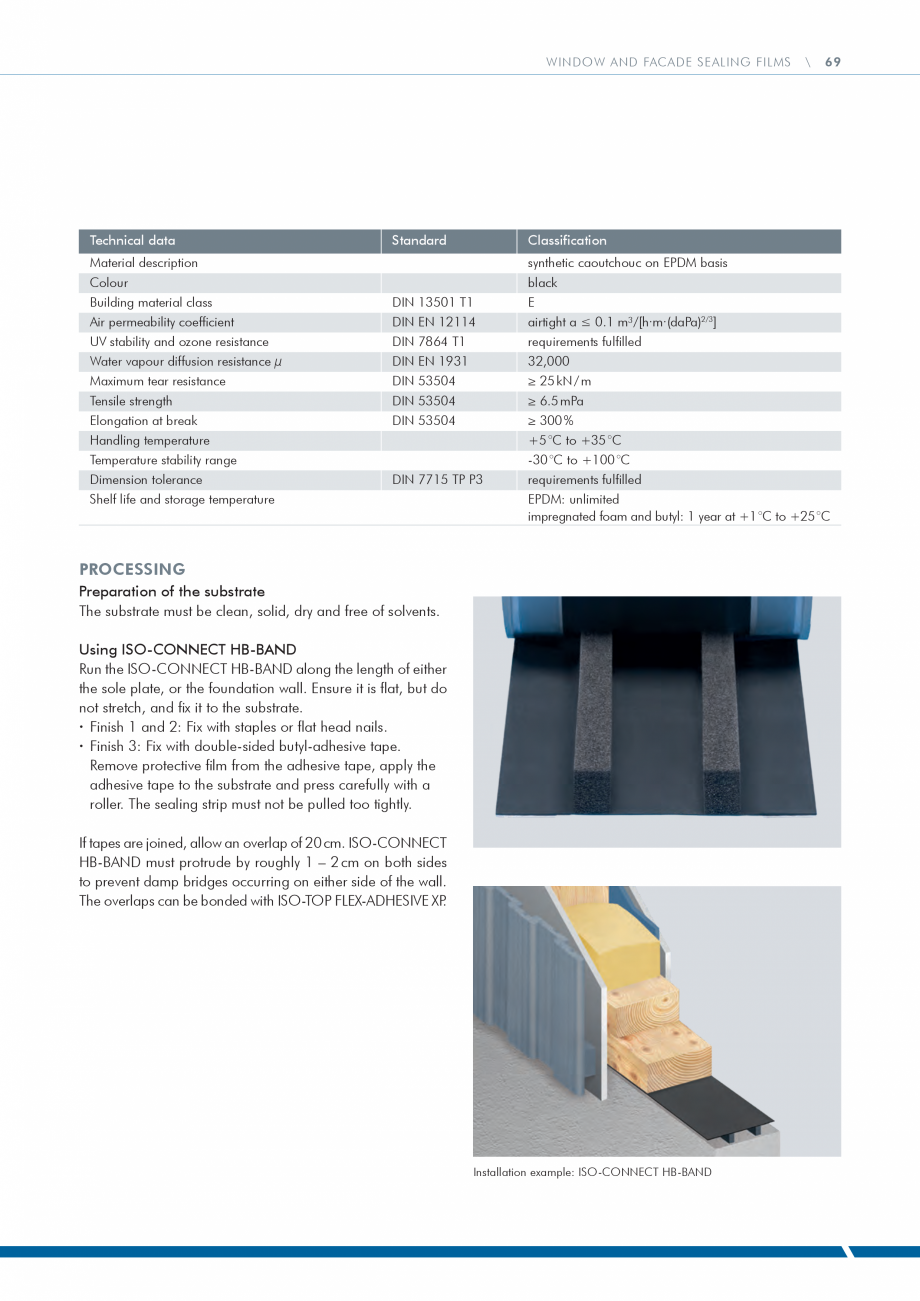

at break DIN 53504 ≥ 300 % Handling temperature +5 °C to +35 °C Temperature stability range Dimension tolerance \ -30 °C to +100 °C DIN 7715 TP P3 Shelf life and storage temperature requirements fulfilled EPDM: unlimited impregnated foam and butyl: 1 year at +1 °C to +25 °C PROCESSING Preparation of the substrate The substrate must be clean, solid, dry and free of solvents. Using ISO-CONNECT HB-BAND Run the ISO-CONNECT HB-BAND along the length of either the sole plate, or the foundation wall. Ensure it is flat, but do not stretch, and fix it to the substrate. · Finish 1 and 2: Fix with staples or flat head nails. · Finish 3: Fix with double-sided butyl-adhesive tape. Remove protective film from the adhesive tape, apply the adhesive tape to the substrate and press carefully with a roller. The sealing strip must not be pulled too tightly. If tapes are joined, allow an overlap of 20 cm. ISO-CONNECT HB-BAND must protrude by roughly 1 – 2 cm on both sides to prevent d

Pagina 146-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza at break

DIN 53504

≥ 300 %
...

Pagina 147 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza amp bridges occurring on...

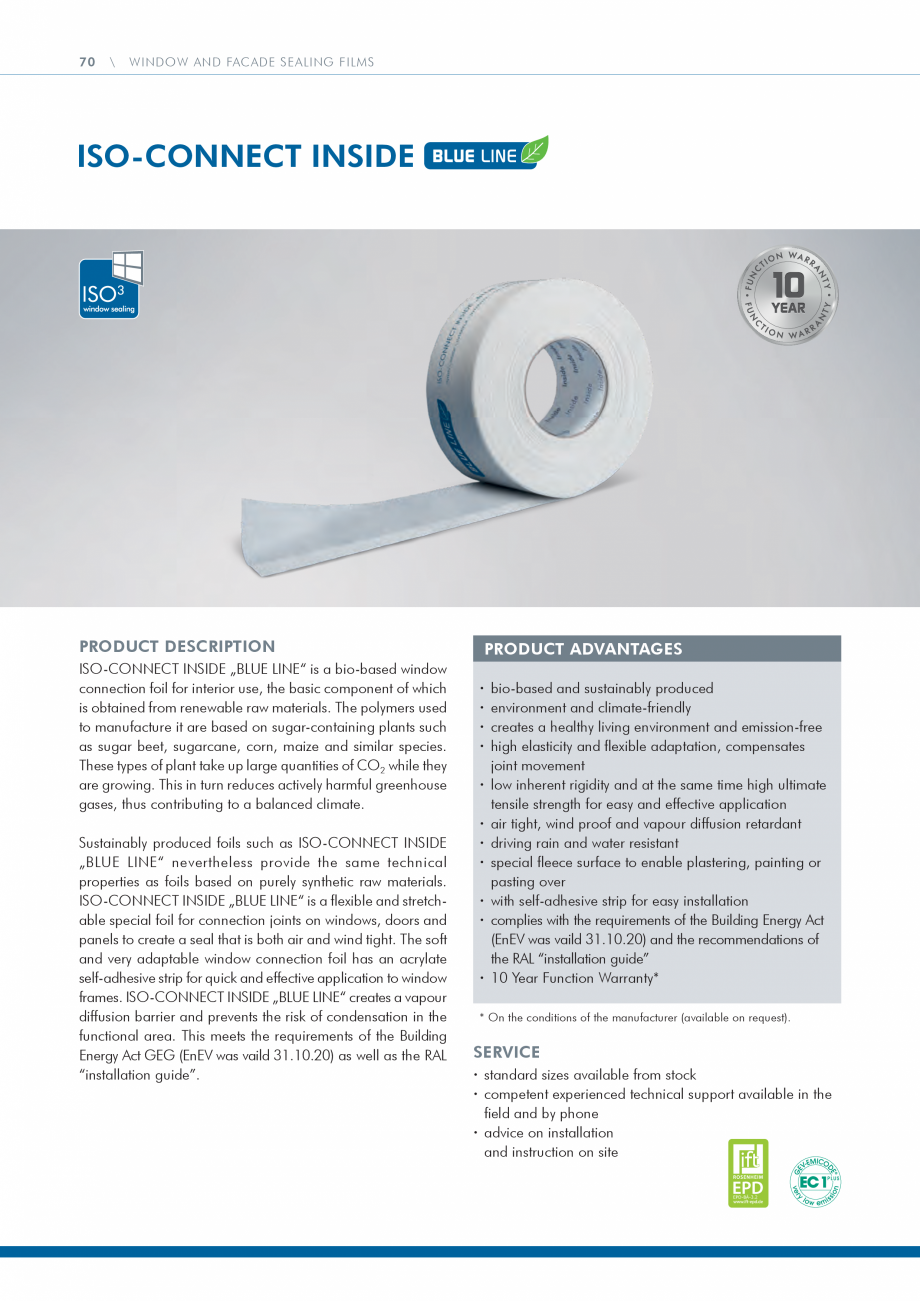

amp bridges occurring on either side of the wall. The overlaps can be bonded with ISO-TOP FLEX-ADHESIVE XP. Installation example: ISO-CONNECT HB-BAND 70 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT INSIDE PRODUCT DESCRIPTION ISO-CONNECT INSIDE „BLUE LINE“ is a bio-based window connection foil for interior use, the basic component of which is obtained from renewable raw materials. The polymers used to manufacture it are based on sugar-containing plants such as sugar beet, sugarcane, corn, maize and similar species. These types of plant take up large quantities of CO2 while they are growing. This in turn reduces actively harmful greenhouse gases, thus contributing to a balanced climate. Sustainably produced foils such as ISO-CONNECT INSIDE „BLUE LINE“ nevertheless provide the same technical properties as foils based on purely synthetic raw materials. ISO-CONNECT INSIDE „BLUE LINE“ is a flexible and stretchable special foil for connection joints on windows, doors and p

Pagina 147-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza amp bridges occurring on either side ...

Pagina 148 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza anels to create a seal...

anels to create a seal that is both air and wind tight. The soft and very adaptable window connection foil has an acrylate self-adhesive strip for quick and effective application to window frames. ISO-CONNECT INSIDE „BLUE LINE“ creates a vapour diffusion barrier and prevents the risk of condensation in the functional area. This meets the requirements of the Building Energy Act GEG (EnEV was vaild 31.10.20) as well as the RAL “installation guide”. PRODUCT ADVANTAGES · · · · · · · · · · · bio-based and sustainably produced environment and climate-friendly creates a healthy living environment and emission-free high elasticity and flexible adaptation, compensates joint movement low inherent rigidity and at the same time high ultimate tensile strength for easy and effective application air tight, wind proof and vapour diffusion retardant driving rain and water resistant special fleece surface to enable plastering, painting or pasting over with self-adhesive strip for e

Pagina 148-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza anels to create a seal that is both...

Pagina 149 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza asy installation...

asy installation complies with the requirements of the Building Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). SERVICE · standard sizes available from stock · competent experienced technical support available in the field and by phone · advice on installation and instruction on site WINDOW AND FACADE SEALING FILMS \ 71 INSTALLATION Technical data Standard Classification Material description bio-based polymer foil based on renewable raw materials white Colour Impermeable to driving rain, single joint DIN EN 1027 ≥ 1,050 Pa Air permeability coefficient DIN EN 12114 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] UV stability approx. 3 months Temperature stability range internal approx. -40 °C to +80 °C sd-value DIN EN ISO 12572 approx. 20 m Flexibility at -23 °C. internal no breaks, no tears Fire behaviour DI

Pagina 149-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza asy installation
complies with the...

Pagina 150 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza N EN 13501

E

Dimension...

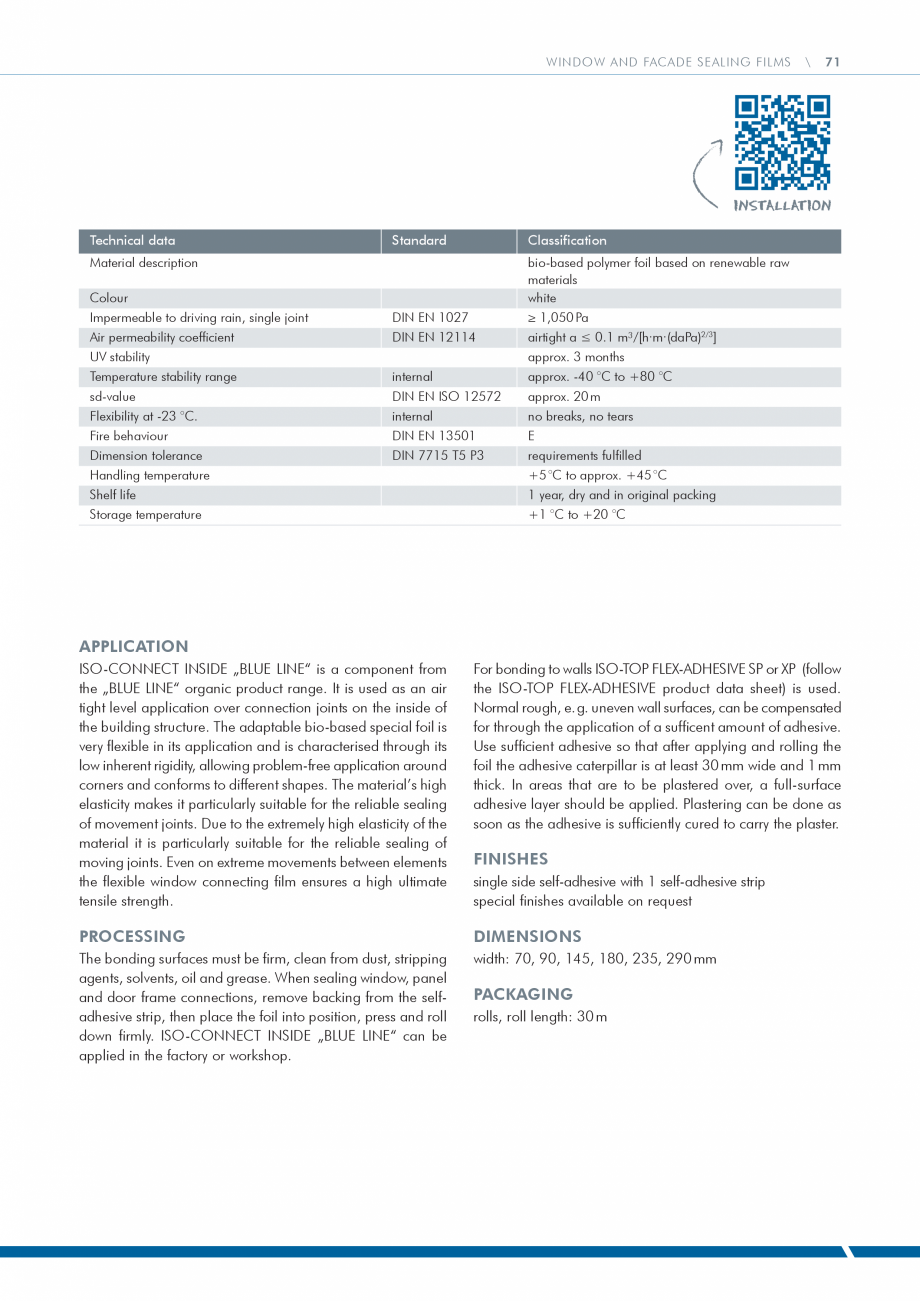

N EN 13501 E Dimension tolerance DIN 7715 T5 P3 requirements fulfilled Handling temperature +5 °C to approx. +45 °C Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C APPLICATION ISO-CONNECT INSIDE „BLUE LINE“ is a component from the „BLUE LINE“ organic product range. It is used as an air tight level application over connection joints on the inside of the building structure. The adaptable bio-based special foil is very flexible in its application and is characterised through its low inherent rigidity, allowing problem-free application around corners and conforms to different shapes. The material’s high elasticity makes it particularly suitable for the reliable sealing of movement joints. Due to the extremely high elasticity of the material it is particularly suitable for the reliable sealing of moving joints. Even on extreme movements between elements the flexible window connecting film ensures a high ultimate tensile strength.

Pagina 150-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza N EN 13501

E

Dimension tolerance
...

Pagina 151 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza For bonding to walls...

For bonding to walls ISO-TOP FLEX-ADHESIVE SP or XP (follow the ISO-TOP FLEX-ADHESIVE product data sheet) is used. Normal rough, e. g. uneven wall surfaces, can be compensated for through the application of a sufficent amount of adhesive. Use sufficient adhesive so that after applying and rolling the foil the adhesive caterpillar is at least 30 mm wide and 1 mm thick. In areas that are to be plastered over, a full-surface adhesive layer should be applied. Plastering can be done as soon as the adhesive is sufficiently cured to carry the plaster. FINISHES single side self-adhesive with 1 self-adhesive strip special finishes available on request PROCESSING DIMENSIONS The bonding surfaces must be firm, clean from dust, stripping agents, solvents, oil and grease. When sealing window, panel and door frame connections, remove backing from the selfadhesive strip, then place the foil into position, press and roll down firmly. ISO-CONNECT INSIDE „BLUE LINE“ can be applied in the factory

Pagina 151-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza For bonding to walls ISO-TOP...

Pagina 152 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza or workshop.

width: 70,...

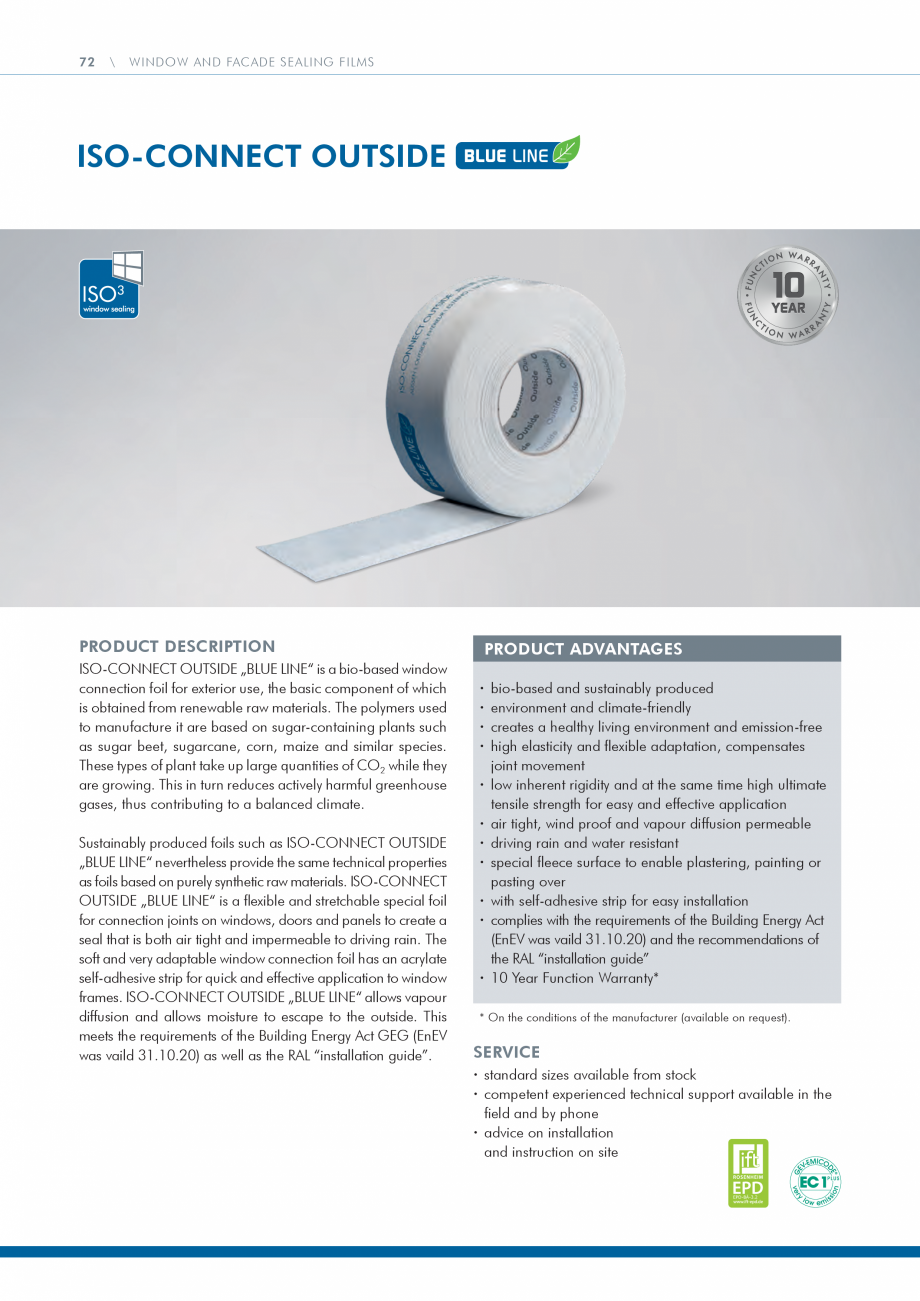

or workshop. width: 70, 90, 145, 180, 235, 290 mm PACKAGING rolls, roll length: 30 m 72 \ WINDOW AND FACADE SEALING FILMS ISO-CONNECT OUTSIDE PRODUCT DESCRIPTION ISO-CONNECT OUTSIDE „BLUE LINE“ is a bio-based window connection foil for exterior use, the basic component of which is obtained from renewable raw materials. The polymers used to manufacture it are based on sugar-containing plants such as sugar beet, sugarcane, corn, maize and similar species. These types of plant take up large quantities of CO2 while they are growing. This in turn reduces actively harmful greenhouse gases, thus contributing to a balanced climate. Sustainably produced foils such as ISO-CONNECT OUTSIDE „BLUE LINE“ nevertheless provide the same technical properties as foils based on purely synthetic raw materials. ISO-CONNECT OUTSIDE „BLUE LINE“ is a flexible and stretchable special foil for connection joints on windows, doors and panels to create a seal that is both air tight and impermeabl

Pagina 152-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza or workshop.

width: 70, 90, 145, 180...

Pagina 153 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e to driving rain. The...

e to driving rain. The soft and very adaptable window connection foil has an acrylate self-adhesive strip for quick and effective application to window frames. ISO-CONNECT OUTSIDE „BLUE LINE“ allows vapour diffusion and allows moisture to escape to the outside. This meets the requirements of the Building Energy Act GEG (EnEV was vaild 31.10.20) as well as the RAL “installation guide”. PRODUCT ADVANTAGES · · · · · · · · · · · bio-based and sustainably produced environment and climate-friendly creates a healthy living environment and emission-free high elasticity and flexible adaptation, compensates joint movement low inherent rigidity and at the same time high ultimate tensile strength for easy and effective application air tight, wind proof and vapour diffusion permeable driving rain and water resistant special fleece surface to enable plastering, painting or pasting over with self-adhesive strip for easy installation complies with the requirements of the Building

Pagina 153-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza e to driving rain. The
soft and very ...

Pagina 154 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza Energy Act
(EnEV was...

Energy Act (EnEV was vaild 31.10.20) and the recommendations of the RAL “installation guide” 10 Year Function Warranty* * On the conditions of the manufacturer (available on request). SERVICE · standard sizes available from stock · competent experienced technical support available in the field and by phone · advice on installation and instruction on site WINDOW AND FACADE SEALING FILMS \ 73 INSTALLATION Technical data Standard Classification Material description bio-based polymer foil based on renewable raw materials white Colour Impermeable to driving rain, single joint DIN EN 1027 ≥ 1,050 Pa Air permeability coefficient DIN EN 12114 airtight a ≤ 0.1 m³/[h·m·(daPa)2/3] UV stability approx. 3 months Temperature stability range internal approx. -40 °C to +80 °C sd-value DIN EN ISO 12572 approx. 0.5 m Flexibility at -23 °C. internal no breaks, no tears Fire behaviour DIN EN 13501 E Dimension tolerance DIN 7715 T5 P3 requiremen

Pagina 154-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza Energy Act
(EnEV was vaild 31.10.20)...

Pagina 155 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ts fulfilled

Handling...

ts fulfilled Handling temperature +5 °C to approx. +45 °C Shelf life 1 year, dry and in original packing Storage temperature +1 °C to +20 °C APPLICATION ISO-CONNECT OUTSIDE „BLUE LINE“ is a component from the „BLUE LINE“ organic product range. It is used as weather protection for bonding over connection joints on the outside structure of buildings. The adaptable bio-based special foil is very flexible in its application and is characterised through its low inherent rigidity, allowing problem-free application around corners and conforms to different shapes. The material’s high elasticity makes it particularly suitable for the reliable sealing of movement joints. Due to the extremely high elasticity of the material it is particularly suitable for the reliable sealing of moving joints. Even on extreme movements between elements the flexible window connecting film ensures a high ultimate tensile strength. For bonding to walls ISO-TOP FLEX-ADHESIVE SP or XP (follow the

Pagina 155-Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ts fulfilled

Handling temperature
...

Pagina 156 - Catalog produse ISO CHEMIE ISO Chemie Catalog, brosura Engleza ISO-TOP FLEX-ADHESIVE...

ISO-TOP FLEX-ADHESIVE product data sheet) is used. Normal rough, e. g. uneven wall surfaces, can be compensated for through the application of a sufficent amount of adhesive. Use sufficient adhesive so that after applying and rolling the foil the adhesive caterpillar is at least 30 mm wide and 1 mm thick. In areas that are to be plastered over, a full-surface adhesive layer should be applied. Plastering can be done as soon as the adhesive is sufficiently cured to carry the plaster. FINISHES single side self-adhesive with 1 self-adhesive strip special finishes available on request PROCESSING DIMENSIONS The bonding surfaces must be firm, clean from dust, stripping agents, solvents, oil and grease. When sealing window, panel and door frame connections, remove backing from the selfadhesive strip, then place the foil into position, press and roll down firmly. ISO-CONNECT OUTSIDE „BLUE LINE“ can be applied in the factory or workshop. width: 70, 90, 145, 180, 235, 290 mm PACKAGING
