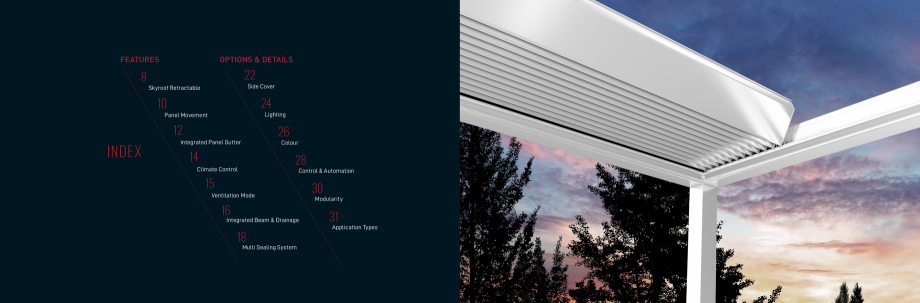

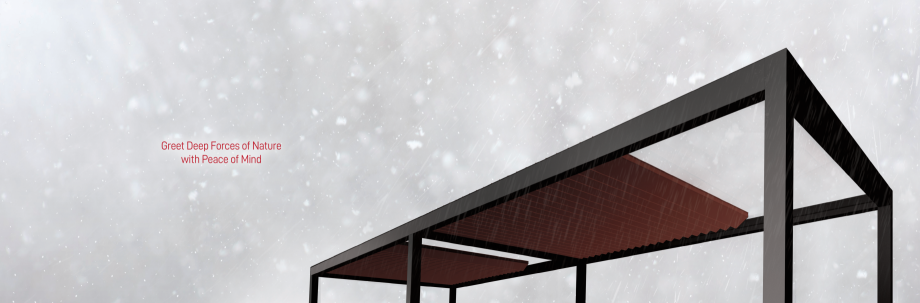

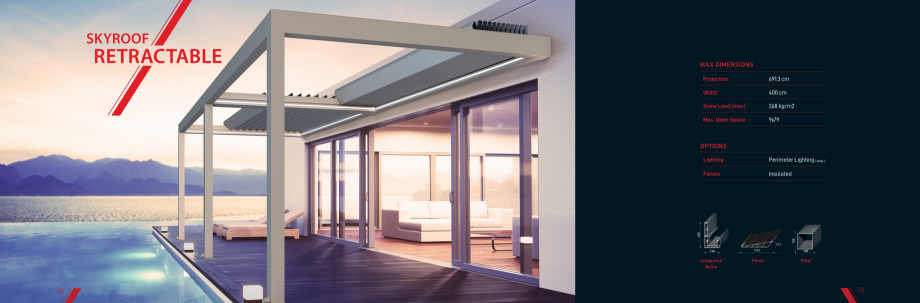

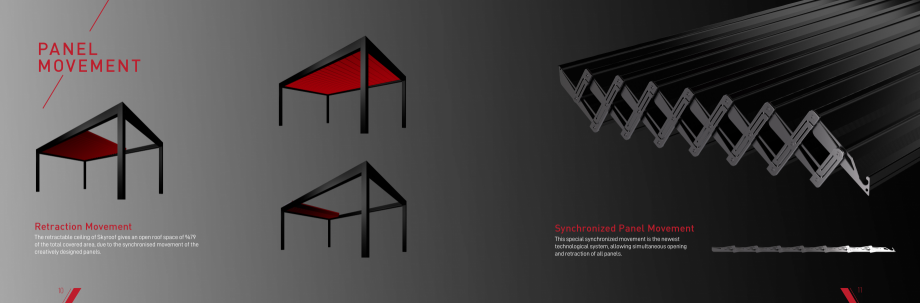

Spaces to live for FEATURES OPTIONS & DETAILS 22 8 Side Cover Skyroof Retractable 24 10 Lighting Panel Movement 12 INDE X 26 Integrated Panel Gutter Colour 14 28 Climate Control Control & Automation 15 Ventilation Mode 16 Integrated Beam & Drainage 18 Multi Sealing System 30 Modularity 31 Application Types Greet Deep Forces of Nature with Peace of Mind SKYROOF RETRACTABLE MAX DIMENSIONS Projection 691,3 cm Width 400 cm Snow Load (max) 268 kg/m2 Max. Open Space %79 OPTIONS Lighting Perimeter Lighting ( only ) Panels Insulated 57,7 315.4 Integrated Beam 08 Panel Pillar 09 PA NEL MOV EMENT Retraction Movement The retractable ceiling of Skyroof gives an open roof space of %79 of the total covered area, due to the synchronised movement of the creatively designed panels. 10 Synchronized Panel Movement This special synchronized movement is the newest technological system, allowing simultaneous opening and retraction of all panels. 11

Pagina 1-Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT Gala G3, PGT...

Pagina 2 - Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT...

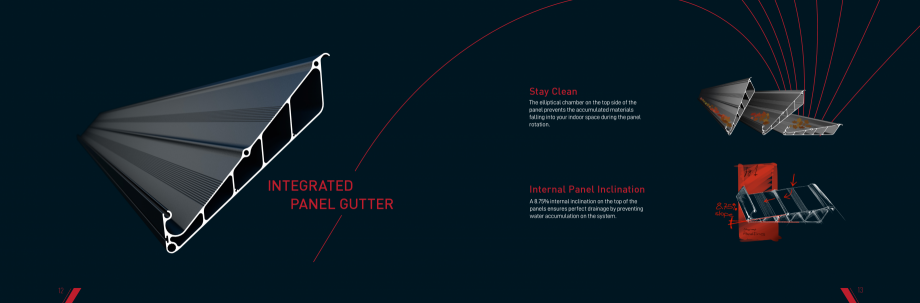

Stay Clean The elliptical chamber on the top side of the panel prevents the accumulated materials falling into your indoor space during the panel rotation. INTEGRATED PANEL GUTTER 12 Internal Panel Inclination A 8.75% internal inclination on the top of the panels ensures perfect drainage by preventing water accumulation on the system. 13 CLIMATE CONTROL VENTILATION MODE Insulated Insulated Panels Panels can be filled with Polyurethane Foam which provides extra comfort. It significantly helps to reduce condensation. Standard Air Tunnels The panel structure provides certain level of insulation. 14 ‘MY’ button on your remote control allows you to refresh the air with a single touch and provide fresh air in to the room ; while “Connexoon” feature supports creating your own ventilation scenario via your smartphones. 15 Integrated Drainage System INTEGRATED BEAM & DRAINAGE SYSTEM The hidden section of the drainage system is ingeniously integrated. The integrated b

Pagina 2-Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT Gala G3, PGT...

Pagina 3 - Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT...

eam is the main carcass of the whole Retractable Skyroof system. All loads are shared equally to its structure. It also features an integrated gutter for drainage system. Distribution Pieces The distribution pieces route and accelerate the water through the pillars. Specially designed aluminum panels guide the water through integrated gutters on all sides. Water evacuates from the Integrated Beam. Water Blocking Barrier The barrier blocks water to run inside the air tunnels. 16 17 MULTI-SEALING SYSTEM Upper Gasket Synchronized moving panels during the closing movement simultaneously presses the gaskets located on the integrated beams and thus ensure maximum insulation. Central Gasket Base Gasket Panel Interlock Thanks to the synchronous closing movement of the panels, the gaskets on the panels are clamped together at the same time and a complete insulation is provided between the panels. 18 19 D E TA I L S OPTIONS SIDE COVER OPTIONS For environmental protection or t

Pagina 3-Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT Gala G3, PGT...

Pagina 4 - Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT...

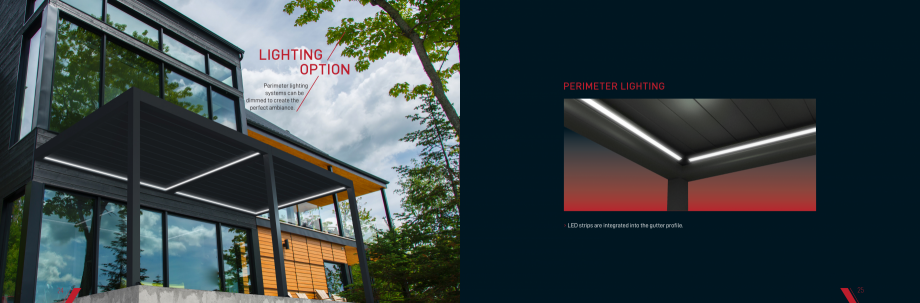

o create outdoor living areas used throughout four seasons, Skyroof Retractable sides can be covered by glass, vertical blinds, and aluminium panels. Blinds and Awnings 22 Louvers Glass Systems 23 LIGHTING OPTION Perimeter lighting systems can be dimmed to create the perfect ambiance. PERIMETER LIGHTING › LED strips are integrated into the gutter profile. 24 25 Colour Combinations Panels can be painted with different colours than the main structure. COLOUR OPTIONS Choose your colour or colour combinations (dual colour). We coat our profiles with electrostatic powder paint using advanced Nanotechnology. 26 27 CONTROL & AUTOMATION CONNEXOON Designed to easily control your product wherever you are in the world, despite the weather changes you can remotely activate your products accordingly. Compatible with iOS and Android smartphone systems. You can assign multiple functions through created scenarios, you can give a one-touch command. A A * B Telis 1 Elegant desi

Pagina 4-Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT Gala G3, PGT...

Pagina 5 - Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT...

gn that allows you to easily control your product. * The standard control unity. B Lounge Elegant design with black color. C Patio IP 66 water-proof feature for outdoor use. E D C D 16-channel ergonomic design that allows you to control all functions at the same time from one control.By digital screen feature you can control different products with a symbol and a number given for different products. E Functional design that allows the adjustment of the illuminations to the desired level with the Roller feature. MULTI CHANNEL OPTIONS Telis 1 is remote control with 1 channel, while the Telis 4 has got 4 channels. Telis 4 option is available for Pure, Lounge, Patio, RTS Lounge Roller and RTS Pure Roller. 28 29 4 MODULES 2 MODULES MODULARITY APPLICATION TYPES FREESTANDING 2-Module-Connector WALL MOUNTED SKYROOF Retractable offers a wide variety of modular construction possibilities by means of its flexible and compact structural design. P ro jec tion Wid SKYROOF M

Pagina 5-Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT Gala G3, PGT...

Pagina 6 - Catalog pentru pergole solare LLAZA Ellit Mino, Ellite Mino Wood, PGT Silver 1-4, PGT...

ax. Width th SKYROOF 400 cm Max. Projection 691, 3 cm Max. Width* 400 cm Max. Projection 691, 3 cm *2,8 cm bracket width needs to be added. Skyroof Retractable manufactured with four pillars up to a projection measure of 579,9 cm. Above this, one more pillar needs to be added for each of projection sides. 4-Module-Connector 30 The projection measure changes in multiples of 31,54 cm. 31 32 33 34 35 36 37 5-YEAR WARRANTY All our products have up to 5 years guarantee for the construction and motor. The electronics and remote controlsareguaranteedfor 2 years. www.palmiye.eu
