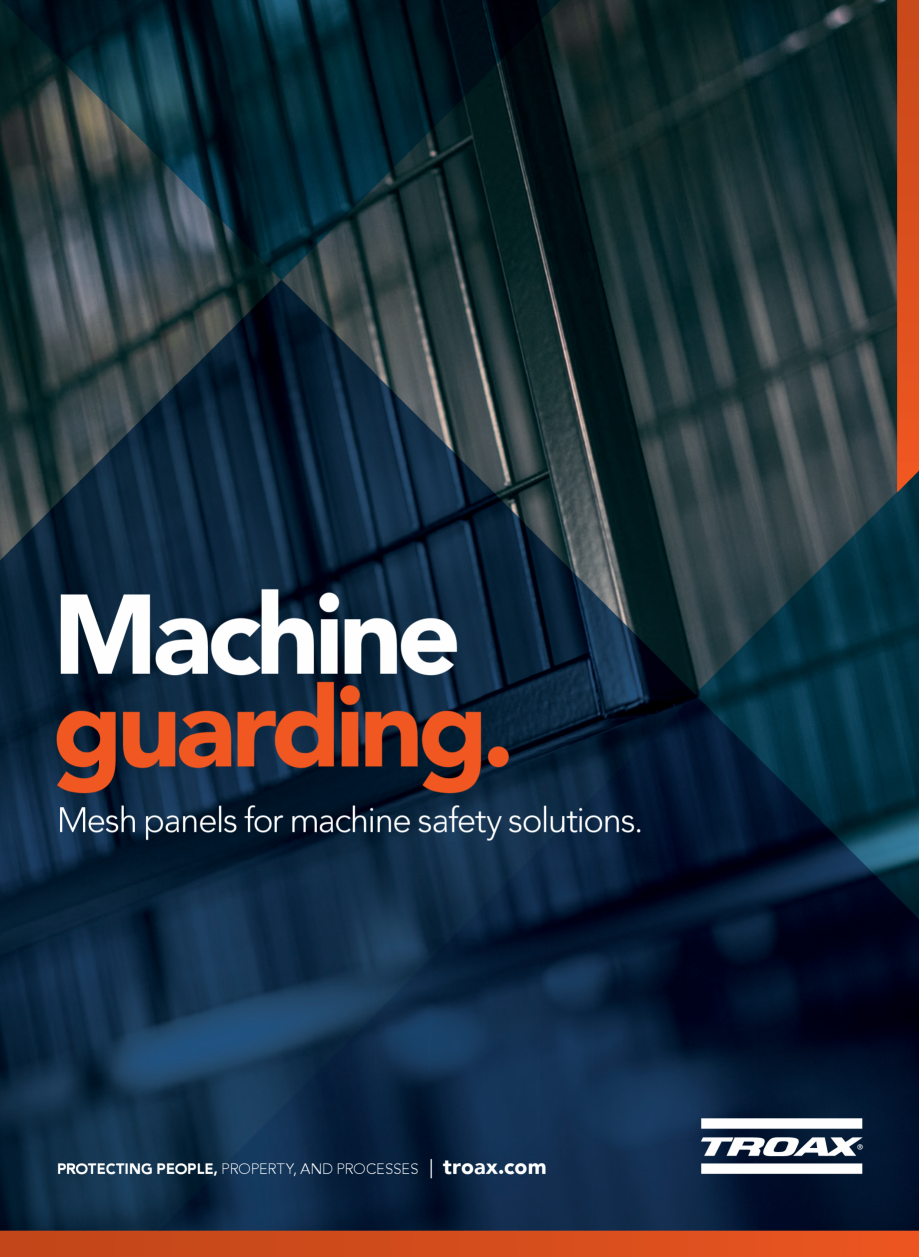

Machine
guarding.
Mesh panels for machine safety solutions.
PROTECTING PEOPLE, PROPERTY, AND PROCESSES
troax.com

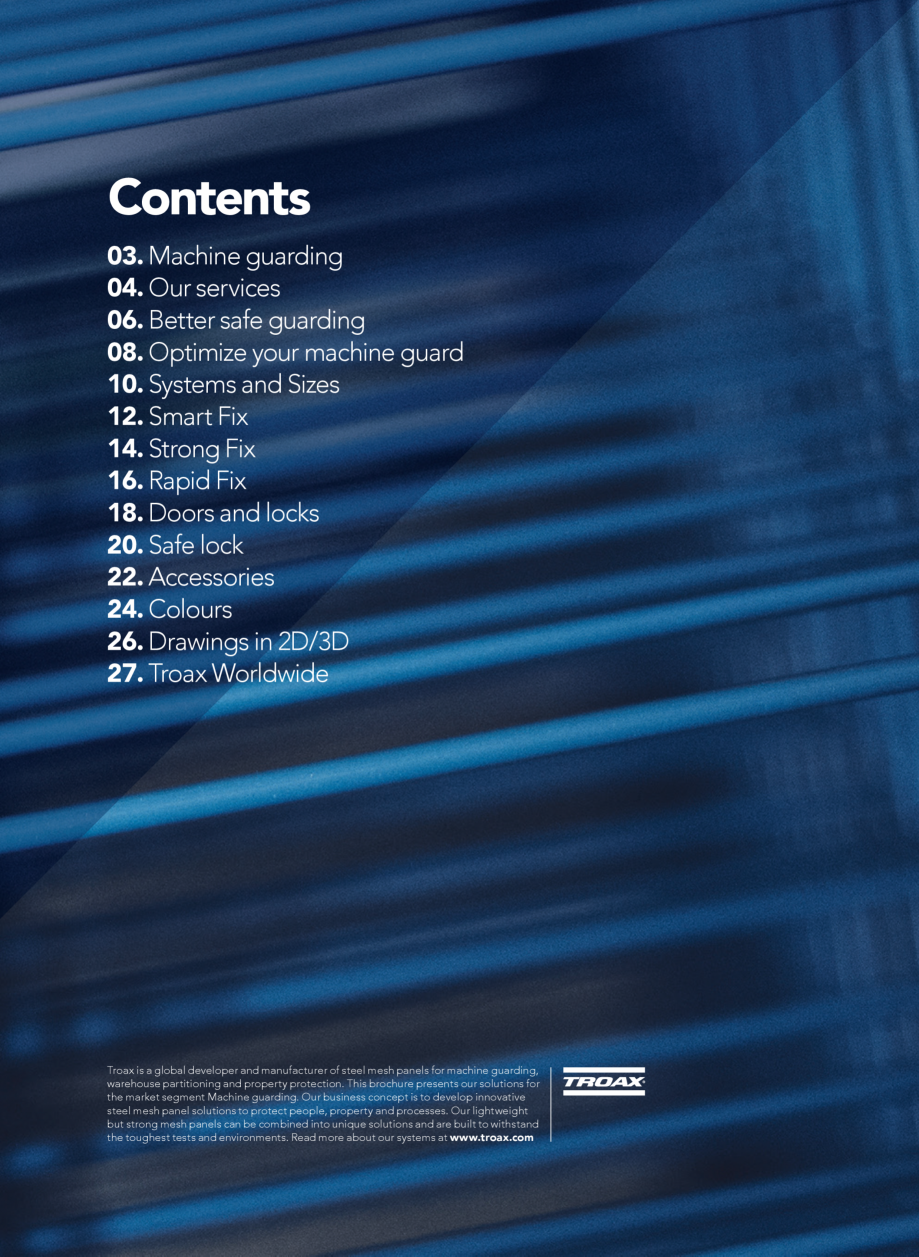

Contents
03. Machine guarding
04. Our services
06. Better safe guarding
08. Optimize your machine guard
10. Systems and Sizes
12. Smart Fix
14. Strong Fix
16. Rapid Fix

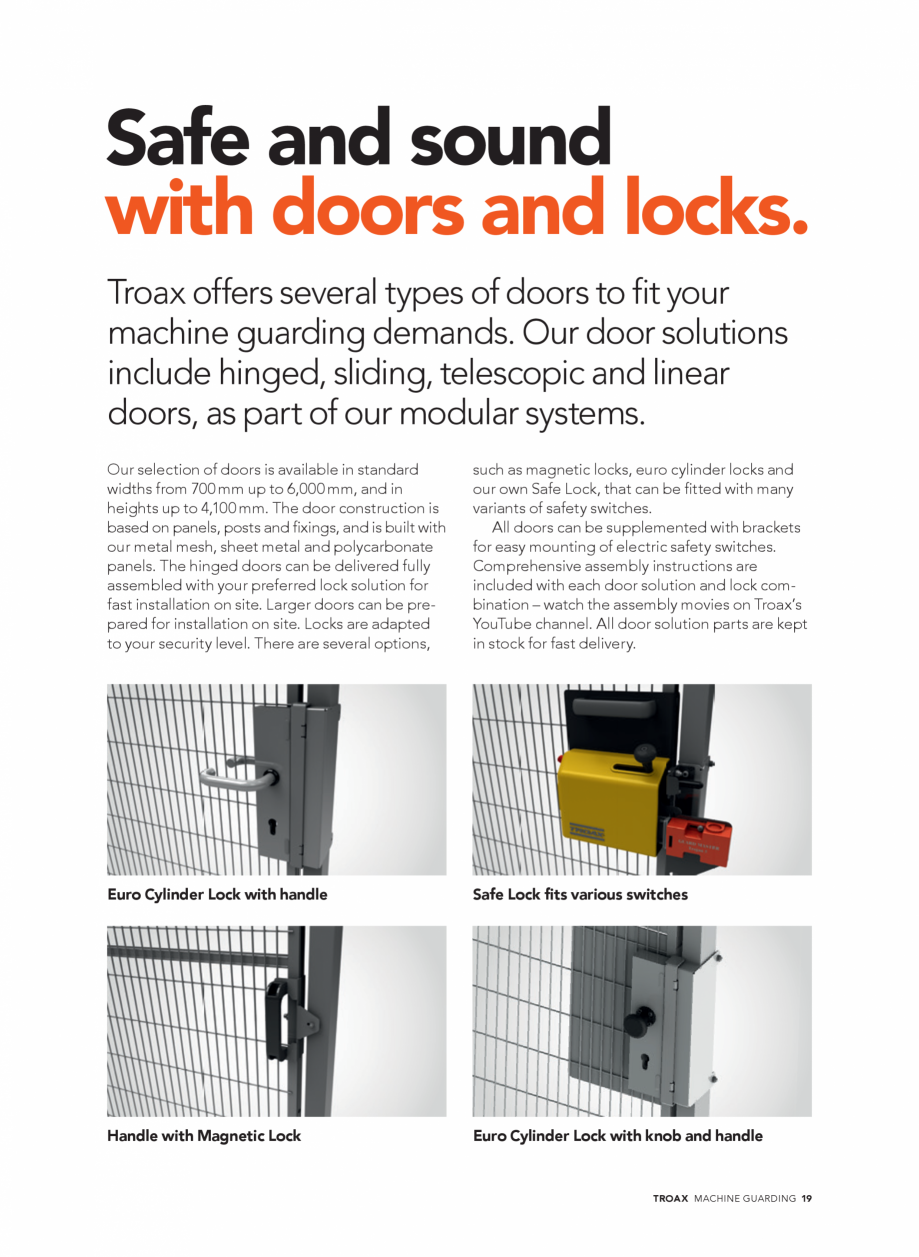

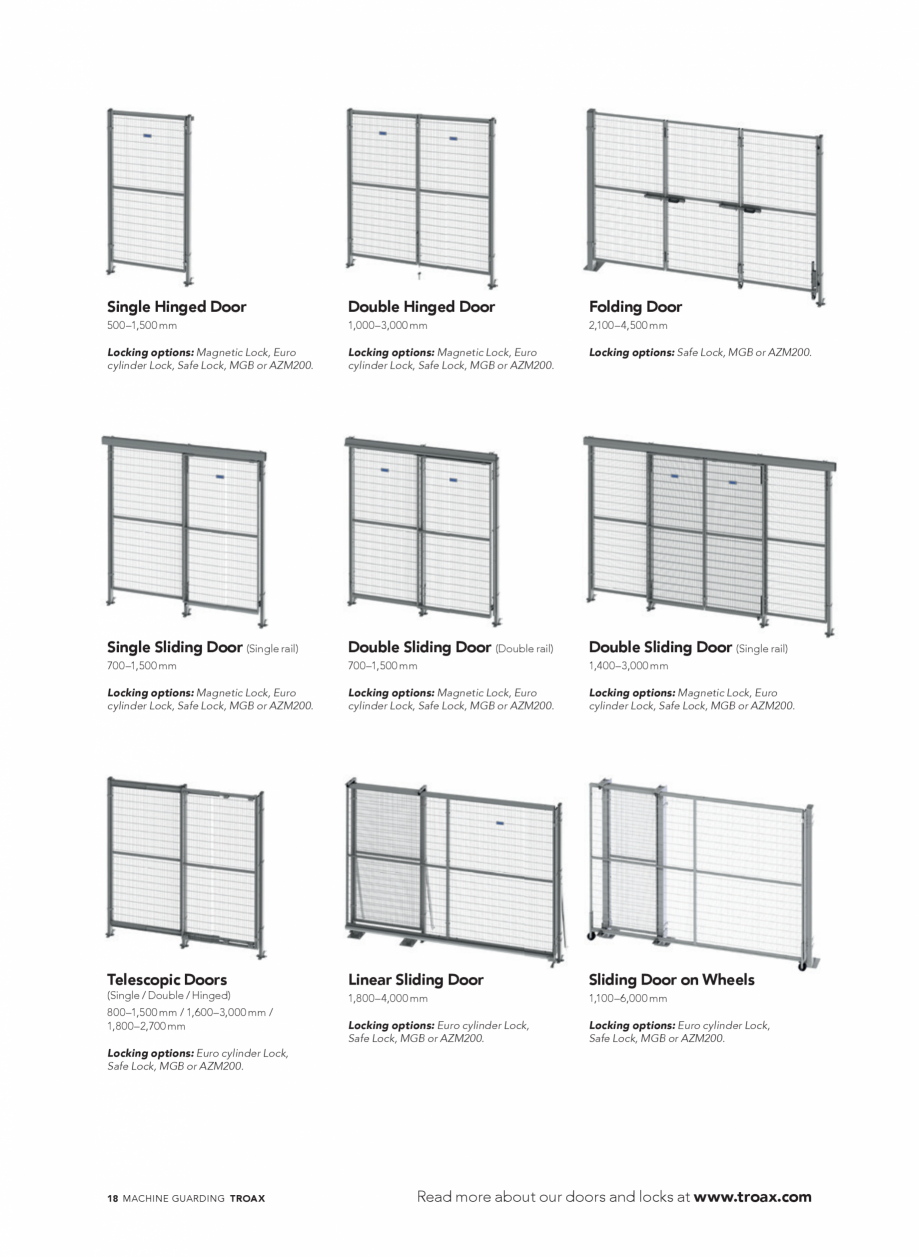

18. Doors and locks
20. Safe lock

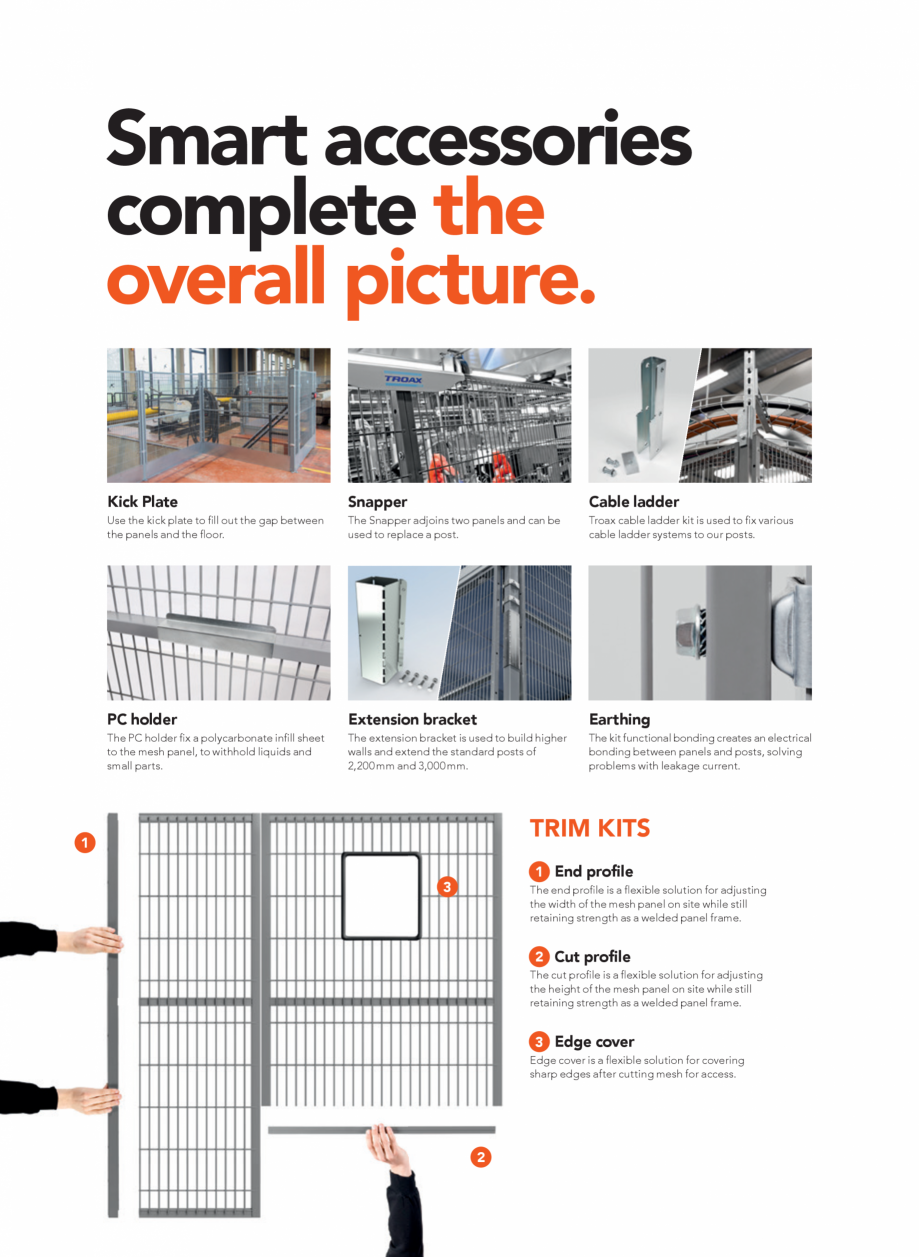

22. Accessories

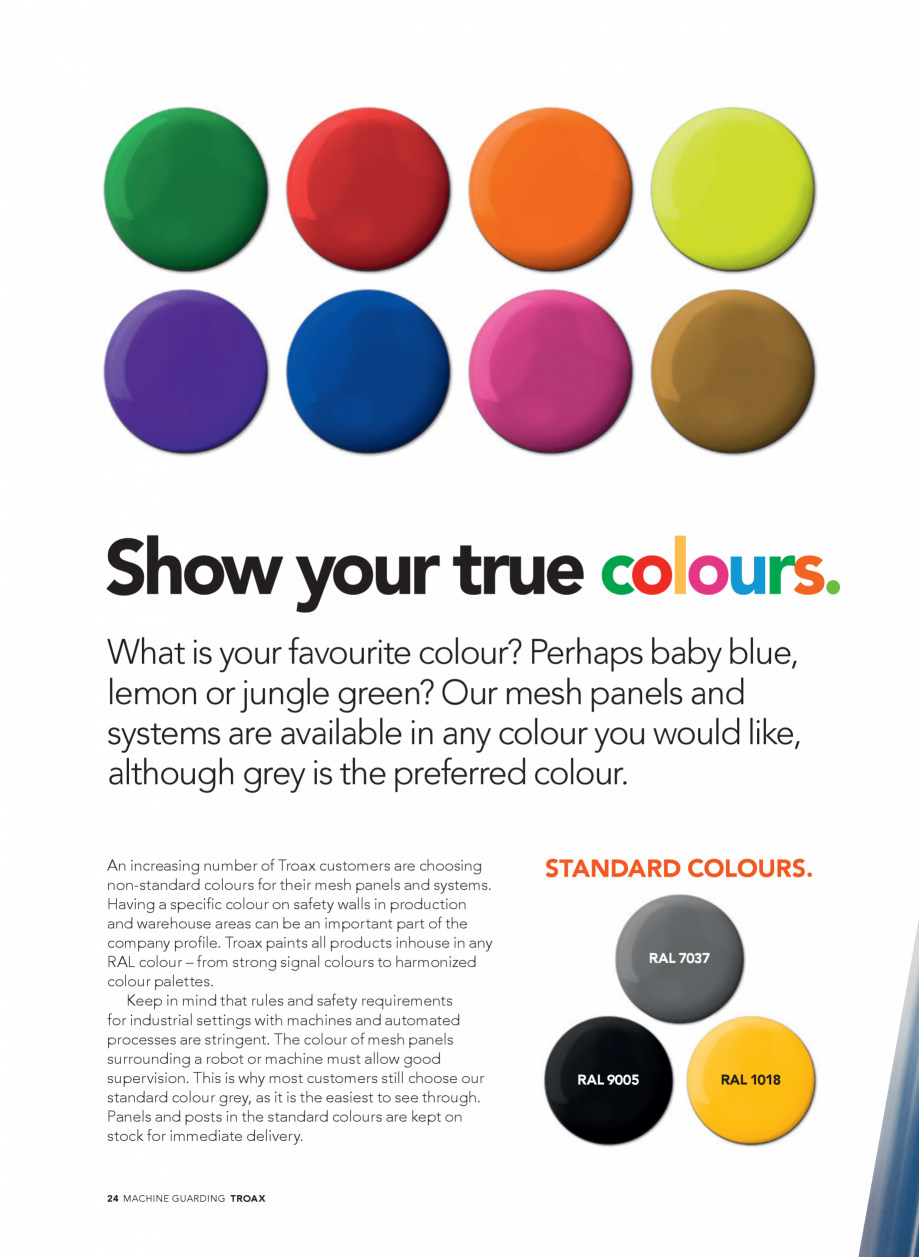

24. Colours

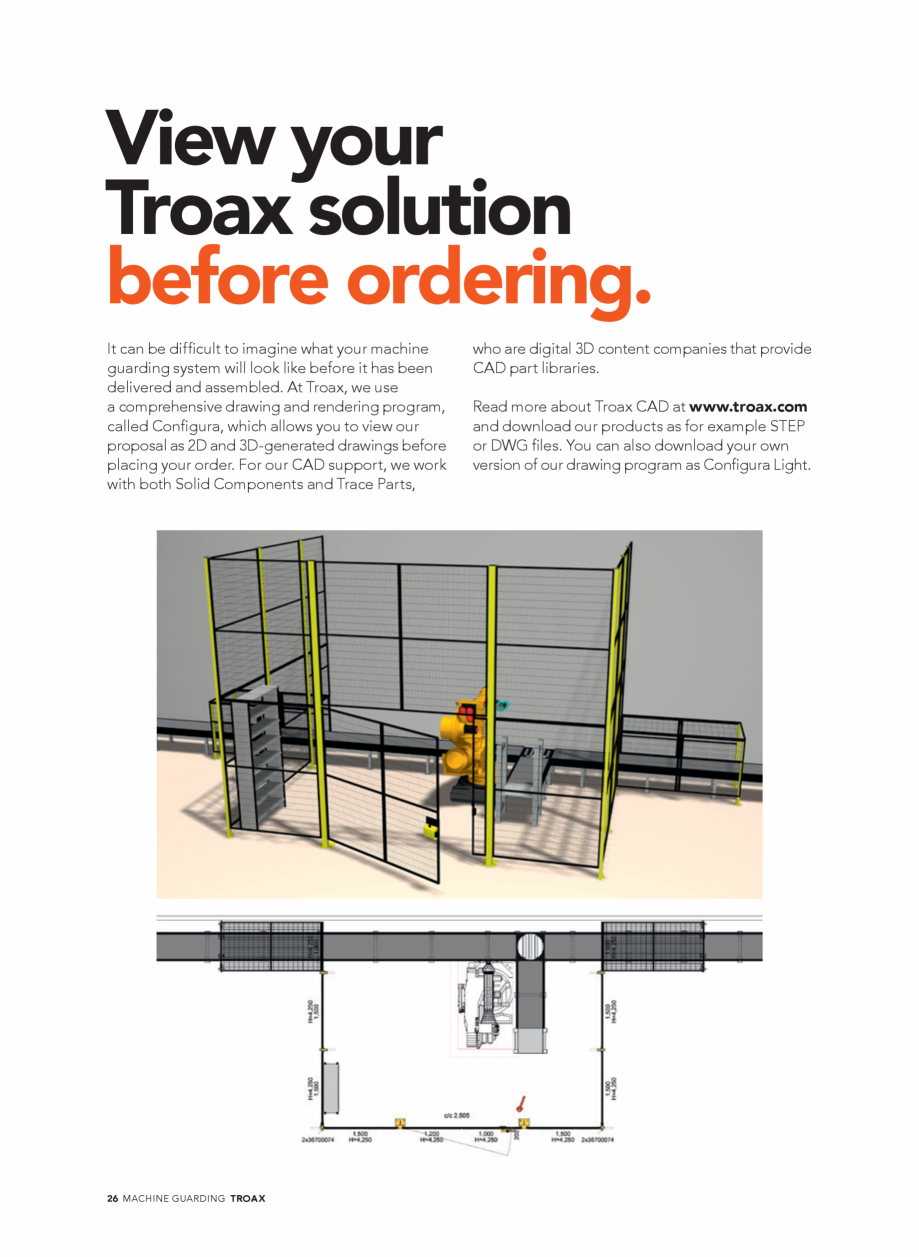

26. Drawings in 2D/3D

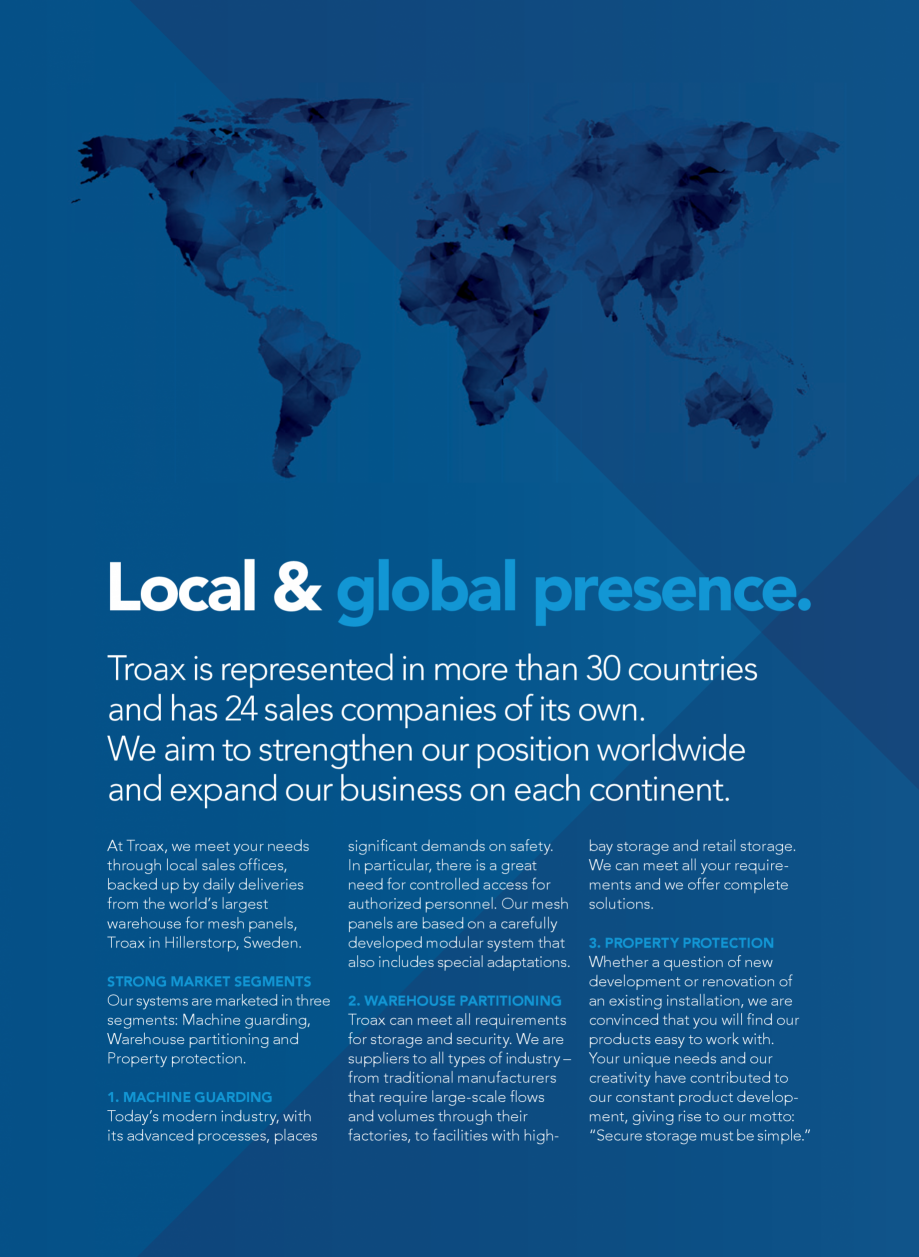

27. Troax Worldwide
Troax is a global developer and manufacturer of steel mesh panels for machine guarding,
warehouse partitioning and property protection. This brochure presents our solutions for
the market segment Machine guarding. Our business concept is to develop innovative
steel mesh panel solutions to protect people, property and processes. Our lightweight
but strong mesh panels can be combined into unique solutions and are built to withstand
the toughest tests and environments. Read more about our systems at www.troax.com

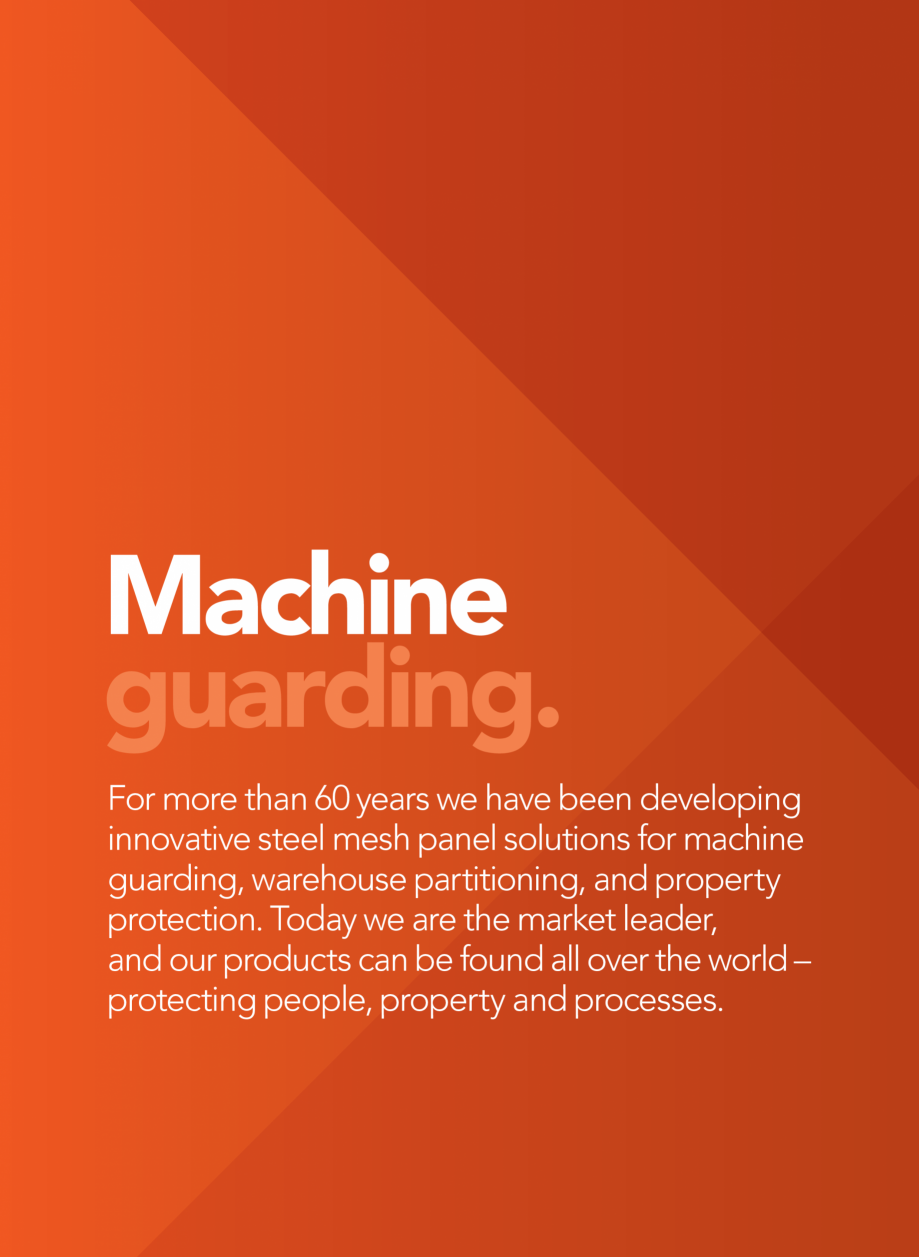

Machine
guarding.
For more than 60 years we have been developing
innovative steel mesh p
anel solutions for machine
guarding, warehouse partitioning, and property
protection. Today we are the market leader,
and our products can be found all over the world –
protecting people, property and processes.

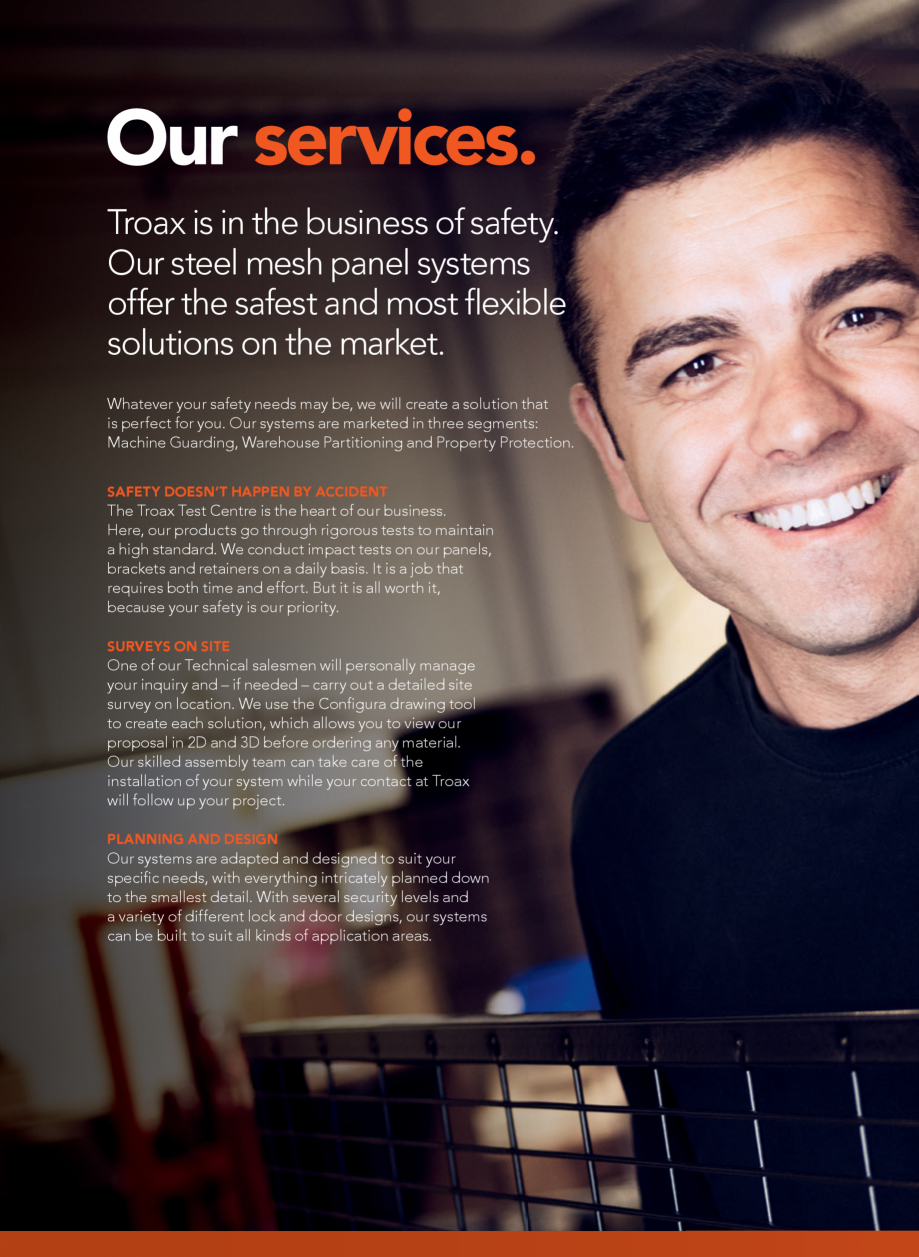

Our services.
Troax is in the business of safety.
Our steel mesh panel systems
offer the safest and most flexible
solutions on the market.
Whatever your safety needs may be, we will create a solution that
is perfect for you. Our systems are marketed in three segments:
Machine Guarding, Warehouse Partitioning and Property Protection.
SAFETY DOESN’T HAPPEN BY ACCIDENT
The Troax Test Centre is the heart of our business.
Here, our products go through rigorous tests to maintain
a high standard. We conduct impact tests on our panels,
brackets and retainers on a daily basis. It is a job that
requires both time and effort. But it is all worth it,
because your safety is our priority.
SURVEYS ON SITE
One of our Technical salesmen will personally manage
your inquiry and – if nee
ded – carry out a detailed site
survey on location. We use the Configura drawing tool
to create each solution, which allows you to view our
proposal in 2D and 3D before ordering any material.
Our skilled assembly team can take care of the
installation of your system while your contact at Troax
will follow up your project.
PLANNING AND DESIGN
Our systems are adapted and designed to suit your
specific needs, with everything intricately planned down
to the smallest detail. With several security levels and
a variety of different lock and door designs, our systems
can be built to suit all kinds of application areas.

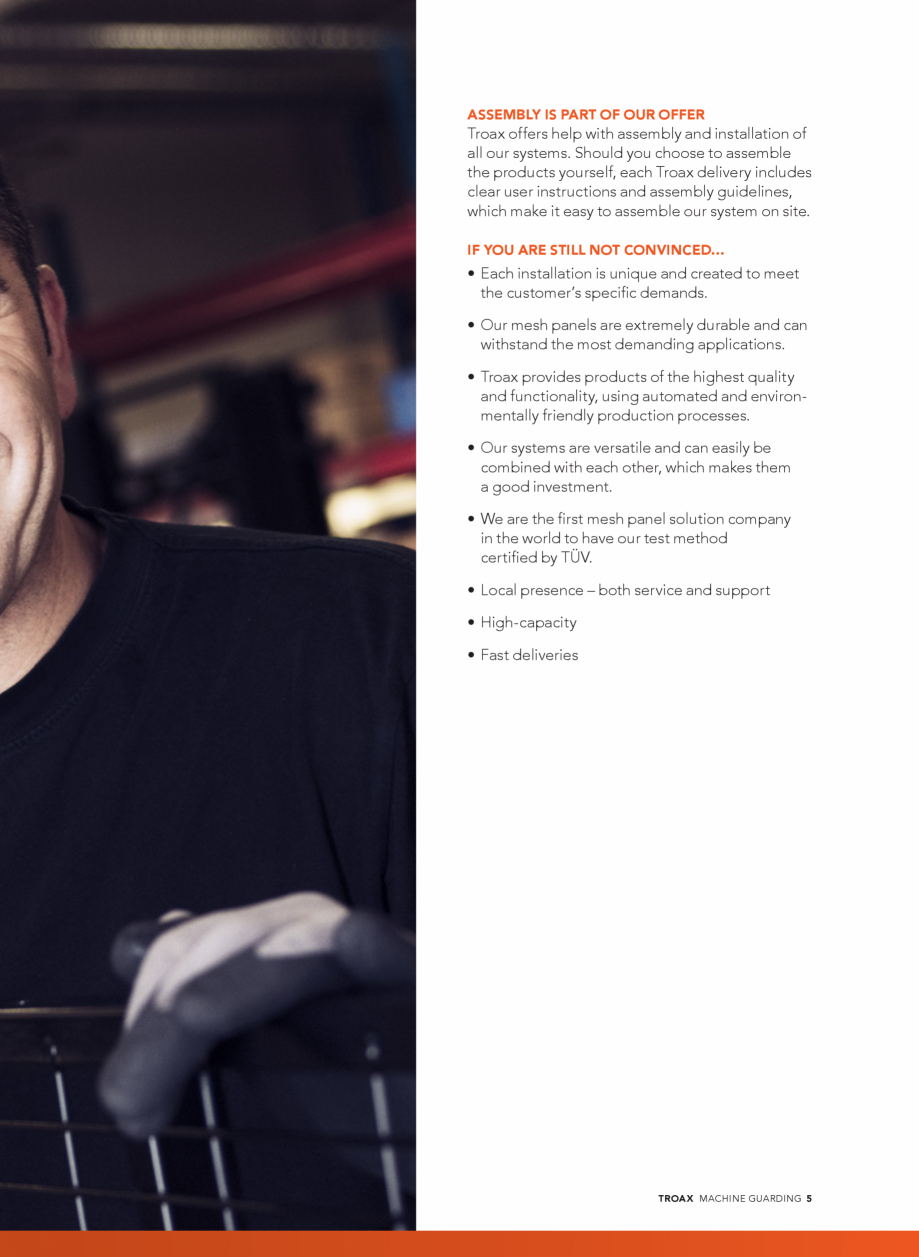

ASSEMBLY IS PART OF OUR OFFER
Troax offers help with assembly and installation of
all our systems. Should you choose to assemble
the products yourself, each Troax delivery includes
clear user instructions and assembly guidelines,
which make it easy to assemble our system on site.
IF YOU ARE STILL NOT CONVINCED…
• Each installation is unique and created to meet
the cus
tomer’s specific demands.
• Our mesh panels are extremely durable and can
withstand the most demanding applications.
• Troax provides products of the highest quality
and functionality, using automated and environmentally friendly production processes.
• Our systems are versatile and can easily be
combined with each other, which makes them
a good investment.
• We are the first mesh panel solution company
in the world to have our test method
certified by TÜV.
• Local presence – both service and support
• High-capacity
• Fast deliveries
TROAX MACHINE GUARDING 5

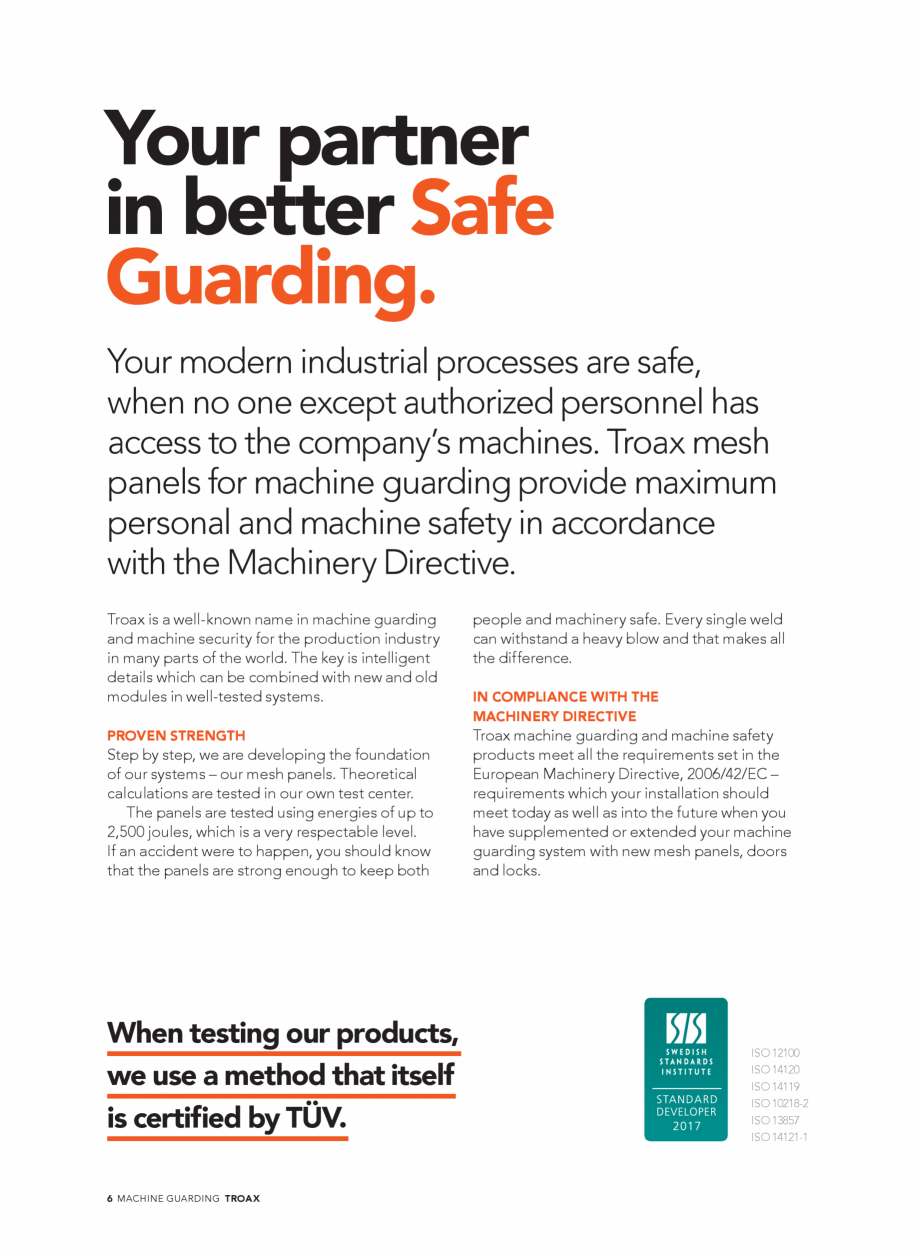

Your partner
in better Safe
Guarding.
Your modern industrial processes are safe,
when no one except authorized personnel has
access to the company’s machines. Troax mesh
panels for machine guarding provide maximum
personal and machine safety in accordance
with the Machinery Directive.
Troax is a well-known name in machine guarding
and machine security for the production industry
in many parts of the wor
ld. The key is intelligent
details which can be combined with new and old
modules in well-tested systems.
people and machinery safe. Every single weld
can withstand a heavy blow and that makes all
the difference.
PROVEN STRENGTH
Troax machine guarding and machine safety
products meet all the requirements set in the
European Machinery Directive, 2006/42/EC –
requirements which your installation should
meet today as well as into the future when you
have supplemented or extended your machine
guarding system with new mesh panels, doors
and locks.

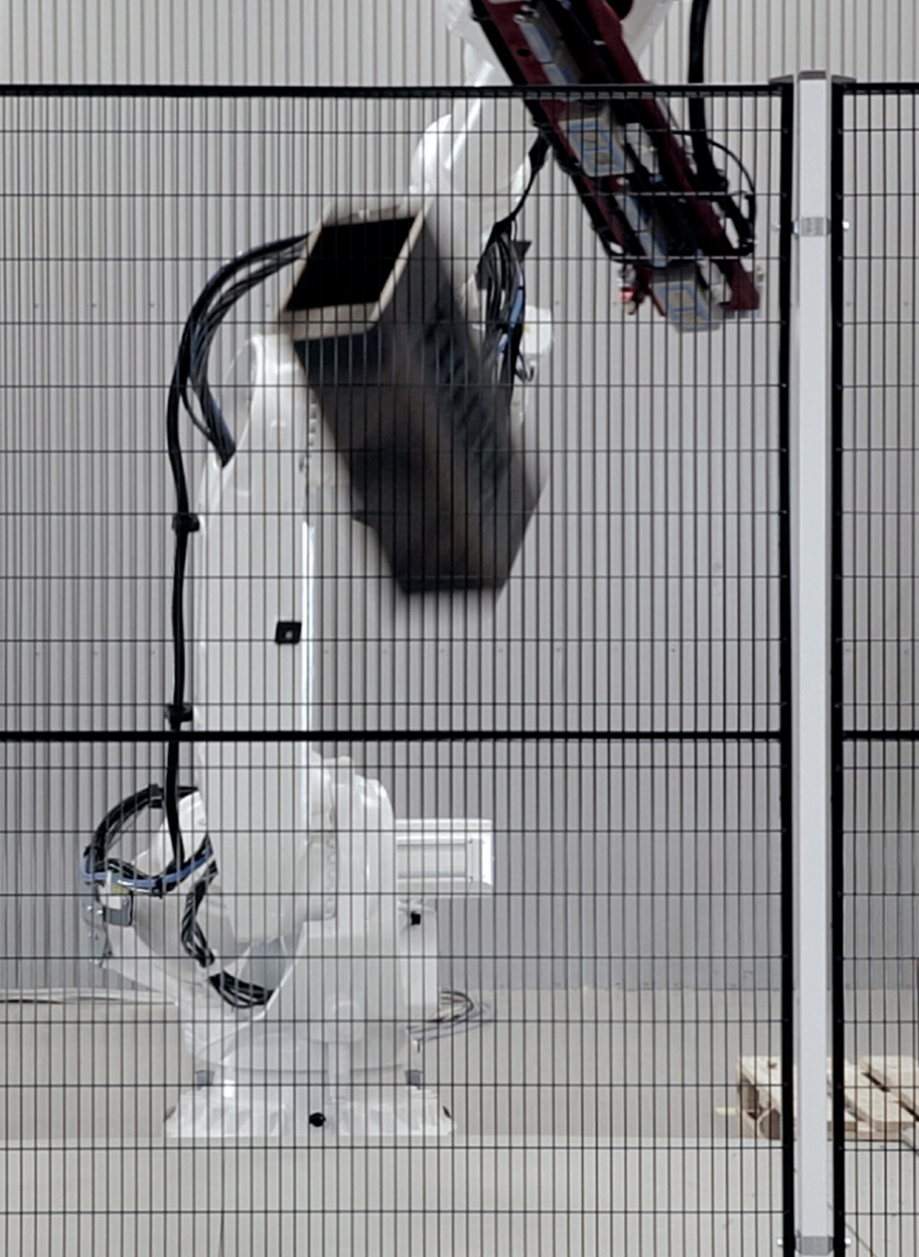

Step by step, we are developing the foundation
of our systems – our mesh panels. Theoretical
calculations are tested in our own test center.
The panels are tested using energies of up to
2,500 joules, which is a very respectable level.
If an accident were to happen, you should know
that the panels are strong enough to keep both
When testing our products,
we use a method that itself
is certified by TÜV.
6 MACHINE GUARDING TROAX
IN
COMPLIANCE WITH THE
MACHINERY DIRECTIVE
ISO 12100
ISO 14120
ISO 14119
ISO 10218-2
ISO 13857
ISO 14121-1

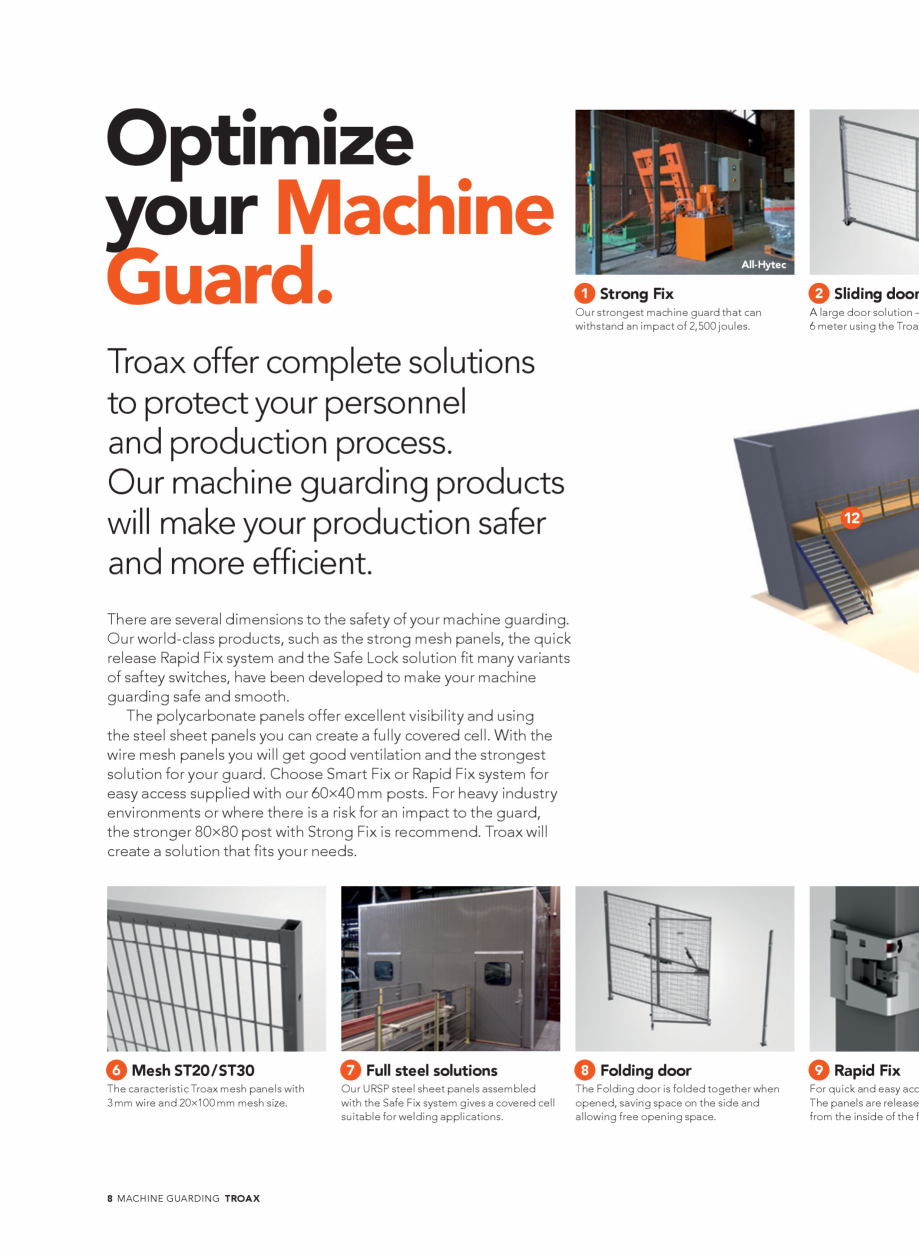

Optimize
your Machine
Guard.
All-Hytec
1 Strong Fix
Our strongest machine guard that can
withstand an impact of 2,500 joules.
Troax offer complete solutions
to protect your personnel
and production process.
Our machine guarding products
will make your production safer
and more efficient.
2 Sliding door
A large door solution –
6 meter using the Troax
12
There are several dimensions to the safety of your machine guarding.
Our world-class products, such as the strong mesh panels, the quick
release Rapid Fix system and the Safe Lock solution fit many variants
of saftey switches, have been developed to make your machine
guarding safe and smooth.
The polycarbonate panels offer excellent visibility and using
the steel sheet panels you can create a fully covered cell. With the
wire mesh panels you will get good ventilation and the strongest
solution for your guard. Choose Smar
t Fix or Rapid Fix system for
easy access supplied with our 60×40 mm posts. For heavy industry
environments or where there is a risk for an impact to the guard,
the stronger 80×80 post with Strong Fix is recommend. Troax will
create a solution that fits your needs.
6 Mesh ST20 / ST30
The caracteristic Troax mesh panels with
3 mm wire and 20×100 mm mesh size.
8 MACHINE GUARDING TROAX
7 Full steel solutions
Our URSP steel sheet panels assembled
with the Safe Fix system gives a covered cell
suitable for welding applications.
8 Folding door
The Folding door is folded together when
opened, saving space on the side and
allowing free opening space.
9 Rapid Fix
For quick and easy acc
The panels are release
from the inside of the f
r on wheels
– up to approximately
x ST30 mesh panels.

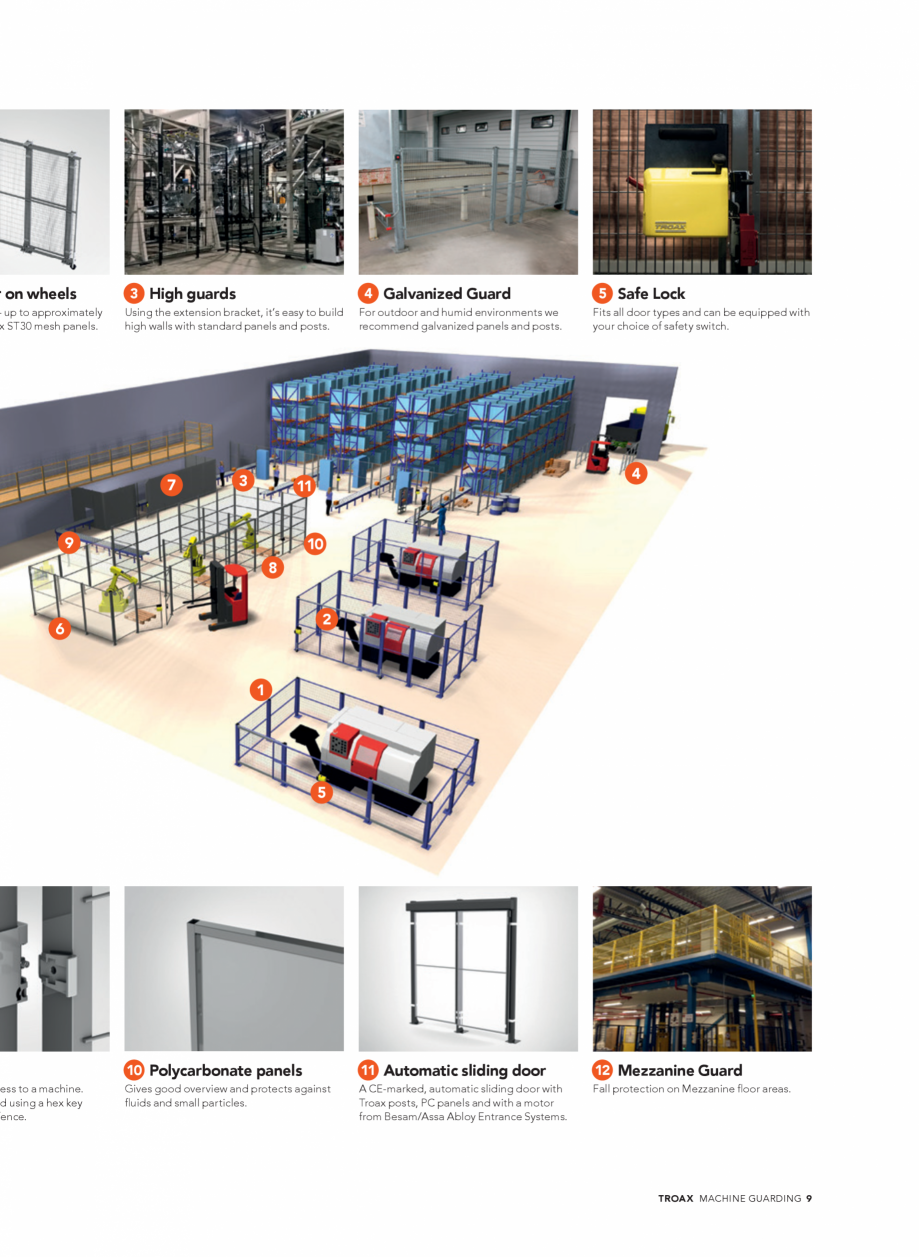

3 High guards
Using the extension bracket, it’s easy to build
high walls with standard panels and posts.
7
3
8

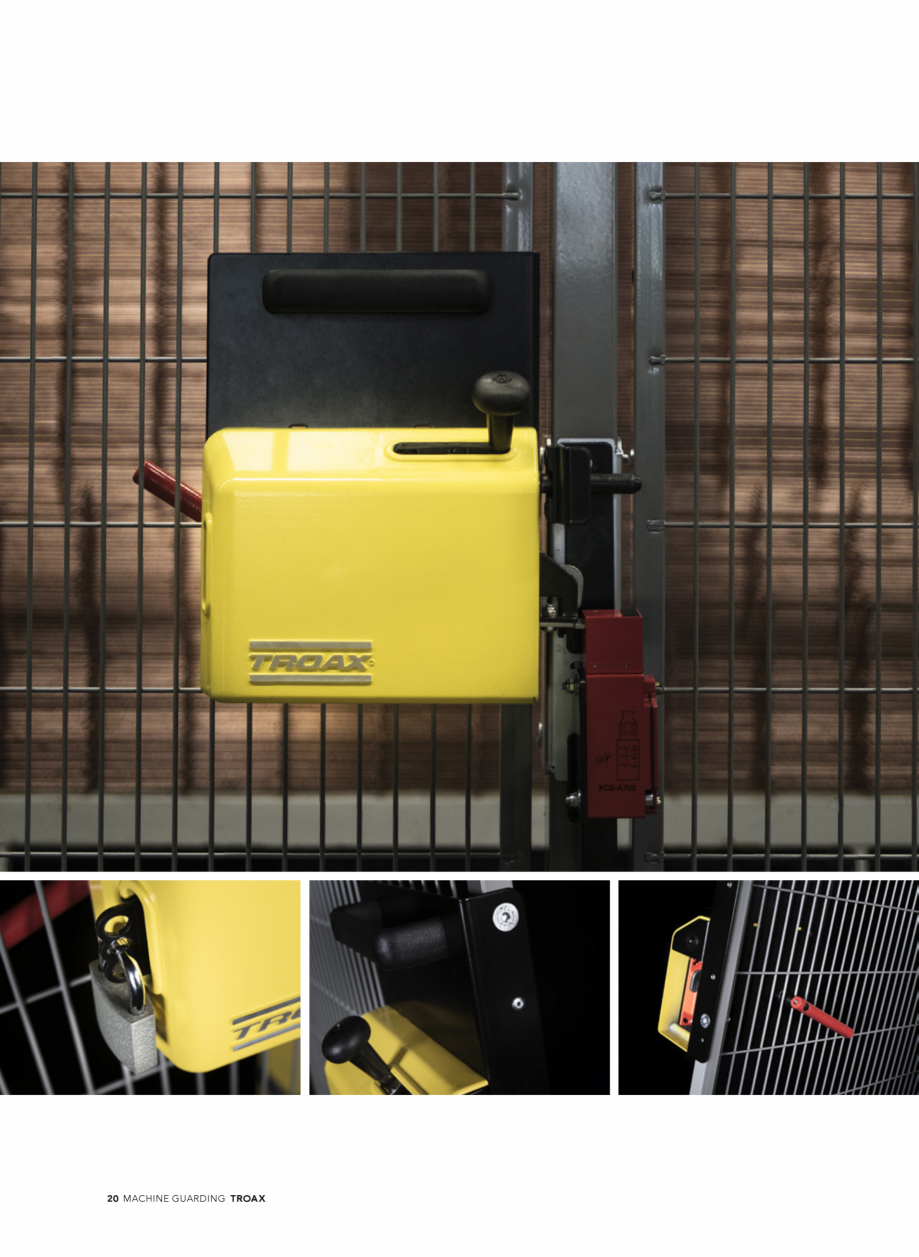

5 Safe Lock
Fits all door types and can be equipped with
your choice of safe
ty switch.
4
11
9
10
2
6
ess to a machine.
d using a hex key
fence.
4 Galvanized Guard
For outdoor and humid environments we
recommend galvanized panels and posts.
1
5
10 Polycarbonate panels
Gives good overview and protects against
fluids and small particles.

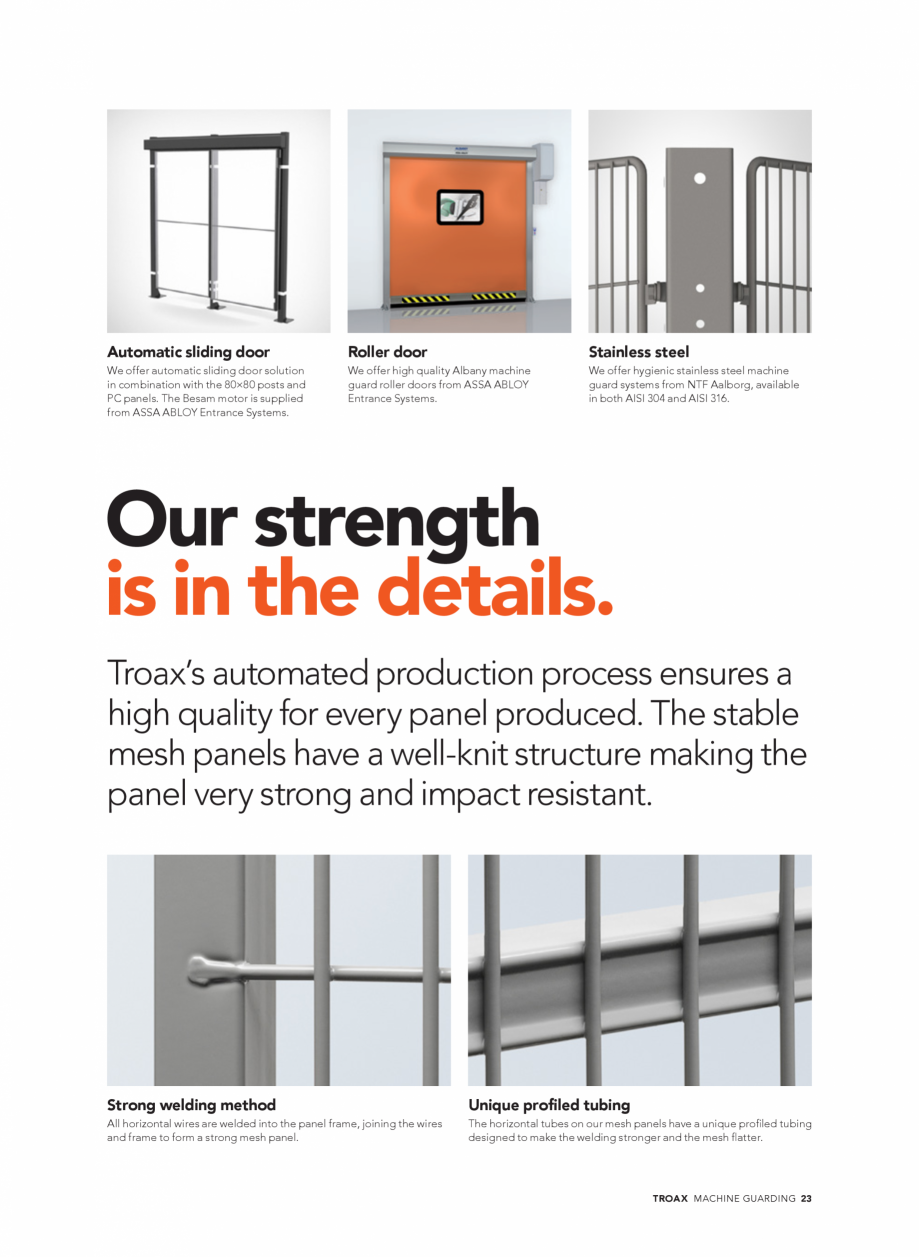

11 Automatic sliding door
A CE-marked, automatic sliding door with
Troax posts, PC panels and with a motor
from Besam/Assa Abloy Entrance Systems.
12 Mezzanine Guard
Fall protection on Mezzanine floor areas.
TROAX MACHINE GUARDING 9

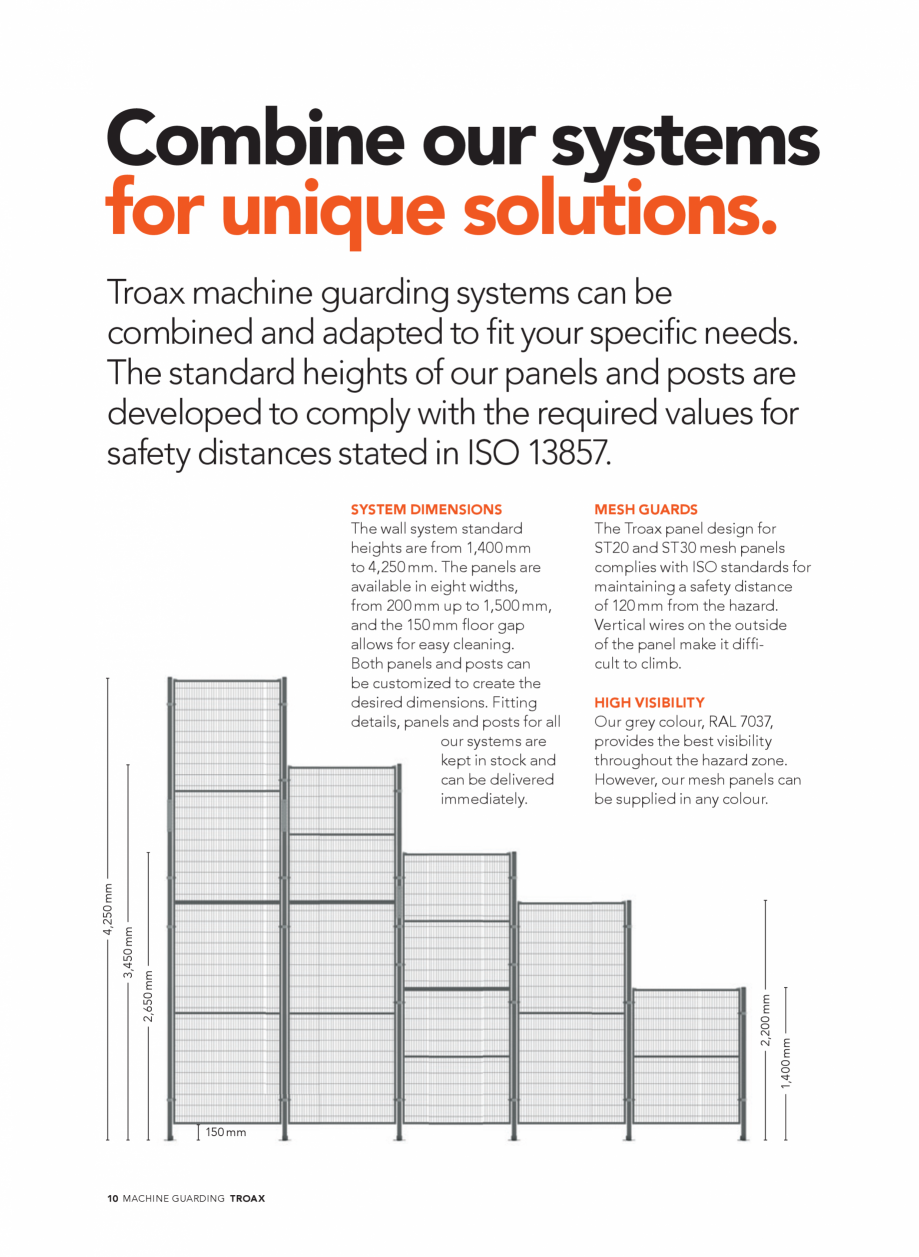

Combine our systems
for unique solutions.
Troax machine guarding systems can be
combined and adapted to fit your specific needs.
The standard heights of our panels and posts are
developed to comply with the required values for
safety distances stated in ISO 13857.
MESH GUARDS
The Troax panel design for
ST20 and ST30 mesh panels
complies with ISO standards for
maintaining a safety distance
of 120 mm from the hazard.
Vertical wires on the outside
of the panel make it diffi‑
cult t
o climb.
HIGH VISIBILITY
Our grey colour, RAL 7037,
provides the best visibility
throughout the hazard zone.
However, our mesh panels can
be supplied in any colour.
2,200 mm
2,650 mm
4,250 mm
3,450 mm
The wall system standard
heights are from 1,400 mm
to 4,250 mm. The panels are
available in eight widths,
from 200 mm up to 1,500 mm,
and the 150 mm floor gap
allows for easy cleaning.
Both panels and posts can
be customized to create the
desired dimensions. Fitting
details, panels and posts for all
our systems are
kept in stock and
can be delivered
immediately.
150 mm
10 MACHINE GUARDING TROAX
1,400 mm
SYSTEM DIMENSIONS

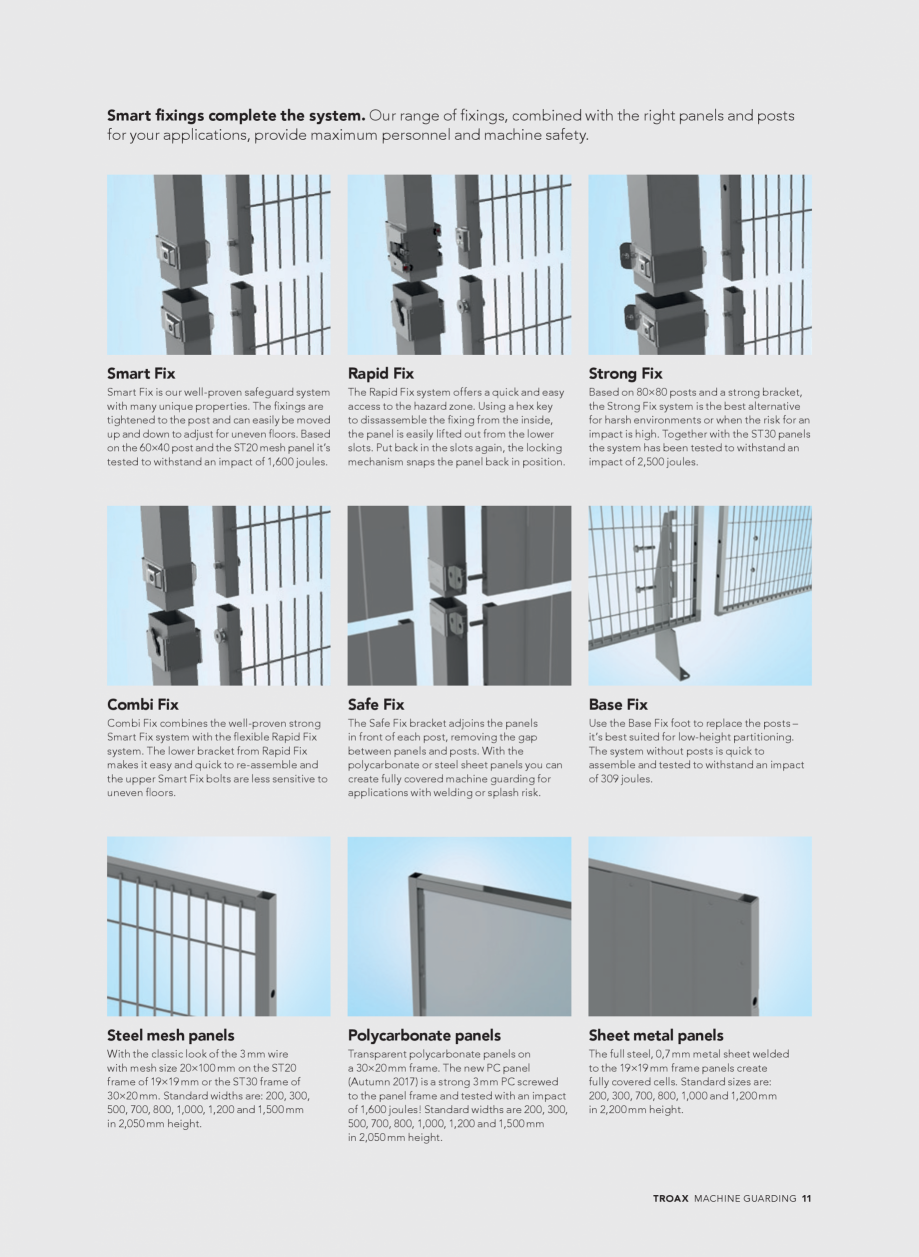

Smart fixings complete the system. Our range of fixings, combined with the right panels and posts
for your applications, provide maximum personnel and machine safety.
Smart Fix
Rapid Fix
Strong Fix
Combi Fix
Safe Fix
Base Fix
Steel mesh panels
Polycarbonate panels
Sheet metal panels

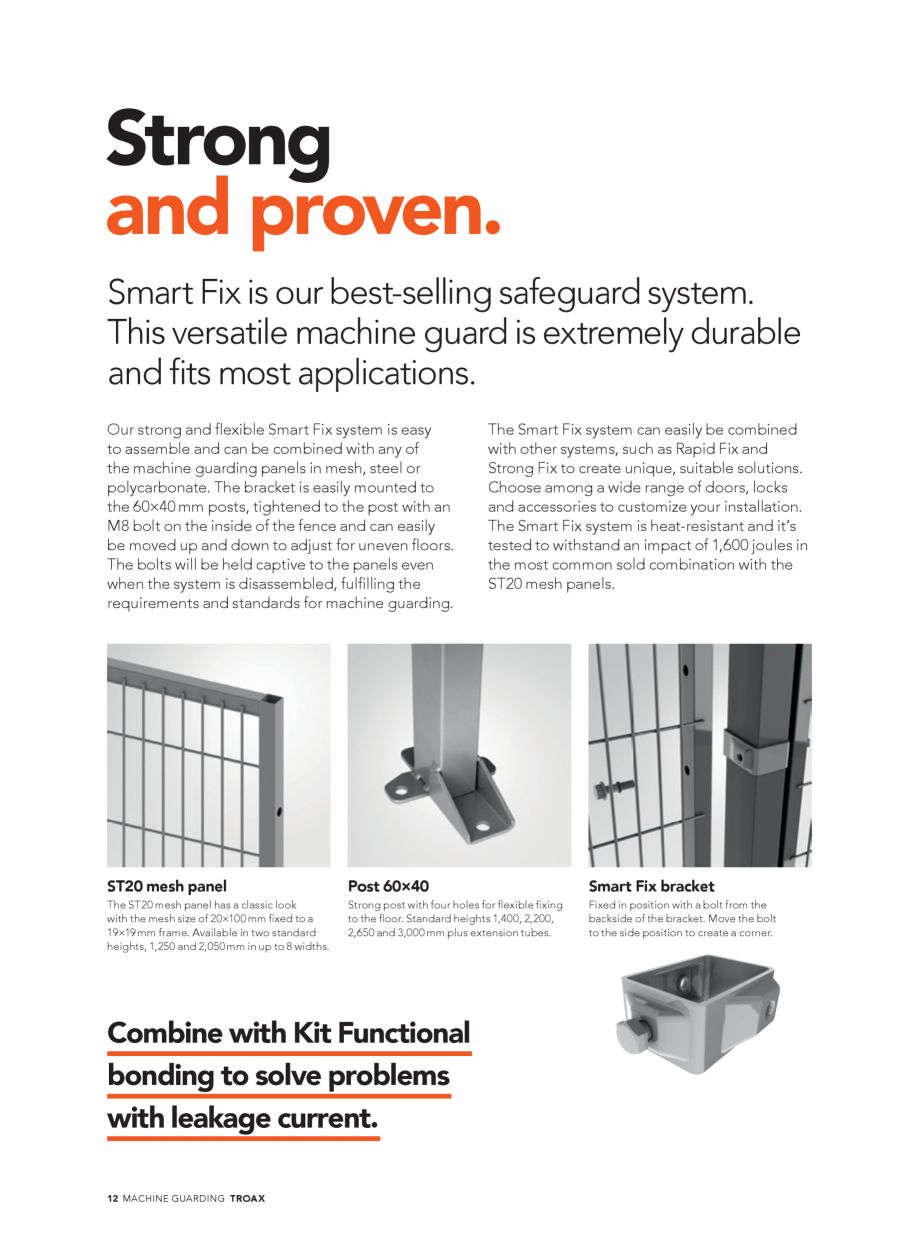

Smart Fix is our well-proven safeguard system
with many unique prope
rties. The fixings are
tightened to the post and can easily be moved
up and down to adjust for uneven floors. Based
on the 60×40 post and the ST20 mesh panel it’s
tested to withstand an impact of 1,600 joules.
Combi Fix combines the well-proven strong
Smart Fix system with the flexible Rapid Fix
system. The lower bracket from Rapid Fix
makes it easy and quick to re-assemble and
the upper Smart Fix bolts are less sensitive to
uneven floors.
With the classic look of the 3 mm wire
with mesh size 20×100 mm on the ST20
frame of 19×19 mm or the ST30 frame of
30×20 mm. Standard widths are: 200, 300,
500, 700, 800, 1,000, 1,200 and 1,500 mm
in 2,050 mm height.

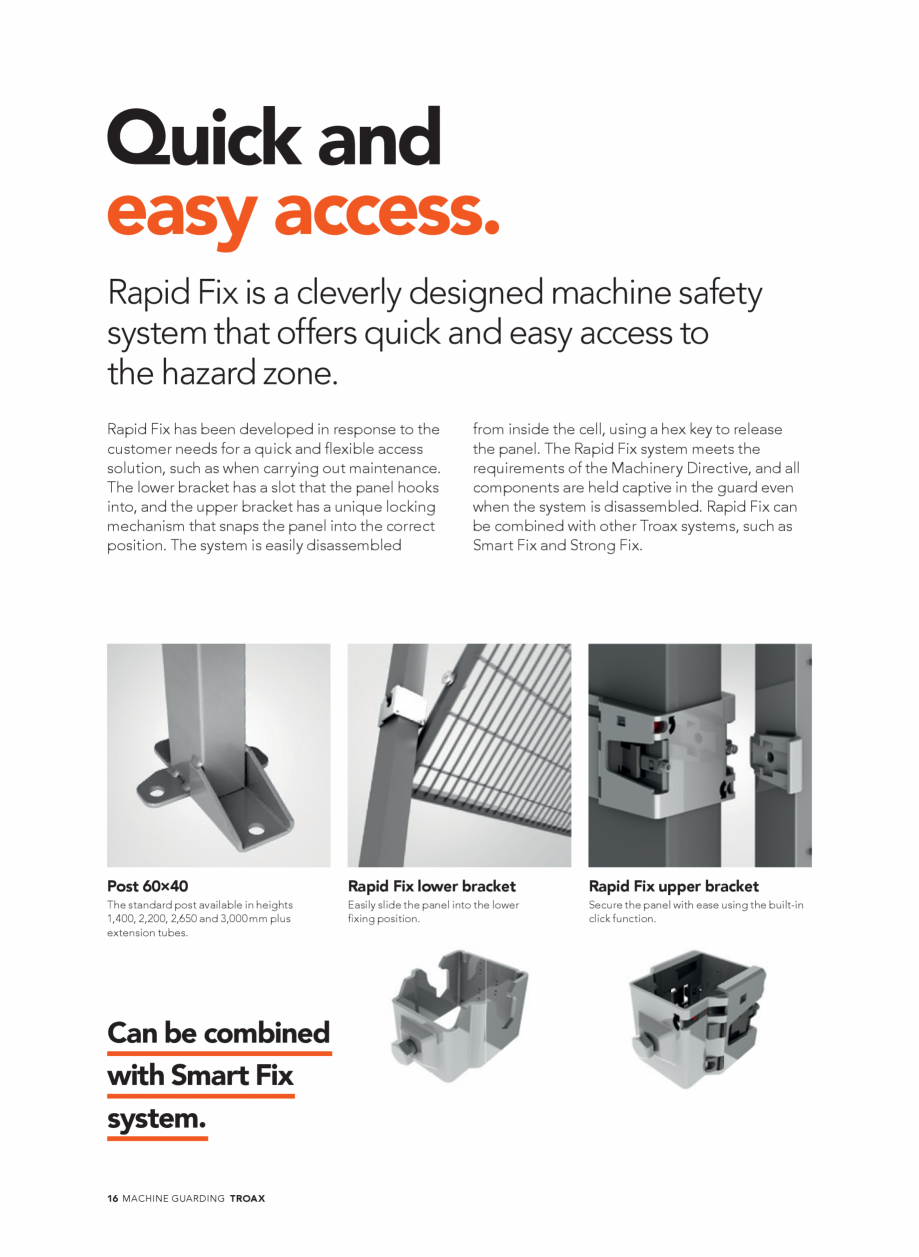

The Rapid Fix system offers a quick and easy
access to the hazard zone. Using a hex key
to dissassemble the fixing from the inside,
the panel is easily lifted out from the lower
slots. Put back in the slots again, the locking
mechanism snaps the panel back in position.
The Safe Fix bracket adjoins the panels
in front of each po
st, removing the gap
between panels and posts. With the
polycarbonate or steel sheet panels you can
create fully covered machine guarding for
applications with welding or splash risk.
Transparent polycarbonate panels on
a 30×20 mm frame. The new PC panel
(Autumn 2017) is a strong 3 mm PC screwed
to the panel frame and tested with an impact
of 1,600 joules! Standard widths are 200, 300,
500, 700, 800, 1,000, 1,200 and 1,500 mm
in 2,050 mm height.

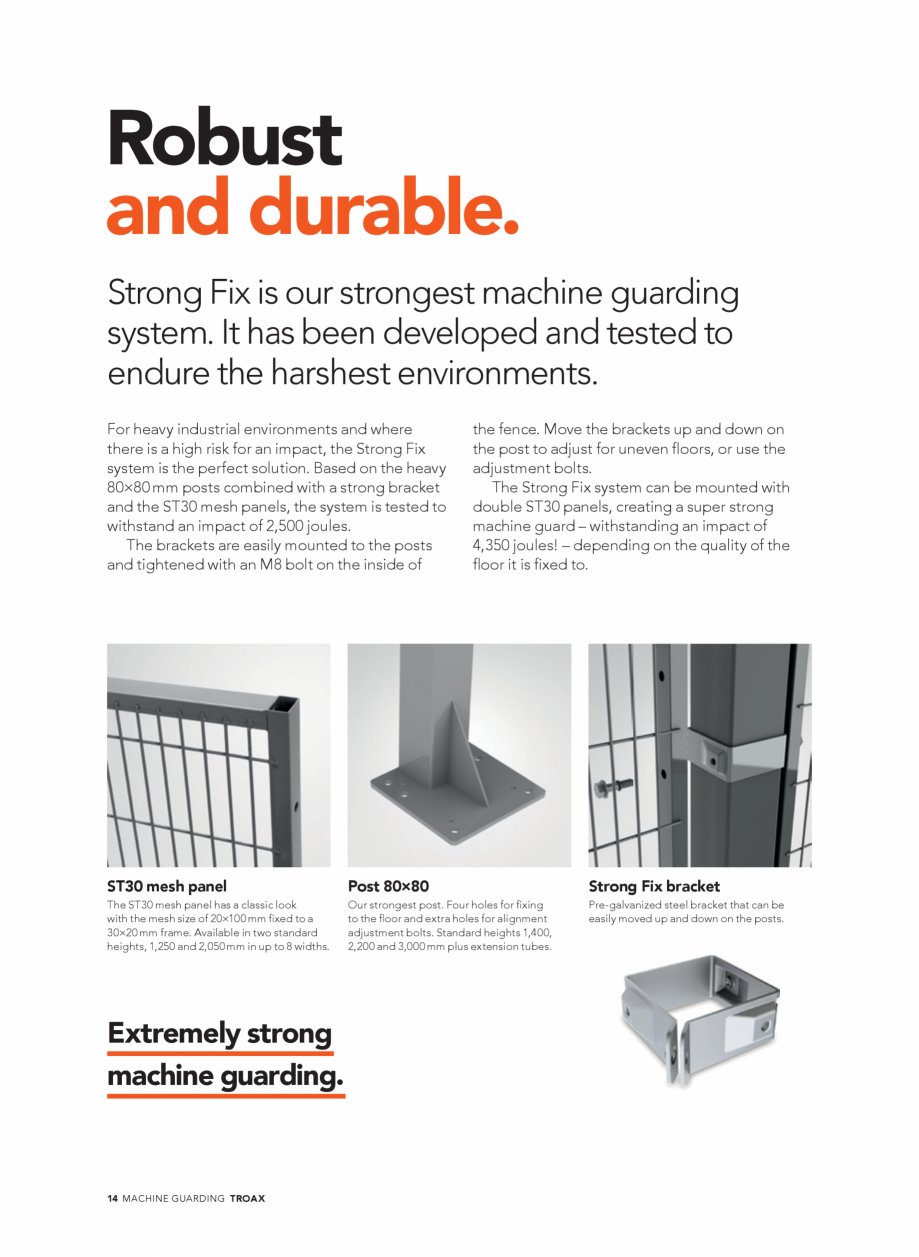

Based on 80×80 posts and a strong bracket,
the Strong Fix system is the best alternative
for harsh environments or when the risk for an
impact is high. Together with the ST30 panels
the system has been tested to withstand an
impact of 2,500 joules.
Use the Base Fix foot to replace the posts –
it’s best suited for low-height partitioning.
The system without posts is quick to
assemble and tested to withstand an impact
of 309 joules.
The full steel, 0,7 mm metal sheet welded
to the 19×19 mm frame panels create
fully covered cells. Stand
ard sizes are:
200, 300, 700, 800, 1,000 and 1,200 mm
in 2,200 mm height.
TROAX MACHINE GUARDING 11

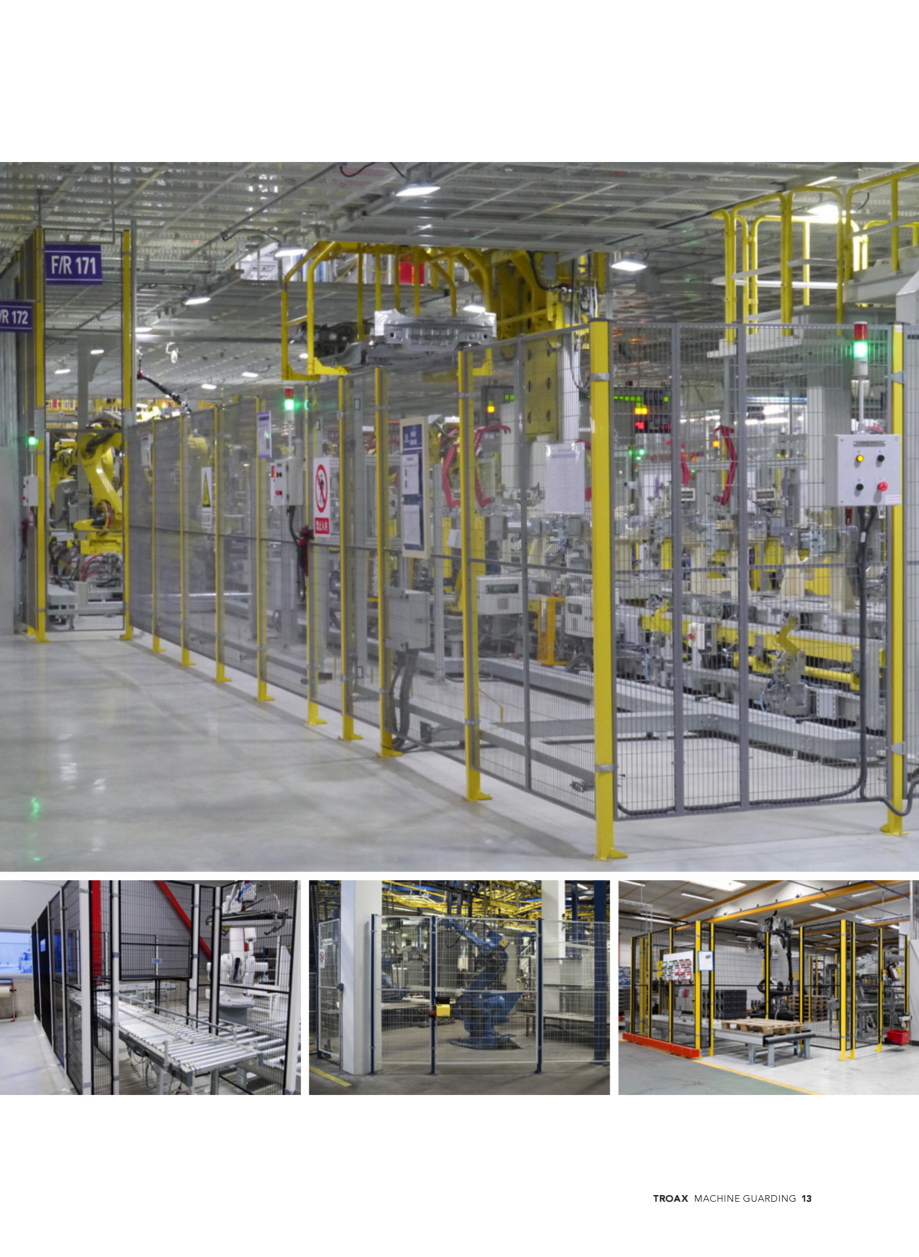

Strong
and proven.
Smart Fix is our best-selling safeguard system.
This versatile machine guard is extremely durable
and fits most applications.
Our strong and flexible Smart Fix system is easy
to assemble and can be combined with any of
the machine guarding panels in mesh, steel or
polycarbonate. The bracket is easily mounted to
the 60×40 mm posts, tightened to the post with an
M8 bolt on the inside of the fence and can easily
be moved up and down to adjust for uneven floors.
The bolts will be held captive to the panels even
when the system is disassembled, fulfilling the
requirements and standards for machine guarding.
ST20 mesh panel
The ST20 mesh panel has a classic look
with the mesh size of 20×100 mm fixed to a
19×19 mm frame. Available in two standard
heights, 1,250 and 2,050 mm in up to 8 widths.
Post 60×40
Strong post with four holes for flexible fixing
to the floor.
Standard heights 1,400, 2,200,
2,650 and 3,000 mm plus extension tubes.
Combine with Kit Functional
bonding to solve problems
with leakage current.
12 MACHINE GUARDING TROAX
The Smart Fix system can easily be combined
with other systems, such as Rapid Fix and
Strong Fix to create unique, suitable solutions.
Choose among a wide range of doors, locks
and accessories to customize your installation.
The Smart Fix system is heat-resistant and it’s
tested to withstand an impact of 1,600 joules in
the most common sold combination with the
ST20 mesh panels.
Smart Fix bracket
Fixed in position with a bolt from the
backside of the bracket. Move the bolt
to the side position to create a corner.
TROAX MACHINE GUARDING 13

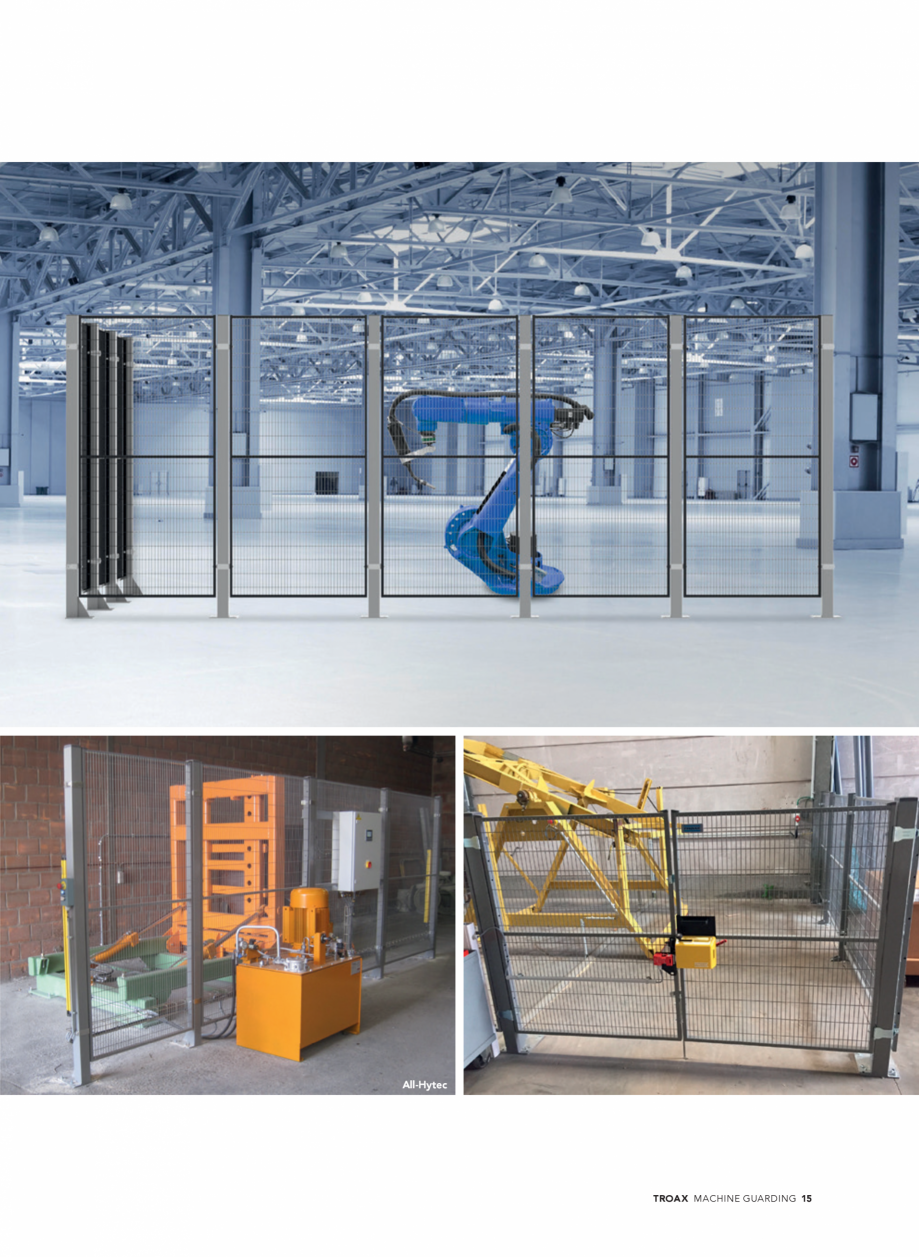

Robust
and durable.
Strong Fix is our strongest machine guarding
system. It has been developed and tested to
endure the harshest environments.
For heavy industrial environments and where
there is a high risk for an impact, the Strong Fix
system is the perfect solution.
Based on the heavy
80×80 mm posts combined with a strong bracket
and the ST30 mesh panels, the system is tested to
withstand an impact of 2,500 joules.
The brackets are easily mounted to the posts
and tightened with an M8 bolt on the inside of
ST30 mesh panel
The ST30 mesh panel has a classic look
with the mesh size of 20×100 mm fixed to a
30×20 mm frame. Available in two standard
heights, 1,250 and 2,050 mm in up to 8 widths.
Extremely strong
machine guarding.
14 MACHINE GUARDING TROAX
Post 80×80
the fence. Move the brackets up and down on
the post to adjust for uneven floors, or use the
adjustment bolts.
The Strong Fix system can be mounted with
double ST30 panels, creating a super strong
machine guard – withstanding an impact of
4,350 joules! – depending on the quality of the
floor it is fixed to.
Our strongest post. Four holes for fixing
to the floor and extra holes for alignment
adjustment bolts. Standard heights 1,400,
2,200 and 3,000 mm plus extension tubes.
Stro
ng Fix bracket
Pre-galvanized steel bracket that can be
easily moved up and down on the posts.
All-Hytec
TROAX MACHINE GUARDING 15
Quick and
easy access.

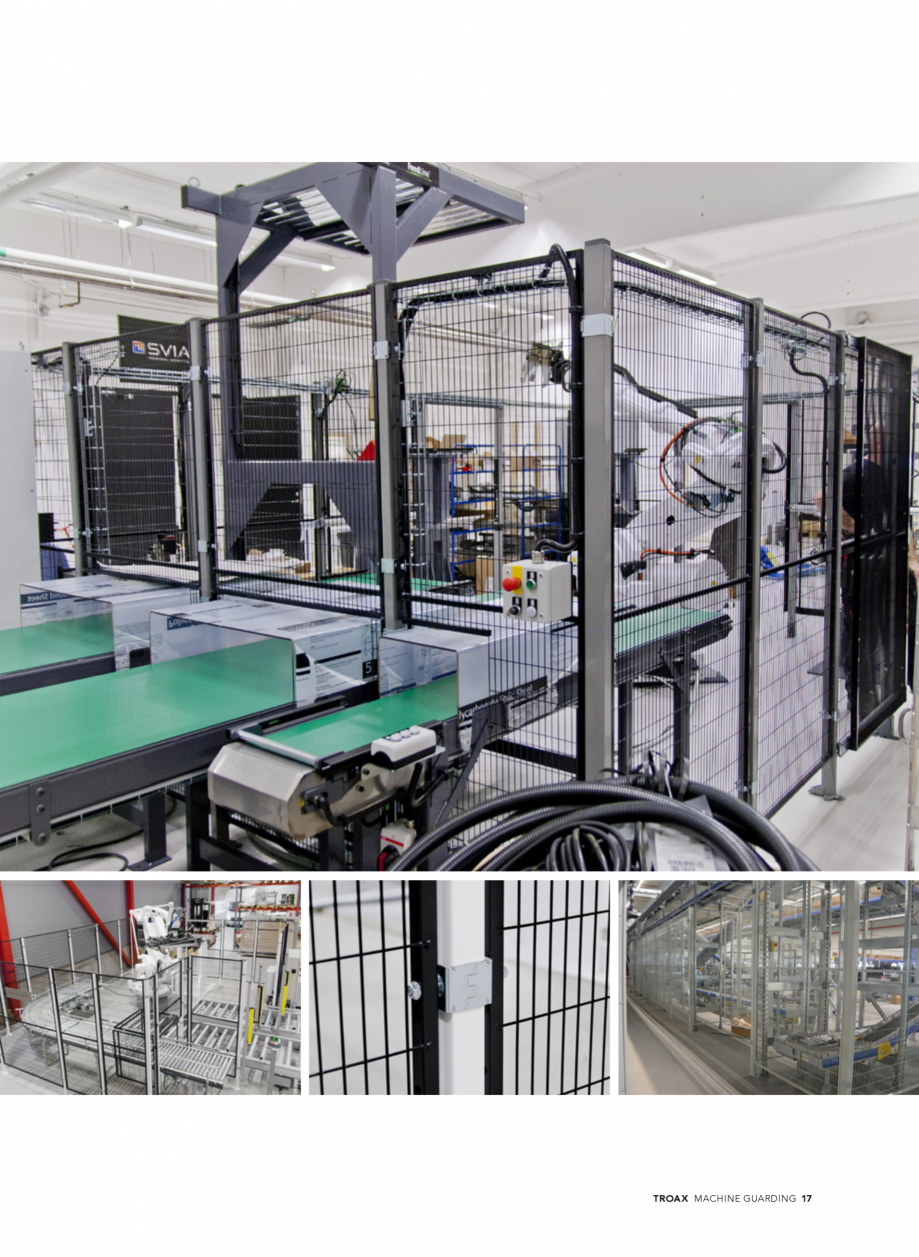

Rapid Fix is a cleverly designed machine safety
system that offers quick and easy access to
the hazard zone.
Rapid Fix has been developed in response to the
customer needs for a quick and flexible access
solution, such as when carrying out maintenance.
The lower bracket has a slot that the panel hooks
into, and the upper bracket has a unique locking
mechanism that snaps the panel into the correct
position. The system is easily disassembled
Post 60×40
The standard post available in heights
1,400, 2,200, 2,650 and 3,000 mm plus
extension tubes.
Can be combined
with Smart Fix
system.
16 MACHINE GUARDING TROAX
from inside the cell, using a hex key to release
the panel. The Rapid Fix system meets the
requirements of the Machinery Directive, and all
components are held captive in the guard even
when the system is disassembled. R
apid Fix can
be combined with other Troax systems, such as
Smart Fix and Strong Fix.
Rapid Fix lower bracket
Easily slide the panel into the lower
fixing position.
Rapid Fix upper bracket
Secure the panel with ease using the built-in
click function.
TROAX MACHINE GUARDING 17
Single Hinged Door
Double Hinged Door
Folding Door
Locking options: Magnetic Lock, Euro
cylinder Lock, Safe Lock, MGB or AZM200.
Locking options: Magnetic Lock, Euro
cylinder Lock, Safe Lock, MGB or AZM200.
Locking options: Safe Lock, MGB or AZM200.
Single Sliding Door (Single rail)
Double Sliding Door (Double rail)
Double Sliding Door (Single rail)
Locking options: Magnetic Lock, Euro
cylinder Lock, Safe Lock, MGB or AZM200.
Locking options: Magnetic Lock, Euro
cylinder Lock, Safe Lock, MGB or AZM200.
Locking options: Magnetic Lock, Euro
cylinder Lock, Safe Lock, MGB or AZM200.
Telescopic Doors
Linear Sliding Door
Sliding Door on Wheels
Locking options: Euro cylinder Lock,
Safe Lock, MGB or
AZM200.
Locking options: Euro cylinder Lock,
Safe Lock, MGB or AZM200.
500–1,500 mm
700–1,500 mm
(Single / Double / Hinged)
800–1,500 mm / 1,600–3,000 mm /
1,800–2,700 mm
Locking options: Euro cylinder Lock,
Safe Lock, MGB or AZM200.
18 MACHINE GUARDING TROAX
1,000–3,000 mm
700–1,500 mm
1,800–4,000 mm
2,100–4,500 mm
1,400–3,000 mm
1,100–6,000 mm
Read more about our doors and locks at www.troax.com
Safe and sound
with doors and locks.
Troax offers several types of doors to fit your
machine guarding demands. Our door solutions
include hinged, sliding, telescopic and linear
doors, as part of our modular systems.
Our selection of doors is available in standard
widths from 700 mm up to 6,000 mm, and in
heights up to 4,100 mm. The door construction is
based on panels, posts and fixings, and is built with
our metal mesh, sheet metal and polycarbonate
panels. The hinged doors can be delivered fully
assembled with your preferred lock solution for
fast instal
lation on site. Larger doors can be prepared for installation on site. Locks are adapted
to your security level. There are several options,
such as magnetic locks, euro cylinder locks and
our own Safe Lock, that can be fitted with many
variants of safety switches.
All doors can be supplemented with brackets
for easy mounting of electric safety switches.
Comprehensive assembly instructions are
included with each door solution and lock combination – watch the assembly movies on Troax’s
YouTube channel. All door solution parts are kept
in stock for fast delivery.
Euro Cylinder Lock with handle
Safe Lock fits various switches
Handle with Magnetic Lock
Euro Cylinder Lock with knob and handle
TROAX MACHINE GUARDING 19
20 MACHINE GUARDING TROAX

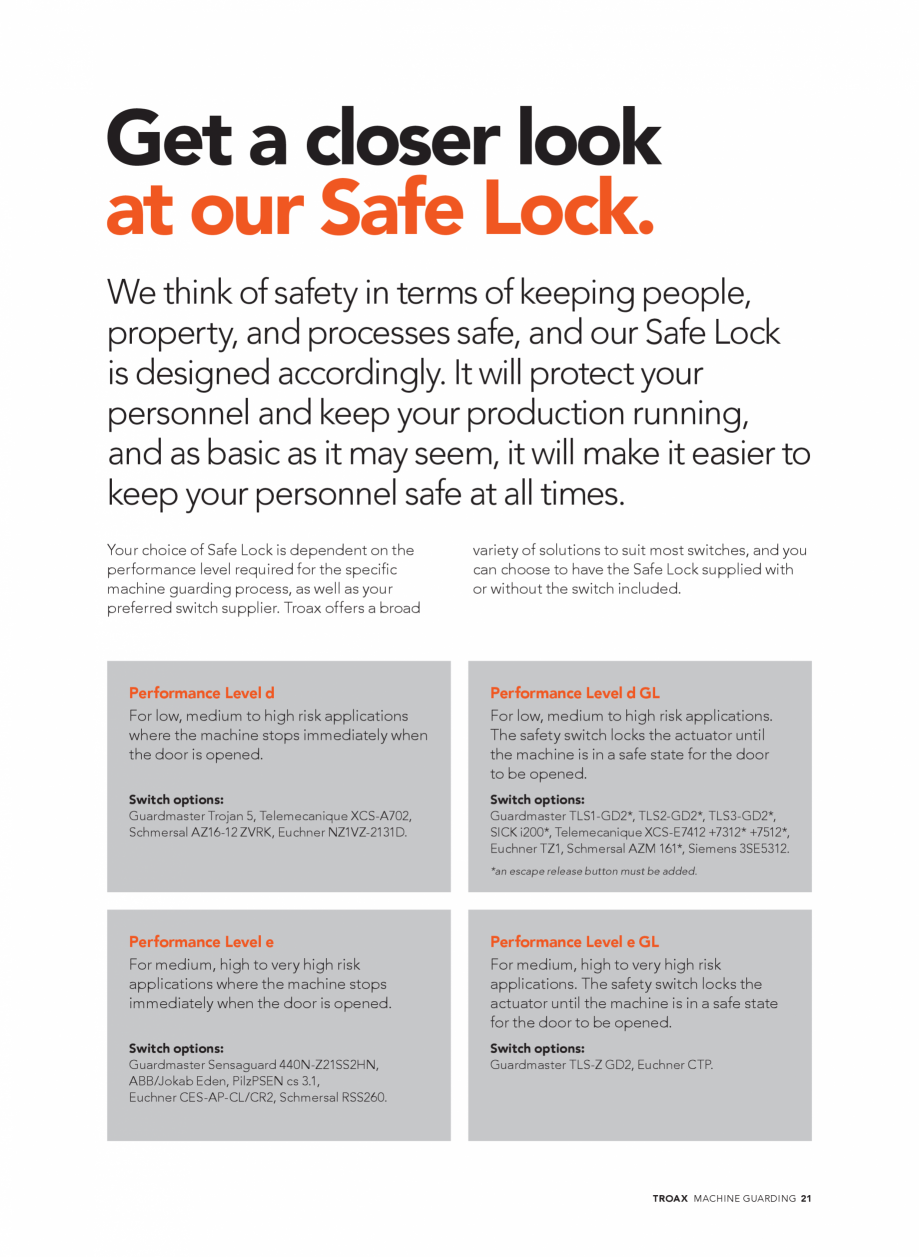

Get a closer look
at our Safe Lock.
We think of safety in terms of keeping people,
property, and processes safe, and our Safe Lock
is designed accordingly. It will protect your
personnel and keep your production running,
and as basic as i
t may seem, it will make it easier to
keep your personnel safe at all times.
Your choice of Safe Lock is dependent on the
performance level required for the specific
machine guarding process, as well as your
preferred switch supplier. Troax offers a broad
variety of solutions to suit most switches, and you
can choose to have the Safe Lock supplied with
or without the switch included.
Performance Level d
For low, medium to high risk applications
where the machine stops immediately when
the door is opened.
Performance Level d GL
For low, medium to high risk applications.
The safety switch locks the actuator until
the machine is in a safe state for the door
to be opened.
Switch options:
Guardmaster Trojan 5, Telemecanique XCS‑A702,
Schmersal AZ16‑12 ZVRK, Euchner NZ1VZ‑2131D.
Switch options:
Guardmaster TLS1‑GD2*, TLS2‑GD2*, TLS3‑GD2*,
SICK i200*, Telemecanique XCS‑E7412 +7312* +7512*,
Euchner TZ1, Schmersal AZM 161*, Siemens 3SE5312.
*an escape release button must
be added.
Performance Level e
For medium, high to very high risk
applications where the machine stops
immediately when the door is opened.
Performance Level e GL
For medium, high to very high risk
applications. The safety switch locks the
actuator until the machine is in a safe state
for the door to be opened.
Switch options:
Guardmaster Sensaguard 440N‑Z21SS2HN,
ABB/Jokab Eden, PilzPSEN cs 3.1,
Euchner CES‑AP‑CL/CR2, Schmersal RSS260.
Switch options:
Guardmaster TLS‑Z GD2, Euchner CTP.
TROAX MACHINE GUARDING 21
Smart accessories
complete the
overall picture.
Kick Plate
Snapper
Cable ladder
PC holder
Extension bracket
Earthing
Use the kick plate to fill out the gap between
the panels and the floor.
The PC holder fix a polycarbonate infill sheet
to the mesh panel, to withhold liquids and
small parts.
The Snapper adjoins two panels and can be
used to replace a post.
The extension bracket is used to build higher
walls and extend the standard posts of
2,200 m
m and 3,000 mm.
Troax cable ladder kit is used to fix various
cable ladder systems to our posts.
The kit functional bonding creates an electrical
bonding between panels and posts, solving
problems with leakage current.
TRIM KITS
1
1 End profile
3
The end profile is a flexible solution for adjusting
the width of the mesh panel on site while still
retaining strength as a welded panel frame.
2 Cut profile
The cut profile is a flexible solution for adjusting
the height of the mesh panel on site while still
retaining strength as a welded panel frame.
3 Edge cover
Edge cover is a flexible solution for covering
sharp edges after cutting mesh for access.
2
Automatic sliding door
We offer automatic sliding door solution
in combination with the 80×80 posts and
PC panels. The Besam motor is supplied
from ASSA ABLOY Entrance Systems.
Roller door
We offer high quality Albany machine
guard roller doors from ASSA ABLOY
Entrance Systems.
Stainless steel
We offer hygienic stainl
ess steel machine
guard systems from NTF Aalborg, available
in both AISI 304 and AISI 316.
Our strength
is in the details.

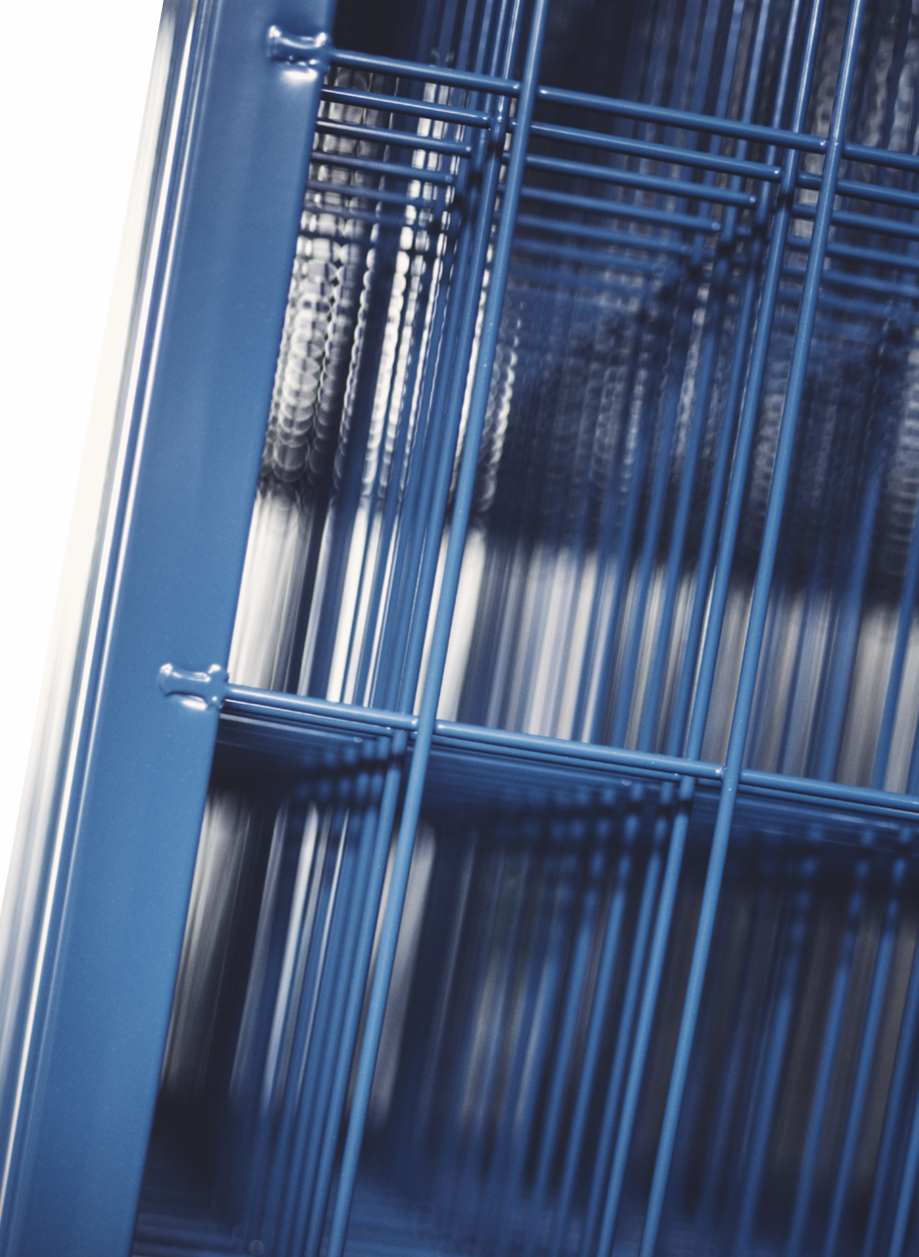

Troax’s automated production process ensures a
high quality for every panel produced. The stable
mesh panels have a well-knit structure making the
panel very strong and impact resistant.
Strong welding method
All horizontal wires are welded into the panel frame, joining the wires
and frame to form a strong mesh panel.
Unique profiled tubing
The horizontal tubes on our mesh panels have a unique profiled tubing
designed to make the welding stronger and the mesh flatter.
TROAX MACHINE GUARDING 23
Show your true colours.
What is your favourite colour? Perhaps baby blue,
lemon or jungle green? Our mesh panels and
systems are available in any colour you would like,
although grey is the preferred colour.
An increasing number of Troax customers are choosing
non-standard colours for their mesh panels and systems.
Having a specific colour on safety walls in prod
uction
and warehouse areas can be an important part of the
company profile. Troax paints all products inhouse in any
RAL colour – from strong signal colours to harmonized
colour palettes.
Keep in mind that rules and safety requirements
for industrial settings with machines and automated
processes are stringent. The colour of mesh panels
surrounding a robot or machine must allow good
supervision. This is why most customers still choose our
standard colour grey, as it is the easiest to see through.
Panels and posts in the standard colours are kept on
stock for immediate delivery.
24 MACHINE GUARDING TROAX
STANDARD COLOURS.
RAL 7037
RAL 9005
RAL 1018
View your
Troax solution
before ordering.
It can be difficult to imagine what your machine
guarding system will look like before it has been
delivered and assembled. At Troax, we use
a comprehensive drawing and rendering program,
called Configura, which allows you to view our
proposal as 2D and 3D-generated drawings before
placing y
our order. For our CAD support, we work
with both Solid Components and Trace Parts,
26 MACHINE GUARDING TROAX
who are digital 3D content companies that provide
CAD part libraries.
Read more about Troax CAD at www.troax.com
and download our products as for example STEP
or DWG files. You can also download your own
version of our drawing program as Configura Light.
Local & global presence.
Troax is represented in more than 30 countries
and has 24 sales companies of its own.
We aim to strengthen our position worldwide
and expand our business on each continent.
At Troax, we meet your needs
through local sales offices,
backed up by daily deliveries
from the world’s largest
warehouse for mesh panels,
Troax in Hillerstorp, Sweden.
STRONG MARKET SEGMENTS
Our systems are marketed in three
segments: Machine guarding,
Warehouse partitioning and
Property protection.
1. MACHINE GUARDING
Today’s modern industry, with
its advanced processes, places
significant demands on safety.
In particul
ar, there is a great
need for controlled access for
authorized personnel. Our mesh
panels are based on a carefully
developed modular system that
also includes special adaptations.
2. WAREHOUSE PARTITIONING
Troax can meet all requirements
for storage and security. We are
suppliers to all types of industry –
from traditional manufacturers
that require large‑scale flows
and volumes through their
factories, to facilities with high-
bay storage and retail storage.
We can meet all your requirements and we offer complete
solutions.
3. PROPERTY PROTECTION
Whether a question of new
development or renovation of
an existing installation, we are
convinced that you will find our
products easy to work with.
Your unique needs and our
creativity have contributed to
our constant product development, giving rise to our motto:
“Secure storage must be simple.”
201710-5628-EN
Making your world safe.
There are dangers for people, property, and processes in the world.
But there is no need to
worry. Because we always strive to make it safe.
We are there, at your workplace, at your friends‘ and families‘ workplaces, at your home,
and at your friends‘ and families‘ homes. You may not always see us or think about us,
but we are always there, protecting and making your world safe, wherever you are.
Read more at troax.com
Troax AB P.O. Box 89, SE‑335 04 Hillerstorp, Sweden. troax.com | info@troax.com | + 46 (0)370‑828 00
