Pagina 1 - Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza A homelift designed for...

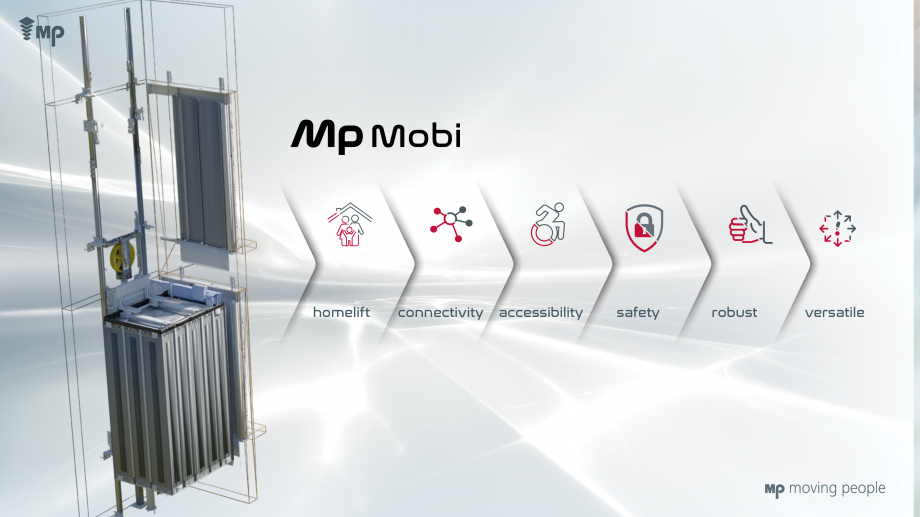

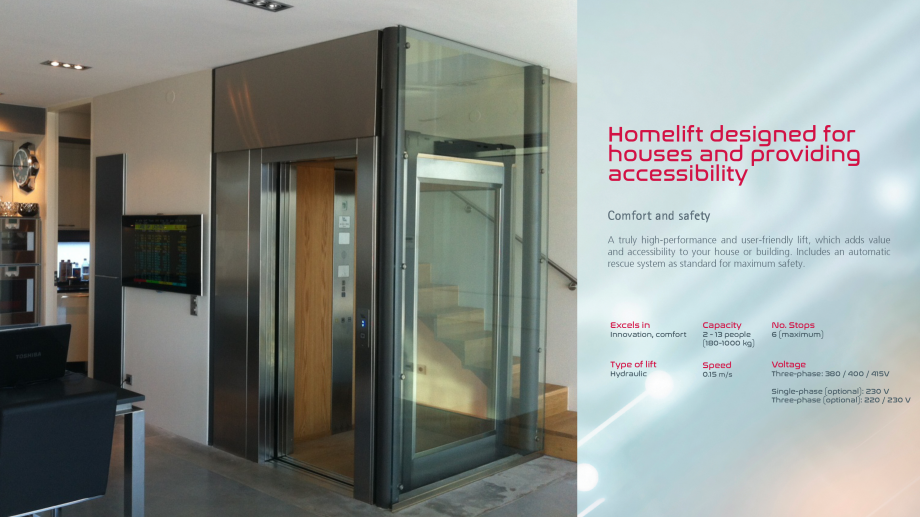

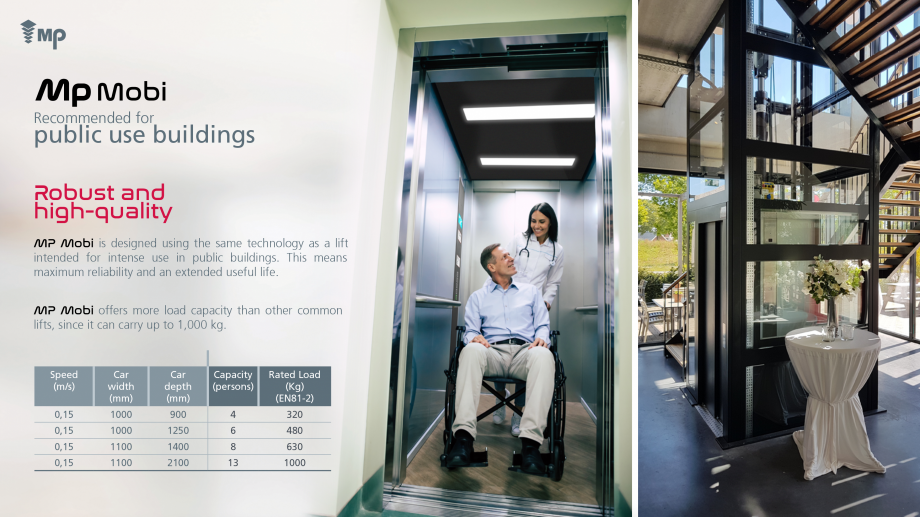

A homelift designed for houses and providing accessibility mplifts.com homelift connectivity accessibility safety robust versatile Homelift designed for houses and providing accessibility Comfort and safety A truly high-performance and user-friendly lift, which adds value and accessibility to your house or building. Includes an automatic rescue system as standard for maximum safety. Excels in Capacity No. Stops Type of lift Speed Voltage Innovation, comfort Hydraulic 2 - 13 people (180-1000 kg) 0.15 m/s 6 (maximum) Three-phase: 380 / 400 / 415V Single-phase (optional): 230 V Three-phase (optional): 220 / 230 V Ingeniería Recommended for public use buildings Robust and high-quality MP Mobi is designed using the same technology as a lift intended for intense use in public buildings. This means maximum reliability and an extended useful life. MP Mobi offers more load capacity than other common lifts, since it can carry up to 1,000 kg. Speed (m/s) Car width (mm

Pagina 1-Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza A homelift designed for houses and...

Pagina 2 - Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza )

Car
depth
(mm)

Capacity...

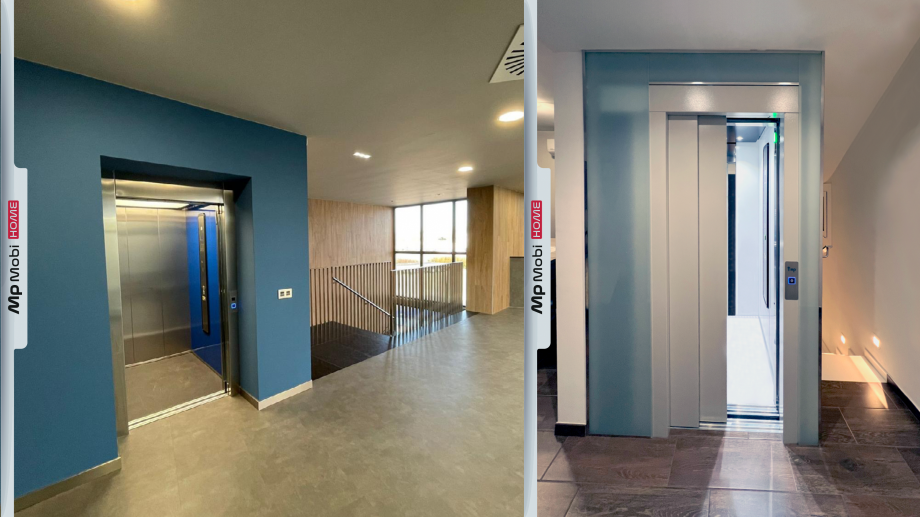

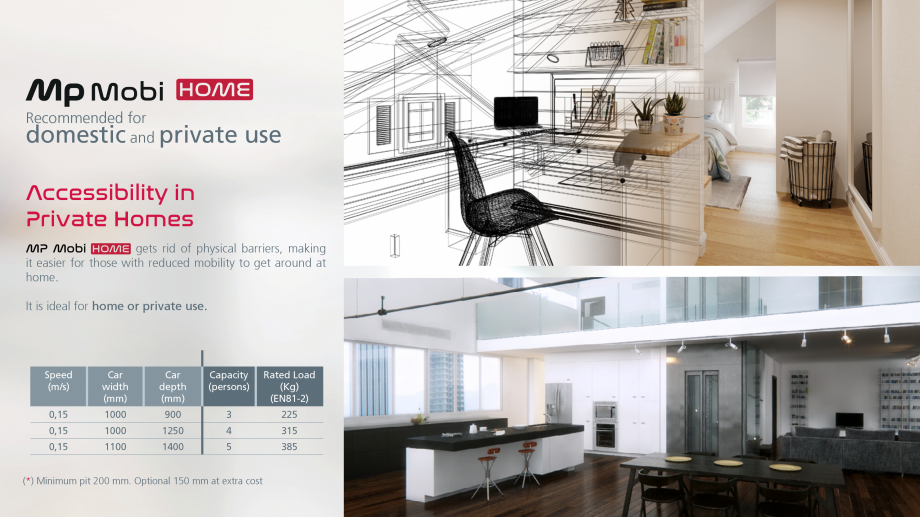

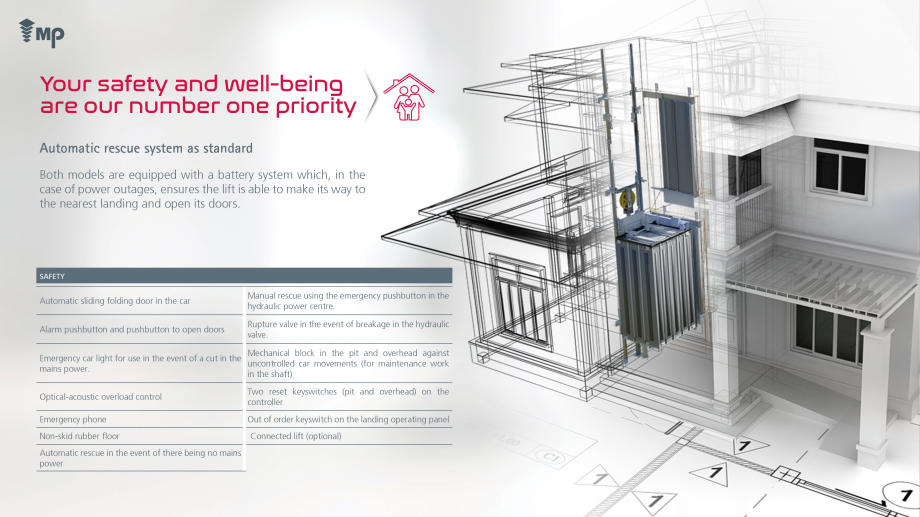

) Car depth (mm) Capacity (persons) Rated Load (Kg) (EN81-2) 0,15 1000 900 4 320 0,15 1000 1250 6 480 0,15 1100 1400 8 630 0,15 1100 2100 13 1000 Recommended for domestic and private use Accessibility in Private Homes MP Mobi gets rid of physical barriers, making it easier for those with reduced mobility to get around at home. It is ideal for home or private use. Speed (m/s) Car width (mm) Car depth (mm) Capacity (persons) Rated Load (Kg) (EN81-2) 0,15 1000 900 3 225 0,15 1000 1250 4 315 0,15 1100 1400 5 385 (*) Minimum pit 200 mm. Optional 150 mm at extra cost Your safety and well-being are our number one priority Automatic rescue system as standard Both models are equipped with a battery system which, in the case of power outages, ensures the lift is able to make its way to the nearest landing and open its doors. SAFETY Automatic sliding folding door in the car Manual rescue using the emergency pushbutton in the hydraulic power cen

Pagina 2-Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza )

Car
depth
(mm)

Capacity
(persons)
...

Pagina 3 - Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza tre.

Alarm pushbutton and...

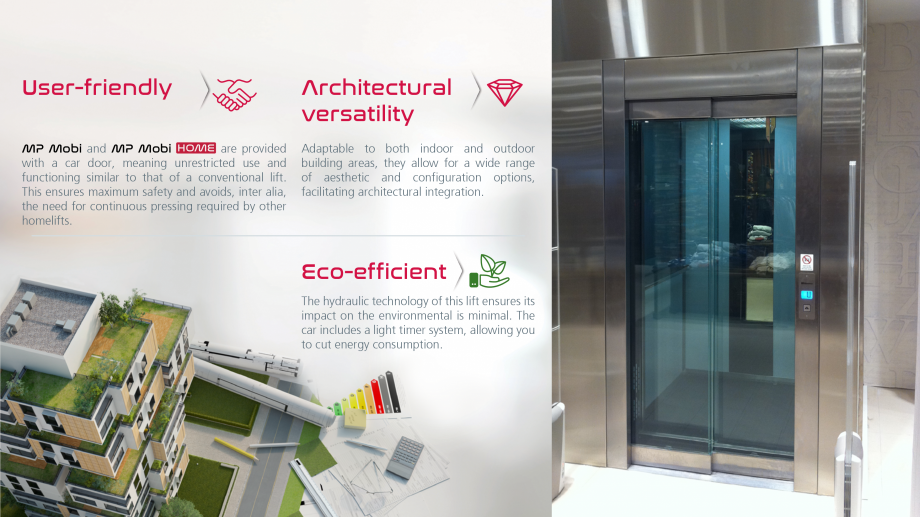

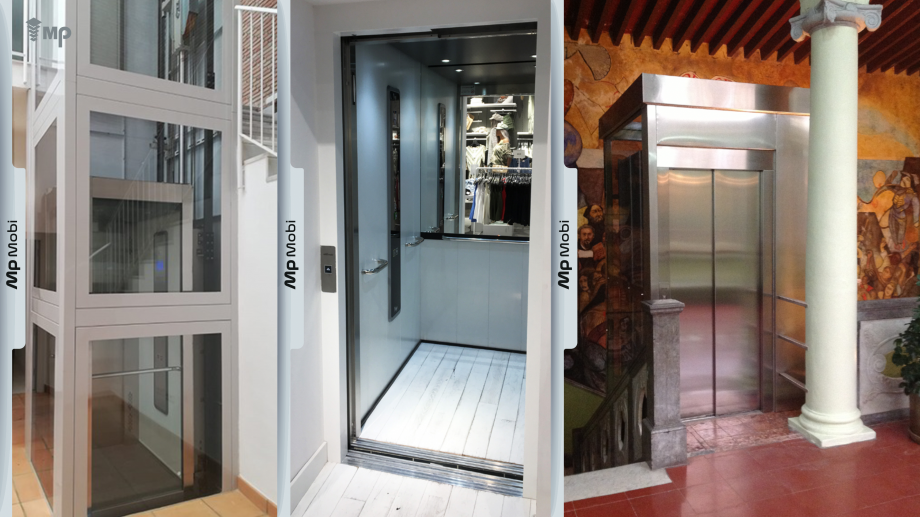

tre. Alarm pushbutton and pushbutton to open doors Rupture valve in the event of breakage in the hydraulic valve. Mechanical block in the pit and overhead against Emergency car light for use in the event of a cut in the uncontrolled car movements (for maintenance work mains power. in the shaft) Optical-acoustic overload control Two reset keyswitches (pit and overhead) on the controller Emergency phone Out of order keyswitch on the landing operating panel Non-skid rubber floor Automatic rescue in the event of there being no mains power Connected lift (optional) User-friendly Architectural versatility MP Mobi and MP Mobi are provided with a car door, meaning unrestricted use and functioning similar to that of a conventional lift. This ensures maximum safety and avoids, inter alia, the need for continuous pressing required by other homelifts. Adaptable to both indoor and outdoor building areas, they allow for a wide range of aesthetic and configuration options, facilitating a

Pagina 3-Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza tre.

Alarm pushbutton and pushbutton to...

Pagina 4 - Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza rchitectural integration.
...

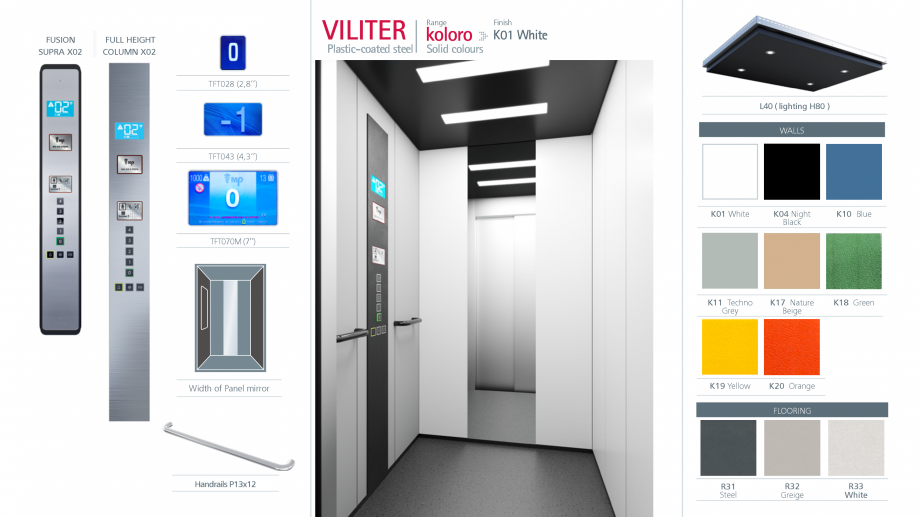

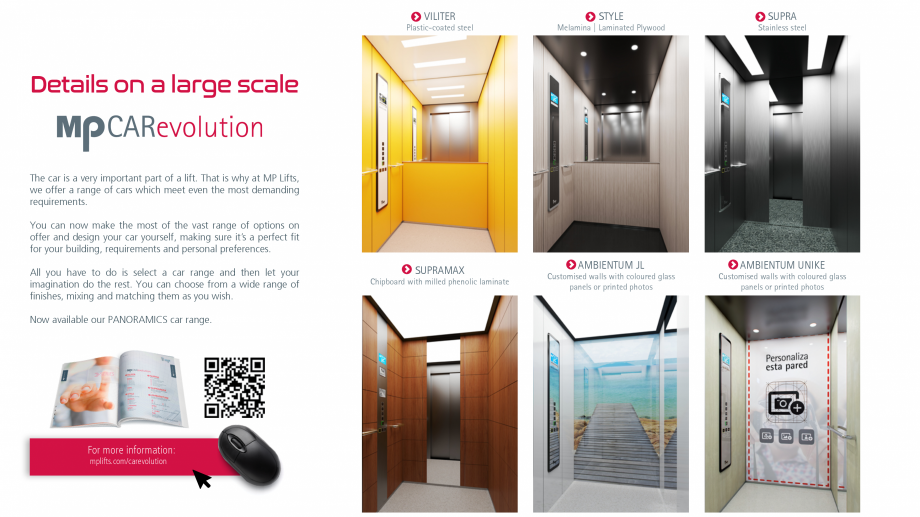

rchitectural integration. Eco-efficient The hydraulic technology of this lift ensures its impact on the environmental is minimal. The car includes a light timer system, allowing you to cut energy consumption. VILITER Plastic-coated steel STYLE Melamina | Laminated Plywood SUPRA Stainless steel Details on a large scale The car is a very important part of a lift. That is why at MP Lifts, we offer a range of cars which meet even the most demanding requirements. You can now make the most of the vast range of options on offer and design your car yourself, making sure it’s a perfect fit for your building, requirements and personal preferences. All you have to do is select a car range and then let your imagination do the rest. You can choose from a wide range of finishes, mixing and matching them as you wish. Now available our PANORAMICS car range. For more information: mplifts.com/carevolution SUPRAMAX Chipboard with milled phenolic laminate AMBIENTUM JL Customised walls wit

Pagina 4-Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza rchitectural integration.

Eco-efficient...

Pagina 5 - Catalog - Ascensor MP MOBI MP IFMA Catalog, brosura Engleza h coloured glass
panels or...

h coloured glass panels or printed photos AMBIENTUM UNIKE Customised walls with coloured glass panels or printed photos Range FUSION SUPRA X02 FULL HEIGHT COLUMN X02 Plastic-coated steel Solid colours Finish K01 White TFT028 (2,8’’) L40 ( lighting H80 ) WALLS TFT043 (4,3’’) K01 White K04 Night Black K10 Blue K11 Techno Grey K17 Nature Beige K18 Green K19 Yellow K20 Orange TFT070M (7’’) Width of Panel mirror FLOORING Handrails P13x12 R31 Steel R32 Greige R33 White VACENMPMOBI-12/2023 mplifts.com
