Caracteristici tehnice pereti modulari pentru birouri QBIQ iQSingle

Limba: Engleza
68 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

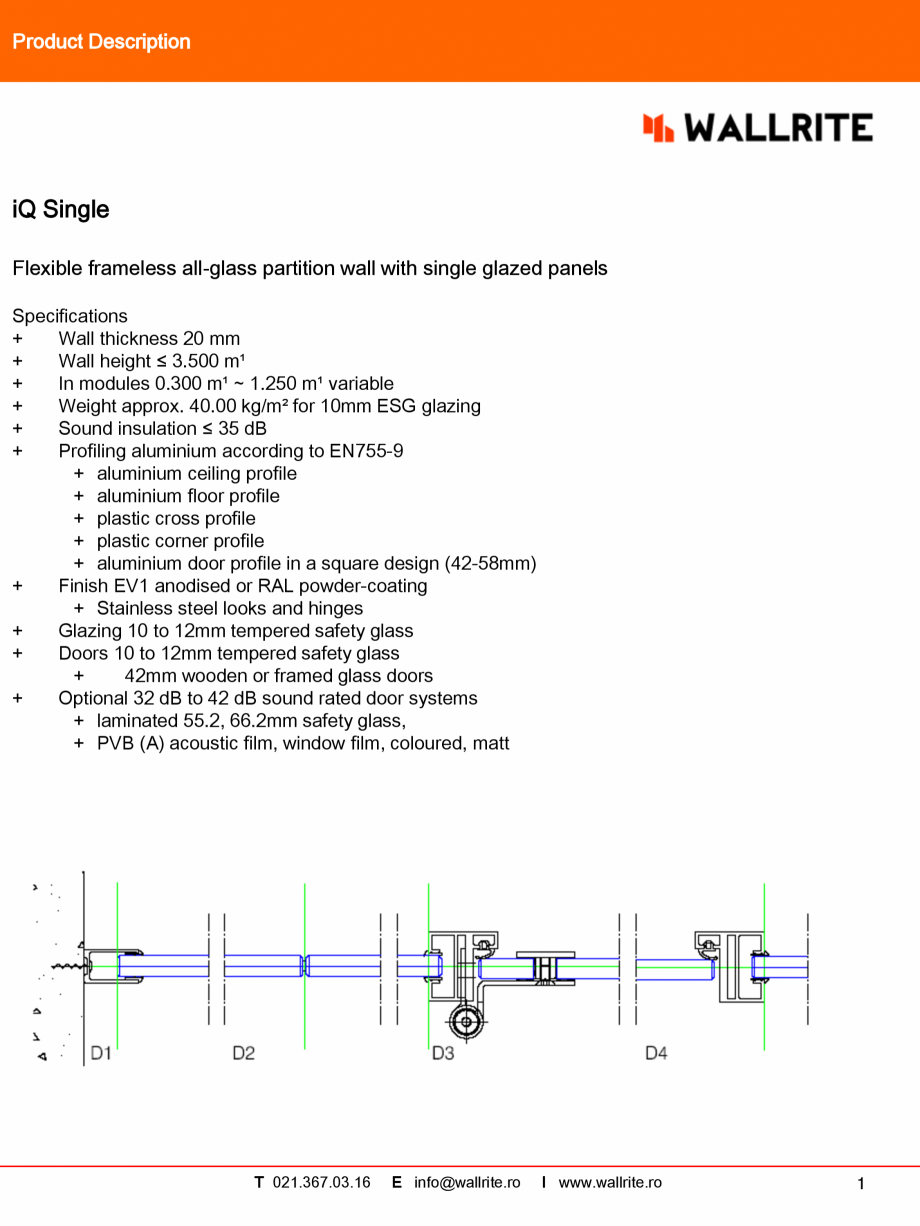

Pagina 1-Caracteristici tehnice pereti modulari pentru birouri QBIQ iQSingle Fisa tehnica Engleza Product...
Product Description iQ Single Flexible frameless all-glass partition wall with single glazed panels Specifications + Wall thickness 20 mm + Wall height ≤ 3.500 m¹ + In modules 0.300 m¹ ~ 1.250 m¹ variable + Weight approx. 40.00 kg/m² for 10mm ESG glazing + Sound insulation ≤ 35 dB + Profiling aluminium according to EN755-9 + aluminium ceiling profile + aluminium floor profile + plastic cross profile + plastic corner profile + aluminium door profile in a square design (42-58mm) + Finish EV1 anodised or RAL powder-coating + Stainless steel looks and hinges + Glazing 10 to 12mm tempered safety glass + Doors 10 to 12mm tempered safety glass + 42mm wooden or framed glass doors + Optional 32 dB to 42 dB sound rated door systems + laminated 55.2, 66.2mm safety glass, + PVB (A) acoustic film, window film, coloured, matt T 021.367.03.16 E info@wallrite.ro I www.wallrite.ro 1 ... ascunde
