Caracteristici tehnice - Pereti mobili, demontabili ESPERO Visio 100

Limba: Engleza
42 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

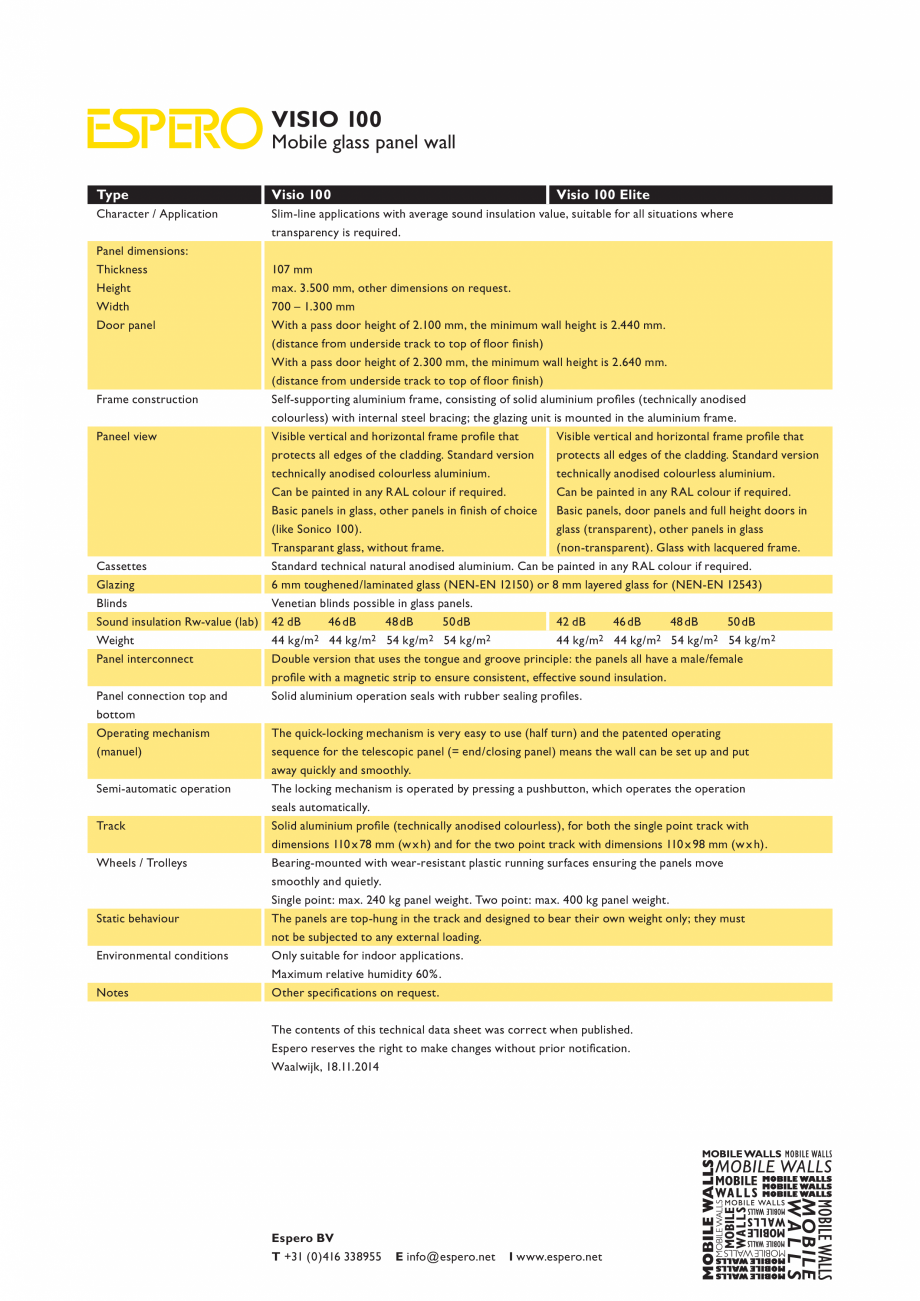

Pagina 1-Caracteristici tehnice - Pereti mobili, demontabili ESPERO Visio 100 Fisa tehnica Engleza VISIO 100
...
VISIO 100 Mobile glass panel wall Type Visio 100 Character / Application Slim-line applications with average sound insulation value, suitable for all situations where transparency is required. Panel dimensions: Thickness Height Width Door panel Frame construction Paneel view Cassettes Glazing Blinds Sound insulation Rw-value (lab) Weight Panel interconnect Panel connection top and bottom Operating mechanism (manuel) Semi-automatic operation Track Wheels / Trolleys Static behaviour Environmental conditions Notes Visio 100 Elite 107 mm max. 3.500 mm, other dimensions on request. 700 – 1.300 mm With a pass door height of 2.100 mm, the minimum wall height is 2.440 mm. (distance from underside track to top of floor finish) With a pass door height of 2.300 mm, the minimum wall height is 2.640 mm. (distance from underside track to top of floor finish) Self-supporting aluminium frame, consisting of solid aluminium profiles (technically anodised colourless) with internal ... ascunde
