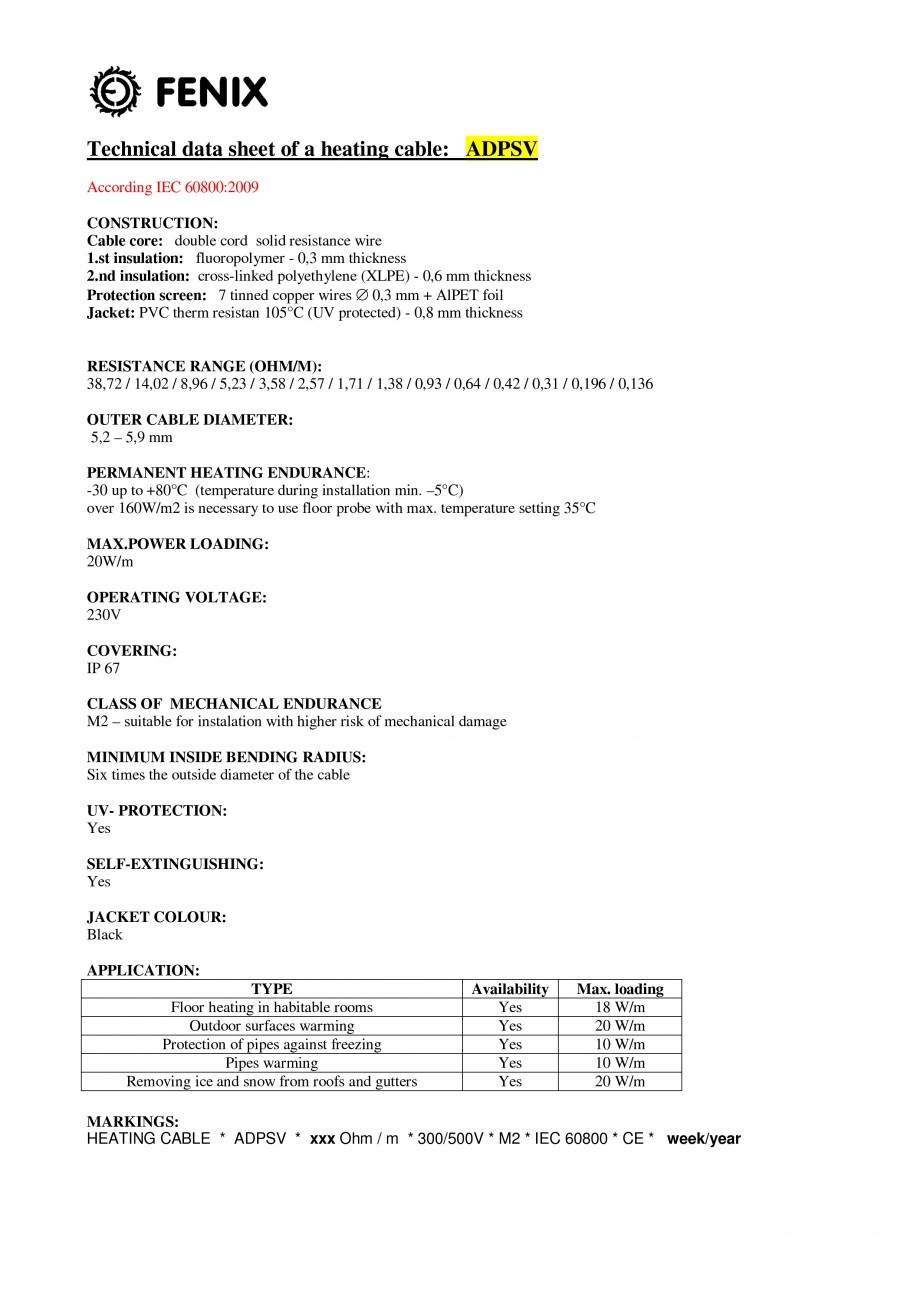

Pagina 1-Cablu incalzitor pentru degivrare FENIX ADPSV Fisa tehnica Engleza Technical data sheet of a heating...
Technical data sheet of a heating cable: ADPSV According IEC 60800:2009 CONSTRUCTION: Cable core: double cord solid resistance wire 1.st insulation: fluoropolymer - 0,3 mm thickness 2.nd insulation: cross-linked polyethylene (XLPE) - 0,6 mm thickness Protection screen: 7 tinned copper wires ∅ 0,3 mm + AlPET foil Jacket: PVC therm resistan 105°C (UV protected) - 0,8 mm thickness RESISTANCE RANGE (OHM/M): 38,72 / 14,02 / 8,96 / 5,23 / 3,58 / 2,57 / 1,71 / 1,38 / 0,93 / 0,64 / 0,42 / 0,31 / 0,196 / 0,136 OUTER CABLE DIAMETER: 5,2 – 5,9 mm PERMANENT HEATING ENDURANCE: -30 up to +80°C (temperature during installation min. –5°C) over 160W/m2 is necessary to use floor probe with max. temperature setting 35°C MAX.POWER LOADING: 20W/m OPERATING VOLTAGE: 230V COVERING: IP 67 CLASS OF MECHANICAL ENDURANCE M2 – suitable for instalation with higher risk of mechanical damage MINIMUM INSIDE BENDING RADIUS: Six times the outside diameter of the cable UV- PROTECTION: Yes SELF-EXTINGUISHING ... ascunde
