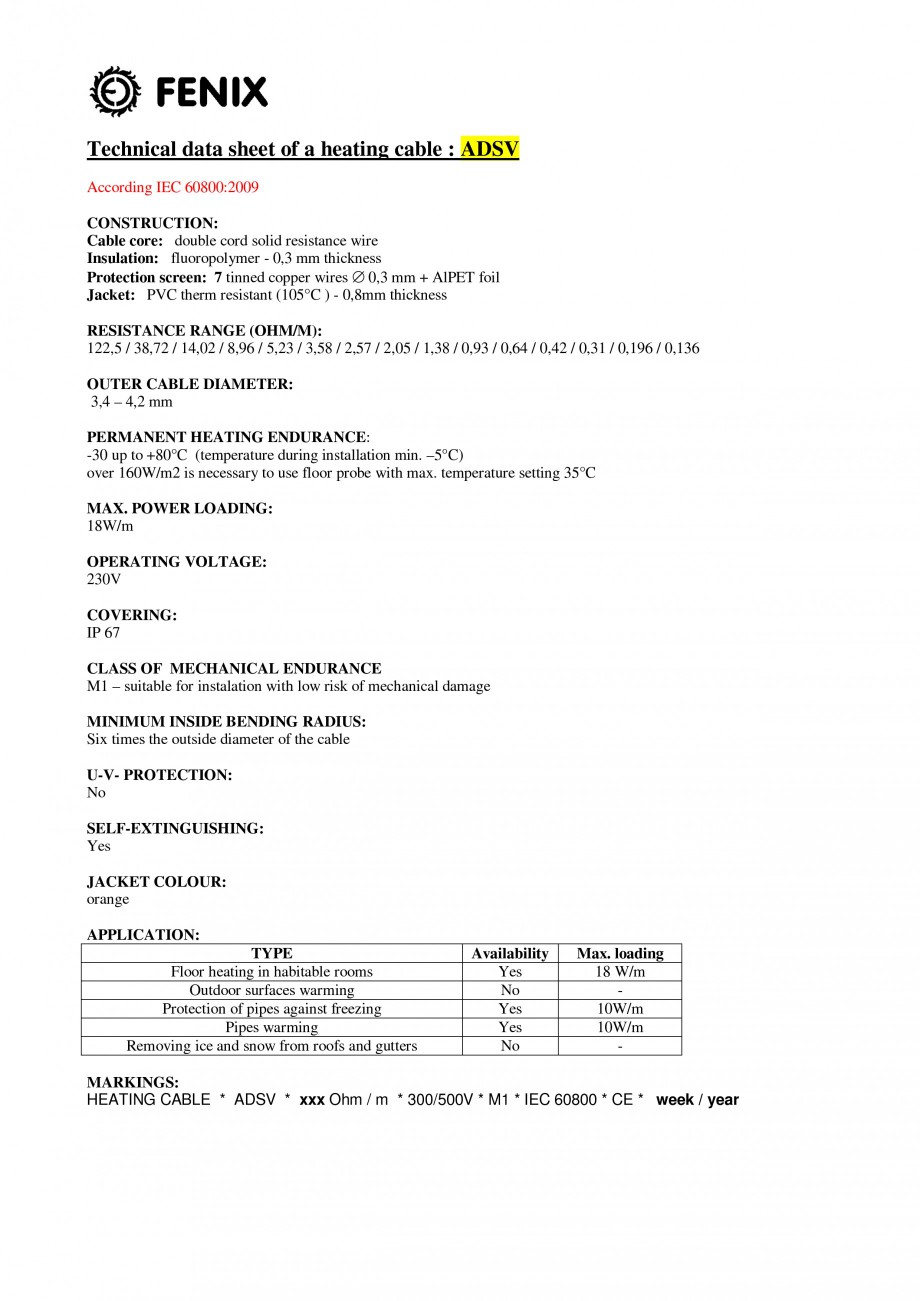

Pagina 1-Cablu incalzitor in pardoseala FENIX ECOFLOOR ADSV Fisa tehnica Engleza Technical data sheet of a...
Technical data sheet of a heating cable : ADSV According IEC 60800:2009 CONSTRUCTION: Cable core: double cord solid resistance wire Insulation: fluoropolymer - 0,3 mm thickness Protection screen: 7 tinned copper wires ∅ 0,3 mm + AlPET foil Jacket: PVC therm resistant (105°C ) - 0,8mm thickness RESISTANCE RANGE (OHM/M): 122,5 / 38,72 / 14,02 / 8,96 / 5,23 / 3,58 / 2,57 / 2,05 / 1,38 / 0,93 / 0,64 / 0,42 / 0,31 / 0,196 / 0,136 OUTER CABLE DIAMETER: 3,4 – 4,2 mm PERMANENT HEATING ENDURANCE: -30 up to +80°C (temperature during installation min. –5°C) over 160W/m2 is necessary to use floor probe with max. temperature setting 35°C MAX. POWER LOADING: 18W/m OPERATING VOLTAGE: 230V COVERING: IP 67 CLASS OF MECHANICAL ENDURANCE M1 – suitable for instalation with low risk of mechanical damage MINIMUM INSIDE BENDING RADIUS: Six times the outside diameter of the cable U-V- PROTECTION: No SELF-EXTINGUISHING: Yes JACKET COLOUR: orange APPLICATION: TYPE Floor heating in habitable rooms Ou ... ascunde
