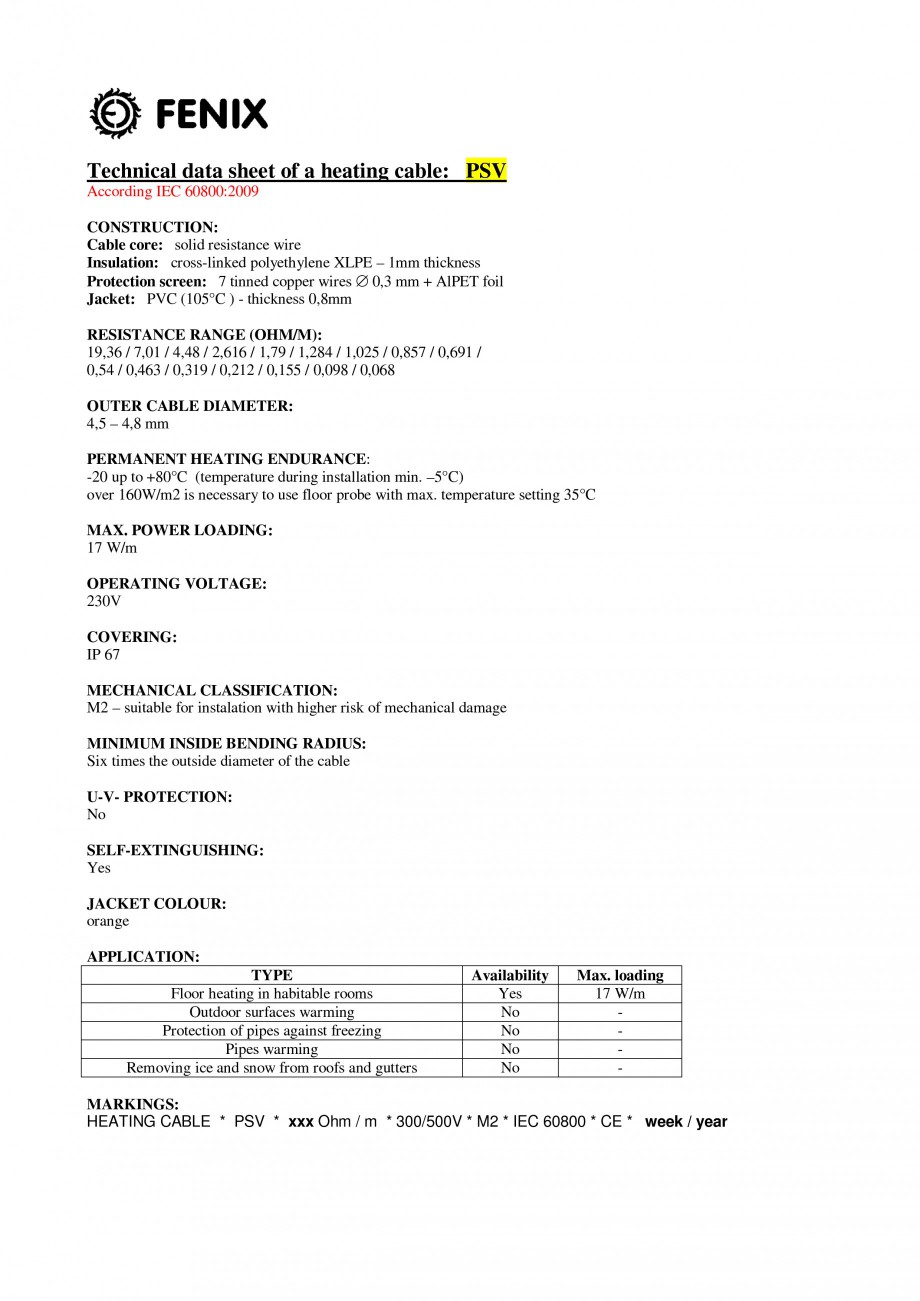

Pagina 1-Cablu incalzitor in pardoseala FENIX ECOFLOOR PSV Fisa tehnica Engleza Technical data sheet of a...
Technical data sheet of a heating cable: PSV According IEC 60800:2009 CONSTRUCTION: Cable core: solid resistance wire Insulation: cross-linked polyethylene XLPE – 1mm thickness Protection screen: 7 tinned copper wires ∅ 0,3 mm + AlPET foil Jacket: PVC (105°C ) - thickness 0,8mm RESISTANCE RANGE (OHM/M): 19,36 / 7,01 / 4,48 / 2,616 / 1,79 / 1,284 / 1,025 / 0,857 / 0,691 / 0,54 / 0,463 / 0,319 / 0,212 / 0,155 / 0,098 / 0,068 OUTER CABLE DIAMETER: 4,5 – 4,8 mm PERMANENT HEATING ENDURANCE: -20 up to +80°C (temperature during installation min. –5°C) over 160W/m2 is necessary to use floor probe with max. temperature setting 35°C MAX. POWER LOADING: 17 W/m OPERATING VOLTAGE: 230V COVERING: IP 67 MECHANICAL CLASSIFICATION: M2 – suitable for instalation with higher risk of mechanical damage MINIMUM INSIDE BENDING RADIUS: Six times the outside diameter of the cable U-V- PROTECTION: No SELF-EXTINGUISHING: Yes JACKET COLOUR: orange APPLICATION: TYPE Floor heating in habitable rooms O ... ascunde
