Pagina 1 - Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza Panaray® MA12EX

full-range...

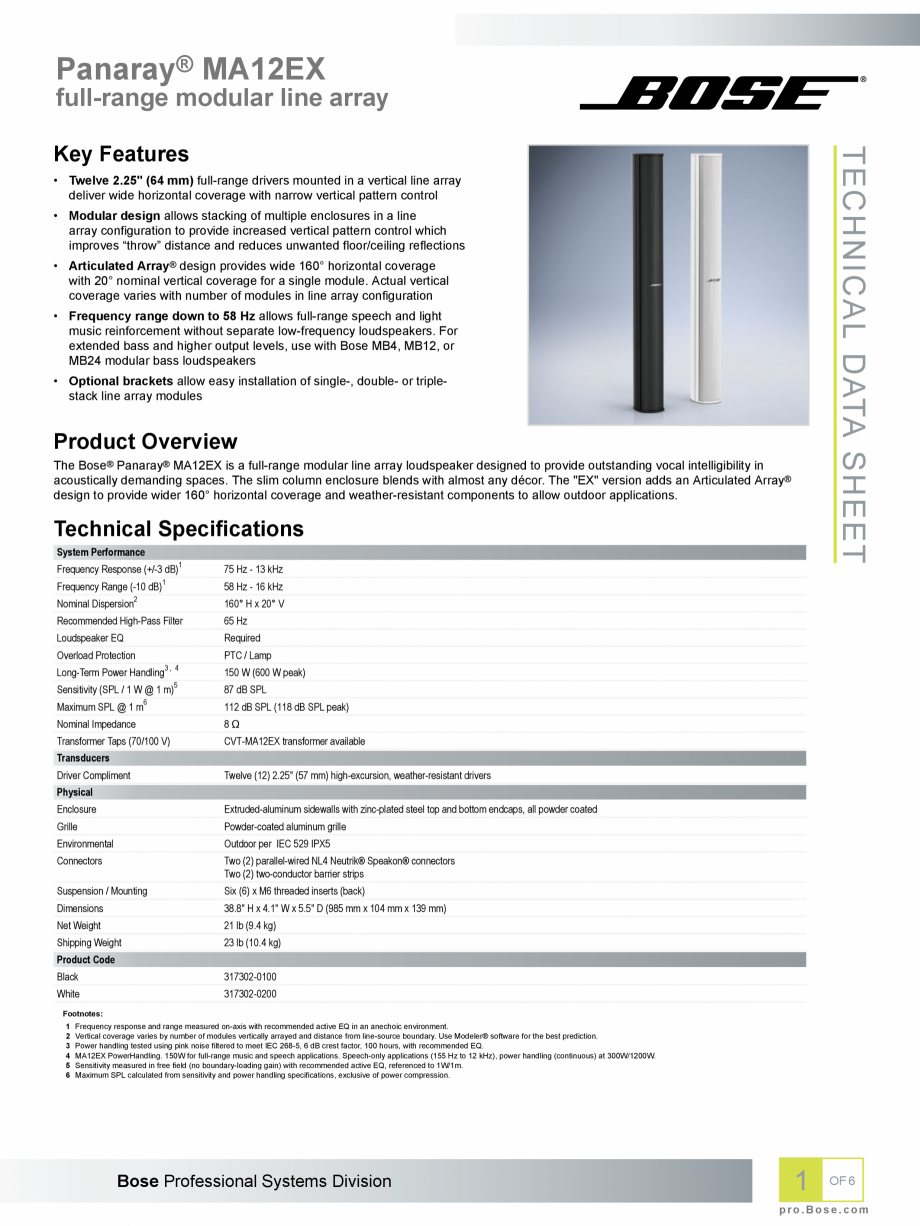

Panaray® MA12EX full-range modular line array TECHNICAL DATA SHEET Key Features • Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections • Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration • Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers • Optional brackets allow easy installation of single-, double- or triplestack line array modules Pro

Pagina 1-Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza Panaray® MA12EX

full-range modular line...

Pagina 2 - Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza duct Overview
The Bose®...

duct Overview The Bose® Panaray® MA12EX is a full-range modular line array loudspeaker designed to provide outstanding vocal intelligibility in acoustically demanding spaces. The slim column enclosure blends with almost any décor. The "EX" version adds an Articulated Array® design to provide wider 160° horizontal coverage and weather-resistant components to allow outdoor applications. Technical Specifications System Performance 1 Frequency Response (+/-3 dB) 75 Hz - 13 kHz Frequency Range (-10 dB) 58 Hz - 16 kHz Nominal Dispersion 160° H x 20° V Recommended High-Pass Filter 65 Hz Loudspeaker EQ Required 1 2 Overload Protection 3, 4 Long-Term Power Handling 5 PTC / Lamp 150 W (600 W peak) Sensitivity (SPL / 1 W @ 1 m) 87 dB SPL Maximum SPL @ 1 m 112 dB SPL (118 dB SPL peak) Nominal Impedance 8Ω Transformer Taps (70/100 V) CVT-MA12EX transformer available 6 Transducers Driver Compliment Twelve (12) 2.25" (57 mm) high-excursion, weather-resistant dri

Pagina 2-Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza duct Overview
The Bose® Panaray® MA12EX is...

Pagina 3 - Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza vers

Physical
Enclosure
...

vers Physical Enclosure Extruded-aluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated Grille Powder-coated aluminum grille Environmental Outdoor per IEC 529 IPX5 Connectors Two (2) parallel-wired NL4 Neutrik® Speakon® connectors Two (2) two-conductor barrier strips Suspension / Mounting Six (6) x M6 threaded inserts (back) Dimensions 38.8" H x 4.1" W x 5.5" D (985 mm x 104 mm x 139 mm) Net Weight 21 lb (9.4 kg) Shipping Weight 23 lb (10.4 kg) Product Code Black 317302-0100 White 317302-0200 Footnotes: 1 2 3 4 5 6 Frequency response and range measured on-axis with recommended active EQ in an anechoic environment. Vertical coverage varies by number of modules vertically arrayed and distance from line-source boundary. Use Modeler® software for the best prediction. Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ. MA12EX PowerHandling. 150W for full-range music and sp

Pagina 3-Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza vers

Physical
Enclosure

Extruded-aluminum ...

Pagina 4 - Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza eech applications. Speech-only...

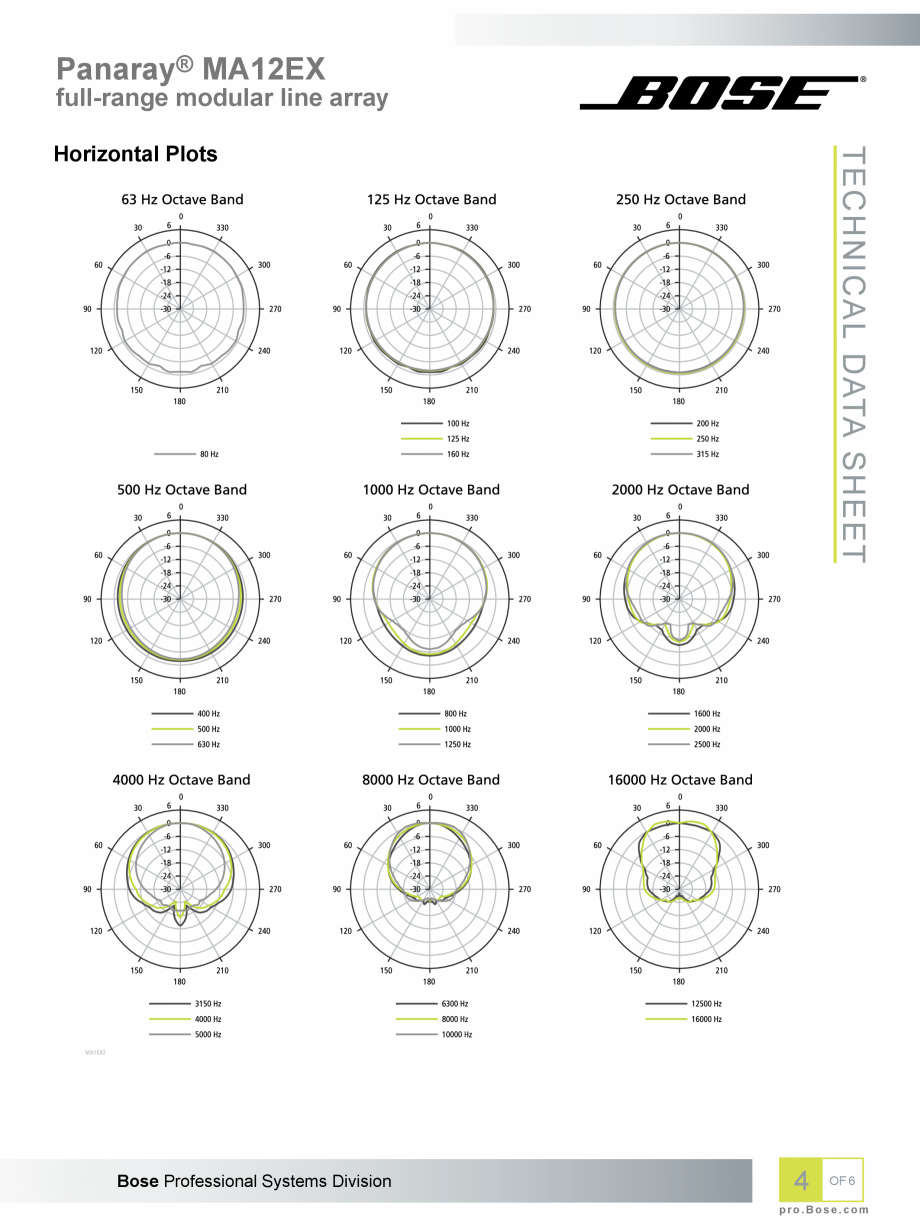

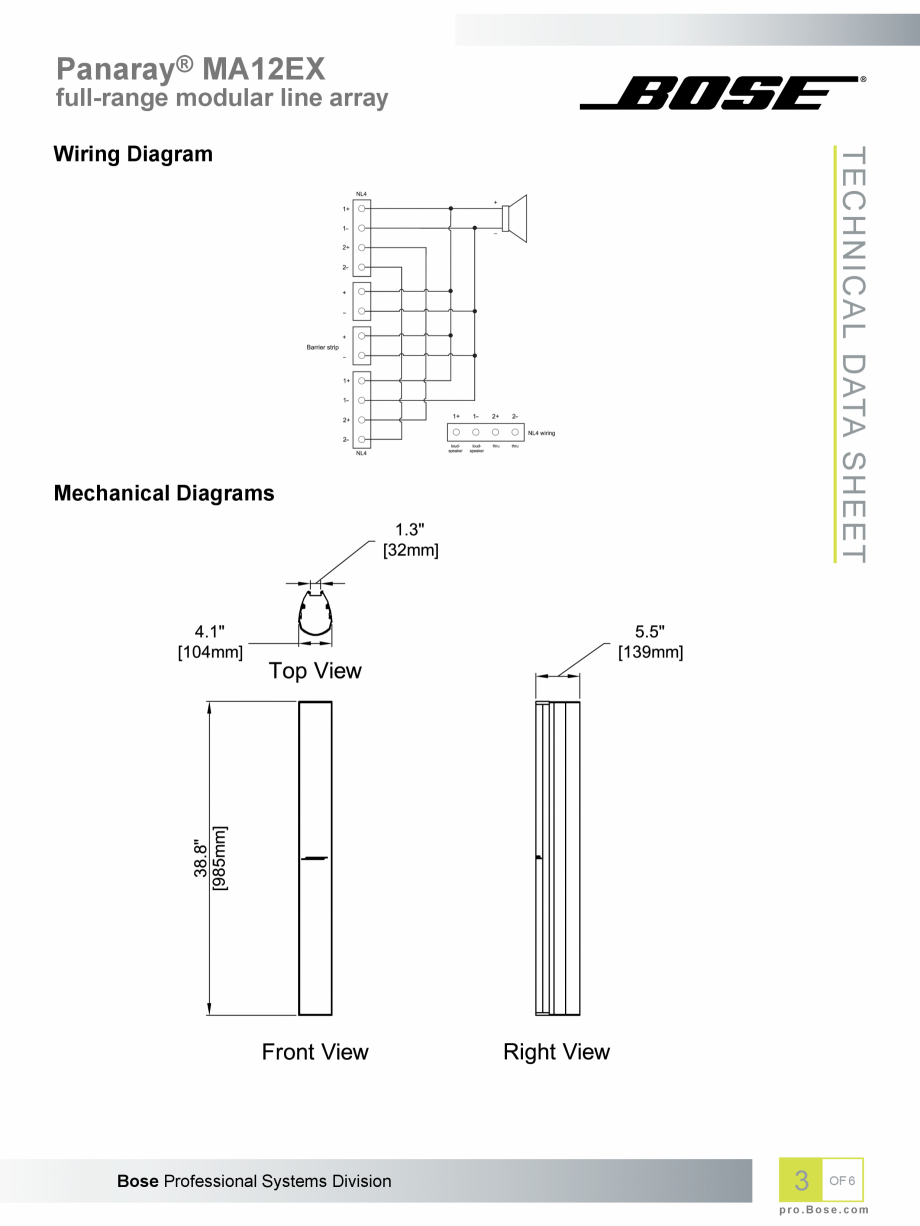

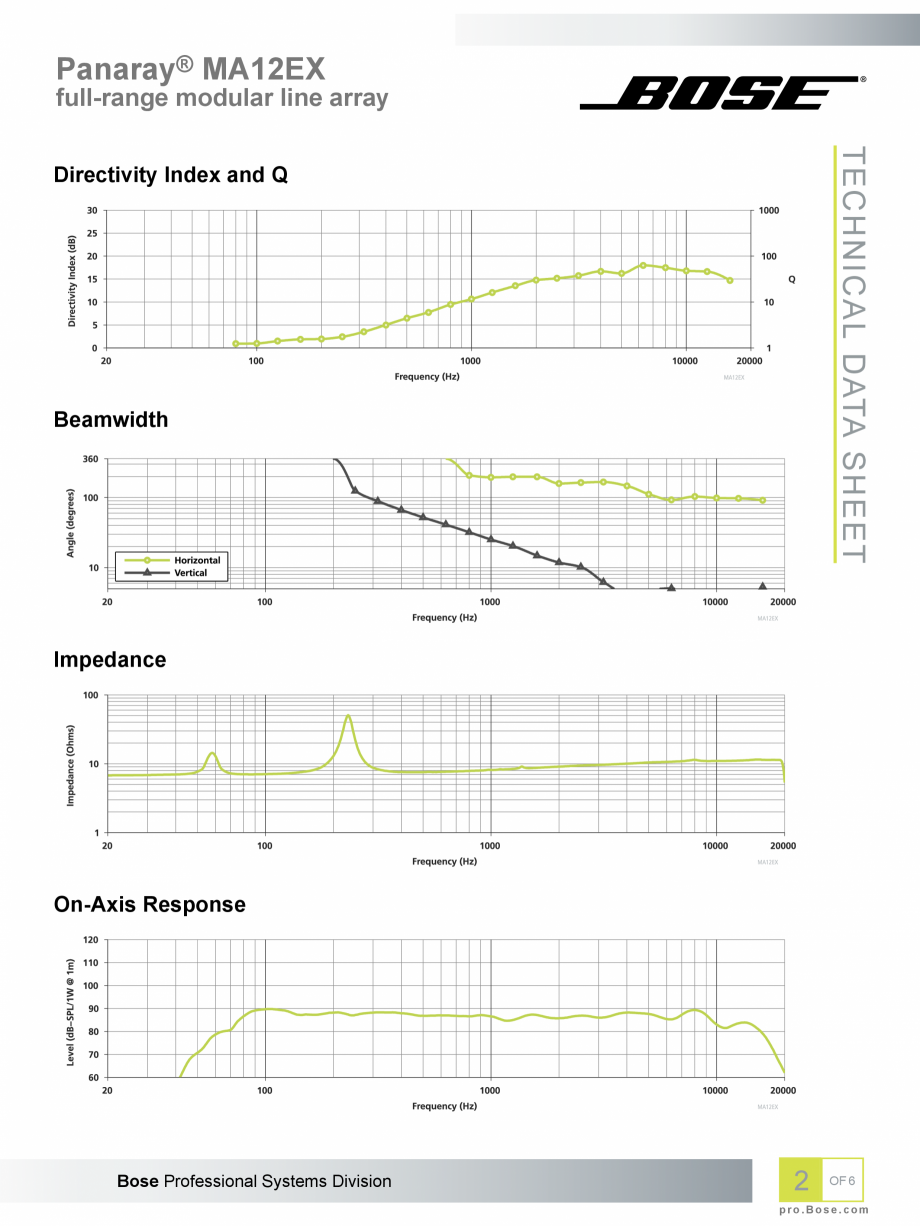

eech applications. Speech-only applications (155 Hz to 12 kHz), power handling (continuous) at 300W/1200W. Sensitivity measured in free field (no boundary-loading gain) with recommended active EQ, referenced to 1W/1m. Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression. Bose Professional Systems Division 1 OF 6 pro.Bose.com Panaray® MA12EX full-range modular line array TECHNICAL DATA SHEET Directivity Index and Q Beamwidth Impedance On-Axis Response Bose Professional Systems Division 2 OF 6 pro.Bose.com Panaray® MA12EX full-range modular line array TECHNICAL DATA SHEET Wiring Diagram Mechanical Diagrams Bose Professional Systems Division 3 OF 6 pro.Bose.com Panaray® MA12EX full-range modular line array Bose Professional Systems Division TECHNICAL DATA SHEET Horizontal Plots 4 OF 6 pro.Bose.com Panaray® MA12EX full-range modular line array Bose Professional Systems Division TECHNICAL DATA S

Pagina 4-Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza eech applications. Speech-only applications ...

Pagina 5 - Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza HEET

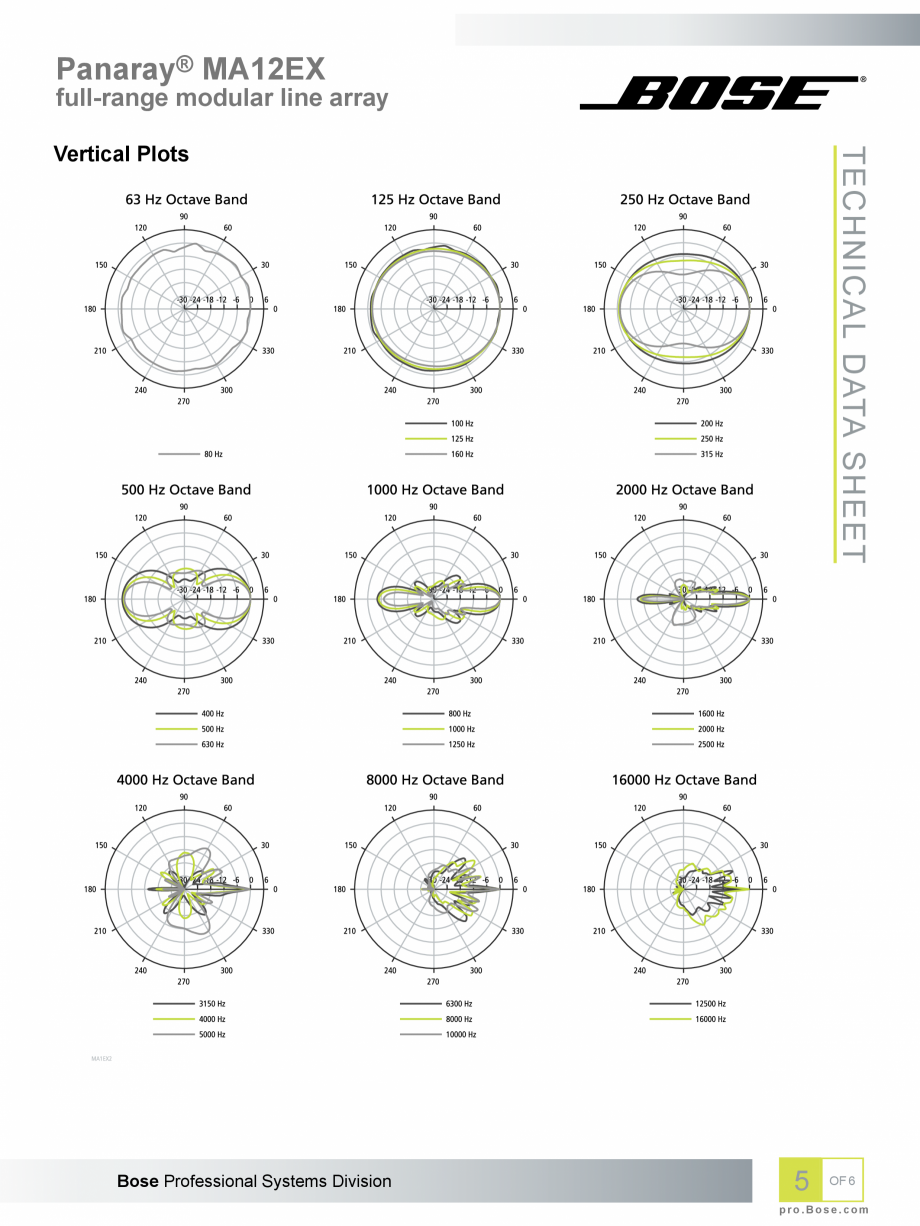

Vertical Plots

5

OF 6
...

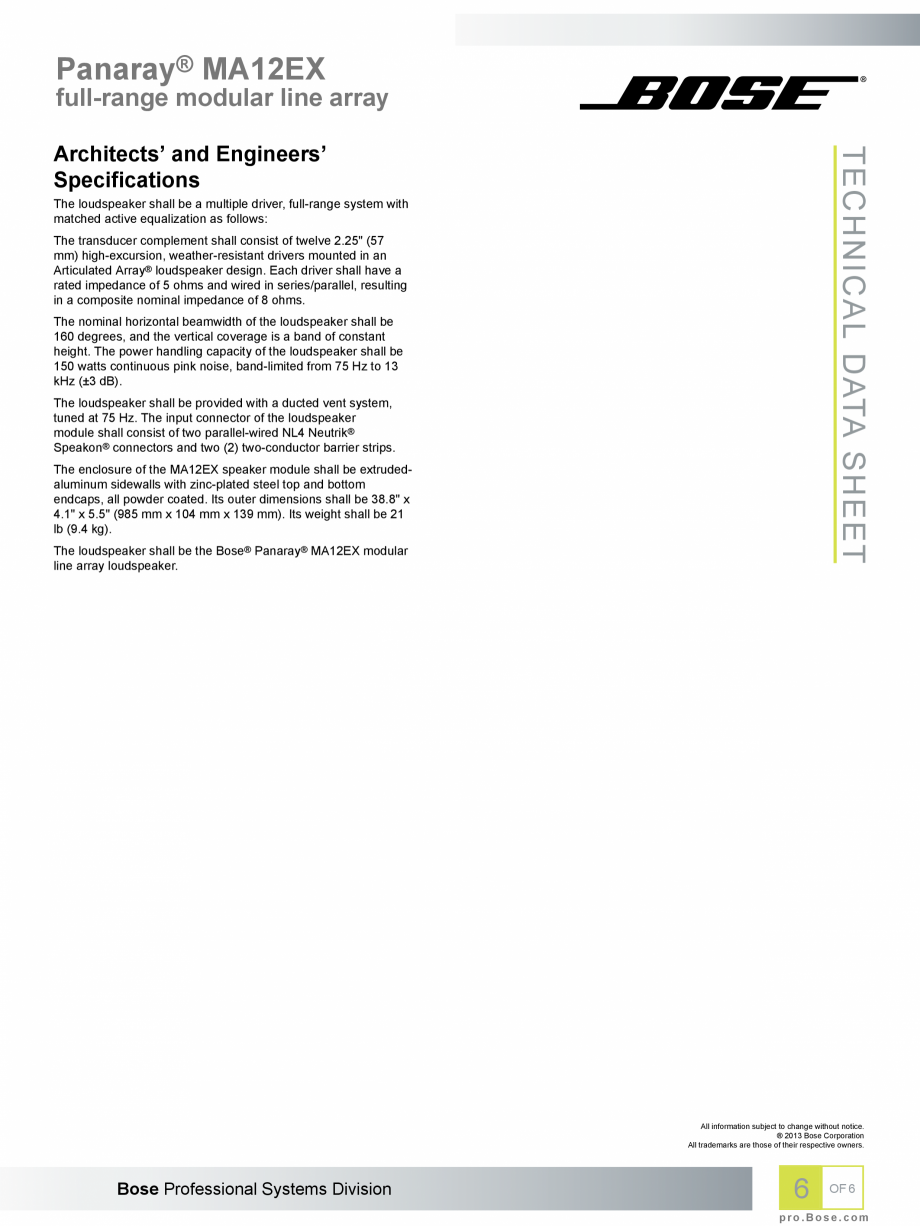

HEET Vertical Plots 5 OF 6 pro.Bose.com Panaray® MA12EX full-range modular line array TECHNICAL DATA SHEET Architects’ and Engineers’ Specifications The loudspeaker shall be a multiple driver, full-range system with matched active equalization as follows: The transducer complement shall consist of twelve 2.25" (57 mm) high-excursion, weather-resistant drivers mounted in an Articulated Array® loudspeaker design. Each driver shall have a rated impedance of 5 ohms and wired in series/parallel, resulting in a composite nominal impedance of 8 ohms. The nominal horizontal beamwidth of the loudspeaker shall be 160 degrees, and the vertical coverage is a band of constant height. The power handling capacity of the loudspeaker shall be 150 watts continuous pink noise, band-limited from 75 Hz to 13 kHz (±3 dB). The loudspeaker shall be provided with a ducted vent system, tuned at 75 Hz. The input connector of the loudspeaker module shall consist of two parallel-wired NL4 Neutrik®

Pagina 5-Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza HEET

Vertical Plots

5

OF 6

pro.Bose.com
...

Pagina 6 - Boxele-coloana BOSE Panaray MA12EX Fisa tehnica Engleza
Speakon® connectors and two (2)...

Speakon® connectors and two (2) two-conductor barrier strips. The enclosure of the MA12EX speaker module shall be extrudedaluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated. Its outer dimensions shall be 38.8" x 4.1" x 5.5" (985 mm x 104 mm x 139 mm). Its weight shall be 21 lb (9.4 kg). The loudspeaker shall be the Bose® Panaray® MA12EX modular line array loudspeaker. All information subject to change without notice. ® 2013 Bose Corporation All trademarks are those of their respective owners. Bose Professional Systems Division 6 OF 6 pro.Bose.com
