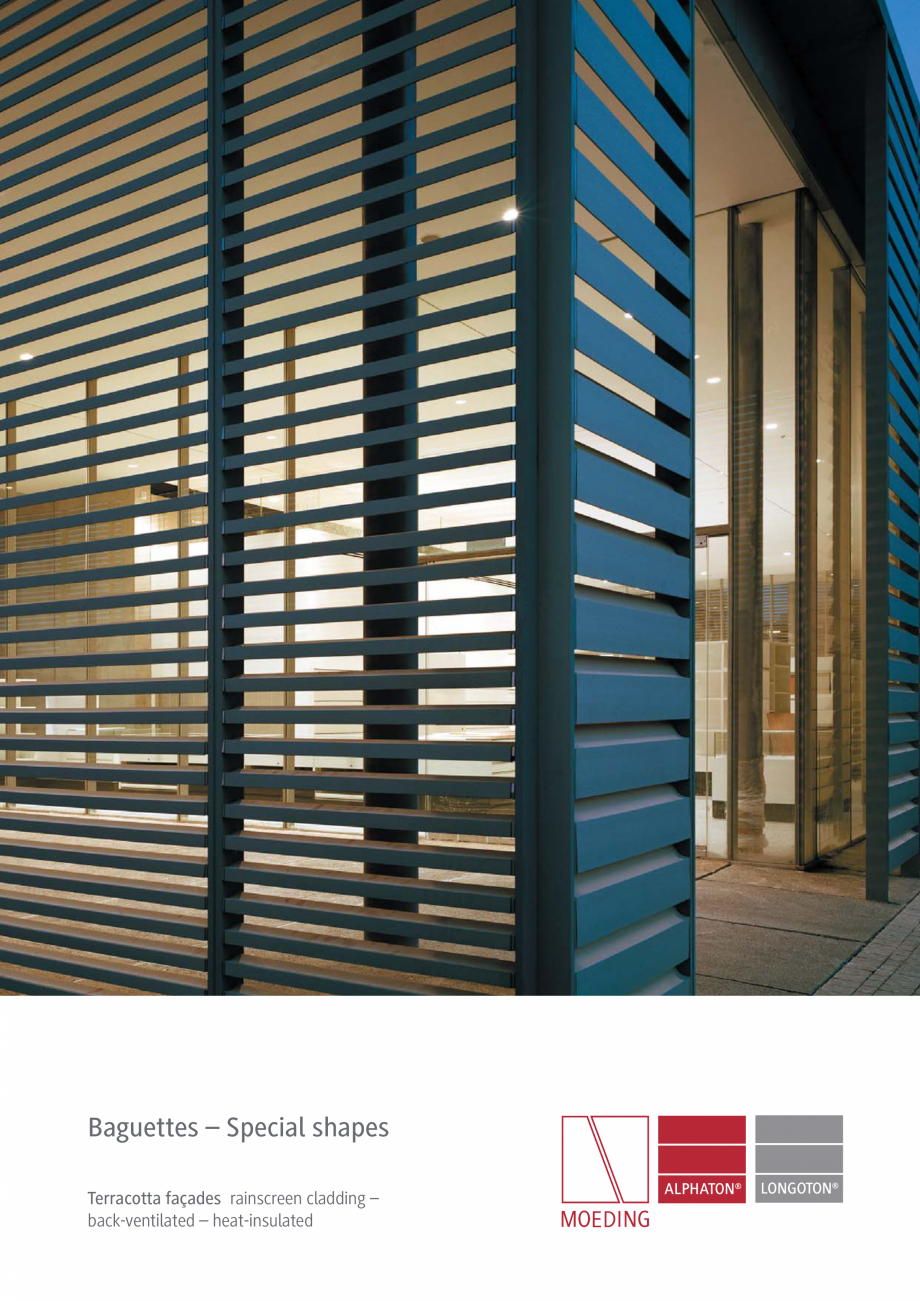

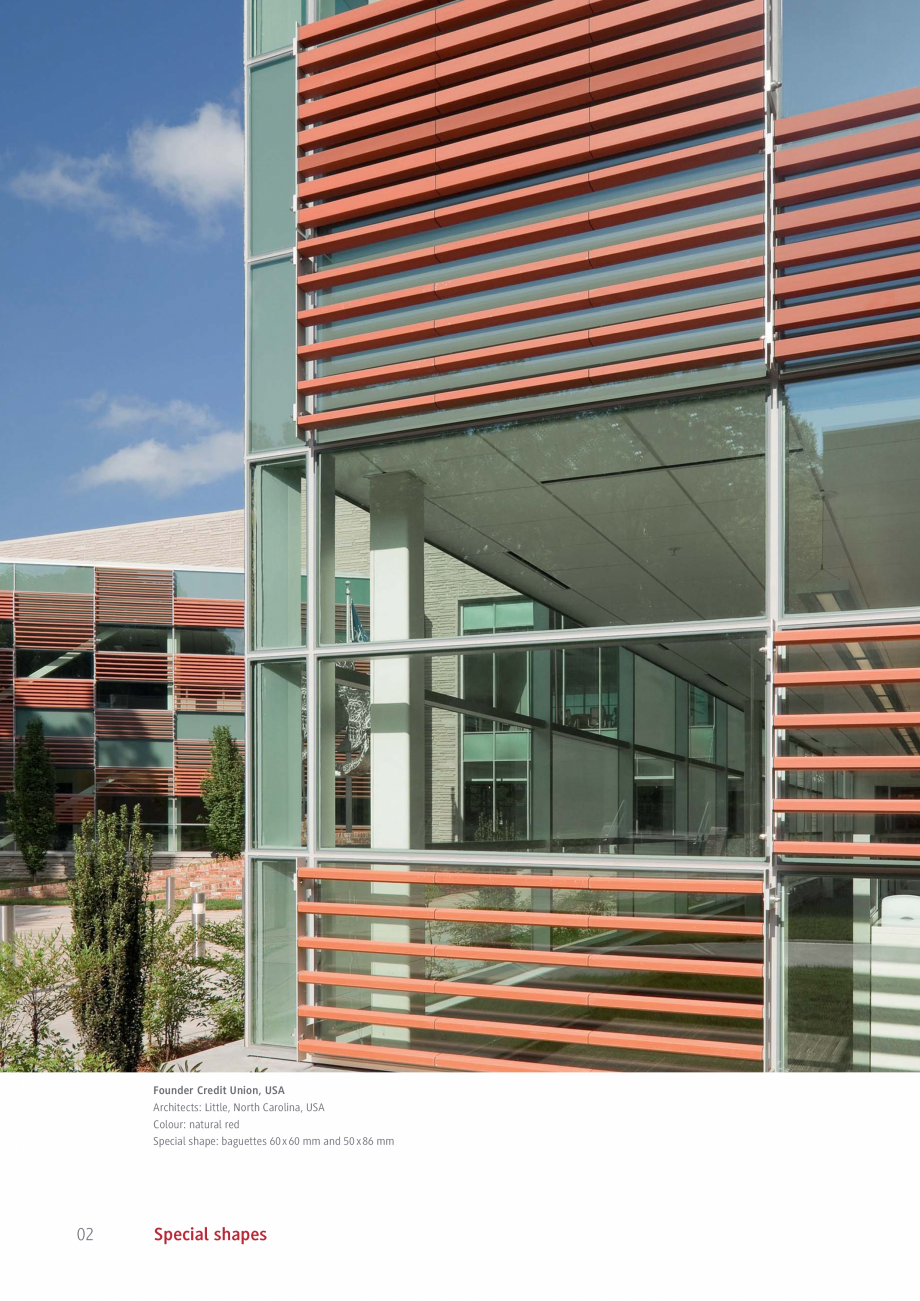

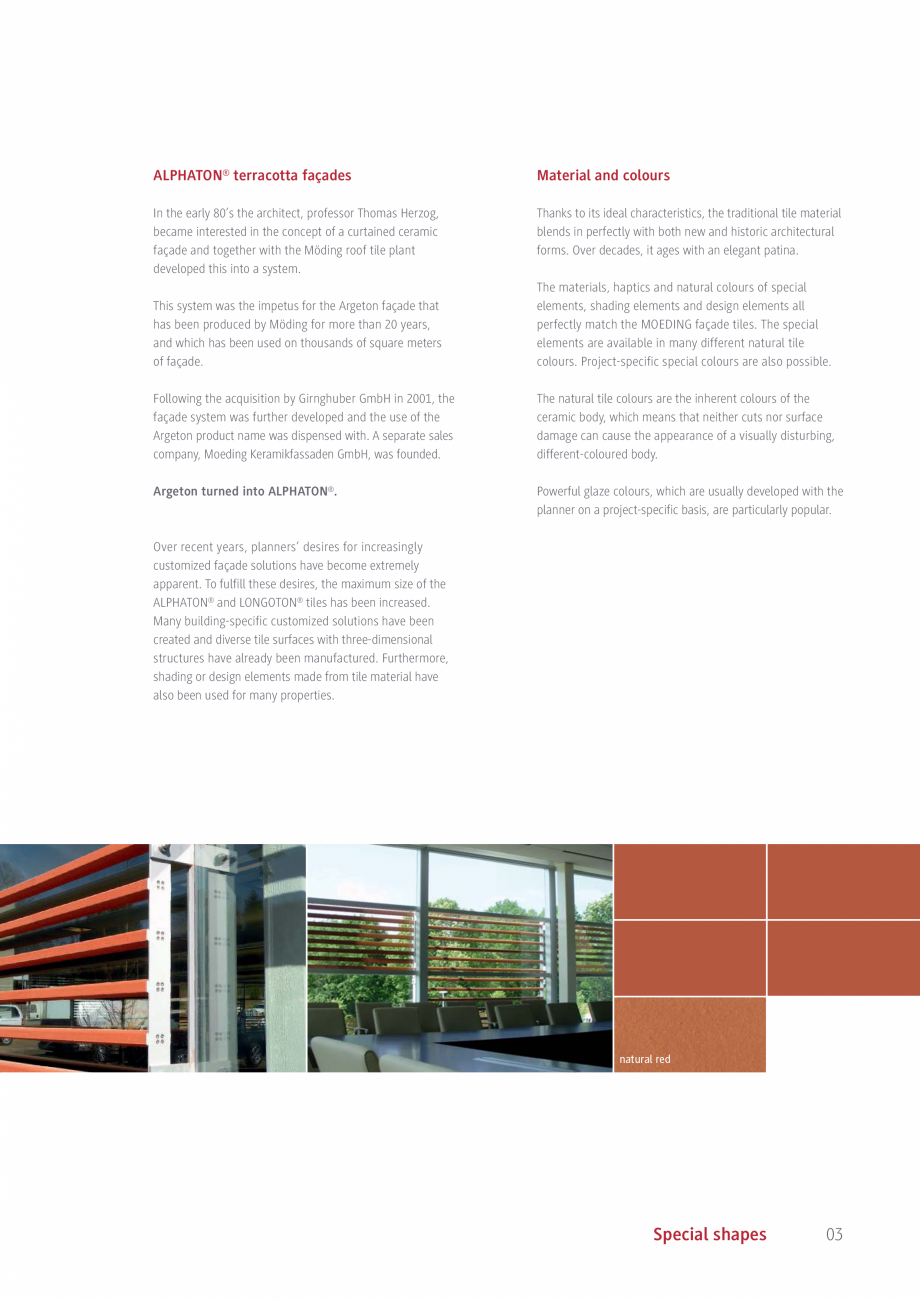

Baguettes – Special shapes Terracotta façades rainscreen cladding – back-ventilated – heat-insulated Founder Credit Union, USA Architects: Little, North Carolina, USA Colour: natural red Special shape: baguettes 60 x 60 mm and 50 x 86 mm 02 Special shapes ALPHATON® terracotta façades Material and colours In the early 80’s the architect, professor Thomas Herzog, became interested in the concept of a curtained ceramic façade and together with the Möding roof tile plant developed this into a system. Thanks to its ideal characteristics, the traditional tile material blends in perfectly with both new and historic architectural forms. Over decades, it ages with an elegant patina. This system was the impetus for the Argeton façade that has been produced by Möding for more than 20 years, and which has been used on thousands of square meters of façade. The materials, haptics and natural colours of special elements, shading elements and design elements all perfectly ma

Pagina 1-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza Baguettes – Special...

Pagina 2 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza tch the MOEDING...

tch the MOEDING façade tiles. The special elements are available in many different natural tile colours. Project-specific special colours are also possible. Following the acquisition by Girnghuber GmbH in 2001, the façade system was further developed and the use of the Argeton product name was dispensed with. A separate sales company, Moeding Keramikfassaden GmbH, was founded. The natural tile colours are the inherent colours of the ceramic body, which means that neither cuts nor surface damage can cause the appearance of a visually disturbing, different-coloured body. Argeton turned into ALPHATON®. Powerful glaze colours, which are usually developed with the planner on a project-specific basis, are particularly popular. Over recent years, planners’ desires for increasingly customized façade solutions have become extremely apparent. To fulfill these desires, the maximum size of the ALPHATON® and LONGOTON® tiles has been increased. Many building-specific customized solution

Pagina 2-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza tch the MOEDING façade...

Pagina 3 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza s have been...

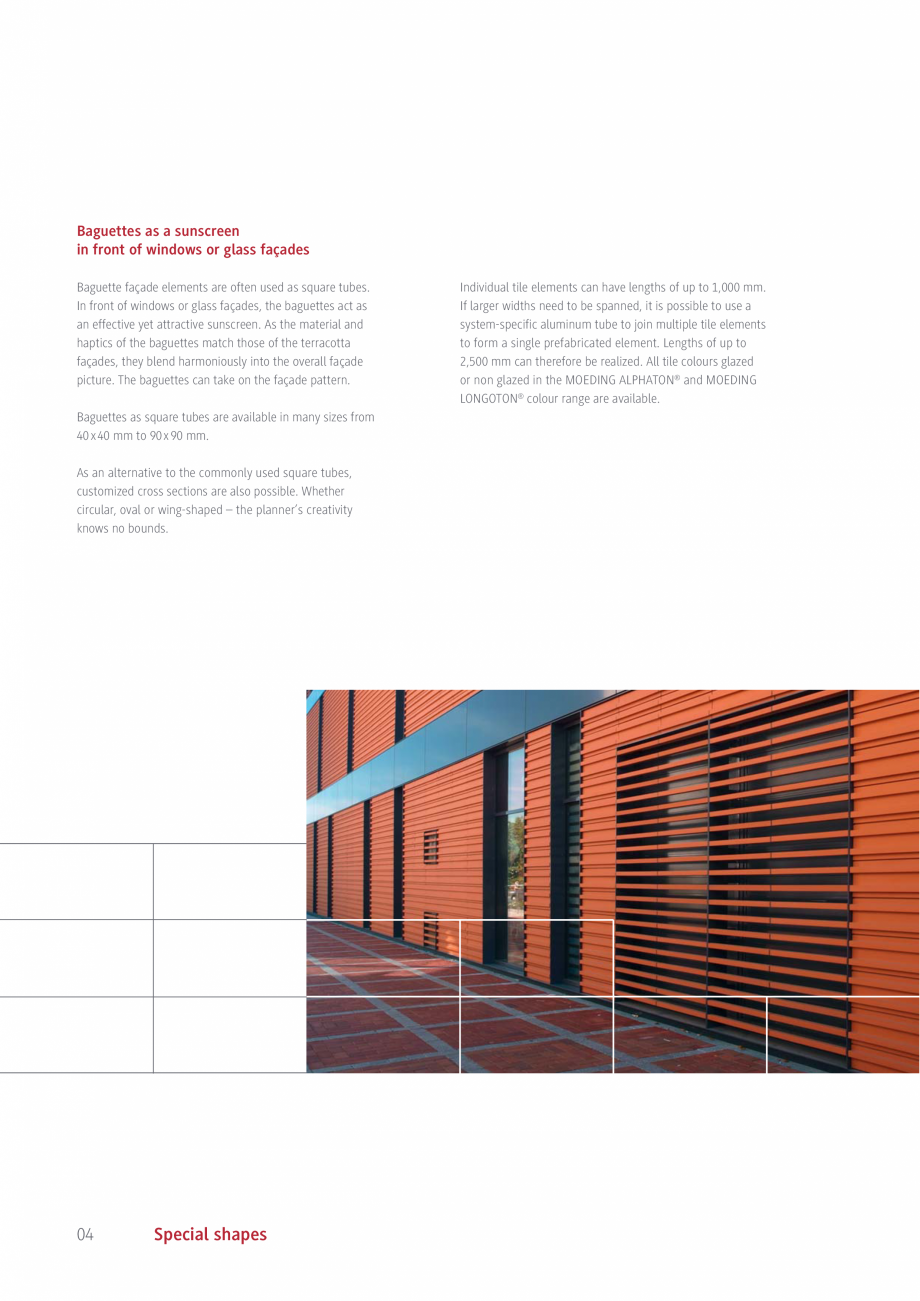

s have been created and diverse tile surfaces with three-dimensional structures have already been manufactured. Furthermore, shading or design elements made from tile material have also been used for many properties. natural red Special shapes 03 Baguettes as a sunscreen in front of windows or glass façades Baguette façade elements are often used as square tubes. In front of windows or glass façades, the baguettes act as an effective yet attractive sunscreen. As the material and haptics of the baguettes match those of the terracotta façades, they blend harmoniously into the overall façade picture. The baguettes can take on the façade pattern. Baguettes as square tubes are available in many sizes from 40 x 40 mm to 90 x 90 mm. As an alternative to the commonly used square tubes, customized cross sections are also possible. Whether circular, oval or wing-shaped – the planner’s creativity knows no bounds. 04 Special shapes Individual tile elements can have lengths of up

Pagina 3-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza s have been
created and...

Pagina 4 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza to 1,000 mm.
If...

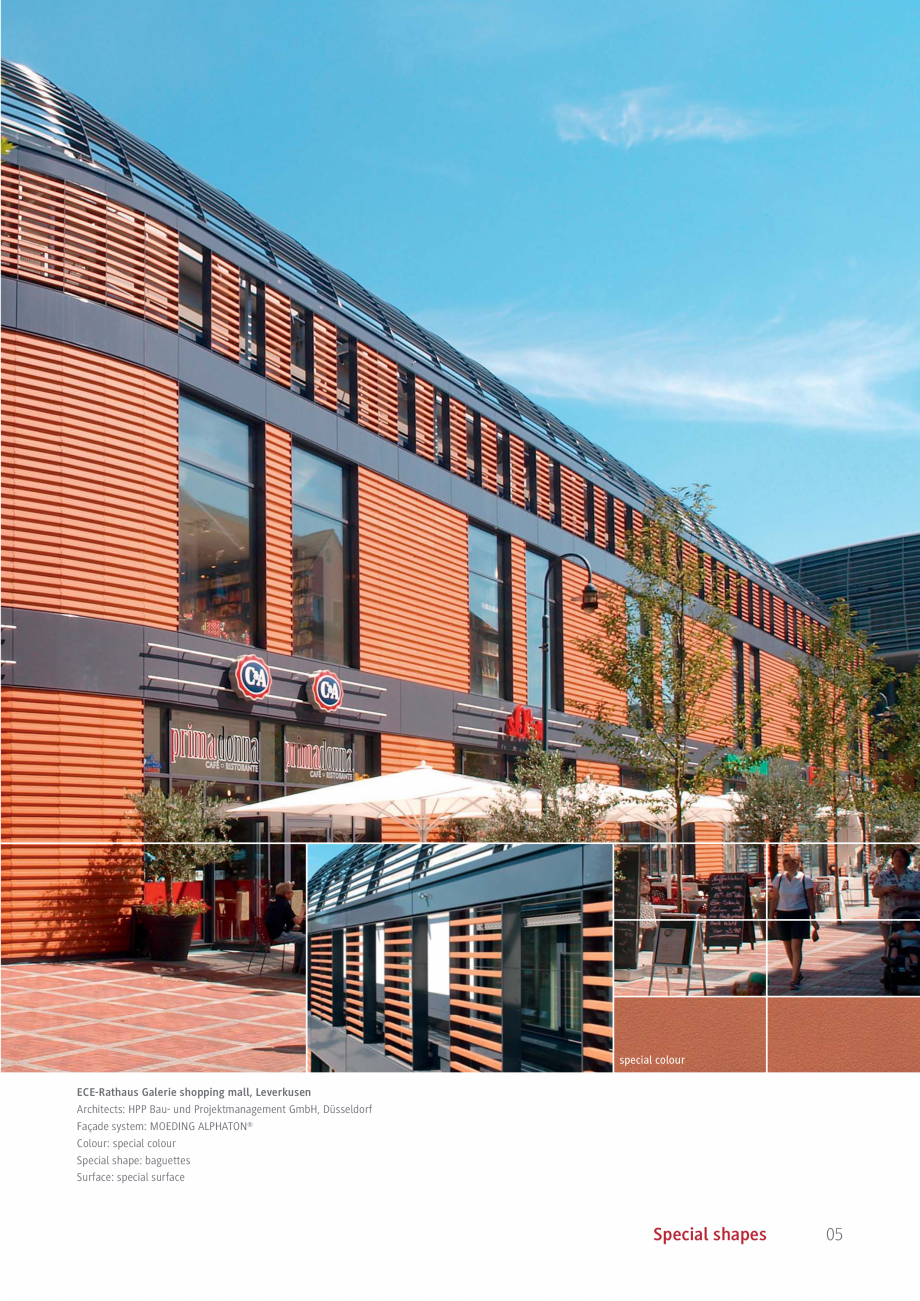

to 1,000 mm. If larger widths need to be spanned, it is possible to use a system-specific aluminum tube to join multiple tile elements to form a single prefabricated element. Lengths of up to 2,500 mm can therefore be realized. All tile colours glazed or non glazed in the MOEDING ALPHATON® and MOEDING LONGOTON® colour range are available. special colour ECE-Rathaus Galerie shopping mall, Leverkusen Architects: HPP Bau- und Projektmanagement GmbH, Düsseldorf Façade system: MOEDING ALPHATON® Colour: special colour Special shape: baguettes Surface: special surface Special shapes 05 Baguettes as a design element in front of closed façade surfaces Their technical projects, the design options and the haptic experience that they offer make baguettes ideal for creating a sense of harmony in front of closed surfaces. They can create special effects that make the overall façade less harsh and more structured. Ventilation openings, air conditioning systems and other installations can

Pagina 4-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza to 1,000 mm.
If larger...

Pagina 5 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza therefore be...

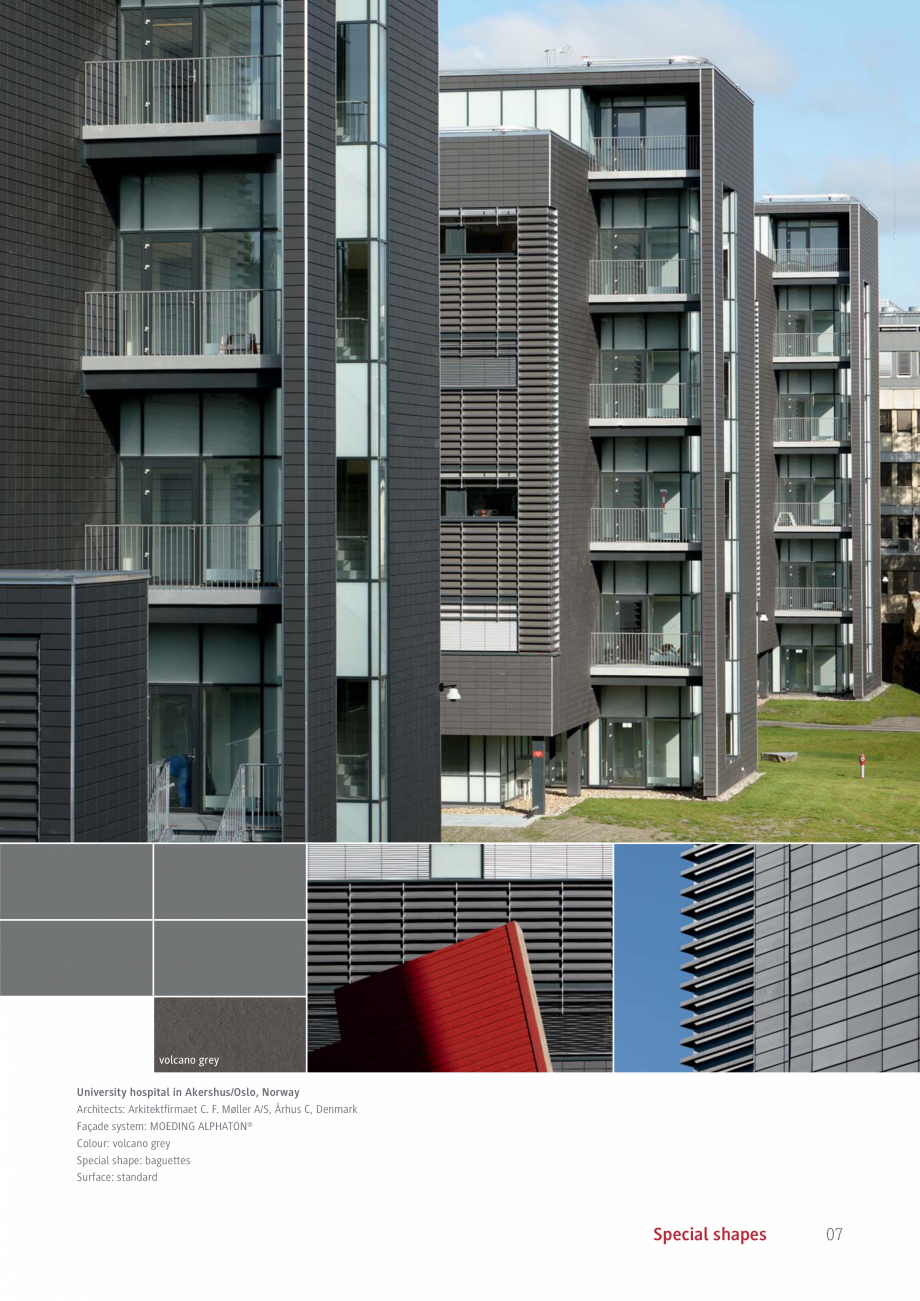

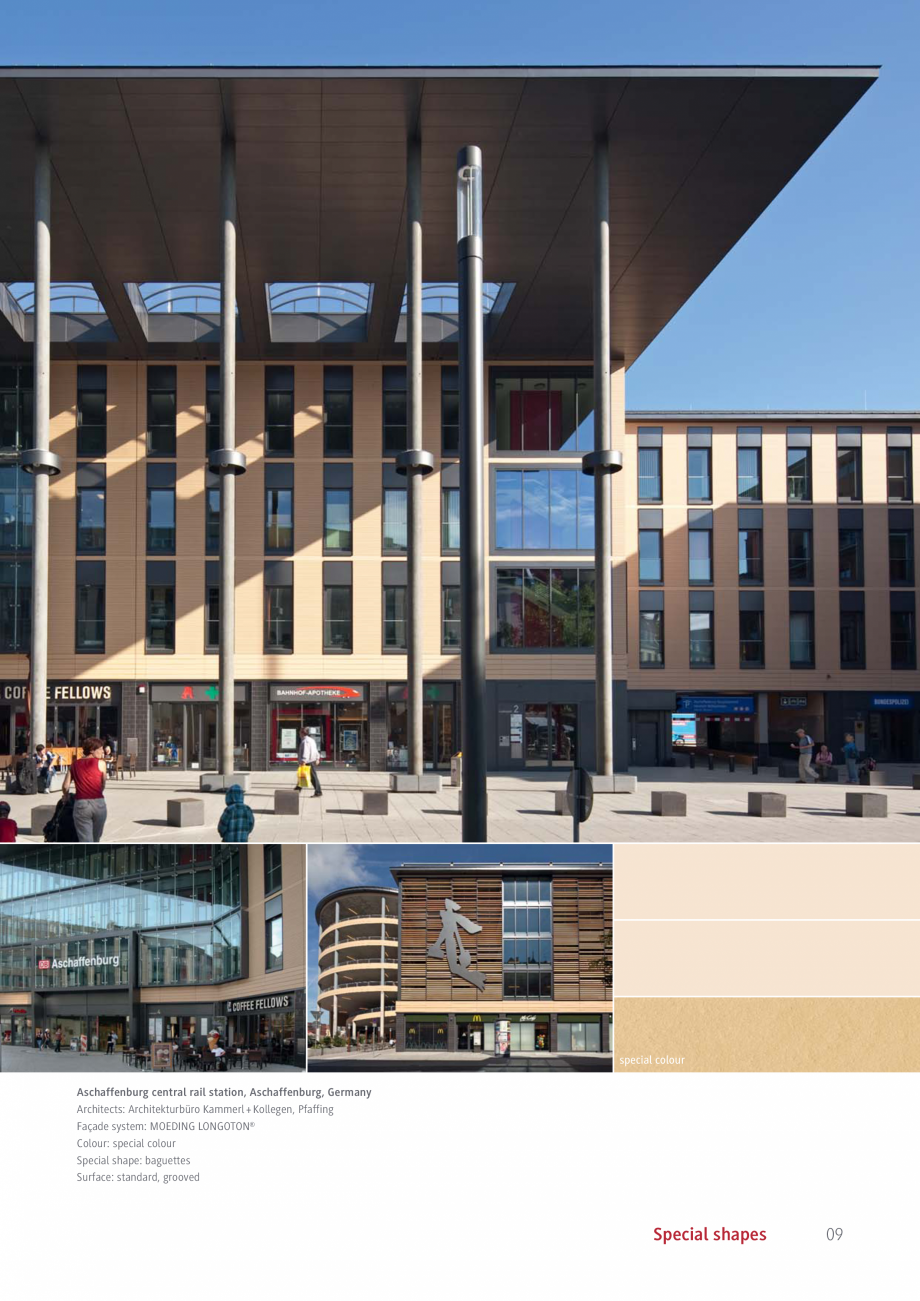

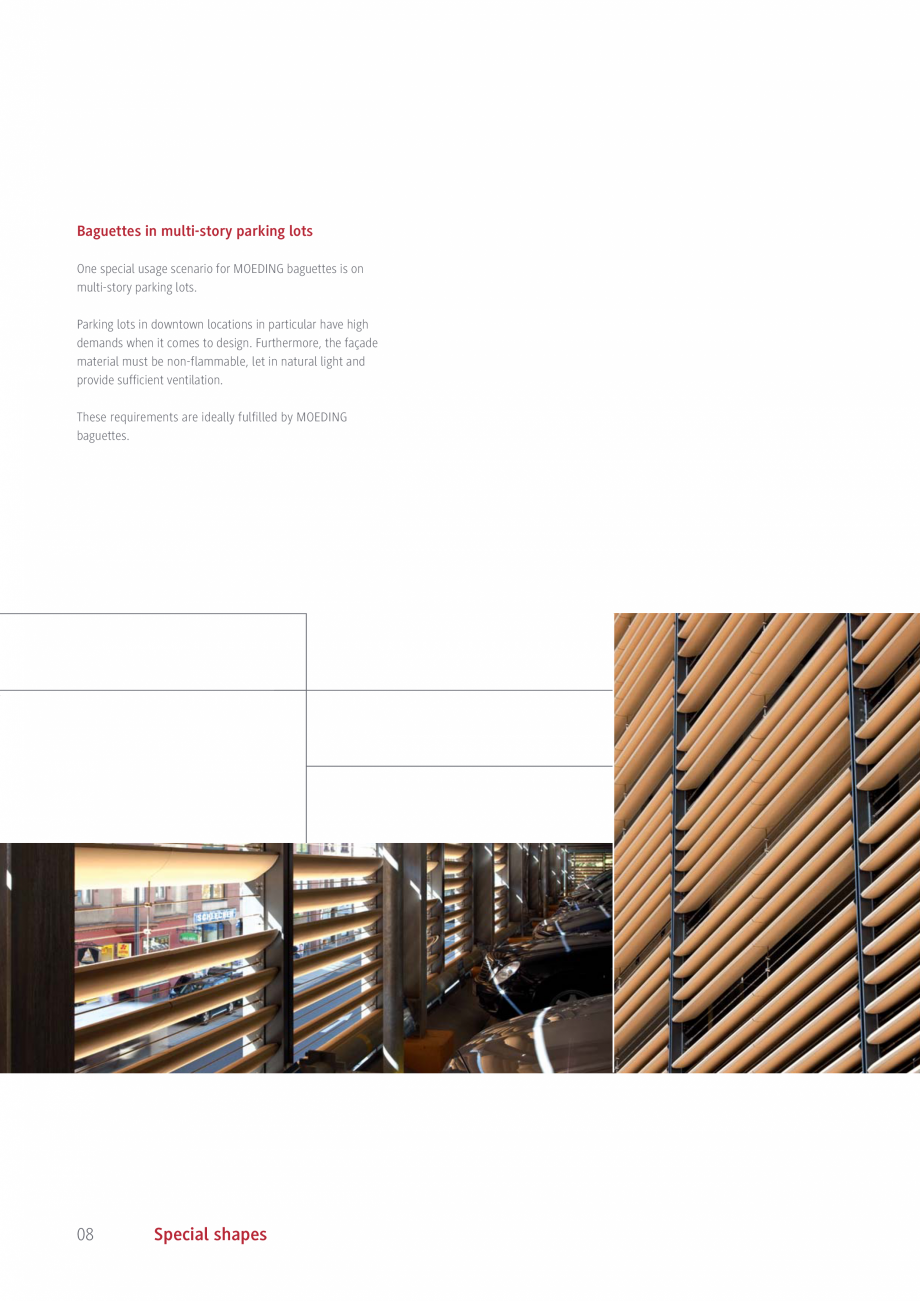

therefore be easily and attractively integrated into the overall façade concept. 06 Special shapes volcano grey University hospital in Akershus/Oslo, Norway Architects: Arkitektfirmaet C. F. Møller A/S, Århus C, Denmark Façade system: MOEDING ALPHATON® Colour: volcano grey Special shape: baguettes Surface: standard Special shapes 07 Baguettes in multi-story parking lots One special usage scenario for MOEDING baguettes is on multi-story parking lots. Parking lots in downtown locations in particular have high demands when it comes to design. Furthermore, the façade material must be non-flammable, let in natural light and provide sufficient ventilation. These requirements are ideally fulfilled by MOEDING baguettes. 08 Special shapes special colour Aschaffenburg central rail station, Aschaffenburg, Germany Architects: Architekturbüro Kammerl + Kollegen, Pfaffing Façade system: MOEDING LONGOTON® Colour: special colour Special shape: baguettes Surface: standard, grooved

Pagina 5-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza therefore be easily and...

Pagina 6 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza

Special...

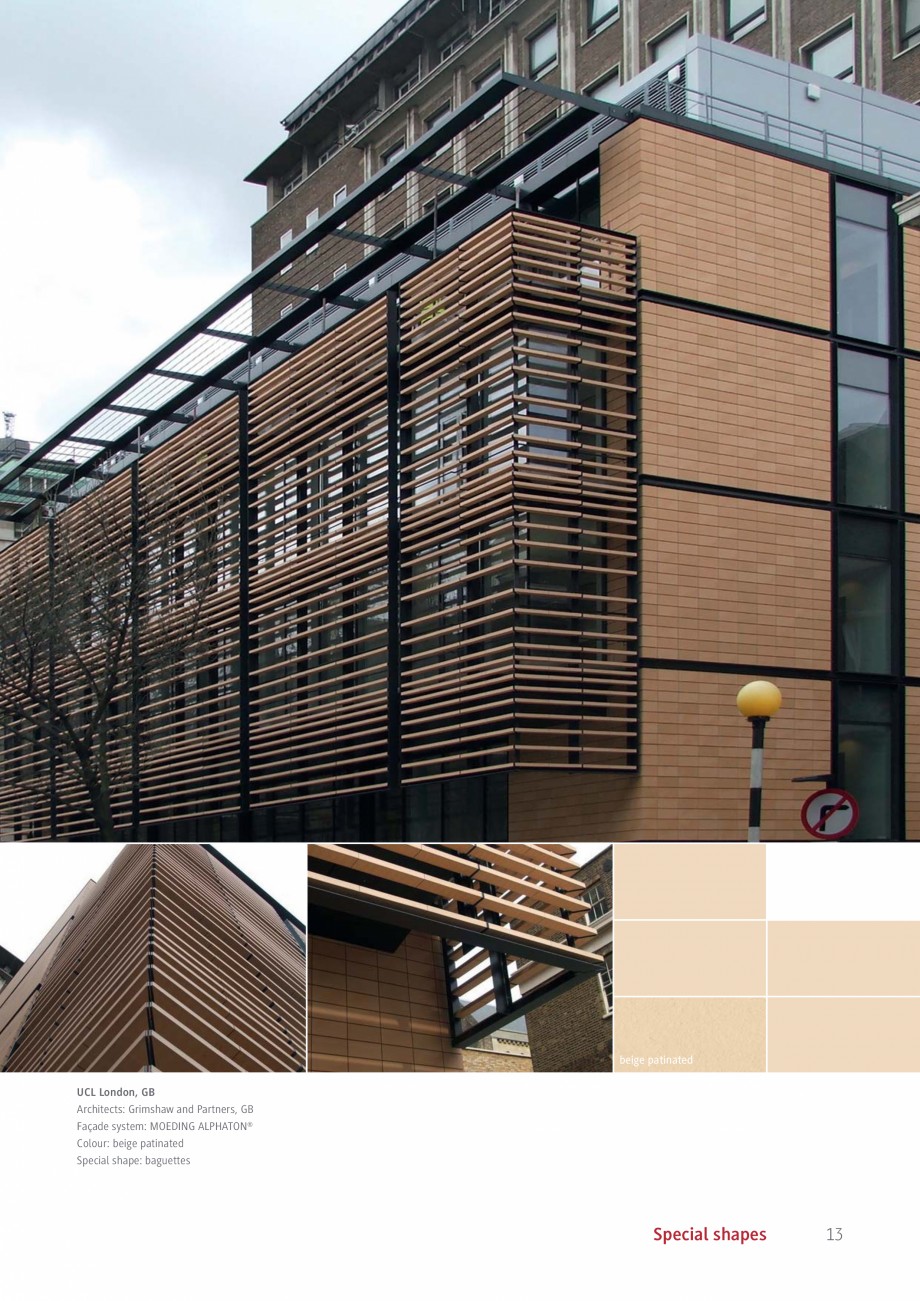

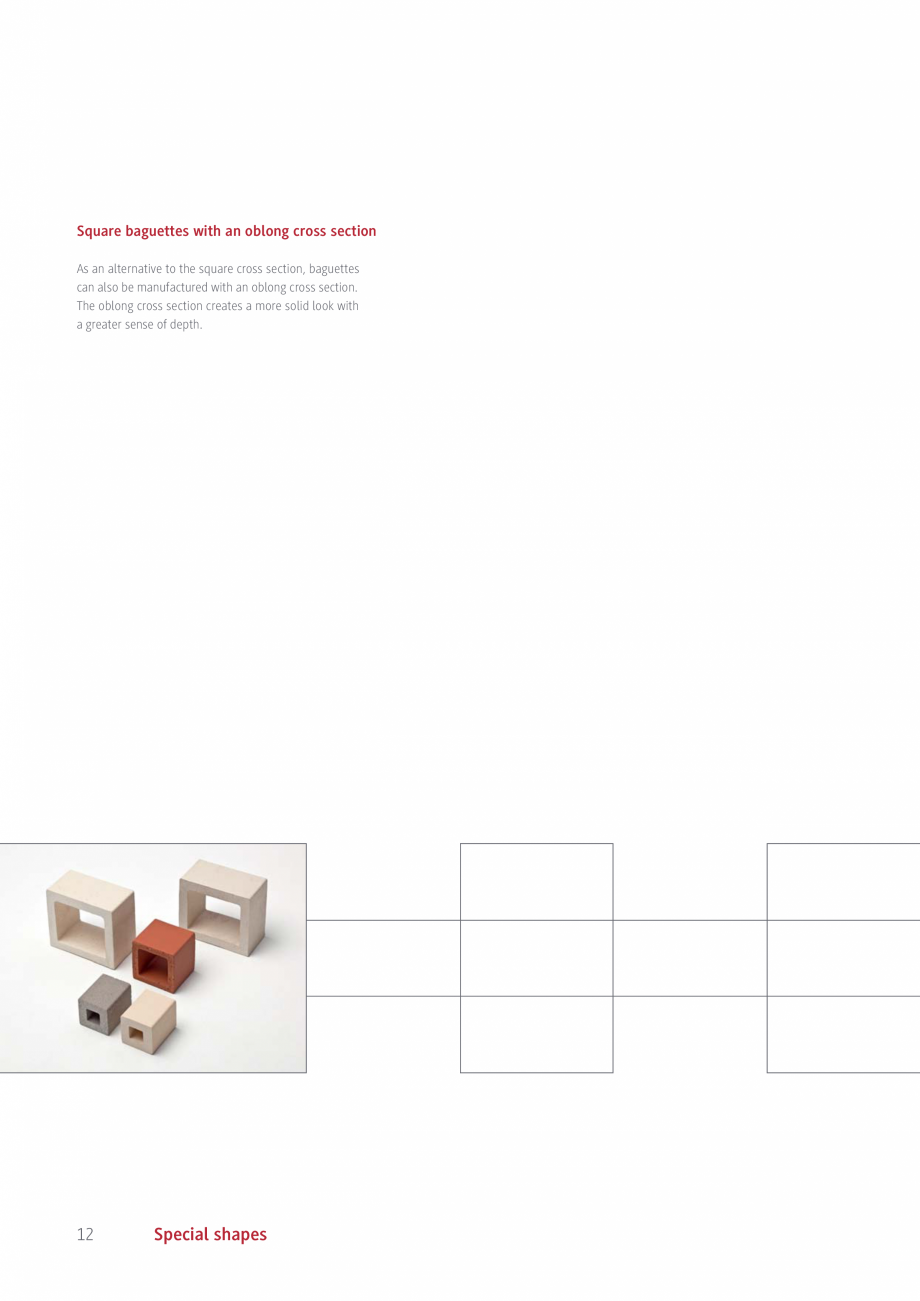

Special shapes 09 Baguettes and special tiles combined One special option is the combination of baguettes with a square cross section and other special tiles. The surface of the tiles is designed so that the form of the baguettes continues onto the tiles. This strengthens the homogeneous appearance of the façade. 10 Special shapes special colour Museum Philadelphia, USA Architects: Ennead Architects, New York, USA Façade system: MOEDING LONGOTON® Colour: special colour Special shape: baguettes, Special shape Surface: standard Special shapes 11 Square baguettes with an oblong cross section As an alternative to the square cross section, baguettes can also be manufactured with an oblong cross section. The oblong cross section creates a more solid look with a greater sense of depth. 12 Special shapes beige patinated UCL London, GB Architects: Grimshaw and Partners, GB Façade system: MOEDING ALPHATON® Colour: beige patinated Special shape: baguettes Special shapes 13

Pagina 6-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza

Special shapes

09
...

Pagina 7 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza

Triangular...

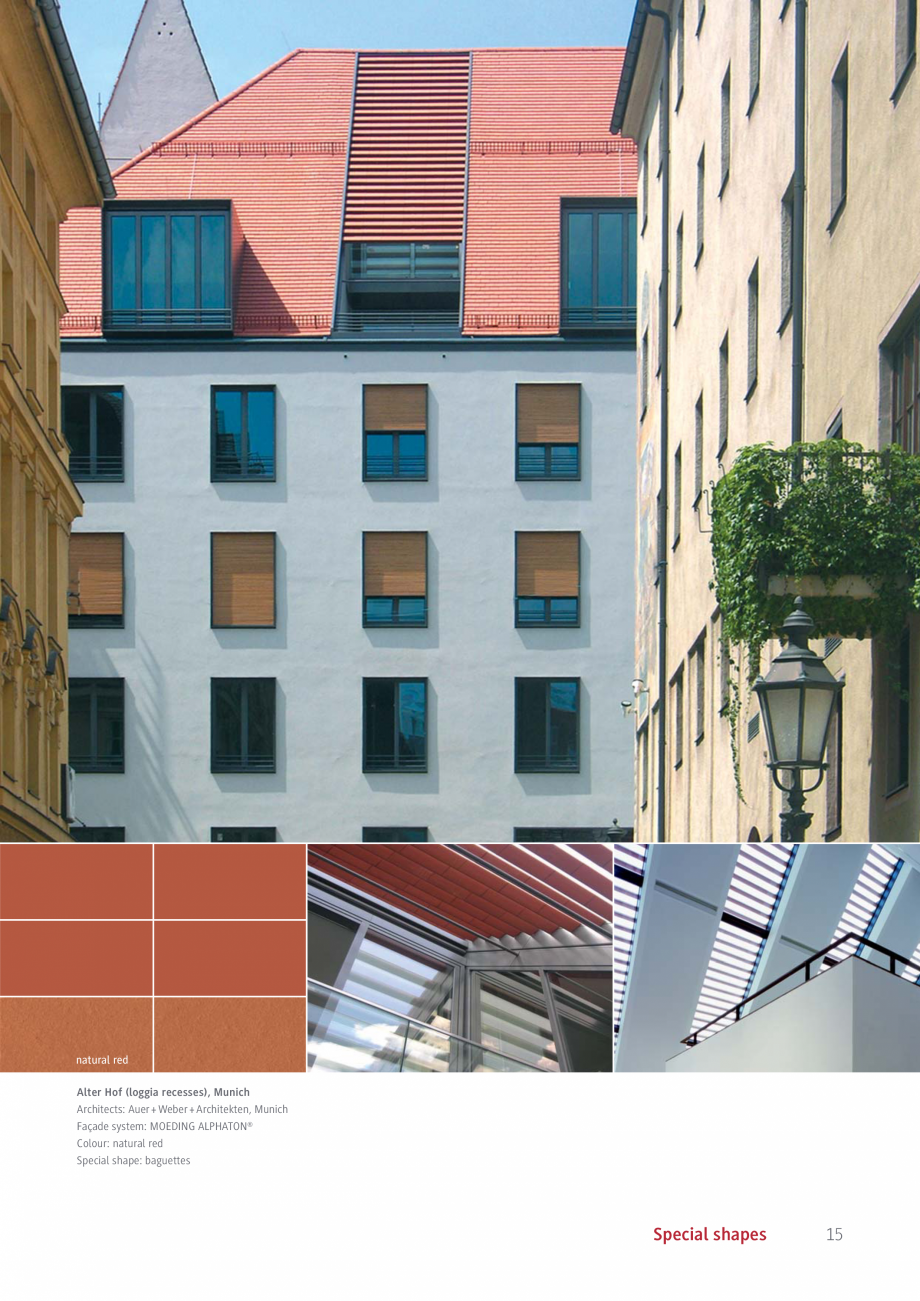

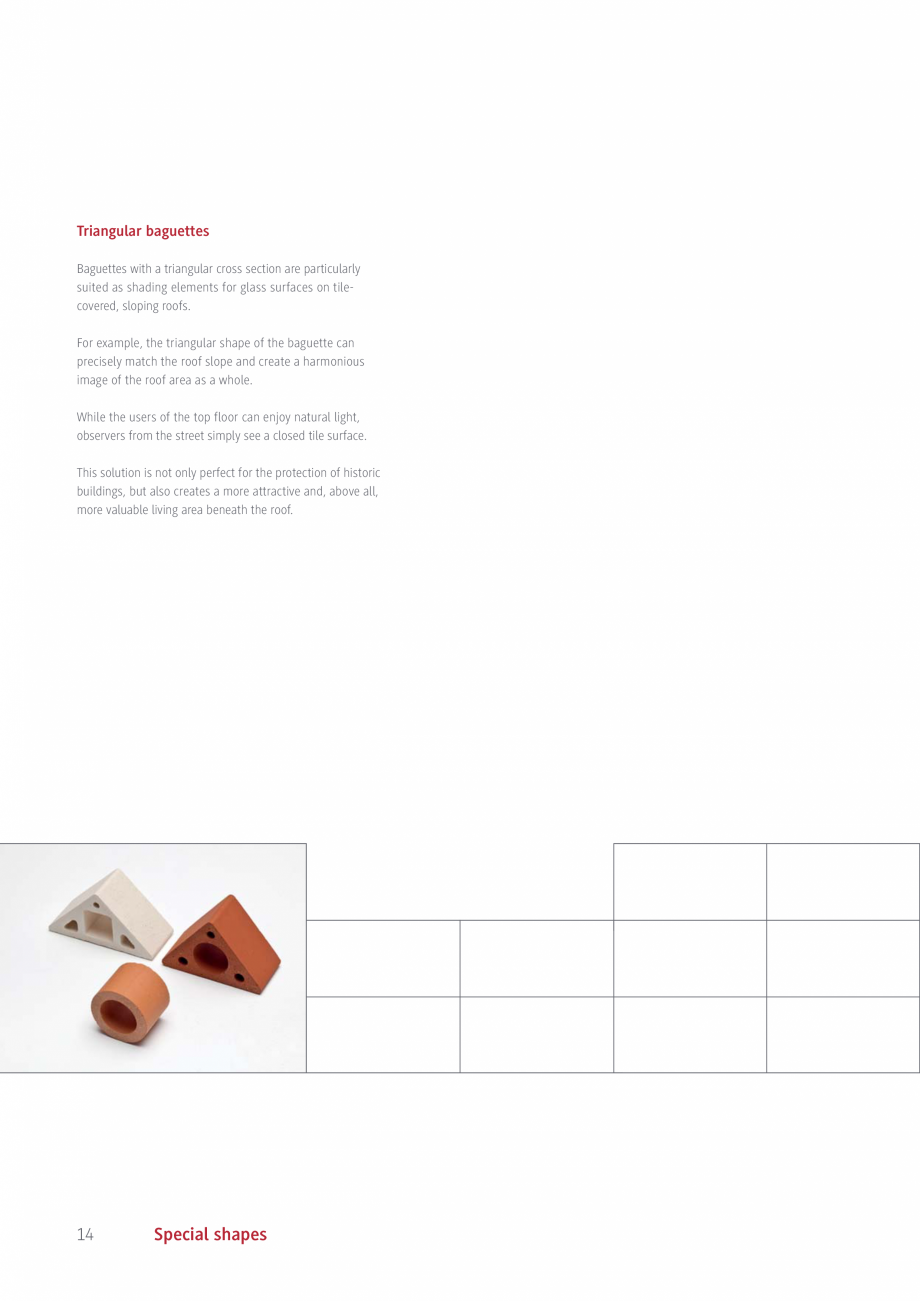

Triangular baguettes Baguettes with a triangular cross section are particularly suited as shading elements for glass surfaces on tilecovered, sloping roofs. For example, the triangular shape of the baguette can precisely match the roof slope and create a harmonious image of the roof area as a whole. While the users of the top floor can enjoy natural light, observers from the street simply see a closed tile surface. This solution is not only perfect for the protection of historic buildings, but also creates a more attractive and, above all, more valuable living area beneath the roof. 14 Special shapes natural red Alter Hof (loggia recesses), Munich Architects: Auer + Weber + Architekten, Munich Façade system: MOEDING ALPHATON® Colour: natural red Special shape: baguettes Special shapes 15 Ovale baguettes The use of shading elements with an oval cross section is particularly popular in front of transparent glass façades. The oval cross section shape gives the elements a lig

Pagina 7-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza

Triangular baguettes...

Pagina 8 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza ht
appearance. ...

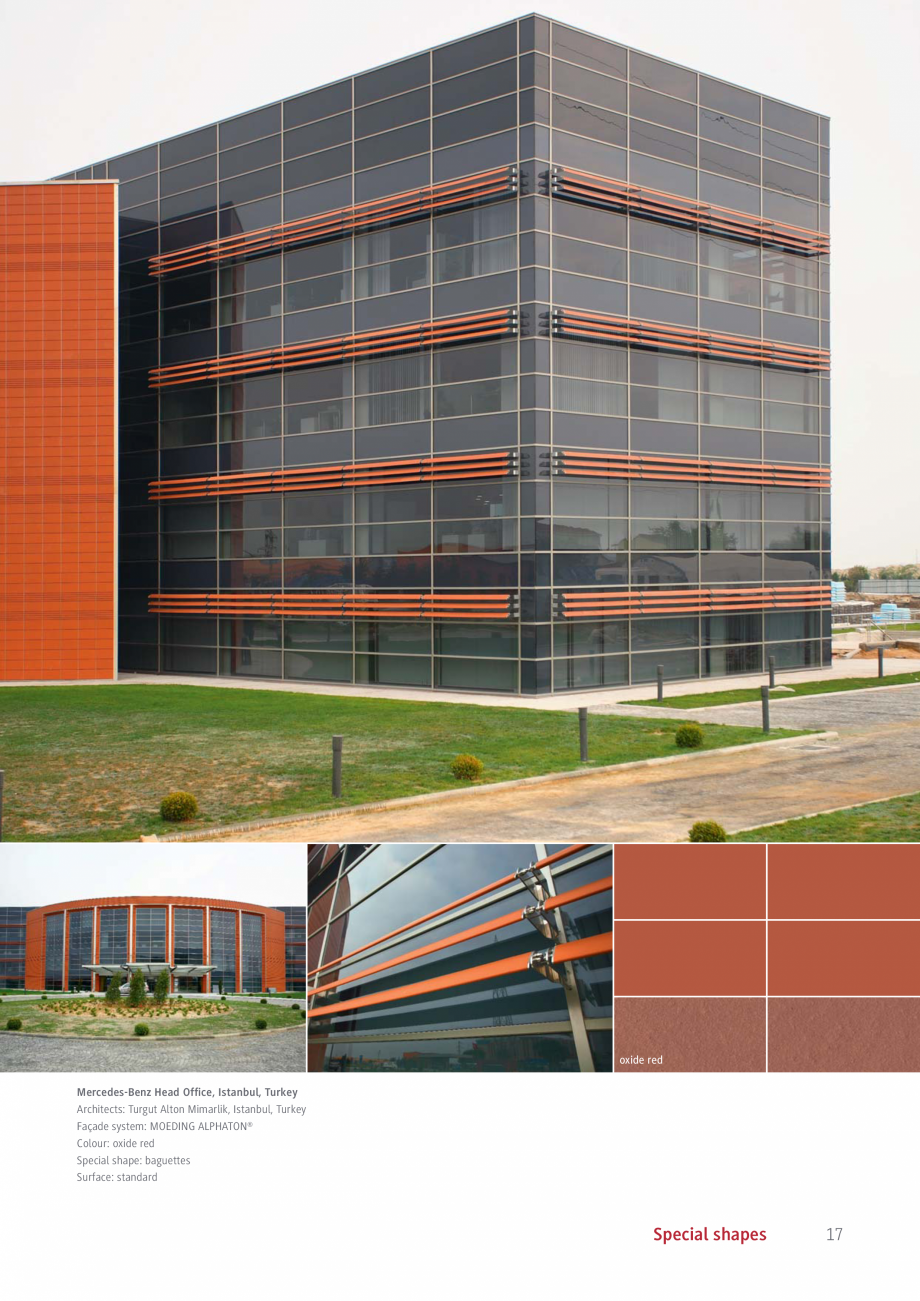

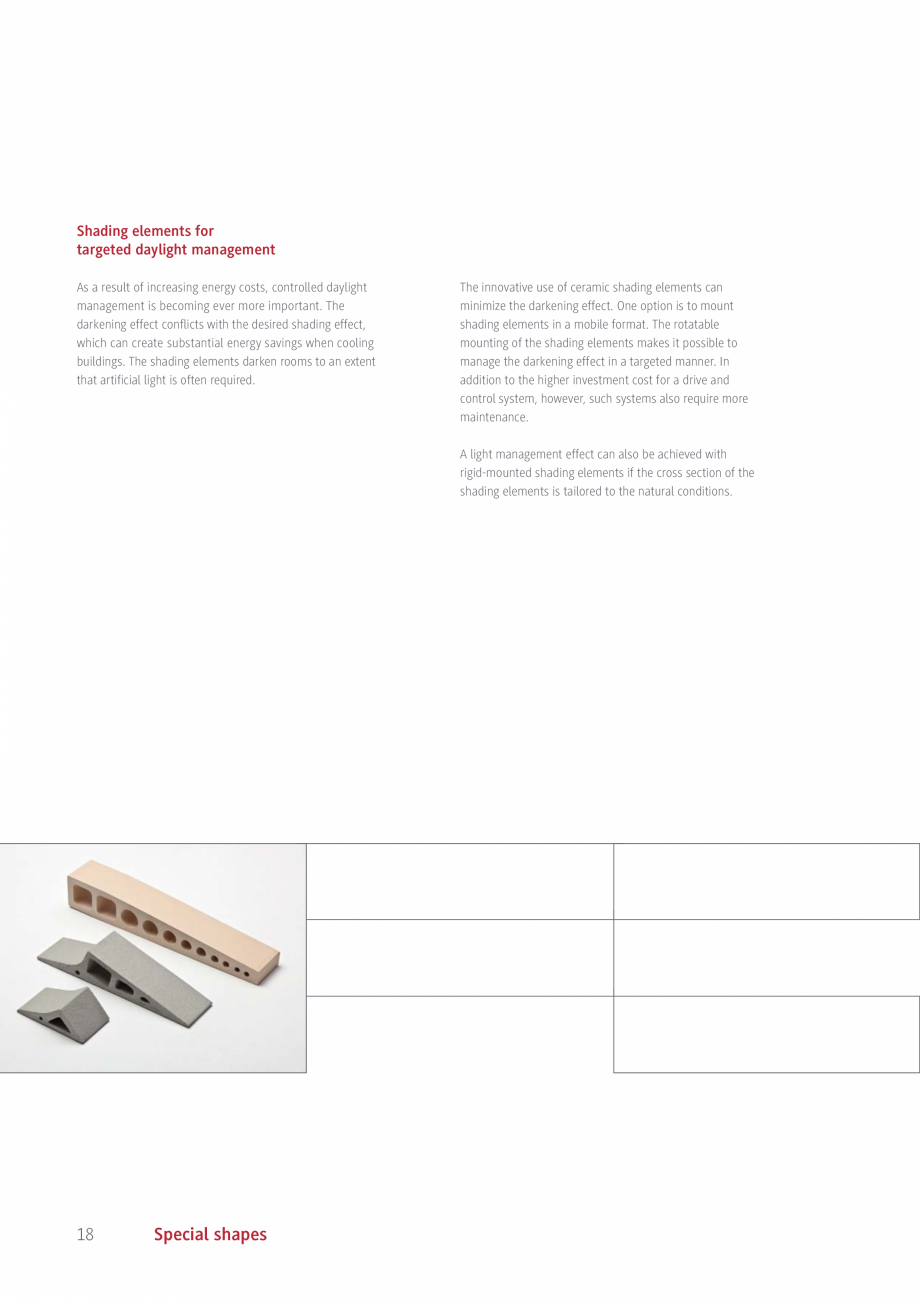

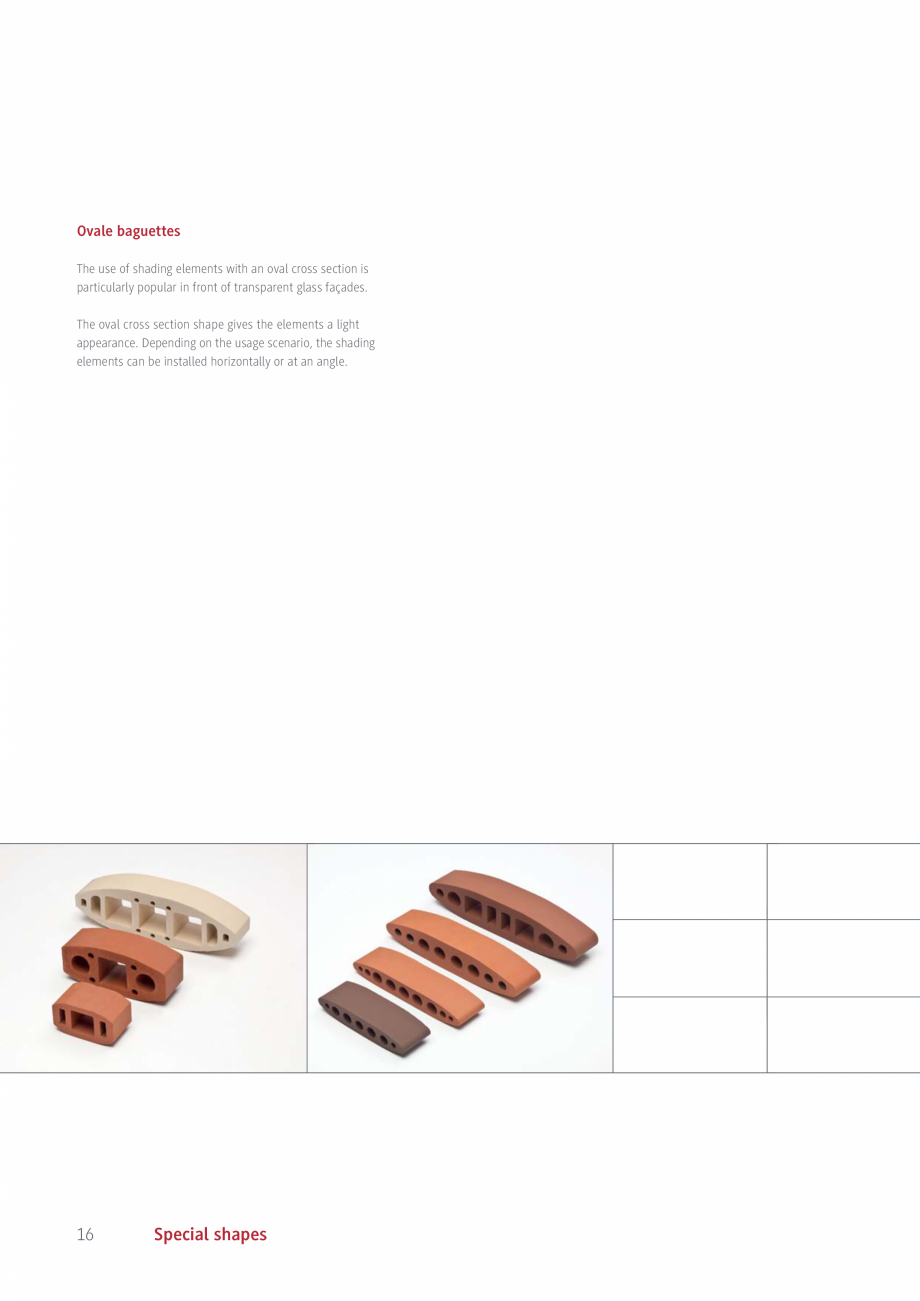

ht appearance. Depending on the usage scenario, the shading elements can be installed horizontally or at an angle. 16 Special shapes oxide red Mercedes-Benz Head Office, Istanbul, Turkey Architects: Turgut Alton Mimarlik, Istanbul, Turkey Façade system: MOEDING ALPHATON® Colour: oxide red Special shape: baguettes Surface: standard Special shapes 17 Shading elements for targeted daylight management As a result of increasing energy costs, controlled daylight management is becoming ever more important. The darkening effect conflicts with the desired shading effect, which can create substantial energy savings when cooling buildings. The shading elements darken rooms to an extent that artificial light is often required. The innovative use of ceramic shading elements can minimize the darkening effect. One option is to mount shading elements in a mobile format. The rotatable mounting of the shading elements makes it possible to manage the darkening effect in a targeted manner. In a

Pagina 8-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza ht
appearance. Depending...

Pagina 9 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza ddition to the ...

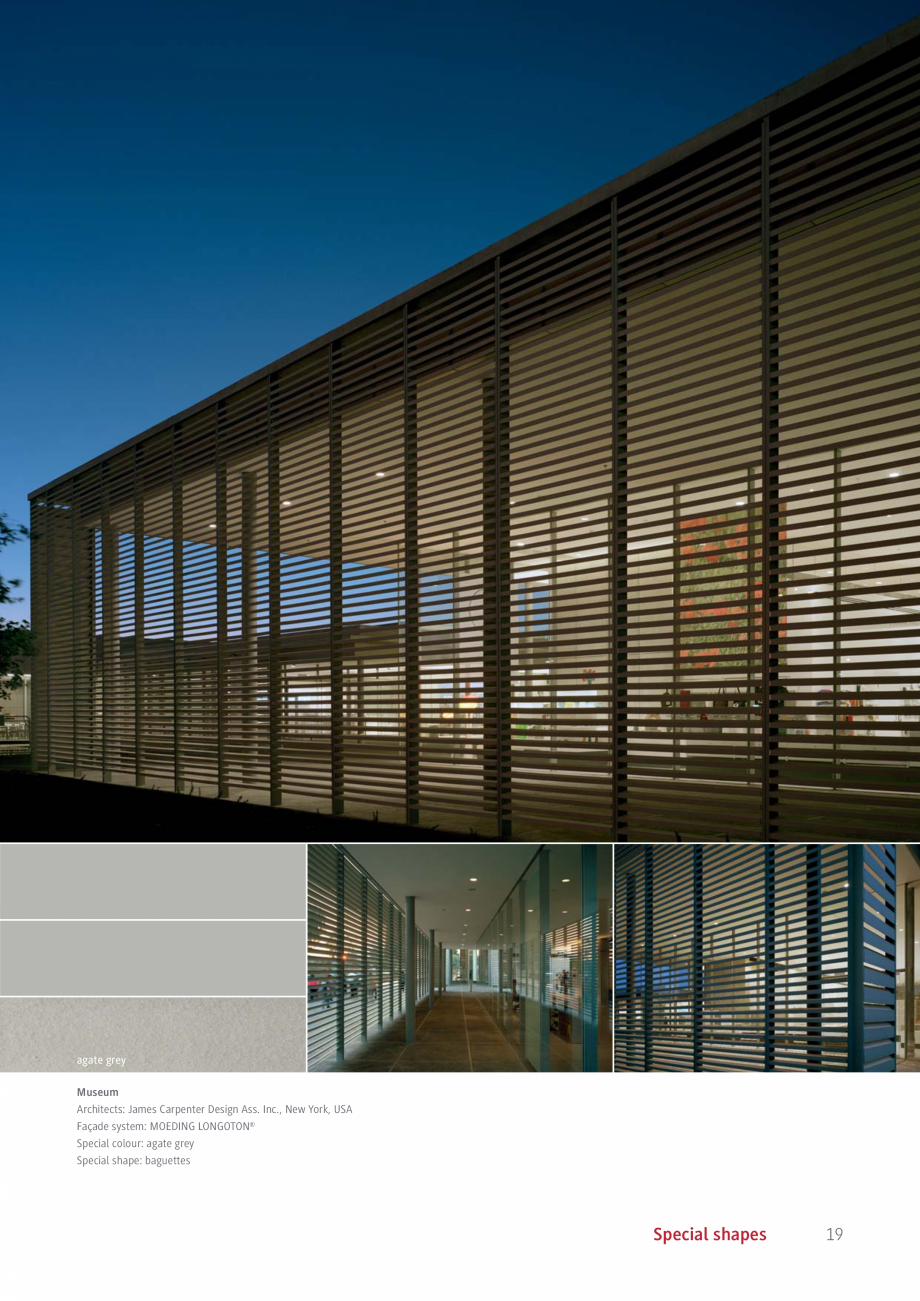

ddition to the higher investment cost for a drive and control system, however, such systems also require more maintenance. A light management effect can also be achieved with rigid-mounted shading elements if the cross section of the shading elements is tailored to the natural conditions. 18 Special shapes agate grey Museum Architects: James Carpenter Design Ass. Inc., New York, USA Façade system: MOEDING LONGOTON® Special colour: agate grey Special shape: baguettes Special shapes 19 Special shapes Architects and planners are continually placing higher demands on manufacturers of ceramic façade systems. More and more elements are used that can no longer be manufactured using the conventional extrusion procedure. Thanks to over 100 years of experience in manufacturing ceramic materials, MOEDING can supply hand-made special elements. 20 Special shapes The special elements are developed in close cooperation with the planner. During the development process, equal weighting is

Pagina 9-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza ddition to the higher...

Pagina 10 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza given to both...

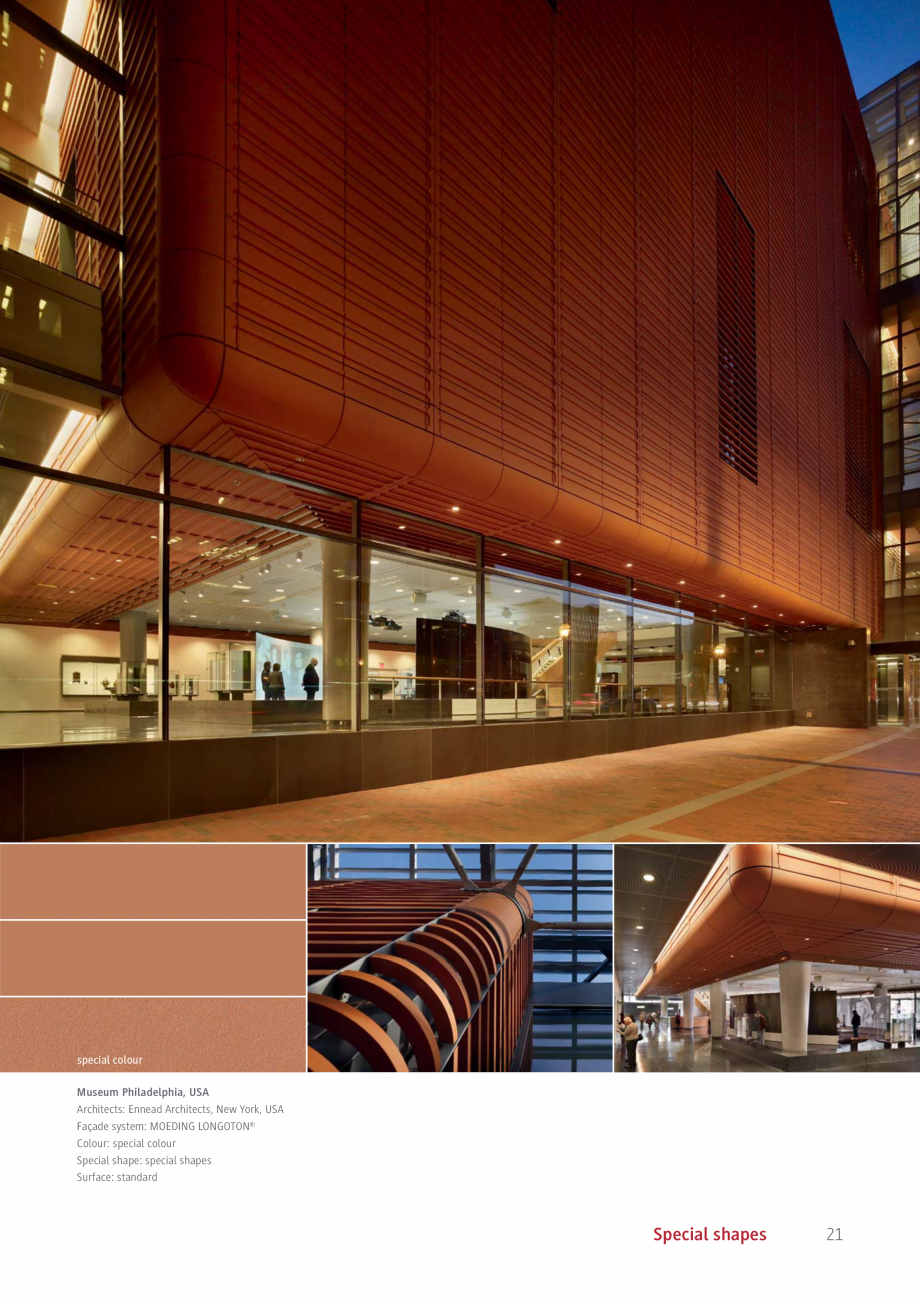

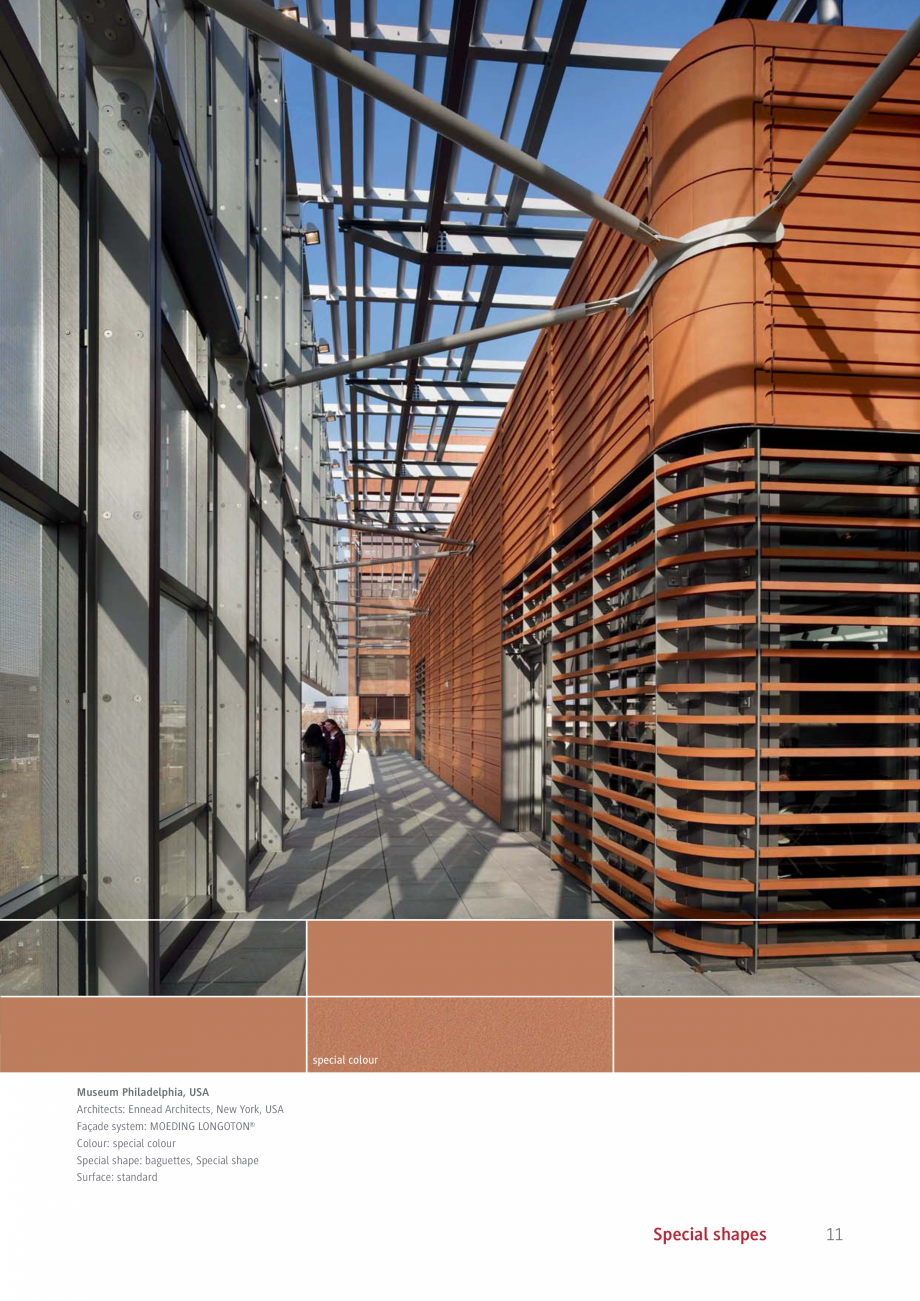

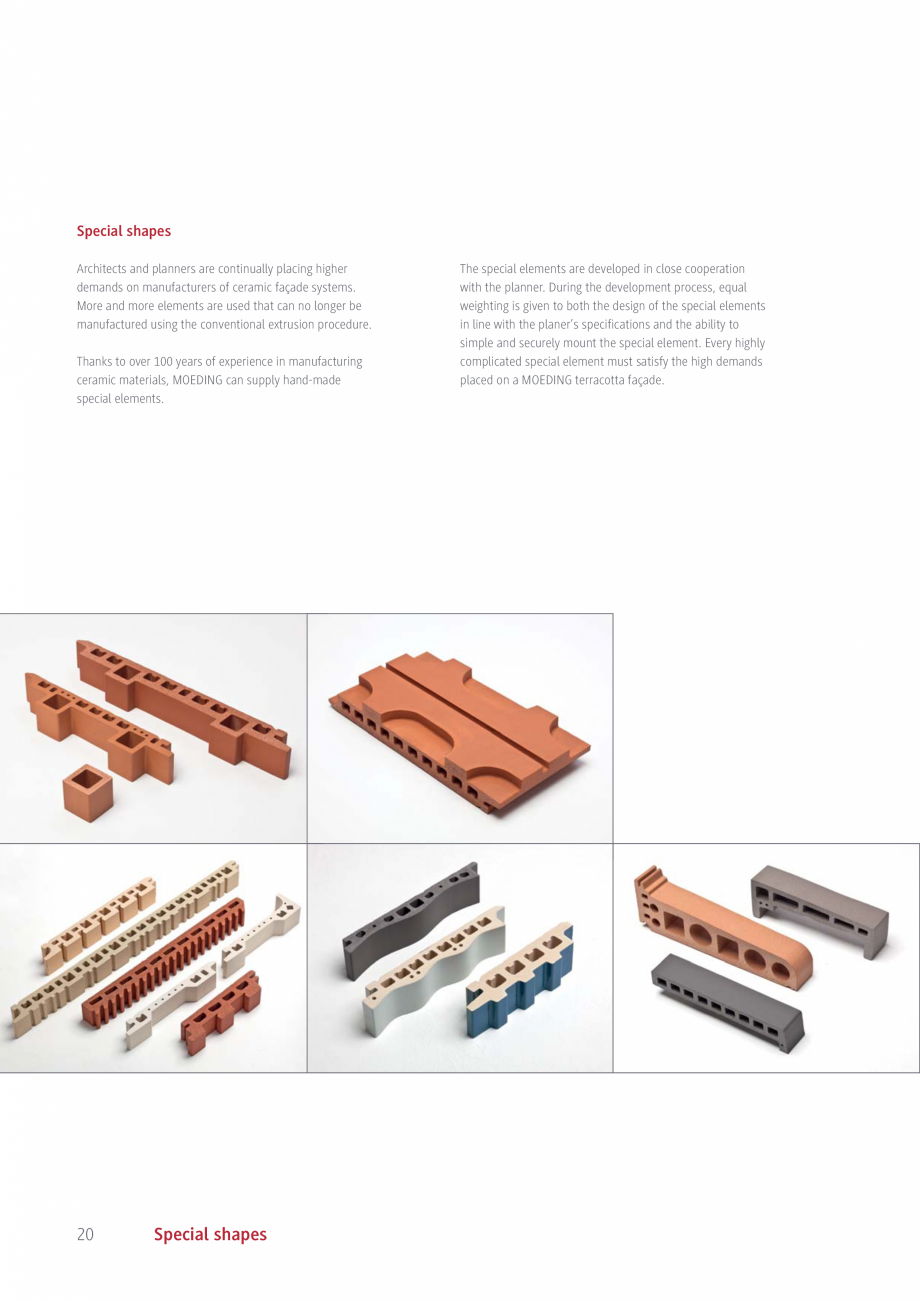

given to both the design of the special elements in line with the planer’s specifications and the ability to simple and securely mount the special element. Every highly complicated special element must satisfy the high demands placed on a MOEDING terracotta façade. special colour Museum Philadelphia, USA Architects: Ennead Architects, New York, USA Façade system: MOEDING LONGOTON® Colour: special colour Special shape: special shapes Surface: standard Special shapes 21 Fastening technology The ability to fasten shading elements securely and simply is of major importance in façade construction. The fastening options for the shading elements are therefore as diverse as the usage options. Despite the vast range of designs, standardized fastening solutions can often be used. At the sites where the standardized solutions cannot be used, MOEDING works in close cooperation with the planer and the company carrying out the work to develop projectspecific fastening solutions. The mos

Pagina 10-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza given to both the design ...

Pagina 11 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza t common...

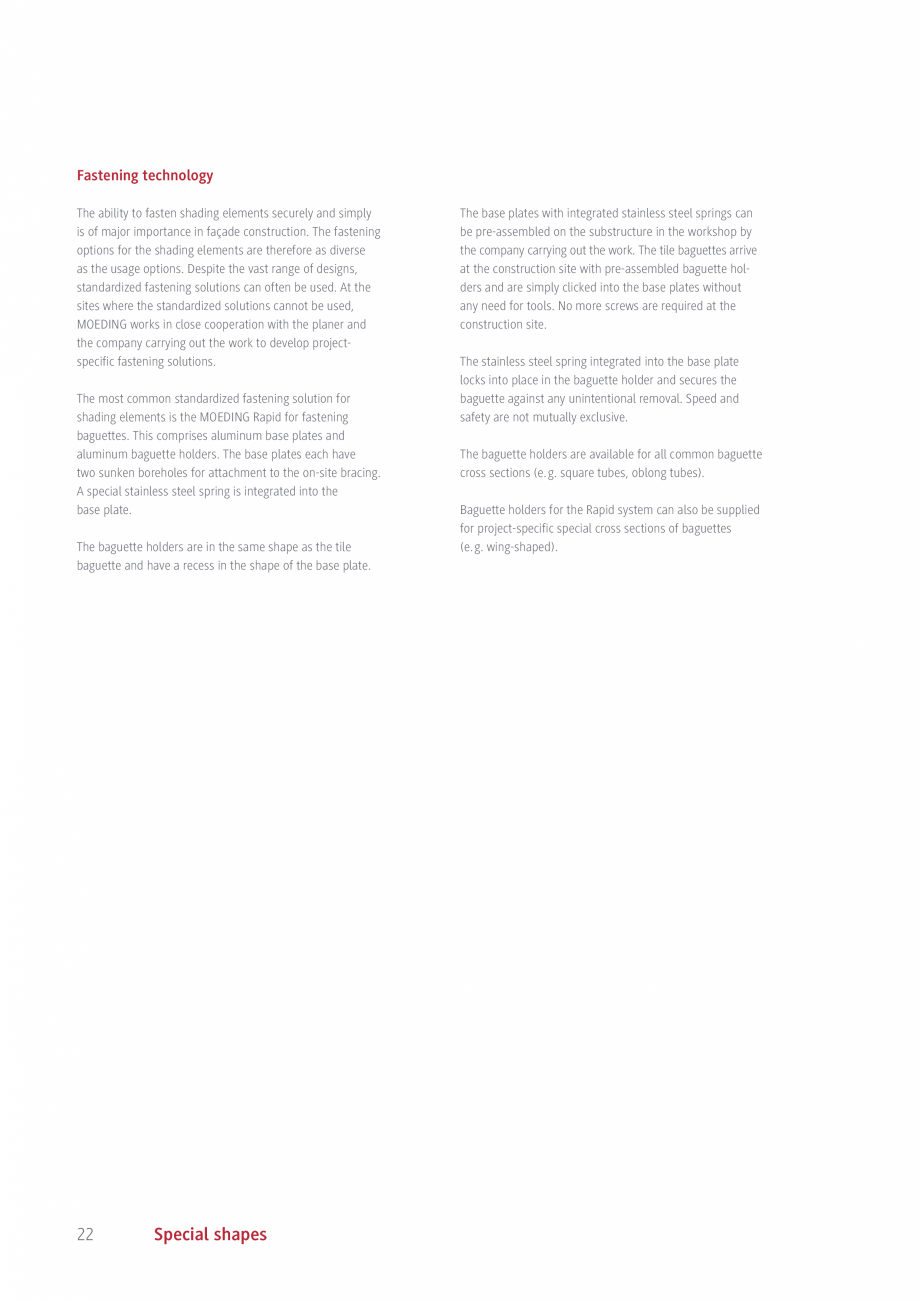

t common standardized fastening solution for shading elements is the MOEDING Rapid for fastening baguettes. This comprises aluminum base plates and aluminum baguette holders. The base plates each have two sunken boreholes for attachment to the on-site bracing. A special stainless steel spring is integrated into the base plate. The baguette holders are in the same shape as the tile baguette and have a recess in the shape of the base plate. 22 Special shapes The base plates with integrated stainless steel springs can be pre-assembled on the substructure in the workshop by the company carrying out the work. The tile baguettes arrive at the construction site with pre-assembled baguette holders and are simply clicked into the base plates without any need for tools. No more screws are required at the construction site. The stainless steel spring integrated into the base plate locks into place in the baguette holder and secures the baguette against any unintentional removal. Speed and safe

Pagina 11-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza t common standardized...

Pagina 12 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza ty are not...

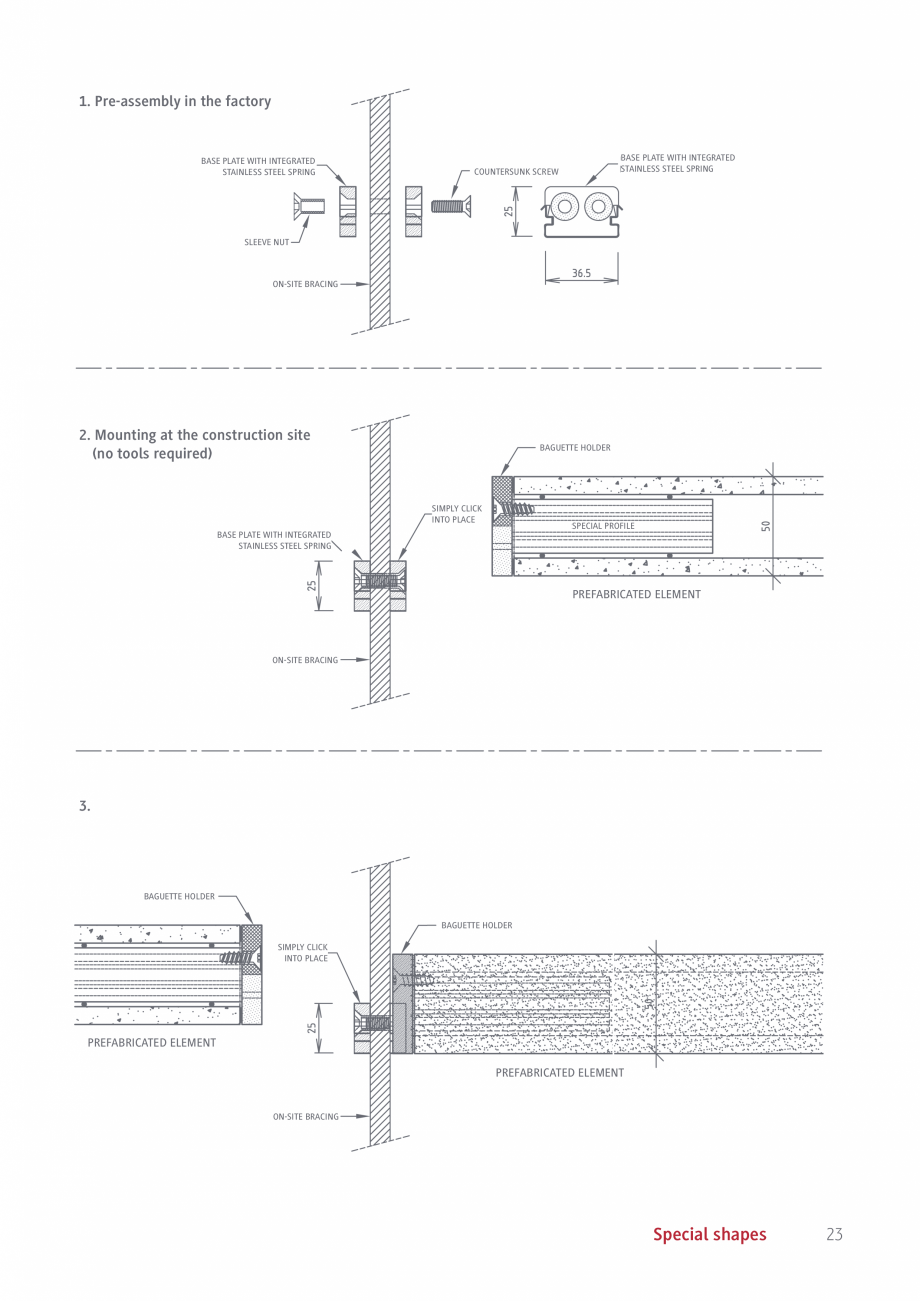

ty are not mutually exclusive. The baguette holders are available for all common baguette cross sections (e. g. square tubes, oblong tubes). Baguette holders for the Rapid system can also be supplied for project-specific special cross sections of baguettes (e. g. wing-shaped). 1. Pre-assembly in the factory BASE PLATE WITH INTEGRATED STAINLESS STEEL SPRING BASE PLATE WITH INTEGRATED STAINLESS STEEL SPRING COUNTERSUNK SCREW SLEEVE NUT ON-SITE BRACING 2. Mounting at the construction site (no tools required) BAGUETTE HOLDER SIMPLY CLICK INTO PLACE SPECIAL PROFILE BASE PLATE WITH INTEGRATED STAINLESS STEEL SPRING PREFABRICATED ELEMENT ON-SITE BRACING 3. BAGUETTE HOLDER BAGUETTE HOLDER SIMPLY CLICK INTO PLACE PREFABRICATED ELEMENT PREFABRICATED ELEMENT ON-SITE BRACING Special shapes 23 Colours The shading elements and special elements can all be supplied in the broad natural colour spectra available for MOEDING ALPHATON® and MOEDING LONGOTON®. The decision as to whic

Pagina 12-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza ty are not mutually...

Pagina 13 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza h of the two...

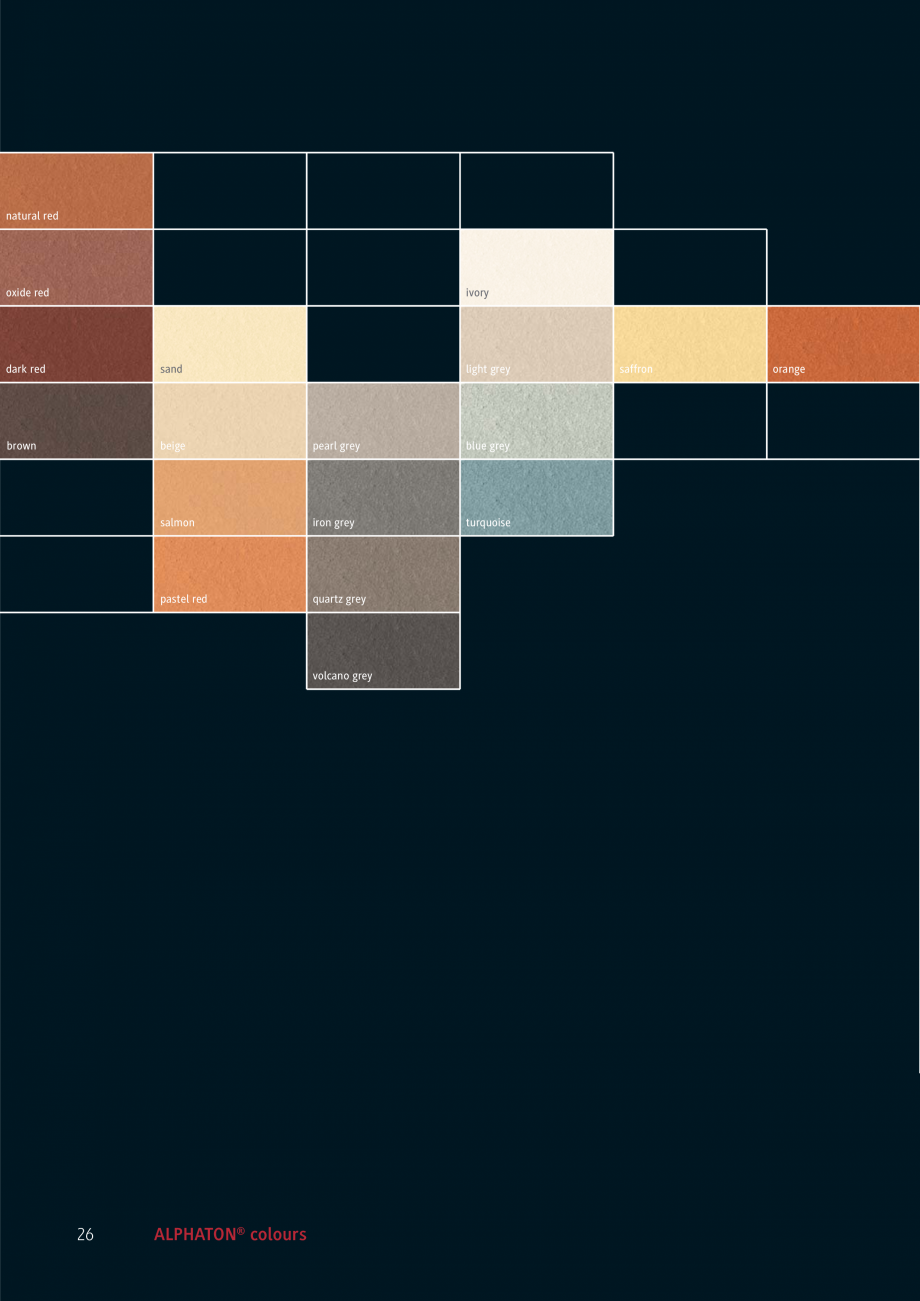

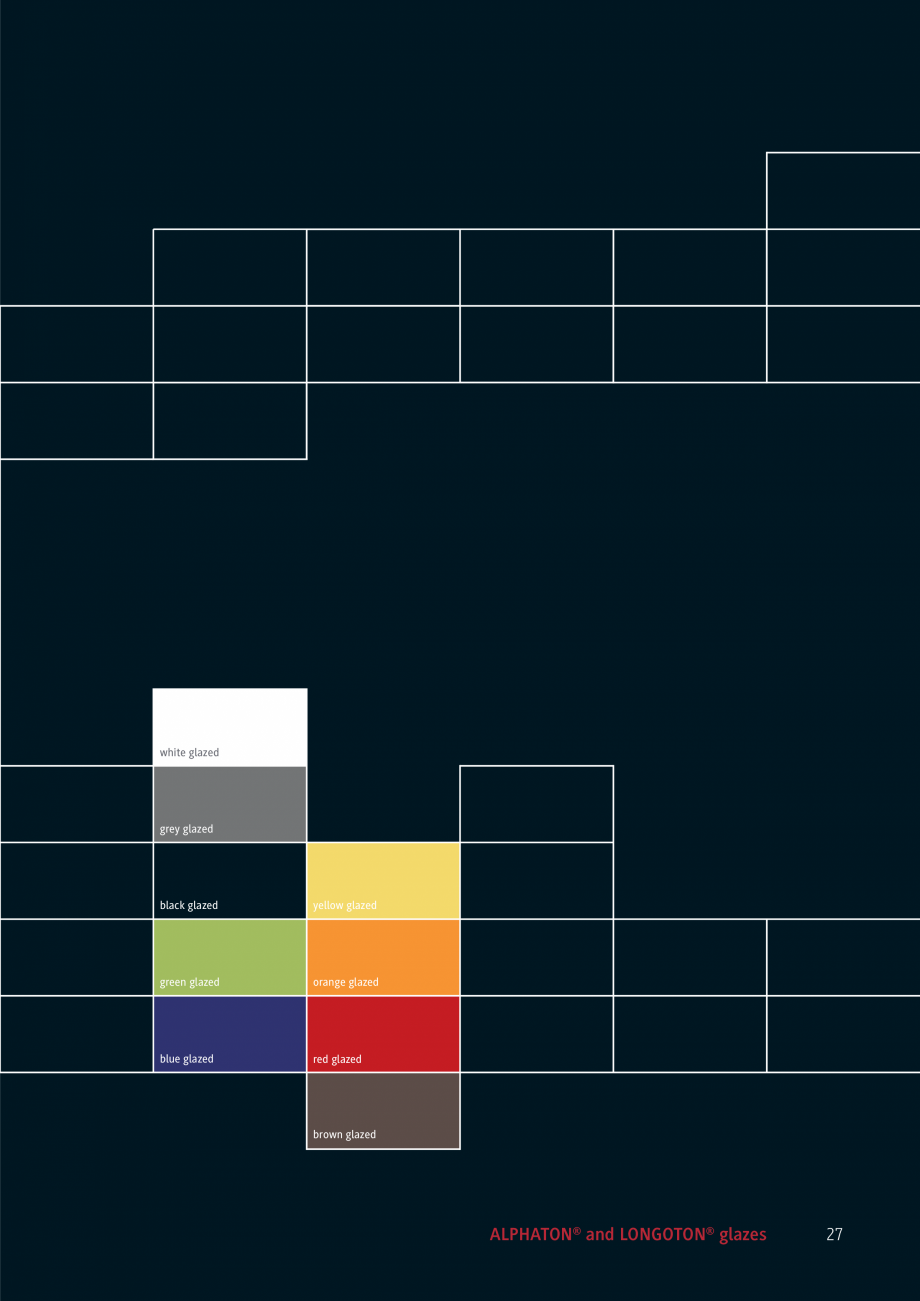

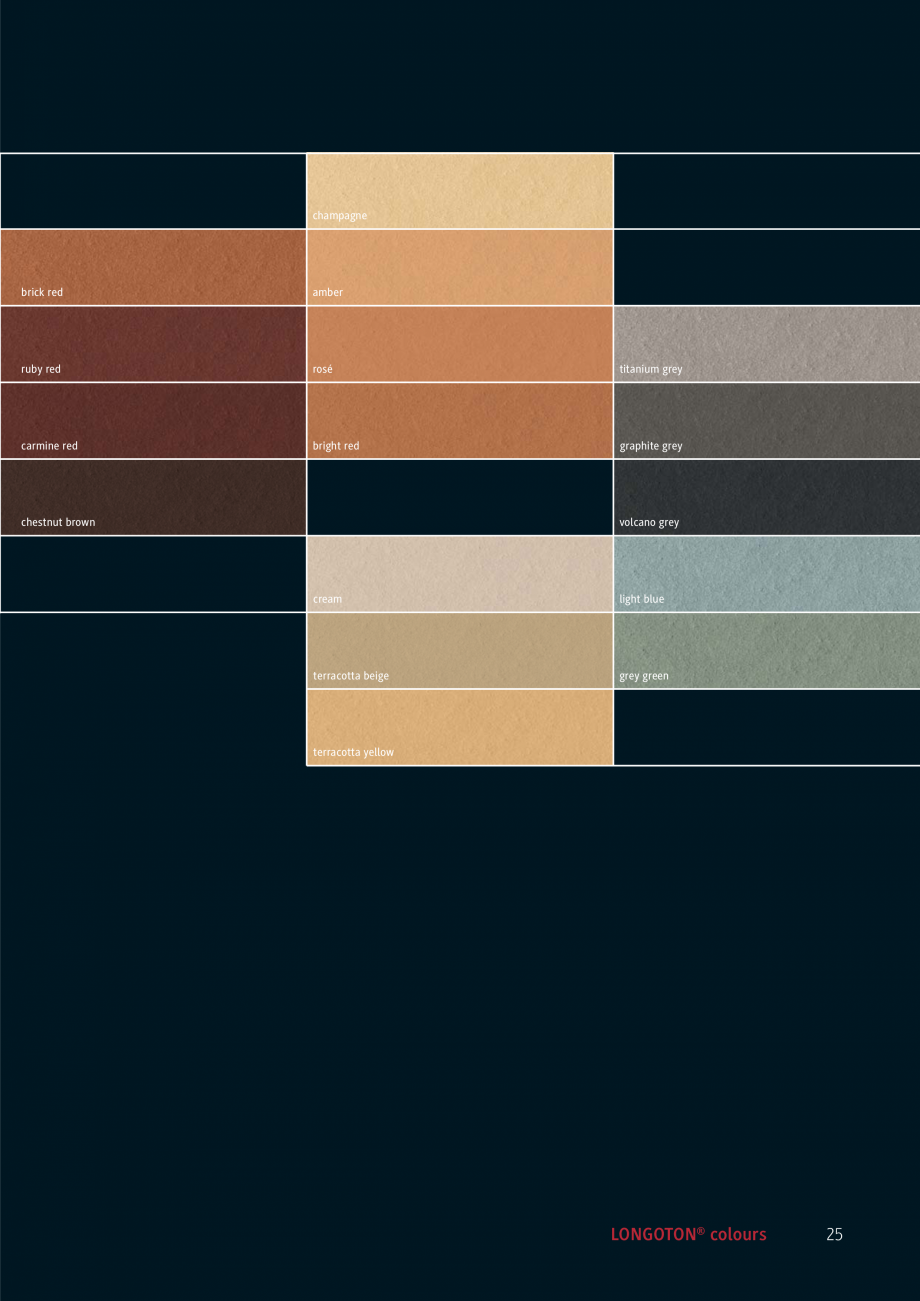

h of the two colour spectra can be used must be individually agreed on the basis of the design desired by the planner. Special colours are possible on request. 24 Colours Of course, glazes can also be used. The glaze colours shown here represent but a few of the many options. Customized colours can be developed on the basis of common colour systems e. g. RAL. champagne brick red amber ruby red rosé titanium grey carmine red bright red graphite grey volcano grey chestnut brown cream light blue terracotta beige grey green terracotta yellow LONGOTON® colours 25 natural red oxide red ivory dark red sand brown beige salmon light grey pearl grey blue grey iron grey turquoise sand pastel red quartz grey beige volcano grey 26 ALPHATON® colours saffron orange white glazed grey glazed black glazed yellow glazed green glazed orange glazed blue glazed red glazed brown glazed ALPHATON® and LONGOTON® glazes 27 moeding 6/2012 Moeding Ker

Pagina 13-Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza h of the two colour...

Pagina 14 - Baghete si parasolare MOEDING LONGOTON, ALPHATON Catalog, brosura Engleza amikfassaden...

amikfassaden GmbH Ludwig-Girnghuber-Straße 1 84163 Marklkofen Germany Fon + 49 (0) 87 32 / 246 - 00 Fax + 49 (0) 87 32 / 246 - 69 Internet: www.moeding.de
