Pagina 1 - Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza DOCK SHELTERS T-SERIES
...

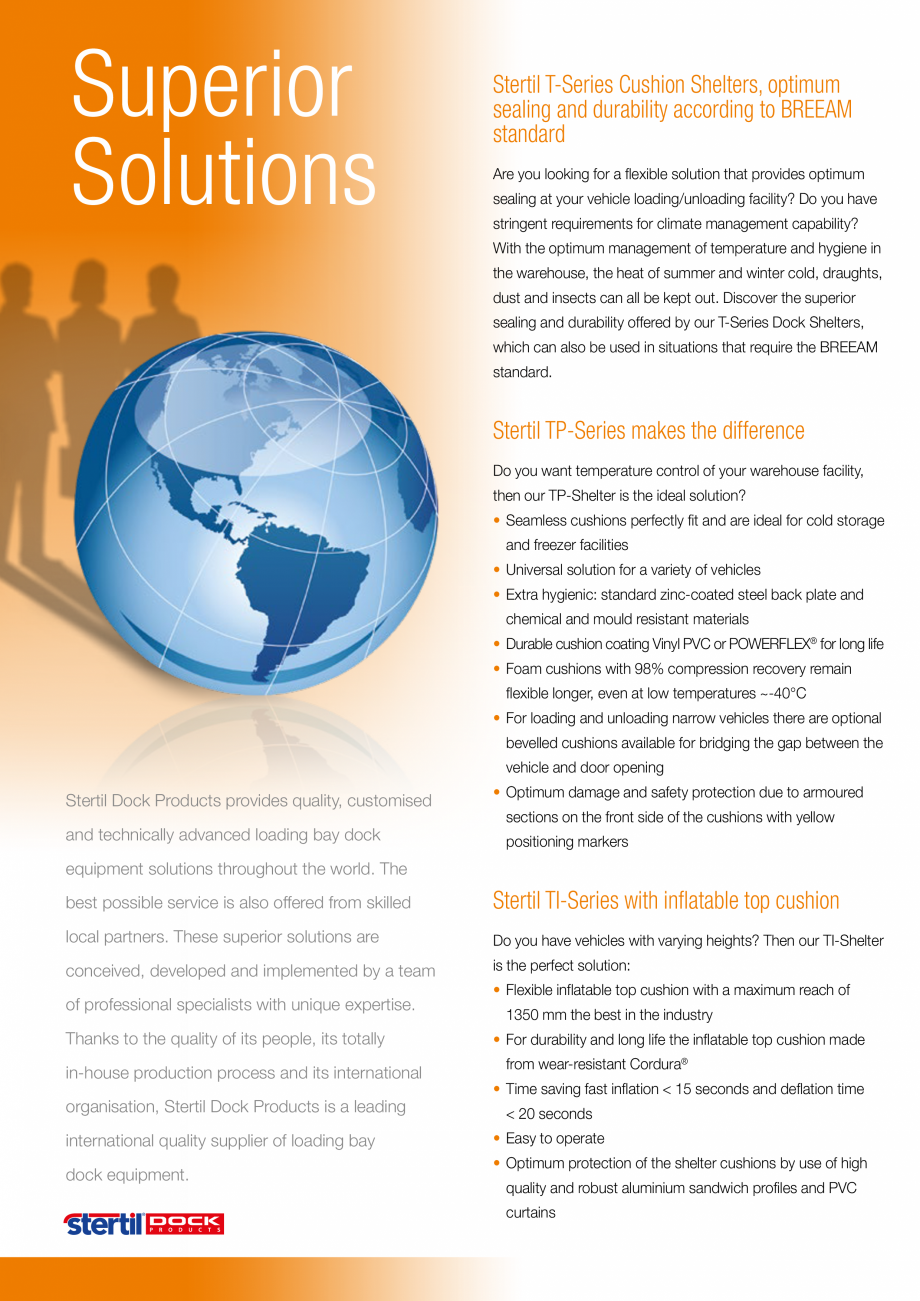

DOCK SHELTERS T-SERIES Cushion Dock Shelters Optimal sealing and durability STERTIL SUPERIOR SOLUTIONS Superior Solutions Stertil T-Series Cushion Shelters, optimum sealing and durability according to BREEAM standard Are you looking for a flexible solution that provides optimum sealing at your vehicle loading/unloading facility? Do you have stringent requirements for climate management capability? With the optimum management of temperature and hygiene in the warehouse, the heat of summer and winter cold, draughts, dust and insects can all be kept out. Discover the superior sealing and durability offered by our T-Series Dock Shelters, which can also be used in situations that require the BREEAM standard. Stertil TP-Series makes the difference Do you want temperature control of your warehouse facility, then our TP-Shelter is the ideal solution? • Seamless cushions perfectly fit and are ideal for cold storage and freezer facilities • Universal solution for a variety of vehicles

Pagina 1-Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza DOCK SHELTERS T-SERIES

Cushion Dock...

Pagina 2 - Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza • Extra hygienic: standard ...

• Extra hygienic: standard zinc-coated steel back plate and chemical and mould resistant materials • Durable cushion coating Vinyl PVC or POWERFLEX® for long life • Foam cushions with 98% compression recovery remain flexible longer, even at low temperatures ~-40°C • For loading and unloading narrow vehicles there are optional bevelled cushions available for bridging the gap between the vehicle and door opening Stertil Dock Products provides quality, customised and technically advanced loading bay dock • Optimum damage and safety protection due to armoured sections on the front side of the cushions with yellow positioning markers equipment solutions throughout the world. The best possible service is also offered from skilled Stertil TI-Series with inflatable top cushion local partners. These superior solutions are Do you have vehicles with varying heights? Then our TI-Shelter conceived, developed and implemented by a team is the perfect solution: of professional spe

Pagina 2-Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza • Extra hygienic: standard zinc-coated...

Pagina 3 - Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza cialists with unique...

cialists with unique expertise. Thanks to the quality of its people, its totally in-house production process and its international organisation, Stertil Dock Products is a leading international quality supplier of loading bay dock equipment. • Flexible inflatable top cushion with a maximum reach of 1350 mm the best in the industry • For durability and long life the inflatable top cushion made from wear-resistant Cordura® • Time saving fast inflation < 15 seconds and deflation time < 20 seconds • Easy to operate • Optimum protection of the shelter cushions by use of high quality and robust aluminium sandwich profiles and PVC curtains • Optimum damage and safety protection due to armoured sections on the front side of the cushions with yellow positioning markers • Yellow positioning markers covering the entire height of the side cushions • Side cushions in two sections for easy maintenance • Retractable upper curtain attached to the top cushion Optional versions a

Pagina 3-Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza cialists with unique expertise.
Thanks...

Pagina 4 - Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza nd extras
• POWERFLEX® for...

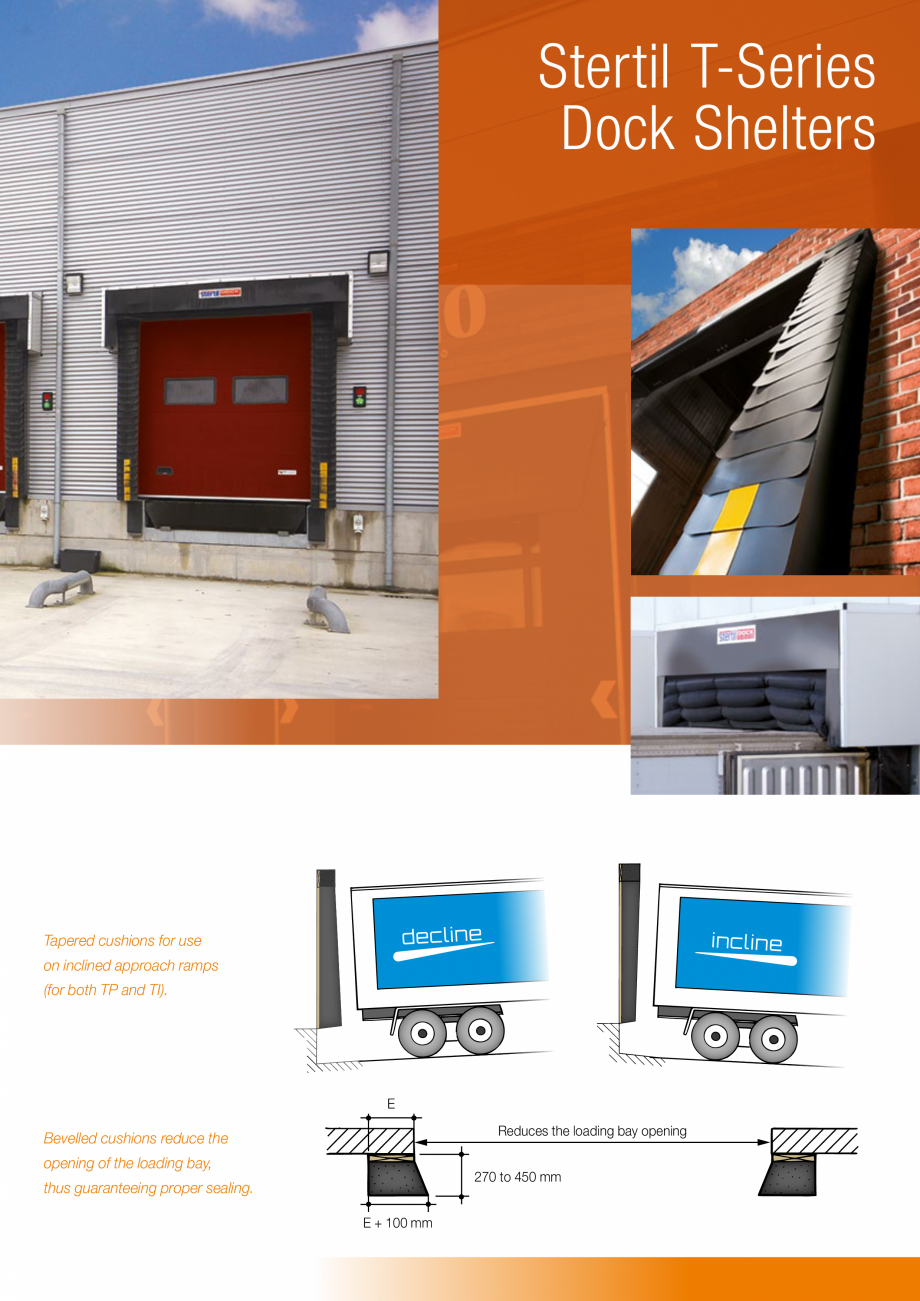

nd extras • POWERFLEX® for optimum protection for all weather conditions. POWERFLEX® brochure available for more information • Tapered cushions, adapted to match the inclined angle of the approach ramp • Various projections available that differ from the standard for extra sealing - TP only Breeam outstanding The sustainability certificate from the Dutch Green Building Council is based on the excellent results for air infiltration and thermal insulation. 270 mm • Customised side and or top cushions (with non-standard width and height) • Various bevelled top and or side cushions (for reduction of door width) • Lower cushion for complete sealing when there is no Dock Leveller Installation drawings Detailed drawings are available for implementing the structural measures necessary for installing the Dock Shelters. Stertil T-Series Dock Shelters Tapered cushions for use e e clin clin dede incinlin clin e e on inclined approach ramps (for both TP and TI). E Reduces t

Pagina 4-Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza nd extras
• POWERFLEX® for optimum...

Pagina 5 - Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza he loading bay opening
...

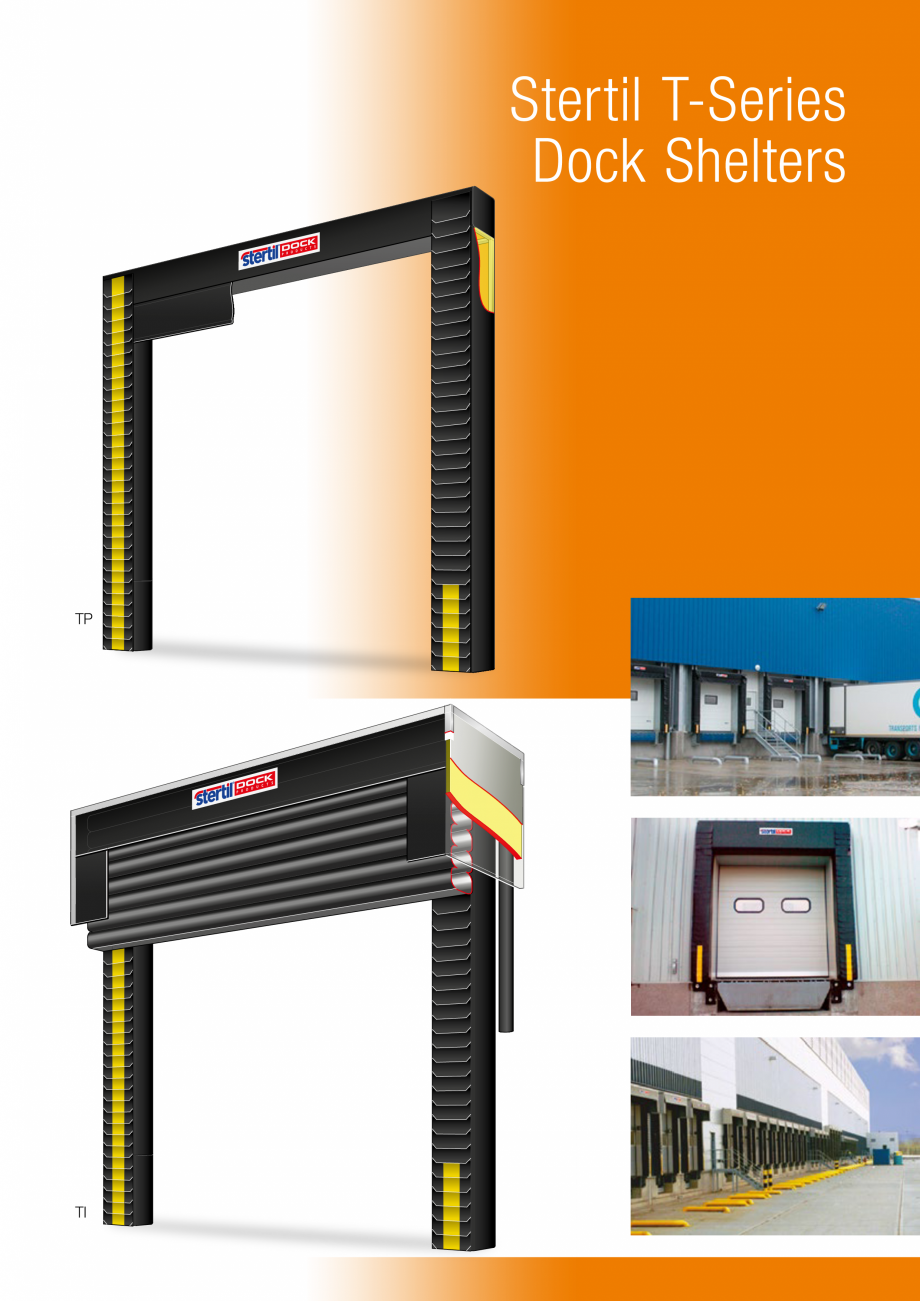

he loading bay opening Bevelled cushions reduce the opening of the loading bay, 270 to 450 mm thus guaranteeing proper sealing. E + 100 mm Stertil T-Series Dock Shelters TP TI A G A E D E Standard dimensions* TP-Series TI-Series A. Overall width 2800 mm to 3100 mm 3500 mm B. Overall height 2600 mm to 3200 mm 3600 mm C. Height of top cushion 300 mm D. Projection of top cushion 270 mm E. Width of side cushion 300 mm 300 mm F. Projection of side cushions 270 mm 270 mm G. Projection of top panel H. Height of inflated top cushion F E 650 mm 1350 mm * Other dimensions available as options. More information Please feel free to contact us for more information about the T-Series Dock Shelters or other high-quality Stertil Dock Products. Stertil B.V. P.O.Box 23 9288 ZG Kootstertille The Netherlands Tel. +31 (0)512 334444 www.stertil-dockproducts.com dp@stertil.nl Stertil Dock Products /Stertil-b-v- @Stertil a member of the Stertil Group 95004114 T-Series-GB

Pagina 5-Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza he loading bay opening

Bevelled...

Pagina 6 - Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza 11-2017. Stertil is a...

11-2017. Stertil is a registered trademark of Stertil B.V.. We reserve the right to make changes in specifications without notice and without making changes retroactive. B C H E

Pagina 6-Burdufuri cu perne-seria T STERTIL Catalog, brosura Engleza 11-2017. Stertil is a registered...

11-2017. Stertil is a registered trademark of Stertil B.V.. We reserve the right to make changes in specifications without notice and without making changes retroactive. B C H E ... ascunde
