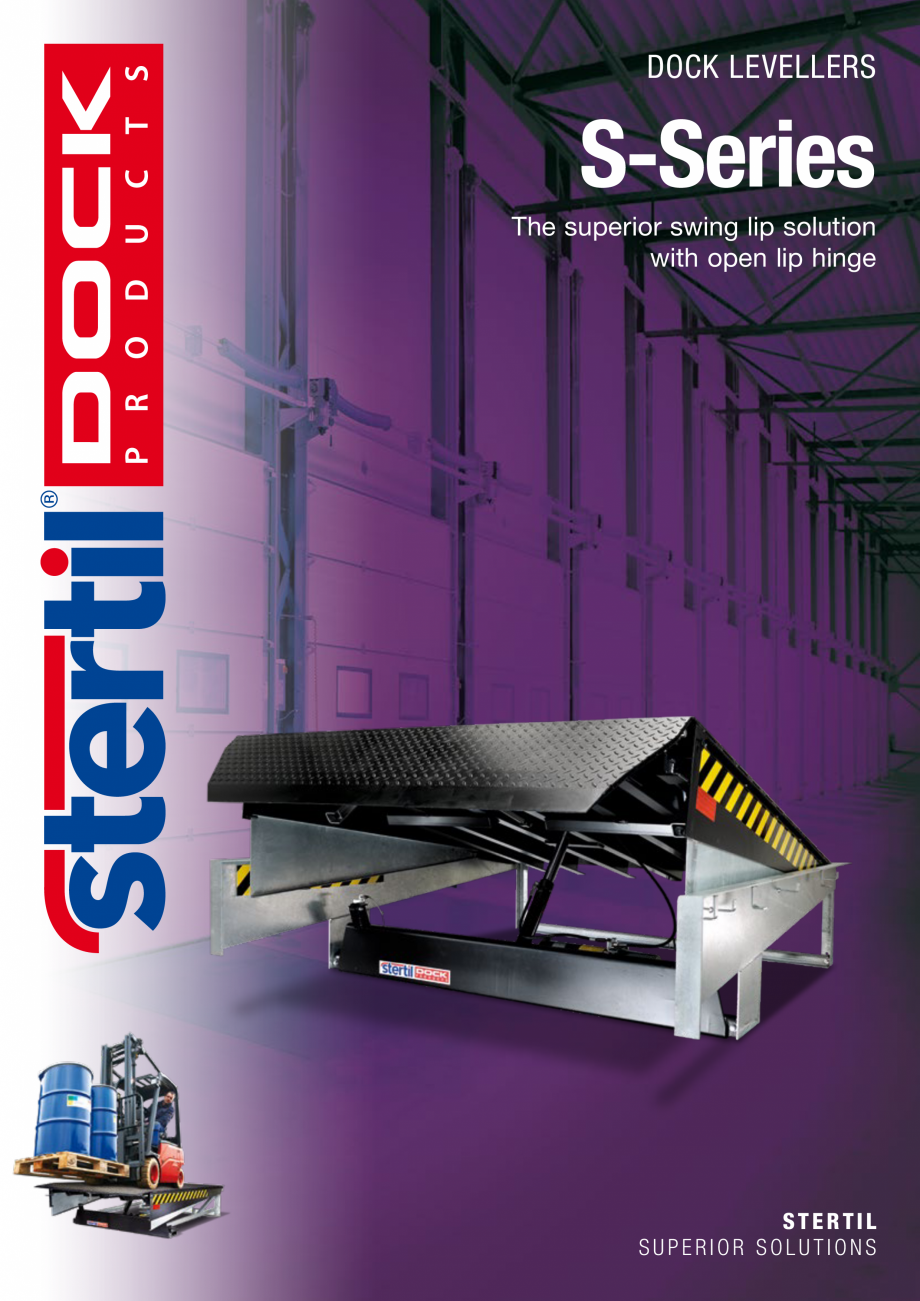

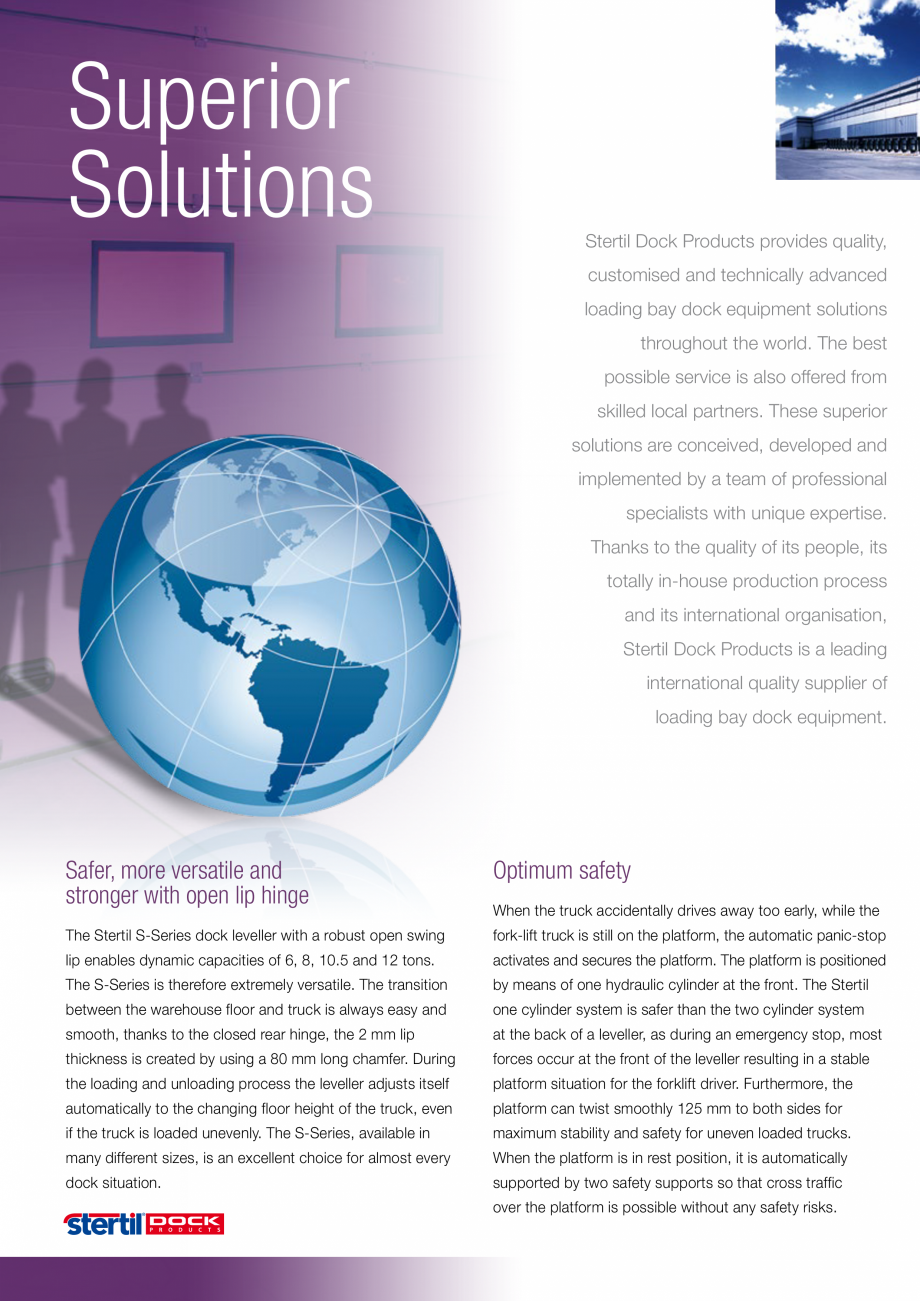

DOCK LEVELLERS S-Series The superior swing lip solution with open lip hinge STERTIL SUPERIOR SOLUTIONS Superior Solutions Stertil Dock Products provides quality, customised and technically advanced loading bay dock equipment solutions throughout the world. The best possible service is also offered from skilled local partners. These superior solutions are conceived, developed and implemented by a team of professional specialists with unique expertise. Thanks to the quality of its people, its totally in-house production process and its international organisation, Stertil Dock Products is a leading international quality supplier of loading bay dock equipment. Safer, more versatile and stronger with open lip hinge Optimum safety The Stertil S-Series dock leveller with a robust open swing fork-lift truck is still on the platform, the automatic panic-stop lip enables dynamic capacities of 6, 8, 10.5 and 12 tons. activates and secures the platform. The platform is positioned The S

Pagina 1-Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza DOCK LEVELLERS
...

Pagina 2 - Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza -Series is ...

-Series is therefore extremely versatile. The transition by means of one hydraulic cylinder at the front. The Stertil between the warehouse floor and truck is always easy and one cylinder system is safer than the two cylinder system smooth, thanks to the closed rear hinge, the 2 mm lip at the back of a leveller, as during an emergency stop, most thickness is created by using a 80 mm long chamfer. During forces occur at the front of the leveller resulting in a stable the loading and unloading process the leveller adjusts itself platform situation for the forklift driver. Furthermore, the automatically to the changing floor height of the truck, even platform can twist smoothly 125 mm to both sides for if the truck is loaded unevenly. The S-Series, available in maximum stability and safety for uneven loaded trucks. many different sizes, is an excellent choice for almost every When the platform is in rest position, it is automatically dock situation. supported by two safet

Pagina 2-Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza -Series is therefore...

Pagina 3 - Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza y supports ...

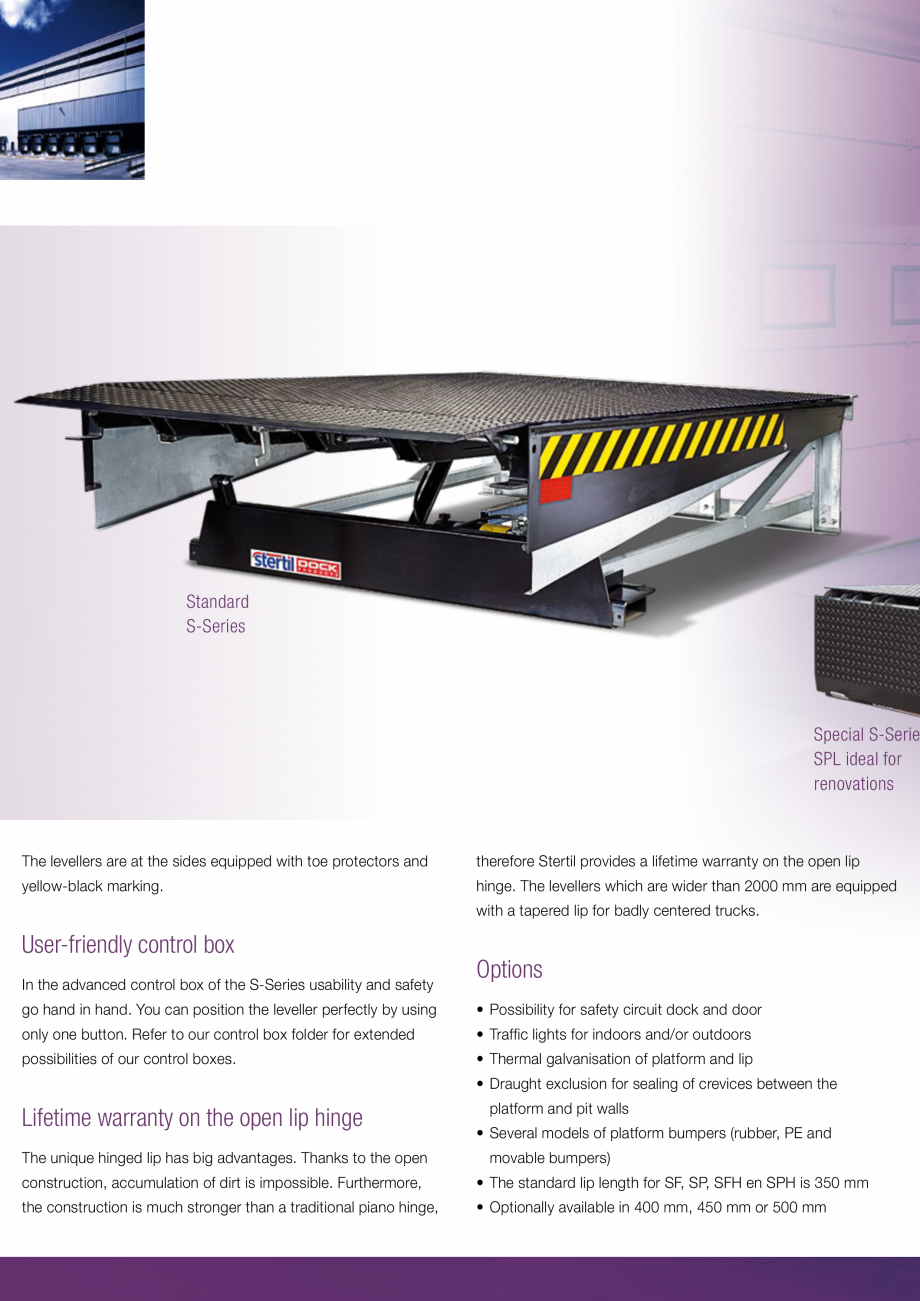

y supports so that cross traffic When the truck accidentally drives away too early, while the over the platform is possible without any safety risks. Standard S-Series Special S-Serie SPL ideal for renovations The levellers are at the sides equipped with toe protectors and therefore Stertil provides a lifetime warranty on the open lip yellow-black marking. hinge. The levellers which are wider than 2000 mm are equipped with a tapered lip for badly centered trucks. User-friendly control box In the advanced control box of the S-Series usability and safety Options go hand in hand. You can position the leveller perfectly by using • Possibility for safety circuit dock and door only one button. Refer to our control box folder for extended • Traffic lights for indoors and/or outdoors possibilities of our control boxes. • Thermal galvanisation of platform and lip • Draught exclusion for sealing of crevices between the Lifetime warranty on the open lip hinge The uni

Pagina 3-Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza y supports so that...

Pagina 4 - Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza que hinged ...

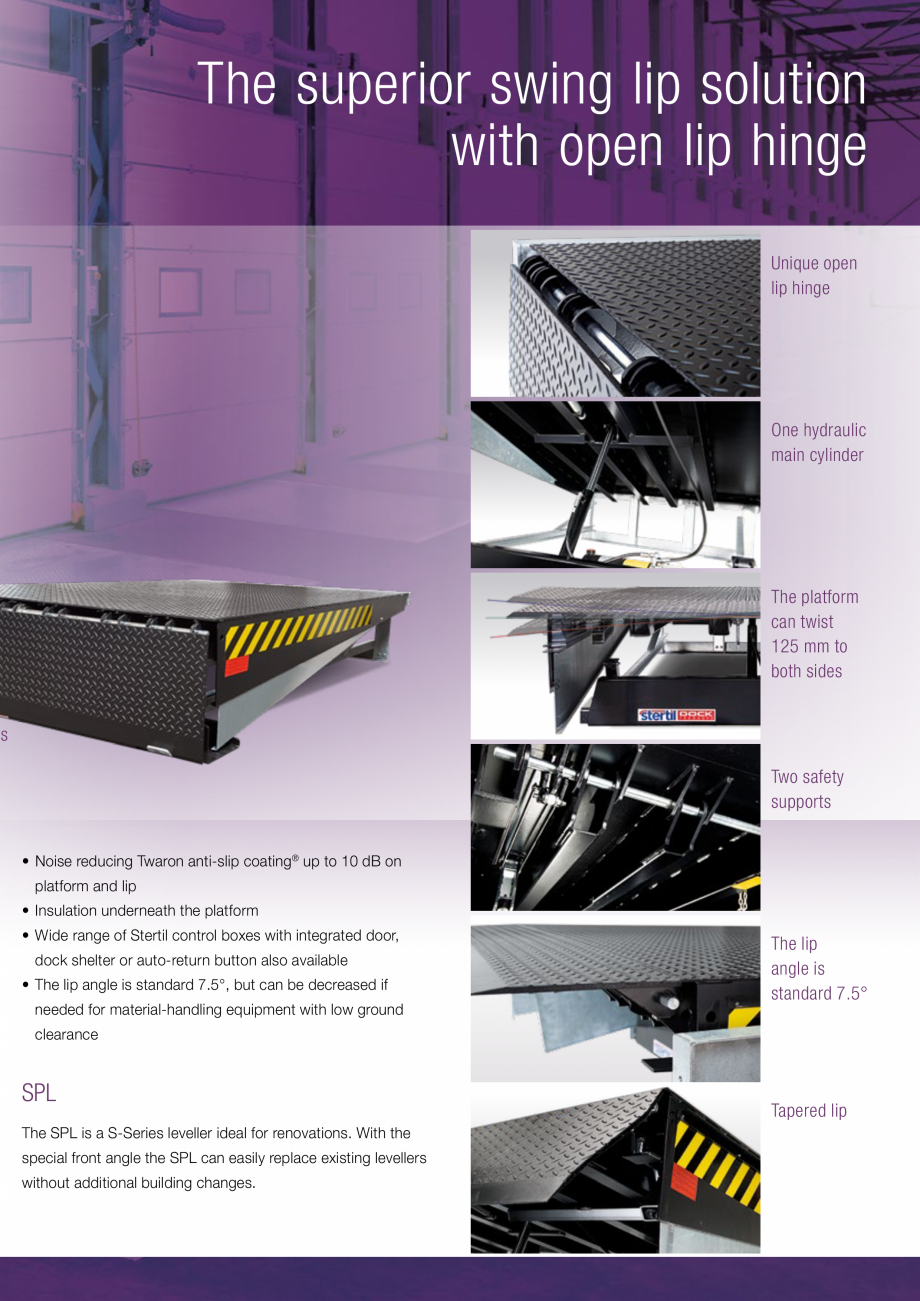

que hinged lip has big advantages. Thanks to the open platform and pit walls • Several models of platform bumpers (rubber, PE and movable bumpers) construction, accumulation of dirt is impossible. Furthermore, • The standard lip length for SF, SP, SFH en SPH is 350 mm the construction is much stronger than a traditional piano hinge, • Optionally available in 400 mm, 450 mm or 500 mm The superior swing lip solution with open lip hinge Unique open lip hinge One hydraulic main cylinder The platform can twist 125 mm to both sides es Two safety supports • Noise reducing Twaron anti-slip coating® up to 10 dB on platform and lip • Insulation underneath the platform • W ide range of Stertil control boxes with integrated door, dock shelter or auto-return button also available • The lip angle is standard 7.5°, but can be decreased if needed for material-handling equipment with low ground The lip angle is standard 7.5° clearance SPL The SPL is a S-Series levelle

Pagina 4-Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza que hinged lip has big...

Pagina 5 - Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza r ideal for...

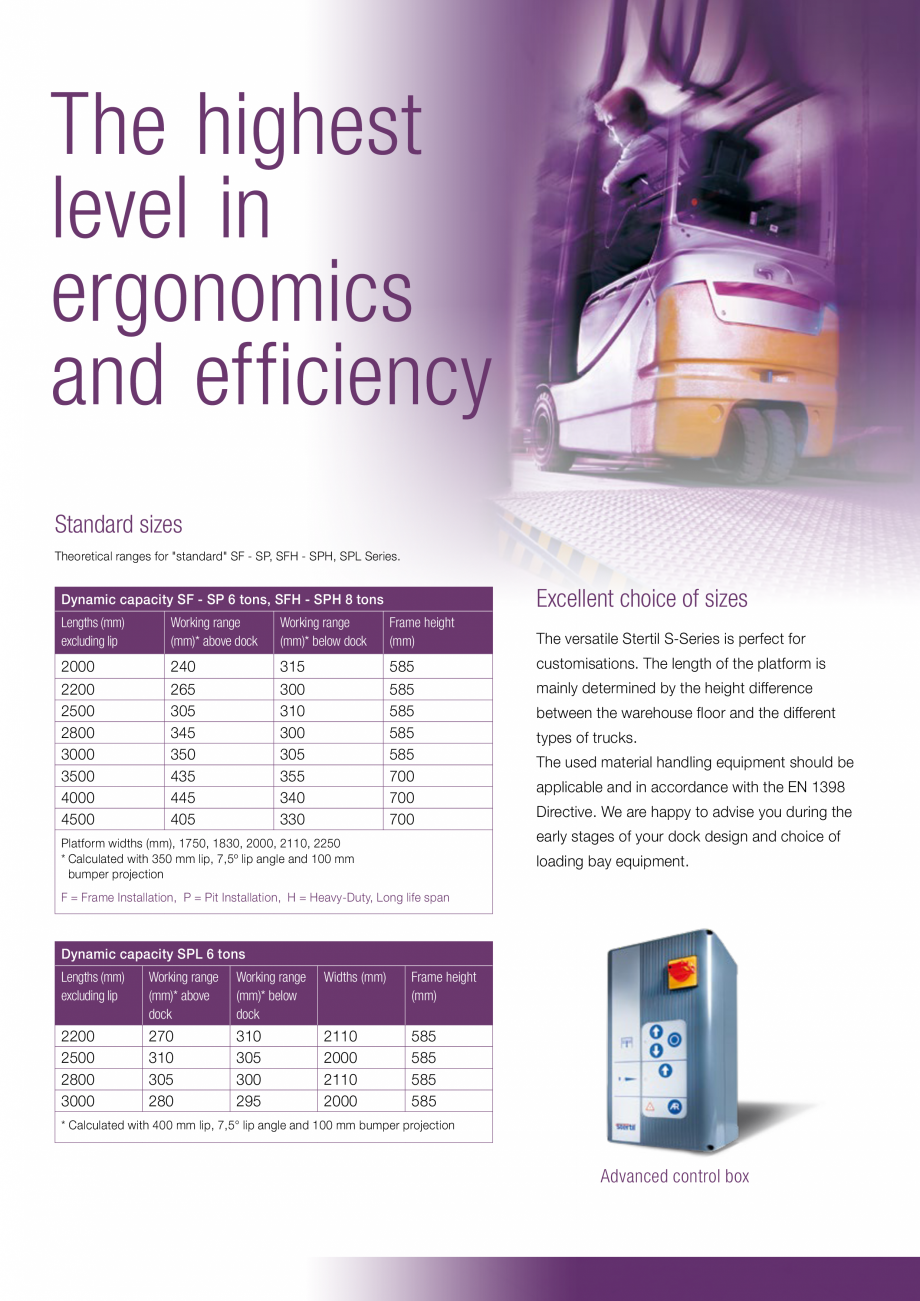

r ideal for renovations. With the special front angle the SPL can easily replace existing levellers without additional building changes. Tapered lip The highest level in ergonomics and efficiency Standard sizes Theoretical ranges for "standard" SF - SP, SFH - SPH, SPL Series. Excellent choice of sizes Dynamic capacity SF - SP 6 tons, SFH - SPH 8 tons Lengths (mm) excluding lip Working range (mm)* above dock Working range (mm)* below dock Frame height (mm) 2000 2200 2500 2800 3000 3500 4000 4500 240 265 305 345 350 435 445 405 315 300 310 300 305 355 340 330 585 585 585 585 585 700 700 700 Platform widths (mm), 1750, 1830, 2000, 2110, 2250 * Calculated with 350 mm lip, 7,5º lip angle and 100 mm bumper projection The versatile Stertil S-Series is perfect for customisations. The length of the platform is mainly determined by the height difference between the warehouse floor and the different types of trucks. The used material handling equipment should be applicable and in

Pagina 6 - Rampa hidraulica cu trapa rabatabila STERTIL Seria S Catalog, brosura Engleza accordance ...

accordance with the EN 1398 Directive. We are happy to advise you during the early stages of your dock design and choice of loading bay equipment. F = Frame Installation, P = Pit Installation, H = Heavy-Duty, Long life span Dynamic capacity SPL 6 tons Lengths (mm) excluding lip Working range (mm)* above dock Working range (mm)* below dock Widths (mm) Frame height (mm) 2200 2500 2800 3000 270 310 305 280 310 305 300 295 2110 2000 2110 2000 585 585 585 585 * Calculated with 400 mm lip, 7,5° lip angle and 100 mm bumper projection Advanced control box Technical specifications • The construction is unique with, amongst others, steel (S355J0/STEEL 52). For the SF, SP en SPL the platform one central cylinder at the front for maximum safety; and lip are equipped with tear plate (8/10 mm resp. a self cleaning open lip hinge. 13/15 mm) as anti-slip surface. For the SFH and SPH (8/10 mm resp. 15/17 mm). This plate thickness makes the S-Series also suitable for 3-wheel fork
