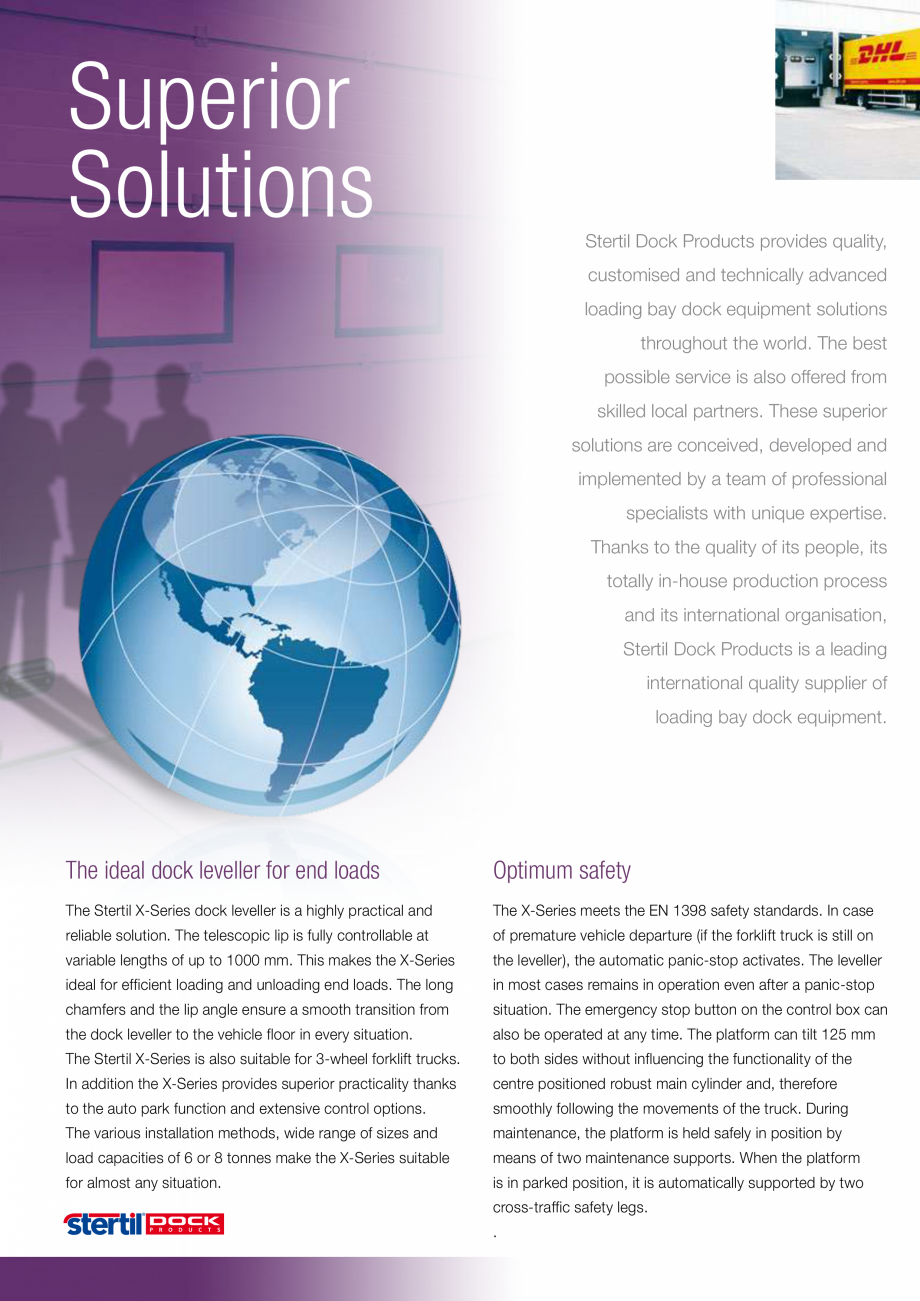

DOCK LEVELLERS X-Series Advanced systems: fully controllable telescopic lip and auto park function STERTIL SUPERIOR SOLUTIONS Superior Solutions Stertil Dock Products provides quality, customised and technically advanced loading bay dock equipment solutions throughout the world. The best possible service is also offered from skilled local partners. These superior solutions are conceived, developed and implemented by a team of professional specialists with unique expertise. Thanks to the quality of its people, its totally in-house production process and its international organisation, Stertil Dock Products is a leading international quality supplier of loading bay dock equipment. The ideal dock leveller for end loads Optimum safety The Stertil X-Series dock leveller is a highly practical and The X-Series meets the EN 1398 safety standards. In case reliable solution. The telescopic lip is fully controllable at of premature vehicle departure (if the forklift truck is still on

Pagina 1-Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza DOCK LEVELLERS
...

Pagina 2 - Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza variable...

variable lengths of up to 1000 mm. This makes the X-Series the leveller), the automatic panic-stop activates. The leveller ideal for efficient loading and unloading end loads. The long in most cases remains in operation even after a panic-stop chamfers and the lip angle ensure a smooth transition from situation. The emergency stop button on the control box can the dock leveller to the vehicle floor in every situation. also be operated at any time. The platform can tilt 125 mm The Stertil X-Series is also suitable for 3-wheel forklift trucks. to both sides without influencing the functionality of the In addition the X-Series provides superior practicality thanks centre positioned robust main cylinder and, therefore to the auto park function and extensive control options. smoothly following the movements of the truck. During The various installation methods, wide range of sizes and maintenance, the platform is held safely in position by load capacities of 6 or 8 tonnes ma

Pagina 2-Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza variable lengths of...

Pagina 3 - Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza ke the...

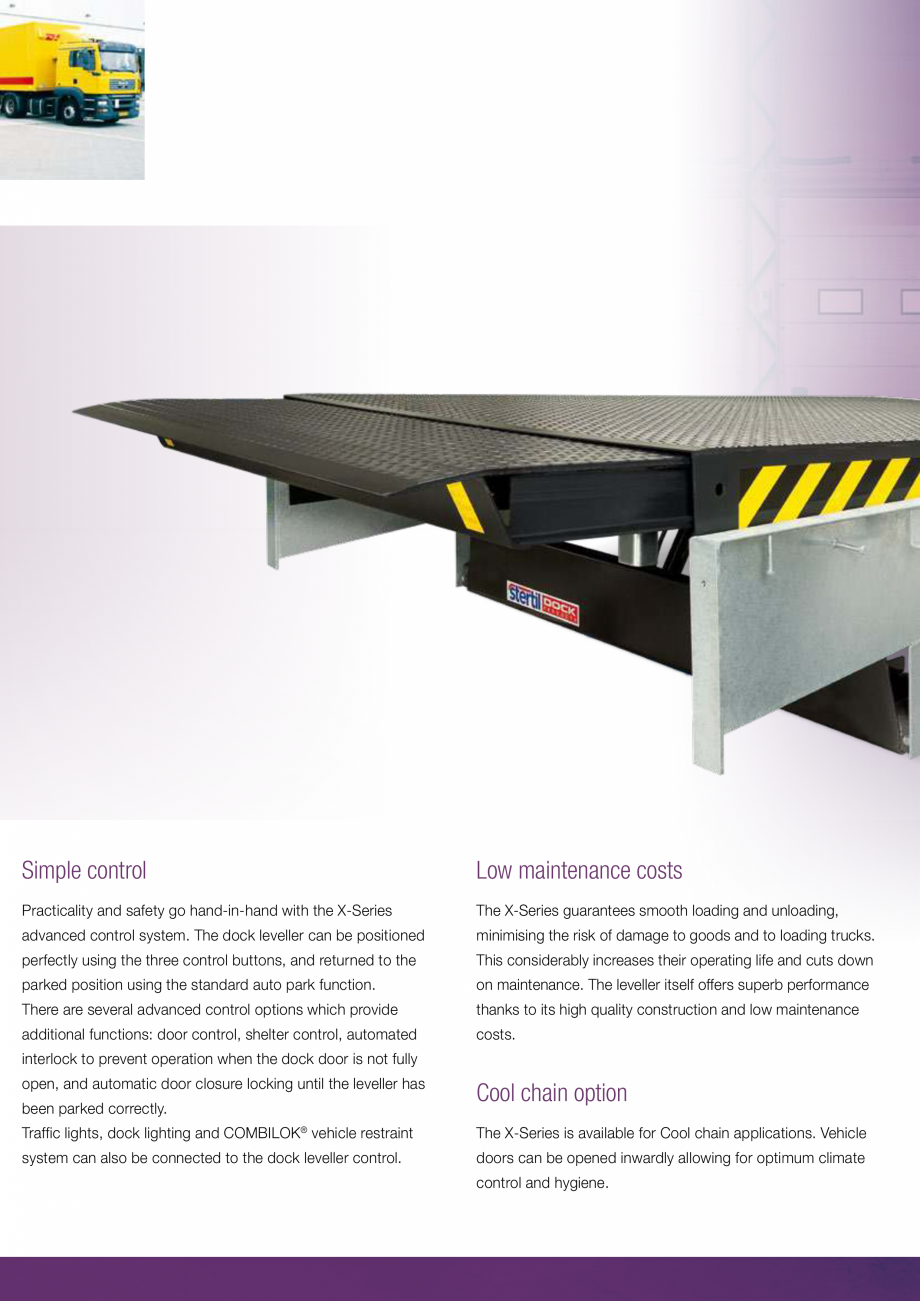

ke the X-Series suitable means of two maintenance supports. When the platform for almost any situation. is in parked position, it is automatically supported by two cross-traffic safety legs. . Simple control Low maintenance costs Practicality and safety go hand-in-hand with the X-Series The X-Series guarantees smooth loading and unloading, advanced control system. The dock leveller can be positioned minimising the risk of damage to goods and to loading trucks. perfectly using the three control buttons, and returned to the This considerably increases their operating life and cuts down parked position using the standard auto park function. on maintenance. The leveller itself offers superb performance There are several advanced control options which provide thanks to its high quality construction and low maintenance additional functions: door control, shelter control, automated costs. interlock to prevent operation when the dock door is not fully open, and automatic doo

Pagina 3-Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza ke the X-Series...

Pagina 4 - Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza r closure ...

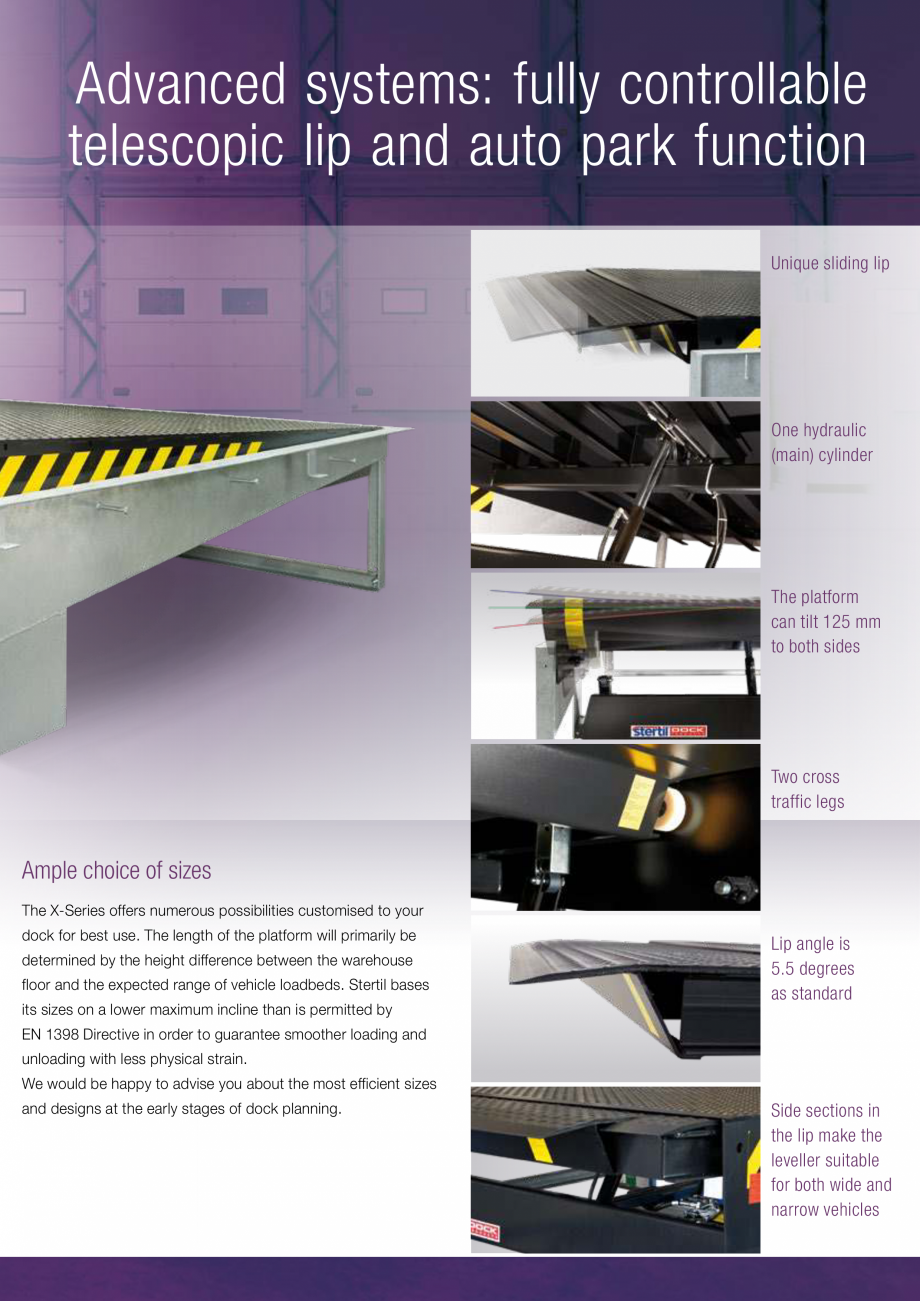

r closure locking until the leveller has been parked correctly. Cool chain option Traffic lights, dock lighting and COMBILOK® vehicle restraint The X-Series is available for Cool chain applications. Vehicle system can also be connected to the dock leveller control. doors can be opened inwardly allowing for optimum climate control and hygiene. Advanced systems: fully controllable telescopic lip and auto park function Unique sliding lip One hydraulic (main) cylinder The platform can tilt 125 mm to both sides Two cross traffic legs Ample choice of sizes The X-Series offers numerous possibilities customised to your dock for best use. The length of the platform will primarily be determined by the height difference between the warehouse floor and the expected range of vehicle loadbeds. Stertil bases its sizes on a lower maximum incline than is permitted by Lip angle is 5.5 degrees as standard EN 1398 Directive in order to guarantee smoother loading and unloading with less physi

Pagina 4-Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza r closure locking...

Pagina 5 - Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza cal strain...

cal strain. We would be happy to advise you about the most efficient sizes and designs at the early stages of dock planning. Side sections in the lip make the leveller suitable for both wide and narrow vehicles Dock levellers X-Series Options • Lip length 1000 mm (maximum lip length of 785 mm, • Various dock bumpers (rubber, PE or movable). for 2000 mm and 2200 mm long models) • Thermal insulation under the platform • 360 mm lip clearance • 8 tons model (XFH - XPH) • Side sections or tapered lip • Noise-reducing anti-slip coating • Lip skirt (up to 10 dB noise reduction) • Fully hot-dip galvanizing of the leveller on the platform and lip • Draught-excluding brush or rubber seals between the platform and pit walls Standard sizes Advanced control box Theoretical working ranges for "Standard" XF - XP and XFH - XPH Series: Dynamic capacity XF-XP 6 tons Dynamic capacity XFH-XPH 8 tons Lengths (mm) Frame height excluding lip (mm) 600 mm* 1000 mm* 60

Pagina 5-Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza cal strain.
We would ...

Pagina 6 - Rampa hidraulica cu trapa telescopica STERTIL Seria X Catalog, brosura Engleza 0 mm*
...

0 mm* 1000 mm* 600 mm* 1000 mm* 600 mm* 1000 mm* 2000** 585 285 310 380 405 260 285 350 370 2200** 585 310 335 355 380 280 310 335 350 2500 585 345 395 335 375 315 375 320 350 2800 585 385 435 325 360 355 410 380 310 3000 585 360 405 315 350 380 435 255 280 3500 700 375 415 425 460 365 405 375 410 4000 700 410 450 370 400 NB NB NB NB 4500 700 385 420 345 365 NB NB NB NB Above dock Below dock Platform width (mm) 1750, 1830, 2000, 2110, 2250 * Calculated with a fully extended 600 mm and 1000 mm lip ** Maximum lip length of 785 mm, for 2000 mm and 2200 mm long models F = Frame Installation, P = Pit Installation, H = Heavy-Duty, Long life span Above dock Below dock Technical specifications • The unique design includes a central (main) cylinder, tensile steel (S355J0 / STEEL 52). Both the platform and the front-mounted for maximum lifting efficiency, a fully lip from the 6 tons have a tear plate
