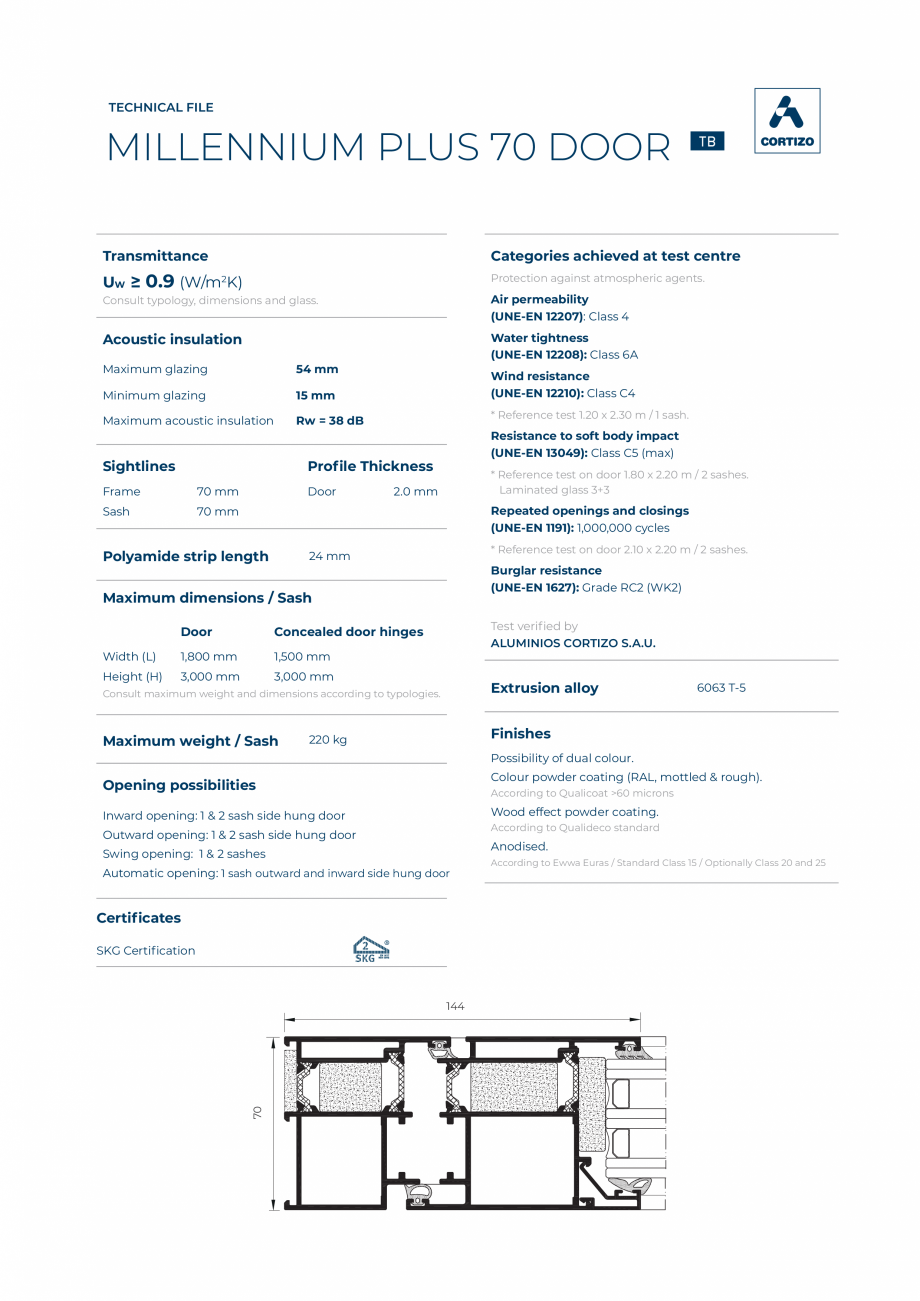

Pagina 1 - Usa din aluminiu BATI-AL Millennium Plus 70 Fisa tehnica Engleza TECHNICAL FILE
...

TECHNICAL FILE MILLENNIUM PLUS 70 DOOR Transmittance UW ≥ TB Categories achieved at test centre 0.9 (W/m K) Protection against atmospheric agents. 2 Consult typology, dimensions and glass. Air permeability (UNE-EN 12207): Class 4 Acoustic insulation Water tightness (UNE-EN 12208): Class 6A Maximum glazing 54 mm Minimum glazing 15 mm Maximum acoustic insulation Rw = 38 dB Sightlines Wind resistance (UNE-EN 12210): Class C4 * Reference test 1.20 x 2.30 m / 1 sash. Resistance to soft body impact (UNE-EN 13049): Class C5 (max) Profile Thickness Frame 70 mm Sash 70 mm Door * Reference test on door 1.80 x 2.20 m / 2 sashes. Laminated glass 3+3 2.0 mm Repeated openings and closings (UNE-EN 1191): 1,000,000 cycles Polyamide strip length * Reference test on door 2.10 x 2.20 m / 2 sashes. 24 mm Burglar resistance (UNE-EN 1627): Grade RC2 (WK2) Maximum dimensions / Sash Door Concealed door hinges Width (L) 1,800 mm 1,500 mm Height (H) 3,000 mm 3,000 mm
