Unitate de climatizare HACE DXA

Limba: Engleza
99 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

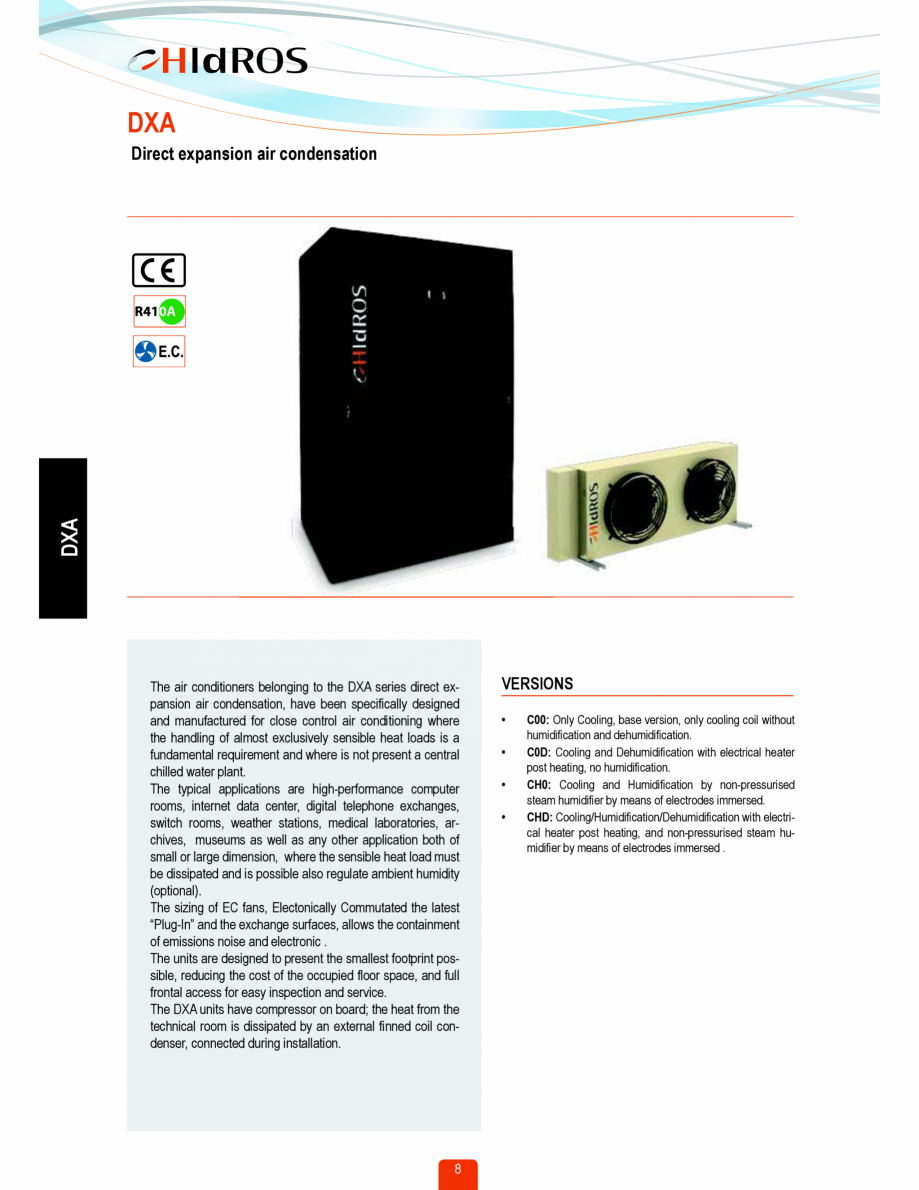

Pagina 1-Unitate de climatizare HACE DXA Fisa tehnica Engleza DXA

DXA

Direct expansion air condensation
...

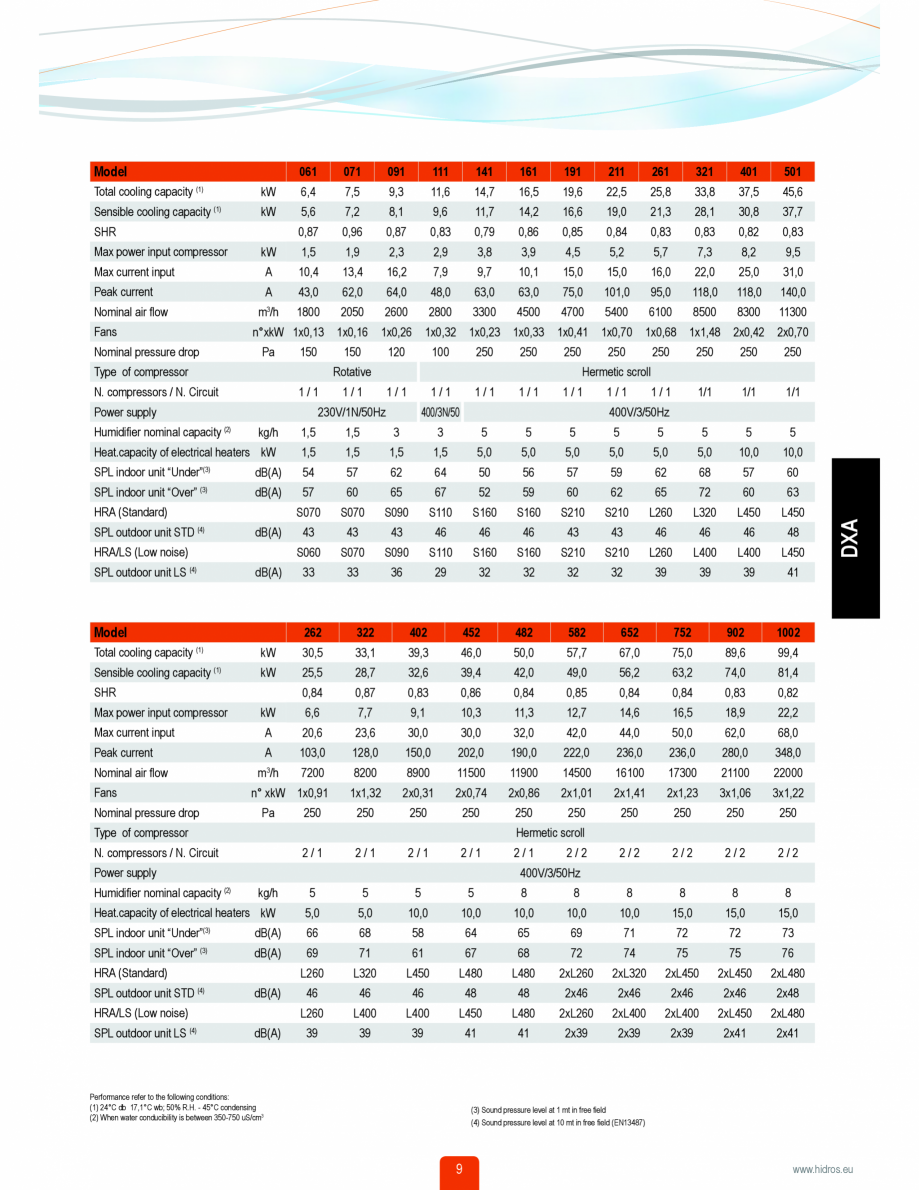

Pagina 2-Unitate de climatizare HACE DXA Fisa tehnica Engleza l
frontal access for easy inspection and...
l frontal access for easy inspection and service. The DXA units have compressor on board; the heat from the technical room is dissipated by an external finned coil condenser, connected during installation. 8 VERSIONS • • • • C00: Only Cooling, base version, only cooling coil without humidification and dehumidification. C0D: Cooling and Dehumidification with electrical heater post heating, no humidification. CH0: Cooling and Humidification by non-pressurised steam humidifier by means of electrodes immersed. CHD: Cooling/Humidification/Dehumidification with electrical heater post heating, and non-pressurised steam humidifier by means of electrodes immersed . Model 061 071 091 111 141 161 191 211 261 321 401 501 Total cooling capacity (1) kW 6,4 7,5 9,3 11,6 14,7 16,5 19,6 22,5 25,8 33,8 37,5 45,6 Sensible cooling capacity (1) kW 5,6 7,2 8,1 9,6 11,7 14,2 16,6 19,0 21,3 28,1 30,8 37,7 0,83 SHR 0,87 0,96 0,87 0,83 0,79 0 ... ascunde
