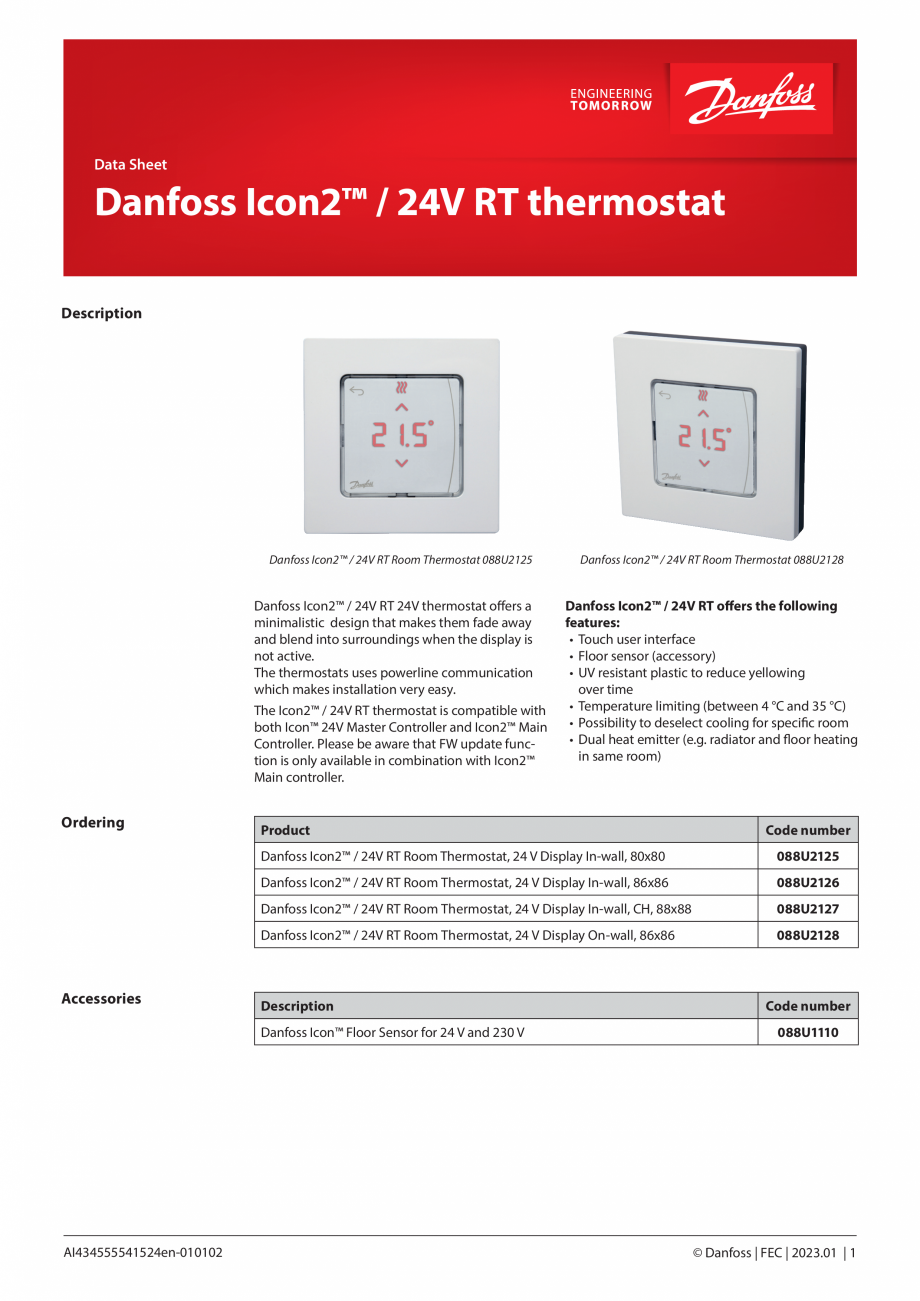

Termostat camera DANFOSS Icon² 24V RT, Icon² 24V RT, On-wall
splay
Display type
Hybrid: red single LED’s and custom segment
Display features
Switches OFF after 10 sec. with no interaction
Ambient temperature, storage
-20 °C to 65 °C
Controller, type
Adjustable Pulse Width Modulation
Power consumption
0.2 W
Sensor, floor (optional)
NTC 47 kΩ, 3 m, IP 68
Shell material
White parts: PC ASA
Grey parts: PC, 10% glass
ErP class
Colour
AI434555541524en-010102
(2%)
White RAL9010 / Dark Grey RAL7024
© Danfoss | FEC | 2023.01 | 2

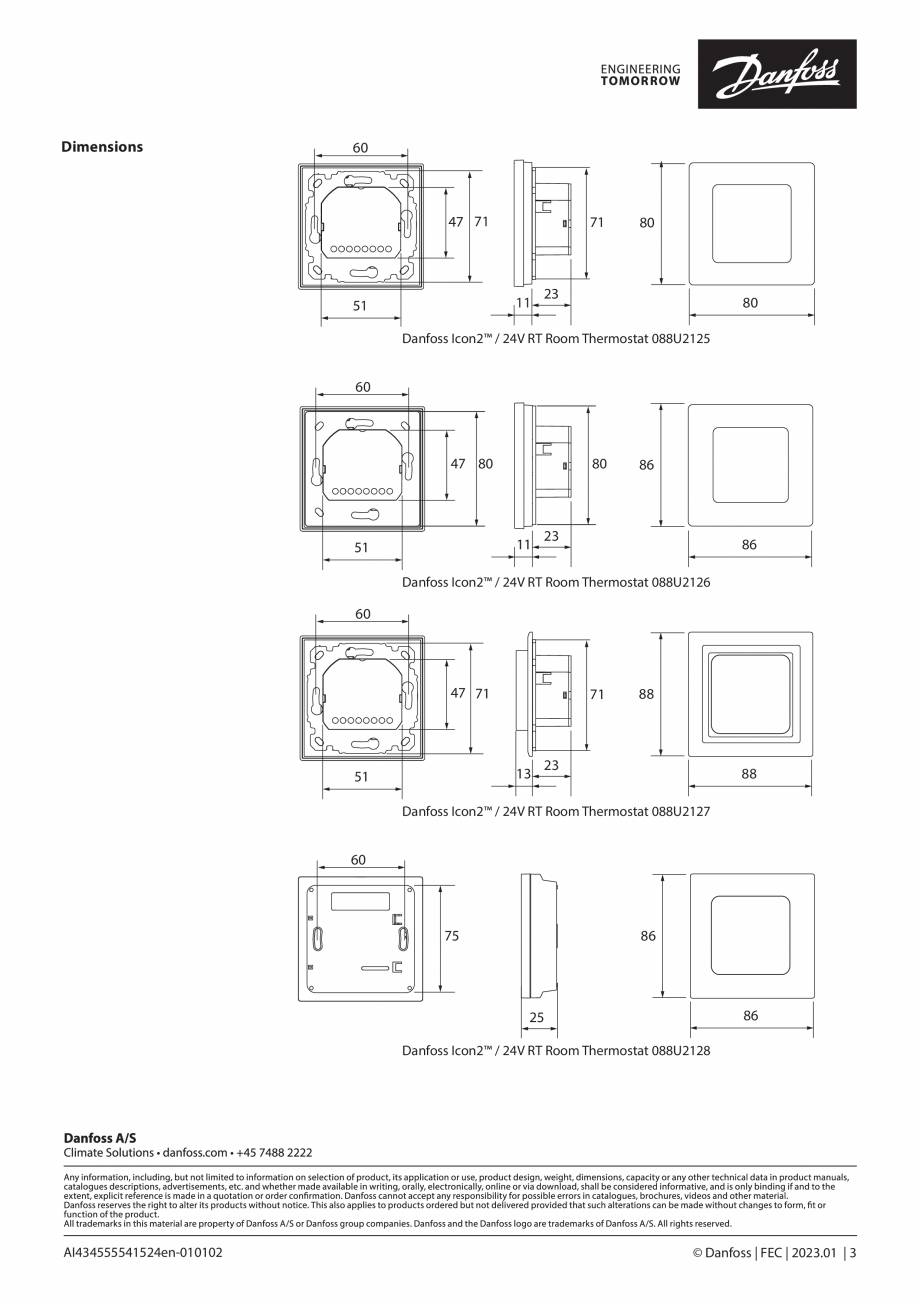

Dimensions
60
47 71
71
11
51
80
23
80
Danfoss Icon2™ / 24V RT Room Thermostat 088U2125
60
47 80
80
11
51
86
23
86
Danfoss Icon2™ / 24V RT Room Thermostat 088U2126
60
47 71
71
13
51
88
23
88
Danfoss Icon2™ / 24V RT Room Thermostat 088U2127
60
75
86
86
25
Danfoss Icon2™ / 24V RT Room Thermostat 088U2128
AI434555541524en-010102
© Danfoss | FEC | 2023.01 | 3
