Suport underlay mocheta - incalzire pardoseala INTERFLOOR Heatflow Carpet

Limba: Engleza
208 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

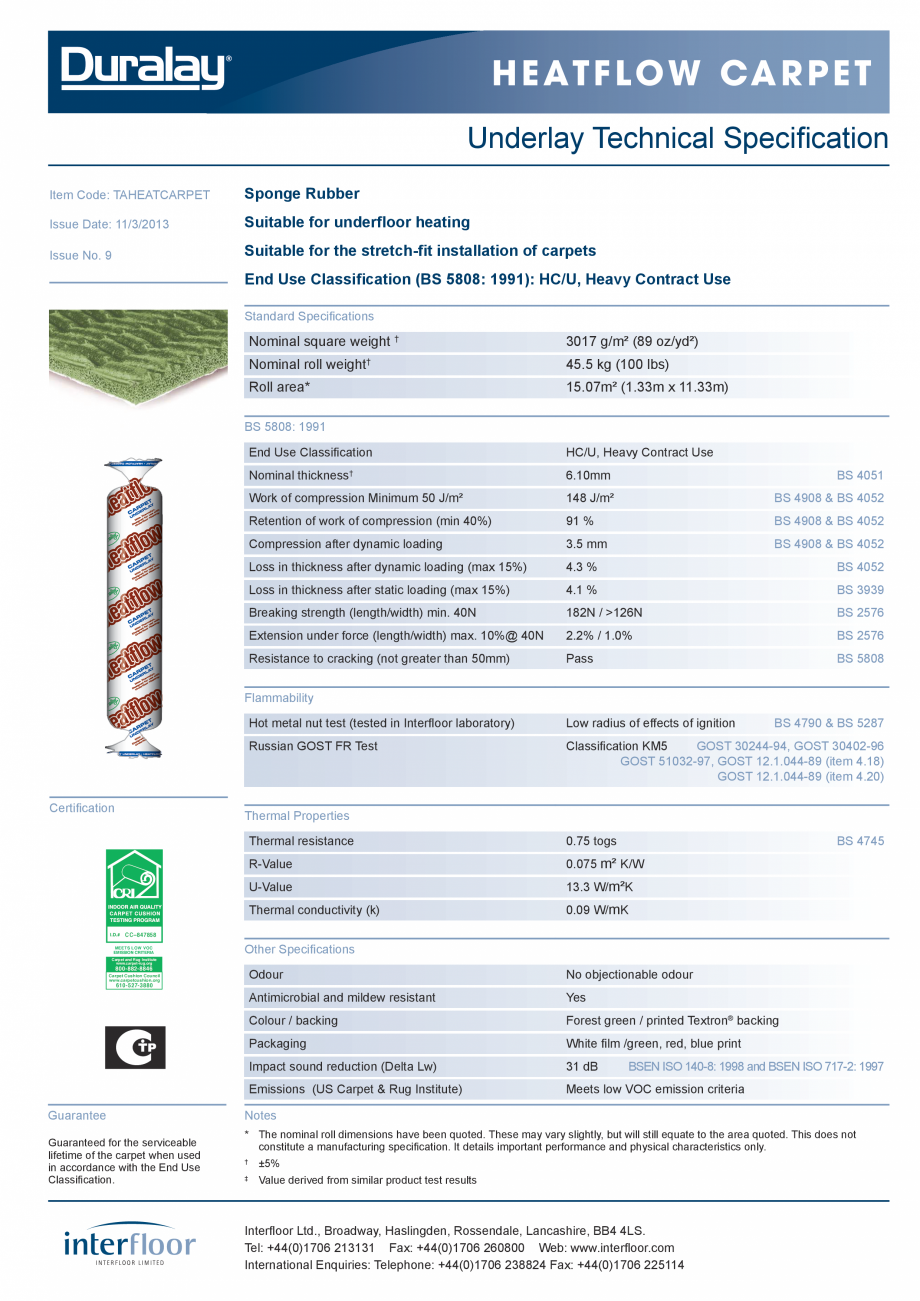

Pagina 1-Suport underlay mocheta - incalzire pardoseala  INTERFLOOR Heatflow Carpet Fisa tehnica Engleza H e ...
H e at f l o w ca r p e t Underlay Technical Specification Item Code: TAHEATCARPET Sponge Rubber Issue Date: 11/3/2013 Suitable for underfloor heating Issue No. 9 Suitable for the stretch-fit installation of carpets End Use Classification (BS 5808: 1991): HC/U, Heavy Contract Use Standard Specifications Nominal square weight † 3017 g/m² (89 oz/yd²) Nominal roll weight 45.5 kg (100 lbs) Roll area* 15.07m² (1.33m x 11.33m) † BS 5808: 1991 End Use Classification HC/U, Heavy Contract Use Nominal thickness 6.10mm Work of compression Minimum 50 J/m² 148 J/m² BS 4908 & BS 4052 Retention of work of compression (min 40%) 91 % BS 4908 & BS 4052 Compression after dynamic loading 3.5 mm BS 4908 & BS 4052 Loss in thickness after dynamic loading (max 15%) 4.3 % BS 4052 Loss in thickness after static loading (max 15%) 4.1 % BS 3939 Breaking strength (length/width) min. 40N 182N / >126N BS 2576 Extension under force (length/width) ... ascunde
