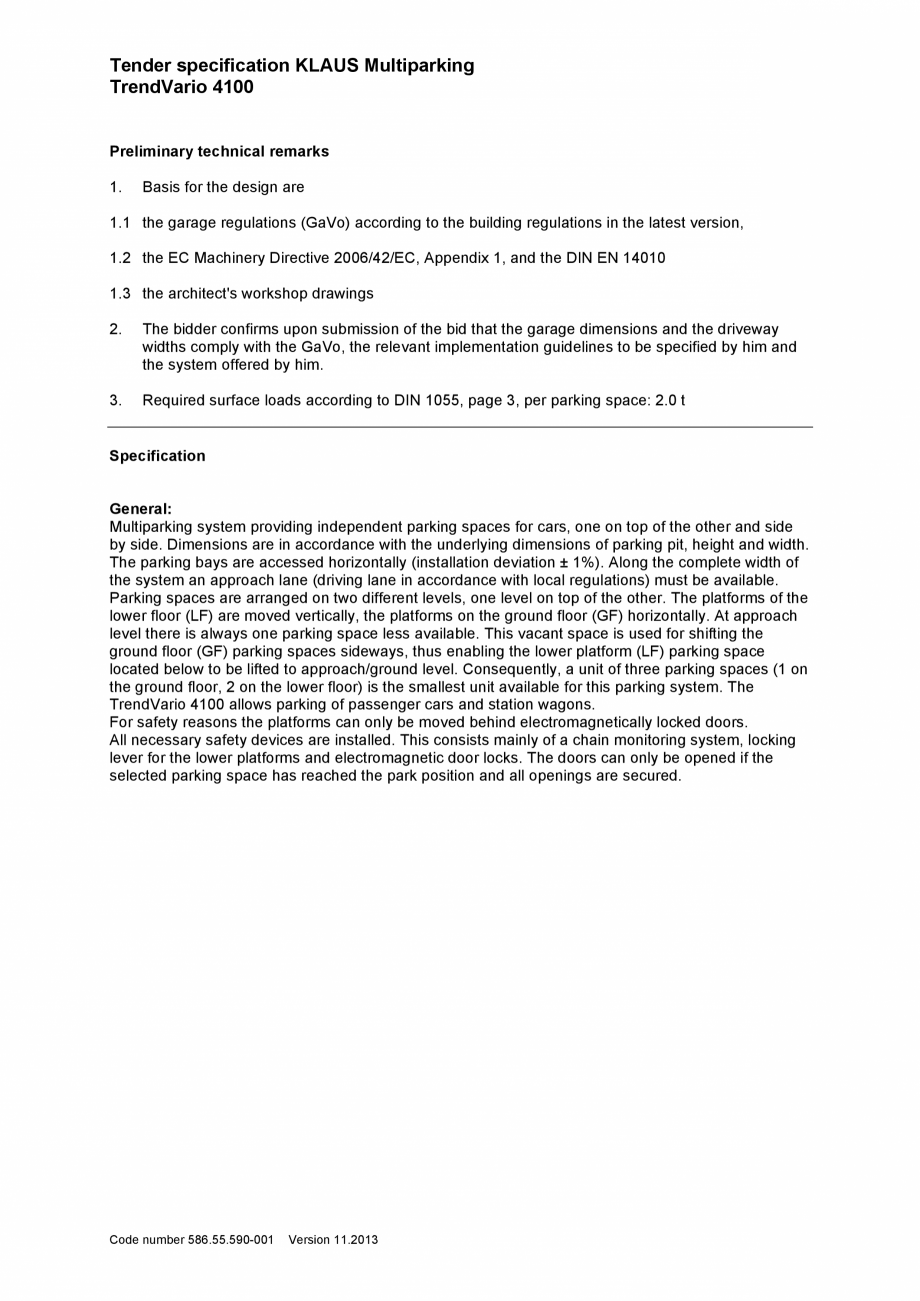

Tender specification KLAUS Multiparking TrendVario 4100 Preliminary technical remarks 1. Basis for the design are 1.1 the garage regulations (GaVo) according to the building regulations in the latest version, 1.2 the EC Machinery Directive 2006/42/EC, Appendix 1, and the DIN EN 14010 1.3 the architect's workshop drawings 2. The bidder confirms upon submission of the bid that the garage dimensions and the driveway widths comply with the GaVo, the relevant implementation guidelines to be specified by him and the system offered by him. 3. Required surface loads according to DIN 1055, page 3, per parking space: 2.0 t Specification General: Multiparking system providing independent parking spaces for cars, one on top of the other and side by side. Dimensions are in accordance with the underlying dimensions of parking pit, height and width. The parking bays are accessed horizontally (installation deviation ± 1%). Along the complete width of the system an approach lane (driving lane in

Pagina 1-Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica Engleza Tender...

Pagina 2 - Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica...

accordance with local regulations) must be available. Parking spaces are arranged on two different levels, one level on top of the other. The platforms of the lower floor (LF) are moved vertically, the platforms on the ground floor (GF) horizontally. At approach level there is always one parking space less available. This vacant space is used for shifting the ground floor (GF) parking spaces sideways, thus enabling the lower platform (LF) parking space located below to be lifted to approach/ground level. Consequently, a unit of three parking spaces (1 on the ground floor, 2 on the lower floor) is the smallest unit available for this parking system. The TrendVario 4100 allows parking of passenger cars and station wagons. For safety reasons the platforms can only be moved behind electromagnetically locked doors. All necessary safety devices are installed. This consists mainly of a chain monitoring system, locking lever for the lower platforms and electromagnetic door locks. The doors ca

Pagina 2-Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica Engleza ...

Pagina 3 - Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica...

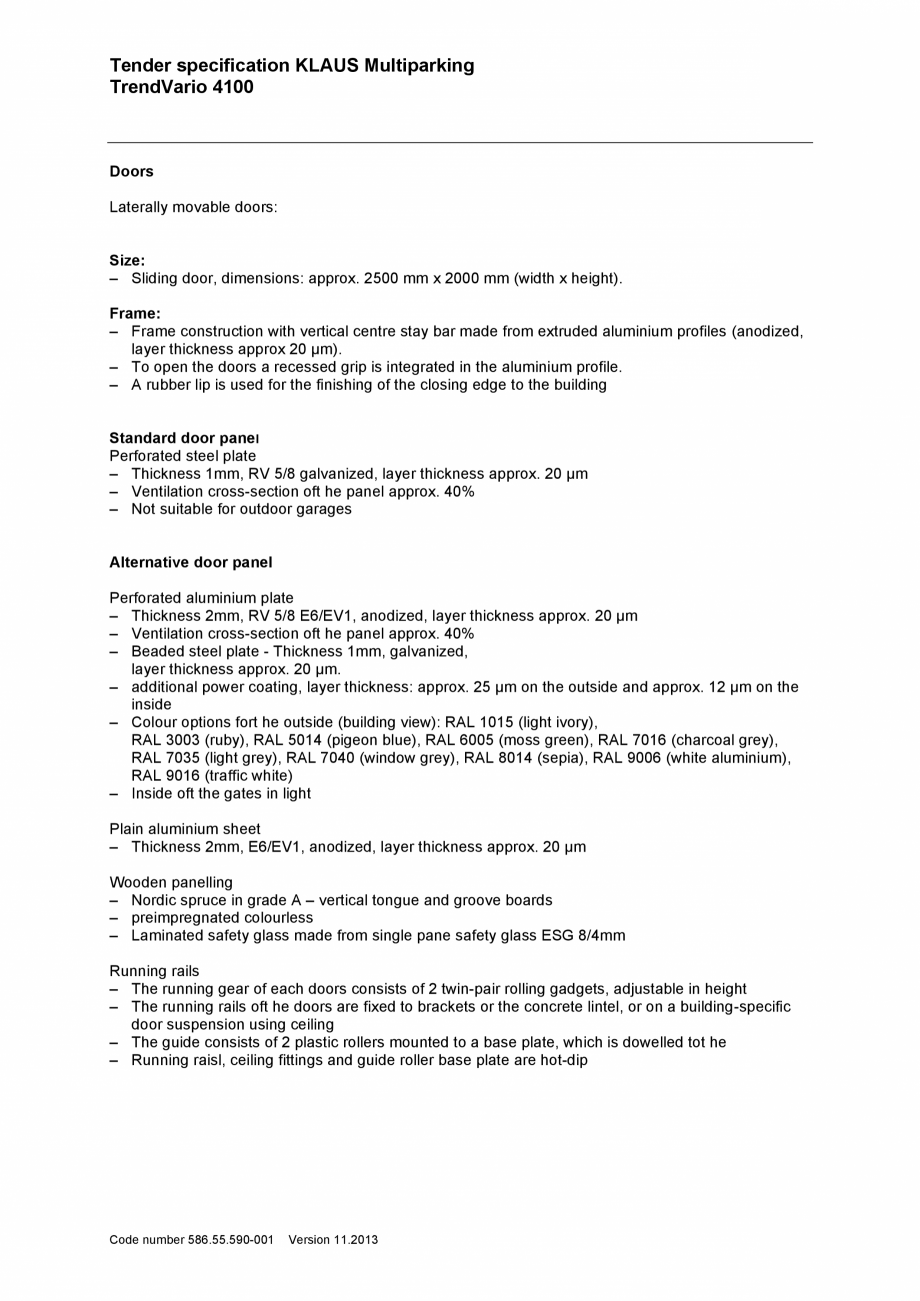

n only be opened if the selected parking space has reached the park position and all openings are secured. Code number 586.55.590-001 Version 11.2013 Tender specification KLAUS Multiparking TrendVario 4100 Doors Laterally movable doors: Size: – Sliding door, dimensions: approx. 2500 mm x 2000 mm (width x height). Frame: – Frame construction with vertical centre stay bar made from extruded aluminium profiles (anodized, layer thickness approx 20 µm). – To open the doors a recessed grip is integrated in the aluminium profile. – A rubber lip is used for the finishing of the closing edge to the building Standard door panel Perforated steel plate – Thickness 1mm, RV 5/8 galvanized, layer thickness approx. 20 µm – Ventilation cross-section oft he panel approx. 40% – Not suitable for outdoor garages Alternative door panel Perforated aluminium plate – Thickness 2mm, RV 5/8 E6/EV1, anodized, layer thickness approx. 20 µm – Ventilation cross-section oft he panel approx.

Pagina 3-Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica Engleza n only...

Pagina 4 - Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica...

40% – Beaded steel plate - Thickness 1mm, galvanized, layer thickness approx. 20 µm. – additional power coating, layer thickness: approx. 25 µm on the outside and approx. 12 µm on the inside – Colour options fort he outside (building view): RAL 1015 (light ivory), RAL 3003 (ruby), RAL 5014 (pigeon blue), RAL 6005 (moss green), RAL 7016 (charcoal grey), RAL 7035 (light grey), RAL 7040 (window grey), RAL 8014 (sepia), RAL 9006 (white aluminium), RAL 9016 (traffic white) – Inside oft the gates in light Plain aluminium sheet – Thickness 2mm, E6/EV1, anodized, layer thickness approx. 20 µm Wooden panelling – Nordic spruce in grade A – vertical tongue and groove boards – preimpregnated colourless – Laminated safety glass made from single pane safety glass ESG 8/4mm Running rails – The running gear of each doors consists of 2 twin-pair rolling gadgets, adjustable in height – The running rails oft he doors are fixed to brackets or the concrete lintel, or on a building

Pagina 4-Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica Engleza 40%...

Pagina 5 - Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica...

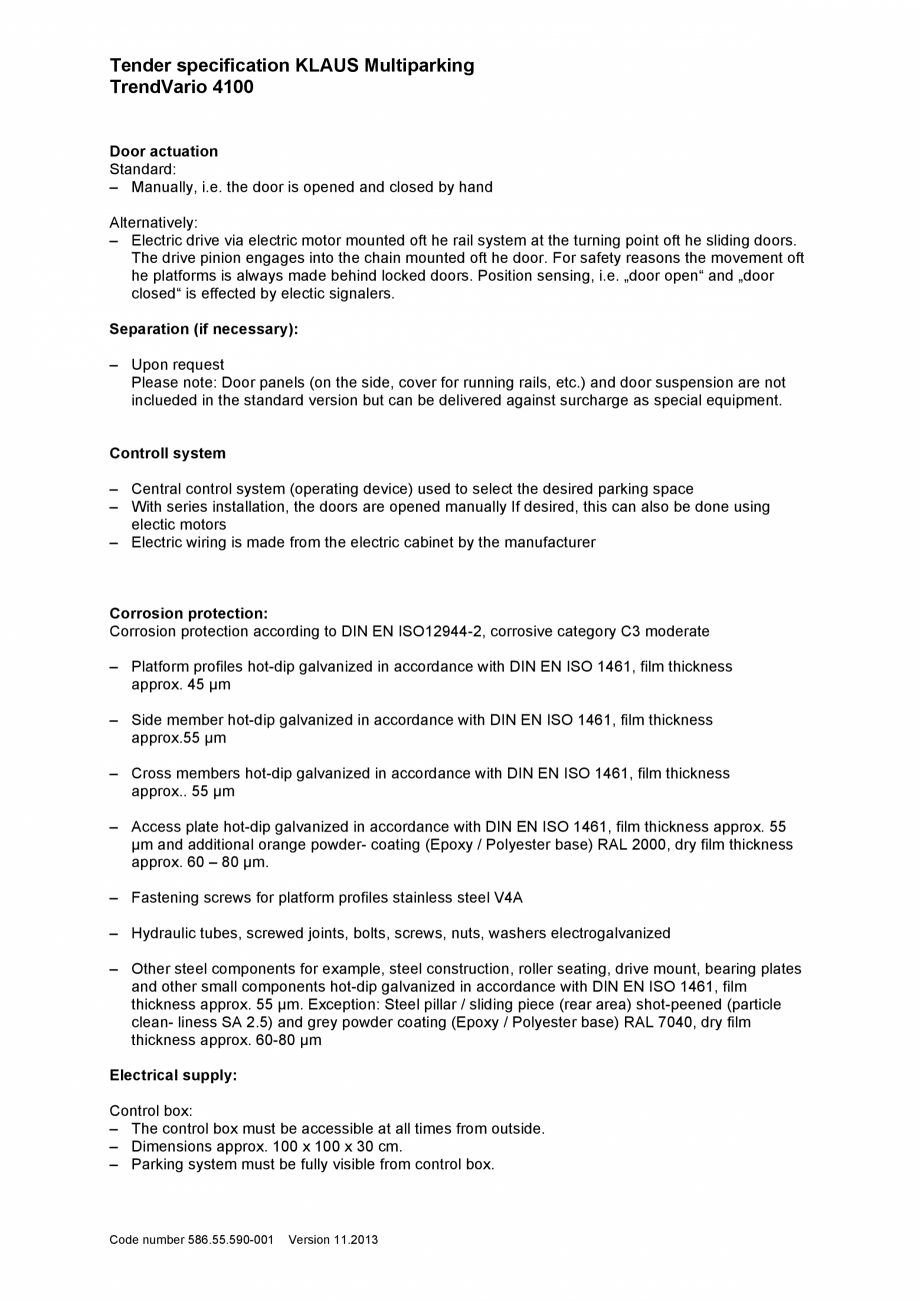

-specific door suspension using ceiling – The guide consists of 2 plastic rollers mounted to a base plate, which is dowelled tot he – Running raisl, ceiling fittings and guide roller base plate are hot-dip Code number 586.55.590-001 Version 11.2013 Tender specification KLAUS Multiparking TrendVario 4100 Door actuation Standard: – Manually, i.e. the door is opened and closed by hand Alternatively: – Electric drive via electric motor mounted oft he rail system at the turning point oft he sliding doors. The drive pinion engages into the chain mounted oft he door. For safety reasons the movement oft he platforms is always made behind locked doors. Position sensing, i.e. „door open“ and „door closed“ is effected by electic signalers. Separation (if necessary): – Upon request Please note: Door panels (on the side, cover for running rails, etc.) and door suspension are not inclueded in the standard version but can be delivered against surcharge as special equipment. Cont

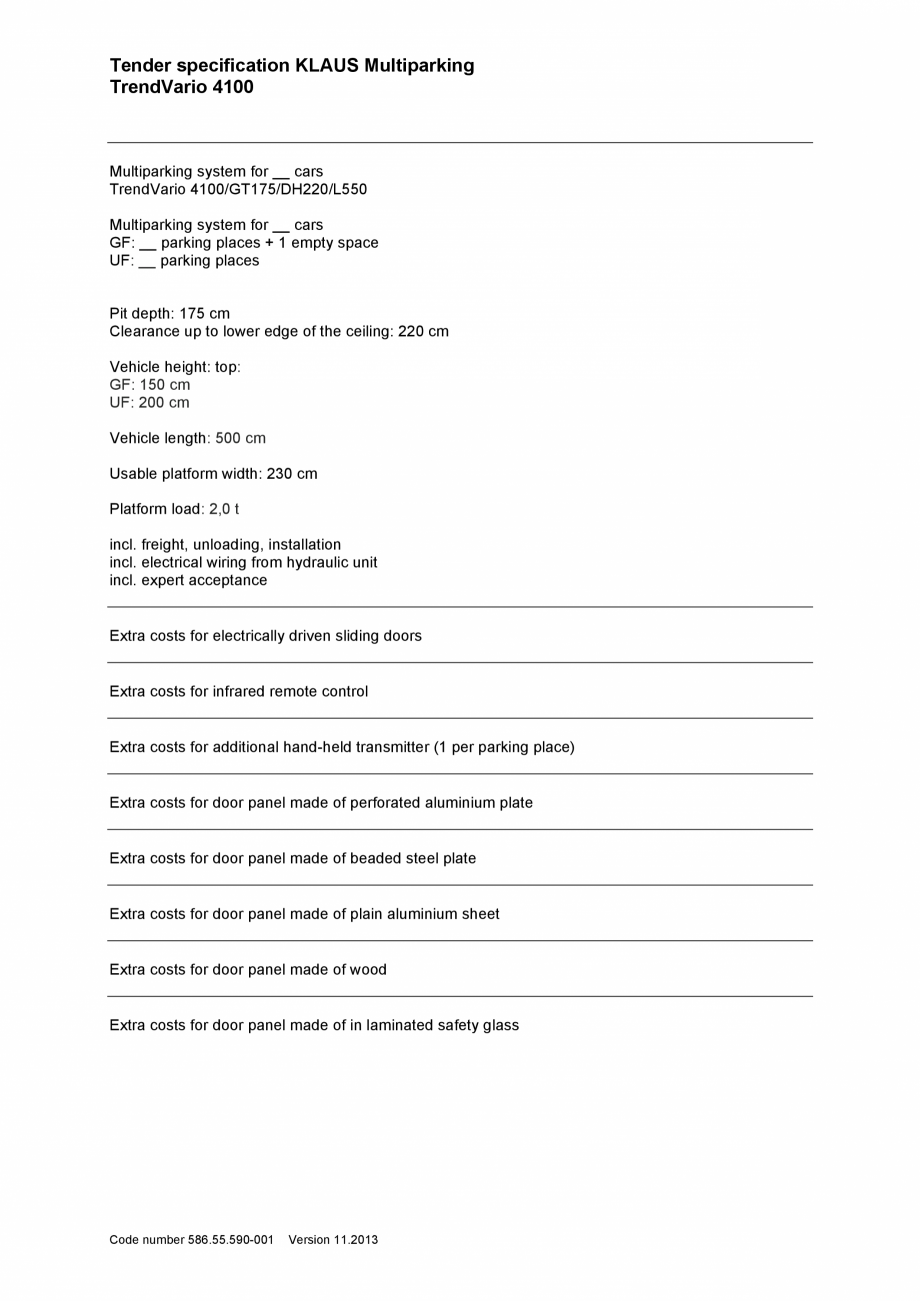

Pagina 5-Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica Engleza...

Pagina 6 - Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica...

roll system – Central control system (operating device) used to select the desired parking space – With series installation, the doors are opened manually If desired, this can also be done using electic motors – Electric wiring is made from the electric cabinet by the manufacturer Corrosion protection: Corrosion protection according to DIN EN ISO12944-2, corrosive category C3 moderate – Platform profiles hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx. 45 µm – Side member hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx.55 µm – Cross members hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx.. 55 µm – Access plate hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx. 55 µm and additional orange powder- coating (Epoxy / Polyester base) RAL 2000, dry film thickness approx. 60 – 80 µm. – Fastening screws for platform profiles stainless steel V4A – Hydraulic

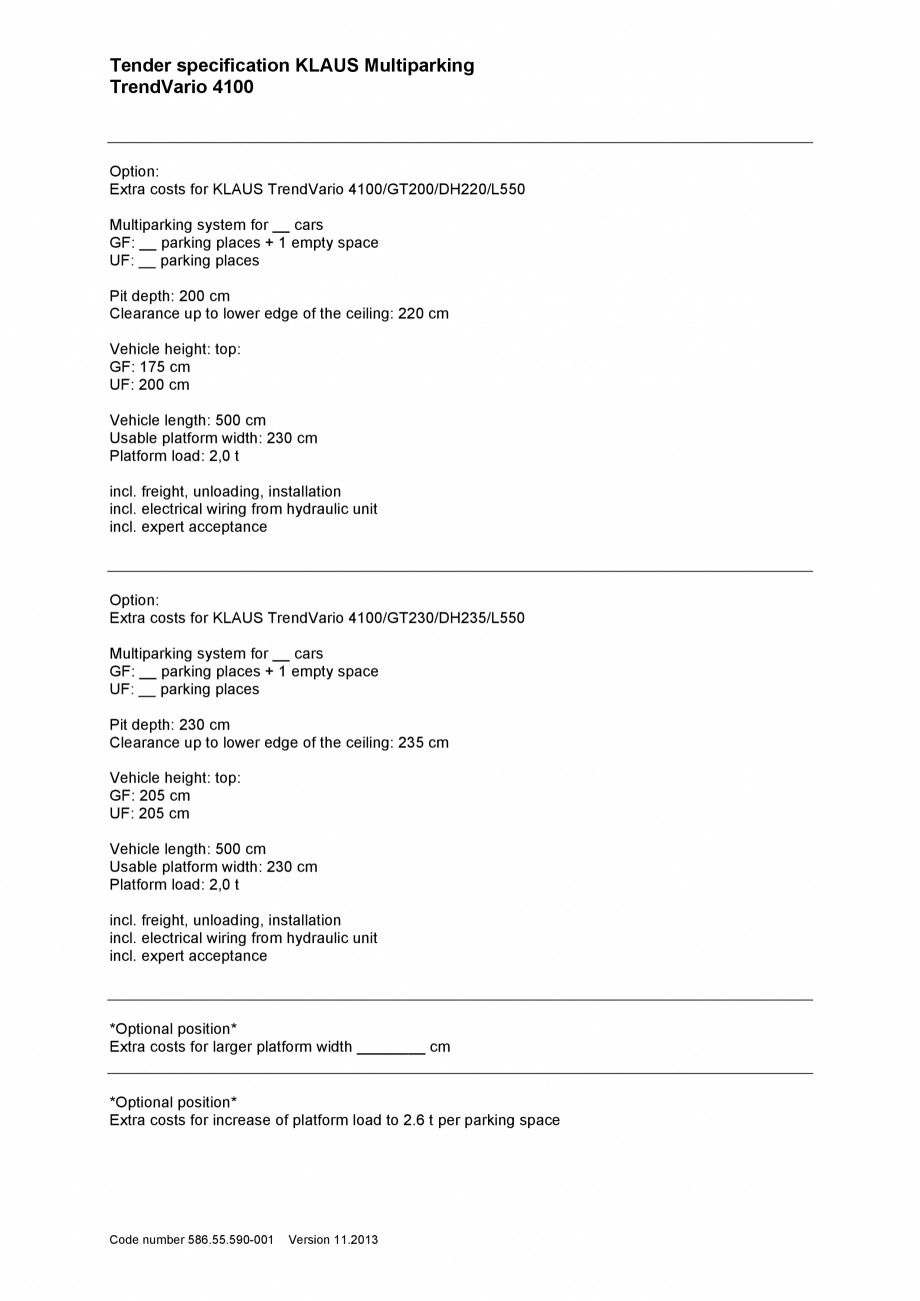

Pagina 6-Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica Engleza roll...

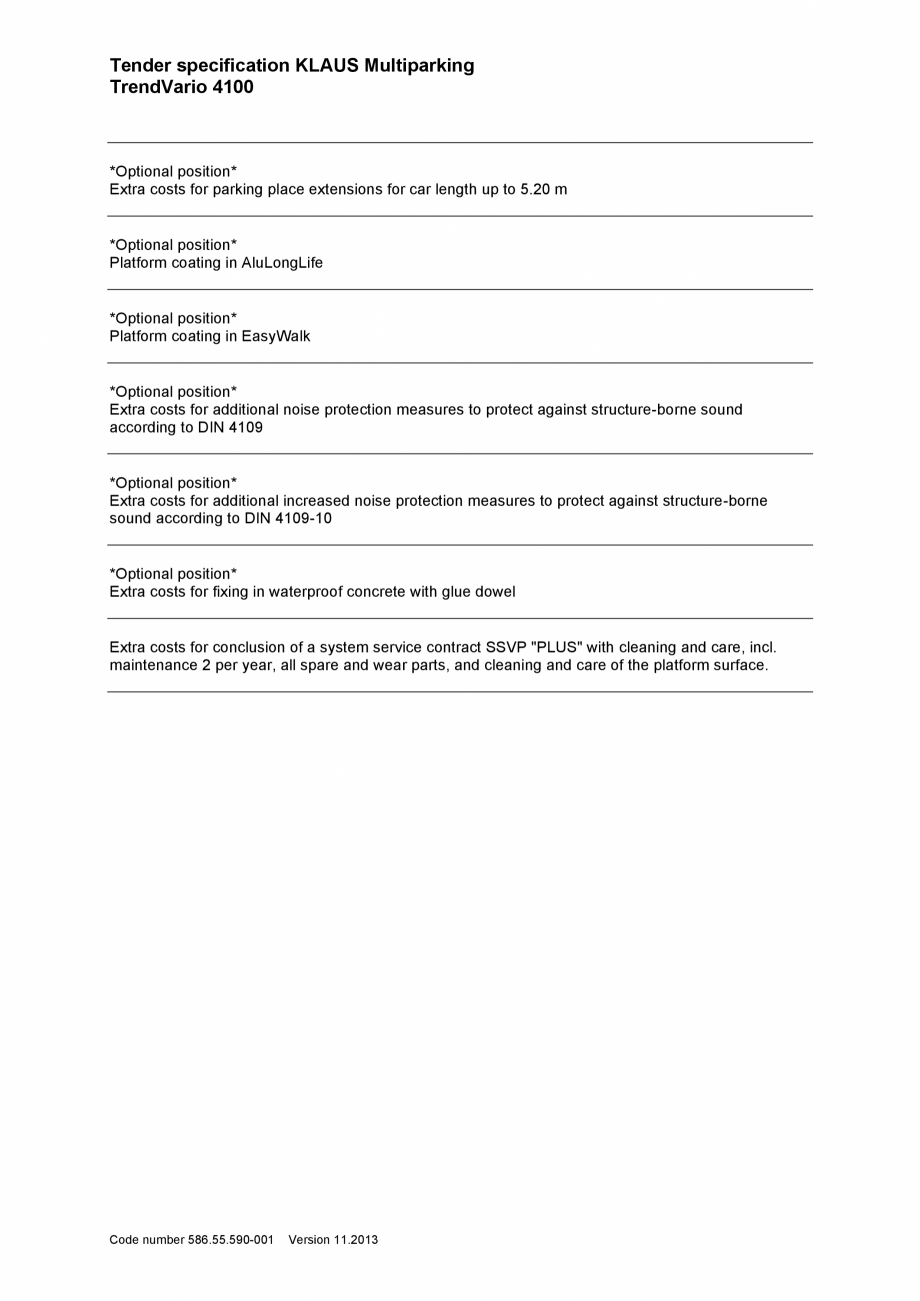

Pagina 7 - Sistem de parcare hidraulic - Specificatii tehnice KLAUS TRENDVARIO 4100 Fisa tehnica...

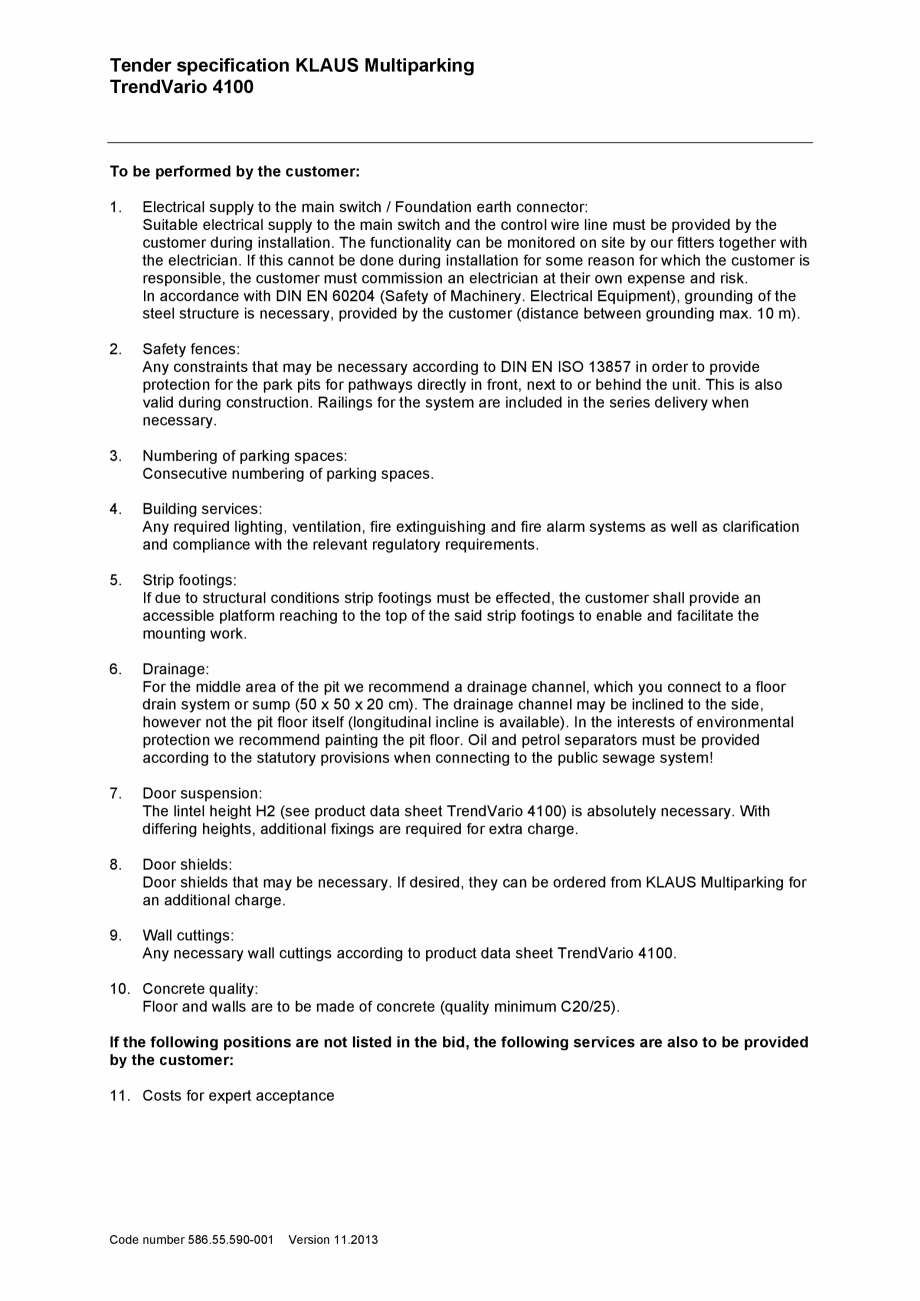

tubes, screwed joints, bolts, screws, nuts, washers electrogalvanized – Other steel components for example, steel construction, roller seating, drive mount, bearing plates and other small components hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx. 55 µm. Exception: Steel pillar / sliding piece (rear area) shot-peened (particle clean- liness SA 2.5) and grey powder coating (Epoxy / Polyester base) RAL 7040, dry film thickness approx. 60-80 µm Electrical supply: Control box: – The control box must be accessible at all times from outside. – Dimensions approx. 100 x 100 x 30 cm. – Parking system must be fully visible from control box. Code number 586.55.590-001 Version 11.2013 Tender specification KLAUS Multiparking TrendVario 4100 To be performed by the customer: 1. Electrical supply to the main switch / Foundation earth connector: Suitable electrical supply to the main switch and the control wire line must be provided by the customer during in
