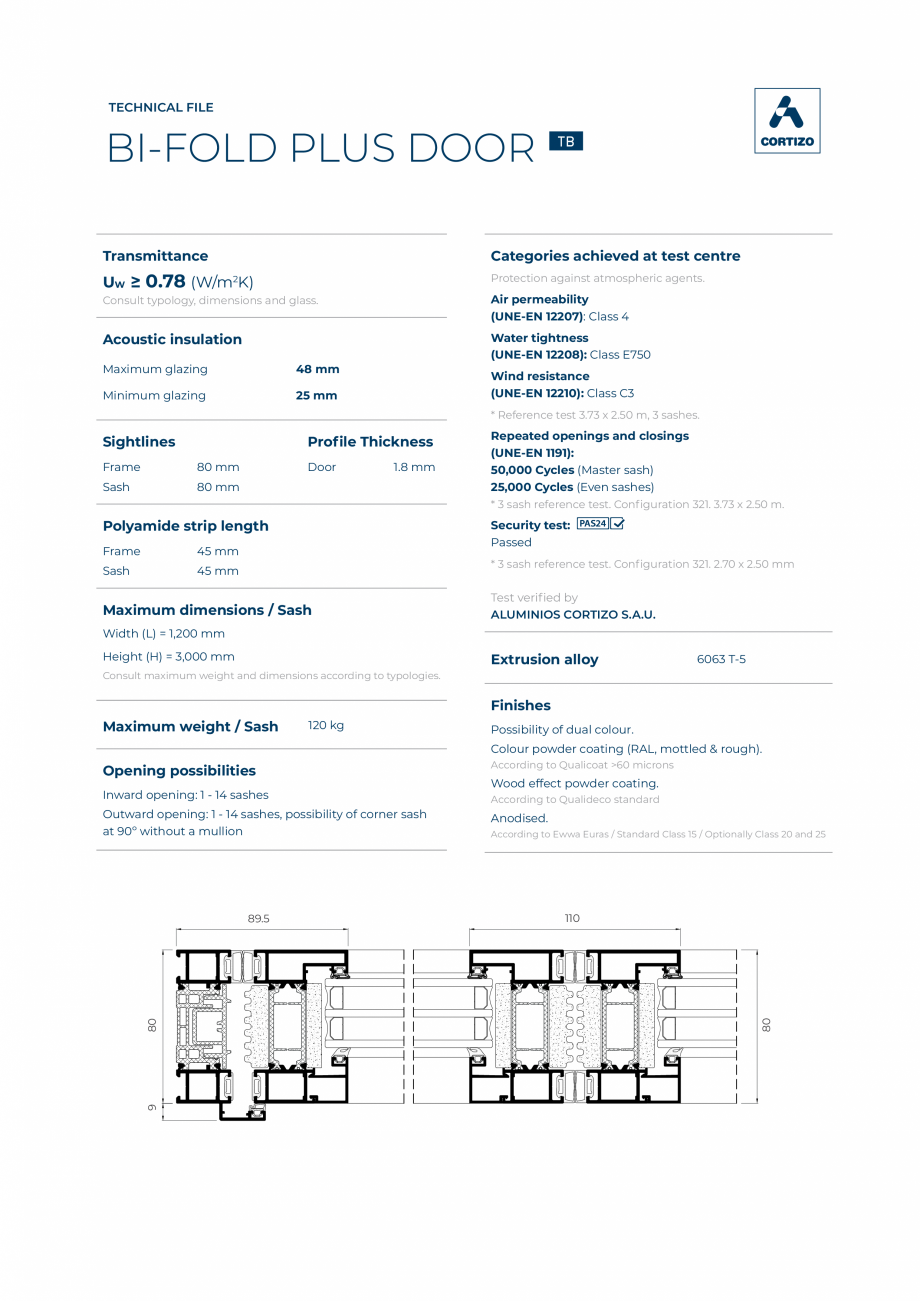

Pagina 1 - Sistem Armonica Bi-fold Plus BATI-AL Fisa tehnica Engleza TECHNICAL FILE

BI-FOLD PLUS...

TECHNICAL FILE BI-FOLD PLUS DOOR Transmittance UW ≥ TB Categories achieved at test centre 0.78 (W/m K) Protection against atmospheric agents. 2 Consult typology, dimensions and glass. Air permeability (UNE-EN 12207): Class 4 Acoustic insulation Water tightness (UNE-EN 12208): Class E750 Maximum glazing 48 mm Minimum glazing 25 mm Wind resistance (UNE-EN 12210): Class C3 * Reference test 3.73 x 2.50 m, 3 sashes. Sightlines Profile Thickness Frame 80 mm Sash 80 mm Door 1.8 mm Repeated openings and closings (UNE-EN 1191): 50,000 Cycles (Master sash) 25,000 Cycles (Even sashes) * 3 sash reference test. Configuration 321. 3.73 x 2.50 m. Polyamide strip length Frame 45 mm Sash 45 mm Security test: Passed * 3 sash reference test. Configuration 321. 2.70 x 2.50 mm Maximum dimensions / Sash Test verified by ALUMINIOS CORTIZO S.A.U. Width (L) = 1,200 mm Height (H) = 3,000 mm Extrusion alloy 6063 T-5 Consult maximum weight and dimensions according to typologi
