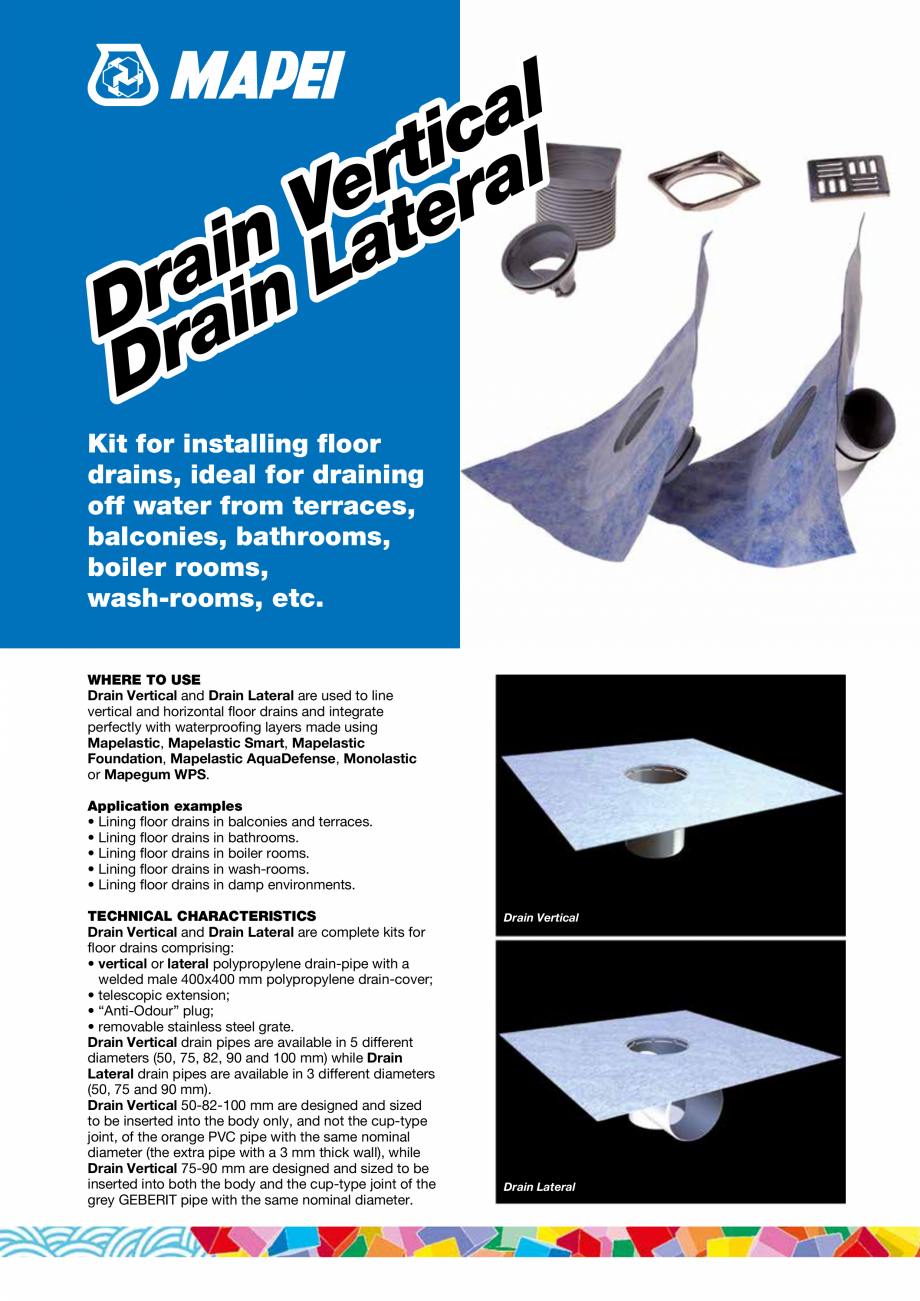

Pagina 1 - Sifoane de pardoseala pentru balcoane, bai, dusuri, spatii umede MAPEI DRAIN VERTICAL...

l a c i t l r a e r V e t n a i L a n r D rai D Kit for installing floor drains, ideal for draining off water from terraces, balconies, bathrooms, boiler rooms, wash-rooms, etc. WHERE TO USE Drain Vertical and Drain Lateral are used to line vertical and horizontal floor drains and integrate perfectly with waterproofing layers made using Mapelastic, Mapelastic Smart, Mapelastic Foundation, Mapelastic AquaDefense, Monolastic or Mapegum WPS. Application examples • Lining floor drains in balconies and terraces. • Lining floor drains in bathrooms. • Lining floor drains in boiler rooms. • Lining floor drains in wash-rooms. • Lining floor drains in damp environments. TECHNICAL CHARACTERISTICS Drain Vertical and Drain Lateral are complete kits for floor drains comprising: • vertical or lateral polypropylene drain-pipe with a welded male 400x400 mm polypropylene drain-cover; • telescopic extension; • “Anti-Odour” plug; • removable stainless steel grate. Drain Vert

Pagina 1-Sifoane de pardoseala pentru balcoane, bai, dusuri, spatii umede MAPEI DRAIN VERTICAL DRAIN LATERAL ...

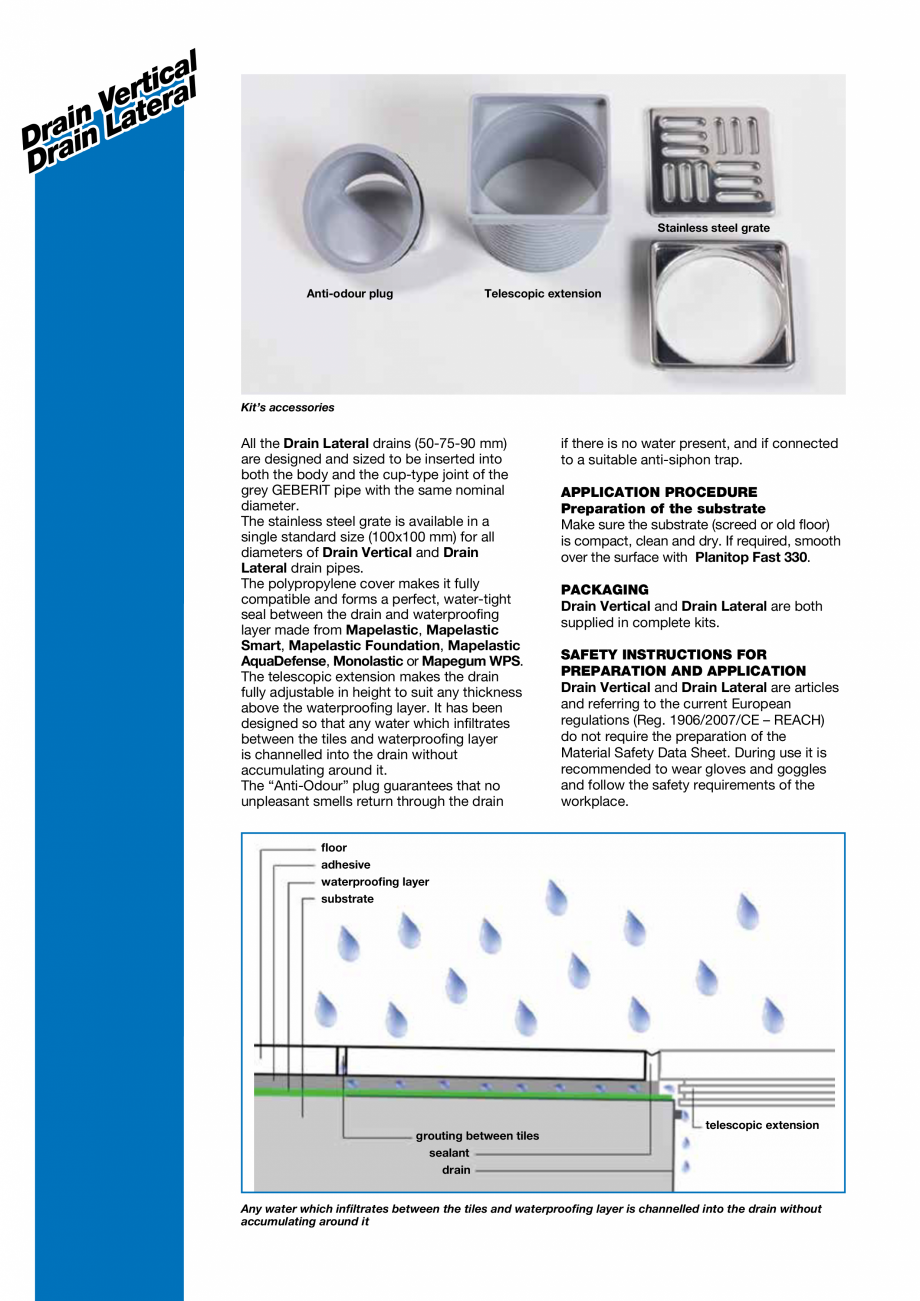

Pagina 2 - Sifoane de pardoseala pentru balcoane, bai, dusuri, spatii umede MAPEI DRAIN VERTICAL...

ical drain pipes are available in 5 different diameters (50, 75, 82, 90 and 100 mm) while Drain Lateral drain pipes are available in 3 different diameters (50, 75 and 90 mm). Drain Vertical 50-82-100 mm are designed and sized to be inserted into the body only, and not the cup-type joint, of the orange PVC pipe with the same nominal diameter (the extra pipe with a 3 mm thick wall), while Drain Vertical 75-90 mm are designed and sized to be inserted into both the body and the cup-type joint of the grey GEBERIT pipe with the same nominal diameter. Drain Vertical Drain Lateral al c i erteral V in Lat a r D rain D Stainless steel grate Anti-odour plug Telescopic extension Kit’s accessories All the Drain Lateral drains (50-75-90 mm) are designed and sized to be inserted into both the body and the cup-type joint of the grey GEBERIT pipe with the same nominal diameter. The stainless steel grate is available in a single standard size (100x100 mm) for all diameters of Drain Vertical a

Pagina 2-Sifoane de pardoseala pentru balcoane, bai, dusuri, spatii umede MAPEI DRAIN VERTICAL DRAIN LATERAL ...

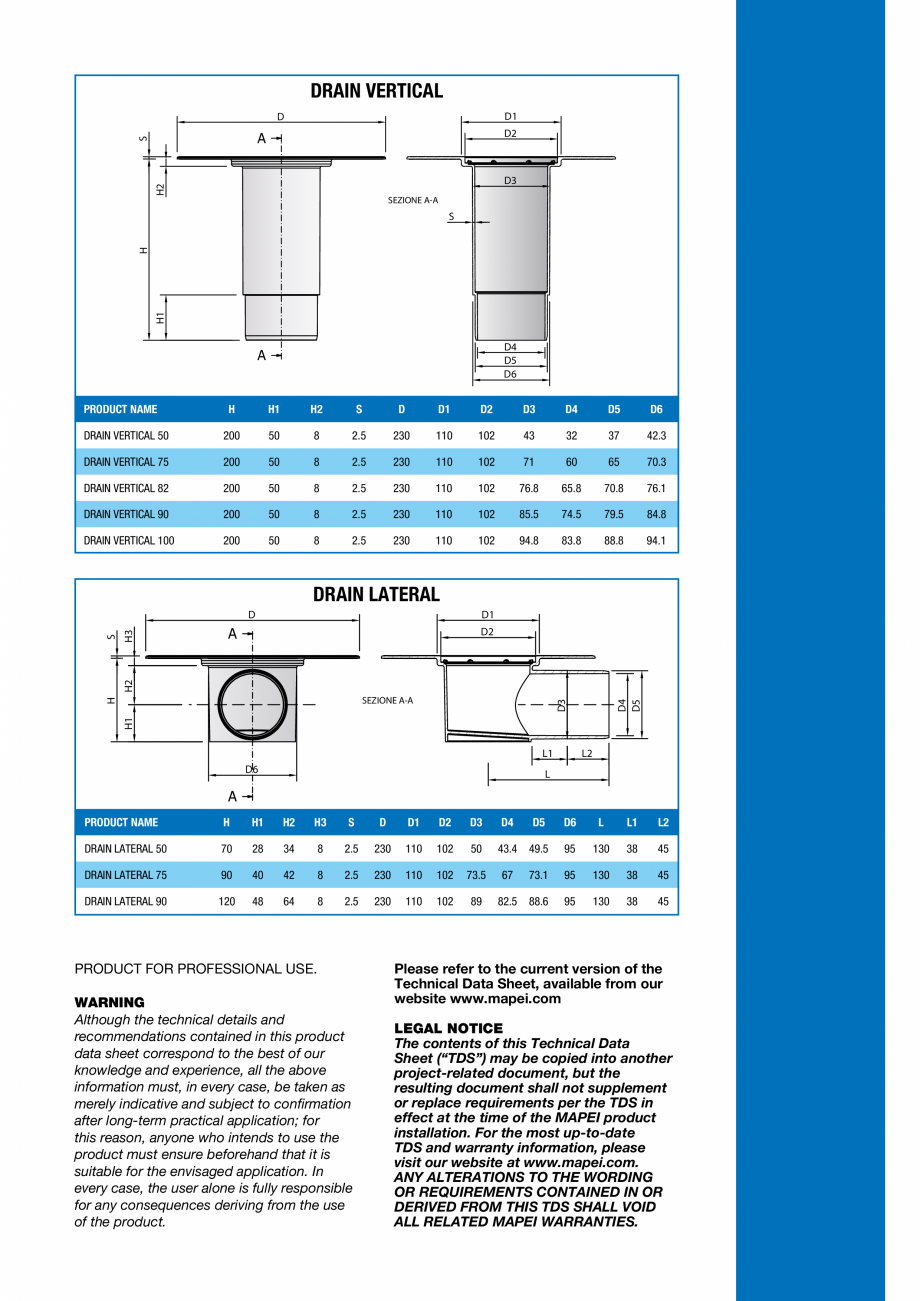

Pagina 3 - Sifoane de pardoseala pentru balcoane, bai, dusuri, spatii umede MAPEI DRAIN VERTICAL...

nd Drain Lateral drain pipes. The polypropylene cover makes it fully compatible and forms a perfect, water-tight seal between the drain and waterproofing layer made from Mapelastic, Mapelastic Smart, Mapelastic Foundation, Mapelastic AquaDefense, Monolastic or Mapegum WPS. The telescopic extension makes the drain fully adjustable in height to suit any thickness above the waterproofing layer. It has been designed so that any water which infiltrates between the tiles and waterproofing layer is channelled into the drain without accumulating around it. The “Anti-Odour” plug guarantees that no unpleasant smells return through the drain if there is no water present, and if connected to a suitable anti-siphon trap. APPLICATION PROCEDURE Preparation of the substrate Make sure the substrate (screed or old floor) is compact, clean and dry. If required, smooth over the surface with Planitop Fast 330. PACKAGING Drain Vertical and Drain Lateral are both supplied in complete kits. SAFETY INSTRU

Pagina 3-Sifoane de pardoseala pentru balcoane, bai, dusuri, spatii umede MAPEI DRAIN VERTICAL DRAIN LATERAL ...

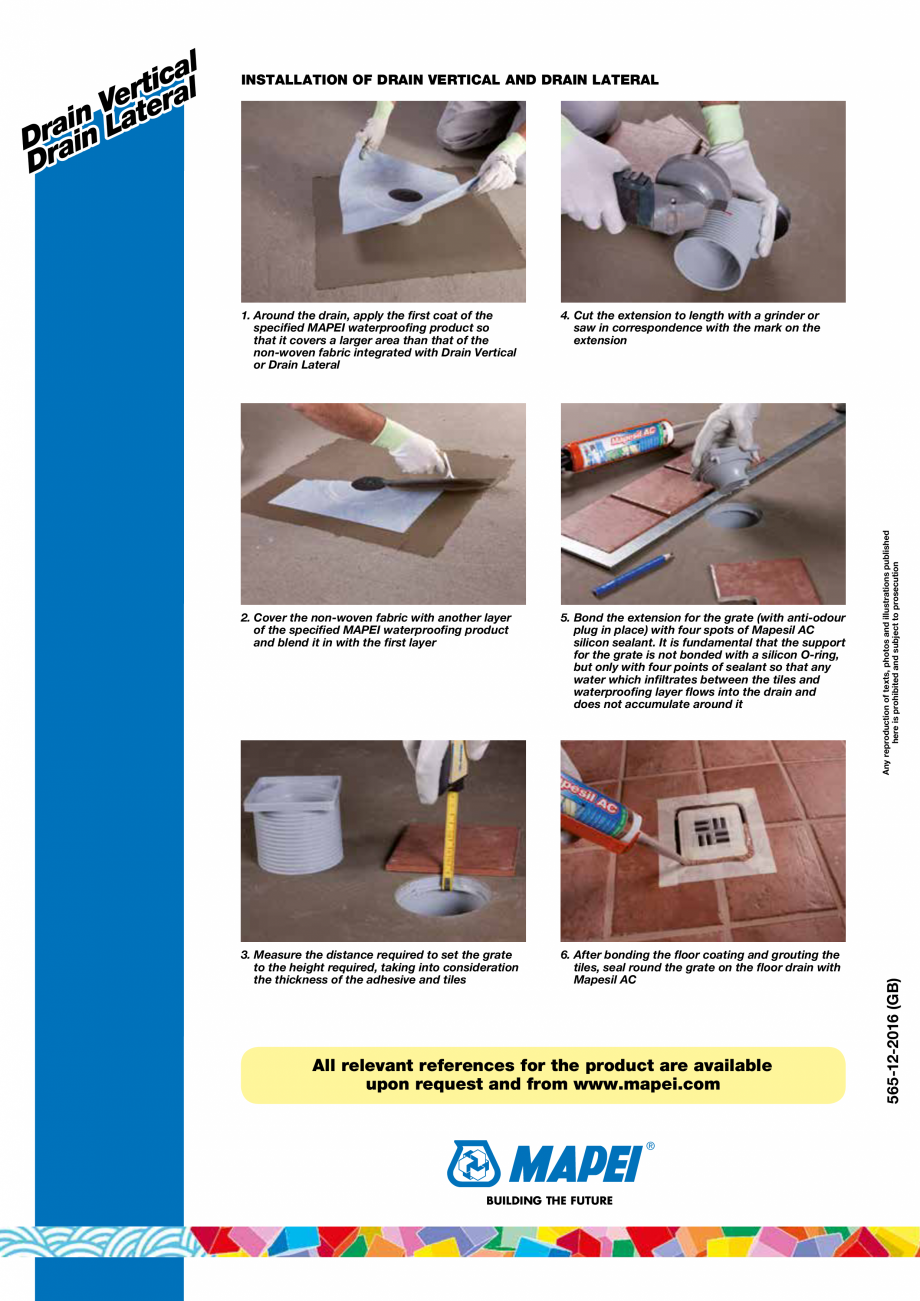

Pagina 4 - Sifoane de pardoseala pentru balcoane, bai, dusuri, spatii umede MAPEI DRAIN VERTICAL...

CTIONS FOR PREPARATION AND APPLICATION Drain Vertical and Drain Lateral are articles and referring to the current European regulations (Reg. 1906/2007/CE – REACH) do not require the preparation of the Material Safety Data Sheet. During use it is recommended to wear gloves and goggles and follow the safety requirements of the workplace. floor adhesive waterproofing layer substrate grouting between tiles sealant drain telescopic extension Any water which infiltrates between the tiles and waterproofing layer is channelled into the drain without accumulating around it DRAIN VERTICAL D1 D D2 S A H2 D3 SEZIONE A-A H1 H S D4 D5 D6 A PRODUCT NAME H H1 H2 S D D1 D2 D3 D4 D5 D6 DRAIN VERTICAL 50 200 50 8 2.5 230 110 102 43 32 37 42.3 DRAIN VERTICAL 75 200 50 8 2.5 230 110 102 71 60 65 70.3 DRAIN VERTICAL 82 200 50 8 2.5 230 110 102 76.8 65.8 70.8 76.1 DRAIN VERTICAL 90 200 50 8 2.5 230 110 102 85.5 74.5 79.5 84.8 DRA
