Semineu design Piazzetta Sun

Limba: Engleza
6 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

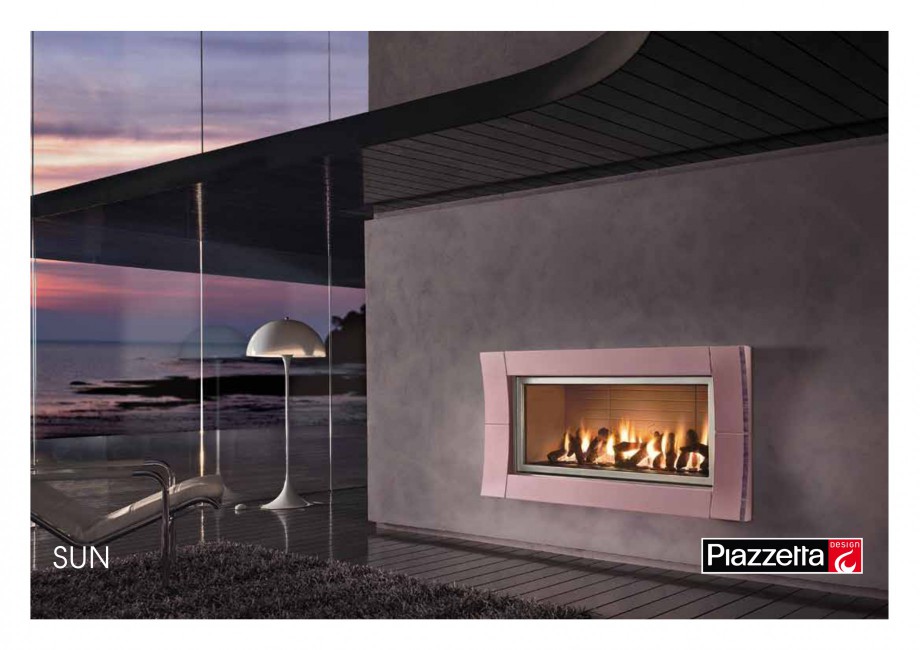

Pagina 1-Semineu design Piazzetta Sun Fisa tehnica Engleza SUN
Gas or wood-burning fireplace with handmade...
Pagina 2-Semineu design Piazzetta Sun Fisa tehnica Engleza BOX: in Aluker ®
GRATE: in Aluker ® with cast...
BOX: in Aluker ® GRATE: in Aluker ® with cast iron grid DOOR: rise n’fall with glass ceramic heat resistant up to 750°C, may also be opened as hinged door for cleaning PRIMARY AIR: adjustable by hand SECONDARY AIR: pre-determined SMOKE DAMPER: automatic and adjustable ASH DRAWER: removable HEATING: natural convection or forced air circulation by Multifuoco System® on request FLUE OUTLET: Ø 25 cm NOMINAL OUTPUT: 16.5 kW THERMAL EFFICIENCY: 75.5% NOMINAL CONSUMPTION: 4.8 kg/h MAX OUTPUT: 17,3 kW MAX CONSUMPTION: 5,4 kg/h WEIGHT: 350 kg Laboratory measurements were made using beech wood with moisture content below 20% Type approval in accordance with EN13230 GAS BURNING (NATURAL GAS OR LPG) IG 120B INLET: in grey enamelled steel FIREBOX: in Aluker ® GLASS: ceramic heat resistant up to 750°C FUNCTION CONTROL: remote control CERAMIC LOGS: standard supply HEATING: convection and radiation CEILING FLUE GAS OUTLET: concentric pipe Ø 10/15 cm WALL FLUE GAS OUTLET: concentric pipe Ø ... ascunde
