Robinet cu 3 cai – versiunea de incastrat TIEMME 1693

Limba: Italiana
26 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

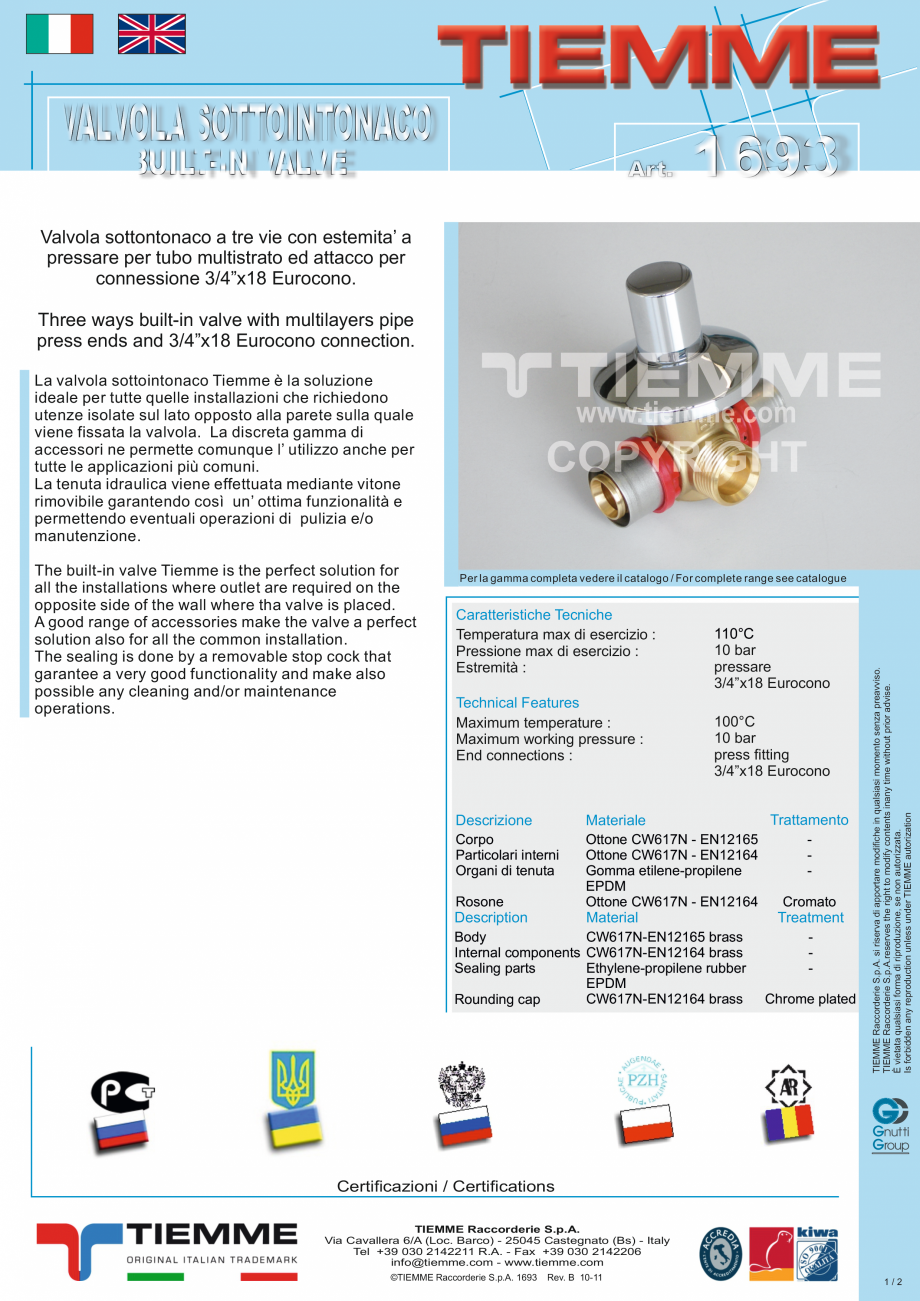

Pagina 1-Robinet cu 3 cai – versiunea de incastrat TIEMME 1693 Fisa tehnica Italiana VALVOLA...

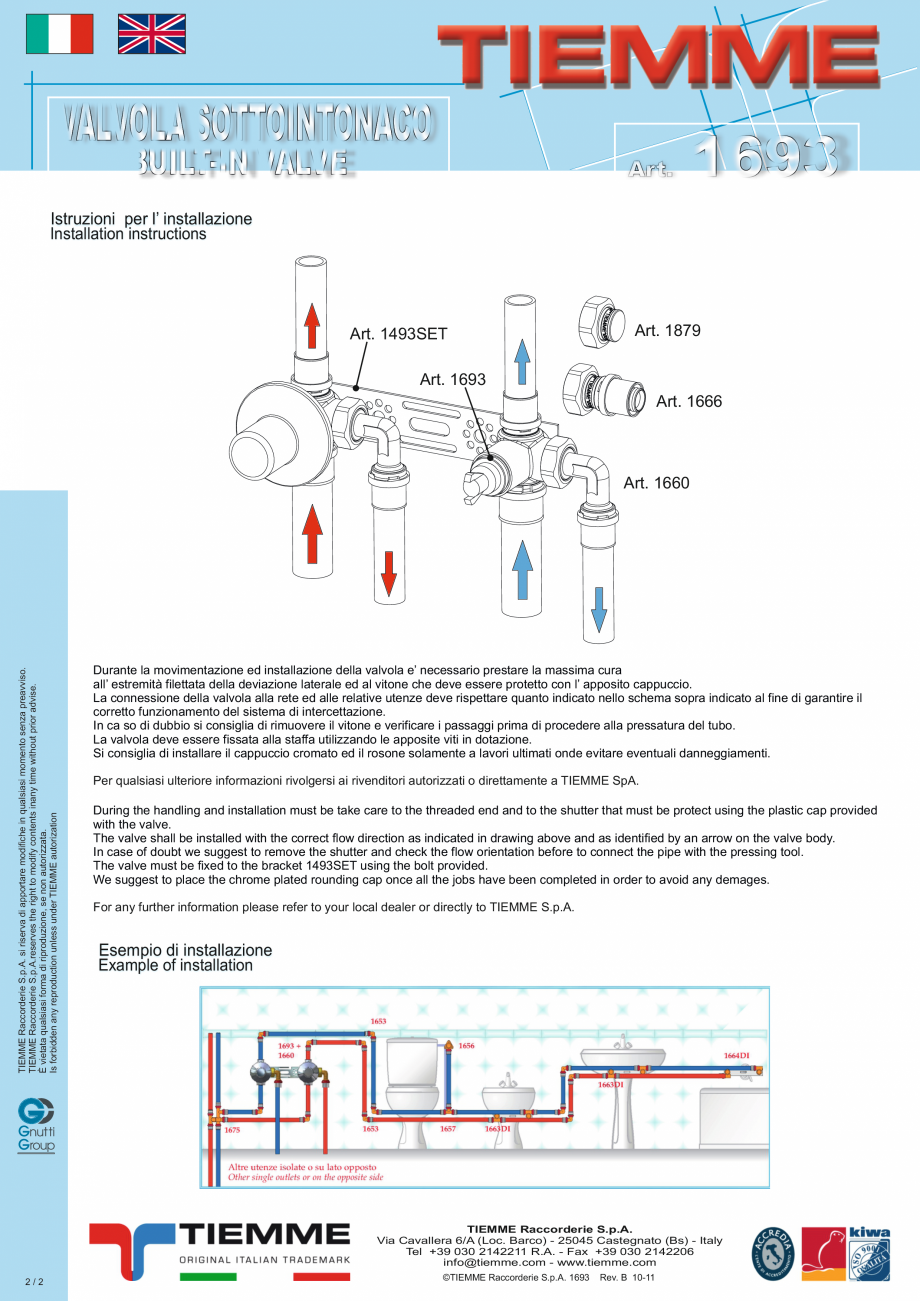

Pagina 2-Robinet cu 3 cai – versiunea de incastrat TIEMME 1693 Fisa tehnica Italiana tions :

110°C
10...
tions : 110°C 10 bar pressare 3/4”x18 Eurocono 100°C 10 bar press fitting 3/4”x18 Eurocono Descrizione Materiale Corpo Particolari interni Organi di tenuta Rosone Ottone CW617N - EN12165 Ottone CW617N - EN12164 Gomma etilene-propilene EPDM Ottone CW617N - EN12164 Description Material CW617N-EN12165 brass Body Internal components CW617N-EN12164 brass Ethylene-propilene rubber Sealing parts EPDM CW617N-EN12164 brass Rounding cap Trattamento Cromato Treatment Chrome plated TIEMME Raccorderie S.p.A. si riserva di apportare modifiche in qualsiasi momento senza preavviso. TIEMME Raccorderie S.p.A.reserves the right to modify contents inany time without prior advise. È vietata qualsiasi forma di riproduzione, se non autorizzata. Is forbidden any reproduction unless under TIEMME autorization The built-in valve Tiemme is the perfect solution for all the installations where outlet are required on the opposite side of the wall where tha valve is placed. A good range of accessor ... ascunde
