Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex

Limba: Engleza

29 afisari

Tip documentatie: Instructiuni montaj, utilizare

Pagina 1 - Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex...

motionflex Safety Surfaces Installation Recommendation no. 9146 - R - 05 Issue: June 2019 1. Substrate A substrate made of concrete, poured screed substrate (free of dust) as well as already existing floor coverings with a levelled surface are suitable for the installation. In case of substrates with existing grooves / joints (e.g., ceramic tiles), it is necessary to level the surface with a leveling compound before starting installation. The substrate must be solid, leveled, dry, clean and free of cracks and of dust who can affect adhesion or the installation. Even, suitable substrate made of laminate not suitable substrate 2. Preparation Work The surface of the substrate has to be thoroughly brushed, clean and solid before starting installation. Minor unevenness must be levelled e.g. with an adapted liquid filler compound. The needed amount of SPORTEC® motionflex mats can be calculated at with the „motionflexdesigner“ at the website of SPORTEC. Possible waste amounts have to

Pagina 1-Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex Instructiuni montaj...

Pagina 2 - Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex...

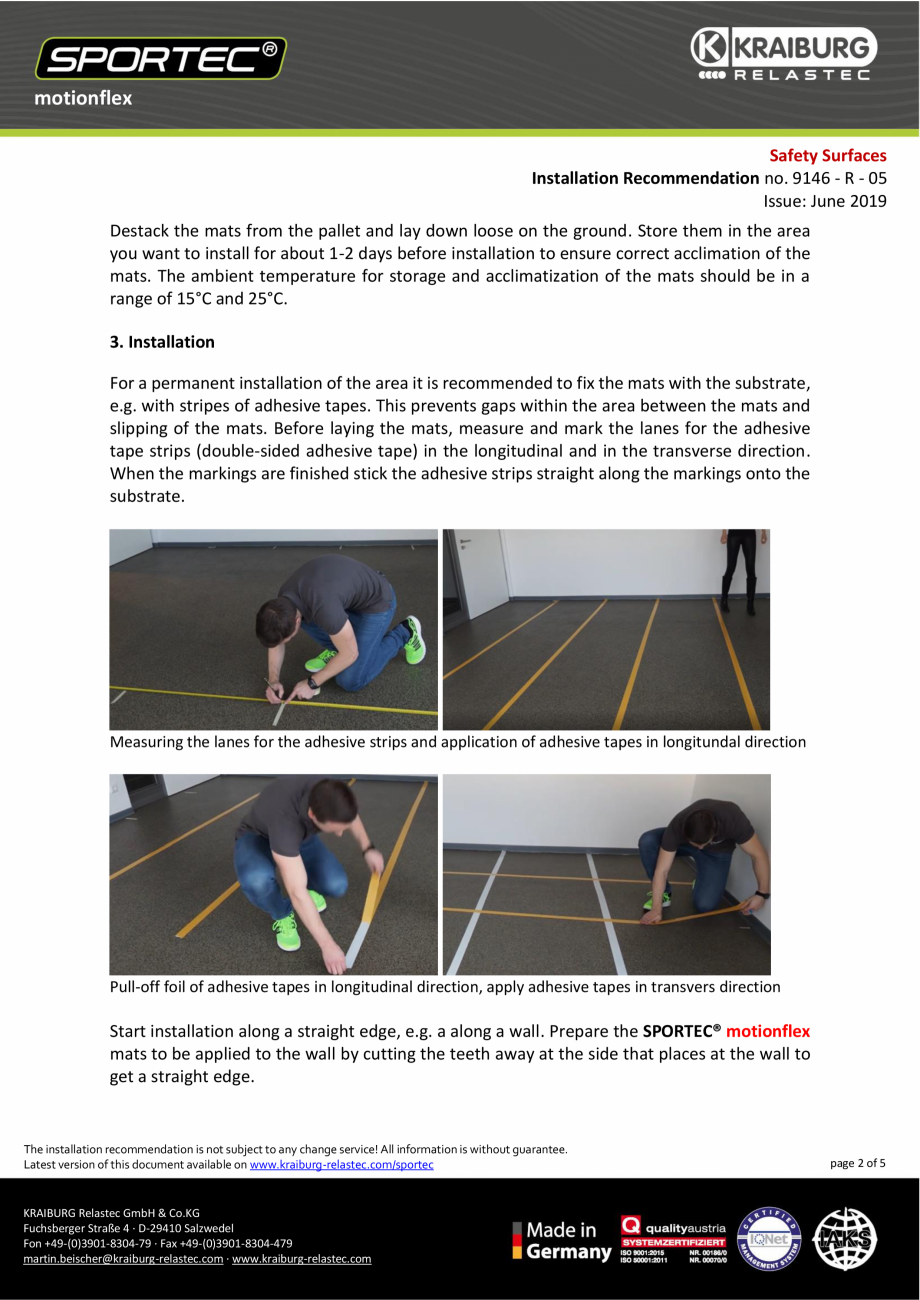

be calculated within the needed amout. Below the link to the designer-tool: https://www.kraiburg-relastec.com/sportec/en/motionflex-designer/ Input of key datas in the "motionflex-designer" The installation recommendation is not subject to any change service! All information is without guarantee. Latest version of this document available on www.kraiburg-relastec.com/sportec KRAIBURG Relastec GmbH & Co.KG Fuchsberger Straße 4 · D-29410 Salzwedel Fon +49-(0)3901-8304-79 · Fax +49-(0)3901-8304-479 martin.beischer@kraiburg-relastec.com · www.kraiburg-relastec.com page 1 of 5 motionflex Safety Surfaces Installation Recommendation no. 9146 - R - 05 Issue: June 2019 Destack the mats from the pallet and lay down loose on the ground. Store them in the area you want to install for about 1-2 days before installation to ensure correct acclimation of the mats. The ambient temperature for storage and acclimatization of the mats should be in a range of 15°C and 25°C. 3. Installation For a

Pagina 2-Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex Instructiuni montaj...

Pagina 3 - Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex...

permanent installation of the area it is recommended to fix the mats with the substrate, e.g. with stripes of adhesive tapes. This prevents gaps within the area between the mats and slipping of the mats. Before laying the mats, measure and mark the lanes for the adhesive tape strips (double-sided adhesive tape) in the longitudinal and in the transverse direction. When the markings are finished stick the adhesive strips straight along the markings onto the substrate. Measuring the lanes for the adhesive strips and application of adhesive tapes in longitundal direction Pull-off foil of adhesive tapes in longitudinal direction, apply adhesive tapes in transvers direction Start installation along a straight edge, e.g. a along a wall. Prepare the SPORTEC® motionflex mats to be applied to the wall by cutting the teeth away at the side that places at the wall to get a straight edge. The installation recommendation is not subject to any change service! All information is without guarantee

Pagina 3-Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex Instructiuni montaj...

Pagina 4 - Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex...

. Latest version of this document available on www.kraiburg-relastec.com/sportec KRAIBURG Relastec GmbH & Co.KG Fuchsberger Straße 4 · D-29410 Salzwedel Fon +49-(0)3901-8304-79 · Fax +49-(0)3901-8304-479 martin.beischer@kraiburg-relastec.com · www.kraiburg-relastec.com page 2 of 5 motionflex Safety Surfaces Installation Recommendation no. 9146 - R - 05 Issue: June 2019 Place the mat along the wall at the intended location and fix it on the prepared adhesive strip. Place the next "prepared" mat, interlock the teeth of both mats together and fix the mat onto the substrate on the prepared adhesive tapes. Then mat for mat can be placed, interlocked and fixed on the prepared tapes. Create a straight edge without teeth and lay the mats along the wall Conect mat by mat and fix it to the floor It is not necessary to glue SPORTEC® motionflex mats onto the substrate over the entire surface. Because of the interlocking teeth and the adhesive strips a slipping of the mats will be avoid

Pagina 4-Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex Instructiuni montaj...

Pagina 5 - Recomandari de instalare pentru dalele din cauciuc tip puzzle Sportec MotionFlex...

ed. Also removing of the mats and installing at another place is easier when it is not fully glued. Depending on the application, lines or markings may be needed at the ready installed flooring. Fix gluing tapes to mark the lines or markings at the surface. Apply the lines with a suitable line marking paint and a brush or paint roller on the surface. Then remove the tapes and let the line marking paint dry. When using line marking paint and gluing tapes pay attention and follow the manufacturer's instructions. The installation recommendation is not subject to any change service! All information is without guarantee. Latest version of this document available on www.kraiburg-relastec.com/sportec KRAIBURG Relastec GmbH & Co.KG Fuchsberger Straße 4 · D-29410 Salzwedel Fon +49-(0)3901-8304-79 · Fax +49-(0)3901-8304-479 martin.beischer@kraiburg-relastec.com · www.kraiburg-relastec.com page 3 of 5 motionflex Safety Surfaces Installation Recommendation no. 9146 - R - 05 Issue: June 20
