ECOAir Premium Air Source Heat Pumps 2-17 kw How the PicoEnergy heat pump works In principle, the heat pump works like a refrigerator: the same technique, only reversed utility. The heat pump receives energy from the heat source side (earth, water or air) at a low temperature and releases heat with a higher temperature on the heating side. © fotolia.com / Urheber: KB3 2/3 A heat pump uses solar energy stored in the air. This energy is available at any time, day or night, summer or winter. In the case of air source heat pumps, it is important, on the one hand, that they are designed for our latitudes (cold climate) in order to ensure maximum efficiency and, on the other hand, to ensure the lowest possible sound emission. Our heat pumps have been optimized for these criteria. The use of the PicoEnergy air source heat pump does not require any excavation work in your garden, only a little space for installation. The most important advantages of the PicoEnergy air source heat pump

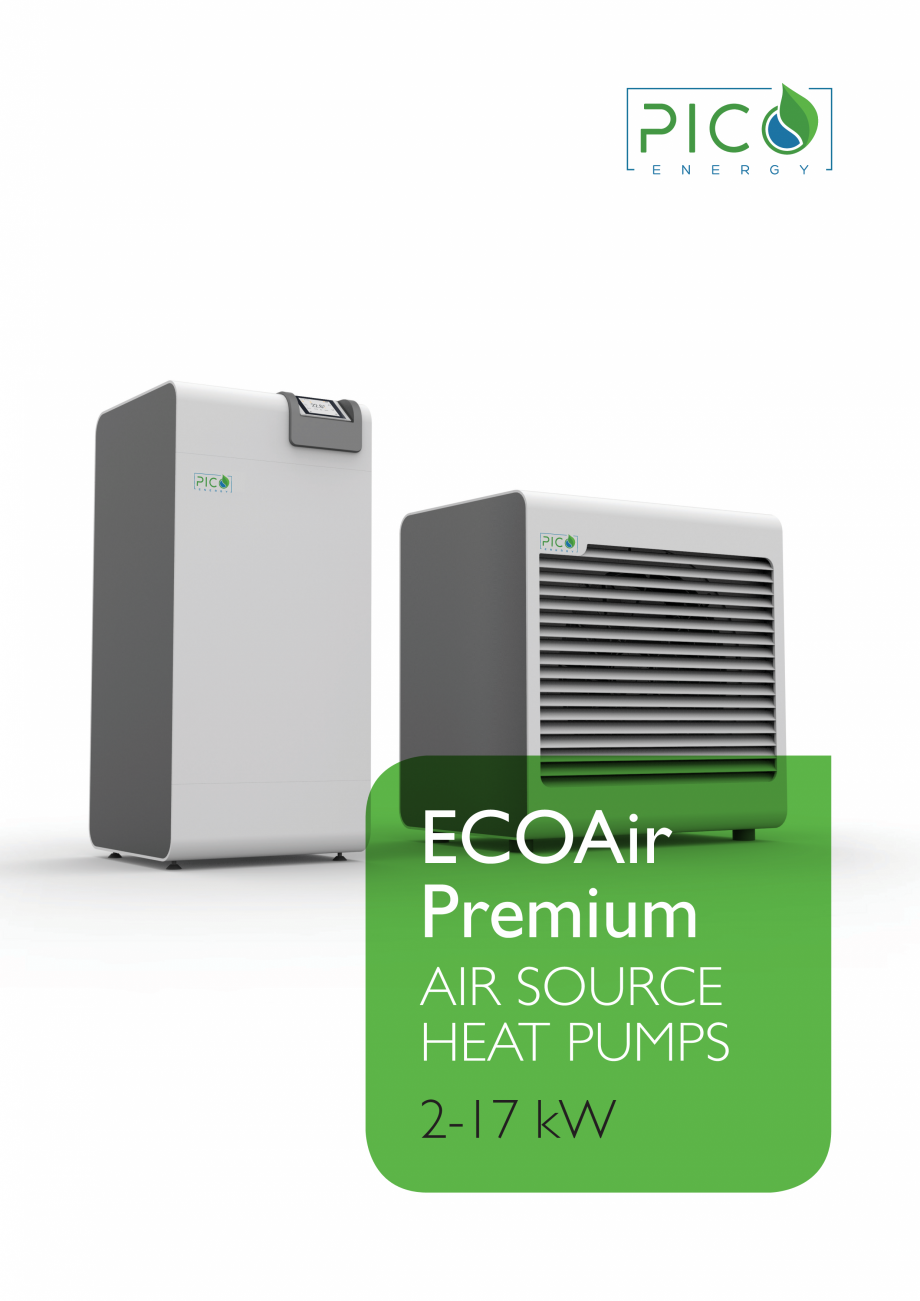

Pagina 1-Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații tehnice...

Pagina 2 - Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații ...

at a glance: • • • • Can be combined with photovoltaic, solar or energy management Maximum efficiency through intelligent power control High quality - product quality from Austria Individual warranty packages The Photovoltaic Heat pump The outstanding feature of the PicoEnergy air source heat pump is the efficiency and the forward-looking control technology. This results in exceptionally low operating costs compared to conventional heating systems and the possibility of heating, cooling, and hot water with this system. Even systems such as solar thermal, photovoltaic and house management systems work hand in hand with our intelligent heat pump control. Thanks to the sophisticated PicoEnergy controller with TouchScreen, self-generated electricity from the photovoltaic system can be used for heating and cooling of the house. The speed control of the heat pump adapts itself to the photovoltaic power independently. The free photovoltaic electricity can thus be used as best

Pagina 2-Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații tehnice...

Pagina 3 - Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații ...

as possible to heat the house, hot water and swimming pool. ADVANTAGES • Maximum self-consumption of free photovoltaic power • High degree of comfort • Long-term security of supply at the lowest cost • Low maintenance • Easy-to-use Touch control PicoEnergy Touch panel Intelligent power control The PicoEnergy Power Inverter is a true innovation in the field of heat pump technology. The principle is very simple: The inverter adjusts the energy used to the actual needs of your home. The efficiency is thereby improved by approximately 20% and the life span of the compressor is prolonged due to significantly less switch-on cycles. New injection technology Due to the constantly changing parameters of an inverter heat pump, special attention must be paid to the overheating control. The absolutely new, model-based control is a product of years of experience. Proactive reactances are made to future speed changes and therefore the efficiency of the heat pump is maximized. Smart G

Pagina 3-Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații tehnice...

Pagina 4 - Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații ...

rid PicoEnergy heat pumps are already "Smart Grid Ready" today. With this function, you can use the cost savings of future electricity networks. In times where generally less power is consumed, electricity is also cheaper. Therefore the operating time of the heat pump should be shifted to this period. This is fully automated by PicoEnergy's intelligent control system. 4/5 Internet Inside @ All PicoEnergy heat pumps are already equipped with the future technology of "Internet Inside". This allows you as a customer to control your heat pump from your mobile phone, tablet or PC. If the heat pump is no longer working optimally, the heat pump automatically signals the problem to your selected heat pump installer. Via "Internet Inside", these adjustments can be made to the control settings, without having to be on site. This saves your time and money. Integration of external systems The integration of a photovoltaic system, solar system or house management system are possible thanks to t

Pagina 4-Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații tehnice...

Pagina 5 - Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații ...

he intelligent control of the PicoEnergy heat pump. Photovoltaic integration can use the self-generated electricity for space heating as well as hot water preparation, preferably for own consumption. Feeding your own PV electricity to the grid will only occur when the hot water storage tank is charged and the house is comfortably warm. TOP system concept The best heat pump is only as good as the designed system concept. PicoEnergy is always optimally oriented to this development! This results in heating systems with maximum efficiency, which is permanently tested and confirmed by independent authorized testing institutes. Advantages • Intelligent power control • Maximum efficiency of heat pump systems • High innovative power also in the field of control technology - Inverter technology - Latest overheating control - PV Self-consumption optimization - Advanced "Smart Grid" functionality - External systems can be integrated - LAN interface in each heat pump - Easy to use touch s

Pagina 5-Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații tehnice...

Pagina 6 - Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații ...

creen technology Energy source Air Air source heat pumps obtain the energy for heating your house from the ambient air. These are mainly used when geothermal heat pumps are not possible or economically viable. The efficiency of an air source heat pump depends to a large extent on the ambient temperature (the higher, the better). With a PicoEnergy air source heat pump you can both heat and cool. Upon cooling, the heat extracted from the room is discharged to the ambient temperature in the outside area. 6/7 Individual Warranty extensions Benefit from a specialist in geothermal energy with modern heat pump technology. PicoEnergy heat pumps are the product of over 35 years experience in heat pumps and a cooperation in the field of control technology with the global company KEBA. Due to the high quality requirements, it is easy for us to offer extended warranties in addition to the guarantees. It can be chosen between 3 years, 5 years or 10 years Warranty-Extension on all materials. *

Pagina 6-Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații tehnice...

Pagina 7 - Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații ...

* Prices according to valid PicoEnergy price list and valid warranty conditions Technical Specifications Air/Water-Heat Pumps Models WPL412 WPL618 2-12 kW 4-17 kW Energiy Class VL35 °C A++ (*A+++) A++ (*A+++) Energiy Class VL55 °C A++ A++ Power range [kW] Dimensions Heat pumpe H x W x D [mm] 1300 x 600 x 650 Weight [kg] Dimensions Evaporator H x W x D [mm] Weight Evaporator [kg] 160 166 1055x1088x790 1330x1275x810 145 180 Refrigerant R410A Sound power level Heat Pump acc. EN12102 [dB(A)] 44,5 44,6 Sound power level Evaporator acc. EN12102 [dB(A)] 57,9 57,1 Fuse main current [A] 3 x C16 Fuse controller [A] 1 x C13 Hydraulic connection [inch] 1" External thread Max. Flow temperature [°C] up to 62°C Compressor-related power deviations of up to 10% are possible. All Rights Reserved. Typesetting and printing errors reserved. * Class A +++ will not be introduced until 2019. Performance data AccORDING EN 14825 SCOP 35 °C 4,59 4,55 s 35 °C [%]

Pagina 7-Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații tehnice...

Pagina 8 - Pompa de căldură aerotermală - 2-17 kW M-TEC ECOAir Premium WPL 2-17 kW Specificații ...

180 179 SCOP 55 °C 3,66 3,59 s 55 °C [%] 143 141 Heating output [kW] 3,46 5,75 Power consumption [kW] 0,60 0,92 Coeff. of perf. [COP] 5,75 5,66 Heating output [kW] 5,93 8,98 Power consumption [kW] 1,50 2,29 Coeff. of perf. [COP] 3,96 3,91 Heating output [kW] 11,82 17,23 Power consumption [kW] 3,14 4,68 Coeff. of perf. [COP] 3,76 3,68 Heating output [kW] 8,62 13,09 Power consumption [kW] 3,05 4,69 Coeff. of perf. [COP] 2,83 2,79 Heating output [kW] 5,23 7,92 Power consumption [kW] 1,72 2,64 Coeff. of perf. [COP] 3,03 2,99 Heating output [kW] 8,77 13,25 Power consumption [kW] 3,77 5,75 Coeff. of perf. [COP] 2,33 2,30 Heating output [kW] 5,64 8,53 Power consumption [kW] 1,55 2,38 Coeff. of perf. [COP] 3,63 3,59 Minimum power output A2/W35 Heating output [kW] 1,60 3,33 Minimum power output A2/W55 Heating output [kW] 3,81 5,88 Climate: average (Ambient temperature = 2°C) Performance data to EN 14511 A7/W27
