Poarta culisanta pe sina DECORIO WI

Limba: Engleza

26 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza WI with running wheels

SLIDING ...

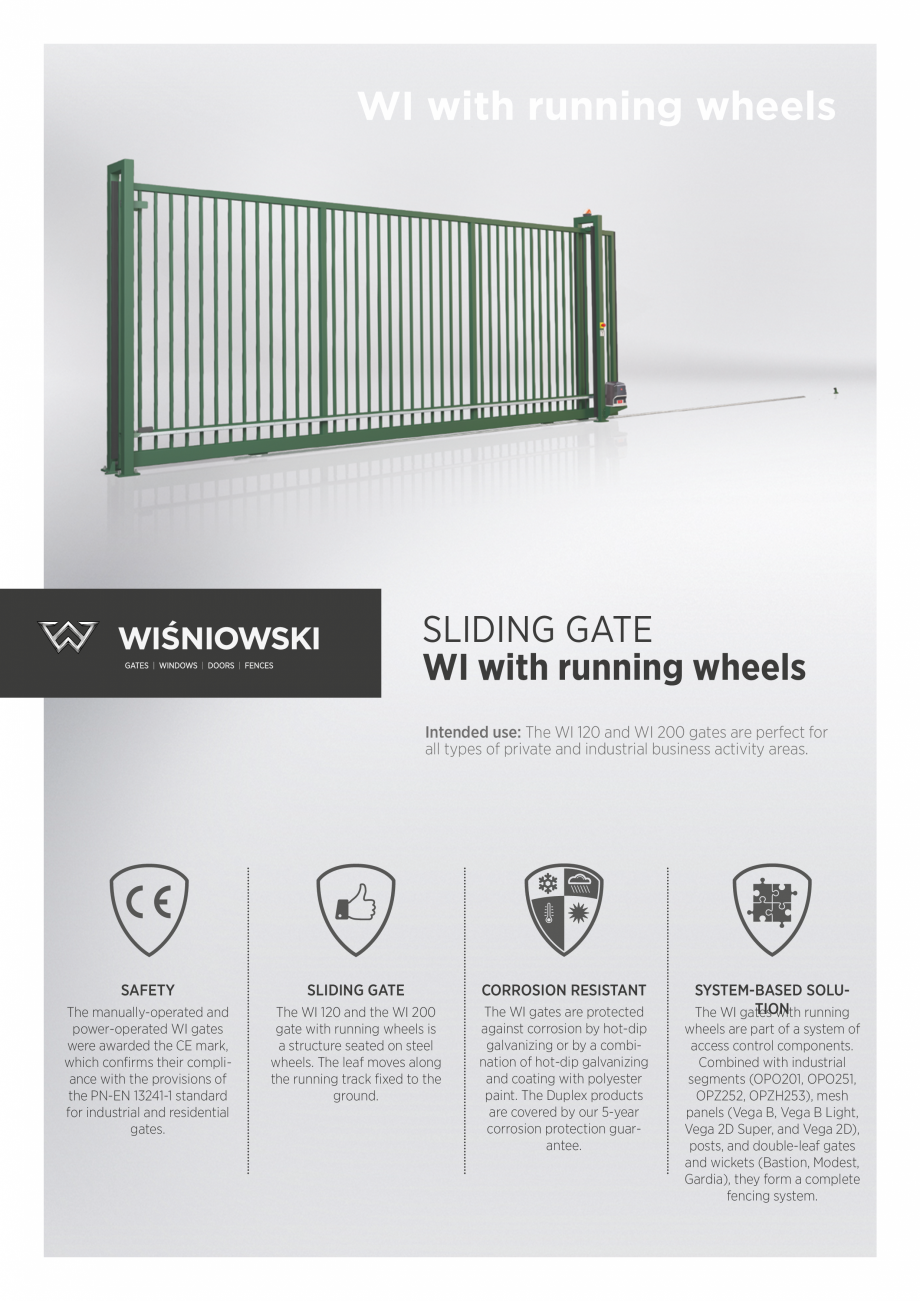

WI with running wheels SLIDING GATE WI with running wheels Intended use: The WI 120 and WI 200 gates are perfect for all types of private and industrial business activity areas. SAFETY SLIDING GATE CORROSION RESISTANT The manually-operated and power-operated WI gates were awarded the CE mark, which confirms their compliance with the provisions of the PN-EN 13241-1 standard for industrial and residential gates. The WI 120 and the WI 200 gate with running wheels is a structure seated on steel wheels. The leaf moves along the running track fixed to the ground. The WI gates are protected against corrosion by hot-dip galvanizing or by a combination of hot-dip galvanizing and coating with polyester paint. The Duplex products are covered by our 5-year corrosion protection guarantee. SYSTEM-BASED SOLUTION The WI gates with running wheels are part of a system of access control components. Combined with industrial segments (OPO201, OPO251, OPZ252, OPZH253), mesh panels (Vega B, Vega B Li

Pagina 1-Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza WI with running wheels

SLIDING GATE
WI...

Pagina 2 - Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza ght,
Vega 2D Super, and Vega 2D)...

ght, Vega 2D Super, and Vega 2D), posts, and double-leaf gates and wickets (Bastion, Modest, Gardia), they form a complete fencing system. WI SLIDING GATE with running wheels TECHNICAL DATA SHEET TAILORED TO INDIVIDUAL NEEDS A BROAD RANGE OF DIMENSIONS: • width range from 3,000-12,000 mm with dimensional increments of 100 mm. • height range from 1,000-2,100 mm with dimensional increments of 50 mm. WI 120 on a track 120x80x3 LEAF HEIGHT (H) in [mm] up to WI 200 on a track 200x80x4 WIDTH BETWEEN POSTS (So) in [mm] up to 3,000 4,000 5,000 6,000 7,500 8,000 9,000 10,000 1,000 + + + + + 1,250 + + + + 1,500 + + + 1,800 + + + 2,000 + + 2,100 + + 11,000 1,2000 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + APPLICATION The WI 120 and WI 200 gates are perfect for all types of private and industrial business activity areas. These gates are installed around industrial buildings, airports, ports, guarded

Pagina 2-Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza ght,
Vega 2D Super, and Vega 2D),
posts,...

Pagina 3 - Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza car parks, around schools,...

car parks, around schools, kindergartens, shopping malls, etc. Sliding gates are also used on wide plots, where the gate can slide along the fencing. The gates are also frequently used when the driveway is short or if a hill prevents the use of double-leaf gates. Gates on wheels are a special sliding gate solution with a design that makes it possible to shorten the back part of the leaf, called the gate tail. In this solution, the amount of space required for the gate to slide is greatly reduced in comparison to cantilever gates. INFILLS Profiles 25x25 mm, 18x30 mm, 25x25 mm (Caro) Vega B panels screwed to the structure Vega 2D Super panels welded to the structure TECHNICAL DATA SHEET – WI SLIDING GATE with running wheels 2|6 TECHNICAL DATA SHEET WI SLIDING GATE with running wheels TYPES OF SLIDING GATES WITH RUNNING WHEELS The WI gate with wheels is a heavy-duty, safe structure. The gates feature a robust frame and bottom beam with the width adapted to the gate dimensions.

Pagina 3-Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza car parks, around schools, kindergartens,...

Pagina 4 - Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza The following bottom beams are ...

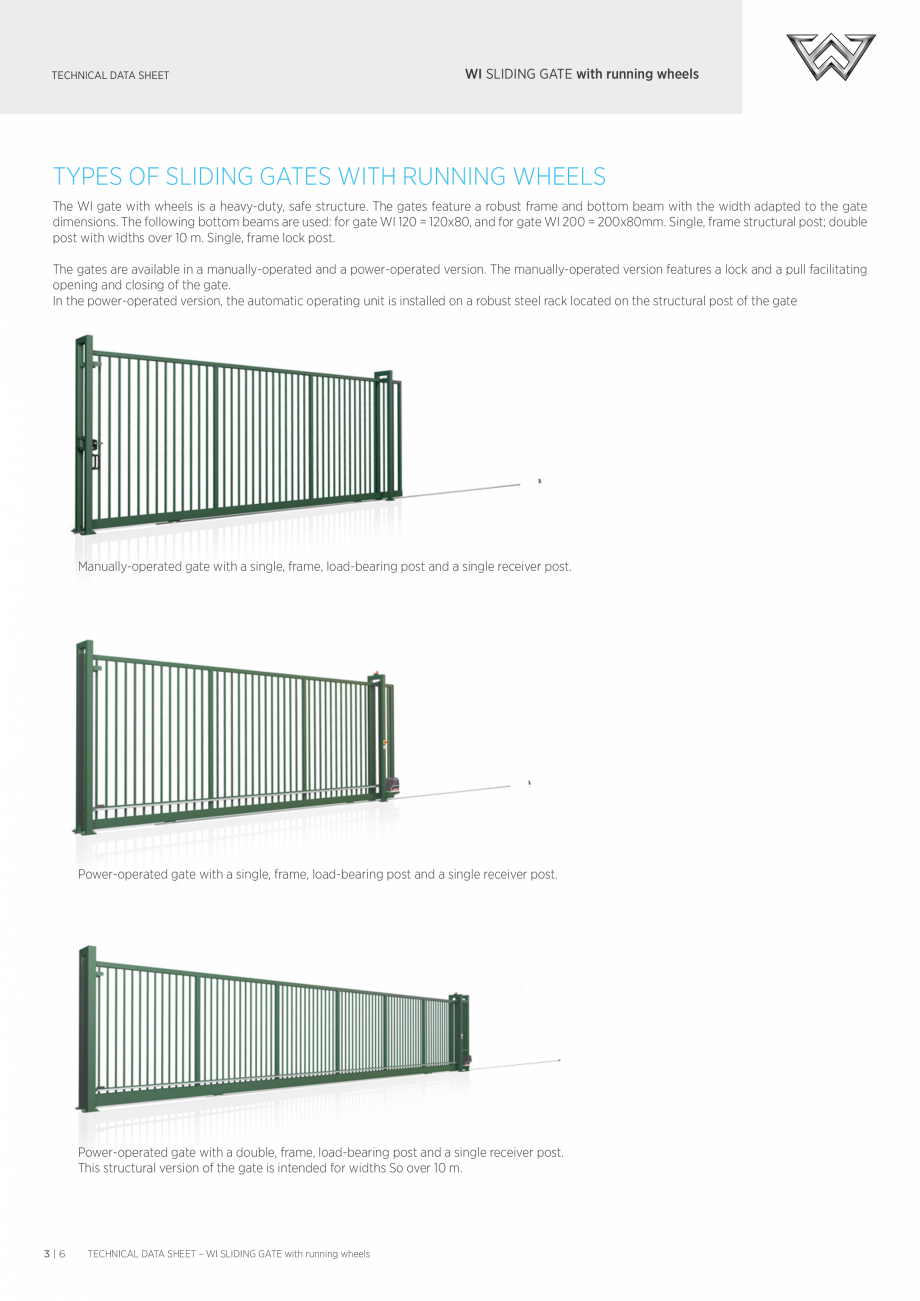

The following bottom beams are used: for gate WI 120 = 120x80, and for gate WI 200 = 200x80mm. Single, frame structural post; double post with widths over 10 m. Single, frame lock post. The gates are available in a manually-operated and a power-operated version. The manually-operated version features a lock and a pull facilitating opening and closing of the gate. In the power-operated version, the automatic operating unit is installed on a robust steel rack located on the structural post of the gate Manually-operated gate with a single, frame, load-bearing post and a single receiver post. Power-operated gate with a single, frame, load-bearing post and a single receiver post. Power-operated gate with a double, frame, load-bearing post and a single receiver post. This structural version of the gate is intended for widths So over 10 m. 3|6 TECHNICAL DATA SHEET – WI SLIDING GATE with running wheels WI SLIDING GATE with running wheels TECHNICAL DATA SHEET ACCESSORIES COMFORT AND

Pagina 4-Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza The following bottom beams are used: for...

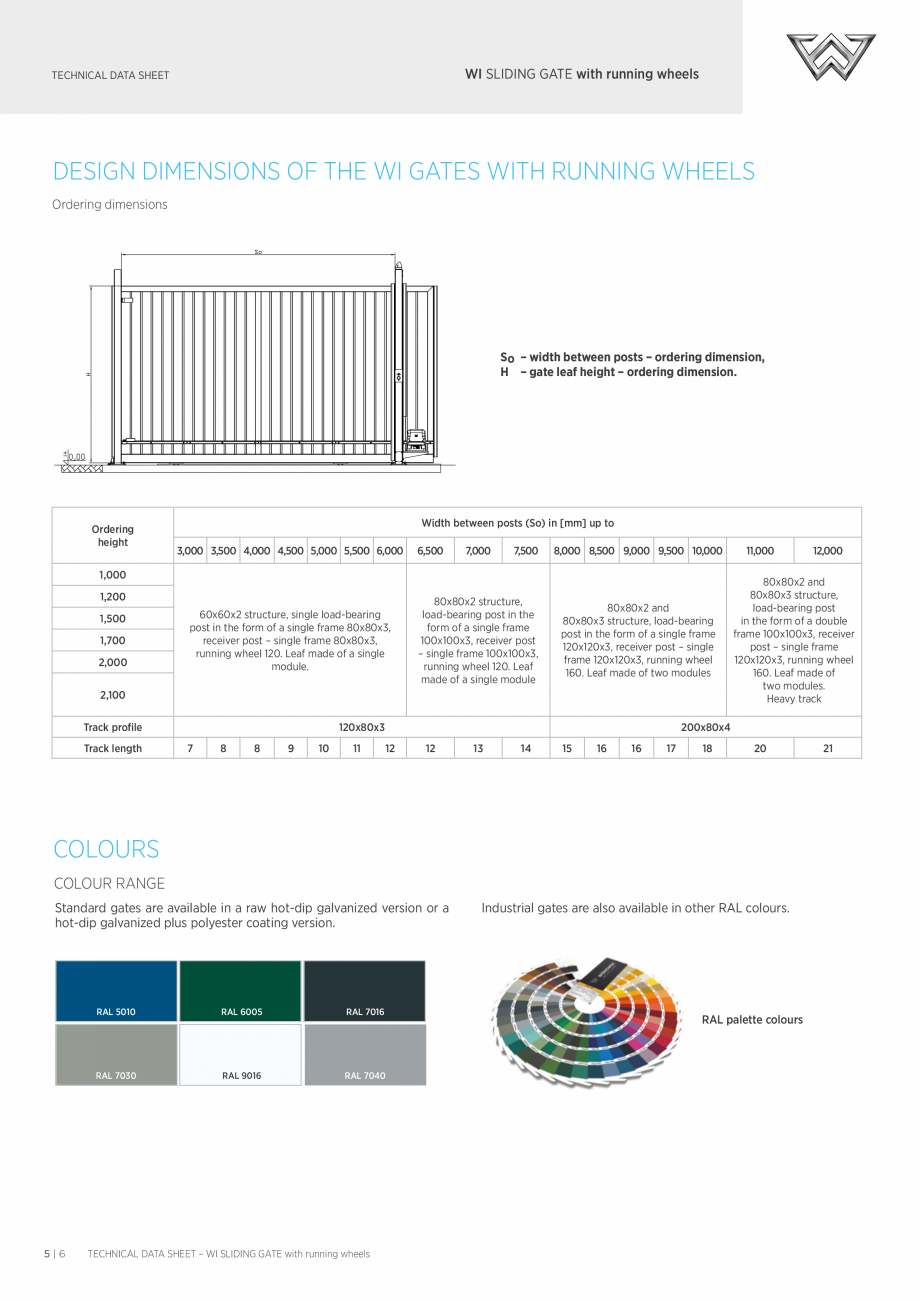

Pagina 5 - Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza SAFETY
The WI gates on wheels...

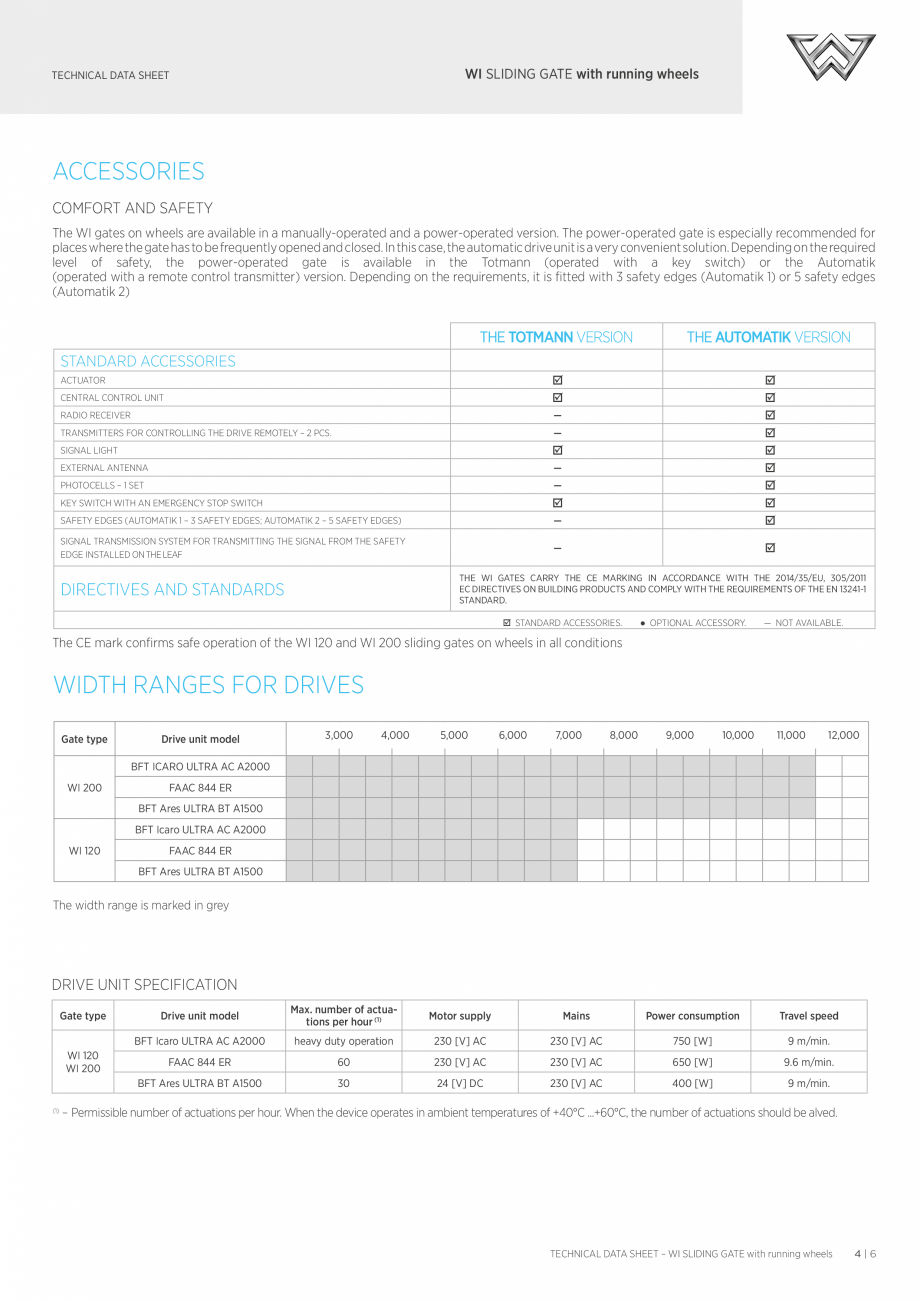

SAFETY The WI gates on wheels are available in a manually-operated and a power-operated version. The power-operated gate is especially recommended for places where the gate has to be frequently opened and closed. In this case, the automatic drive unit is a very convenient solution. Depending on the required level of safety, the power-operated gate is available in the Totmann (operated with a key switch) or the Automatik (operated with a remote control transmitter) version. Depending on the requirements, it is fitted with 3 safety edges (Automatik 1) or 5 safety edges (Automatik 2) THE TOTMANN VERSION THE AUTOMATIK VERSION CENTRAL CONTROL UNIT   RADIO RECEIVER — STANDARD ACCESSORIES PHOTOCELLS – 1 SET — KEY SWITCH WITH AN EMERGENCY STOP SWITCH  SAFETY EDGES (AUTOMATIK 1 – 3 SAFETY EDGES; AUTOMATIK 2 – 5 SAFETY EDGES) —          SIGNAL TRANSMISSION SYSTEM FOR TRANSMITTING THE SIGNAL FROM THE SAFETY EDGE INSTALLED ON THE LEAF

Pagina 5-Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza SAFETY
The WI gates on wheels are...

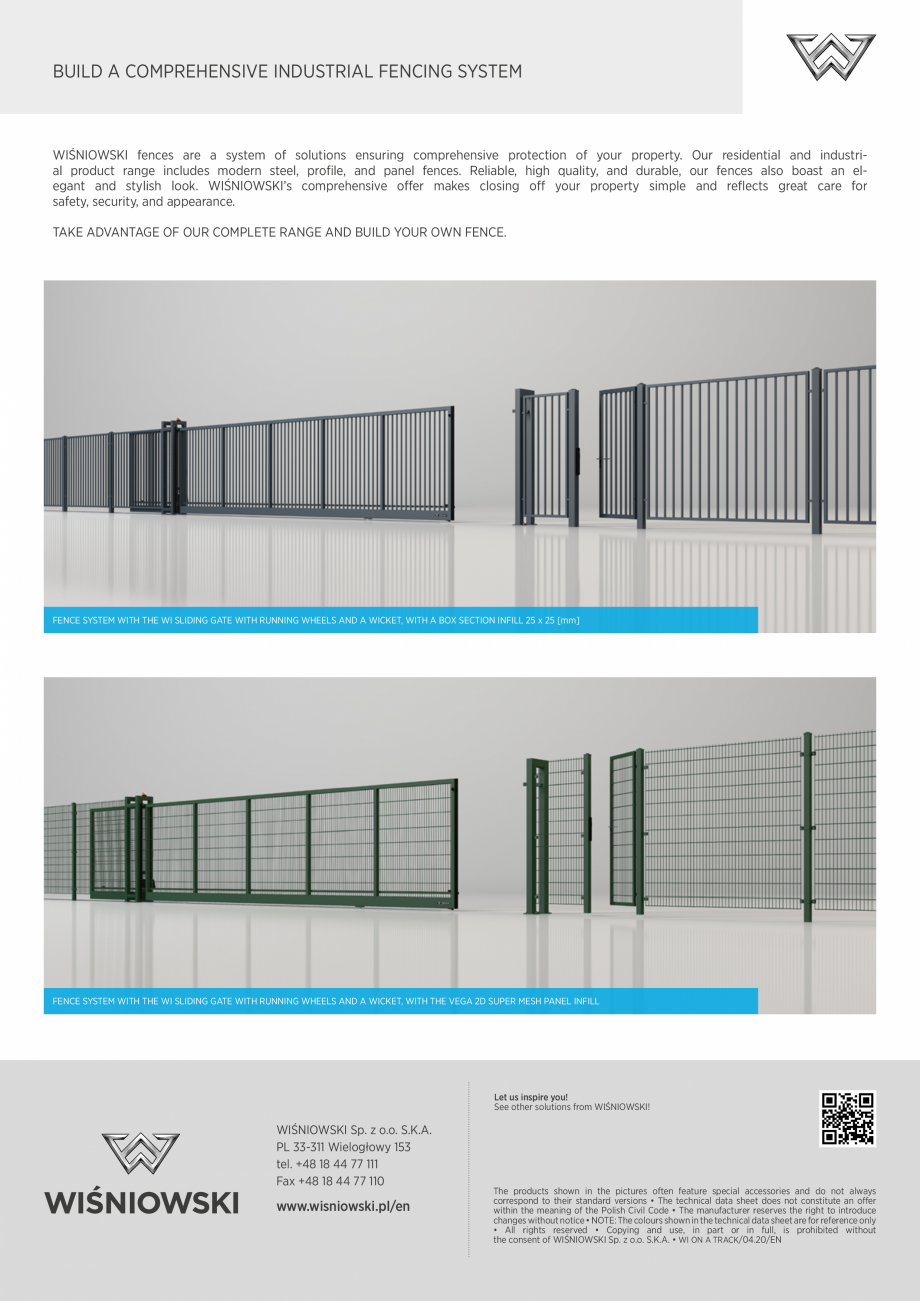

Pagina 6 - Poarta culisanta pe sina DECORIO WI Fisa tehnica Engleza

—



ACTUATOR
...

—  ACTUATOR TRANSMITTERS FOR CONTROLLING THE DRIVE REMOTELY – 2 PCS. — SIGNAL LIGHT  EXTERNAL ANTENNA — THE WI GATES CARRY THE CE MARKING IN ACCORDANCE WITH THE 2014/35/EU, 305/2011 EC DIRECTIVES ON BUILDING PRODUCTS AND COMPLY WITH THE REQUIREMENTS OF THE EN 13241-1 STANDARD. DIRECTIVES AND STANDARDS  STANDARD ACCESSORIES. ● OPTIONAL ACCESSORY. — NOT AVAILABLE. The CE mark confirms safe operation of the WI 120 and WI 200 sliding gates on wheels in all conditions WIDTH RANGES FOR DRIVES Gate type Drive unit model 3,000 4,000 5,000 6,000 7,000 8,000 9,000 10,000 11,000 12,000 BFT ICARO ULTRA AC A2000 WI 200 FAAC 844 ER BFT Ares ULTRA BT A1500 BFT Icaro ULTRA AC A2000 WI 120 FAAC 844 ER BFT Ares ULTRA BT A1500 The width range is marked in grey DRIVE UNIT SPECIFICATION Gate type WI 120 WI 200 Drive unit model Max. number of actuations per hour (1) BFT Icaro ULTRA AC A2000 heavy duty operation 230 [V] AC 230 [V] AC 750 [W] 9 m/
