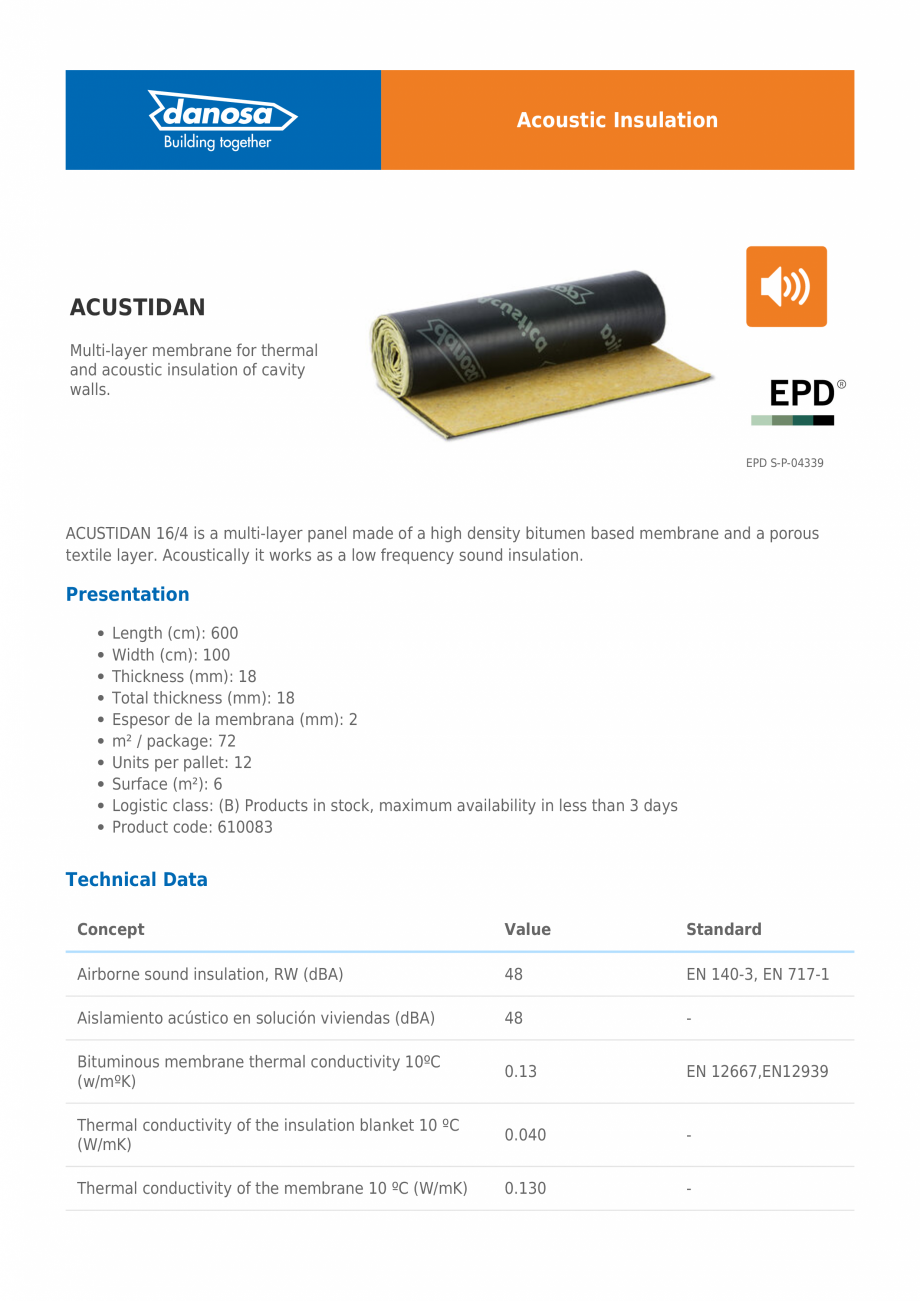

Acoustic Insulation ACUSTIDAN Multi-layer membrane for thermal and acoustic insulation of cavity walls. EPD S-P-04339 ACUSTIDAN 16/4 is a multi-layer panel made of a high density bitumen based membrane and a porous textile layer. Acoustically it works as a low frequency sound insulation. Presentation Length (cm): 600 Width (cm): 100 Thickness (mm): 18 Total thickness (mm): 18 Espesor de la membrana (mm): 2 m² / package: 72 Units per pallet: 12 Surface (m²): 6 Logistic class: (B) Products in stock, maximum availability in less than 3 days Product code: 610083 Technical Data Concept Value Standard Airborne sound insulation, RW (dBA) 48 EN 140-3, EN 717-1 Aislamiento acústico en solución viviendas (dBA) 48 - Bituminous membrane thermal conductivity 10ºC (w/mºK) 0.13 EN 12667,EN12939 Thermal conductivity of the insulation blanket 10 ºC (W/mK) 0.040 - Thermal conductivity of the membrane 10 ºC (W/mK) 0.130 - Concept Value Standard Thermal conductivity of c

Pagina 1-Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN Fisa tehnica ...

Pagina 2 - Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN...

ross-linked polyethylene (W / m K) 0.0405 - Remainder deformation (24h compressed at 50%, 23ºC) (%) -0,285714285714286 - Density (kg/m³) 1 EN 845 Insulation blanket density (kg/m³) 50 EN 845 Membrane density (kg/m³) 1800 +/- 5% EN 845 Crosslinked Polyethylene Density (kg/m³) 50 +/- 5% EN 12667 Espesor total de la manta (mm) 16 - Modulus of elasticity of cross-linked polyethylene (kPa) 18 - Pérdida de inserción (bajantes) (dBA) 20 - Reaction to ﬁre F - Reaction to ﬁre according to its method of installation with exposed mineral wool (Euroclass) F - Longitudinal tensile strength (kN/m) > 470 - Tranversal tensile strength (kN/m) >480 - Resistance to tearing (nail shank) (N) >370 EN 12310-1 Airﬂow resistance of the porous textile (KPa.s/m²) 25 EN 29053 Thermal Resistance (m²K/W) 0.55 - Thermal resistance of the whole (m²K/W) F EN 12667 / EN 12939 Work temperature (ºC) 0,55 - Thickness tolerance (%) 5 EN 823 Tolerance

Pagina 2-Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN Fisa tehnica ...

Pagina 3 - Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN...

Length and Width (%) <5 EN 822 Improvement to airborne noise on laminated gypsum board partition, ΔR (dBA) 100 - Environmental Information Concept Value Standard Volatile organic compounds (COV's) (µg/m³) < 100 ISO 16000-6:2006 Content of recycled raw material (%) 32 - Recycled content afterword the consumer (%) 100 - Performance in photocatalytic puriﬁcation of nitrogen oxides (%) 12 - Manufactured in Fontanar (Guadalajara) España - Standards and Certiﬁcation The sound certiﬁcations are the result of tests in an approved laboratory. *For any questions about information on the tests, please consult our Technical Department. Laboratory Test (EN 140-3) No Result (EN 717-1) DANOSA TAB2000/05/2004 RA= 35 dBA Laboratorio Gobierno Vasco* B 0082-CT-95 RA= 47.6 dBA Scope Sound insulation of partition walls between diﬀerent users in public or private residential buildings. Insulation of downspouts in commercial premises. Insulation within the airt

Pagina 3-Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN Fisa tehnica ...

Pagina 4 - Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN...

ight chambers of wall linings and ﬂoating ceilings for low, medium and high frequencies in low-noise commercial premises. Renovation of partition walls between diﬀerent users in residential buildings. Advantages & Beneﬁts Sound insulation for noisy premises with night-time DnTA>65 dBA. By increasing the mass of lightweight walls, a higher acoustic performance is achieved. High ﬂexibility, allows for continuity of insulation in diﬃcult junctions, such as corners. High tensile strength and nail-tear strength, can be installed mechanically. As a membrane resonator, it provides isolation at low frequencies. In downpipes, it prevents noise from entering the pipe. Low thickness with high acoustic performance. Instruction for Use An installation of the ACUSTIDAN 16/4 shown in the following pictures: Indications and Important Recommendations The facade cladding in a building must end at the dividing wall between diﬀerent users. See SPD 2.1 The air chambers must be completely a

Pagina 4-Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN Fisa tehnica ...

Pagina 5 - Panou multistrat pentru izolarea acustica impotriva zgomotului aerian DANOSA ACUSTIDAN...

irtight. Partition walls must be plastered with at least 1 cm. See SPD 3. Partition walls should not be anchored to structural elements (except for roofs in dwellings) such as pillars and facades. In order to maintain the stability of the system, the tiling element must be bonded to the internal ﬂoating partition walls. It is not possible to perforate the ﬂoating roof with installations in the proposed solution in commercial premises. See SPD 4.4 and ﬁles TEF3 and TEF4 In order to improve the performance of the rooﬁng system, it is possible to place a screed perpendicular to the joists every 40 cm prior to the installation of the product. The product is then ﬁxed with a sheet metal screw and washer. For cutting, a MAKITA 4191 DW water-cooled low speed radial cutting machine or similar shall be used, with a MAKITA 85 - 6 asphalt cutting disc. ELYWOOD SAW BLADE 3-3 / 8 ”x 15 mm. Impact sound insulation must be used. See "Sound Insulation Solutions Manual" sheets from AA01AA04
