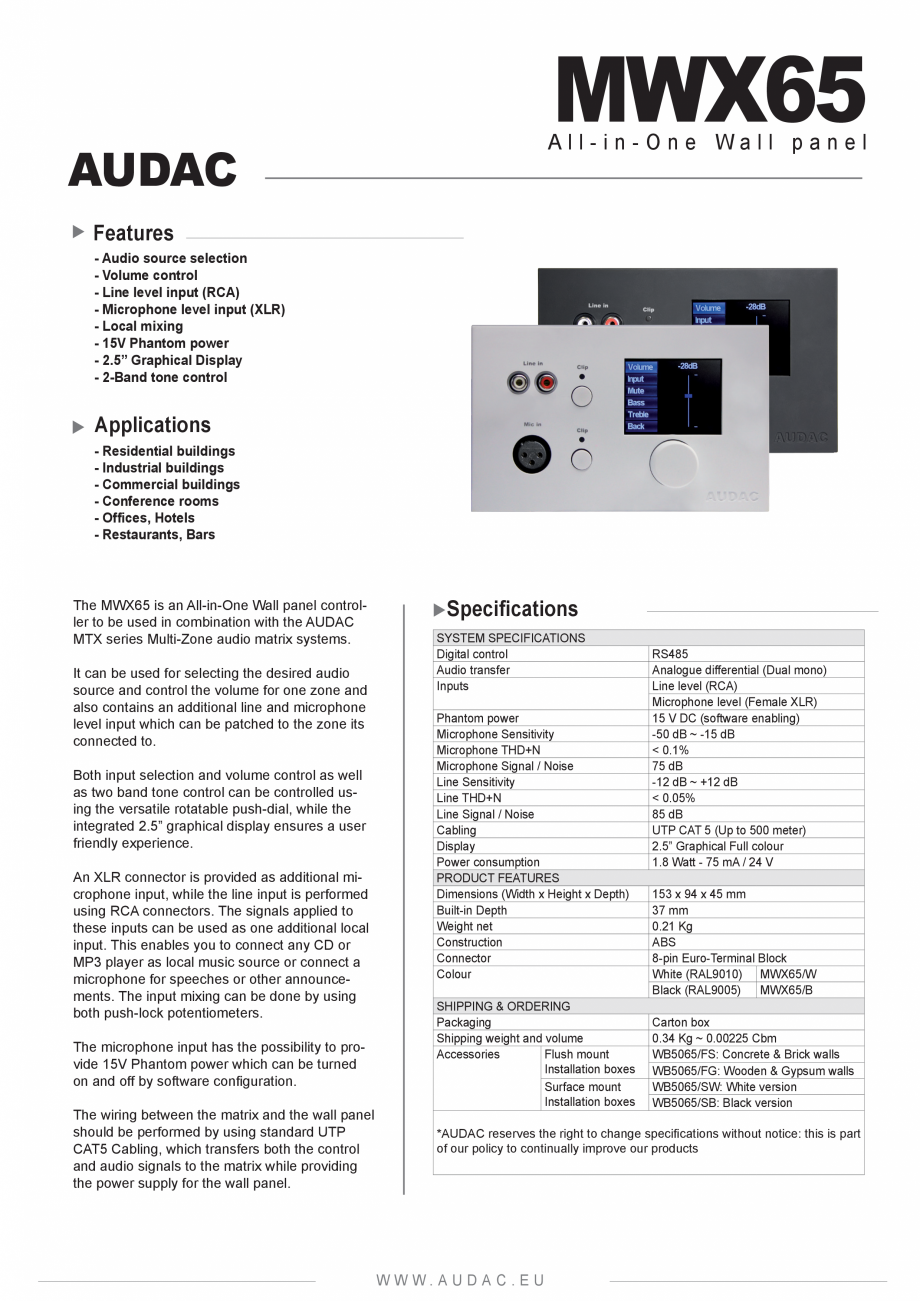

Pagina 1-Panou de control MWX65 AUDAC MTX48 Fisa tehnica Engleza MWX65

All-in-One Wall panel

MWX65 All-in-One Wall panel AUDAC Features - Audio source selection - Volume control - Line level input (RCA) - Microphone level input (XLR) - Local mixing - 15V Phantom power - 2.5” Graphical Display - 2-Band tone control Applications - Residential buildings - Industrial buildings - Commercial buildings - Conference rooms - Offices, Hotels - Restaurants, Bars The MWX65 is an All-in-One Wall panel controller to be used in combination with the AUDAC MTX series Multi-Zone audio matrix systems. It can be used for selecting the desired audio source and control the volume for one zone and also contains an additional line and microphone level input which can be patched to the zone its connected to. Both input selection and volume control as well as two band tone control can be controlled using the versatile rotatable push-dial, while the integrated 2.5” graphical display ensures a user friendly experience. An XLR connector is provided as additional microphone input, while the line in ... ascunde
