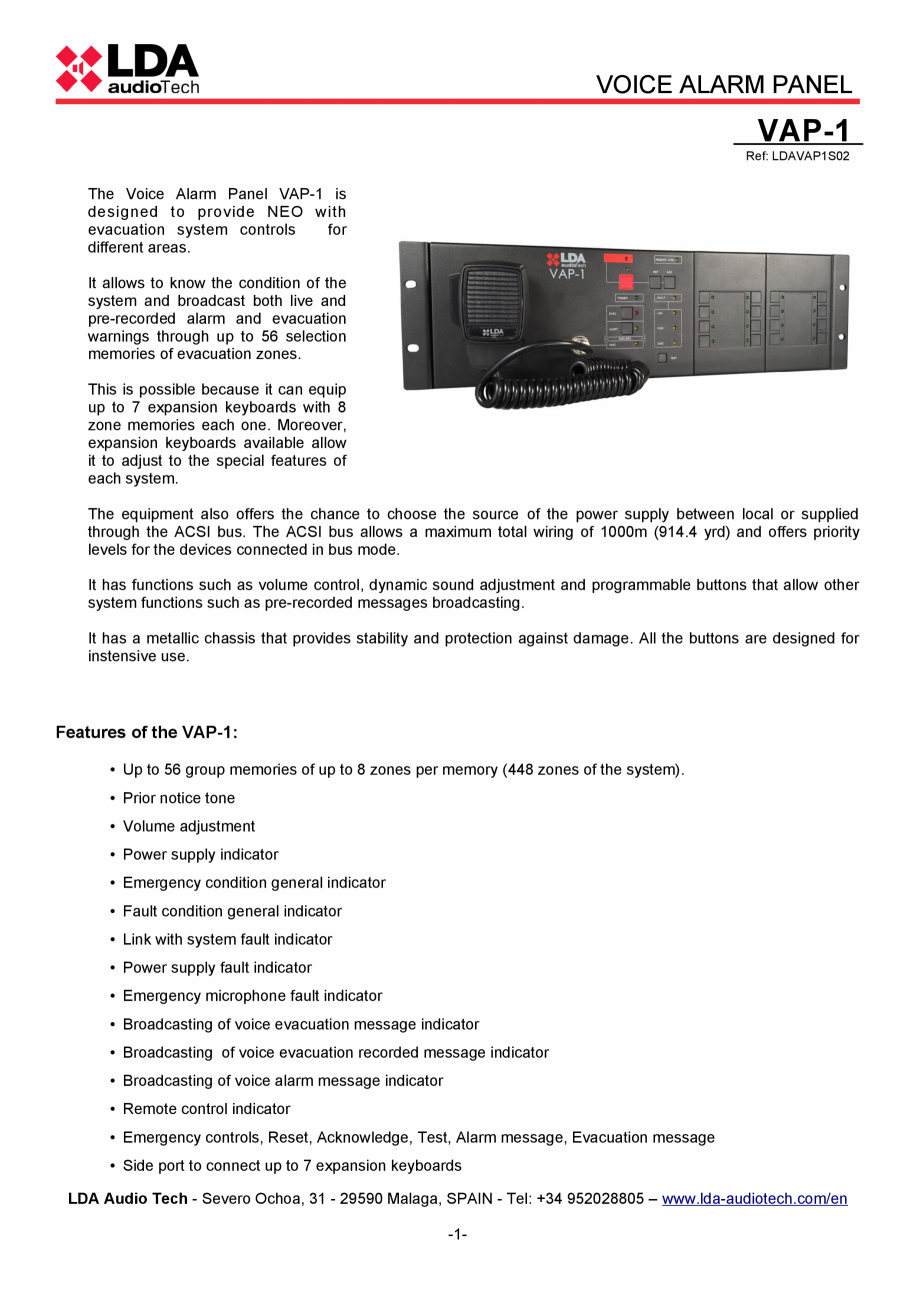

VOICE ALARM PANEL VAP-1 Ref: LDAVAP1S02 The Voice Alarm Panel VAP-1 is designed to provide NEO with evacuation system controls for different areas. It allows to know the condition of the system and broadcast both live and pre-recorded alarm and evacuation warnings through up to 56 selection memories of evacuation zones. This is possible because it can equip up to 7 expansion keyboards with 8 zone memories each one. Moreover, expansion keyboards available allow it to adjust to the special features of each system. The equipment also offers the chance to choose the source of the power supply between local or supplied through the ACSI bus. The ACSI bus allows a maximum total wiring of 1000m (914.4 yrd) and offers priority levels for the devices connected in bus mode. It has functions such as volume control, dynamic sound adjustment and programmable buttons that allow other system functions such as pre-recorded messages broadcasting. It has a metallic chassis that provides stability and p

Pagina 1-Panou control alarmare vocala pentru sistemele PA/VA NEO si ONE - fisa tehnica LDA Audio Tech VAP-1 ...

Pagina 2 - Panou control alarmare vocala pentru sistemele PA/VA NEO si ONE - fisa tehnica LDA Audio ...

rotection against damage. All the buttons are designed for instensive use. Features of the VAP-1: • Up to 56 group memories of up to 8 zones per memory (448 zones of the system). • Prior notice tone • Volume adjustment • Power supply indicator • Emergency condition general indicator • Fault condition general indicator • Link with system fault indicator • Power supply fault indicator • Emergency microphone fault indicator • Broadcasting of voice evacuation message indicator • Broadcasting of voice evacuation recorded message indicator • Broadcasting of voice alarm message indicator • Remote control indicator • Emergency controls, Reset, Acknowledge, Test, Alarm message, Evacuation message • Side port to connect up to 7 expansion keyboards LDA Audio Tech - Severo Ochoa, 31 - 29590 Malaga, SPAIN - Tel: +34 952028805 – www.lda-audiotech.com/en -1- VOICE ALARM PANEL VAP-1 Ref: LDAVAP1S02 • Priority configuration and operating parameters • Local or pe

Pagina 2-Panou control alarmare vocala pentru sistemele PA/VA NEO si ONE - fisa tehnica LDA Audio Tech VAP-1 ...

Pagina 3 - Panou control alarmare vocala pentru sistemele PA/VA NEO si ONE - fisa tehnica LDA Audio ...

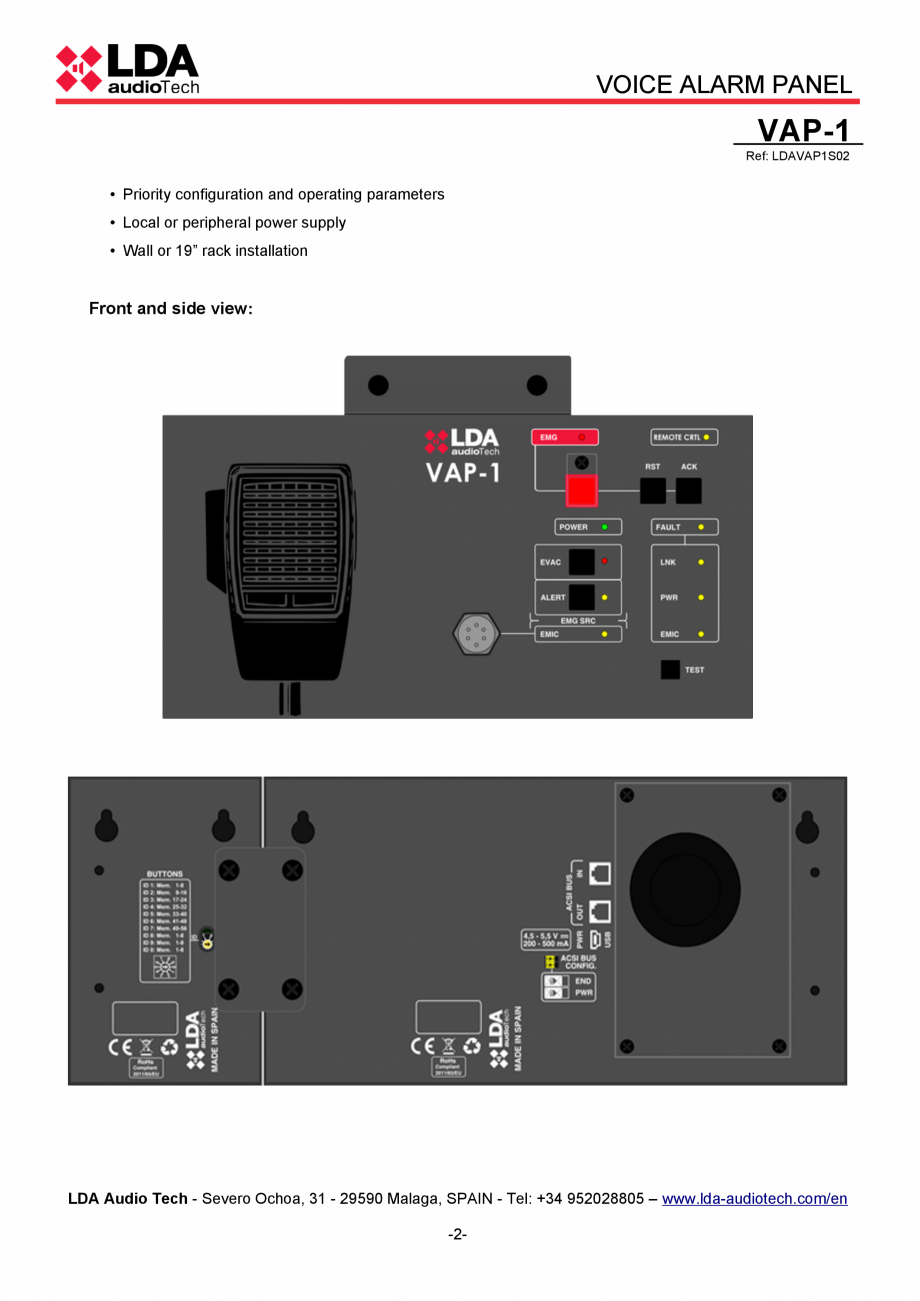

ripheral power supply • Wall or 19” rack installation Front and side view: LDA Audio Tech - Severo Ochoa, 31 - 29590 Malaga, SPAIN - Tel: +34 952028805 – www.lda-audiotech.com/en -2- VOICE ALARM PANEL VAP-1 Ref: LDAVAP1S02 Technical specifications: Model VAP-1 Reference LDAVAP1S02 Power supply 4.5- 5.5V DC, 1 x miniUSB AB VAP-1 power consumption 200 - 500 mA (max with all the expansion keyboards) Expansion keyboard consumption 40 mA max Frequency response 200 Hz – 12000 Hz (+/- 2dB) Signal to noise ratio >98dB, A-weighted Sensitivity -43 dB (1KHz) Directionality Axial, with hypercardioid type polar diagram Type of transducer Dynamic with moving coil DSP Integrated. 48 kHz, 24 bits – 172 MIPS ACSI Bus 2 x Identical ACSI ports: Balanced audio 1Vp, 0,707Vrms. 10 KΩ, female RJ-45, Total 1000m. / 3280ft Expansion Port 1 x Pin row, 2 rows x 5 female contacts Indicators Condition: Emergency, General Fault, Remote Control Fault: Link, Supply, Emergen
