Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT

Limba: Engleza, Germana, Franceza, Italiana, Spaniola
70 afisari
Tip documentatie: Instructiuni montaj, utilizare
Salvează pdf

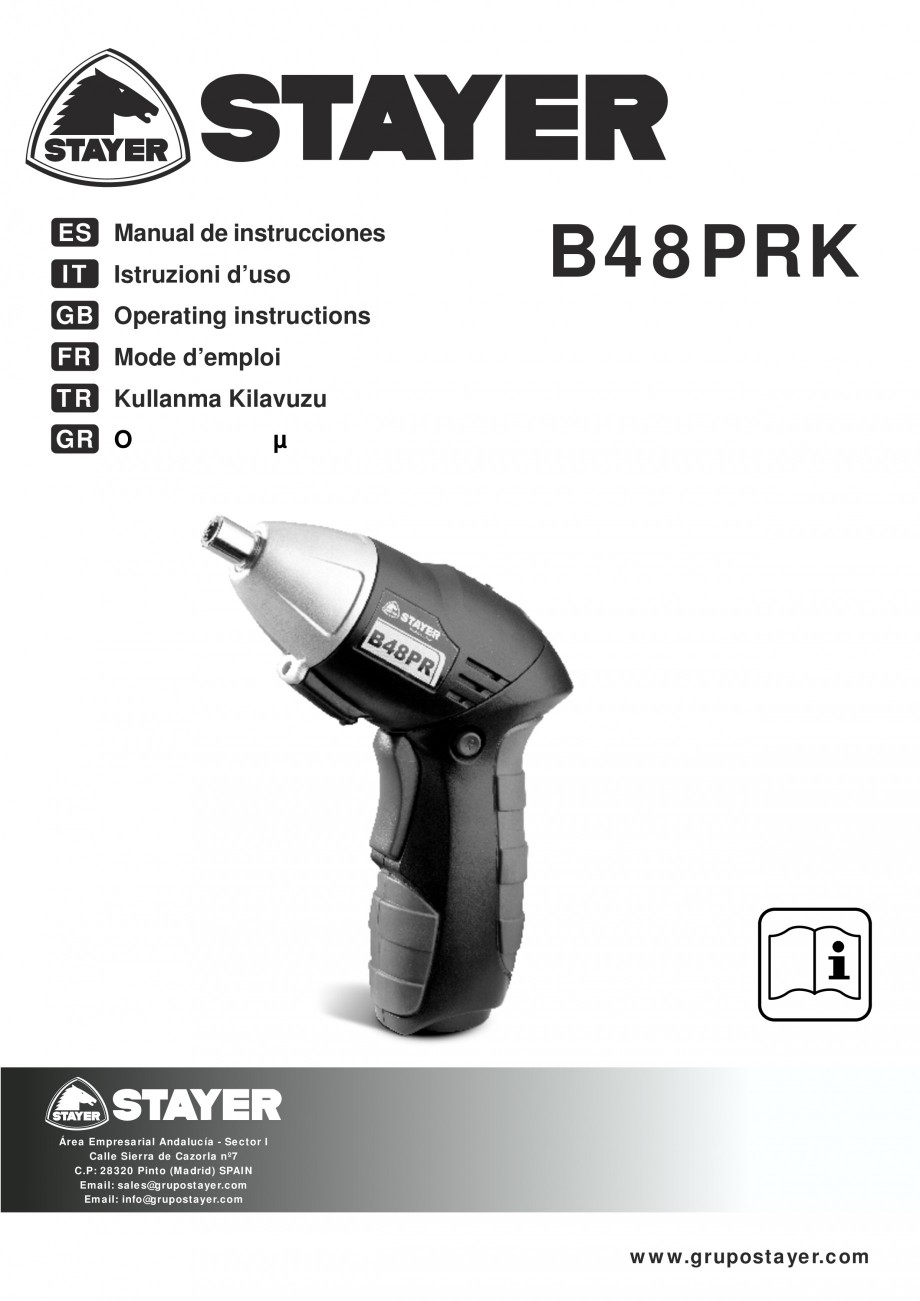

Pagina 1-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

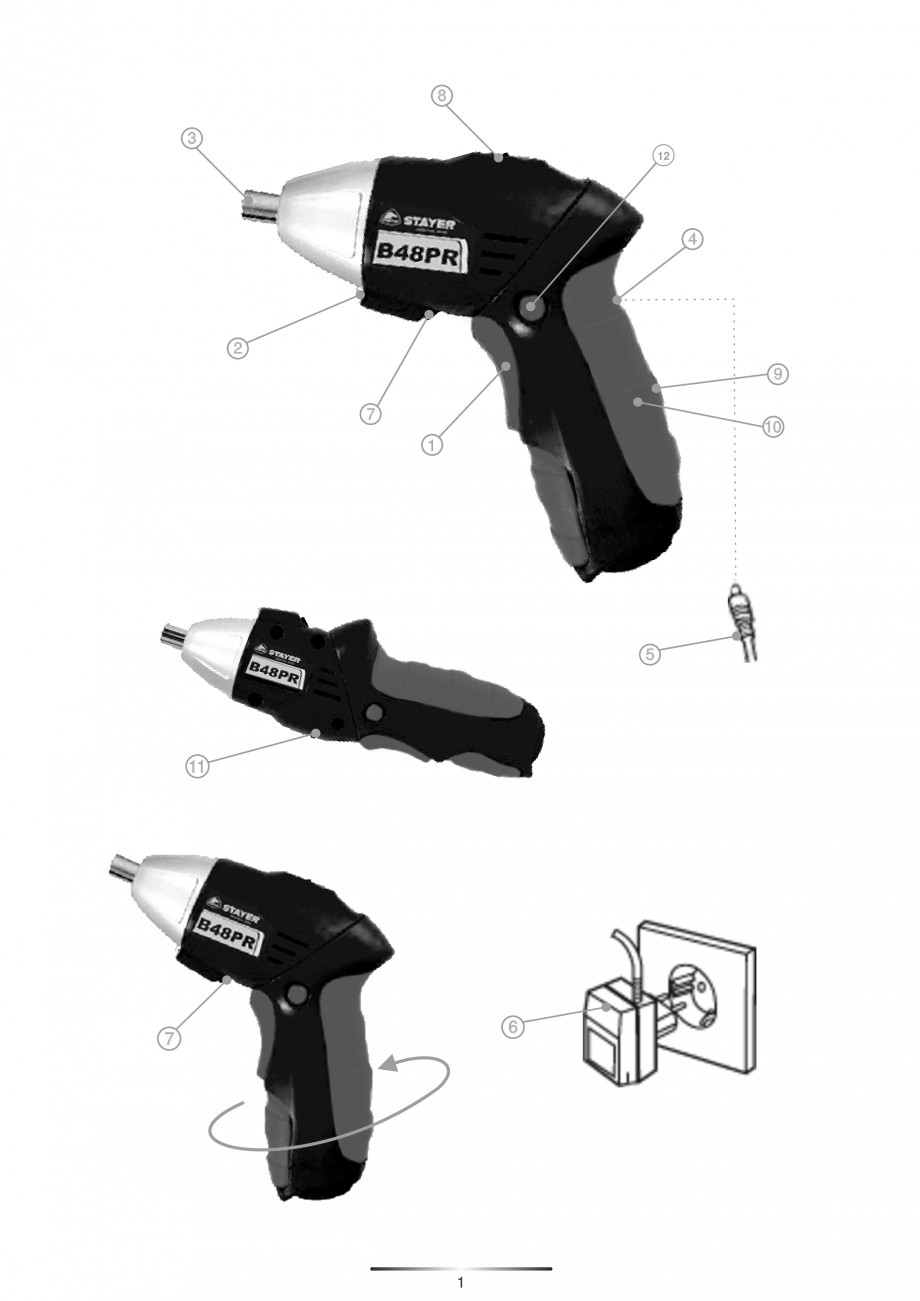

Pagina 2-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

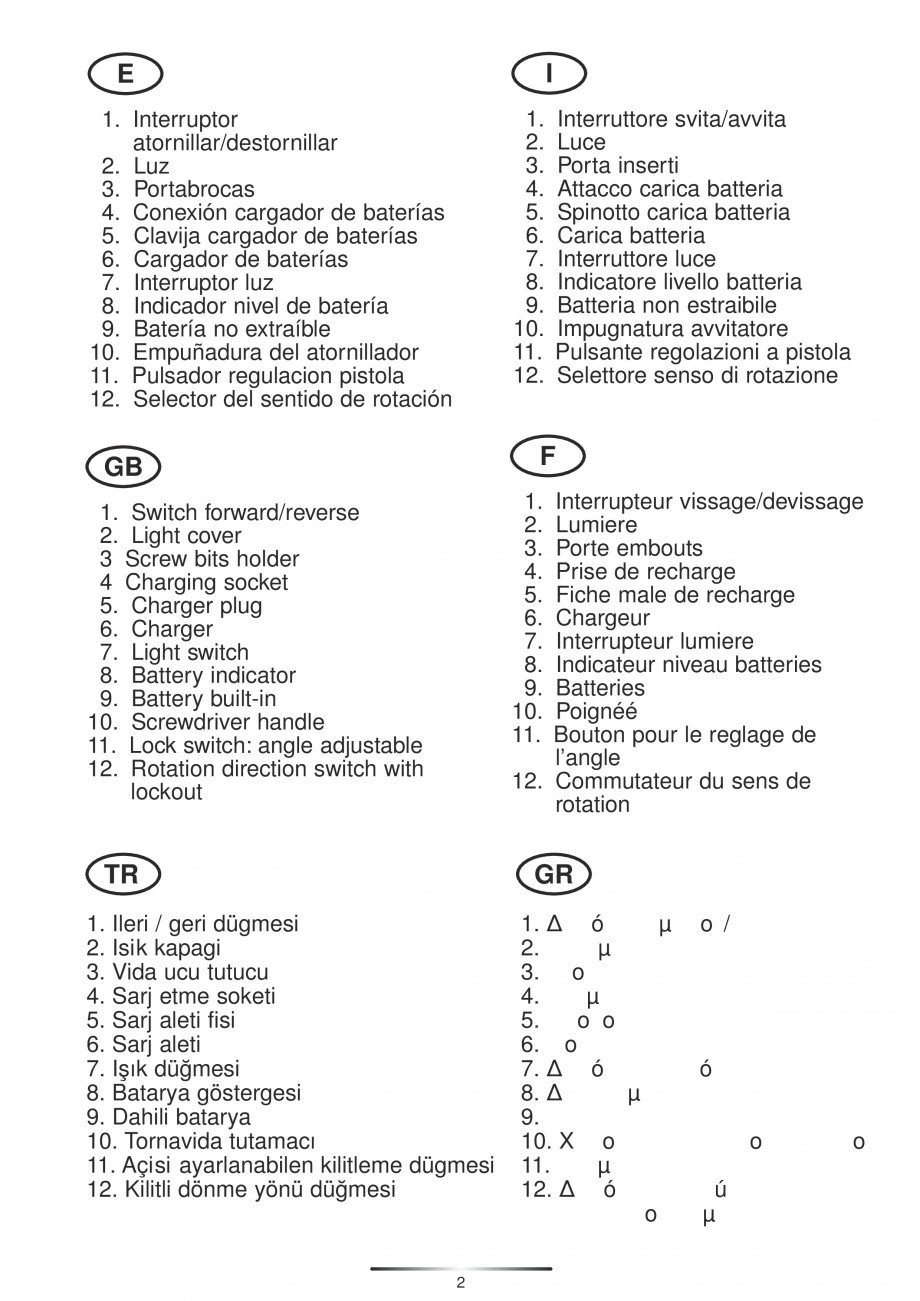

Pagina 3-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

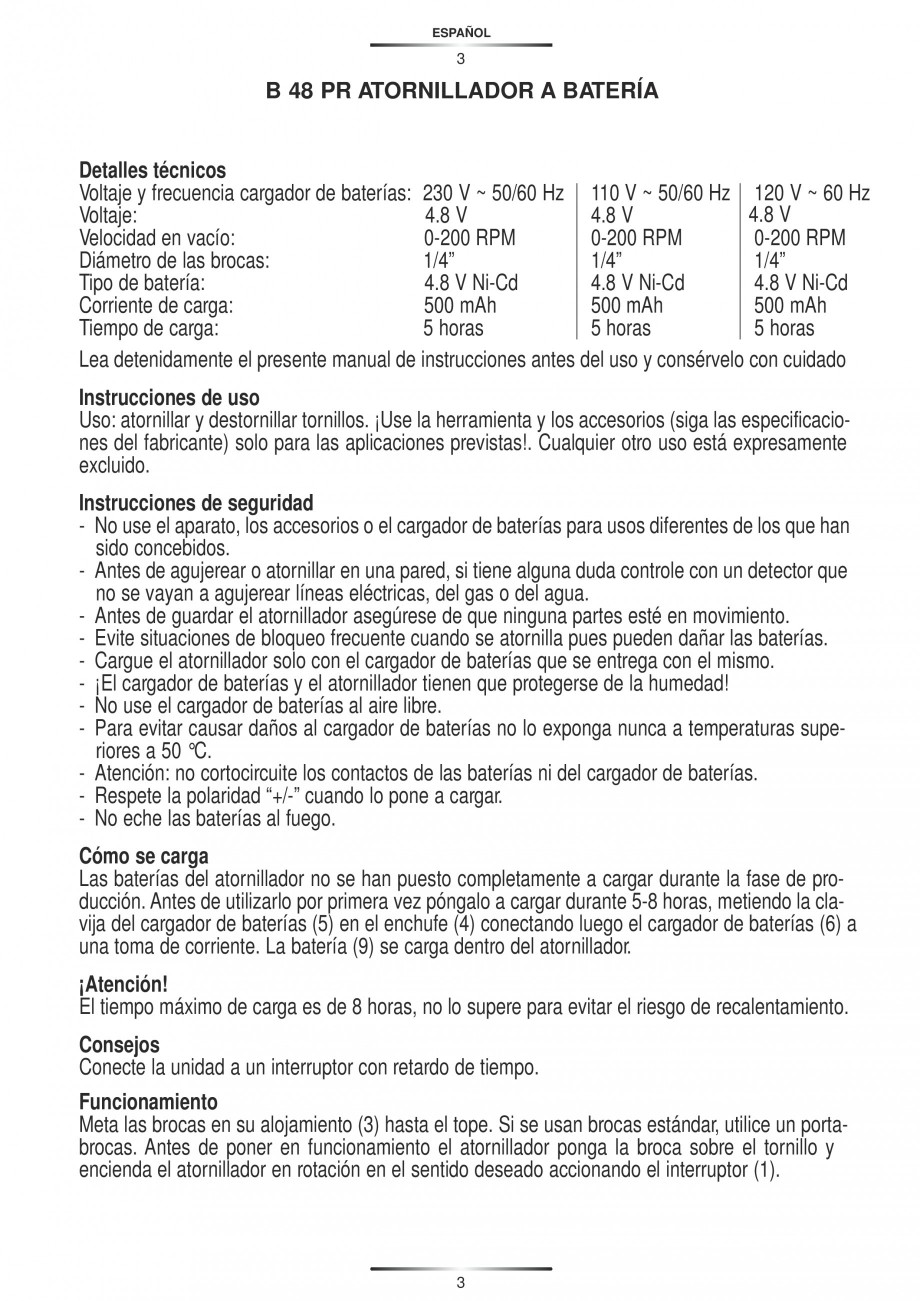

Pagina 4-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

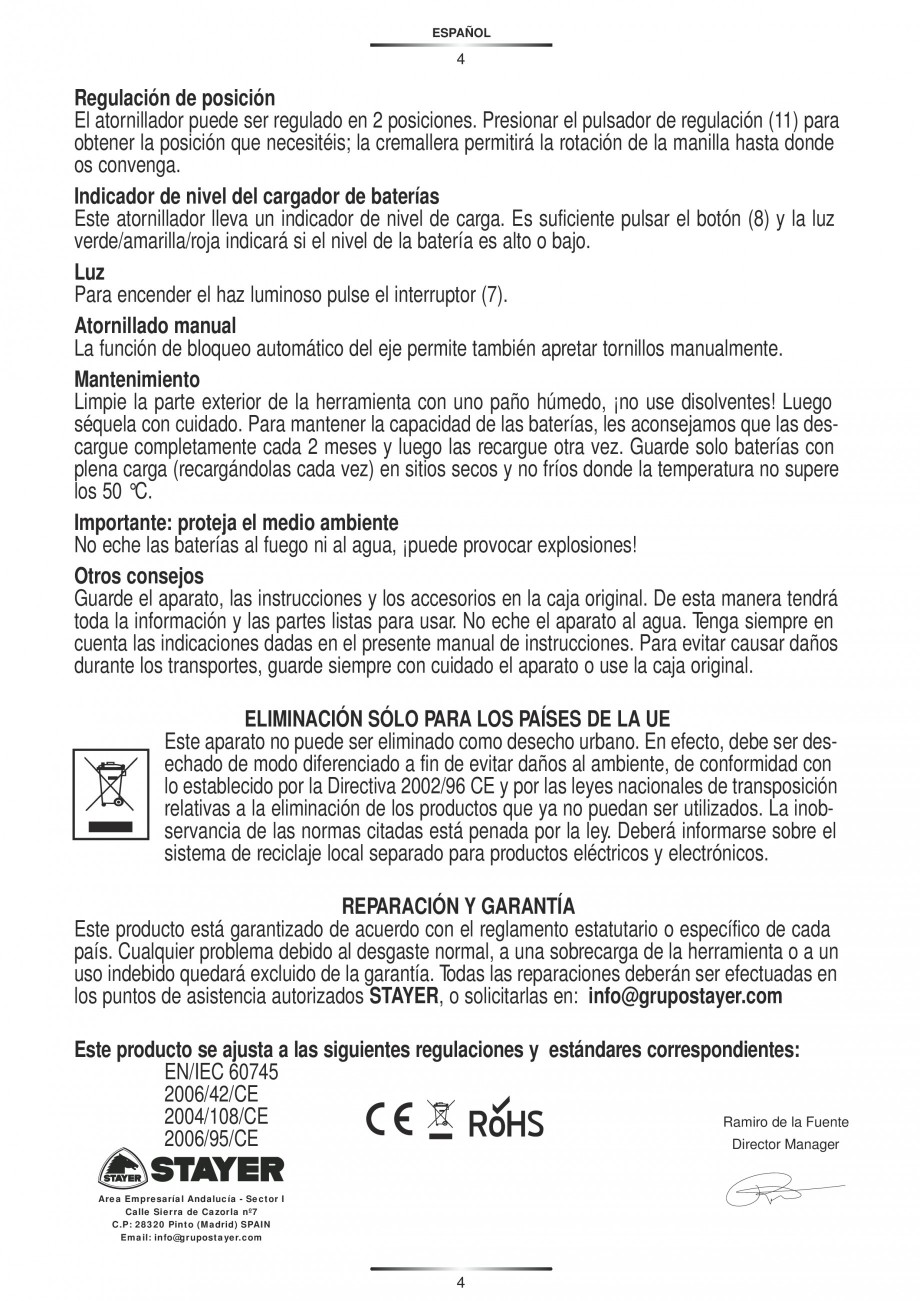

Pagina 5-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

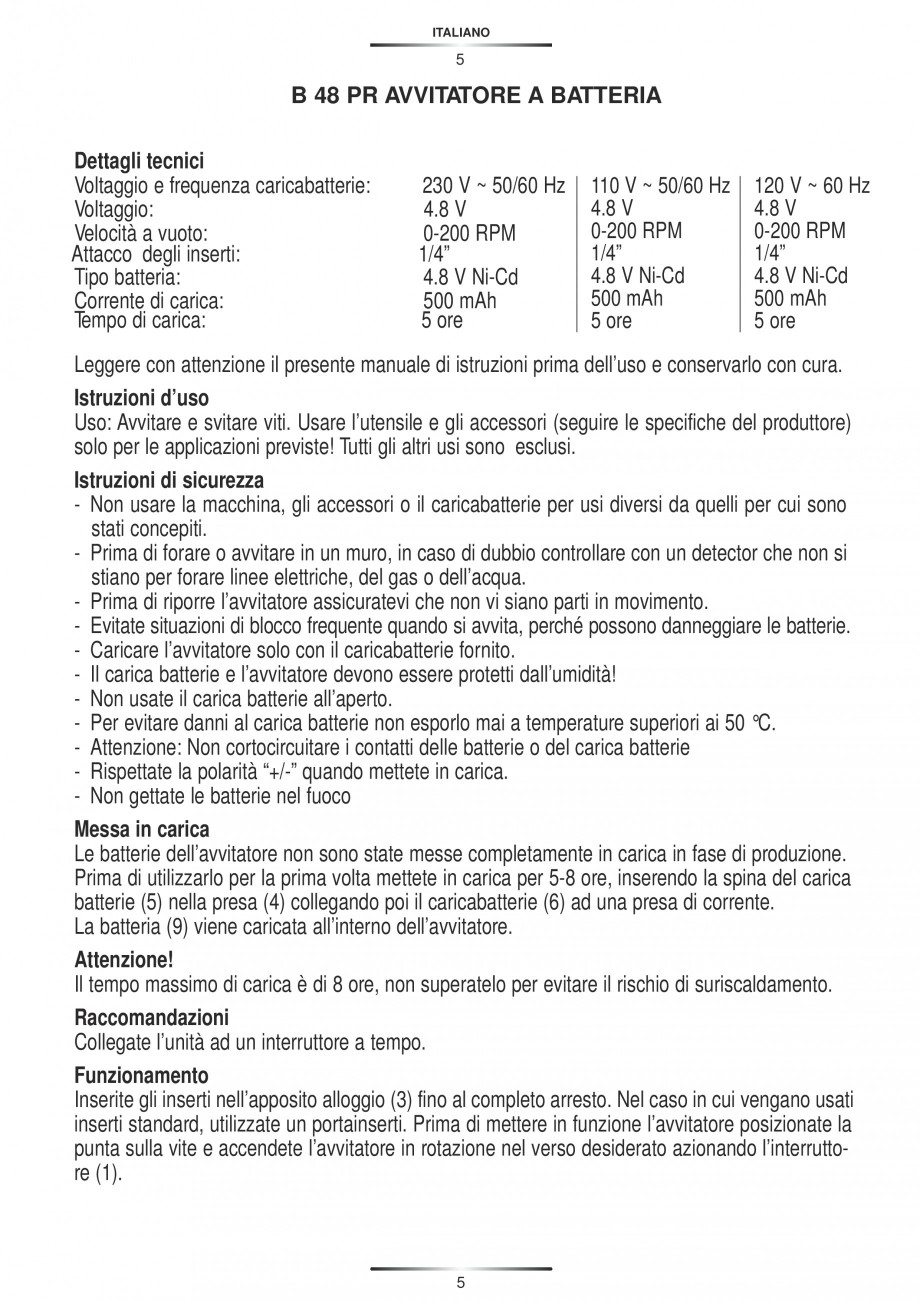

Pagina 6-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

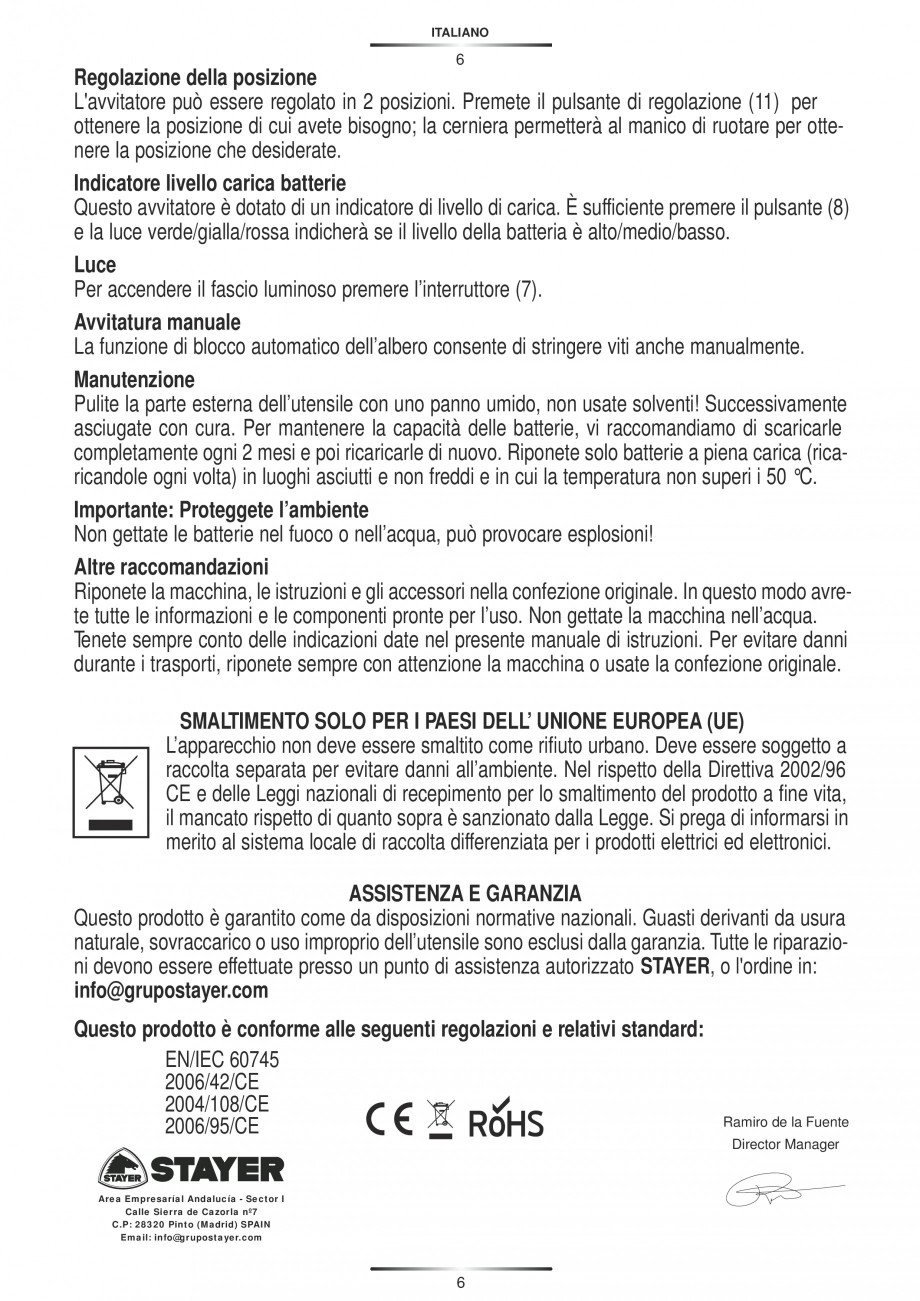

Pagina 7-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

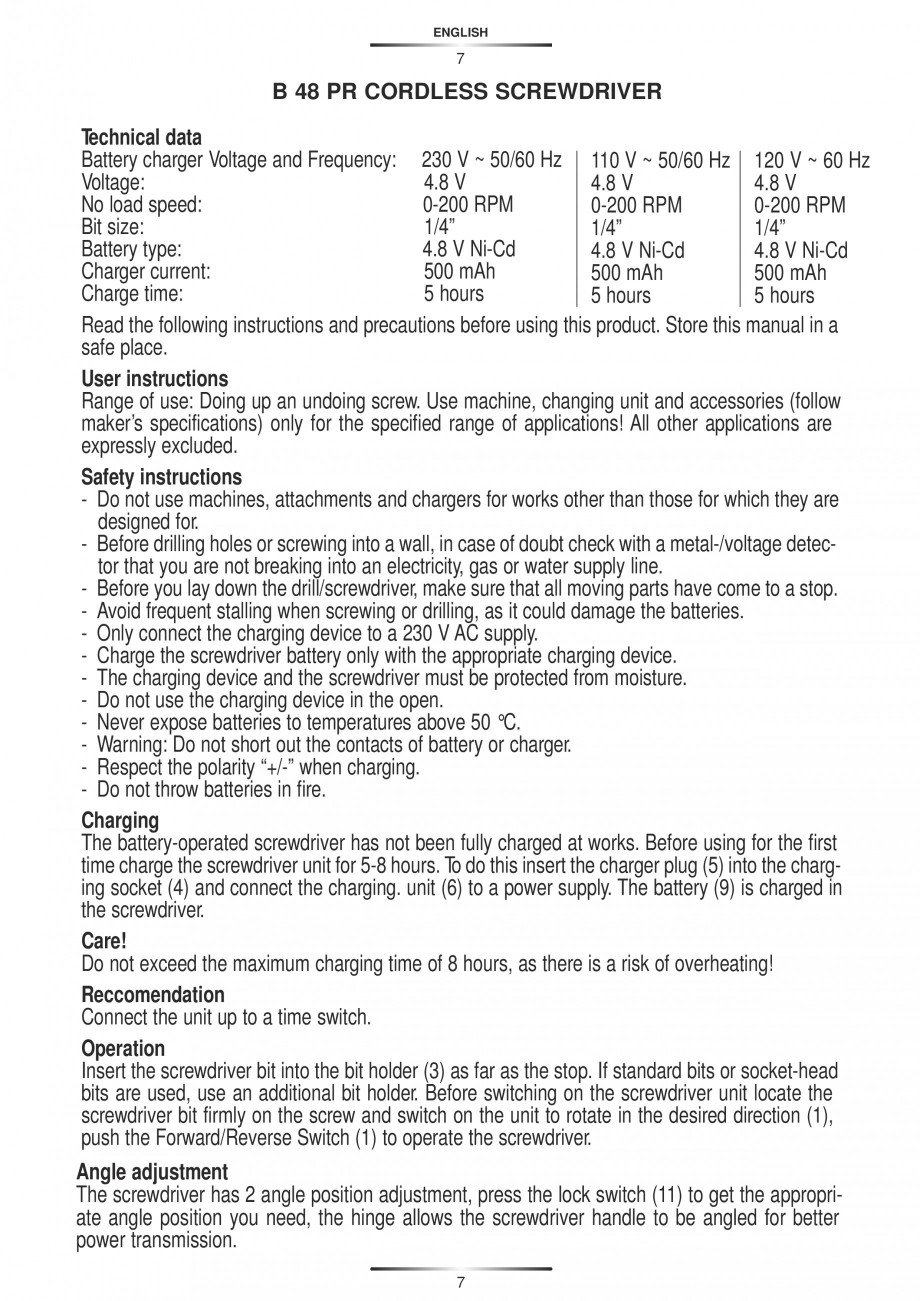

Pagina 8-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

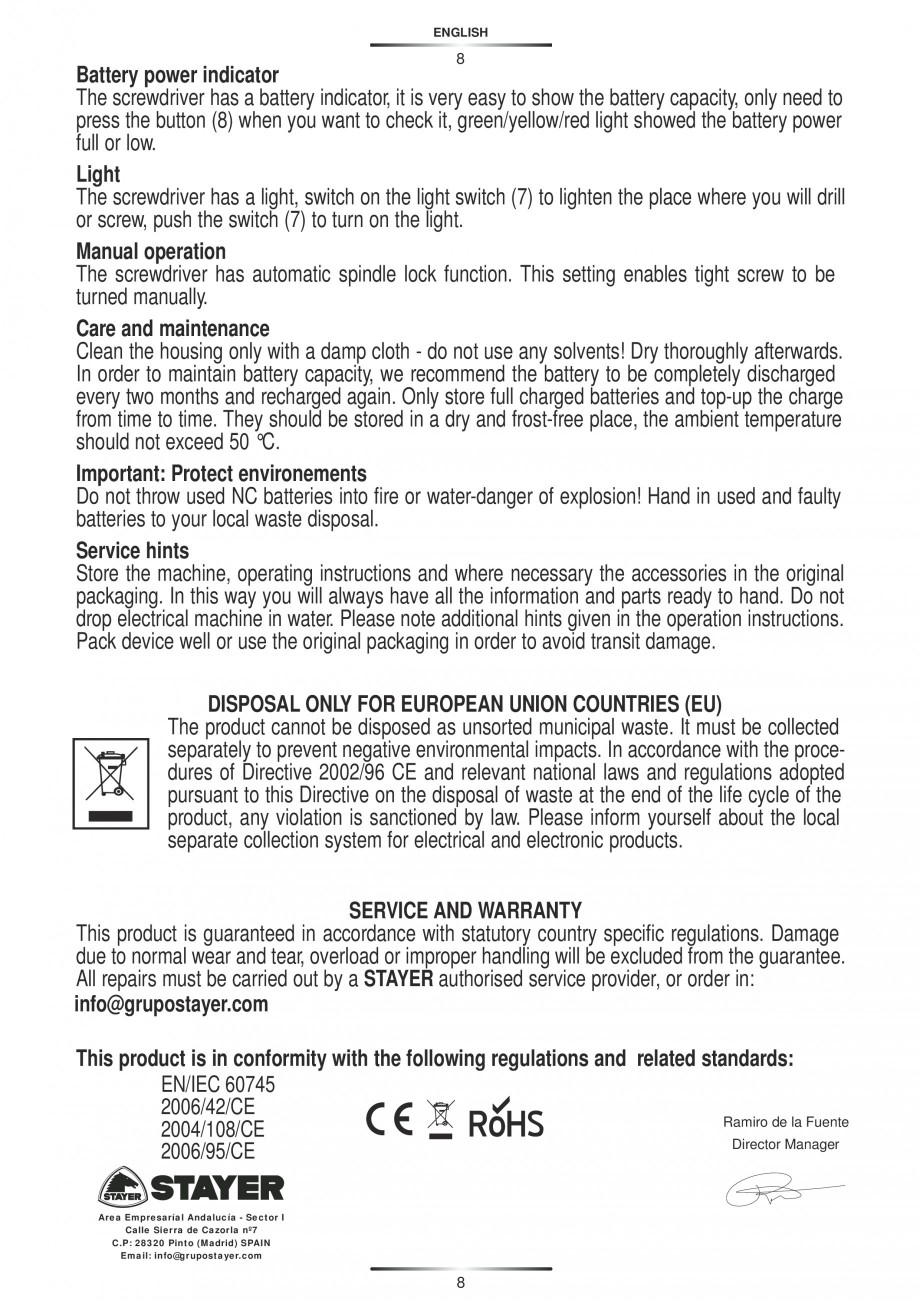

Pagina 9-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

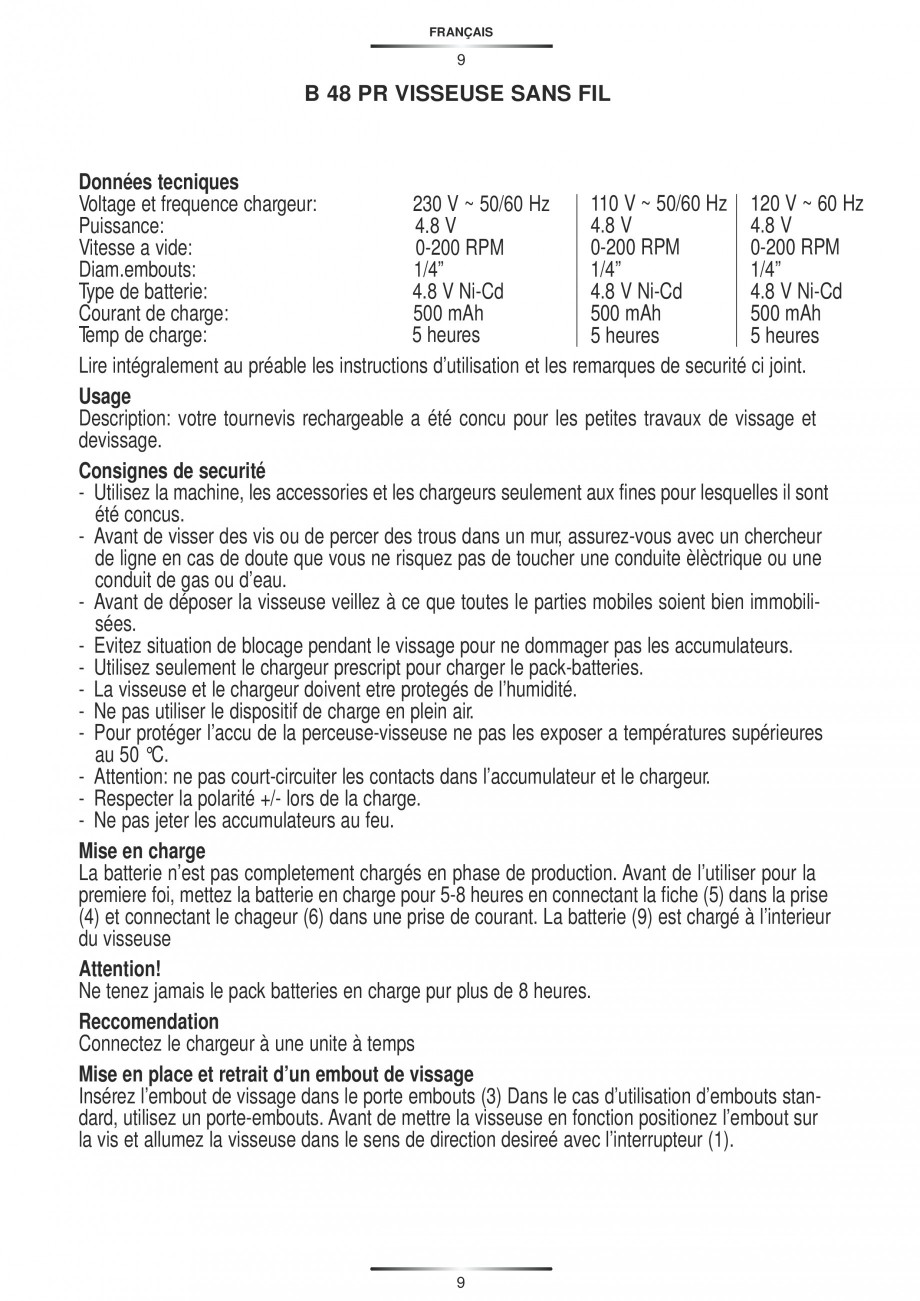

Pagina 10-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

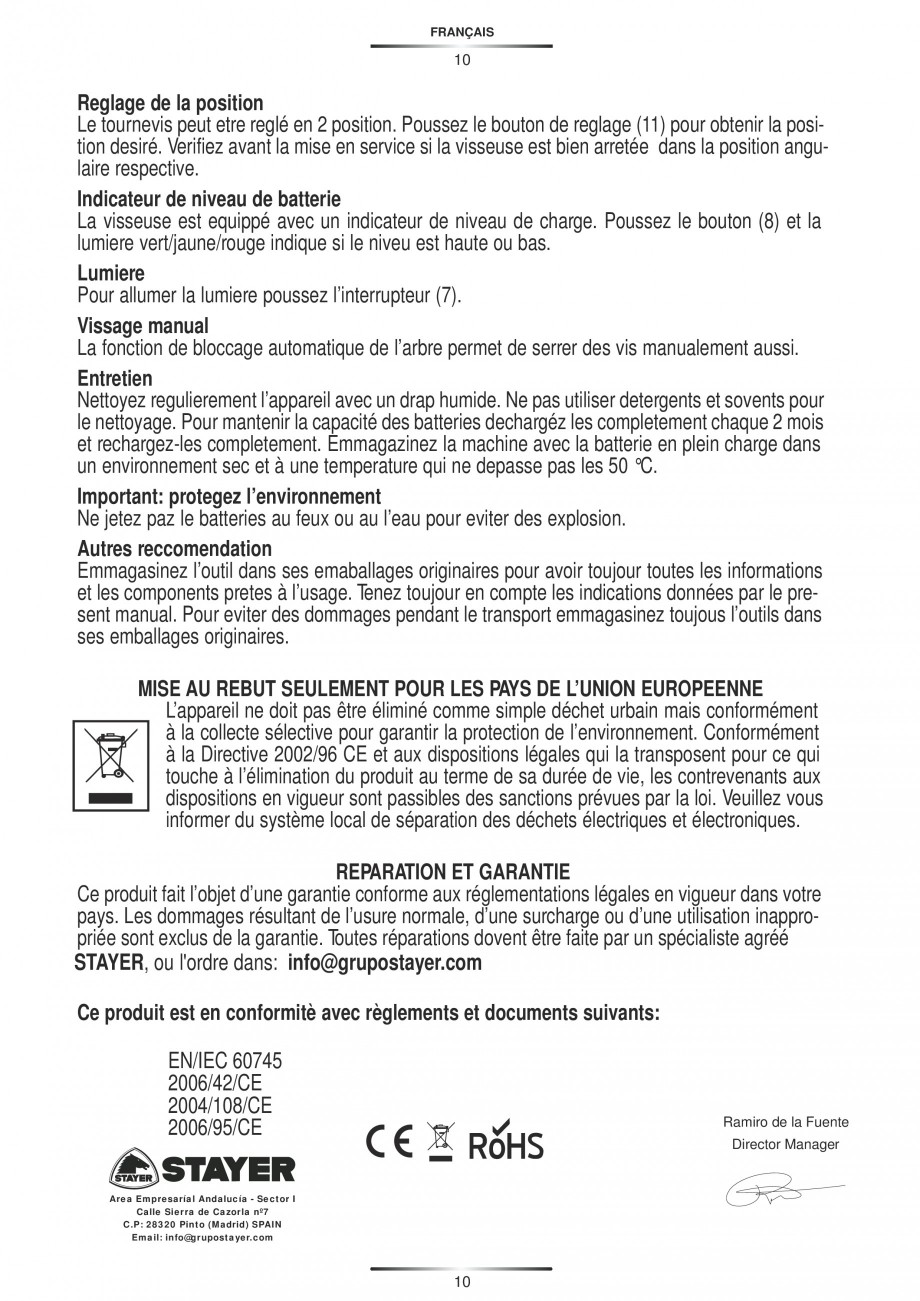

Pagina 11-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

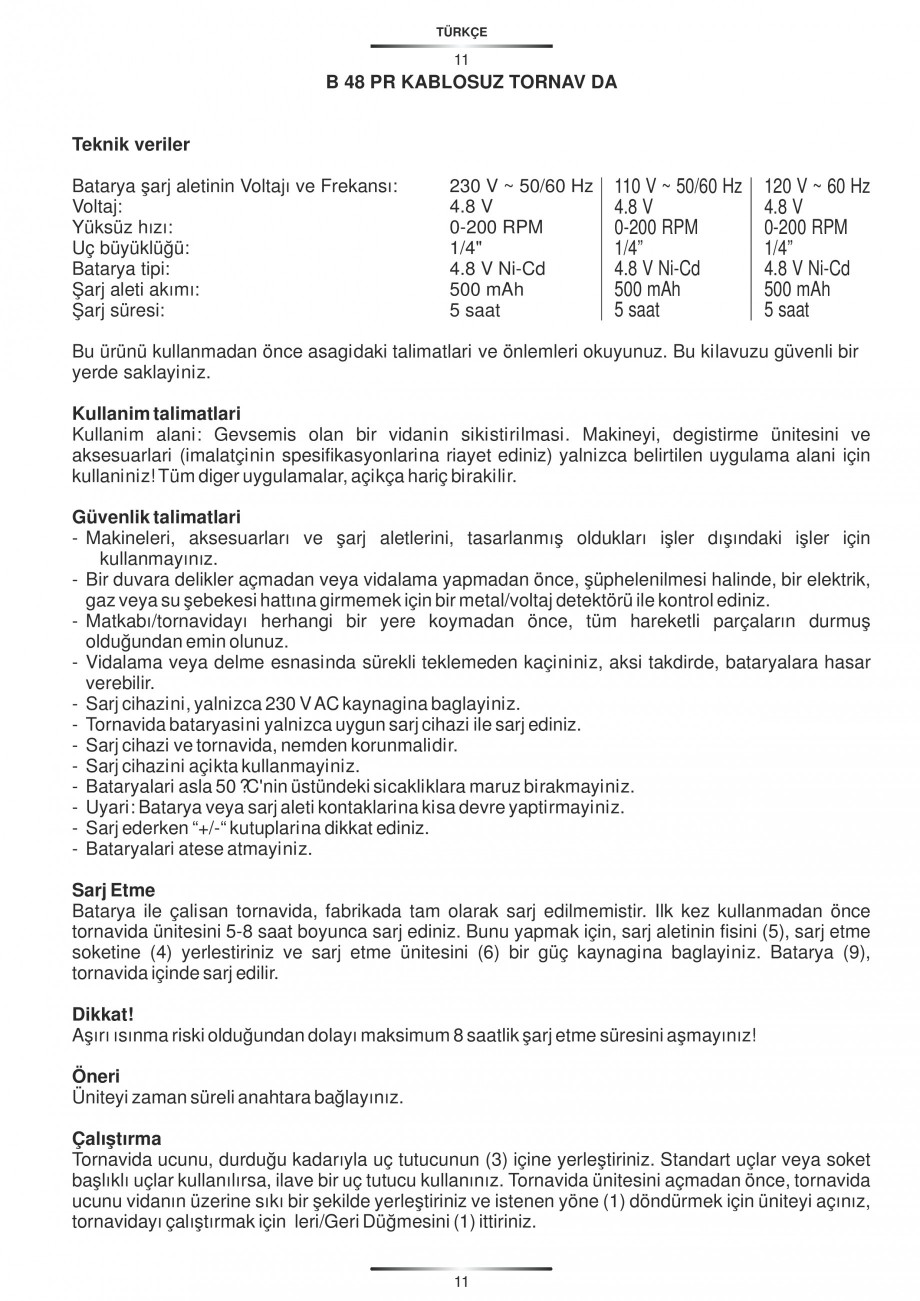

Pagina 12-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...
Pagina 13-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...
Pagina 14-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...
Pagina 15-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...

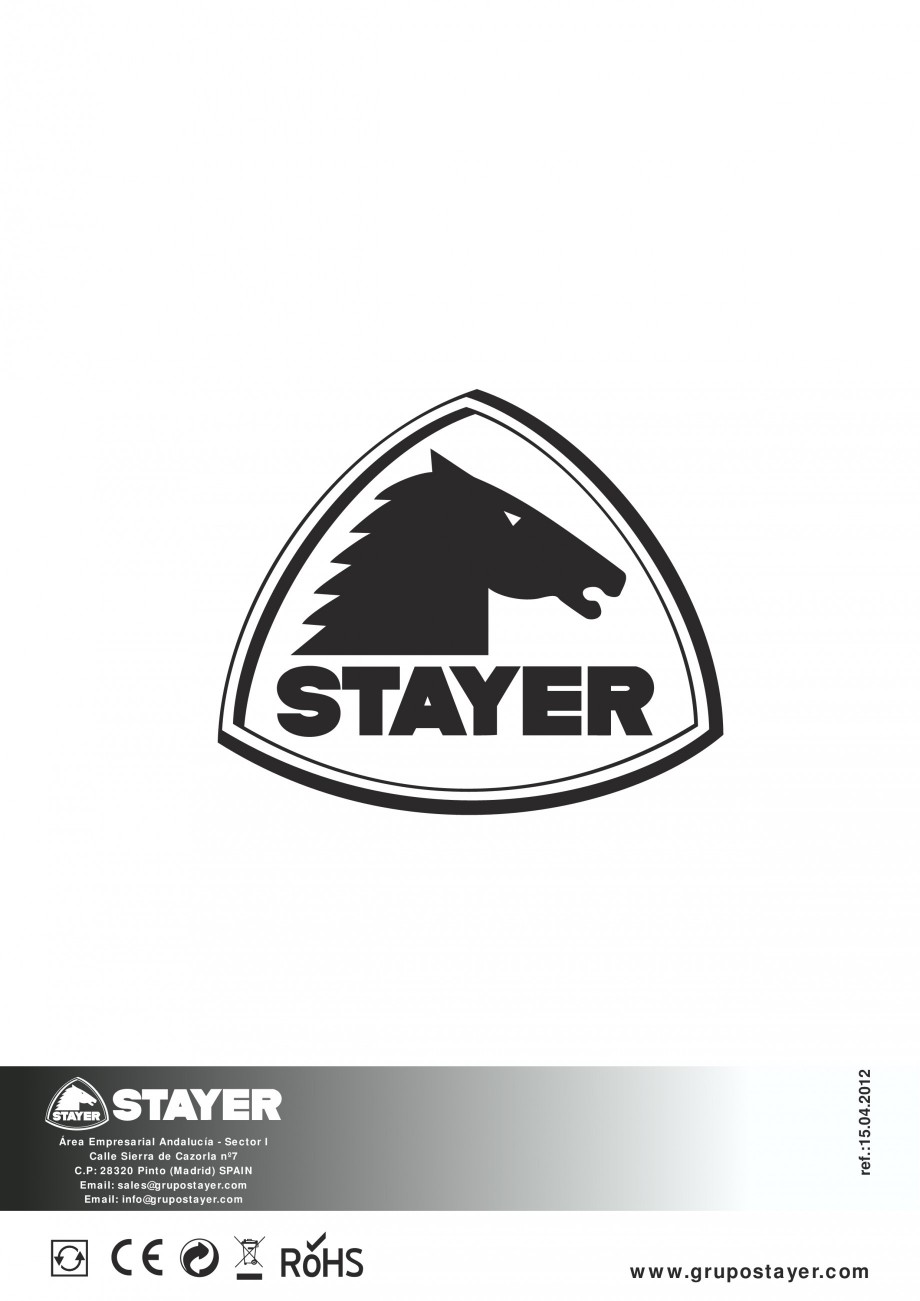

Pagina 16-Masina de insurubat cu acumulator Ni-Cd 4.8 V STAYER B48 PR KIT Instructiuni montaj, utilizare...
is a risk of overheating! Reccomendation Connect the unit up to a time switch. Operation Insert the screwdriver bit into the bit holder (3) as far as the stop. If standard bits or socket-head bits are used, use an additional bit holder. Before switching on the screwdriver unit locate the screwdriver bit firmly on the screw and switch on the unit to rotate in the desired direction (1), push the Forward/Reverse Switch (1) to operate the screwdriver. Angle adjustment The screwdriver has 2 angle position adjustment, press the lock switch (11) to get the appropriate angle position you need, the hinge allows the screwdriver handle to be angled for better power transmission. 7 ENGLISH 8 Battery power indicator The screwdriver has a battery indicator, it is very easy to show the battery capacity, only need to press the button (8) when you want to check it, green/yellow/red light showed the battery power full or low. Light The screwdriver has a light, switch on the light switch (7) to lig ... ascunde
