Pagina 1 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

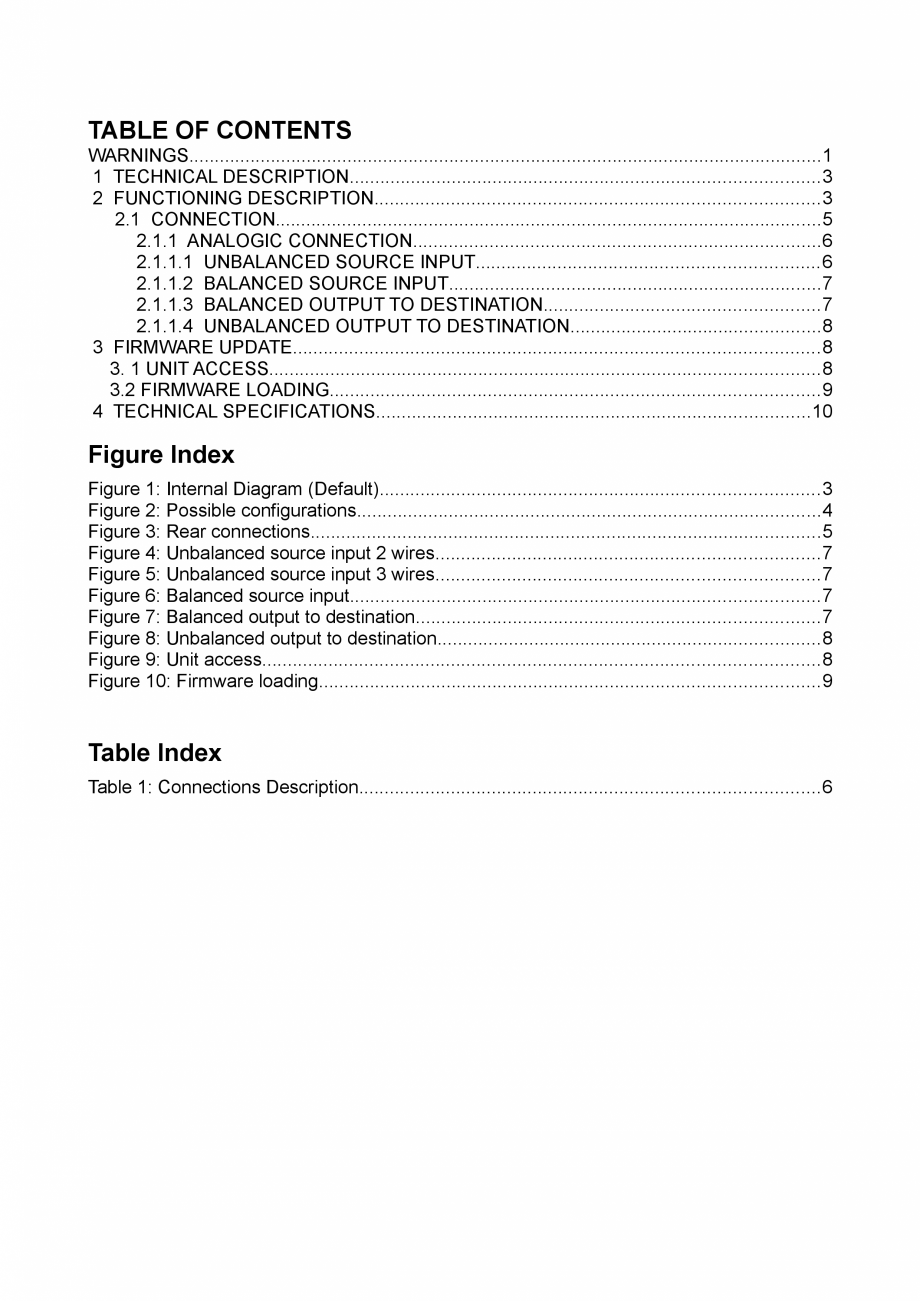

User’s Manual Digital Audio Matrix ZES-22 TABLE OF CONTENTS WARNINGS............................................................................................................................1 1 TECHNICAL DESCRIPTION............................................................................................3 2 FUNCTIONING DESCRIPTION.......................................................................................3 2.1 CONNECTION...........................................................................................................5 2.1.1 ANALOGIC CONNECTION................................................................................6 2.1.1.1 UNBALANCED SOURCE INPUT...................................................................6 2.1.1.2 BALANCED SOURCE INPUT.........................................................................7 2.1.1.3 BALANCED OUTPUT TO DESTINATION......................................................7 2.1.1.4 UNBALANCED OUTPUT TO DESTINATION.

Pagina 1-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 2 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

................................................8 3 FIRMWARE UPDATE.......................................................................................................8 3. 1 UNIT ACCESS............................................................................................................8 3.2 FIRMWARE LOADING................................................................................................9 4 TECHNICAL SPECIFICATIONS.....................................................................................10 Figure Index Figure 1: Internal Diagram (Default)......................................................................................3 Figure 2: Possible configurations...........................................................................................4 Figure 3: Rear connections....................................................................................................5 Figure 4: Unbalanced source input 2 wires.....................................

Pagina 2-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 3 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

......................................7 Figure 5: Unbalanced source input 3 wires...........................................................................7 Figure 6: Balanced source input............................................................................................7 Figure 7: Balanced output to destination...............................................................................7 Figure 8: Unbalanced output to destination...........................................................................8 Figure 9: Unit access.............................................................................................................8 Figure 10: Firmware loading..................................................................................................9 Table Index Table 1: Connections Description..........................................................................................6 USER’S MANUAL – LDA ZES-22 WARNINGS 1. Read this manual before handling t

Pagina 3-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 4 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

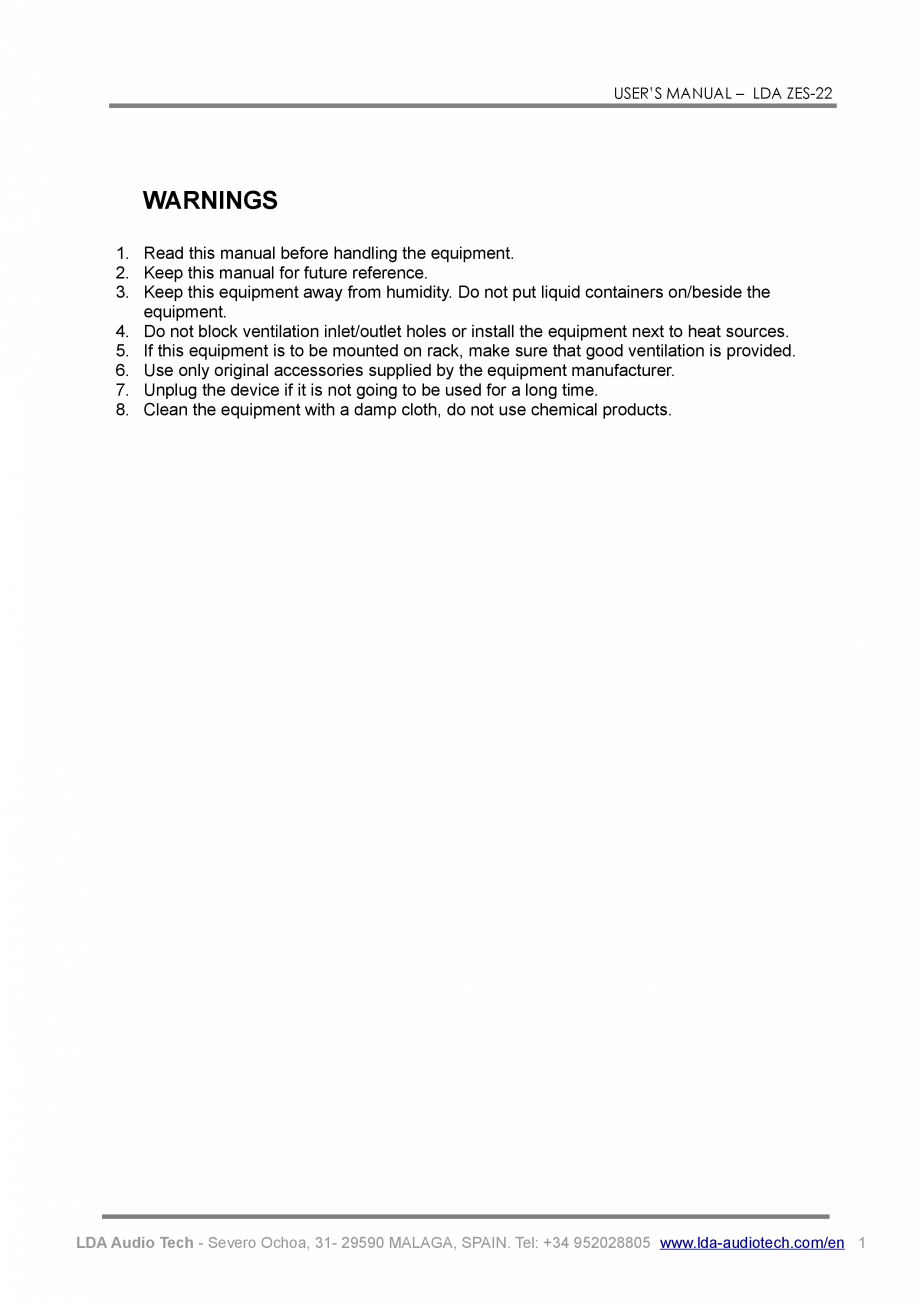

he equipment. 2. Keep this manual for future reference. 3. Keep this equipment away from humidity. Do not put liquid containers on/beside the equipment. 4. Do not block ventilation inlet/outlet holes or install the equipment next to heat sources. 5. If this equipment is to be mounted on rack, make sure that good ventilation is provided. 6. Use only original accessories supplied by the equipment manufacturer. 7. Unplug the device if it is not going to be used for a long time. 8. Clean the equipment with a damp cloth, do not use chemical products. LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en 1 USER’S MANUAL – LDA ZES-22 1 TECHNICAL DESCRIPTION LDA ZES-22 is an audio DSP matrix based on the COBRANET™. over Ethernet market standards. The ZES-22 has 4 channels of audio input and 4 channels of audio output being these configured by software as channel input or output. It may have up to four channels of input or output so be ab

Pagina 4-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 5 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

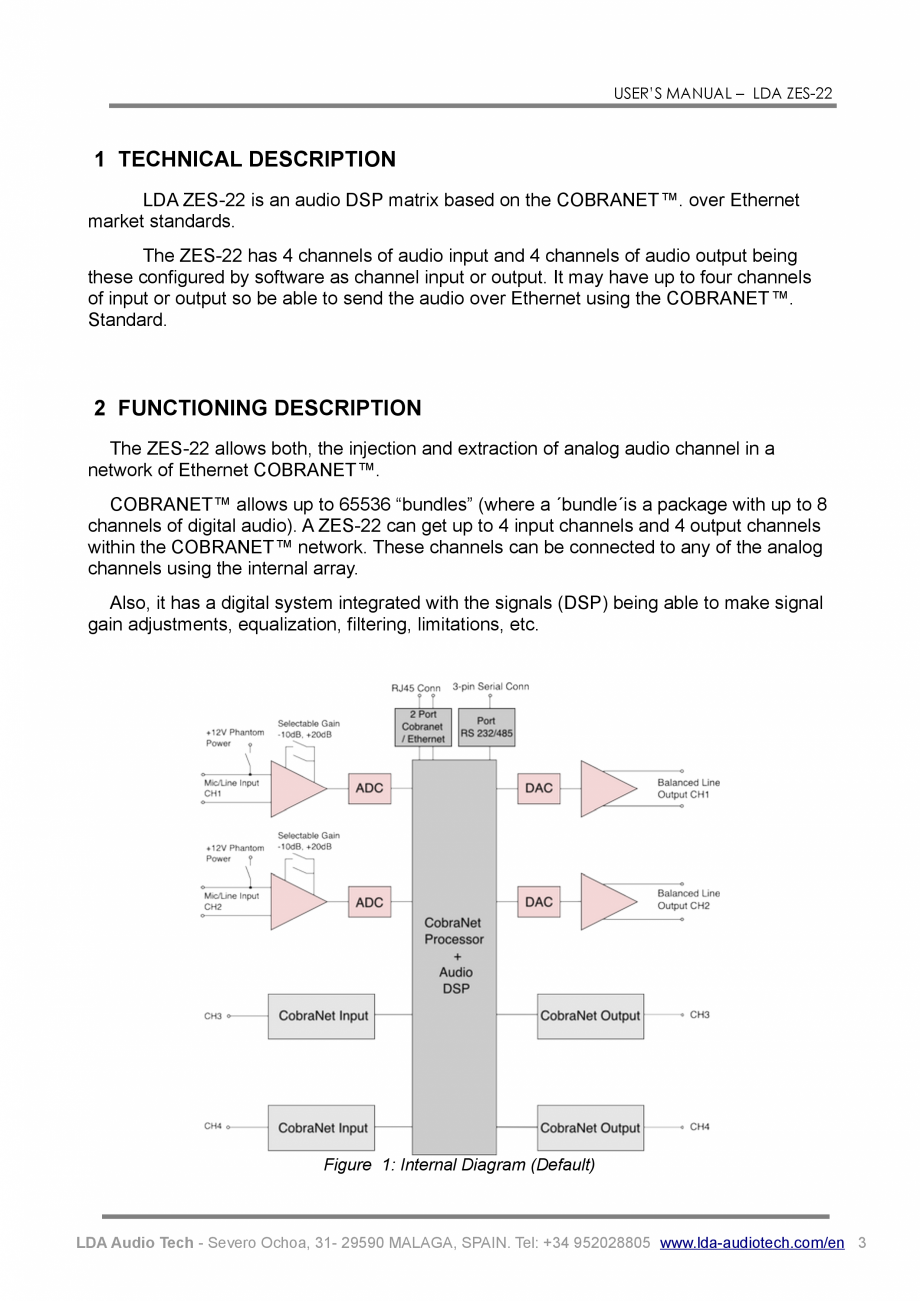

le to send the audio over Ethernet using the COBRANET™. Standard. 2 FUNCTIONING DESCRIPTION The ZES-22 allows both, the injection and extraction of analog audio channel in a network of Ethernet COBRANET™. COBRANET™ allows up to 65536 “bundles” (where a ´bundle´is a package with up to 8 channels of digital audio). A ZES-22 can get up to 4 input channels and 4 output channels within the COBRANET™ network. These channels can be connected to any of the analog channels using the internal array. Also, it has a digital system integrated with the signals (DSP) being able to make signal gain adjustments, equalization, filtering, limitations, etc. Figure 1: Internal Diagram (Default) LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en 3 Figure 1 shows a ZES22 configured as 2 channels of analog audio input + 2 CobraNet input channels and 2 analog output channels + 2 CobraNet output channels. The analog input channels can be microp

Pagina 5-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 6 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

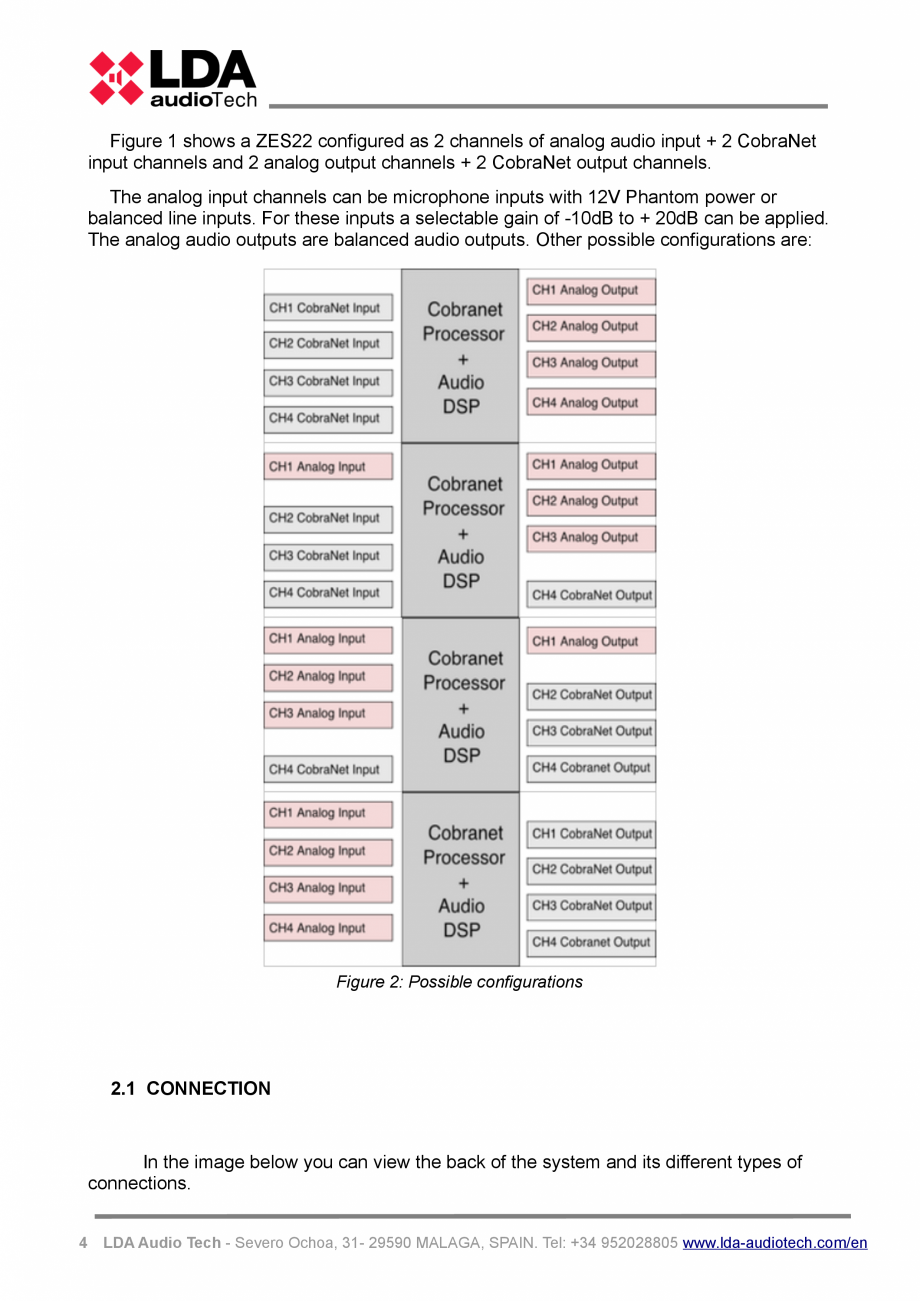

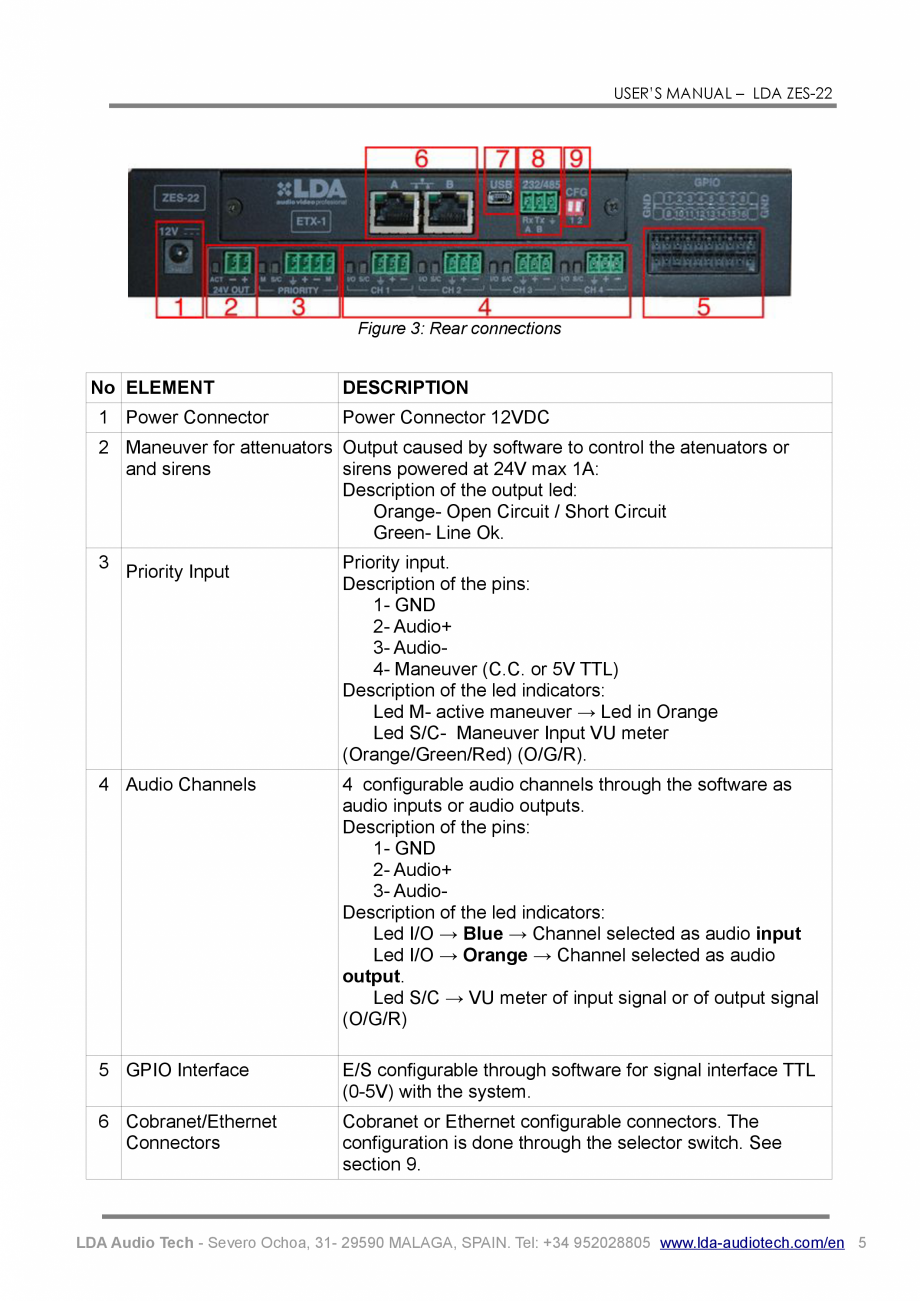

hone inputs with 12V Phantom power or balanced line inputs. For these inputs a selectable gain of -10dB to + 20dB can be applied. The analog audio outputs are balanced audio outputs. Other possible configurations are: Figure 2: Possible configurations 2.1 CONNECTION In the image below you can view the back of the system and its different types of connections. 4 LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en USER’S MANUAL – LDA ZES-22 Figure 3: Rear connections No ELEMENT 1 Power Connector DESCRIPTION Power Connector 12VDC 2 Maneuver for attenuators Output caused by software to control the atenuators or and sirens sirens powered at 24V max 1A: Description of the output led: Orange- Open Circuit / Short Circuit Green- Line Ok. 3 Priority Input Priority input. Description of the pins: 1- GND 2- Audio+ 3- Audio4- Maneuver (C.C. or 5V TTL) Description of the led indicators: Led M- active maneuver → Led in Orange Led S/C-

Pagina 6-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 7 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

Maneuver Input VU meter (Orange/Green/Red) (O/G/R). 4 Audio Channels 4 configurable audio channels through the software as audio inputs or audio outputs. Description of the pins: 1- GND 2- Audio+ 3- AudioDescription of the led indicators: Led I/O → Blue → Channel selected as audio input Led I/O → Orange → Channel selected as audio output. Led S/C → VU meter of input signal or of output signal (O/G/R) 5 GPIO Interface E/S configurable through software for signal interface TTL (0-5V) with the system. 6 Cobranet/Ethernet Connectors Cobranet or Ethernet configurable connectors. The configuration is done through the selector switch. See section 9. LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en 5 7 Mini-USB Connector Mini-Usb Female Connector Type AB. 8 Interface 232/485 Interface 232/485: Description of the pins: 1- Rx-A 2- TX-B 3- GND 9 Switch selector of Cobranet/ Ethernet connectors. Description of the selection

Pagina 7-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 8 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

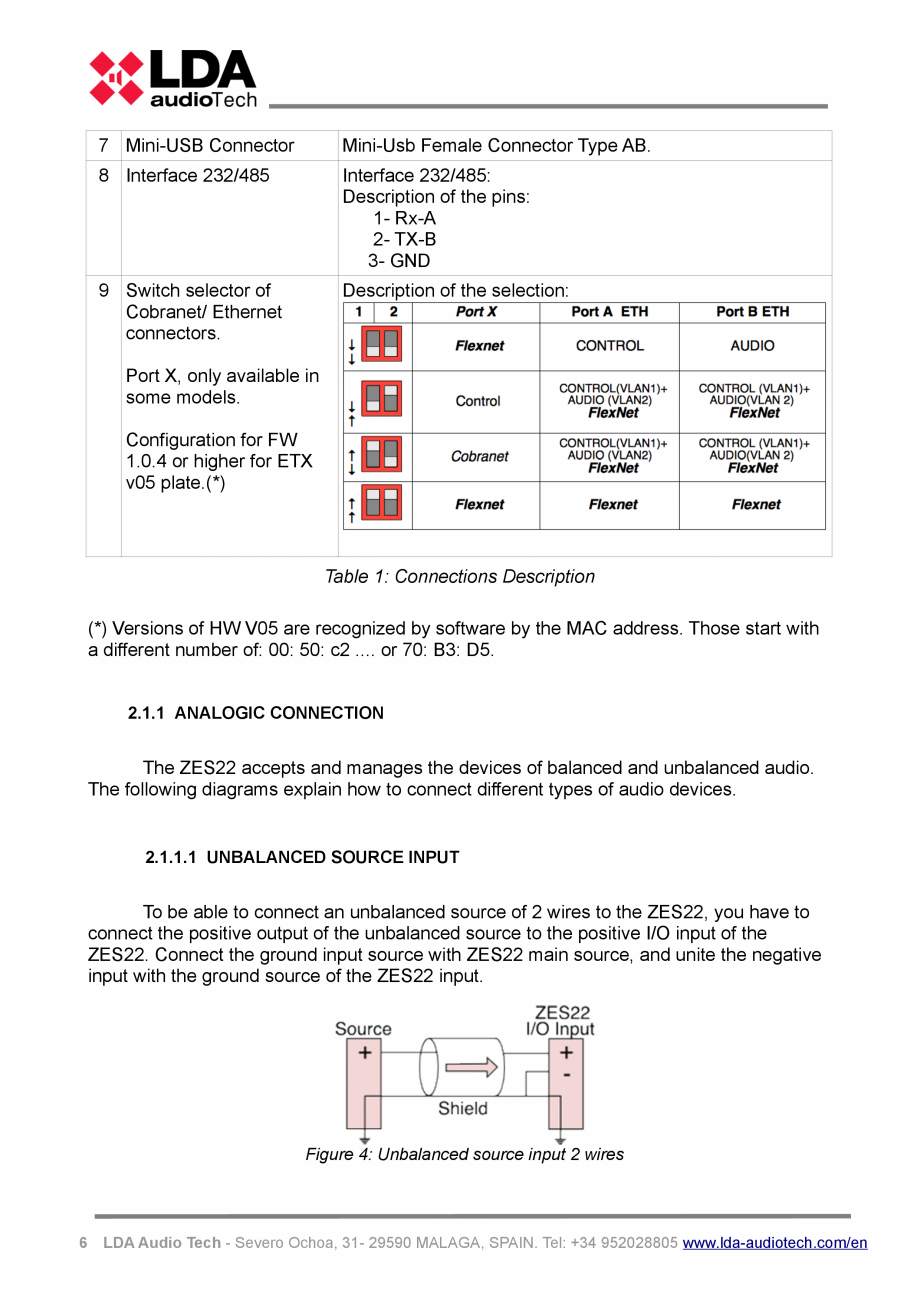

: Port X, only available in some models. Configuration for FW 1.0.4 or higher for ETX v05 plate.(*) Table 1: Connections Description (*) Versions of HW V05 are recognized by software by the MAC address. Those start with a different number of: 00: 50: c2 .... or 70: B3: D5. 2.1.1 ANALOGIC CONNECTION The ZES22 accepts and manages the devices of balanced and unbalanced audio. The following diagrams explain how to connect different types of audio devices. 2.1.1.1 UNBALANCED SOURCE INPUT To be able to connect an unbalanced source of 2 wires to the ZES22, you have to connect the positive output of the unbalanced source to the positive I/O input of the ZES22. Connect the ground input source with ZES22 main source, and unite the negative input with the ground source of the ZES22 input. Figure 4: Unbalanced source input 2 wires 6 LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en USER’S MANUAL – LDA ZES-22 To connect an unbalanced

Pagina 8-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 9 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA...

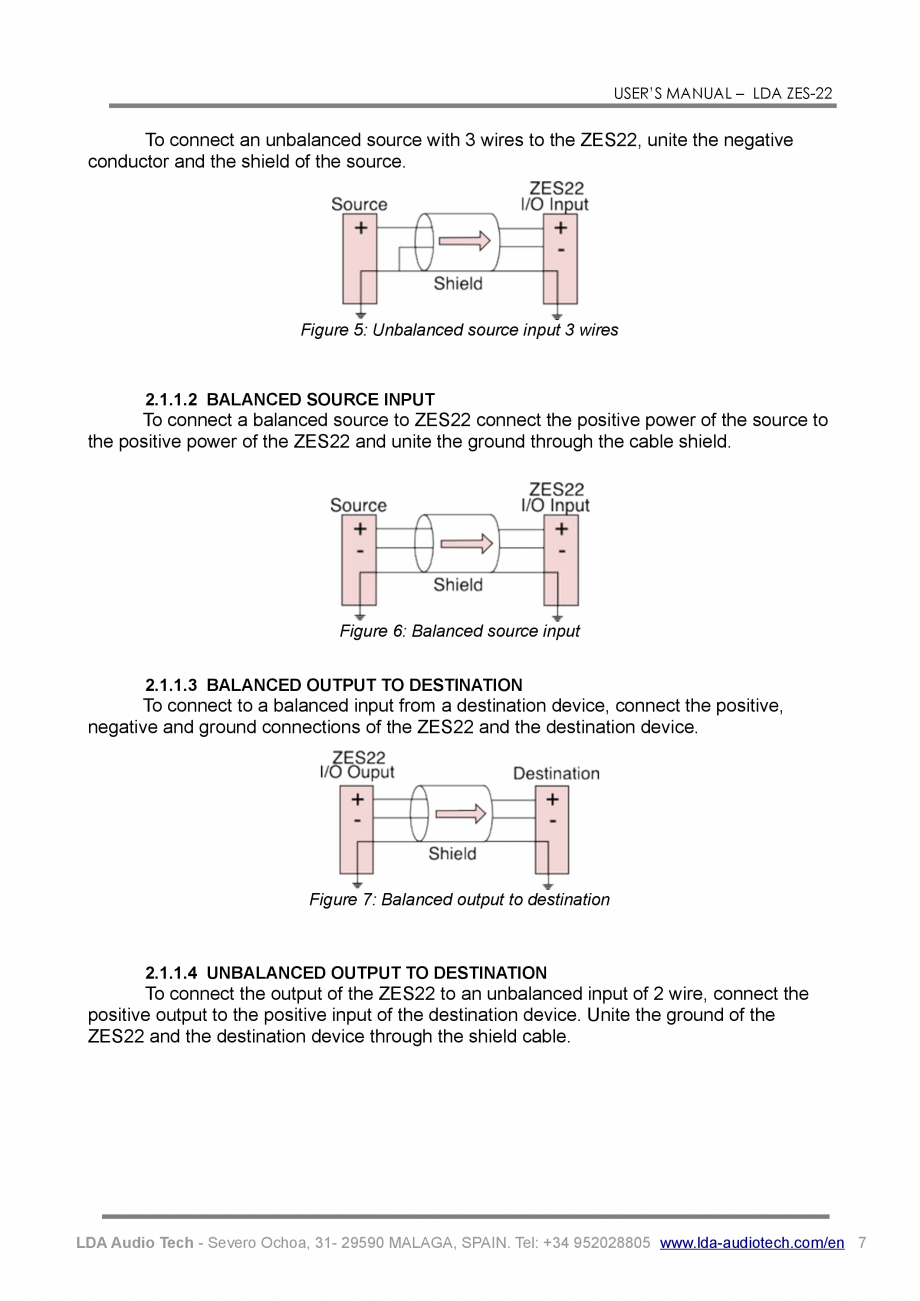

source with 3 wires to the ZES22, unite the negative conductor and the shield of the source. Figure 5: Unbalanced source input 3 wires 2.1.1.2 BALANCED SOURCE INPUT To connect a balanced source to ZES22 connect the positive power of the source to the positive power of the ZES22 and unite the ground through the cable shield. Figure 6: Balanced source input 2.1.1.3 BALANCED OUTPUT TO DESTINATION To connect to a balanced input from a destination device, connect the positive, negative and ground connections of the ZES22 and the destination device. Figure 7: Balanced output to destination 2.1.1.4 UNBALANCED OUTPUT TO DESTINATION To connect the output of the ZES22 to an unbalanced input of 2 wire, connect the positive output to the positive input of the destination device. Unite the ground of the ZES22 and the destination device through the shield cable. LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en 7 Figure 8: Unbalanced outpu

Pagina 9-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 10 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul...

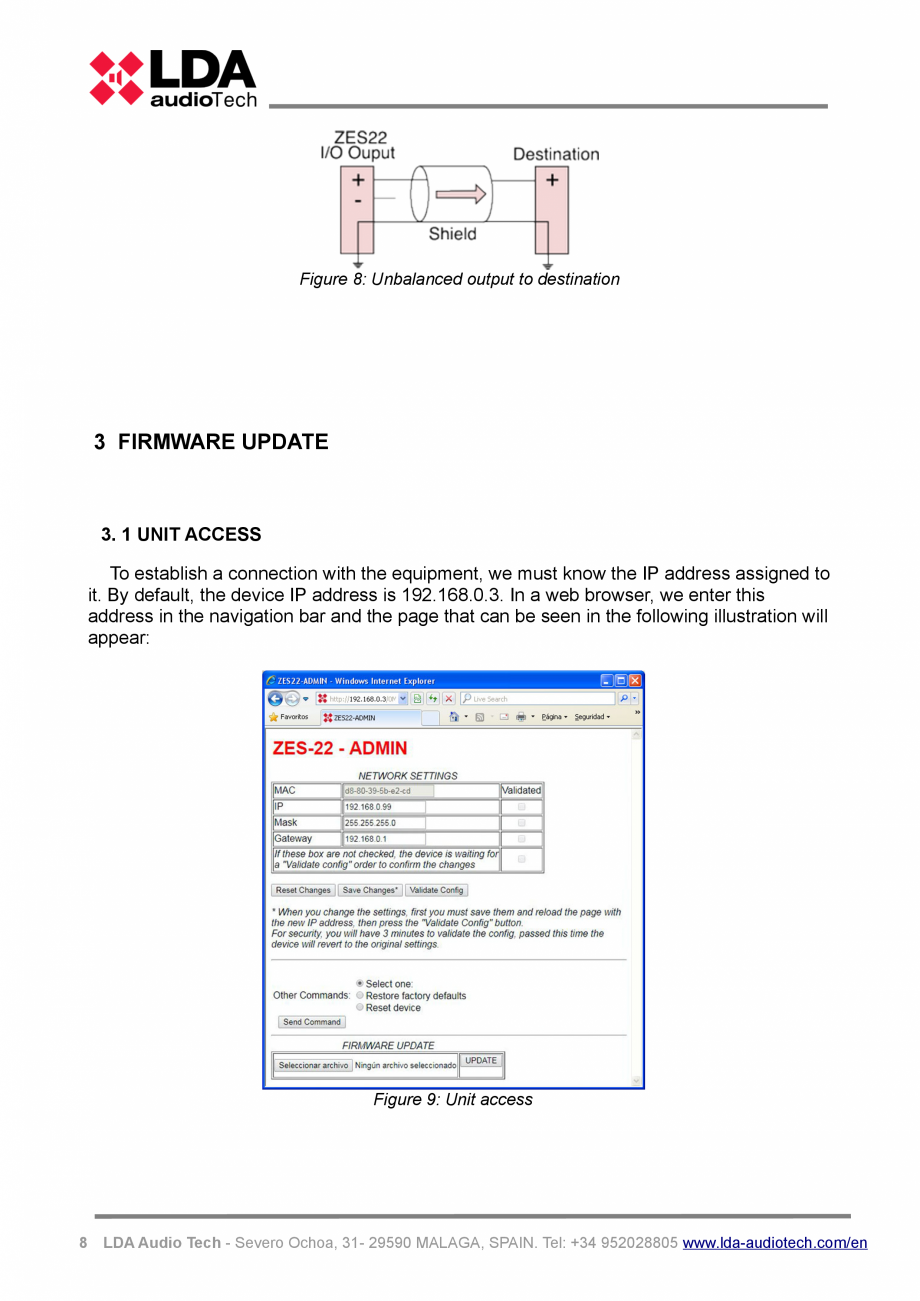

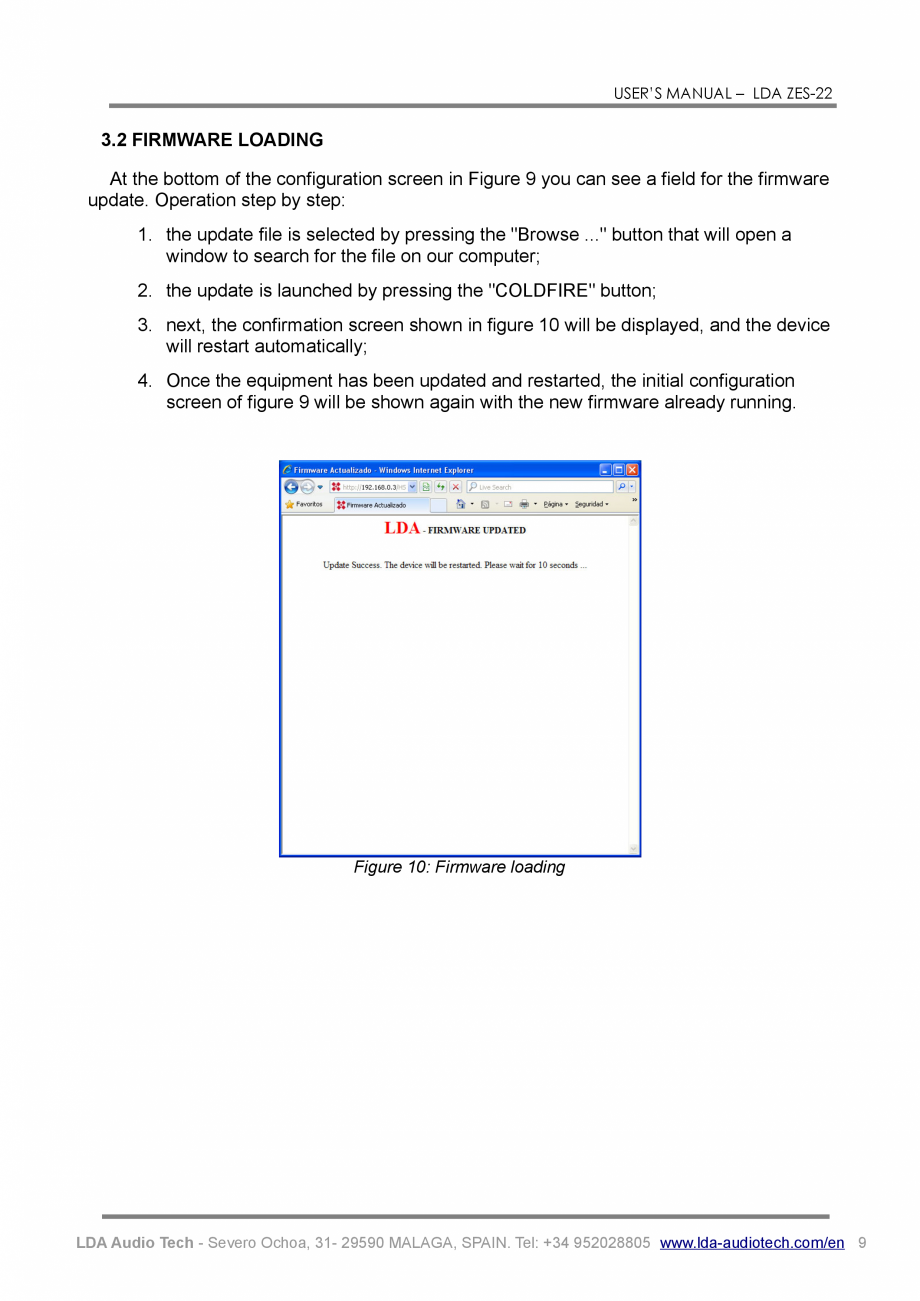

t to destination 3 FIRMWARE UPDATE 3. 1 UNIT ACCESS To establish a connection with the equipment, we must know the IP address assigned to it. By default, the device IP address is 192.168.0.3. In a web browser, we enter this address in the navigation bar and the page that can be seen in the following illustration will appear: Figure 9: Unit access 8 LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en USER’S MANUAL – LDA ZES-22 3.2 FIRMWARE LOADING At the bottom of the configuration screen in Figure 9 you can see a field for the firmware update. Operation step by step: 1. the update file is selected by pressing the "Browse ..." button that will open a window to search for the file on our computer; 2. the update is launched by pressing the "COLDFIRE" button; 3. next, the confirmation screen shown in figure 10 will be displayed, and the device will restart automatically; 4. Once the equipment has been updated and restarted, the in

Pagina 10-Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul PA/VA NEO LDA...

Pagina 11 - Manualul utilizatorului - Converter audio over Ethernet cu 4 canale pentru sistemul...

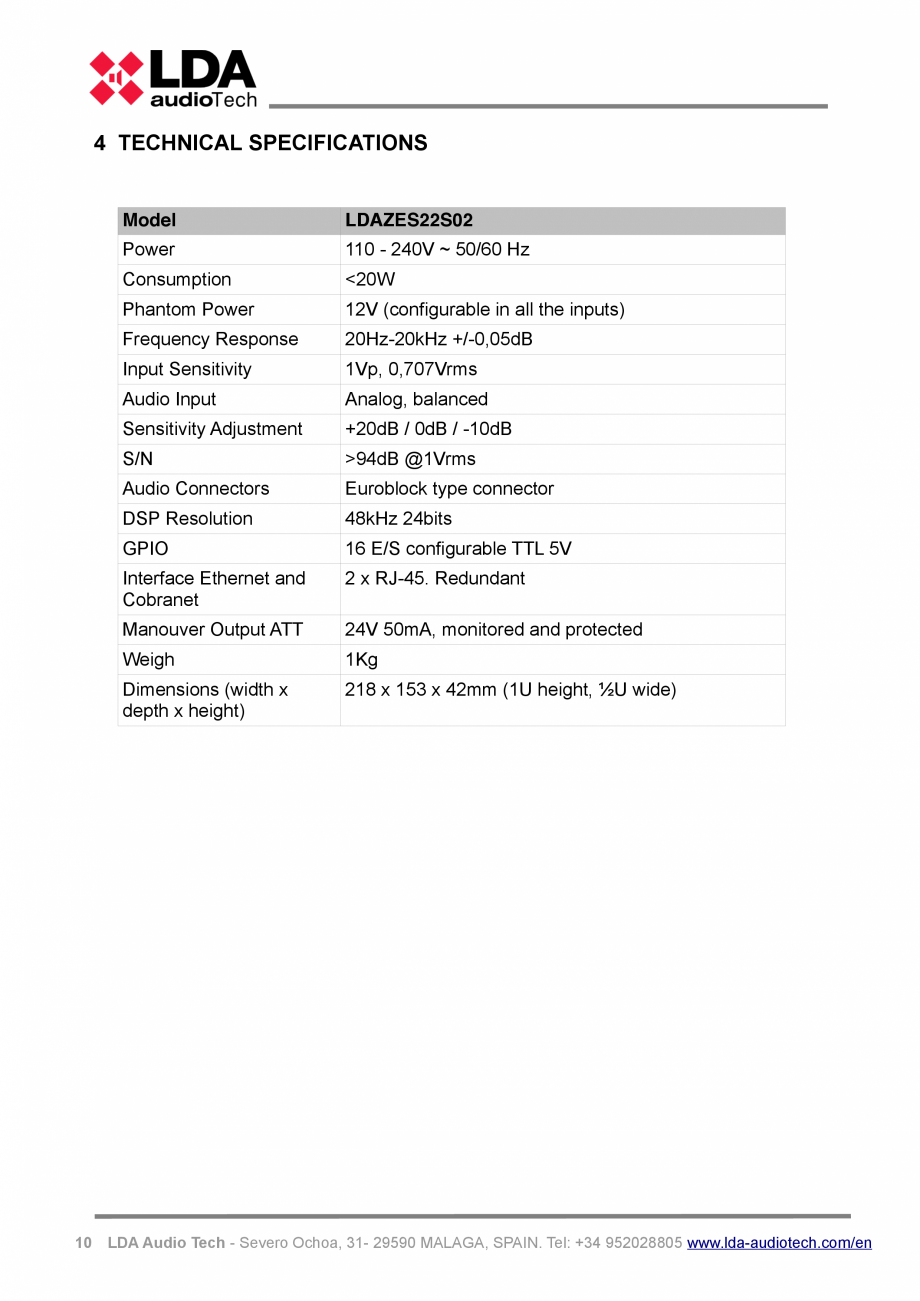

itial configuration screen of figure 9 will be shown again with the new firmware already running. Figure 10: Firmware loading LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en 9 4 TECHNICAL SPECIFICATIONS 10 Model LDAZES22S02 Power 110 - 240V ~ 50/60 Hz Consumption <20W Phantom Power 12V (configurable in all the inputs) Frequency Response 20Hz-20kHz +/-0,05dB Input Sensitivity 1Vp, 0,707Vrms Audio Input Analog, balanced Sensitivity Adjustment +20dB / 0dB / -10dB S/N >94dB @1Vrms Audio Connectors Euroblock type connector DSP Resolution 48kHz 24bits GPIO 16 E/S configurable TTL 5V Interface Ethernet and Cobranet 2 x RJ-45. Redundant Manouver Output ATT 24V 50mA, monitored and protected Weigh 1Kg Dimensions (width x depth x height) 218 x 153 x 42mm (1U height, ½U wide) LDA Audio Tech - Severo Ochoa, 31- 29590 MALAGA, SPAIN. Tel: +34 952028805 www.lda-audiotech.com/en Rev. 3.2
