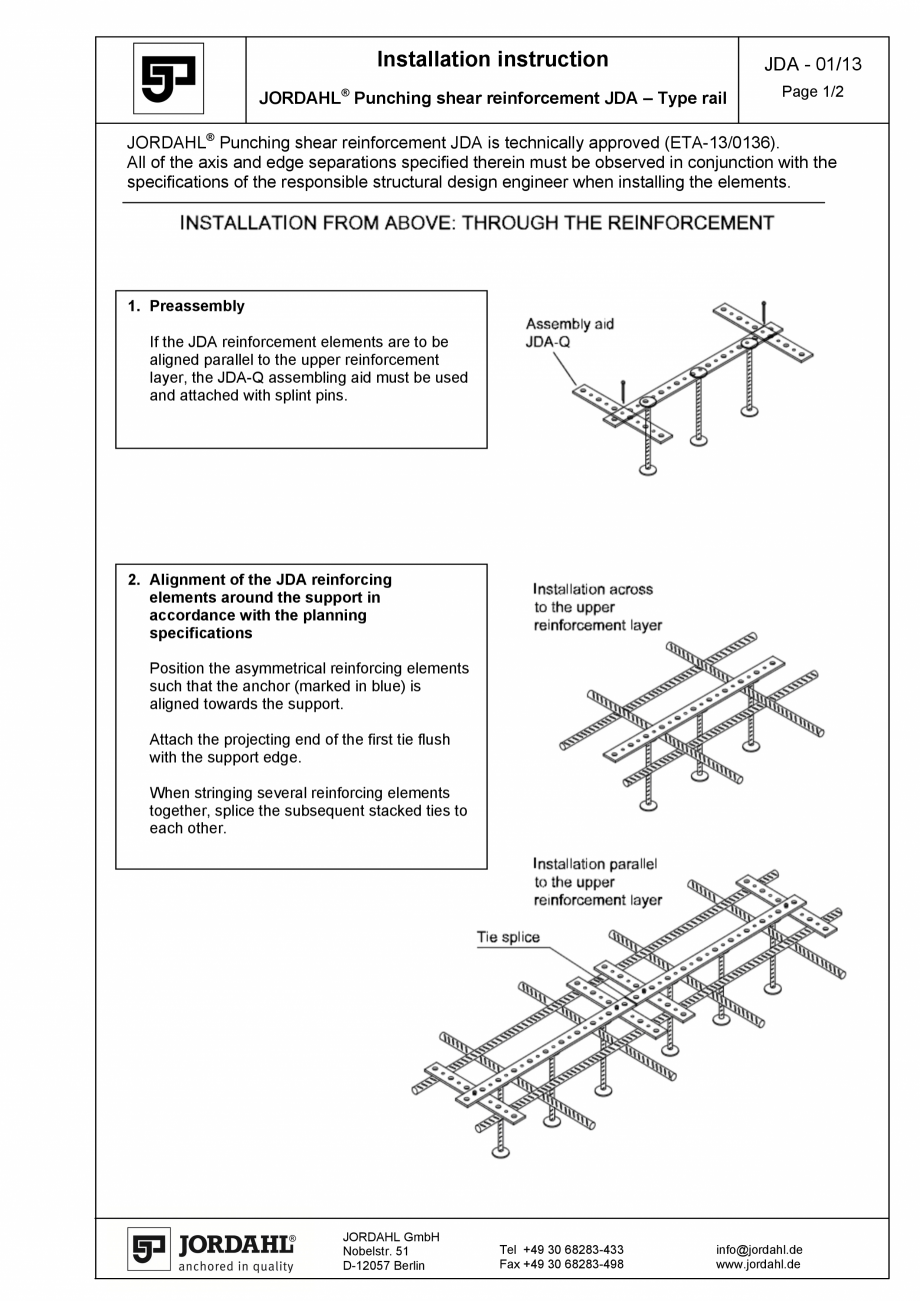

Pagina 1-Instructiuni de montaj pentru armatura la strapungere JORDAHL Instructiuni montaj, utilizare Engleza...
Pagina 2-Instructiuni de montaj pentru armatura la strapungere JORDAHL Instructiuni montaj, utilizare Engleza...
in Tel +49 30 68283-433 Fax +49 30 68283-498 info@jordahl.de www.jordahl.de Installation instruction JDA - 01/13 JORDAHL® Punching shear reinforcement JDA – Type rail Page 2/2 JORDAHL® Punching shear reinforcement JDA is technically approved (ETA-13/0136). All of the axis and edge separations specified therein must be observed in conjunction with the specifications of the responsible structural design engineer when installing the elements. 1. Preassembly JDA-Q assembling aid must be attached with splint pins. Attach spacers to comply with the required concrete cover. 2. Alignment of the JDA reinforcing elements around the support in accordance with the planning specifications. Position the asymmetrical reinforcing elements such that the anchor (marked in blue) is aligned towards the support. Attach the projecting end of the first tie flush with the support edge. When stringing several reinforcing elements together, splice the subsequent stacked ties to each other. 3. Low ... ascunde
