Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+ Rigid Grade

Limba: Engleza

1 afisari

Tip documentatie: Instructiuni montaj, utilizare

Pagina 1 - Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+...

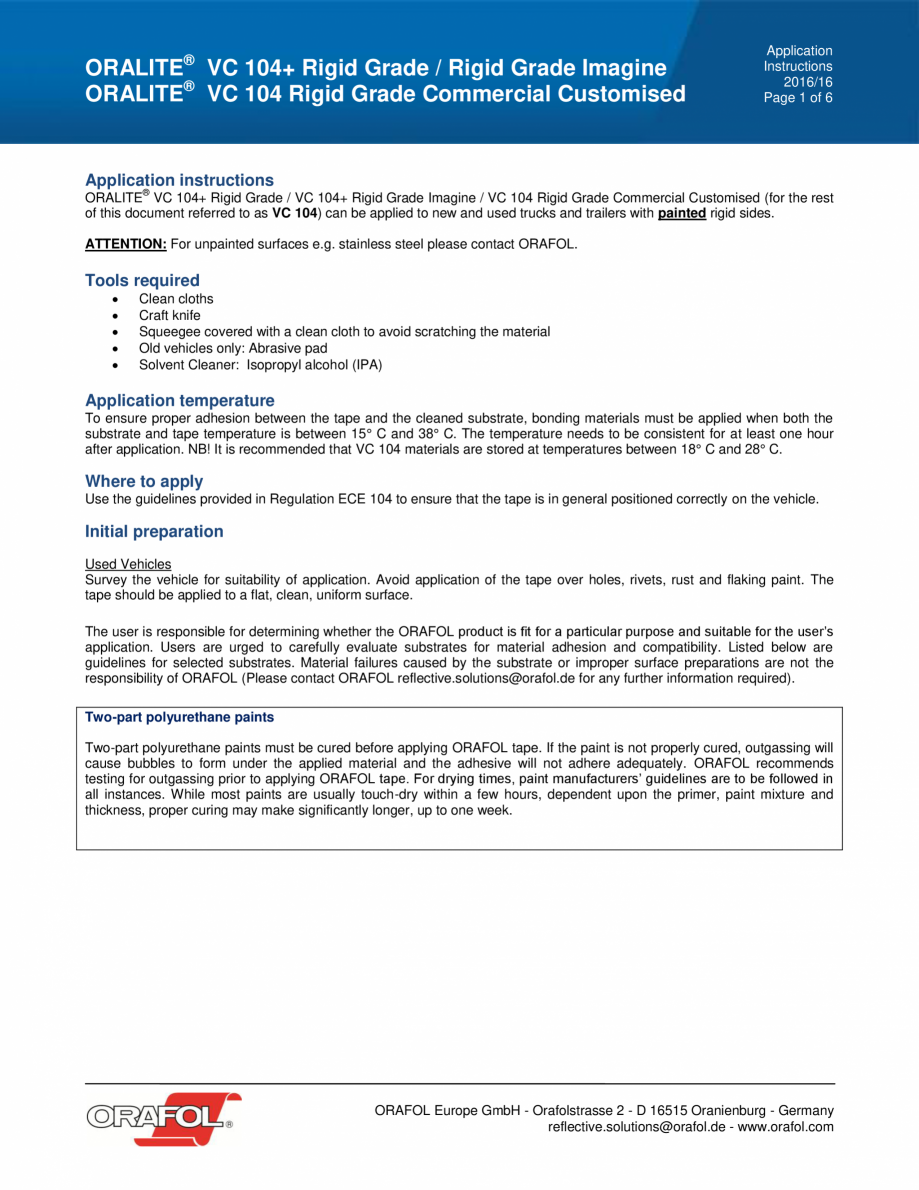

ORALITE® VC 104+ Rigid Grade / Rigid Grade Imagine ORALITE® VC 104 Rigid Grade Commercial Customised Application Instructions 2016/16 Page 1 of 6 Application instructions ® ORALITE VC 104+ Rigid Grade / VC 104+ Rigid Grade Imagine / VC 104 Rigid Grade Commercial Customised (for the rest of this document referred to as VC 104) can be applied to new and used trucks and trailers with painted rigid sides. ATTENTION: For unpainted surfaces e.g. stainless steel please contact ORAFOL. Tools required      Clean cloths Craft knife Squeegee covered with a clean cloth to avoid scratching the material Old vehicles only: Abrasive pad Solvent Cleaner: Isopropyl alcohol (IPA) Application temperature To ensure proper adhesion between the tape and the cleaned substrate, bonding materials must be applied when both the substrate and tape temperature is between 15° C and 38° C. The temperature needs to be consistent for at least one hour after application. NB! It is recommended t

Pagina 1-Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+ Rigid...

Pagina 2 - Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+...

hat VC 104 materials are stored at temperatures between 18° C and 28° C. Where to apply Use the guidelines provided in Regulation ECE 104 to ensure that the tape is in general positioned correctly on the vehicle. Initial preparation Used Vehicles Survey the vehicle for suitability of application. Avoid application of the tape over holes, rivets, rust and flaking paint. The tape should be applied to a flat, clean, uniform surface. The user is responsible for determining whether the ORAFOL product is fit for a particular purpose and suitable for the user’s application. Users are urged to carefully evaluate substrates for material adhesion and compatibility. Listed below are guidelines for selected substrates. Material failures caused by the substrate or improper surface preparations are not the responsibility of ORAFOL (Please contact ORAFOL reflective.solutions@orafol.de for any further information required). Two-part polyurethane paints Two-part polyurethane paints must be cured

Pagina 2-Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+ Rigid...

Pagina 3 - Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+...

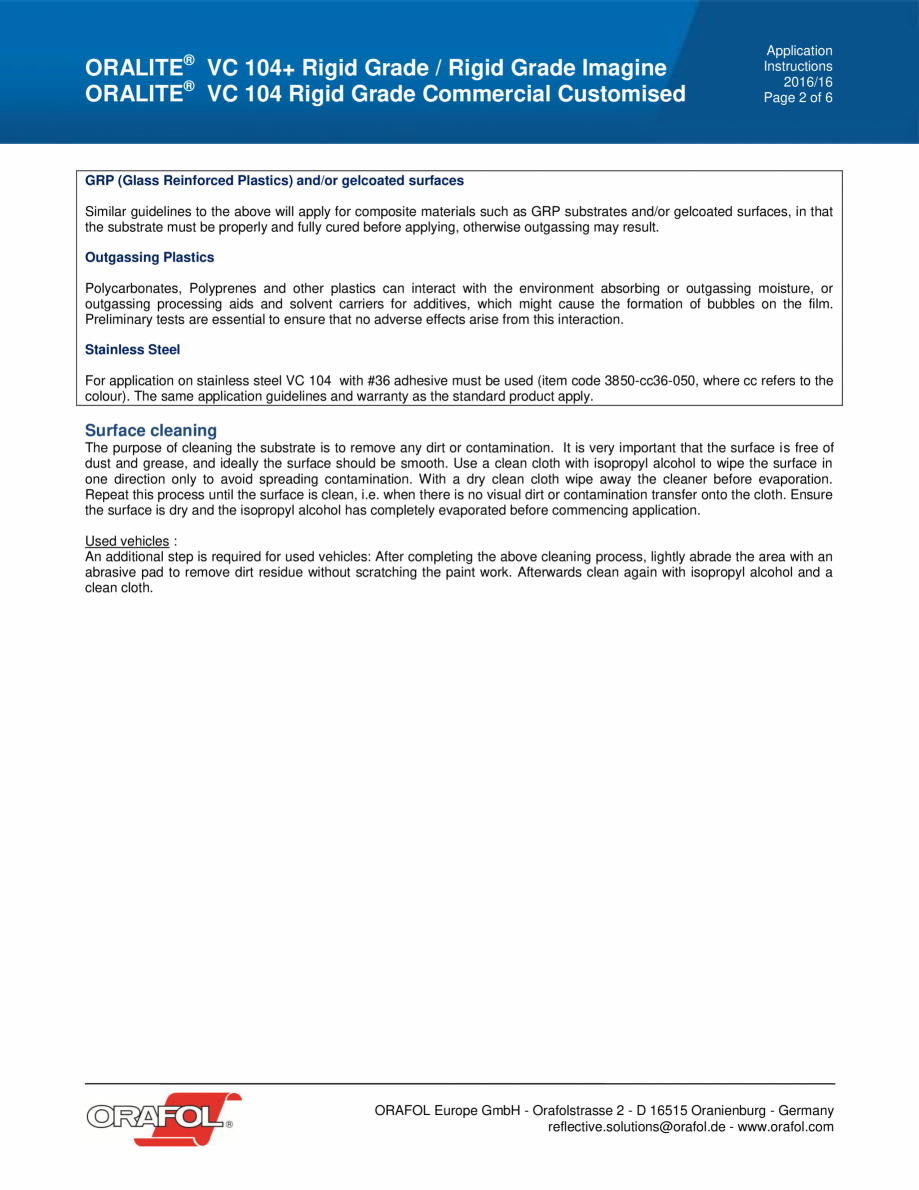

before applying ORAFOL tape. If the paint is not properly cured, outgassing will cause bubbles to form under the applied material and the adhesive will not adhere adequately. ORAFOL recommends testing for outgassing prior to applying ORAFOL tape. For drying times, paint manufacturers’ guidelines are to be followed in all instances. While most paints are usually touch-dry within a few hours, dependent upon the primer, paint mixture and thickness, proper curing may make significantly longer, up to one week. ORAFOL Europe GmbH - Orafolstrasse 2 - D 16515 Oranienburg - Germany reflective.solutions@orafol.de - www.orafol.com ORALITE® VC 104+ Rigid Grade / Rigid Grade Imagine ORALITE® VC 104 Rigid Grade Commercial Customised Application Instructions 2016/16 Page 2 of 6 GRP (Glass Reinforced Plastics) and/or gelcoated surfaces Similar guidelines to the above will apply for composite materials such as GRP substrates and/or gelcoated surfaces, in that the substrate must be properly and

Pagina 3-Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+ Rigid...

Pagina 4 - Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+...

fully cured before applying, otherwise outgassing may result. Outgassing Plastics Polycarbonates, Polyprenes and other plastics can interact with the environment absorbing or outgassing moisture, or outgassing processing aids and solvent carriers for additives, which might cause the formation of bubbles on the film. Preliminary tests are essential to ensure that no adverse effects arise from this interaction. Stainless Steel For application on stainless steel VC 104 with #36 adhesive must be used (item code 3850-cc36-050, where cc refers to the colour). The same application guidelines and warranty as the standard product apply. Surface cleaning The purpose of cleaning the substrate is to remove any dirt or contamination. It is very important that the surface is free of dust and grease, and ideally the surface should be smooth. Use a clean cloth with isopropyl alcohol to wipe the surface in one direction only to avoid spreading contamination. With a dry clean cloth wipe away the clean

Pagina 4-Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+ Rigid...

Pagina 5 - Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+...

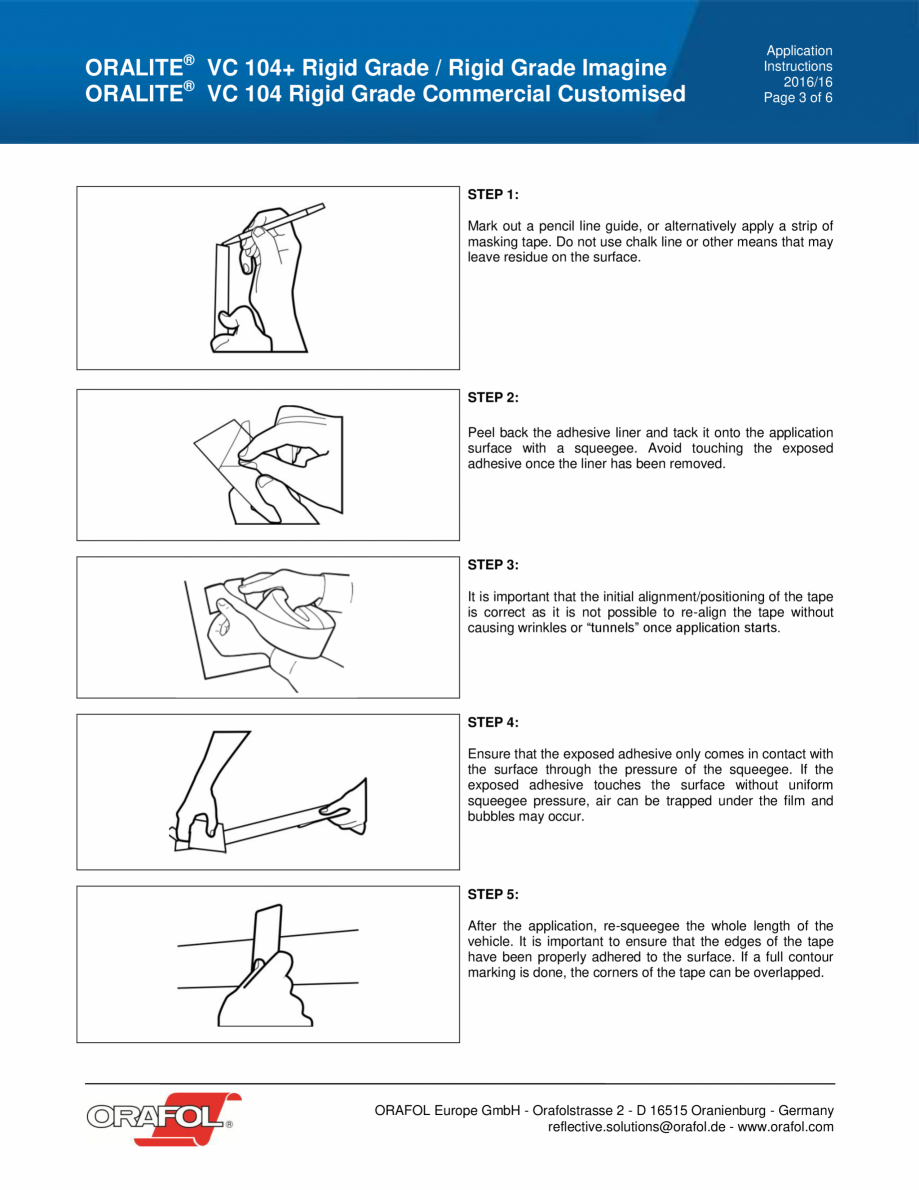

er before evaporation. Repeat this process until the surface is clean, i.e. when there is no visual dirt or contamination transfer onto the cloth. Ensure the surface is dry and the isopropyl alcohol has completely evaporated before commencing application. Used vehicles : An additional step is required for used vehicles: After completing the above cleaning process, lightly abrade the area with an abrasive pad to remove dirt residue without scratching the paint work. Afterwards clean again with isopropyl alcohol and a clean cloth. ORAFOL Europe GmbH - Orafolstrasse 2 - D 16515 Oranienburg - Germany reflective.solutions@orafol.de - www.orafol.com ORALITE® VC 104+ Rigid Grade / Rigid Grade Imagine ORALITE® VC 104 Rigid Grade Commercial Customised Application Instructions 2016/16 Page 3 of 6 STEP 1: Mark out a pencil line guide, or alternatively apply a strip of masking tape. Do not use chalk line or other means that may leave residue on the surface. STEP 2: Peel back the adhesive l

Pagina 5-Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+ Rigid...

Pagina 6 - Instrucțiuni de aplicare pentru banda adeziva reflectorizanta ALGERNON ORALITE VC 104+...

iner and tack it onto the application surface with a squeegee. Avoid touching the exposed adhesive once the liner has been removed. STEP 3: It is important that the initial alignment/positioning of the tape is correct as it is not possible to re-align the tape without causing wrinkles or “tunnels” once application starts. STEP 4: Ensure that the exposed adhesive only comes in contact with the surface through the pressure of the squeegee. If the exposed adhesive touches the surface without uniform squeegee pressure, air can be trapped under the film and bubbles may occur. STEP 5: After the application, re-squeegee the whole length of the vehicle. It is important to ensure that the edges of the tape have been properly adhered to the surface. If a full contour marking is done, the corners of the tape can be overlapped. ORAFOL Europe GmbH - Orafolstrasse 2 - D 16515 Oranienburg - Germany reflective.solutions@orafol.de - www.orafol.com ORALITE® VC 104+ Rigid Grade / Rigid Grade I
