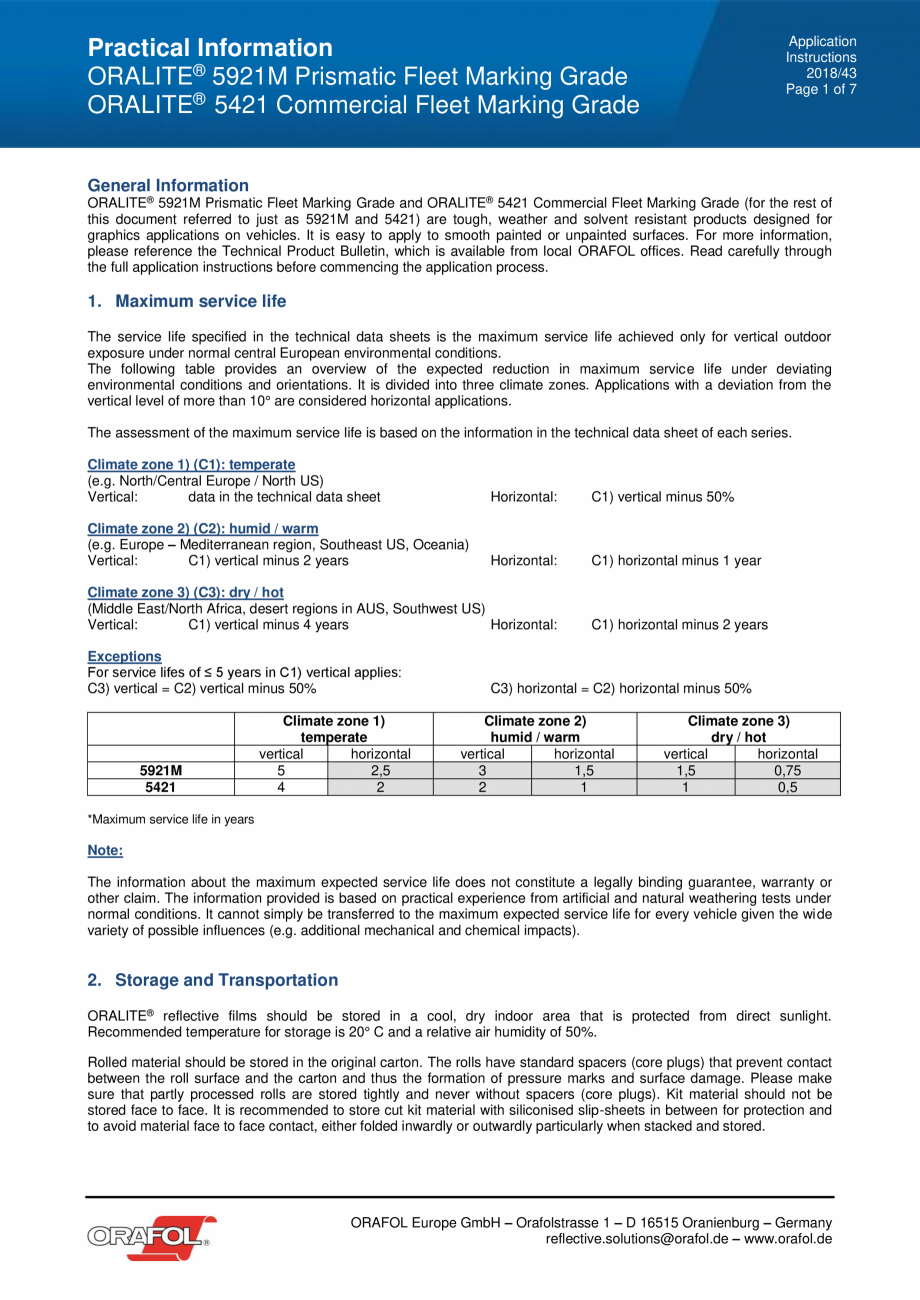

Application Instructions 2018/43 Page 1 of 7 Practical Information ORALITE® 5921M Prismatic Fleet Marking Grade ORALITE® 5421 Commercial Fleet Marking Grade General Information ORALITE® 5921M Prismatic Fleet Marking Grade and ORALITE® 5421 Commercial Fleet Marking Grade (for the rest of this document referred to just as 5921M and 5421) are tough, weather and solvent resistant products designed for graphics applications on vehicles. It is easy to apply to smooth painted or unpainted surfaces. For more information, please reference the Technical Product Bulletin, which is available from local ORAFOL offices. Read carefully through the full application instructions before commencing the application process. 1. Maximum service life The service life specified in the technical data sheets is the maximum service life achieved only for vertical outdoor exposure under normal central European environmental conditions. The following table provides an overview of the expected reduction in m

Pagina 1-Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe vehicule ALGERNON...

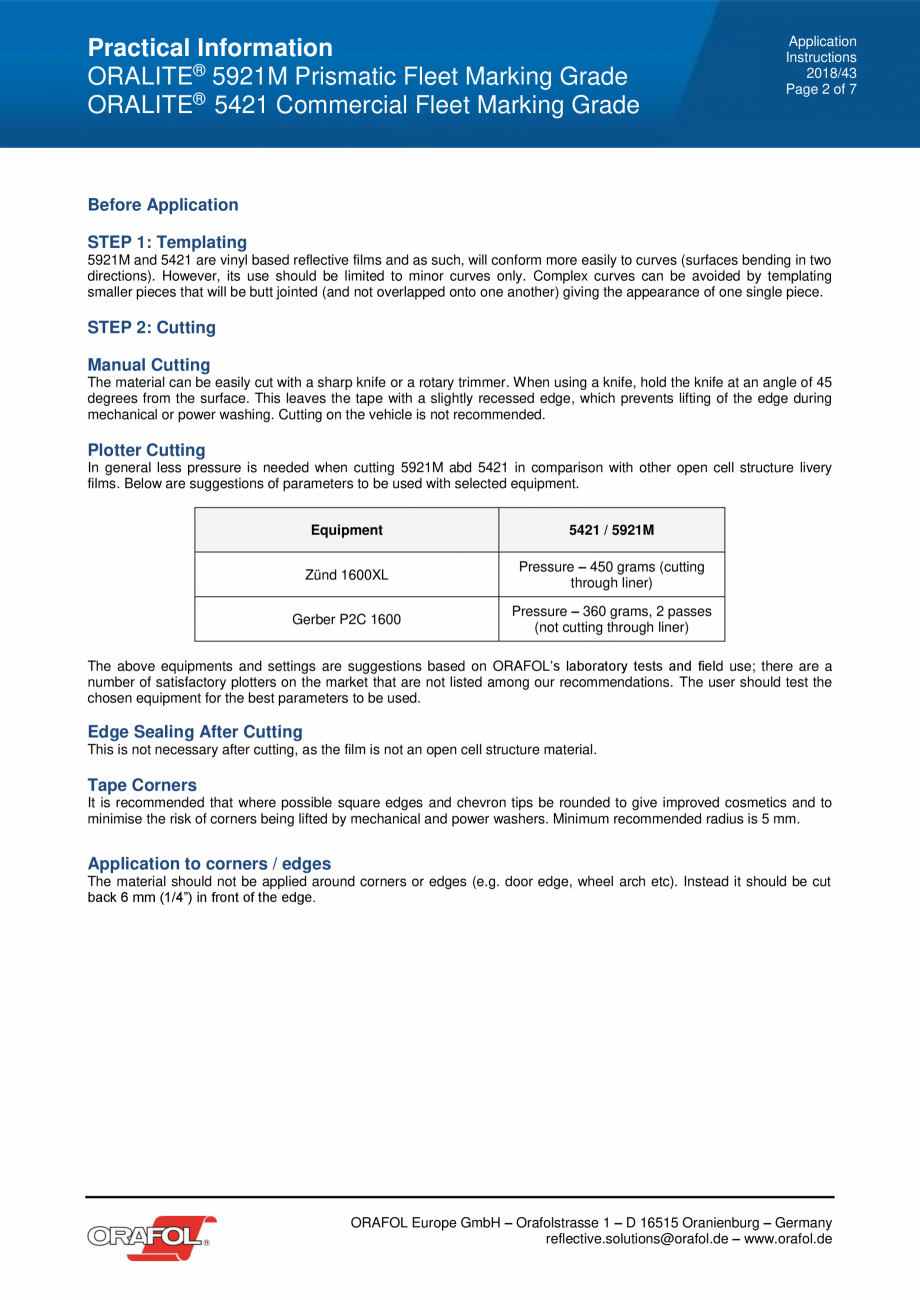

Pagina 2 - Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe...

aximum service life under deviating environmental conditions and orientations. It is divided into three climate zones. Applications with a deviation from the vertical level of more than 10° are considered horizontal applications. The assessment of the maximum service life is based on the information in the technical data sheet of each series. Climate zone 1) (C1): temperate (e.g. North/Central Europe / North US) Vertical: data in the technical data sheet Horizontal: C1) vertical minus 50% Climate zone 2) (C2): humid / warm (e.g. Europe – Mediterranean region, Southeast US, Oceania) Vertical: C1) vertical minus 2 years Horizontal: C1) horizontal minus 1 year Climate zone 3) (C3): dry / hot (Middle East/North Africa, desert regions in AUS, Southwest US) Vertical: C1) vertical minus 4 years Horizontal: Exceptions For service lifes of ≤ 5 years in C1) vertical applies: C3) vertical = C2) vertical minus 50% 5921M 5421 Climate zone 1) temperate vertical horizontal 5 2,5 4 2 C1)

Pagina 2-Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe vehicule ALGERNON...

Pagina 3 - Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe...

horizontal minus 2 years C3) horizontal = C2) horizontal minus 50% Climate zone 2) humid / warm vertical horizontal 3 1,5 2 1 Climate zone 3) dry / hot vertical horizontal 1,5 0,75 1 0,5 *Maximum service life in years Note: The information about the maximum expected service life does not constitute a legally binding guarantee, warranty or other claim. The information provided is based on practical experience from artificial and natural weathering tests under normal conditions. It cannot simply be transferred to the maximum expected service life for every vehicle given the wide variety of possible influences (e.g. additional mechanical and chemical impacts). 2. Storage and Transportation ORALITE® reflective films should be stored in a cool, dry indoor area that is protected from direct sunlight. Recommended temperature for storage is 20° C and a relative air humidity of 50%. Rolled material should be stored in the original carton. The rolls have standard spacers (core plugs) tha

Pagina 3-Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe vehicule ALGERNON...

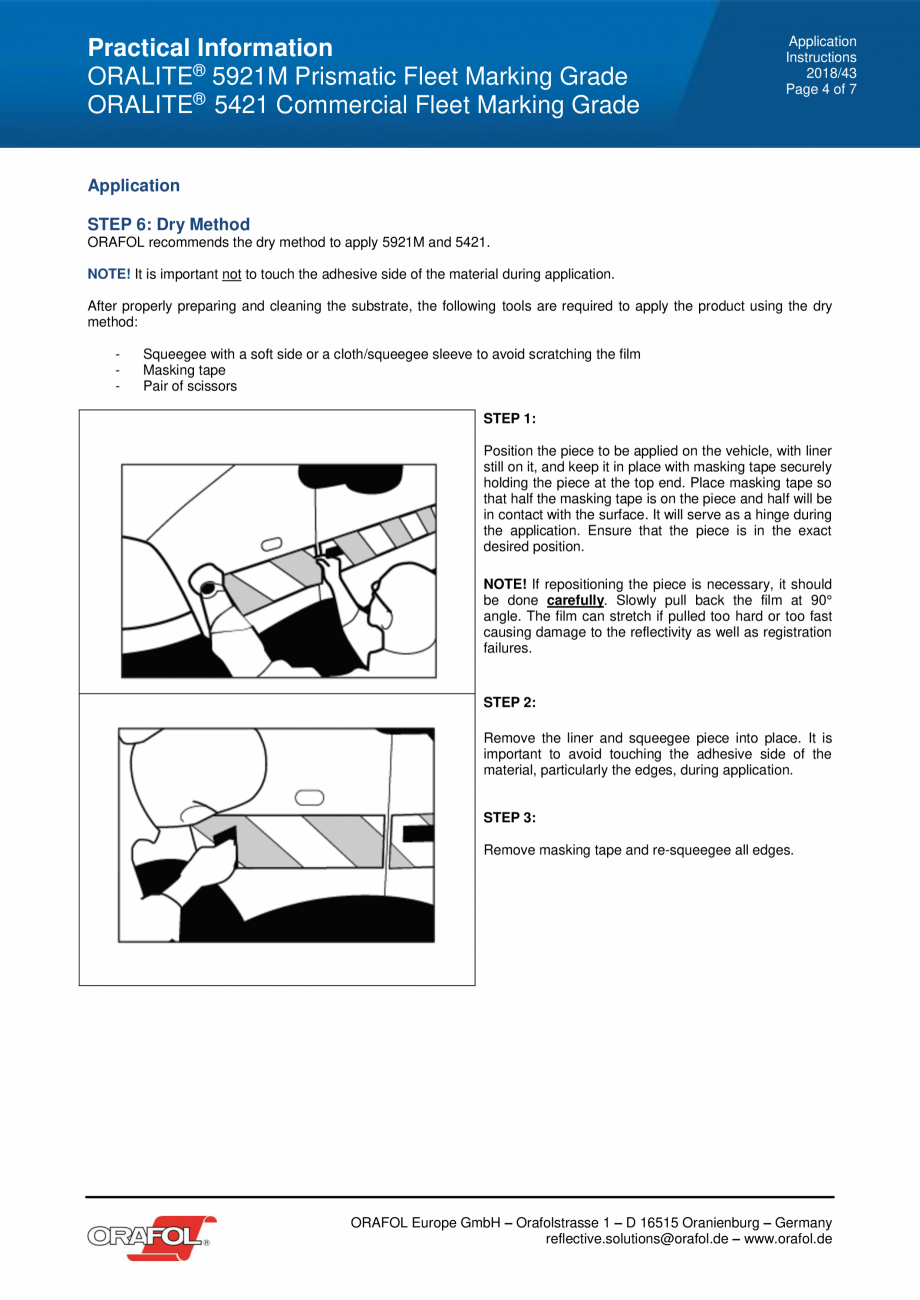

Pagina 4 - Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe...

t prevent contact between the roll surface and the carton and thus the formation of pressure marks and surface damage. Please make sure that partly processed rolls are stored tightly and never without spacers (core plugs). Kit material should not be stored face to face. It is recommended to store cut kit material with siliconised slip-sheets in between for protection and to avoid material face to face contact, either folded inwardly or outwardly particularly when stacked and stored. ORAFOL Europe GmbH – Orafolstrasse 1 – D 16515 Oranienburg – Germany reflective.solutions@orafol.de – www.orafol.de Practical Information ORALITE® 5921M Prismatic Fleet Marking Grade ORALITE® 5421 Commercial Fleet Marking Grade Application Instructions 2018/43 Page 2 of 7 Before Application STEP 1: Templating 5921M and 5421 are vinyl based reflective films and as such, will conform more easily to curves (surfaces bending in two directions). However, its use should be limited to minor curves o

Pagina 4-Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe vehicule ALGERNON...

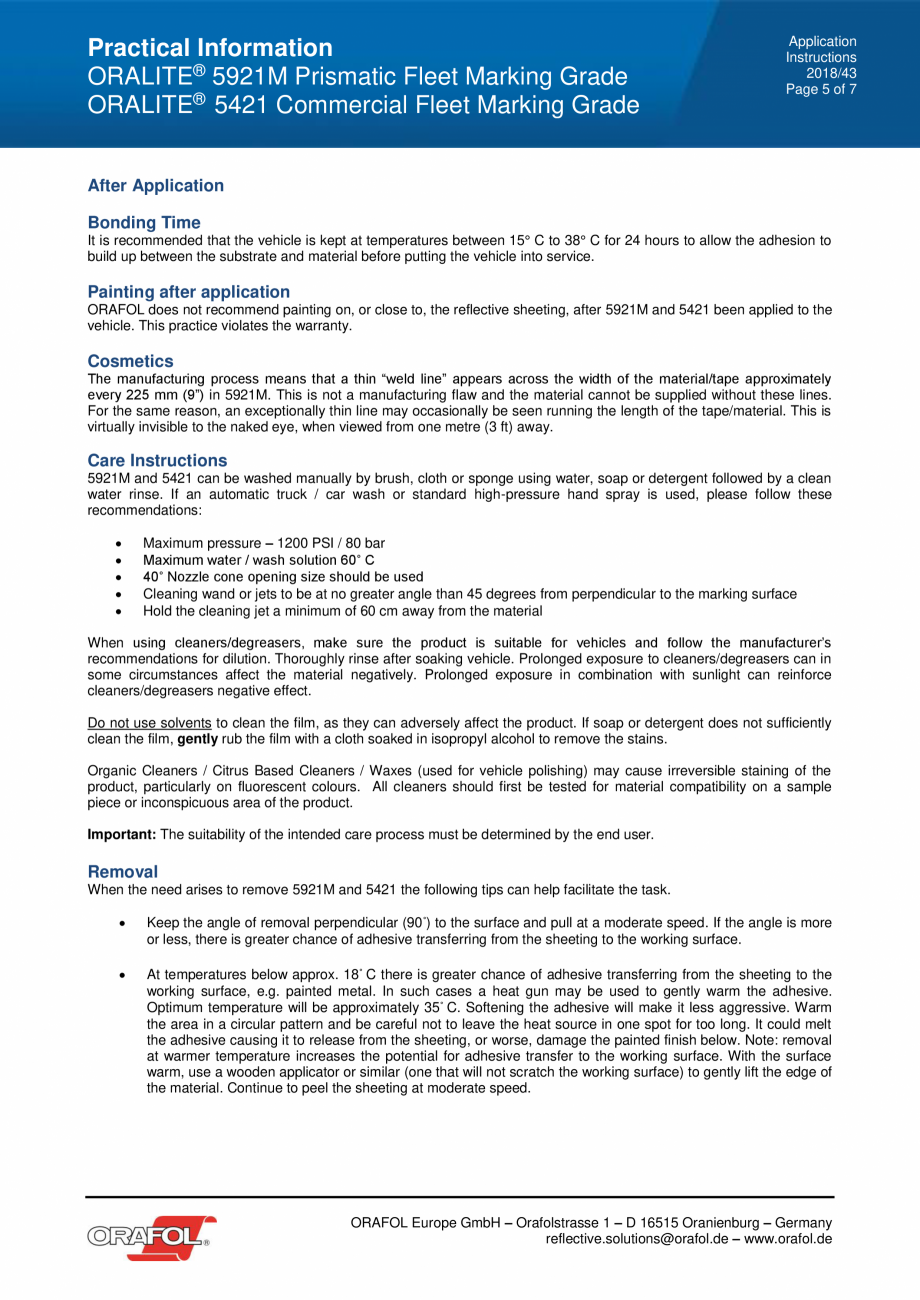

Pagina 5 - Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe...

nly. Complex curves can be avoided by templating smaller pieces that will be butt jointed (and not overlapped onto one another) giving the appearance of one single piece. STEP 2: Cutting Manual Cutting The material can be easily cut with a sharp knife or a rotary trimmer. When using a knife, hold the knife at an angle of 45 degrees from the surface. This leaves the tape with a slightly recessed edge, which prevents lifting of the edge during mechanical or power washing. Cutting on the vehicle is not recommended. Plotter Cutting In general less pressure is needed when cutting 5921M abd 5421 in comparison with other open cell structure livery films. Below are suggestions of parameters to be used with selected equipment. Equipment 5421 / 5921M Zünd 1600XL Pressure – 450 grams (cutting through liner) Gerber P2C 1600 Pressure – 360 grams, 2 passes (not cutting through liner) The above equipments and settings are suggestions based on ORAFOL’s laboratory tests and field use; th

Pagina 5-Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe vehicule ALGERNON...

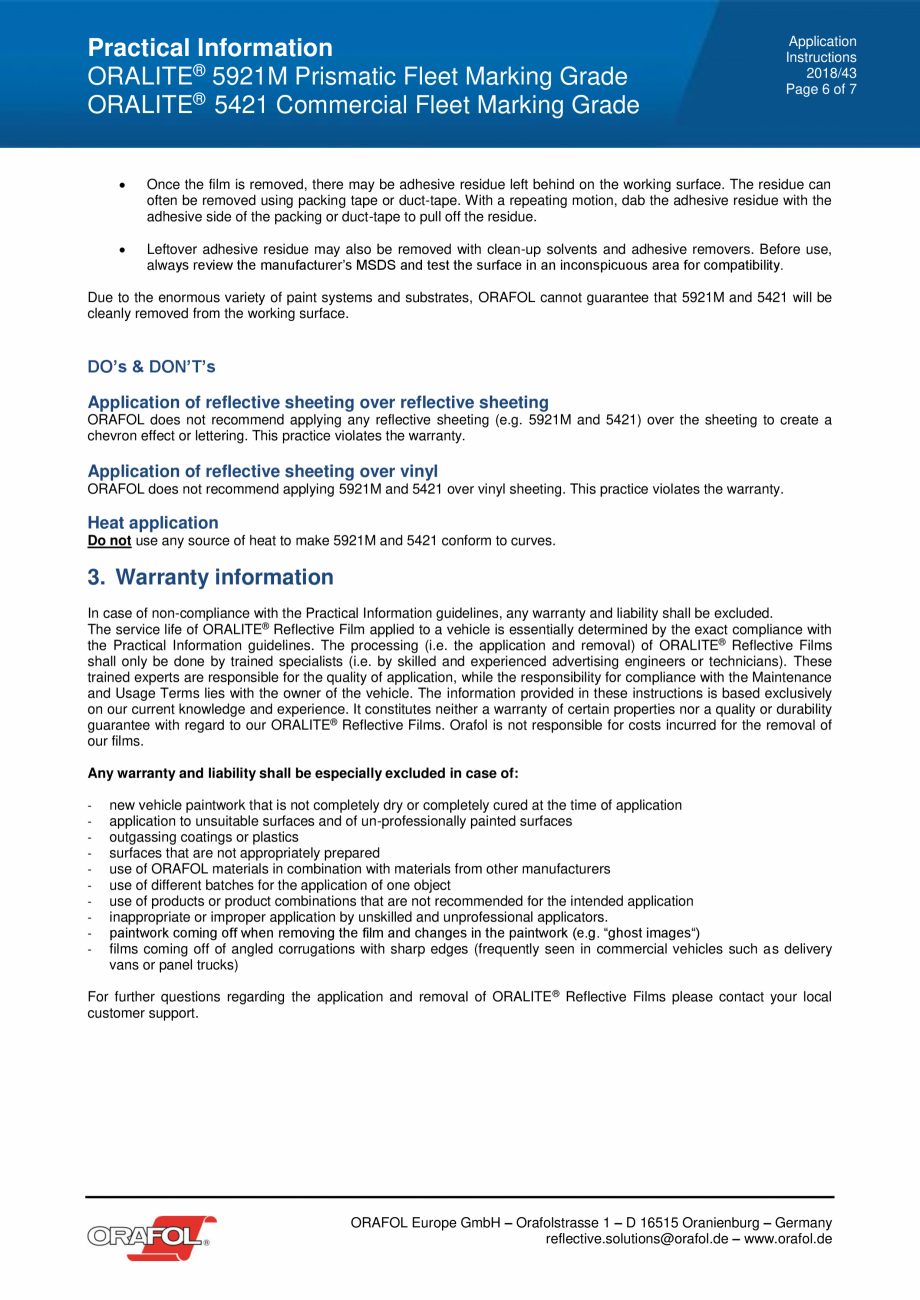

Pagina 6 - Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe...

ere are a number of satisfactory plotters on the market that are not listed among our recommendations. The user should test the chosen equipment for the best parameters to be used. Edge Sealing After Cutting This is not necessary after cutting, as the film is not an open cell structure material. Tape Corners It is recommended that where possible square edges and chevron tips be rounded to give improved cosmetics and to minimise the risk of corners being lifted by mechanical and power washers. Minimum recommended radius is 5 mm. Application to corners / edges The material should not be applied around corners or edges (e.g. door edge, wheel arch etc). Instead it should be cut back 6 mm (1/4”) in front of the edge. ORAFOL Europe GmbH – Orafolstrasse 1 – D 16515 Oranienburg – Germany reflective.solutions@orafol.de – www.orafol.de Practical Information ORALITE® 5921M Prismatic Fleet Marking Grade ORALITE® 5421 Commercial Fleet Marking Grade Application Instructions 2018/4

Pagina 6-Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe vehicule ALGERNON...

Pagina 7 - Instructiuni de aplicare pentru banda adeziva reflectorizanta pentru aplicarea pe...

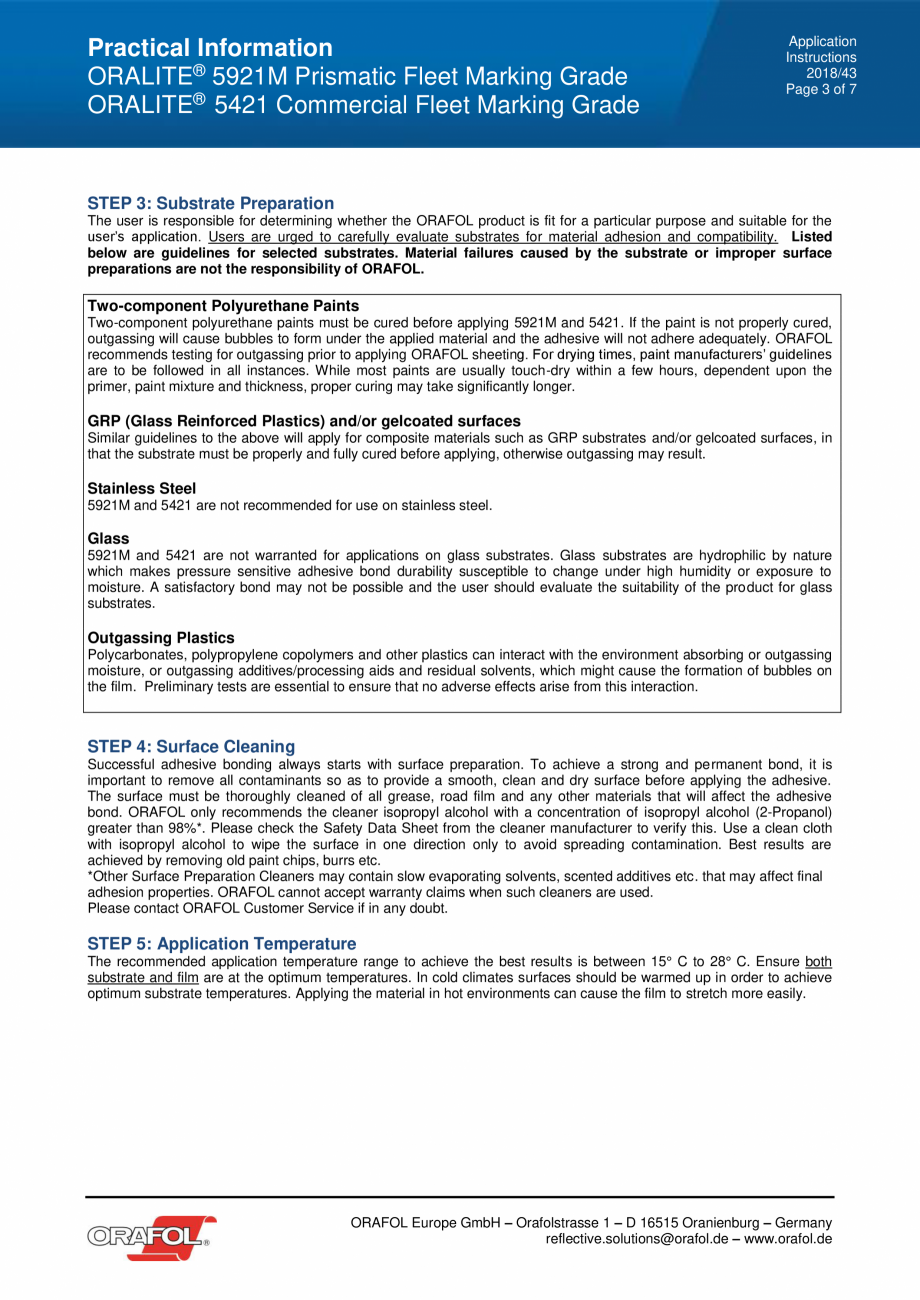

3 Page 3 of 7 STEP 3: Substrate Preparation The user is responsible for determining whether the ORAFOL product is fit for a particular purpose and suitable for the user’s application. Users are urged to carefully evaluate substrates for material adhesion and compatibility. Listed below are guidelines for selected substrates. Material failures caused by the substrate or improper surface preparations are not the responsibility of ORAFOL. Two-component Polyurethane Paints Two-component polyurethane paints must be cured before applying 5921M and 5421. If the paint is not properly cured, outgassing will cause bubbles to form under the applied material and the adhesive will not adhere adequately. ORAFOL recommends testing for outgassing prior to applying ORAFOL sheeting. For drying times, paint manufacturers’ guidelines are to be followed in all instances. While most paints are usually touch-dry within a few hours, dependent upon the primer, paint mixture and thickness, proper curing m
