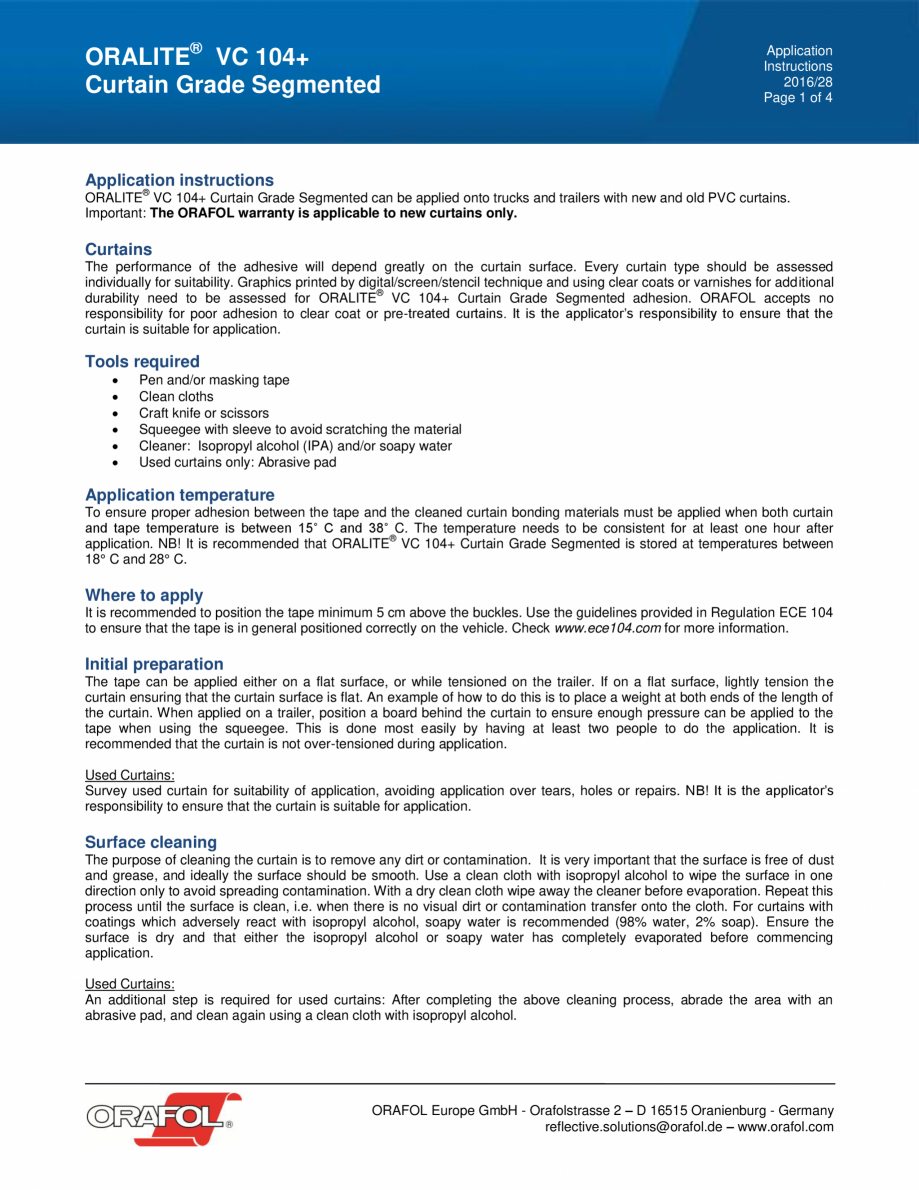

ORALITE® VC 104+ Curtain Grade Segmented Application Instructions 2016/28 Page 1 of 4 Application instructions ® ORALITE VC 104+ Curtain Grade Segmented can be applied onto trucks and trailers with new and old PVC curtains. Important: The ORAFOL warranty is applicable to new curtains only. Curtains The performance of the adhesive will depend greatly on the curtain surface. Every curtain type should be assessed individually for suitability. Graphics printed by digital/screen/stencil technique and using clear coats or varnishes for additional ® durability need to be assessed for ORALITE VC 104+ Curtain Grade Segmented adhesion. ORAFOL accepts no responsibility for poor adhesion to clear coat or pre-treated curtains. It is the applicator’s responsibility to ensure that the curtain is suitable for application. Tools required       Pen and/or masking tape Clean cloths Craft knife or scissors Squeegee with sleeve to avoid scratching the material Cleaner: Isopropy

Pagina 1-Instructiuni de aplicare pentru banda adeziva reflectorizanta continua pentru suprafete flexibile...

Pagina 2 - Instructiuni de aplicare pentru banda adeziva reflectorizanta continua pentru suprafete...

l alcohol (IPA) and/or soapy water Used curtains only: Abrasive pad Application temperature To ensure proper adhesion between the tape and the cleaned curtain bonding materials must be applied when both curtain and tape temperature is between 15˚ C and 38˚ C. The temperature needs to be consistent for at least one hour after ® application. NB! It is recommended that ORALITE VC 104+ Curtain Grade Segmented is stored at temperatures between 18° C and 28° C. Where to apply It is recommended to position the tape minimum 5 cm above the buckles. Use the guidelines provided in Regulation ECE 104 to ensure that the tape is in general positioned correctly on the vehicle. Check www.ece104.com for more information. Initial preparation The tape can be applied either on a flat surface, or while tensioned on the trailer. If on a flat surface, lightly tension the curtain ensuring that the curtain surface is flat. An example of how to do this is to place a weight at both ends of the length of

Pagina 2-Instructiuni de aplicare pentru banda adeziva reflectorizanta continua pentru suprafete flexibile...

Pagina 3 - Instructiuni de aplicare pentru banda adeziva reflectorizanta continua pentru suprafete...

the curtain. When applied on a trailer, position a board behind the curtain to ensure enough pressure can be applied to the tape when using the squeegee. This is done most easily by having at least two people to do the application. It is recommended that the curtain is not over-tensioned during application. Used Curtains: Survey used curtain for suitability of application, avoiding application over tears, holes or repairs. NB! It is the applicator’s responsibility to ensure that the curtain is suitable for application. Surface cleaning The purpose of cleaning the curtain is to remove any dirt or contamination. It is very important that the surface is free of dust and grease, and ideally the surface should be smooth. Use a clean cloth with isopropyl alcohol to wipe the surface in one direction only to avoid spreading contamination. With a dry clean cloth wipe away the cleaner before evaporation. Repeat this process until the surface is clean, i.e. when there is no visual dirt or cont

Pagina 3-Instructiuni de aplicare pentru banda adeziva reflectorizanta continua pentru suprafete flexibile...

Pagina 4 - Instructiuni de aplicare pentru banda adeziva reflectorizanta continua pentru suprafete...

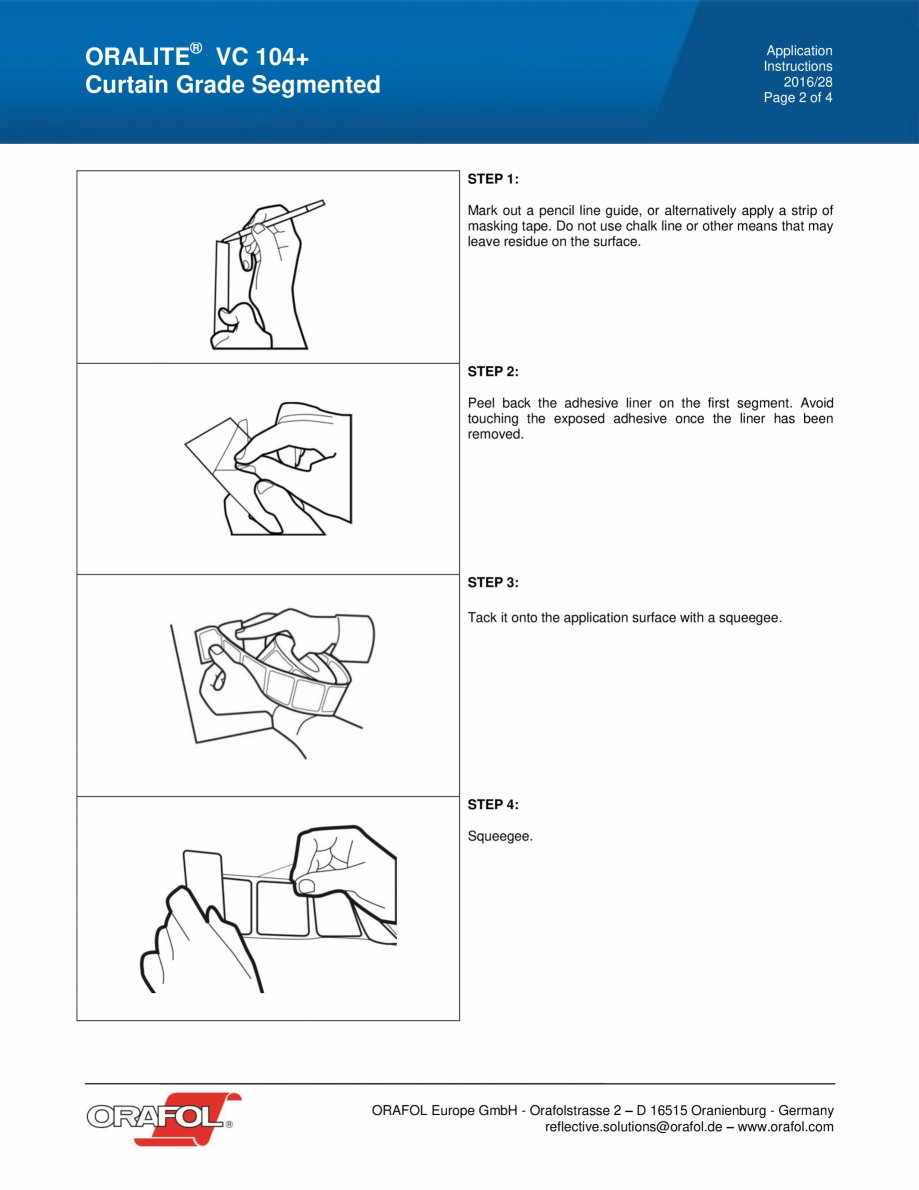

amination transfer onto the cloth. For curtains with coatings which adversely react with isopropyl alcohol, soapy water is recommended (98% water, 2% soap). Ensure the surface is dry and that either the isopropyl alcohol or soapy water has completely evaporated before commencing application. Used Curtains: An additional step is required for used curtains: After completing the above cleaning process, abrade the area with an abrasive pad, and clean again using a clean cloth with isopropyl alcohol. ORAFOL Europe GmbH - Orafolstrasse 2 – D 16515 Oranienburg - Germany reflective.solutions@orafol.de – www.orafol.com ORALITE® VC 104+ Curtain Grade Segmented Application Instructions 2016/28 Page 2 of 4 STEP 1: Mark out a pencil line guide, or alternatively apply a strip of masking tape. Do not use chalk line or other means that may leave residue on the surface. STEP 2: Peel back the adhesive liner on the first segment. Avoid touching the exposed adhesive once the liner has been remo
