Folie reflectorizanta HIGH INTENSITY CONSTRUCTION GRADE ALGERNON ORALITE 5860

Tip documentatie: Fisa tehnica

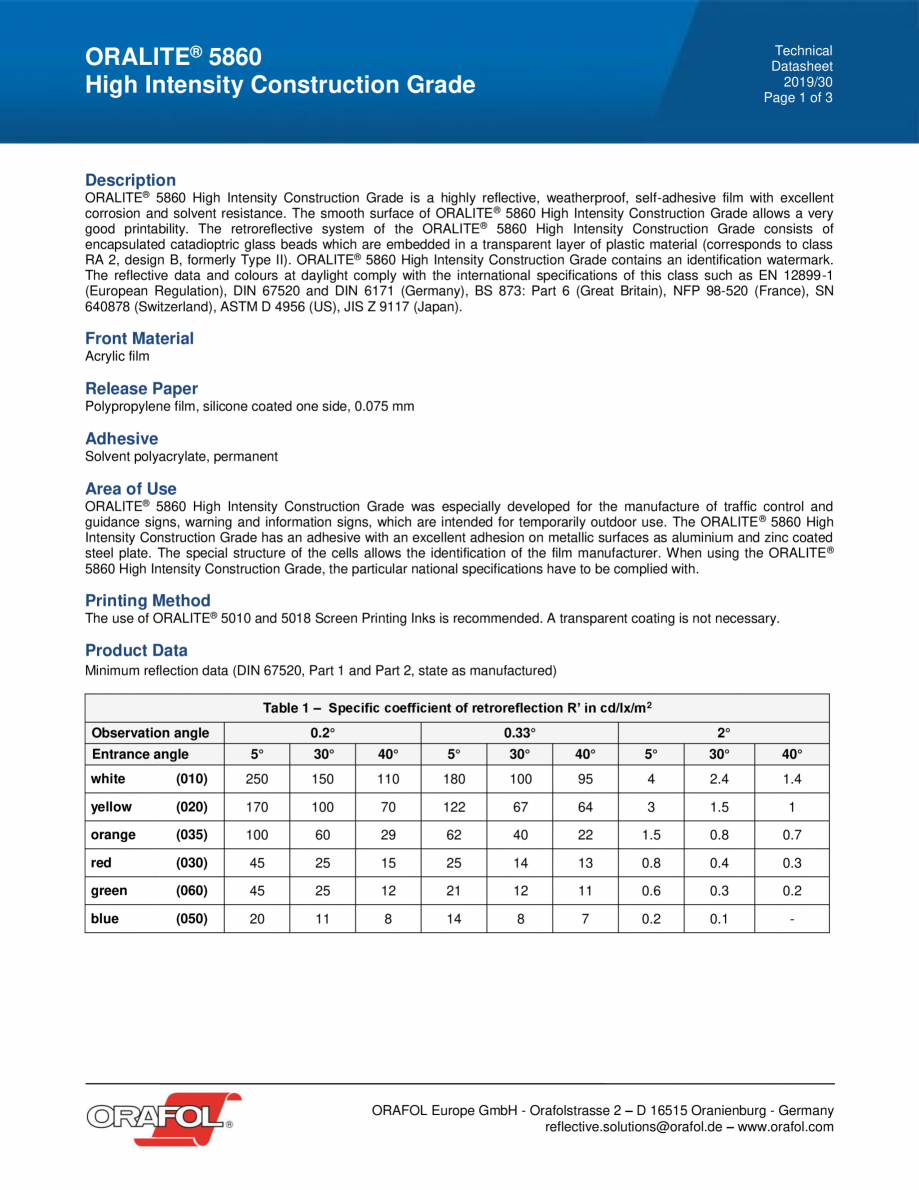

Technical Datasheet 2019/30 Page 1 of 3 ORALITE® 5860 High Intensity Construction Grade Description ORALITE® 5860 High Intensity Construction Grade is a highly reflective, weatherproof, self-adhesive film with excellent corrosion and solvent resistance. The smooth surface of ORALITE ® 5860 High Intensity Construction Grade allows a very good printability. The retroreflective system of the ORALITE® 5860 High Intensity Construction Grade consists of encapsulated catadioptric glass beads which are embedded in a transparent layer of plastic material (corresponds to class RA 2, design B, formerly Type II). ORALITE® 5860 High Intensity Construction Grade contains an identification watermark. The reflective data and colours at daylight comply with the international specifications of this class such as EN 12899-1 (European Regulation), DIN 67520 and DIN 6171 (Germany), BS 873: Part 6 (Great Britain), NFP 98-520 (France), SN 640878 (Switzerland), ASTM D 4956 (US), JIS Z 9117 (Japan). Fr

Pagina 1-Folie reflectorizanta HIGH INTENSITY CONSTRUCTION GRADE ALGERNON ORALITE 5860 Fisa tehnica Technical...

Pagina 2 - Folie reflectorizanta HIGH INTENSITY CONSTRUCTION GRADE ALGERNON ORALITE 5860 Fisa...

ont Material Acrylic film Release Paper Polypropylene film, silicone coated one side, 0.075 mm Adhesive Solvent polyacrylate, permanent Area of Use ORALITE® 5860 High Intensity Construction Grade was especially developed for the manufacture of traffic control and guidance signs, warning and information signs, which are intended for temporarily outdoor use. The ORALITE ® 5860 High Intensity Construction Grade has an adhesive with an excellent adhesion on metallic surfaces as aluminium and zinc coated steel plate. The special structure of the cells allows the identification of the film manufacturer. When using the ORALITE ® 5860 High Intensity Construction Grade, the particular national specifications have to be complied with. Printing Method The use of ORALITE® 5010 and 5018 Screen Printing Inks is recommended. A transparent coating is not necessary. Product Data Minimum reflection data (DIN 67520, Part 1 and Part 2, state as manufactured) Table 1 – Specific coefficient of re

Pagina 2-Folie reflectorizanta HIGH INTENSITY CONSTRUCTION GRADE ALGERNON ORALITE 5860 Fisa tehnica ont...

Pagina 3 - Folie reflectorizanta HIGH INTENSITY CONSTRUCTION GRADE ALGERNON ORALITE 5860 Fisa...

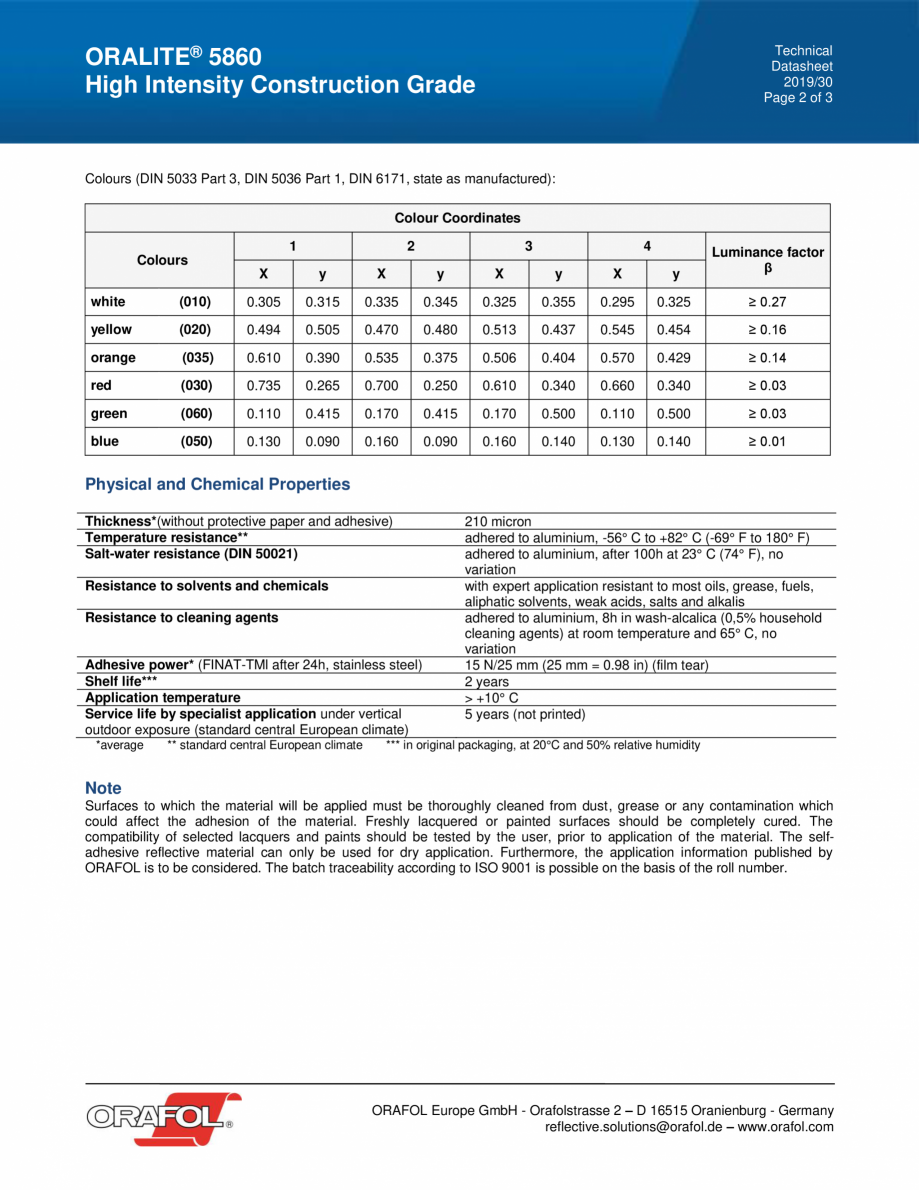

troreflection R’ in cd/lx/m2 Observation angle Entrance angle 0.2° 0.33° 2° 5° 30° 40° 5° 30° 40° 5° 30° 40° white (010) 250 150 110 180 100 95 4 2.4 1.4 yellow (020) 170 100 70 122 67 64 3 1.5 1 orange (035) 100 60 29 62 40 22 1.5 0.8 0.7 red (030) 45 25 15 25 14 13 0.8 0.4 0.3 green (060) 45 25 12 21 12 11 0.6 0.3 0.2 blue (050) 20 11 8 14 8 7 0.2 0.1 - ORAFOL Europe GmbH - Orafolstrasse 2 – D 16515 Oranienburg - Germany reflective.solutions@orafol.de – www.orafol.com Technical Datasheet 2019/30 Page 2 of 3 ORALITE® 5860 High Intensity Construction Grade Colours (DIN 5033 Part 3, DIN 5036 Part 1, DIN 6171, state as manufactured): Colour Coordinates 1 2 3 4 X y X y X y X y Luminance factor β Colours white (010) 0.305 0.315 0.335 0.345 0.325 0.355 0.295 0.325 ≥ 0.27 yellow (020) 0.494 0.505 0.470 0.480 0.513 0.437 0.545 0.454 ≥ 0.16 orange (035)
