Focar Piazzetta ME 90 44 DS

Limba: Engleza
17 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

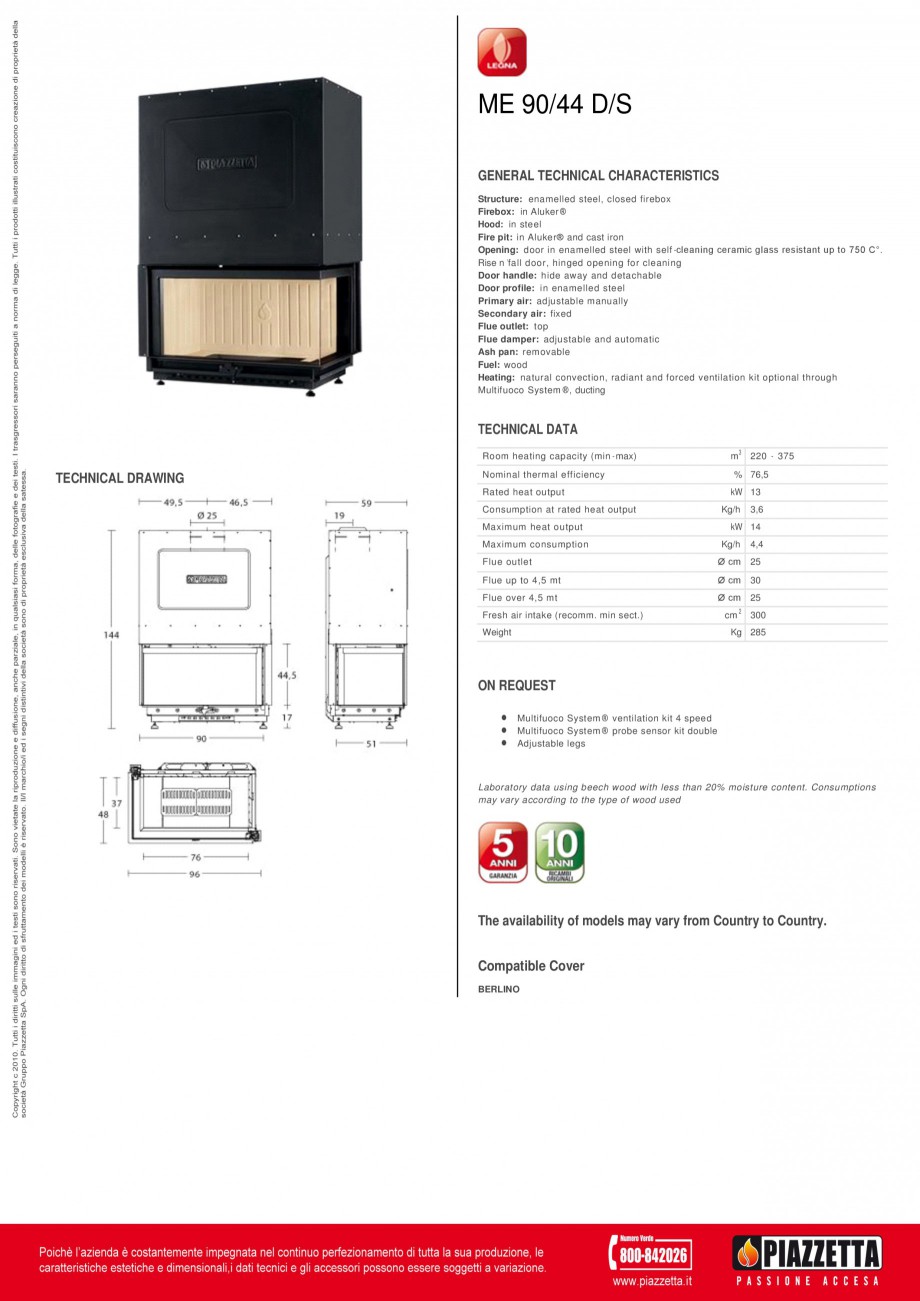

Pagina 1-Focar Piazzetta ME 90 44 DS Fisa tehnica Engleza ME 90/44 D/S
GENERAL TECHNICAL CHARACTERISTICS...
ME 90/44 D/S GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Hood: in steel Fire pit: in Aluker® and cast iron Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°. Rise n ’fall door, hinged opening for cleaning Door handle: hide away and detachable Door profile: in enamelled steel Primary air: adjustable manually Secondary air: fixed Flue outlet: top Flue damper: adjustable and automatic Ash pan: removable Fuel: wood Heating: natural convection, radiant and forced ventilation kit optional through Multifuoco System ® , ducting TECHNICAL DATA Room heating capacity (min - max) TECHNICAL DRAWING Nominal thermal efficiency Rated heat output Consumption at rated heat output Maximum heat output Maximum consumption m 3 220 - 375 % 76,5 kW 13 Kg/h 3,6 kW 14 Kg/h 4,4 Flue outlet Ø cm 25 Flue up to 4,5 mt Ø cm 30 Flue over 4,5 mt Ø cm 25 Fresh air intake (recomm. min sect.) Weight cm ... ascunde
