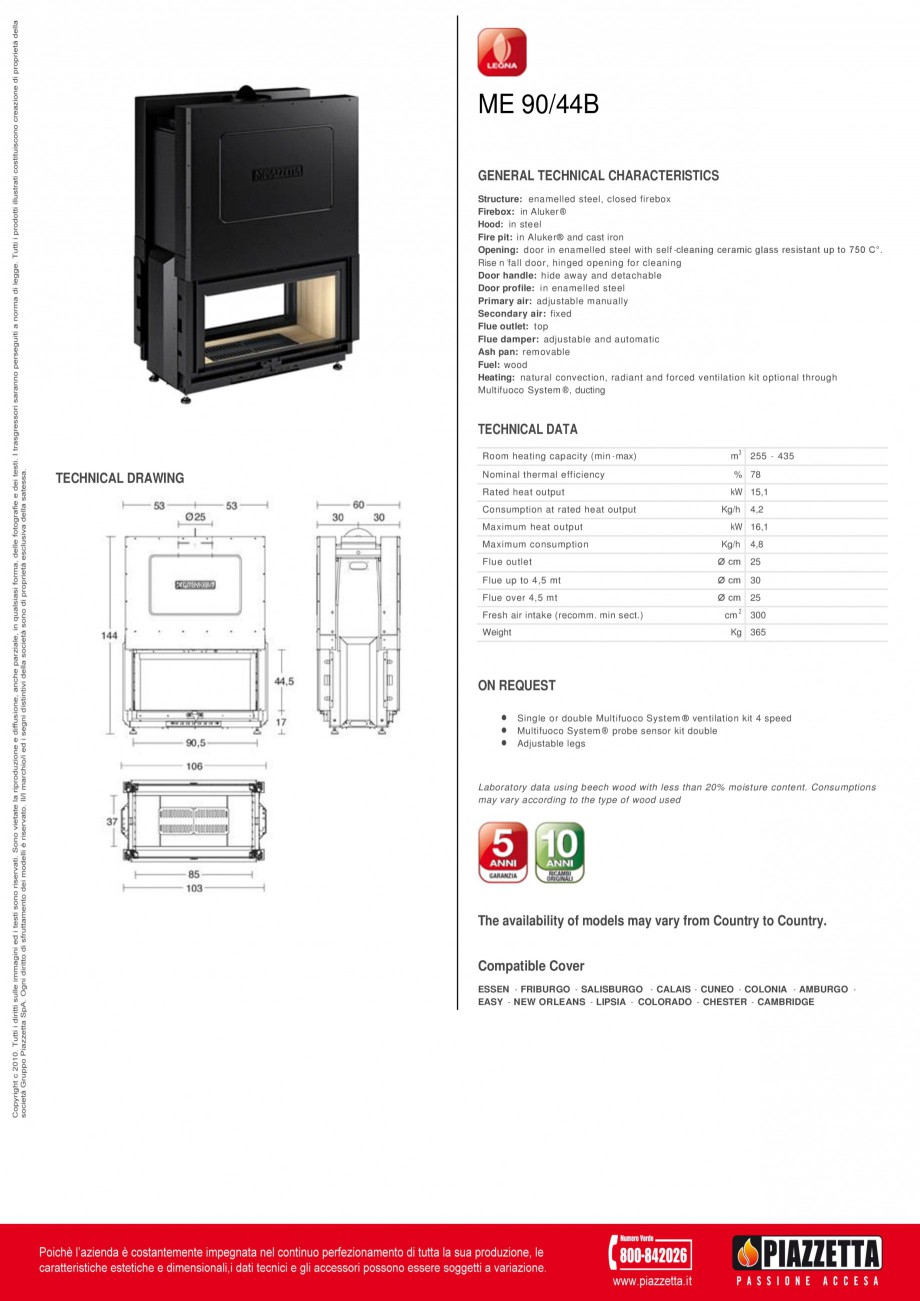

Pagina 1-Focar Piazzetta ME 90 44 B Fisa tehnica Engleza ME 90/44B
GENERAL TECHNICAL CHARACTERISTICS...
ME 90/44B GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Hood: in steel Fire pit: in Aluker®  and cast iron Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°.  Rise n ’fall door, hinged opening for cleaning Door handle: hide away and detachable Door profile: in enamelled steel Primary air: adjustable manually Secondary air: fixed Flue outlet: top Flue damper: adjustable and automatic Ash pan: removable Fuel: wood Heating: natural convection, radiant and forced ventilation kit optional through Multifuoco System ® , ducting TECHNICAL DATA Room heating capacity (min - max) TECHNICAL DRAWING Nominal thermal efficiency Rated heat output Consumption at rated heat output Maximum heat output Maximum consumption m 3 255 - 435 % 78 kW 15,1 Kg/h 4,2 kW 16,1 Kg/h 4,8 Flue outlet Ø cm 25 Flue up to 4,5 mt Ø cm 30 Flue over 4,5 mt Ø cm 25 Fresh air intake (recomm. min sect ... ascunde
