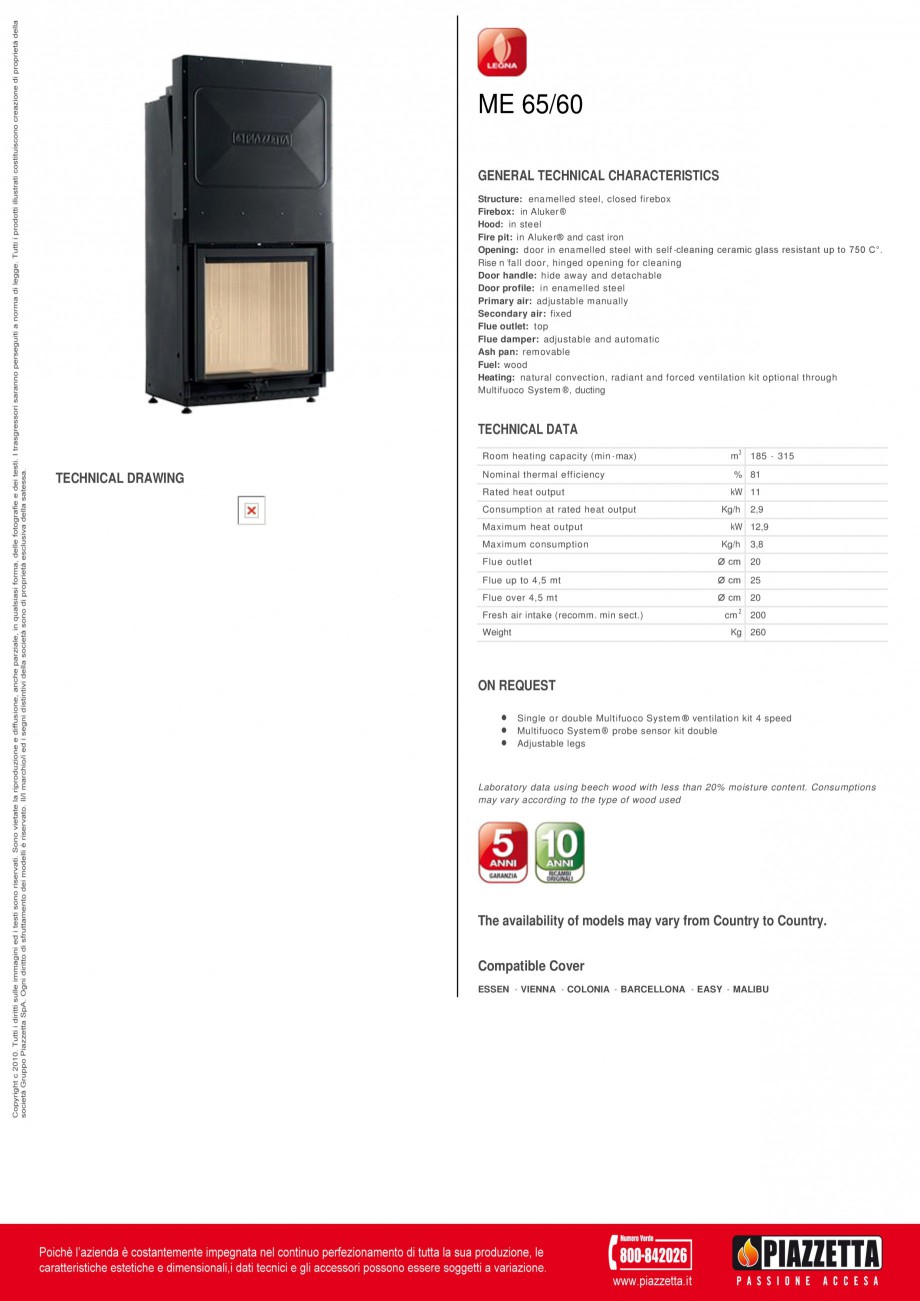

Pagina 1-Focar Piazzetta ME 65 60 Fisa tehnica Engleza ME 65/60
GENERAL TECHNICAL CHARACTERISTICS
Structure: ...
ME 65/60 GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Hood: in steel Fire pit: in Aluker®  and cast iron Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°.  Rise n ’fall door, hinged opening for cleaning Door handle: hide away and detachable Door profile: in enamelled steel Primary air: adjustable manually Secondary air: fixed Flue outlet: top Flue damper: adjustable and automatic Ash pan: removable Fuel: wood Heating: natural convection, radiant and forced ventilation kit optional through Multifuoco System ® , ducting TECHNICAL DATA Room heating capacity (min - max) TECHNICAL DRAWING Nominal thermal efficiency Rated heat output Consumption at rated heat output Maximum heat output Maximum consumption m 3 185 - 315 % 81 kW 11 Kg/h 2,9 kW 12,9 Kg/h 3,8 Flue outlet Ø cm 20 Flue up to 4,5 mt Ø cm 25 Flue over 4,5 mt Ø cm 20 Fresh air intake (recomm. min sect.) ... ascunde
