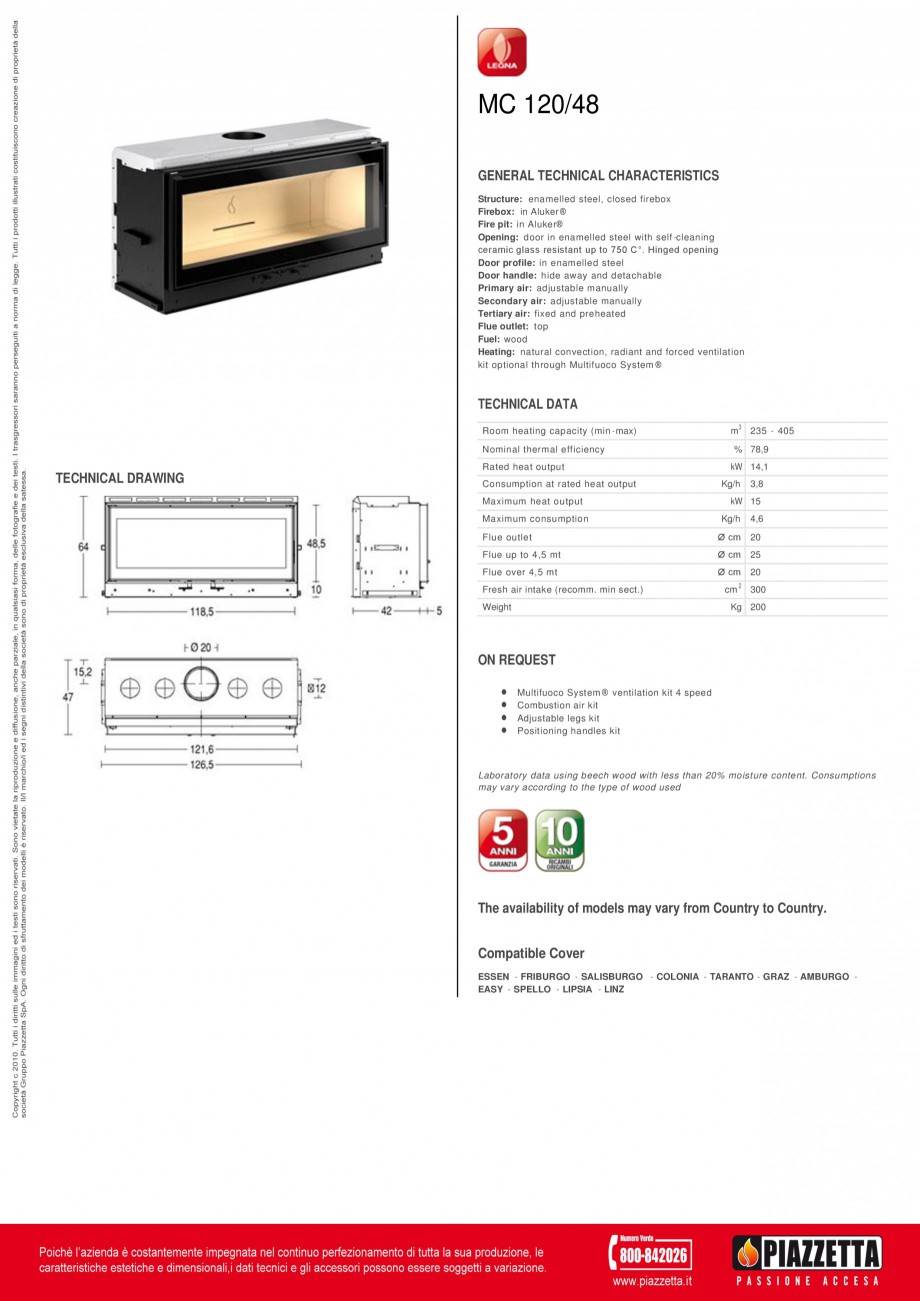

Pagina 1-Focar  Piazzetta ME 120 48 Fisa tehnica Engleza MC 120/48
GENERAL TECHNICAL CHARACTERISTICS...
MC 120/48 GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Fire pit: in Aluker® Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°. Hinged opening Door profile: in enamelled steel Door handle: hide away and detachable Primary air: adjustable manually Secondary air: adjustable manually Tertiary air: fixed and preheated Flue outlet: top Fuel: wood Heating: natural convection, radiant and forced ventilation kit optional through Multifuoco System ® TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency Rated heat output TECHNICAL DRAWING Consumption at rated heat output Maximum heat output Maximum consumption m 3 235 - 405 % 78,9 kW 14,1 Kg/h 3,8 kW 15 Kg/h 4,6 Flue outlet Ø cm 20 Flue up to 4,5 mt Ø cm 25 Flue over 4,5 mt Ø cm 20 Fresh air intake (recomm. min sect.) Weight cm 2 300 Kg 200 ON REQUEST     Multifuoco System ®  ventil ... ascunde
