Focar Piazzetta MC 90 44

Limba: Engleza
9 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

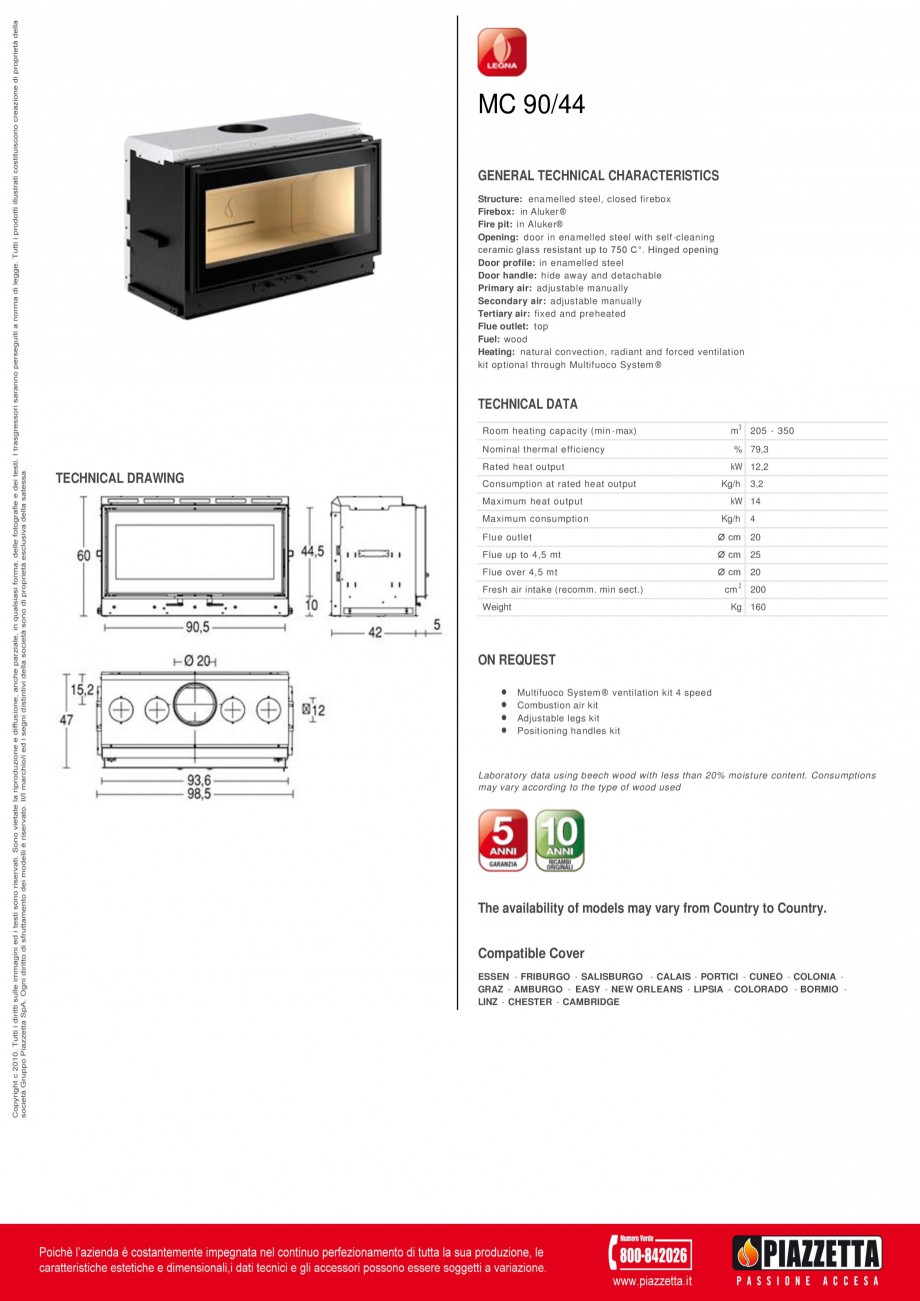

Pagina 1-Focar Piazzetta MC 90 44 Fisa tehnica Engleza MC 90/44
GENERAL TECHNICAL CHARACTERISTICS
Structure: ...
MC 90/44 GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Fire pit: in Aluker® Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°. Hinged opening Door profile: in enamelled steel Door handle: hide away and detachable Primary air: adjustable manually Secondary air: adjustable manually Tertiary air: fixed and preheated Flue outlet: top Fuel: wood Heating: natural convection, radiant and forced ventilation kit optional through Multifuoco System ® TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency Rated heat output TECHNICAL DRAWING Consumption at rated heat output Maximum heat output Maximum consumption m 3 205 - 350 % 79,3 kW 12,2 Kg/h 3,2 kW 14 Kg/h 4 Flue outlet Ø cm 20 Flue up to 4,5 mt Ø cm 25 Flue over 4,5 mt Ø cm 20 Fresh air intake (recomm. min sect.) Weight cm 2 200 Kg 160 ON REQUEST     Multifuoco System ®  ventilati ... ascunde
