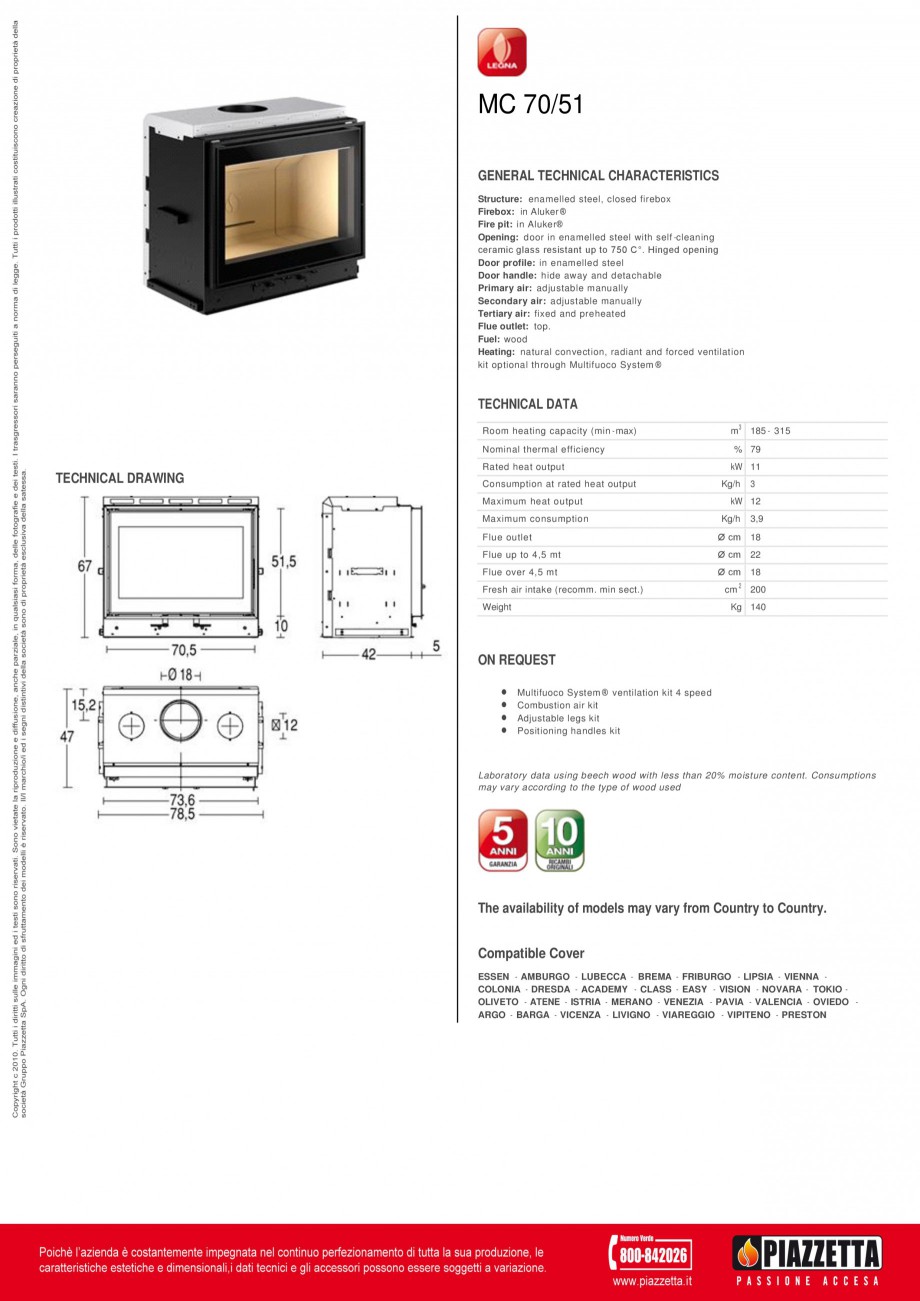

Pagina 1-Focar Piazzetta MC 70 51 Fisa tehnica Engleza MC 70/51
GENERAL TECHNICAL CHARACTERISTICS
Structure: ...
MC 70/51 GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Fire pit: in Aluker® Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°. Hinged opening Door profile: in enamelled steel Door handle: hide away and detachable Primary air: adjustable manually Secondary air: adjustable manually Tertiary air: fixed and preheated Flue outlet: top. Fuel: wood Heating: natural convection, radiant and forced ventilation kit optional through Multifuoco System ® TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency Rated heat output TECHNICAL DRAWING Consumption at rated heat output Maximum heat output Maximum consumption m 3 185 - 315 % 79 kW 11 Kg/h 3 kW 12 Kg/h 3,9 Flue outlet Ø cm 18 Flue up to 4,5 mt Ø cm 22 Flue over 4,5 mt Ø cm 18 Fresh air intake (recomm. min sect.) Weight cm 2 200 Kg 140 ON REQUEST     Multifuoco System ®  ventilation ... ascunde
