Focar Piazzetta MA 282 DS

Limba: Engleza
13 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

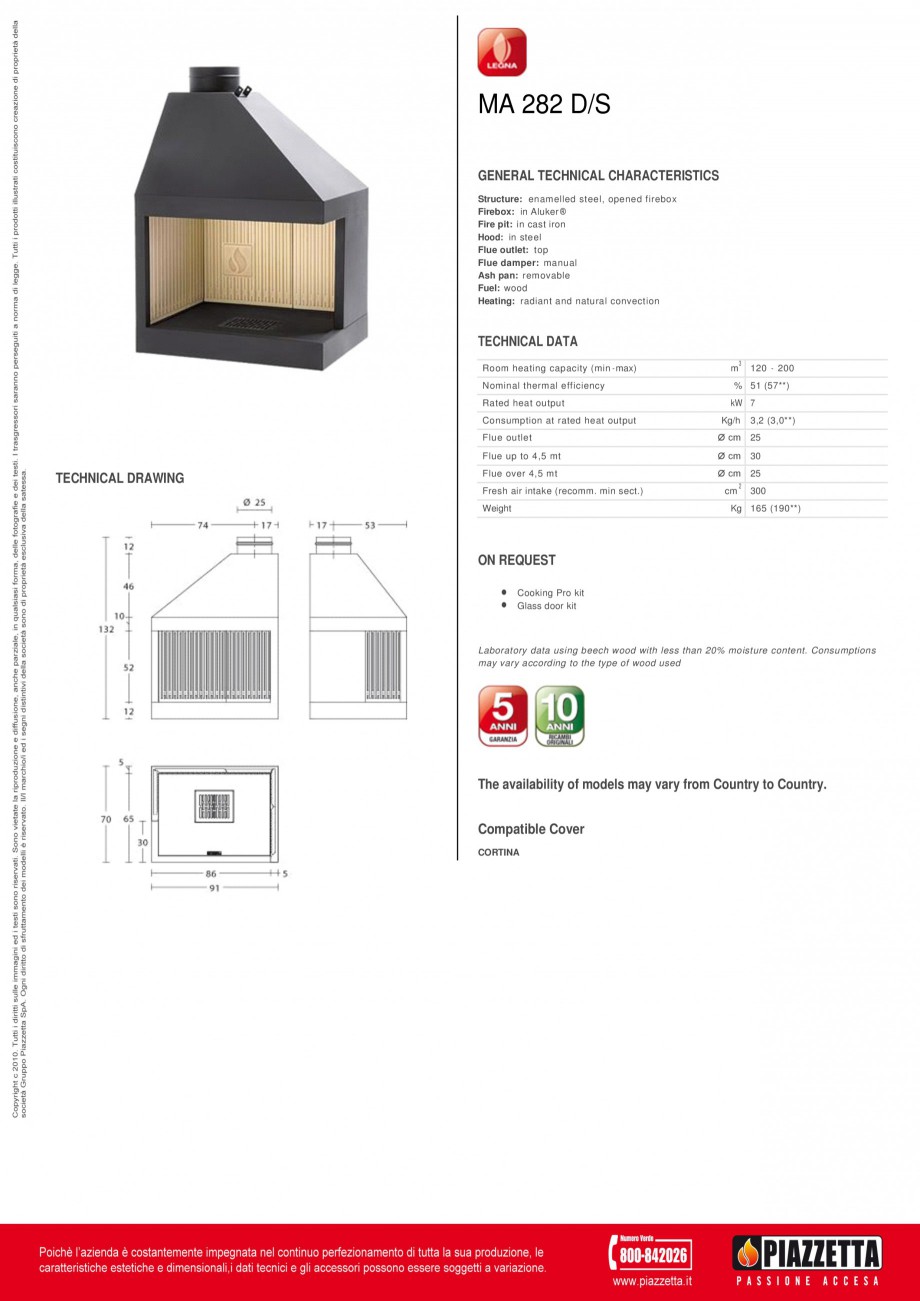

Pagina 1-Focar Piazzetta MA 282 DS Fisa tehnica Engleza MA 282 D/S
GENERAL TECHNICAL CHARACTERISTICS...
MA 282 D/S GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, opened firebox Firebox: in Aluker ® Fire pit: in cast iron Hood: in steel Flue outlet: top Flue damper: manual Ash pan: removable Fuel: wood Heating: radiant and natural convection TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency Rated heat output Consumption at rated heat output m 3 120 - 200 % 51 (57**) kW 7 Kg/h 3,2 (3,0**) Flue outlet 25 Flue up to 4,5 mt TECHNICAL DRAWING Ø cm Ø cm 30 Flue over 4,5 mt Ø cm 25 Fresh air intake (recomm. min sect.) Weight cm 2 300 Kg 165 (190**) ON REQUEST   Cooking Pro kit Glass door kit Laboratory data using beech wood with less than 20% moisture content. Consumptions may vary according to the type of wood used The availability of models may vary from Country to Country. Compatible Cover CORTINA ... ascunde
