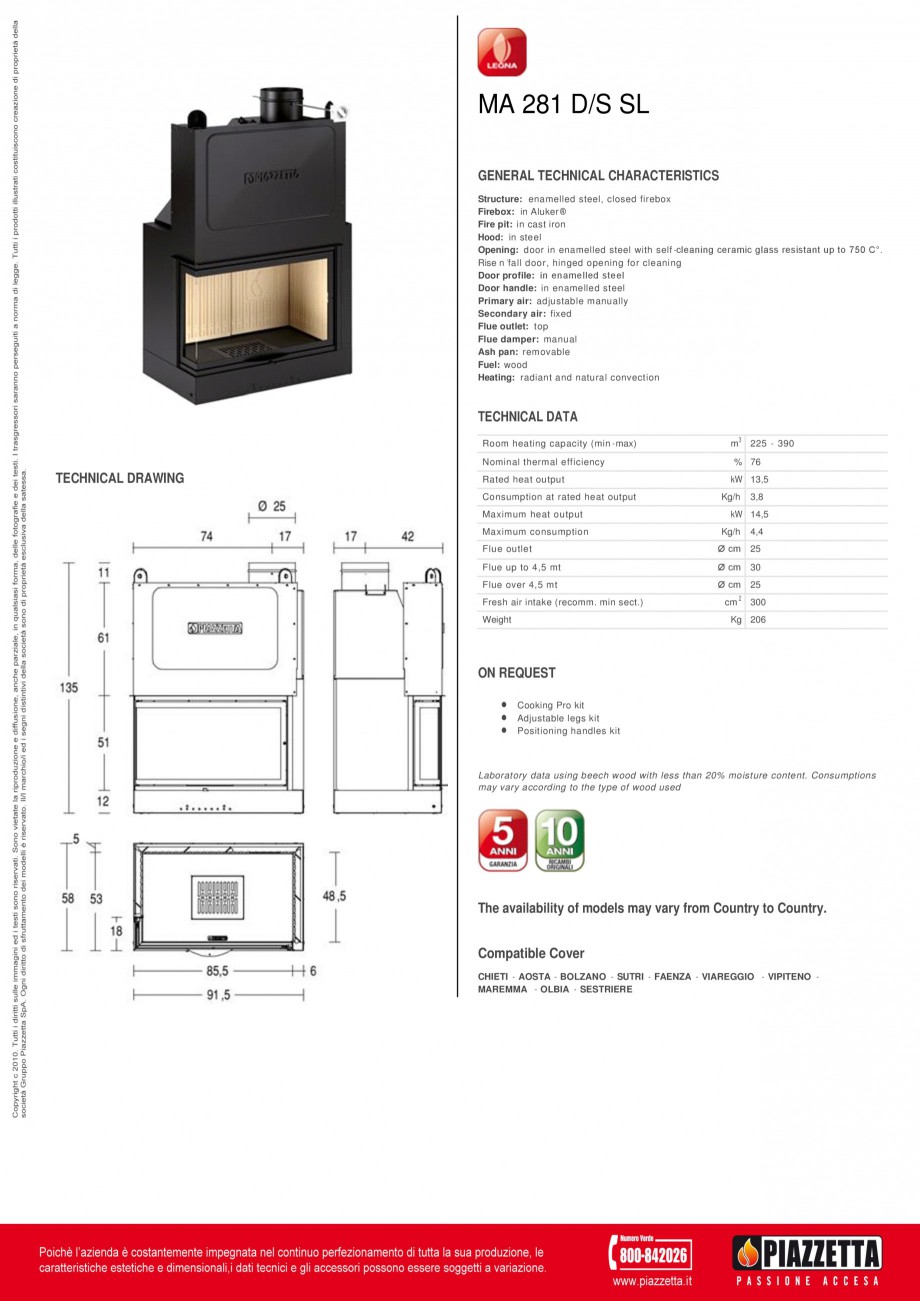

Pagina 1-Focar  Piazzetta MA 281 DS SL Fisa tehnica Engleza MA 281 D/S SL
GENERAL TECHNICAL CHARACTERISTICS...
MA 281 D/S SL GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Fire pit: in cast iron Hood: in steel Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°.  Rise n ’fall door, hinged opening for cleaning Door profile:  in enamelled steel   Door handle: in enamelled steel Primary air: adjustable manually Secondary air: fixed Flue outlet: top Flue damper: manual Ash pan: removable Fuel: wood Heating: radiant and natural convection TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency TECHNICAL DRAWING Rated heat output Consumption at rated heat output Maximum heat output Maximum consumption m 3 225 - 390 % 76 kW 13,5 Kg/h 3,8 kW 14,5 Kg/h 4,4 Flue outlet Ø cm 25 Flue up to 4,5 mt Ø cm 30 Flue over 4,5 mt Ø cm 25 Fresh air intake (recomm. min sect.) Weight cm 2 300 Kg 206 ON REQUEST    Cooking Pro kit Adjustable legs kit Positioning ... ascunde
