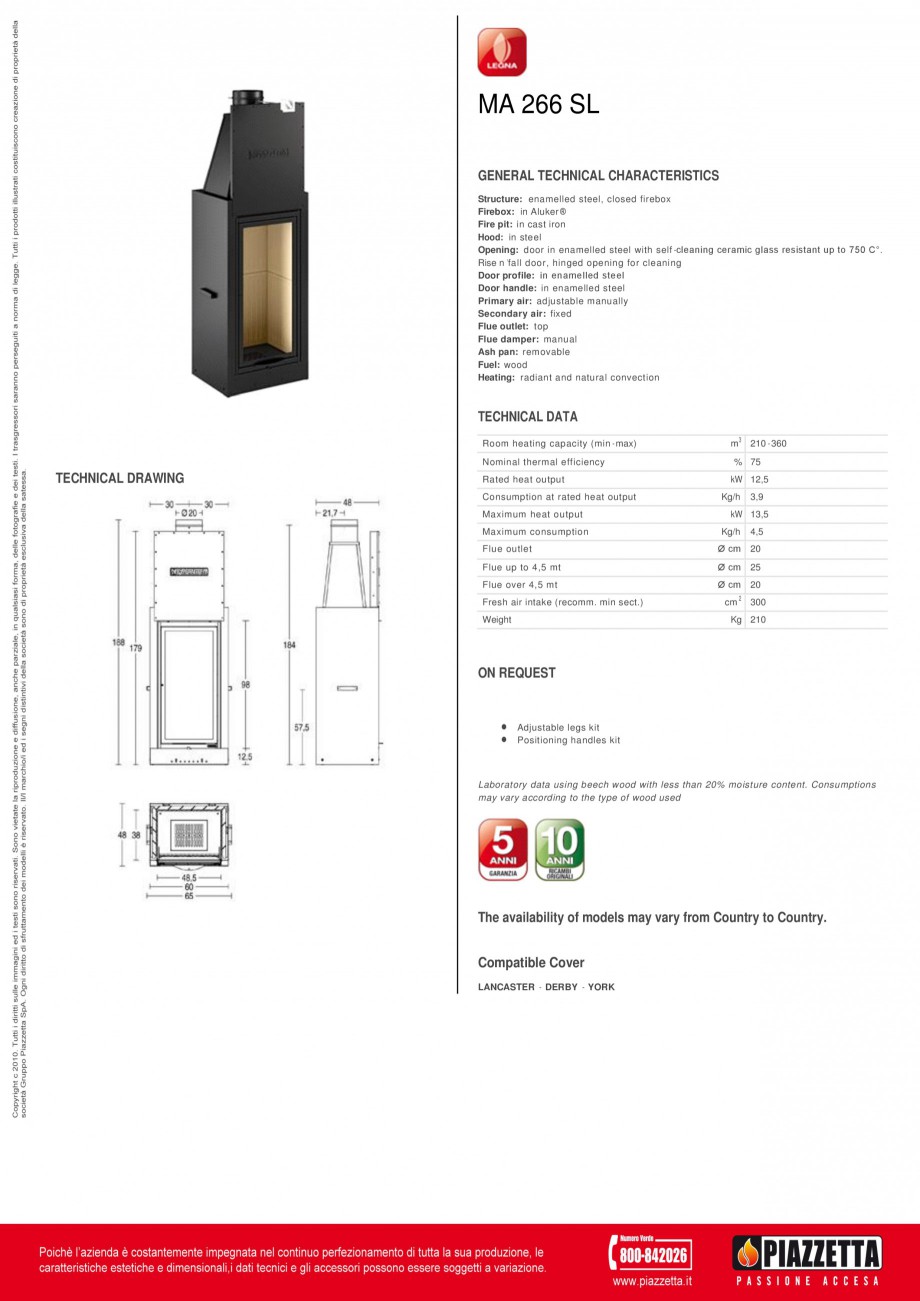

Pagina 1-Focar Piazzetta MA 266 SL Fisa tehnica Engleza MA 266 SL
GENERAL TECHNICAL CHARACTERISTICS...
MA 266 SL GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Fire pit: in cast iron Hood: in steel Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°.  Rise n ’fall door, hinged opening for cleaning Door profile:  in enamelled steel   Door handle: in enamelled steel Primary air: adjustable manually Secondary air: fixed Flue outlet: top Flue damper: manual Ash pan: removable Fuel: wood Heating: radiant and natural convection TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency TECHNICAL DRAWING Rated heat output Consumption at rated heat output Maximum heat output Maximum consumption m 3 210 - 360 % 75 kW 12,5 Kg/h 3,9 kW 13,5 Kg/h 4,5 Flue outlet Ø cm 20 Flue up to 4,5 mt Ø cm 25 Flue over 4,5 mt Ø cm 20 Fresh air intake (recomm. min sect.) Weight cm 2 300 Kg 210 ON REQUEST     Adjustable legs kit Positioning handles kit Laborat ... ascunde
