Focar Piazzetta MA 260 SL B

Limba: Engleza
4 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

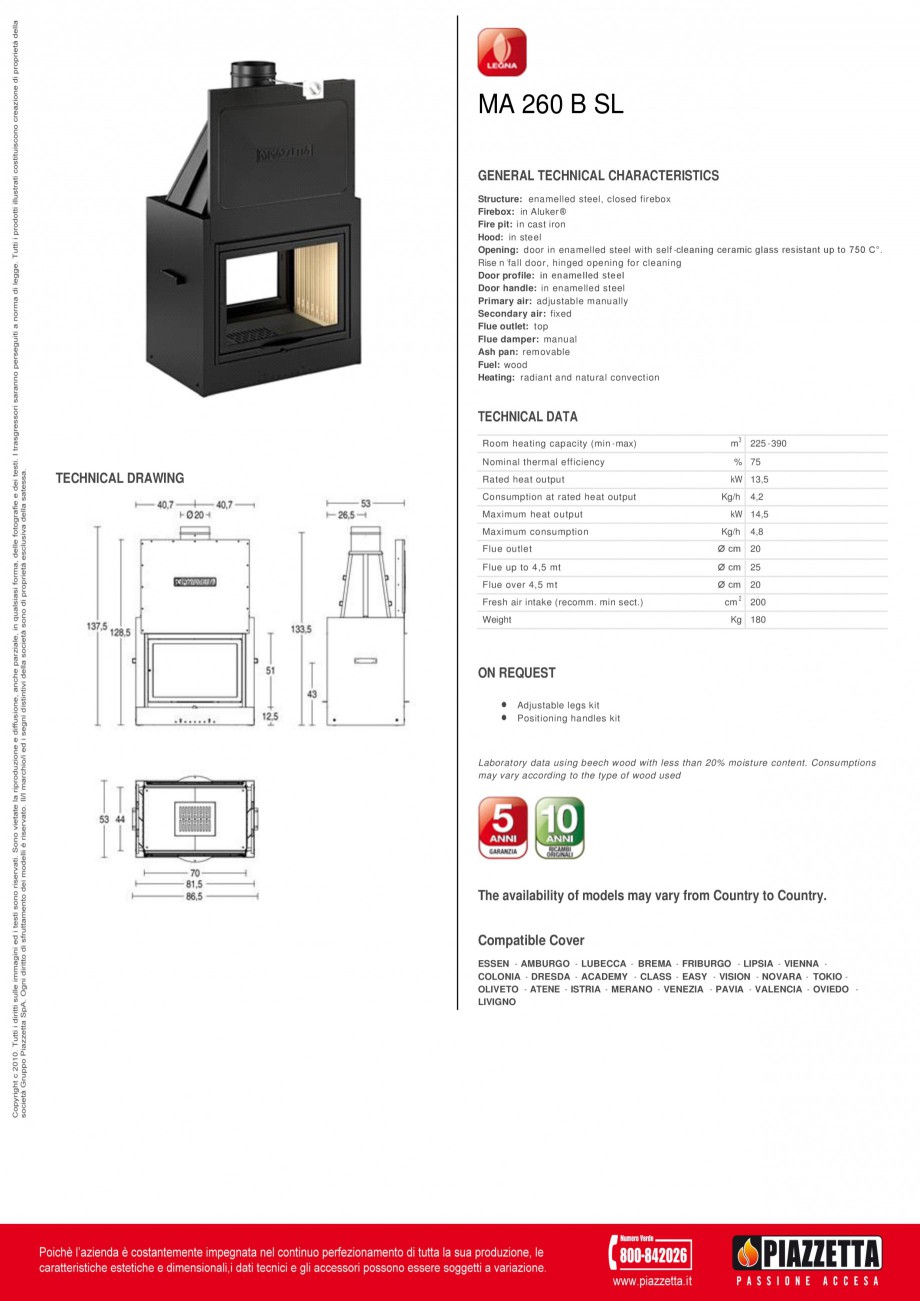

Pagina 1-Focar Piazzetta MA 260 SL B Fisa tehnica Engleza MA 260 B SL
GENERAL TECHNICAL CHARACTERISTICS...
MA 260 B SL GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Fire pit: in cast iron Hood: in steel Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°.  Rise n ’fall door, hinged opening for cleaning Door profile:  in enamelled steel   Door handle: in enamelled steel Primary air: adjustable manually Secondary air: fixed Flue outlet: top Flue damper: manual Ash pan: removable Fuel: wood Heating: radiant and natural convection TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency TECHNICAL DRAWING Rated heat output Consumption at rated heat output Maximum heat output Maximum consumption m 3 225 - 390 % 75 kW 13,5 Kg/h 4,2 kW 14,5 Kg/h 4,8 Flue outlet Ø cm 20 Flue up to 4,5 mt Ø cm 25 Flue over 4,5 mt Ø cm 20 Fresh air intake (recomm. min sect.) Weight cm 2 200 Kg 180 ON REQUEST   Adjustable legs kit Positioning handles kit Laborato ... ascunde
